Automatic SMT Stencil Cleaning Machine Full Pneumatic Stencil Cleaning Machine for SMT line

Product Overview

Description

Automatic SMT Stencil Cleaning Machine Full Pneumatic Stencil Cleaning Machine for SMT line



Model:CDD-750









Introduction

Due to the miniaturization of components, the screen printed stencil is becoming smaller and smaller, resulting in the easy residue and difficult cleaning of solder paste in the stencil. As the residue of solder paste directly leads to poor printing, screen cleaning becomes very important. Cleaning methods include solution pressure spraying and ultrasonic cleaning. However, due to the potential danger of ultrasonic wave to solution volatilization and the damage to the adhesive used for fixing in the steel mesh, the industry gradually tends to adopt the solution pressure spraying method. It is better to completely control the whole pneumatic cleaning without any danger to solution volatilization. Due to the development of lead-free welding, many highly demanding screen plates need to be cleaned immediately after printing, Generally, hydrocarbon is used for pressure spray cleaning.

Product feature

Used for cleaning solder paste, red glue and screen printing ink.

After five times filtration, the solution is recycled and has good economy.

Compressed air is completely used as energy, and there is no potential safety hazard.

The machine shall be cleaned according to the set procedures and the operation shall be standardized to reduce the uncleanness of manual cleaning.

Cleaning time and air drying time can be adjusted according to demand.

The cleaning pressure can be adjusted independently, which is suitable for any material stencil.

Rotating convection cleaning on both sides will not damage the stencil tension.

Automatic solution adding and discharging system.

Integrated global quality control devices, durable.

Modular controller, easy maintenance.





Product Parameter

Input air pressure: 0.5 -- 0.7MPa.

Control mode: fully pneumatic, fully automatic.

Cleaning time setting: 0-999 seconds adjustable.

Air drying time setting: 0-999 seconds adjustable.

Five filter system: 10 μ M -- activated carbon -- reducing resin -- 5 μ m--1 μ m.

Full pneumatic operation: 22 nozzles and enhanced pneumatic motor 360 ° rotating spray cleaning.

Outlet size: Φ125mm× 30mm.

Logic control: SMC pneumatic components imported from Japan and FESTO time controller from Germany are adopted.

Working liquid storage tank: 20-60l.

Cleaning screen size: maximum 760 (L) × 760(W) × 45 (H) mm (special size to be customized).

Internal and external materials: the external materials are made of national standard 304 2mm, and the cleaning tank and liquid storage tank are made of national standard 1.5mm stainless steel.

Pneumatic pump: American Ingersoll brand.

Machine size: W 850mm × L 950mm × H 1700mm .

Machine weight: 220kg

Movement mode: Pb high-strength universal caster with height adjustment with diameter of 80 imported from Korea.

Sealing mode of liquid storage tank: fully enclosed liquid storage tank, with a minimum liquid storage capacity of 20L and a maximum storage capacity of 60L during operation. The liquid storage tank cover is fixed with three-dimensional strong pressure elastic lock, and the cleaning liquid reaches a completely closed state to prevent the volatilization loss of cleaning liquid.

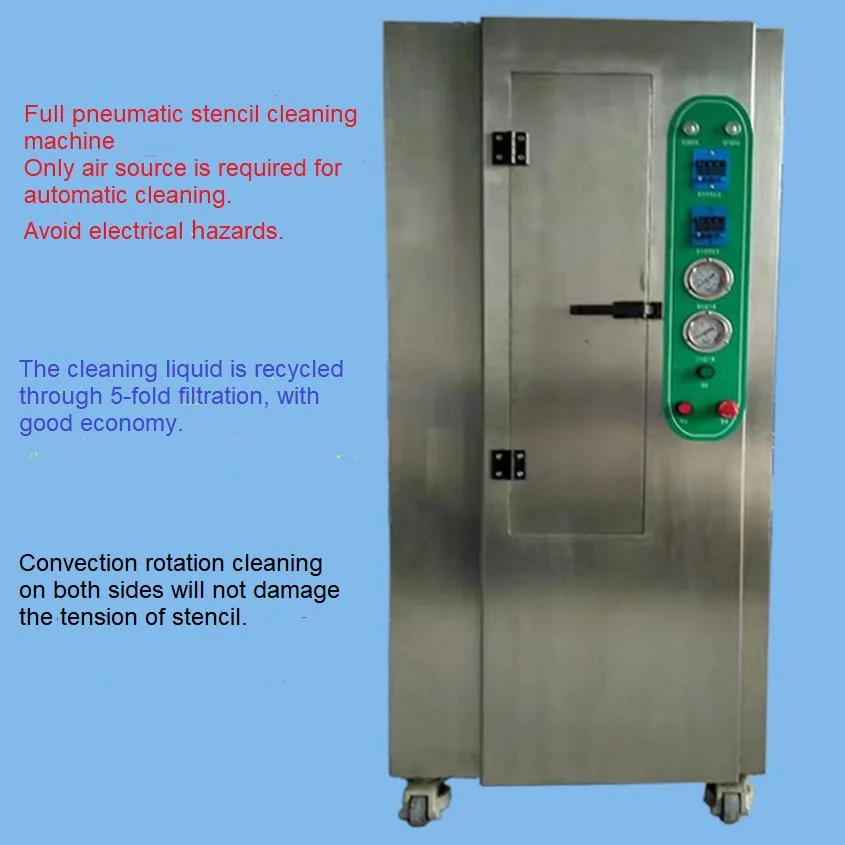

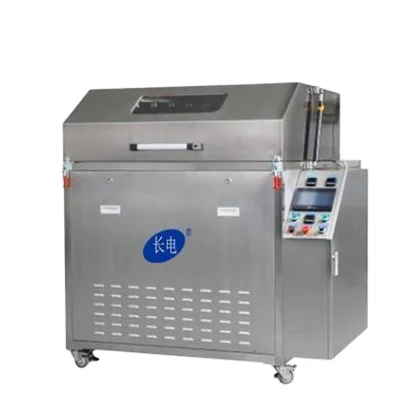

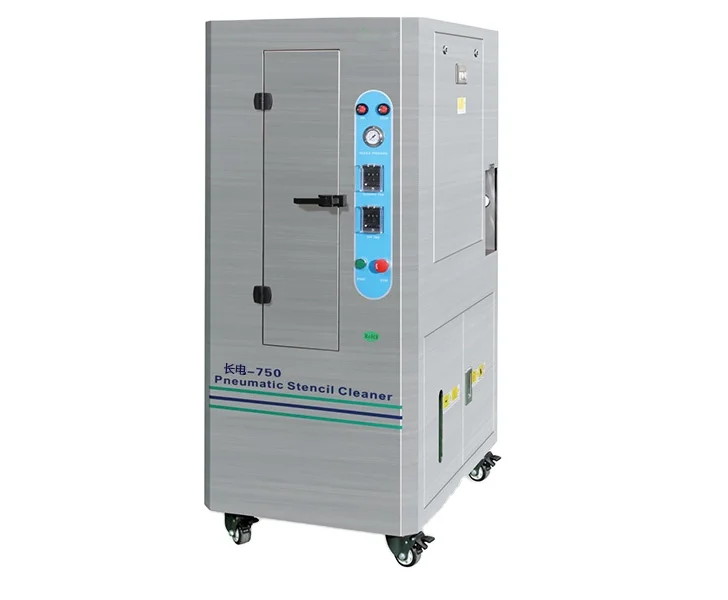

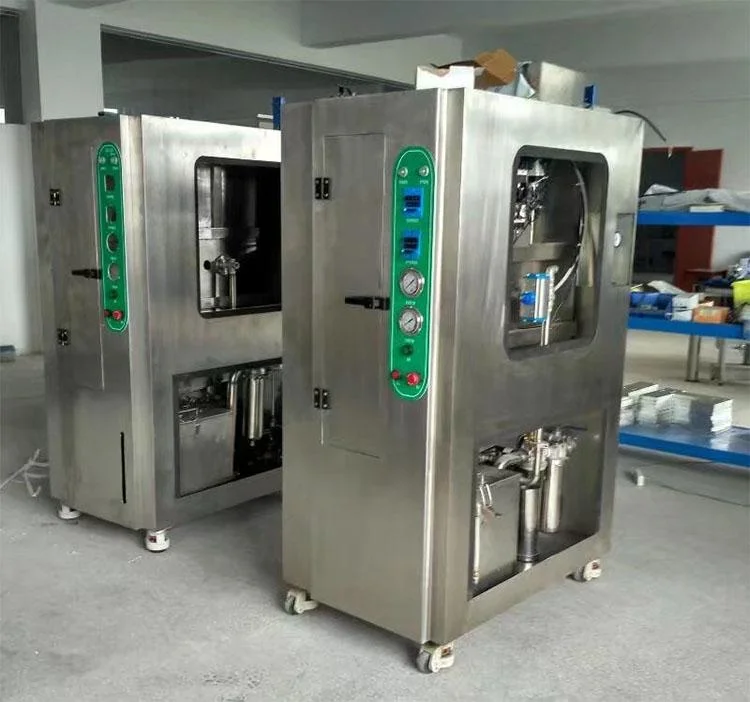

Machine Picture
