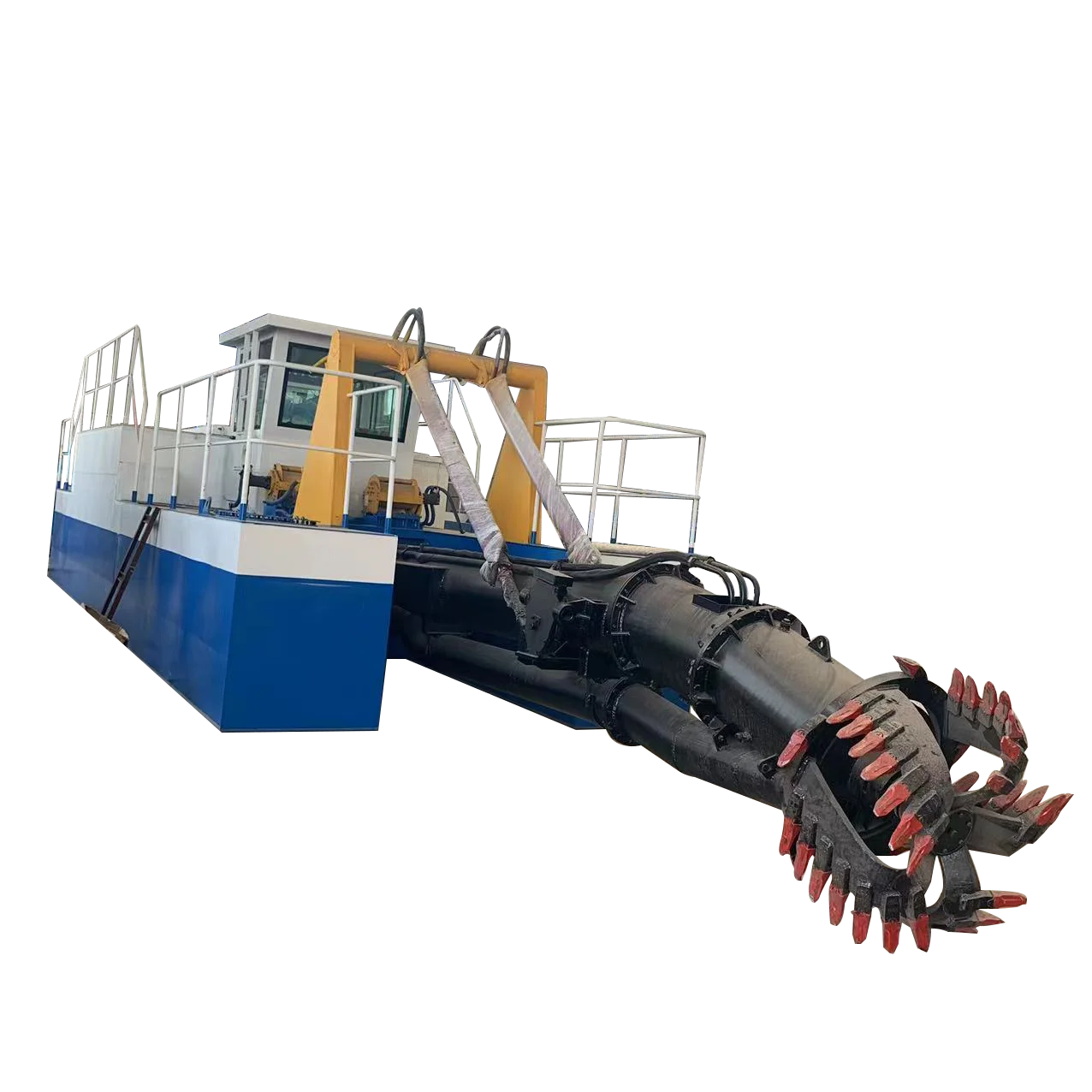

China Large capacity Dismountable sand dredger machine Sand Dredger Manufacturers
- Category: >>>
- Supplier: Qingzhou Keda Environment Protection Machinery Co. Ltd
Share on (1600535796912):
Product Overview
Description
Product Description

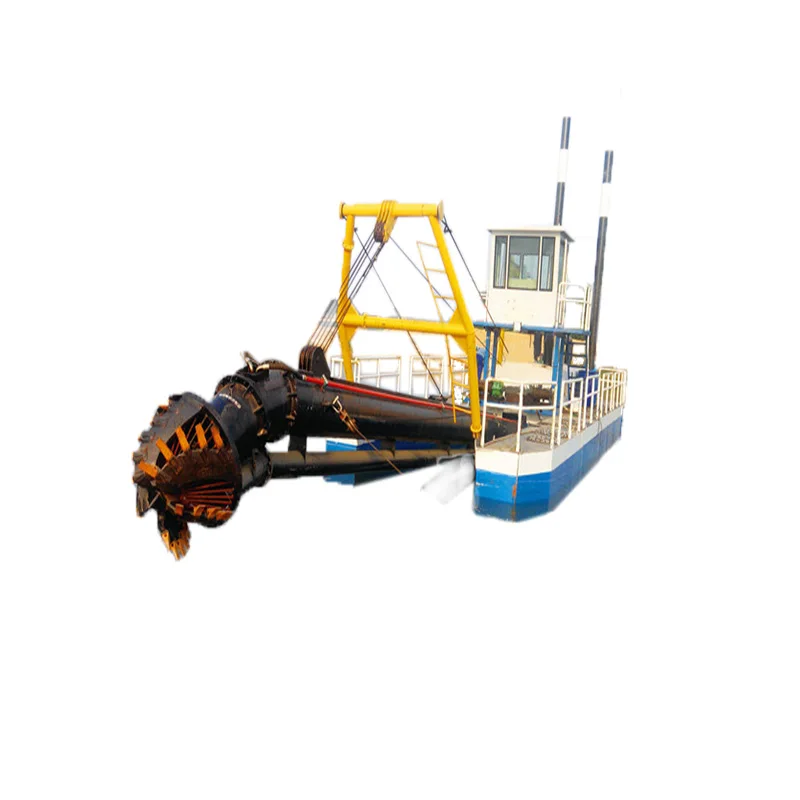

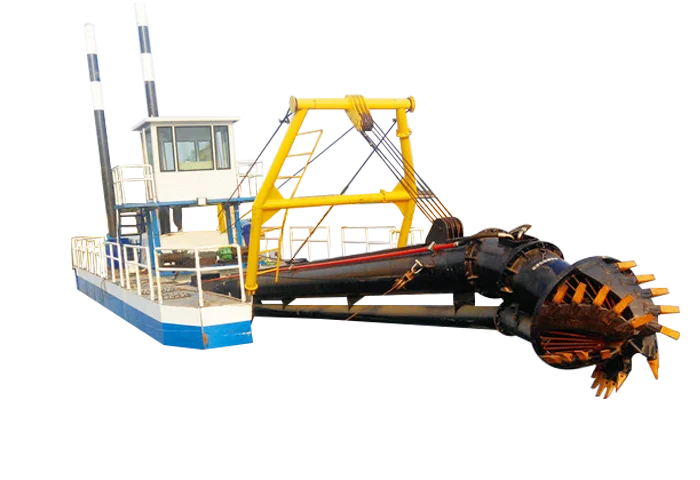

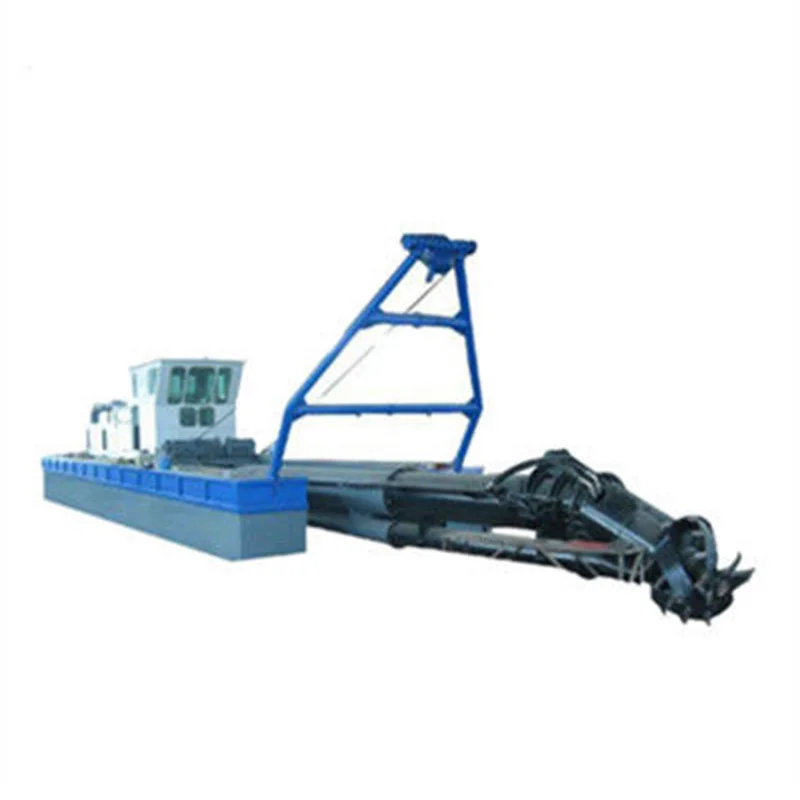

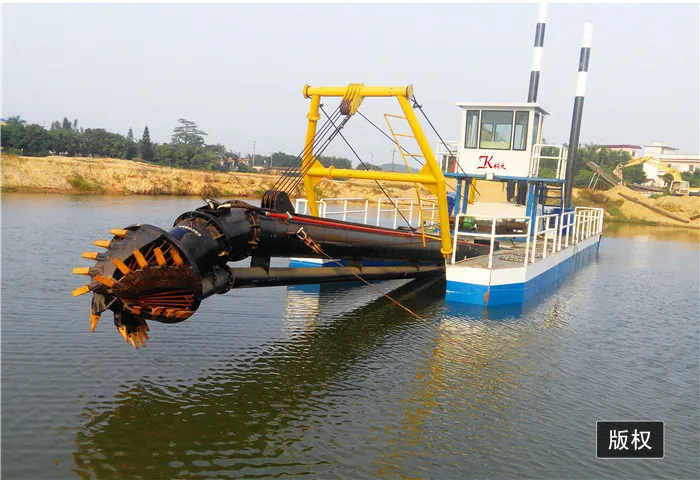

Cutter Suction Dredger For Sand Dredging
We are a professional manufacturer of dredgers with more than 10 years of design and development experience.
We have many type dredger:Cutter suction dredger, bucket chain dredger, amphibious dredger, sand jet suction dredger.
Modular structure -Easy to install
1. Floating body (double)
2. Bridge

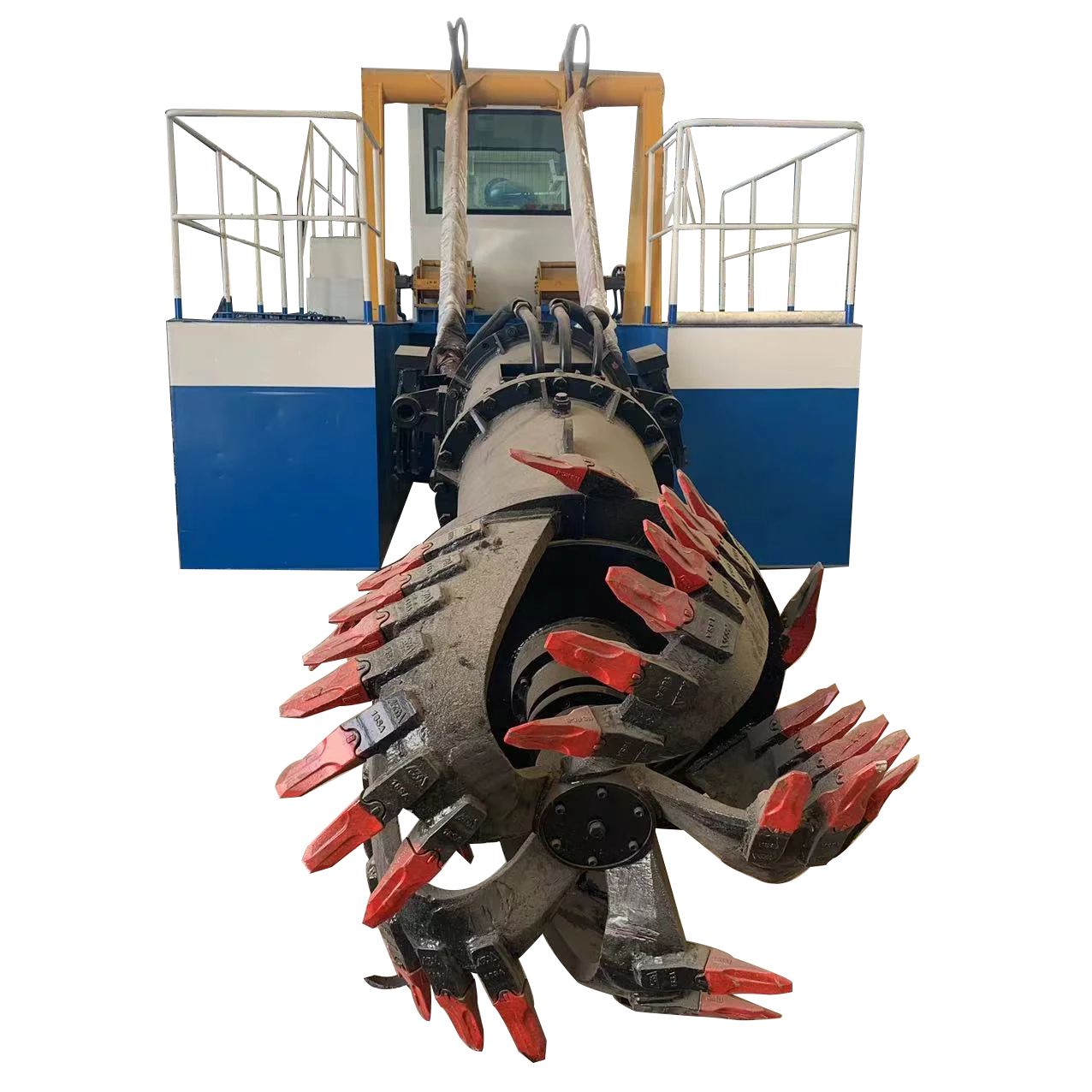

3. Reamer head
4. Cockpit
5. Locating pile
Professional Design
1. Customized on demand
2. Professional and technical team
3. One-stop solution
4. Variety of professional programs
Quality Control
1. Test in workshop
2. Test in testing pool
3. Install at work site and debug
Manufacturing Technique
6 inch Cutter Suction Dredger CSD150 | ||
ITEM | DATA | |
Model | CSD150 | |
Workload | 450m3/h | |
Dredging Depth | 5m | |
Loa(L*W*H) | 13*3.2*1.26m | |
Suction Diametre | 250mm | |
Discharge Diametre | 200mm | |
Cutter Power | 25kw | |
Main Engine | Cummins/Weichai | |
Discharge distance | 500m | |
Lift | 36m | |
8 inch Cutter Suction Dredger CSD200 | ||
ITEM | DATA | |
Model | CSD200 | |
Workload | 750m3/h | |
Dredging Depth | 6m | |
Loa(L*W*H) | 21*4.7*1.2m | |
Suction Diametre | 300mm | |
Discharge Diametre | 260mm | |
Cutter Power | 30kw | |
Main Engine | Cummins/Weichai | |
Discharge distance | 700m | |
Lift | 49m | |
10 inch Cutter Suction Dredger CSD250 | ||
ITEM | DATA | |
Model | CSD250 | |
Workload | 1100m3/h | |
Dredging Depth | 10m | |
Loa(L*W*H) | 28*5.2*1.5m | |
Suction Diametre | 350mm | |
Discharge Diametre | 300mm | |
Cutter Power | 55kw | |
Main Engine | Cummins/Weichai | |
Discharge distance | 1000m | |
Lift | 56m | |
12 inch Cutter Suction Dredger CSD300 | ||
ITEM | DATA | |
Model | CSD300 | |
Workload | 2200m3/h | |
Dredging Depth | 12m | |
Loa(L*W*H) | 34.5*7*2m | |
Suction Diametre | 530mm | |
Discharge Diametre | 450mm | |
Cutter Power | 88kw | |
Main Engine | Cummins/Weichai | |
Discharge distance | 1500m | |
Lift | 57m | |
14 inch Cutter Suction Dredger CSD350 | ||
ITEM | DATA | |
Model | CSD350 | |
Workload | 3000m3/h | |
Dredging Depth | 12m | |
Loa(L*W*H) | 34.5*7*2m | |
Suction Diametre | 540mm | |
Discharge Diametre | 510mm | |
Cutter Power | 88kw | |
Main Engine | Cummins/Weichai | |
Discharge distance | 2000m | |
Lift | 58m | |
