LiFePO4 battery Main Features | Applications |
1.7000 cycle life@50%DOD | 1.E-Bus |
2.Highest safe chemistry with high enery density | 2.Golf-Carts |
3.No memory effect | 3.E-Motocycle |
4.High energy density | 4.Robots |
5.Low internal resistance | 5.Medical Equipment |
6.Low self-discharge character | 6.Solar Street Lighting |
7.Muti-kinds of capacity optional | 7.Lead Acid Replacement |
8.Friendly to the environment:No Cd, Hg, Pb | 8.Energe Storage System |
9.Uninterrupted Power Supply |


LifePO4 Model | KH-LFP1250 | KH-LFP12100 | KH-LFP12150 | KH-LFP12200 | ||||
Norminal Voltage | 12.8V | |||||||
Norminal capacity | 50AH | 100AH | 150AH | 200AH | ||||
Norminal energy | 640WH | 1200WH | 1800WH | 2400WH | ||||
Dimension(mm) | 229*138*208 | 260*169*210 | 483*170*240 | 483*170*240 | ||||
Approx.weight | 5.7KG | 13.1KG | 19.2KG | 21KG | ||||
Case | Plastic | |||||||
Material | LiFePO4 | |||||||
Electrical characteristics | ||||||||
End of charge voltage(cell) | 3.75V | |||||||
End of discharge voltage(cell) | 2.1V | |||||||
Continuous charge current | 25A | 50A | 75A | 100A | ||||
Continuous discharge current | 25A | 50A | 75A | 100A | ||||
Max pulse discharge current | 30A | 100A | 150A | 200A | ||||
Internal resistance | 60mΩ | 45mΩ | 30mΩ | 30mΩ | ||||
Operating temperature(charge) | 0°C ~ 55°C | |||||||
Operating temperature(discharge) | -30°C ~ 55°C | |||||||
Storage temperature | -20°C ~ 60°C | |||||||

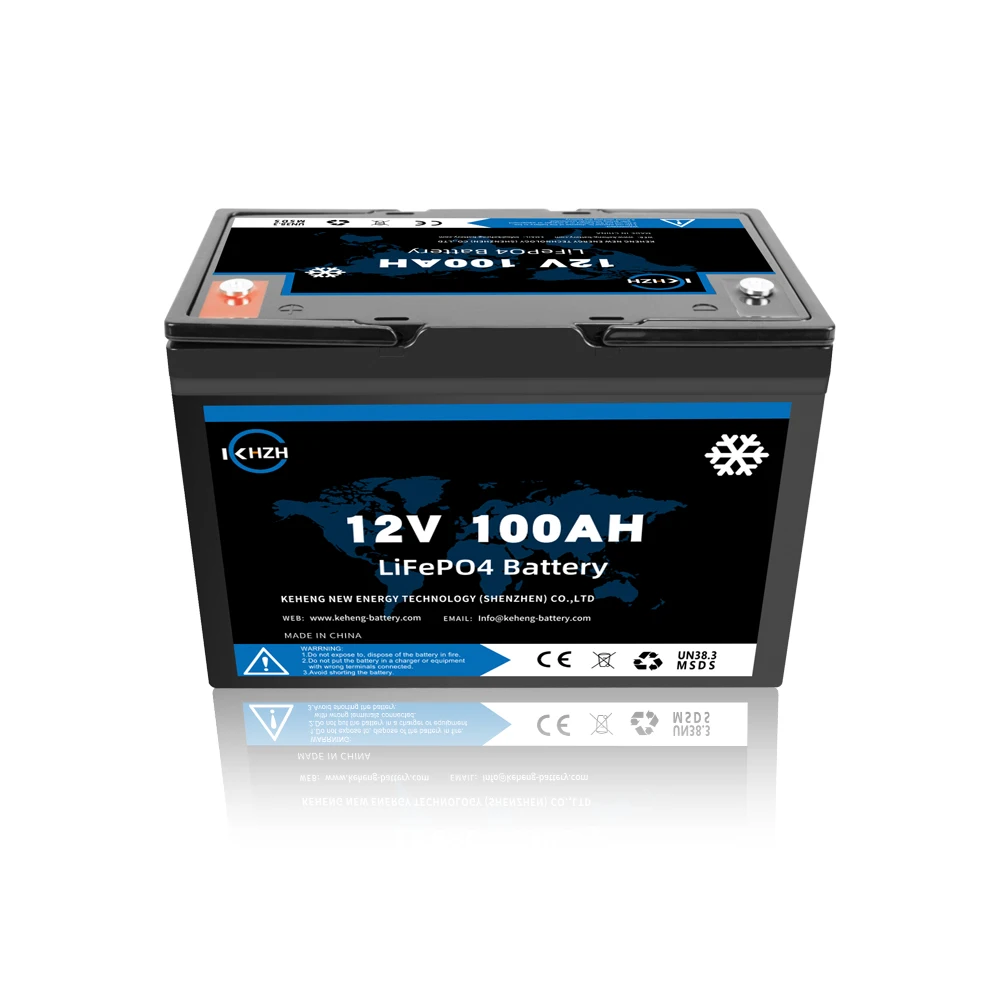

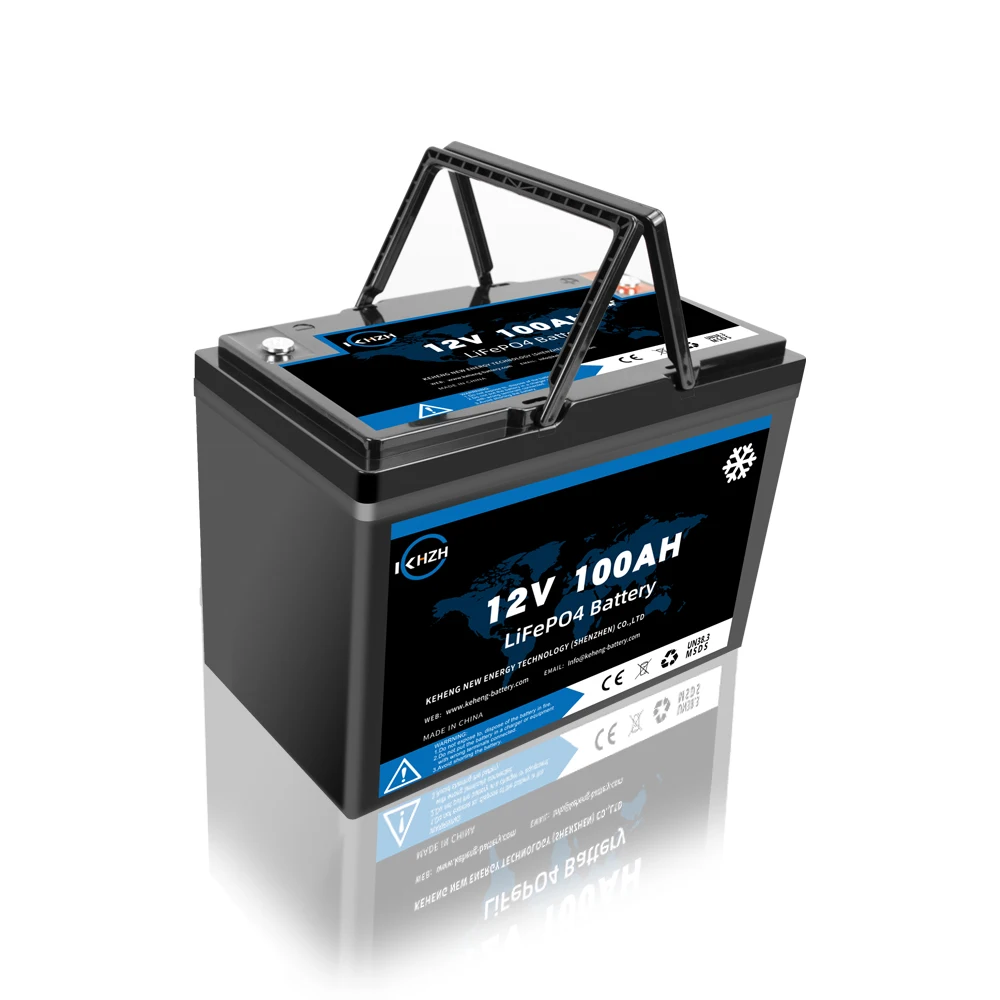

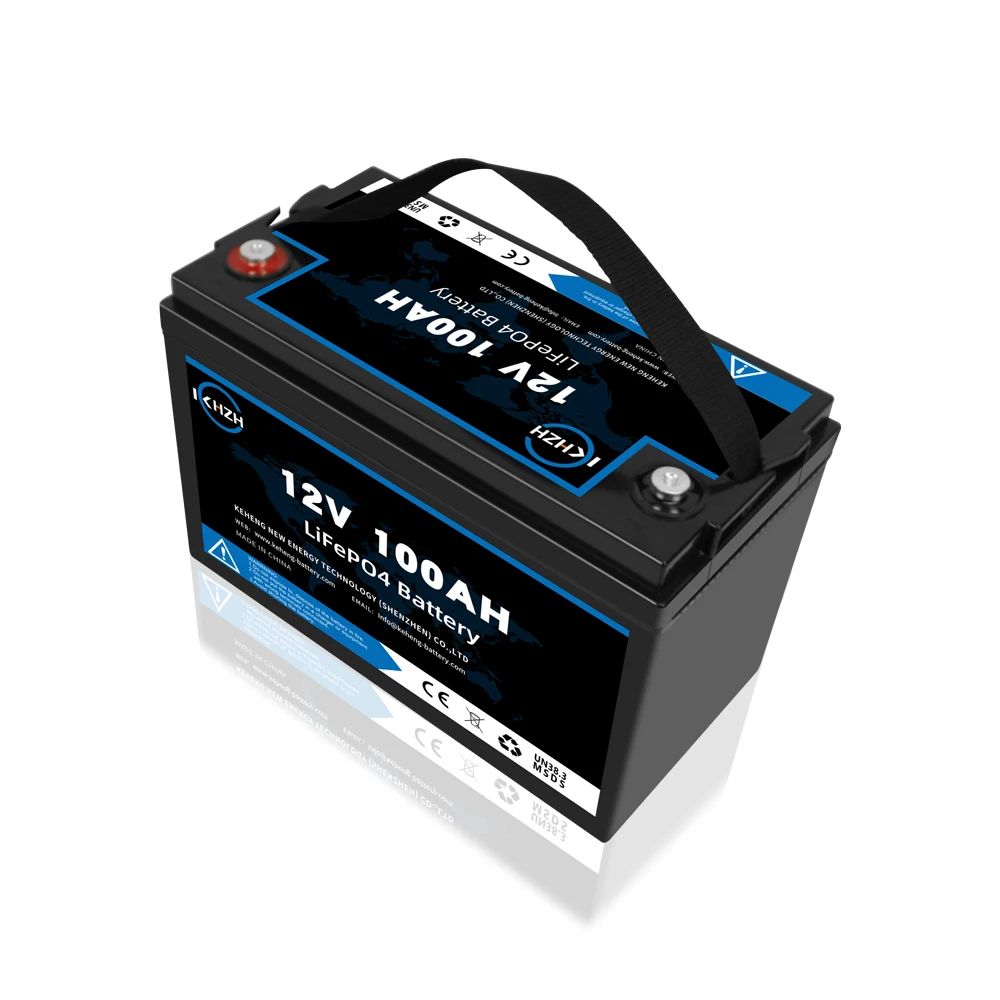

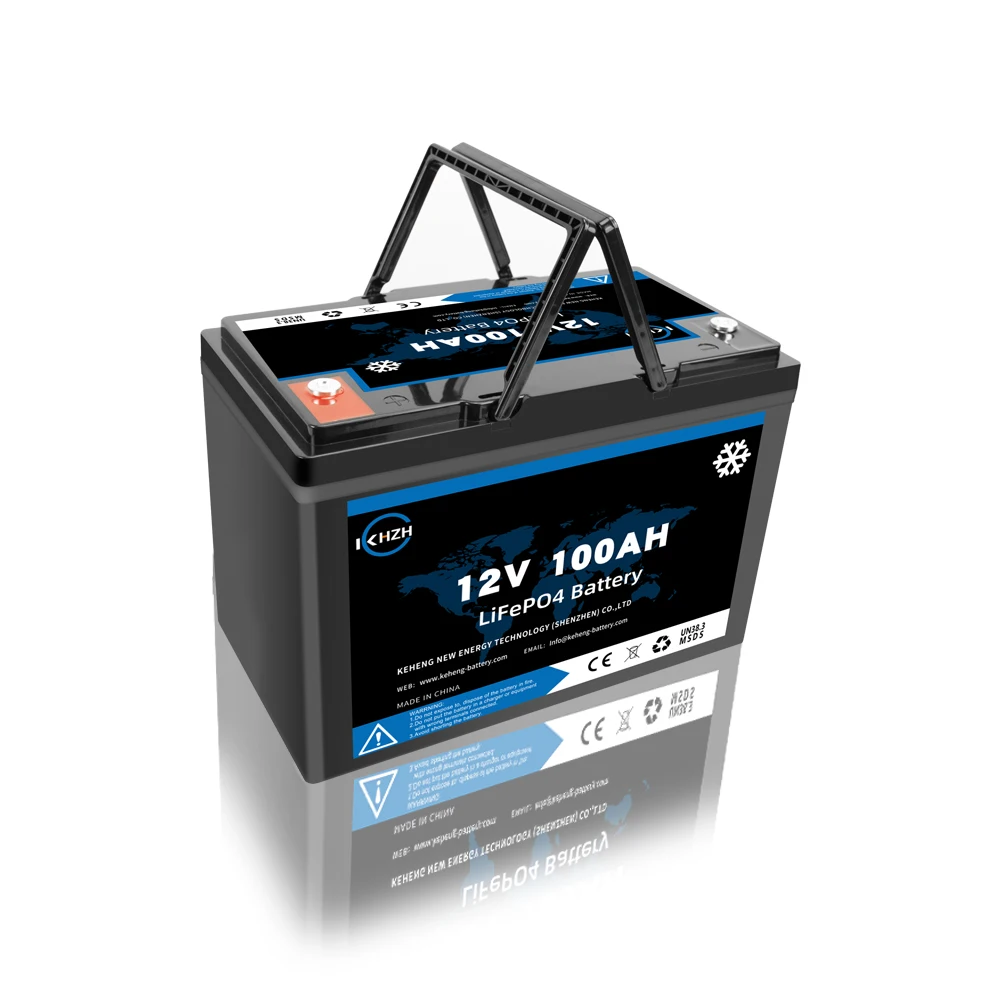

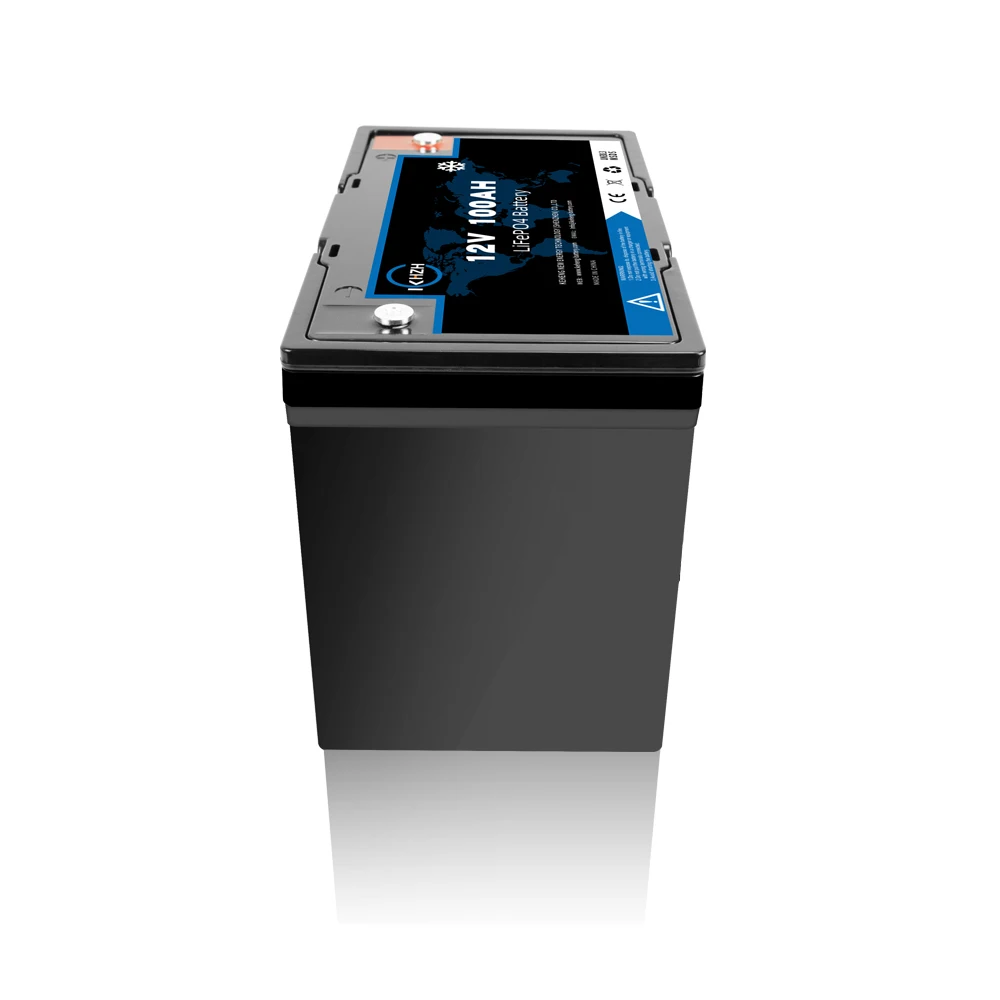

Model | KH-LFP12100 |
Norminal Voltage | 12.8V |
Norminal capacity | 100AH |
Norminal energy | 1200WH |
Dimension(L*W*H, MM) | 260*169*210 |
Approx.weight | 13.1KG |
Case | Plastic |
Brand Name | KeHeng/OEM/ODM |
Certification | MSDS, CE, UN38.3 |
Cycle life | 7000 times |
Material | LiFePO4 |
