Products Description

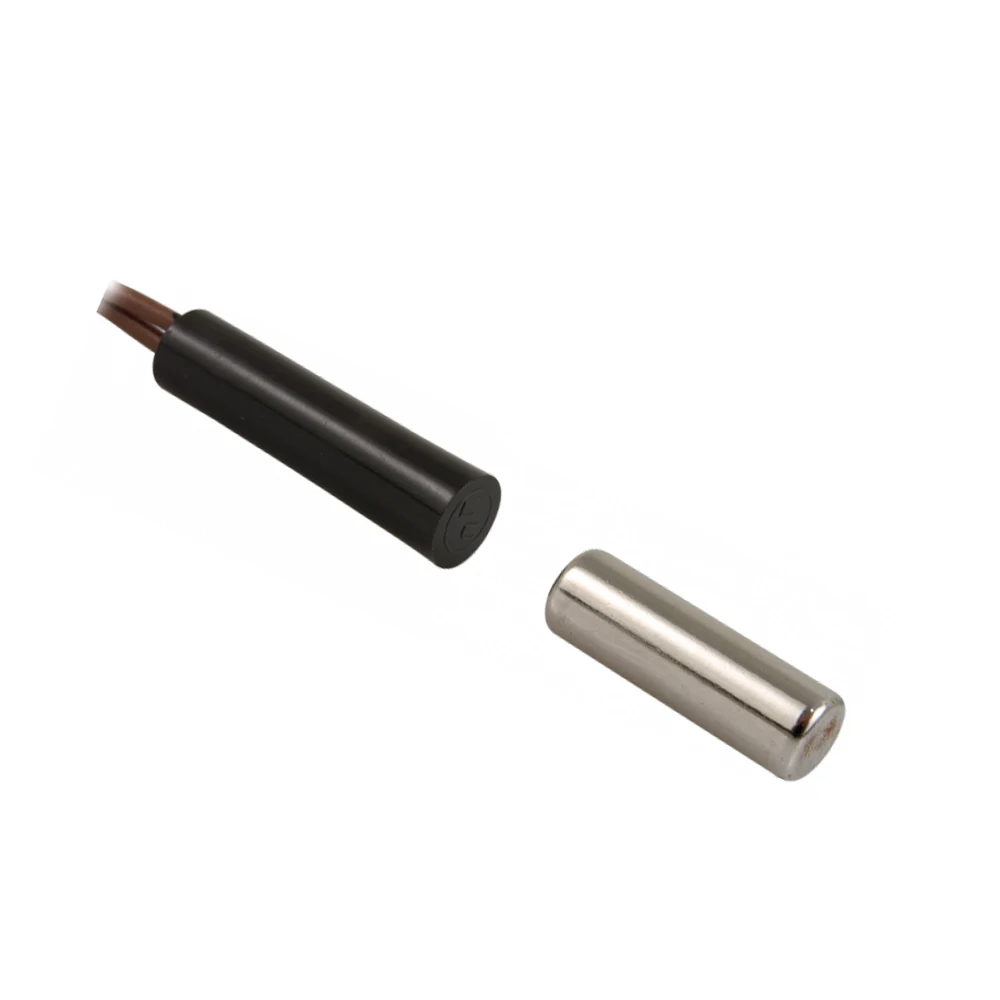

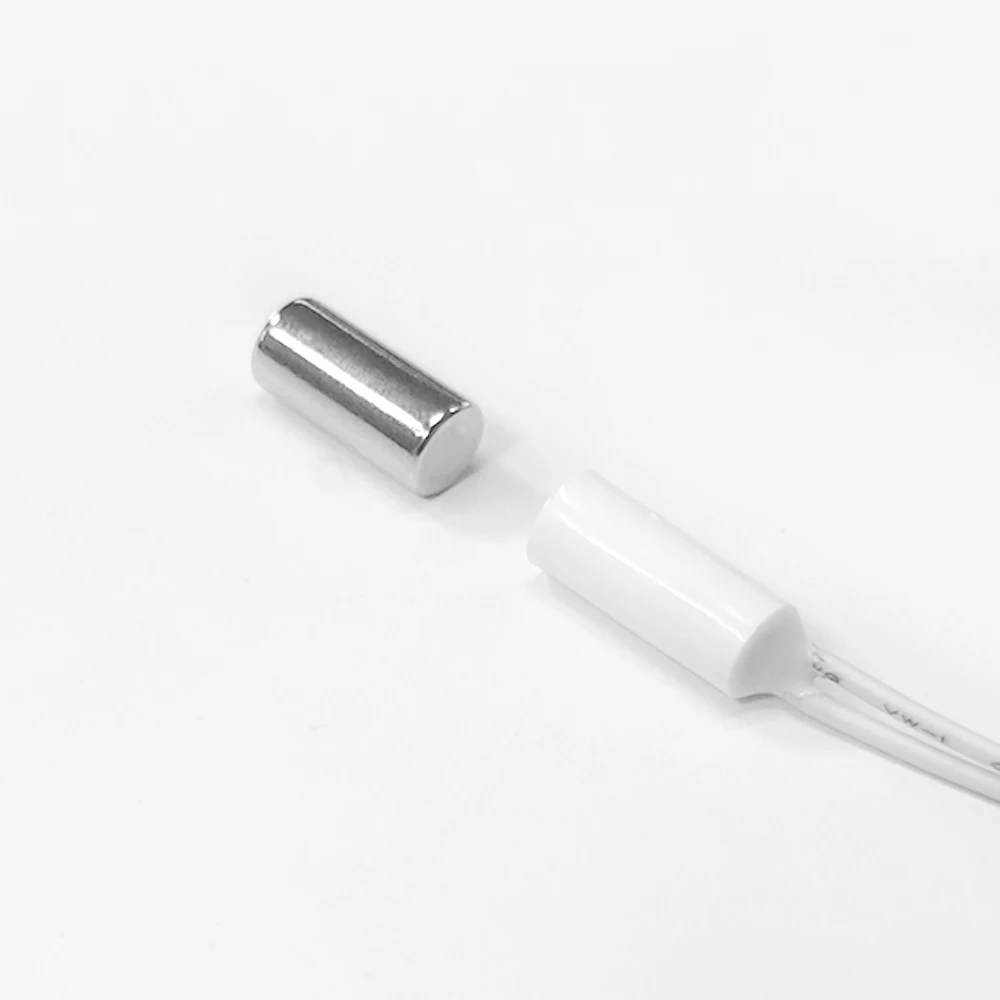

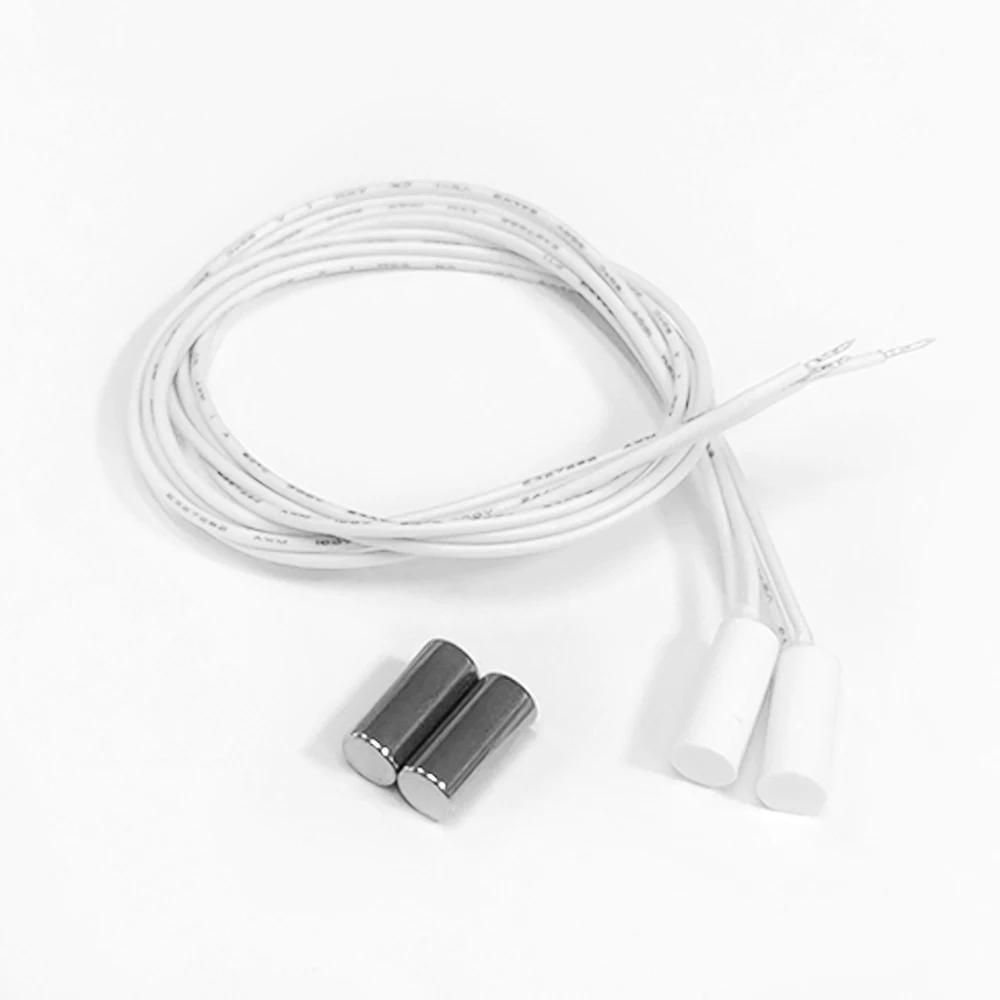

Recessed mounted door magnetic contacts switch MCS-34A
Magnetic contact is widely used for alarm system(panel) to detect state of door or window.
It consists of reed switch part and magnet part .
NC type we define:
When door is closed, reed switch is effected by magnet and switch ON; when door is open, reed switch is effected by magnet and
switch OFF, then output signal to panel or trigger alarm.
When door is closed, reed switch is effected by magnet and switch ON; when door is open, reed switch is effected by magnet and
switch OFF, then output signal to panel or trigger alarm.
Product name | cylindrical magnetic sensor with strong magnet |
Model NO. | MCS-34A |
Installation | flush mounted / press fit |
Operation gap | 15MM |
Output type | NC |
Housing material | ABS |
Housing color | white color and brown coloroptional |
Other color | can be customized |
Connection | wire |
Wire length | 350±20mm |
Switching voltage | 100VDC Max. |
Switch current | 0.5A Max. |
Contact rating | 10W Max. |
Switch working life | 100000000 times |
Working temperature | -20~80℃ |
Customized | wires type / wires length / others |
Certification | CE, ROHS, EN50131 grade2 |

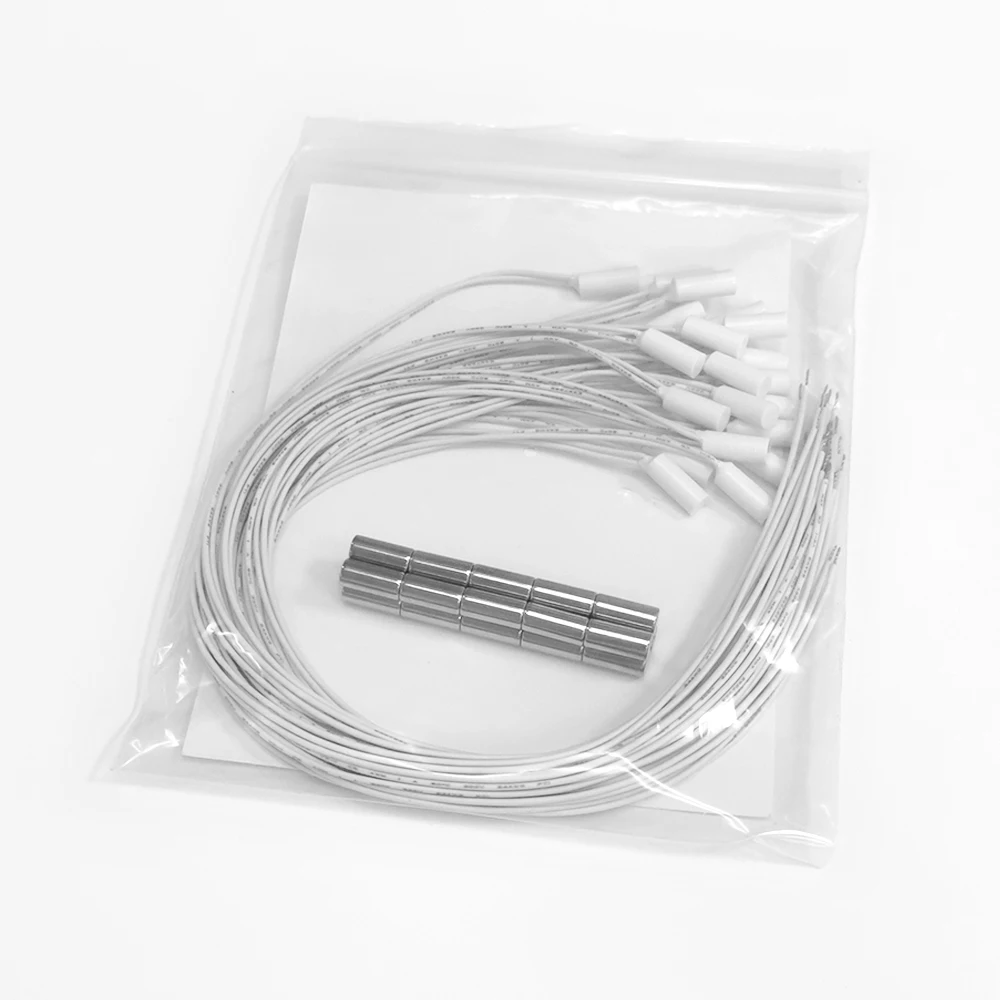

Product packaging
Package | 20pcs/bag |
Carton package | 1500pcs |
G.W. | 16.00kgs/ctn |
N.W. | 15.50kgs/ctn |
Carton size | 38*30*30CM |
Shipment way | By sea/ air/ DHL/FEDEX/UPS/TNT express etc. |

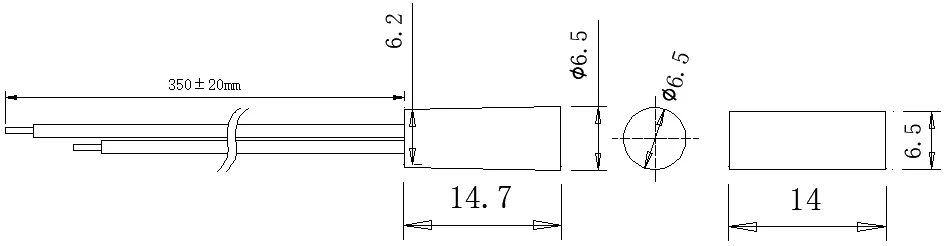

Installation drawing
