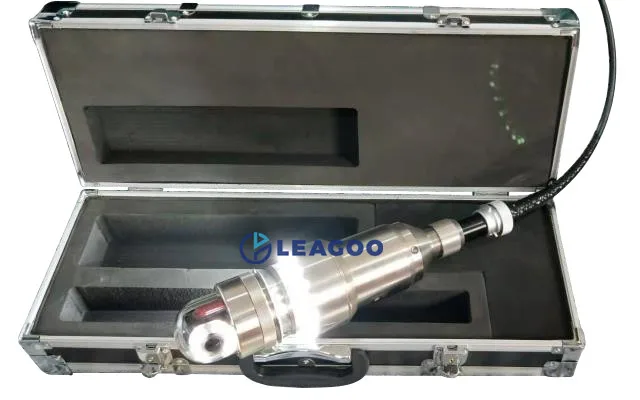

360 Degree Rotating Downhole TV Mini Size Borehole Camera
- Category: >>>
- Supplier: Henan Leagoo Electro-Mechanical Co. Ltd.
Share on (1600535865340):
Product Overview
Description
Product Description

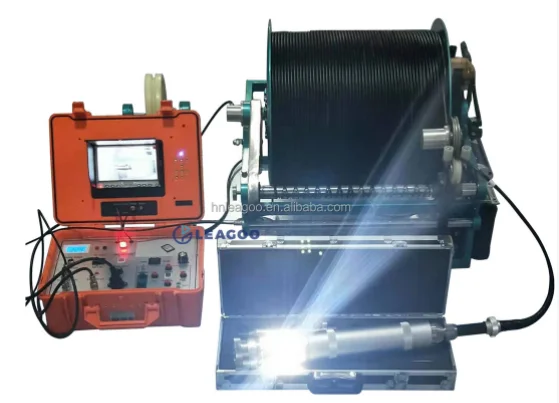

360 Degree Rotating Downhole TV Mini Size Borehole Camera
*Borehole Camera is a special instrument for well testing, it uses the latest television camera technology, so well wall can be reflected on the monitor very clearly to the ground. The images can be saved on the disk, and it provides the reliable data for the various geological conditions and well.
*Borehole Camera is suitable for the engineering geology, Hydro-geology, Geo-technical engineering, mining and petro geology and other industrial. It can be used to detect fissure, dislocation, falling objects, blockage of filter pile hole, position of fluid sand, bedrock fissures.
Features
360 Degree Rotating Downhole TV Mini Size Borehole Camera
1. Max 2000m inspection depth, pressure bear 20MPA.
2. Dual rotary, single rotary and panoramic camera for options.
3. LED light and zooming are adjustable.
4. 7", 10" and 12'' LED HD monitor for options.
5. Video recording with meter counter .
Main Parts

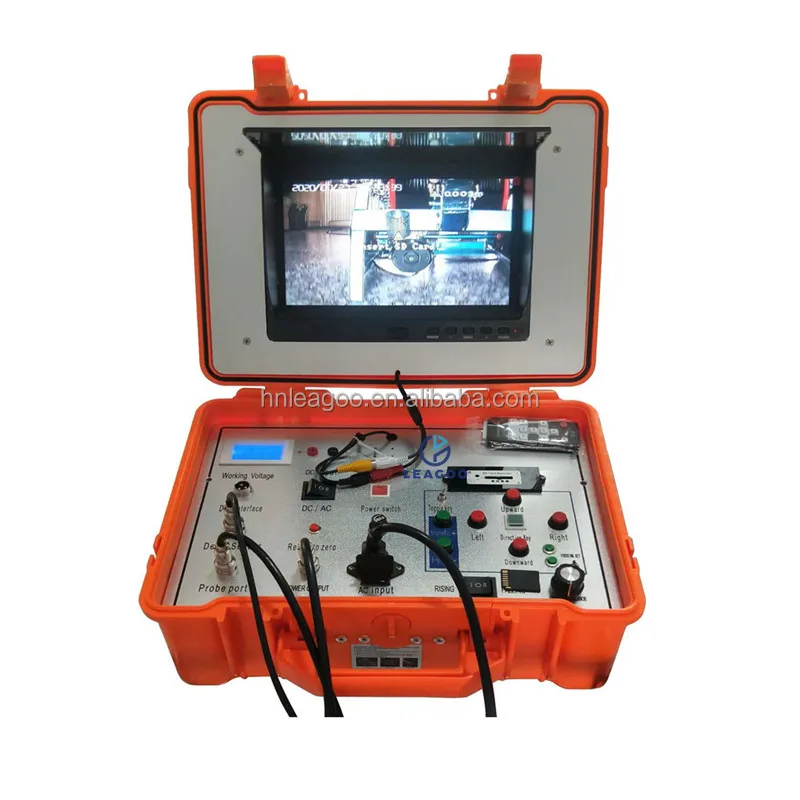

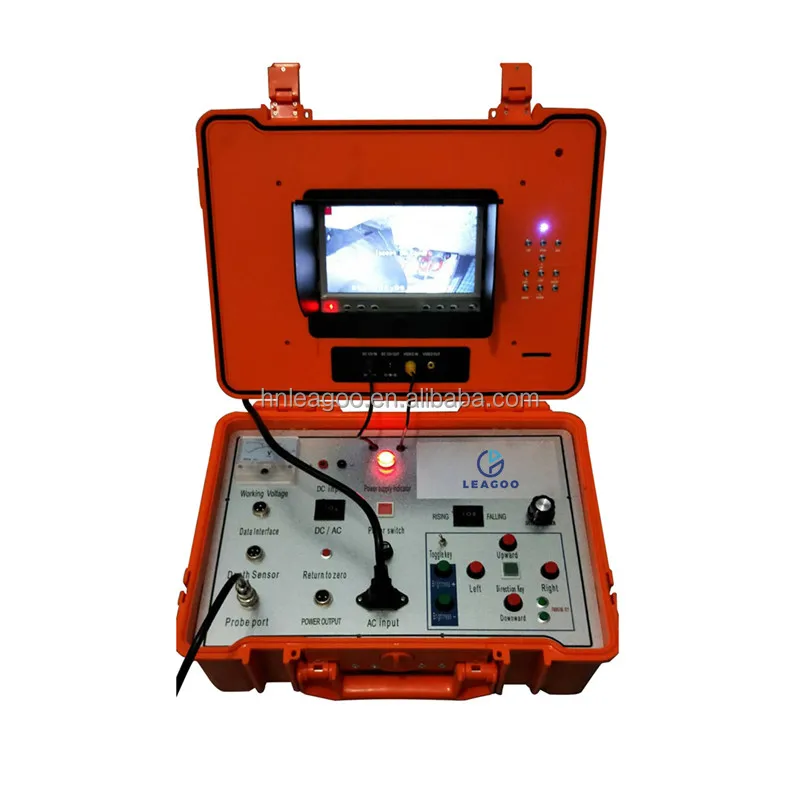

1. Main Control Box
* ABS Plastic control system
* Voltage input: 220V(12V is optional, max depth 600m)
* Depth interface: connect depth sensor
* Probe interface: connect probe, transmit video and power
* Data interface: write well position number and calibrate depth by itself
* Video system: ultra-high definition SD card video recorder, 16G SD card video system, maximum support 32G
* Depth data: setting depth to Zero before working, depth real-time display on monitor .
* Monitor: 7”(10” &12'' for optional) high brightness LED monitor.
2. Camera Probe

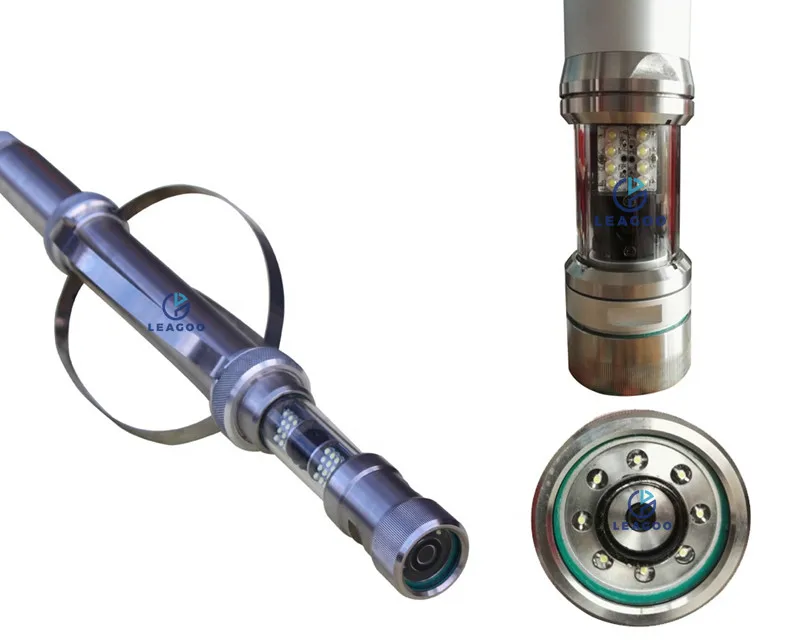

1). Dual Camera
* Dia.: φ75mm, φ50mm, φ41mm, length: 50cm-57cm
* Camera material: stainless steel & hard aluminum oxide housing
* Camera window: explosion-proof optical glass window
* Camera pixel:SONY CCD camera, fully automatic photosensitive system
* Lens Angle: side camera circumference 360° infinite rotate.
* Light: Front 8 or 9 highlight patches lamp beads, rear 8 or 24 LED strong light source bead.
* Brightness adjustment: operate the button on control box button, 5 levels of dimming.
* Focal Length: 75mm probe is adjustable.
* Probe pressure: 20MPA, max. pressure depth to 2000m.

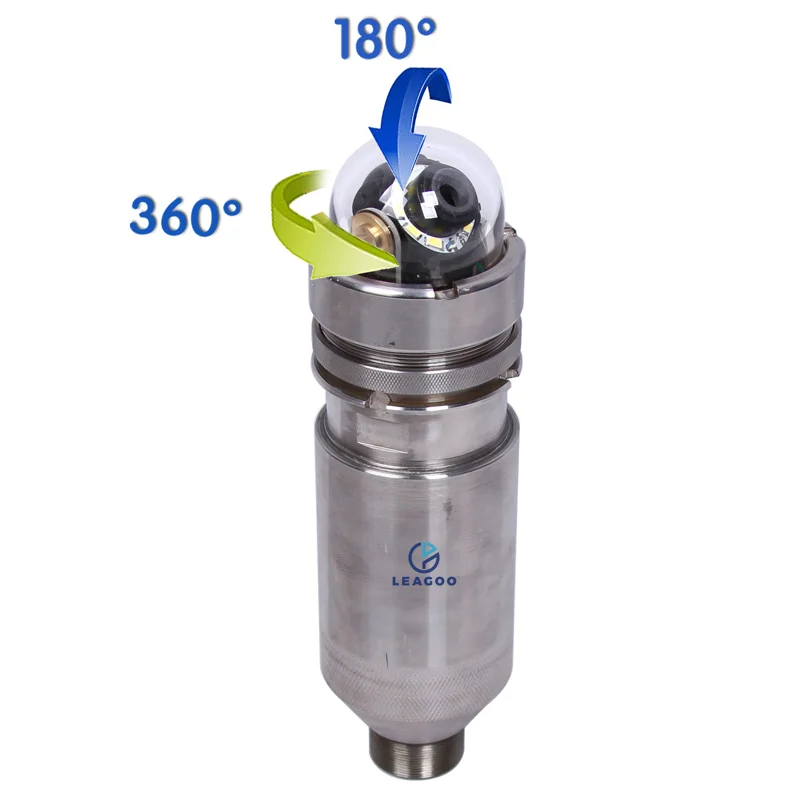

2). Single Camera
* Dia.: φ90mm, φ75mm, φ42mm, length: 30cm-34cm
* Camera material: stainless steel housing
* Camera pixel: SONY CCD camera, fully automatic photosensitive system
* Lens angle: pan 360 degree rotation, tilt 180 degree rotation, LED & focus adjustable
* Camera light: φ90mm camera probe, 12 front bright bead, rear 16 LED strong light bead; φ75 with front 8 bright bead; φ42 with 6 bright bead.
* Brightness focal length adjustment: manually controls the direction and angle of the camera, the brightness of the light source and focas adjustment for clear video image, 5 levels of dimming
* Camera light: φ90mm camera probe, 12 front bright bead, rear 16 LED strong light bead; φ75 with front 8 bright bead; φ42 with 6 bright bead.
* Brightness focal length adjustment: manually controls the direction and angle of the camera, the brightness of the light source and focas adjustment for clear video image, 5 levels of dimming
* Probe pressure: max 20MPA, depth up to 2000 meters.

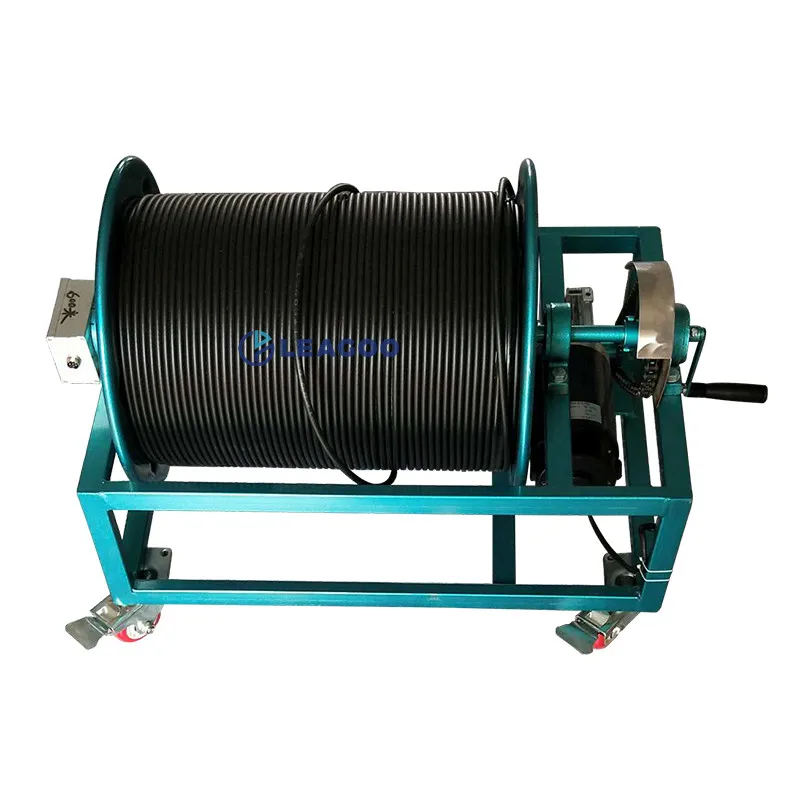

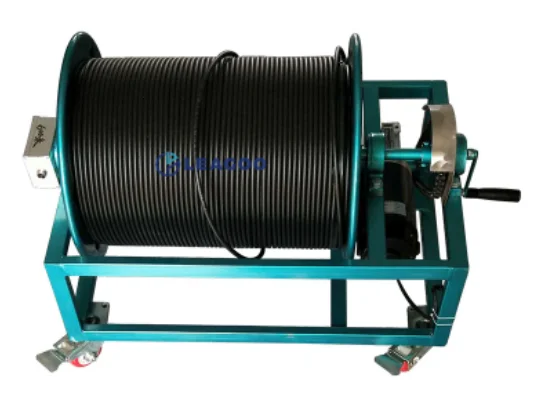

3. Winch
* Winch: 220V or 12V Battery Power(0-600m)
![]()
* Manually control the speed of lifting up and down via control box.
* Main control tray: stainless steel tray, removable and easy to transport
* Depth counting pulley: with depth sensor, can be used when connected with control box
*Pulley support rod: retractable and detachable
* Depth Counter: accurate to 0.005m
* Depth Zero: return depth to zero before logging to ensure accuracy.
* Motor: permanent magnet DC motor, self-locking

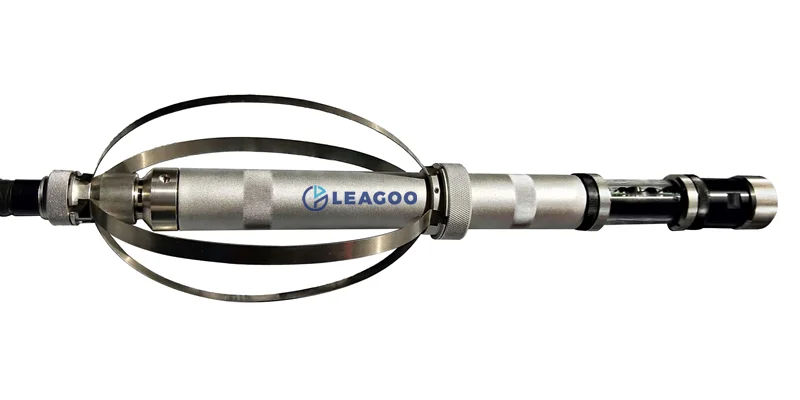

4.Centralizer
* Stainless steel centralizer spring piece
* Aluminum hard oxidation centralizer snap ring

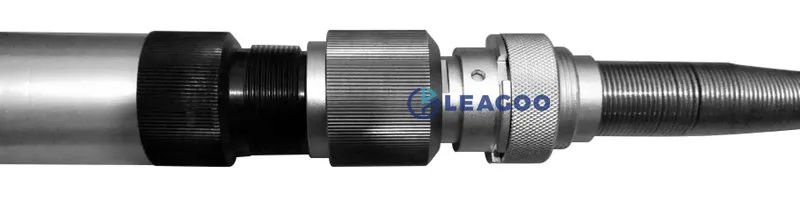

5. Probe Connector
Adopts axial seal and cross-section seal, two - layer
waterproof design, pressure resistant is 15MPA.
waterproof design, pressure resistant is 15MPA.

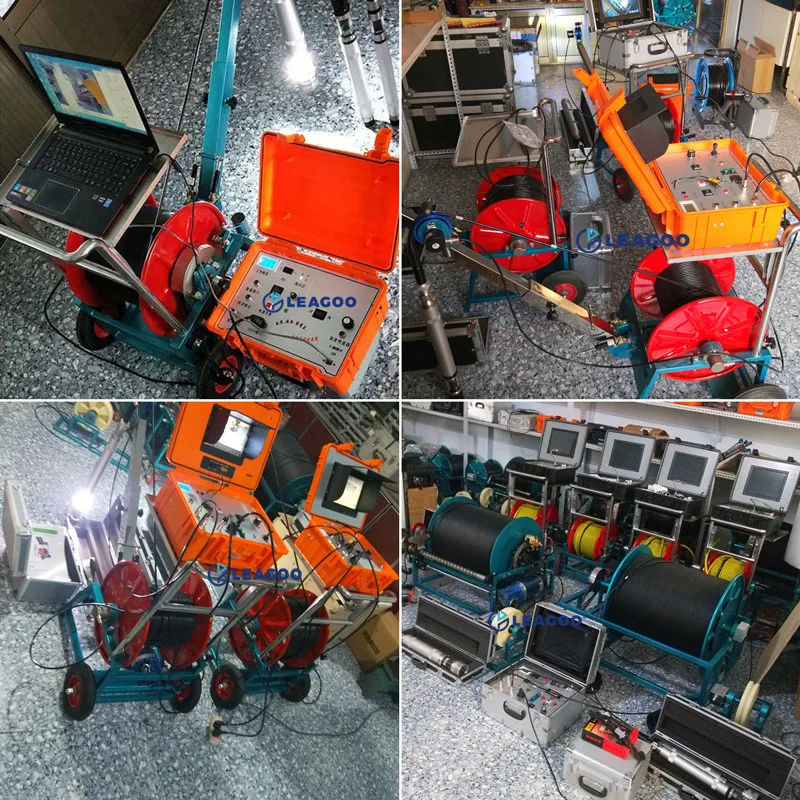

Machine at Workshop
Exihibition
Contact Information
Sales Manager : MS Debbie Liu
Henan Leagoo Electro-Mechanical Co.,Ltd.
Mobile /Whatsapp: +86-13213019085
Email: info(at)hnleagoo.com
Offering 100m-2000m drilling rigs and borehole measuring instruments, please contact me for more details !
