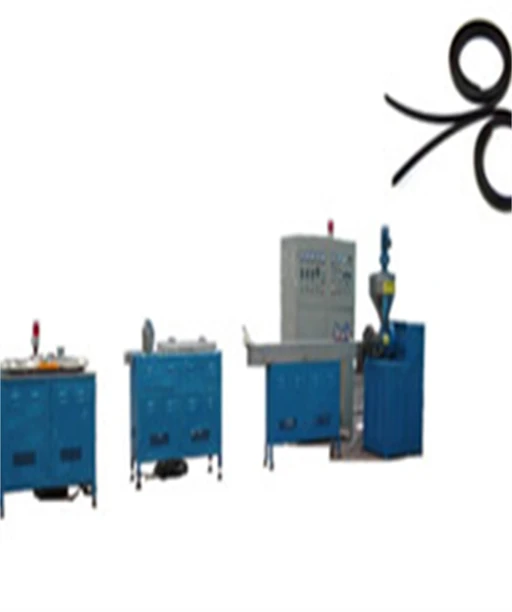

Refrigerator Magnetic strip extruder, rubber magnet strip extruding machine/soft pvc fridge magnet making machine
- Category: >>>
- Supplier: Xiamen Dexing Magnet Tech. Co. Ltd.
Share on (1600535872808):
Product Overview
Description
Product Description

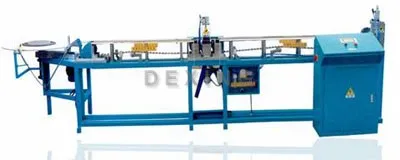

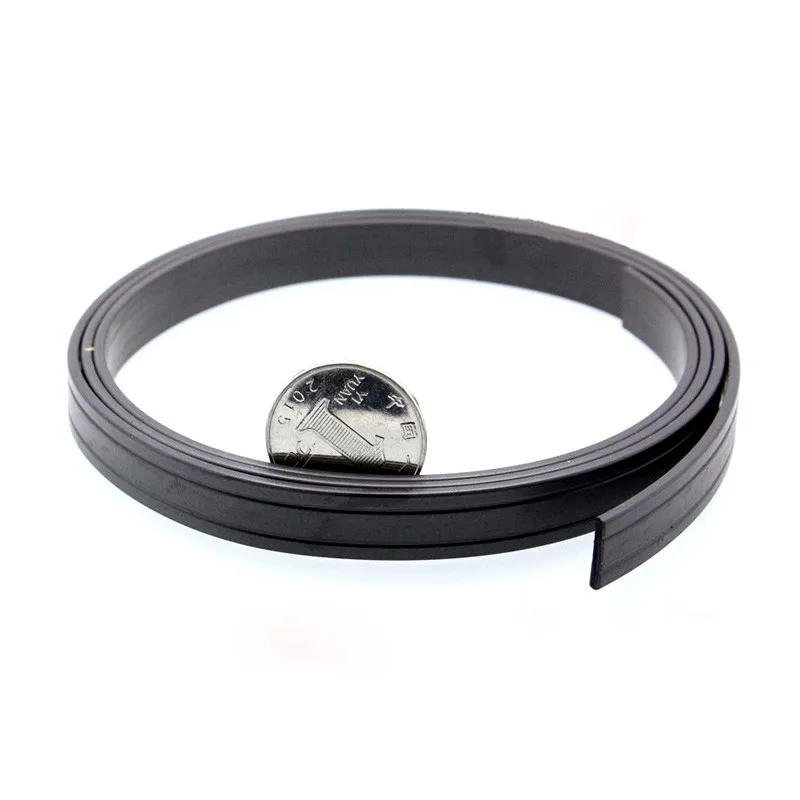

Combining foreign advanced technology, we developed a new magnetic strip extruder for producing strip used as refrigerator door-seal. The machine is newly designed, easy to maintain, it has suitable structure, work reliable. The production is automatic, productivity, and high quality, especially, the new machine is equipped with double roll machine and magnetizing system. By this machine, 10,000m2 magnetic strip (section 9x2mm2) can be produced per day. The production process is entirely automatic, extruding, magnetizing and rolling can be done at the same time. The machine is suitable for new built, expanding and reforming factories.
Specification
No. | Technical parameters: | ||
1 | Screw diameter | Ø60mm | |
2 | Barrel material | Cr12 | |
3 | Length/Diameter | 9 | |
4 | Compression ratio | 1.39 | |
5 | Screw run speed | 0-24 r/min | |
6 | Extruder motor power | 11kw | |
7 | Drawing motor power | 0.75kw | |
8 | Twisting motor power | 0.55kw | |
9 | Heating power | 2.9kw | |
10 | Cooling water volume | 0.6m3/h | |
11 | Heating temperature controlling range | 0-120℃ | |
12 | Installed gross capacity | 25kw | |
13 | Magnetize capacitance | 6000UF | |
14 | Voltage | 500V | |
15 | Capability | 5-10m/min by 9*3mm strip as standard | |
16 | Surface magnetic strength | Same pole: 720---850 GS Different pole: 1300---1500 GS | |
17 | Weight | 3000 kgs approx. | |
Product packaging
Regular sizes，One set in one white box
OPP Bag+ White Paper Box+ Carton

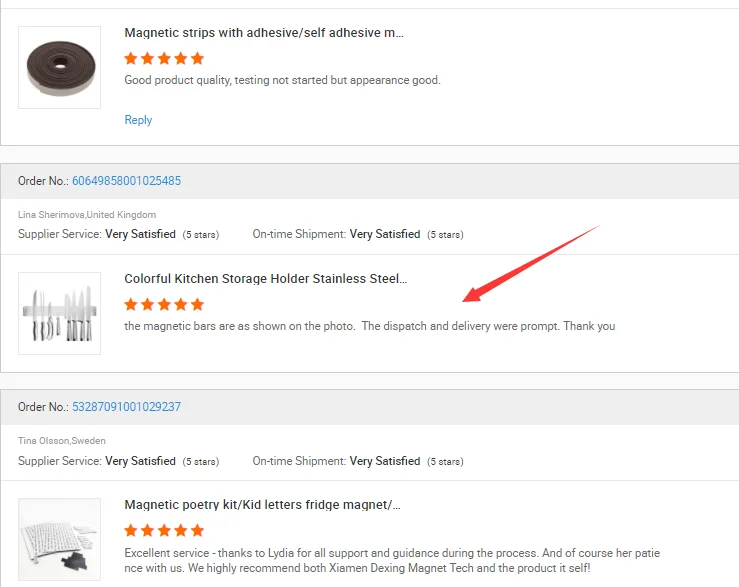

Customer feedback
Company Profile

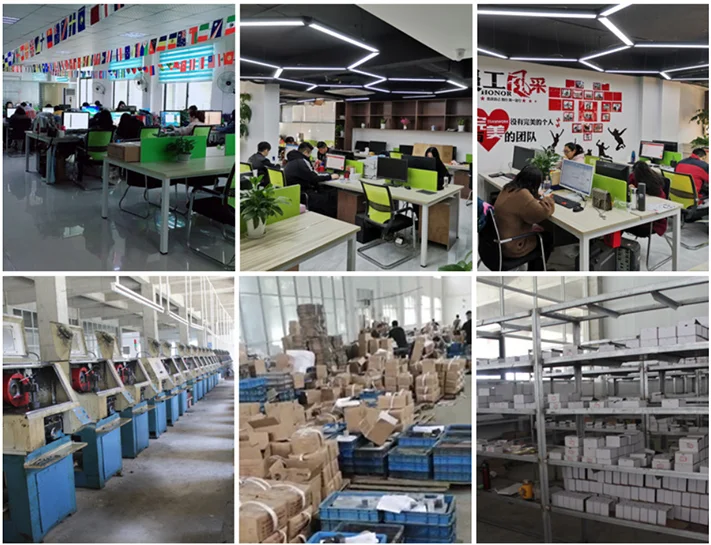

Company Introduction
Xiamen Dexing Magnet Tech. Co., Ltd specializes in the design, development and manufacture of magnetic materials and components, including permanent magnets, flexible Magnets and machinery. Our products are used in a variety of applications in the telecommunications, automotive, computer, CATV distribution, defense, medical electronics and consumer markets. With manufacturing bases in both USA and Europe and applications engineering staffed facilities around the world, Dexing Magnetic Materials is perfectly positioned to provide local support to our customers for all of their magnetic needs.
