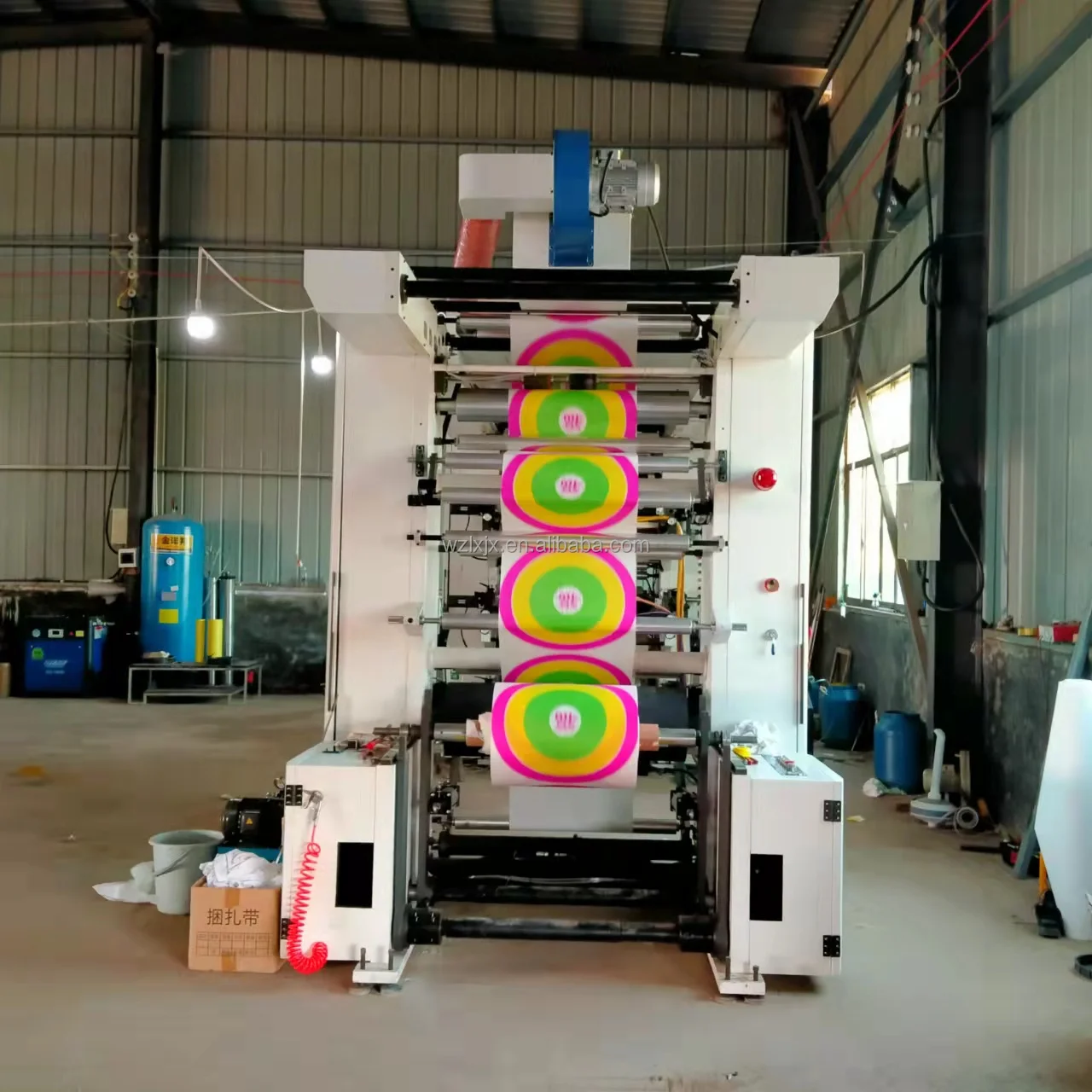

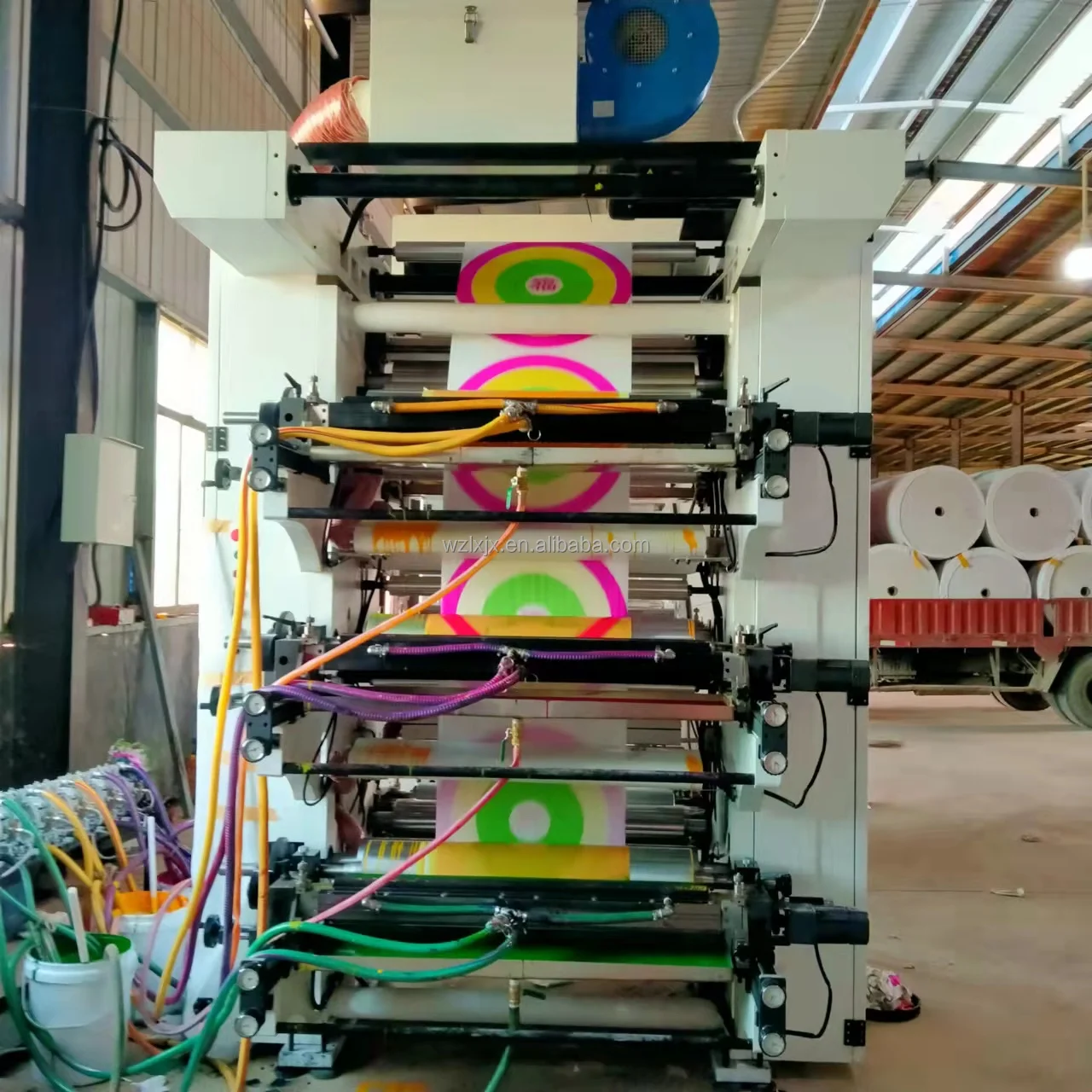

High Speed Six Color Belt Drive Flexographic Machine For Printing Kraft Paper Bag/Cup
- Category: >>>
- Supplier: Wenzhou K-S Machinery Co. Ltd
Share on (1600535915154):
Product Overview
Description

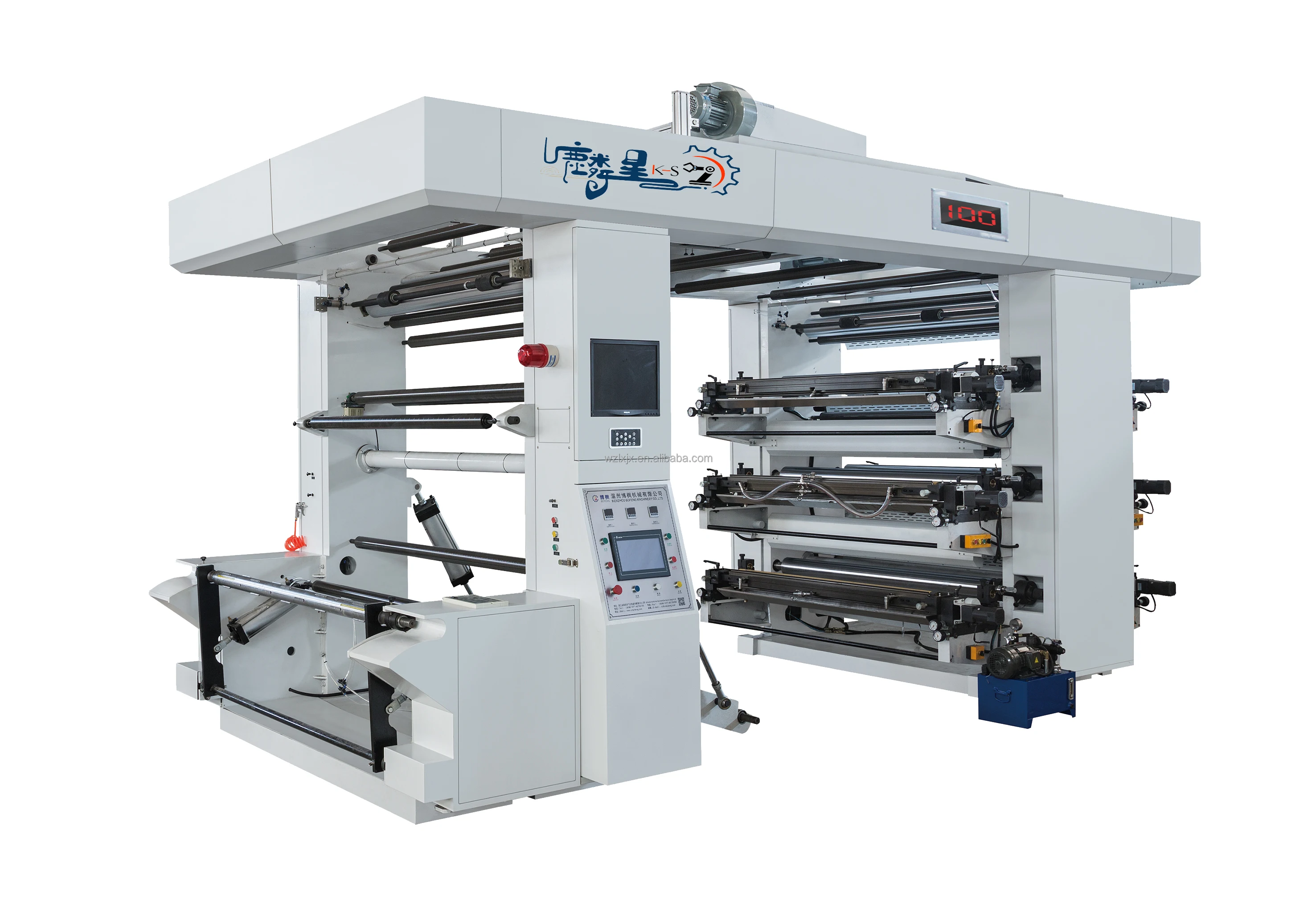

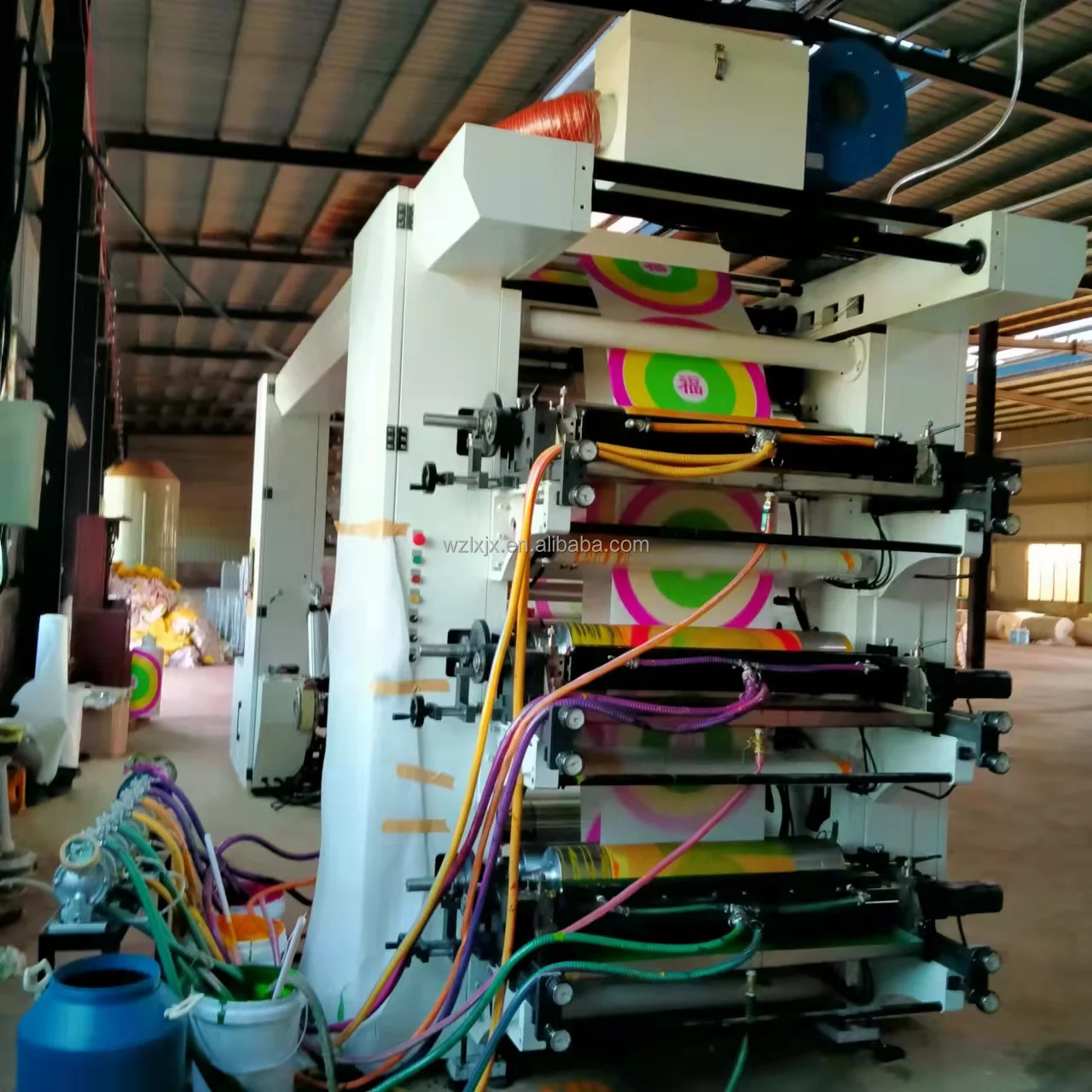

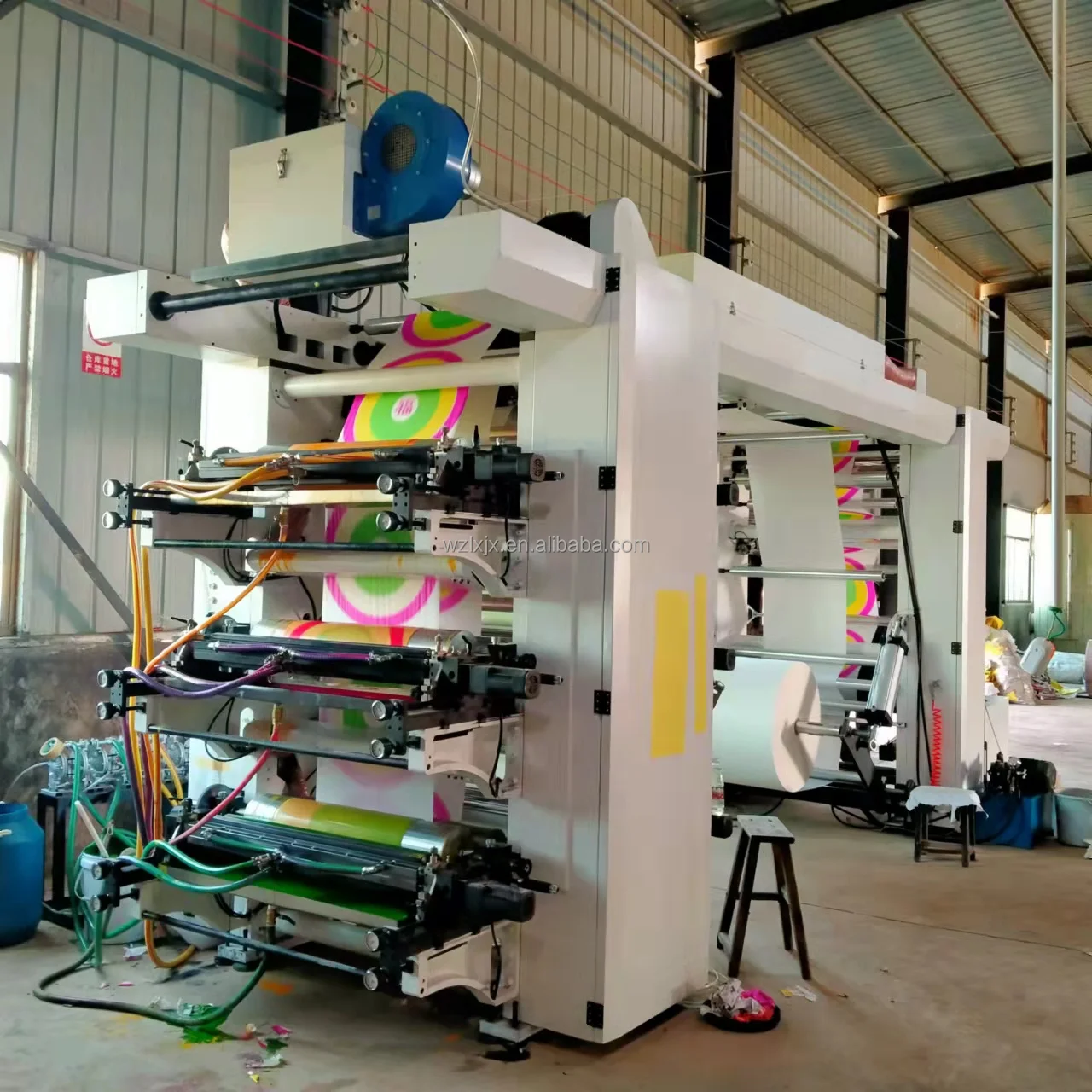

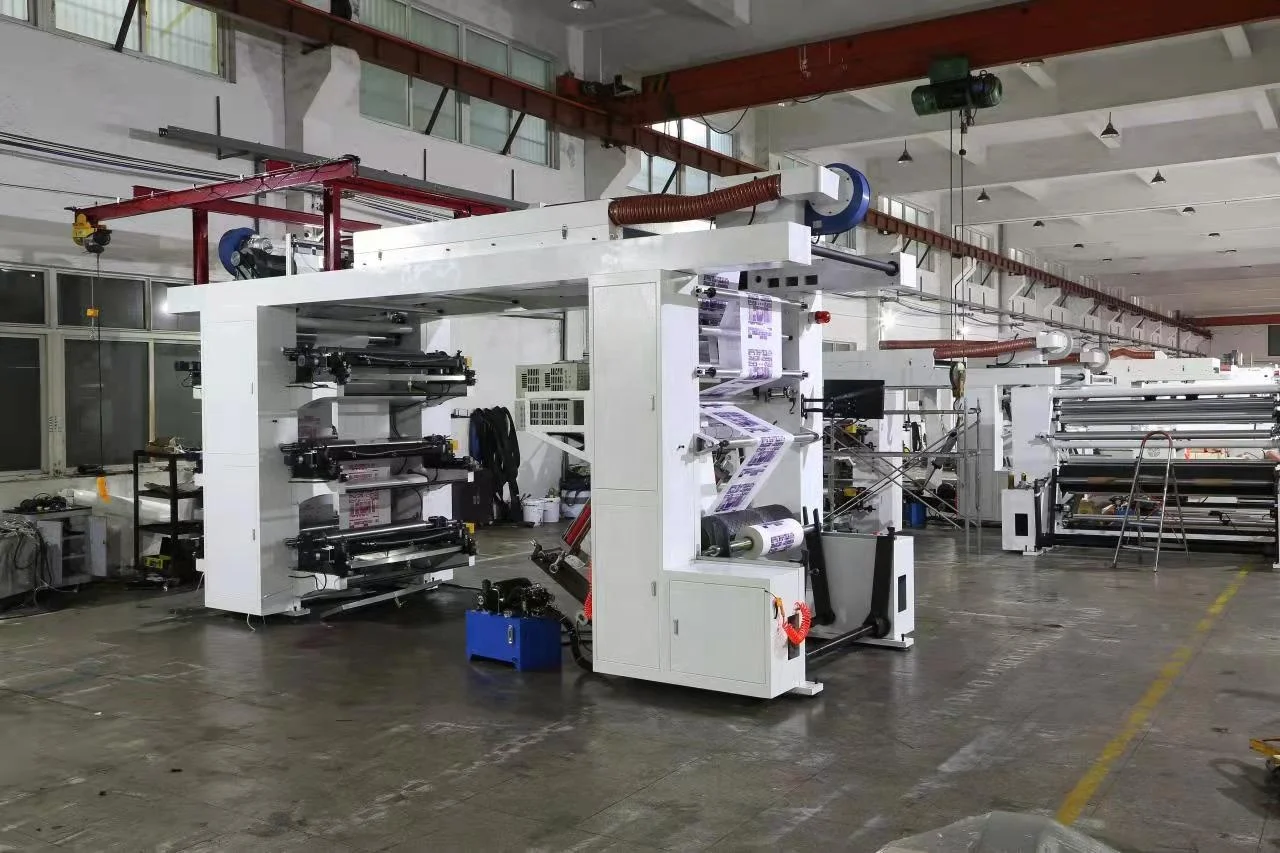

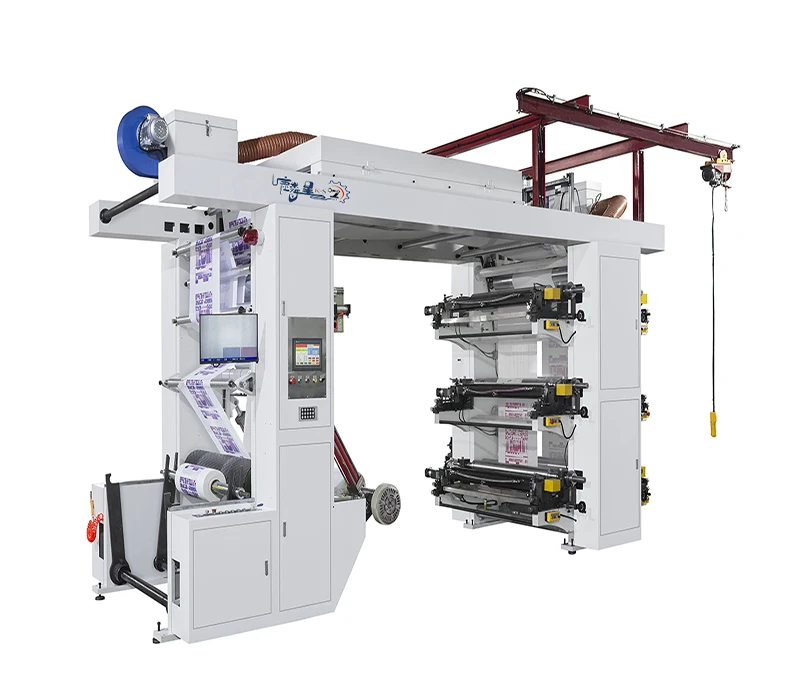

High Speed Six Color Belt Drive Flexographic Machine For Printing Kraft Paper Bag/Cup
Model | KSYT-B6600 | KSYT-B6800 | KSYT-B61000 | KSYT-B61200 | |||
Max. Material Width | 600mm | 800mm | 1000mm | 1200mm | |||
Max. Printing width | 570mm | 770mm | 970mm | 1170mm | |||
Printing Repeat | 285-1000 | ||||||
Printing color | 6 color (6+0,5+1,4+2,3+3) | ||||||
Mechanical speed | 20-120m/min | ||||||
Printing speed | 20-100m/min | ||||||
Material | 80-400g chrome paper, aluminum-foil paper, BOPP, paper board, kraft paper. | ||||||
Weight | 6000kg | 6500kg | 7000kg | 7500kg | |||
Dimension | 5.6x1.8x3.2m | 5.6x2x3.2m | 5.6x2.2x3.2m | 5.6x2.4x3.2m | |||
Voltage | 3p 380v 50hz | ||||||
Optional devices | 1.Video inspection 2.Corona treatment 3.Slitting knife 4.Automatic non -stop unwind&rewind 5.Online device | ||||||
Details Images

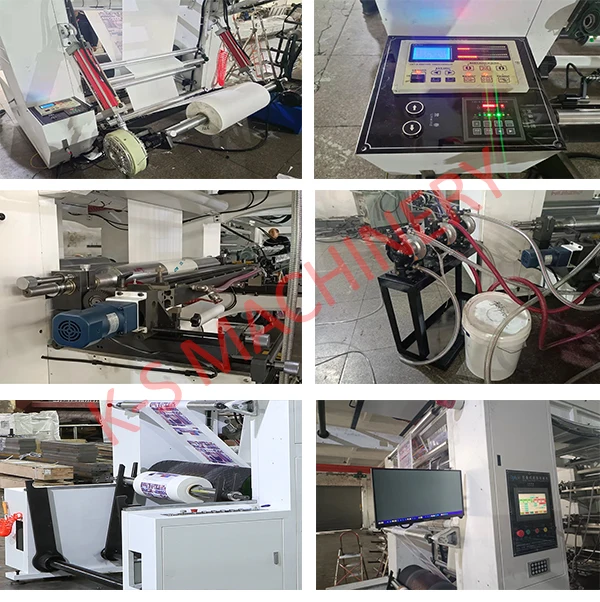

FEATURES AT A GLANCE
1. Unwind unit adopts single-station or double-station structure; 3"air shaft feeding; Automatic EPC and constant tension
control;With refueling warning, break material stop device.
2. The main motor is controlled by frequency conversion, and the whole machine is driven by high-precision synchronous belt or servo motor.
3. The printing unit adopts ceramic mesh roller for ink transfer, single blade or chamber doctor blade, automatic ink supply; Anilox roller and plate roller automatic separating after stop; The independent motor drives the anilox roller to prevent ink from solidifying on the surface and blocking the hole.
4. Rewinding pressure is controlled by pneumatic components;
5. Rewind unit adopt single-station or double-station structure; 3 "air shaft; Electric motor drive, with closed - loop tension control and material - breaking stop device.
6. Independent drying system: electric heating drying (adjustable temperature)
7. The whole machine is centrally controlled by PLC system; Touch screen input and display the working state; automatic meter counting and multi - point speed regulation.
control;With refueling warning, break material stop device.
2. The main motor is controlled by frequency conversion, and the whole machine is driven by high-precision synchronous belt or servo motor.
3. The printing unit adopts ceramic mesh roller for ink transfer, single blade or chamber doctor blade, automatic ink supply; Anilox roller and plate roller automatic separating after stop; The independent motor drives the anilox roller to prevent ink from solidifying on the surface and blocking the hole.
4. Rewinding pressure is controlled by pneumatic components;
5. Rewind unit adopt single-station or double-station structure; 3 "air shaft; Electric motor drive, with closed - loop tension control and material - breaking stop device.
6. Independent drying system: electric heating drying (adjustable temperature)
7. The whole machine is centrally controlled by PLC system; Touch screen input and display the working state; automatic meter counting and multi - point speed regulation.
PRODUCT CONFIGURATION
