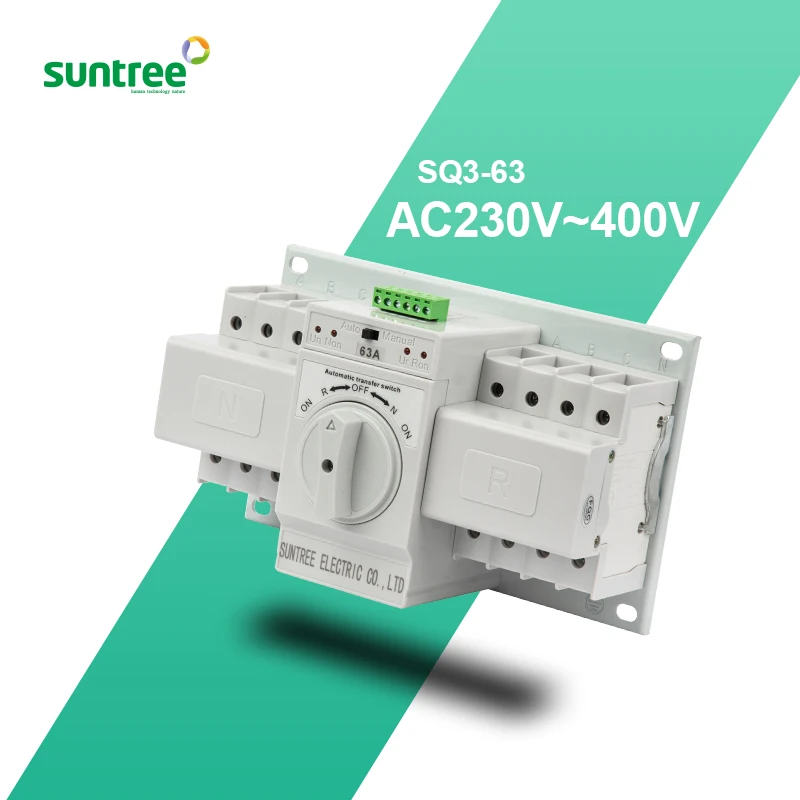

Automatic Transfer Switching(ATS) 4 Pole Change Over Switch AC 220V 400V
- Category: >>>
- Supplier: Wenzhou Xinchi International Trade Co. Ltd.
Share on (1600535917139):
Product Overview
Description
Product Description
SQ3W series automatic transfer switch is designed and developed by our company according to universal customers' requirements.
This switch uses DZ47(C45=CB2) miniature circuit breaker(improved type) as the actating element, is equipped with the new type control mechanism.
With the smallest volume among the similar products, it also has the functions like the fire control and power generation, and it is specially usded in the important power supply locations where the power failure is not allowed.
This switch uses DZ47(C45=CB2) miniature circuit breaker(improved type) as the actating element, is equipped with the new type control mechanism.
With the smallest volume among the similar products, it also has the functions like the fire control and power generation, and it is specially usded in the important power supply locations where the power failure is not allowed.
Specification
Type | SQ3W |
Specification current Ie(A) | 6/10/16/20/25/32/40/50/63 |
Rated operating voltage, Ue (V) | AC230V/AC400V |
Rated insulating voltage Ui (V) | AC 690V |
Rated impulse withstand voltage (KV) | 4KV |
Rated short circuit making capacity Icm | 6KA |
Rated short circuit breaking capacity Icn | 4.5KA |
Service life | 5000 times |
Electric equipment grade | CB Class |
Controller | Type A(basic type) |
Rated control supply voltage,Us(V) | 230V 50Hz |
Operating transfer time (no time delay) | ≤3s |
keyword | AC ATS automatic transfer switch |

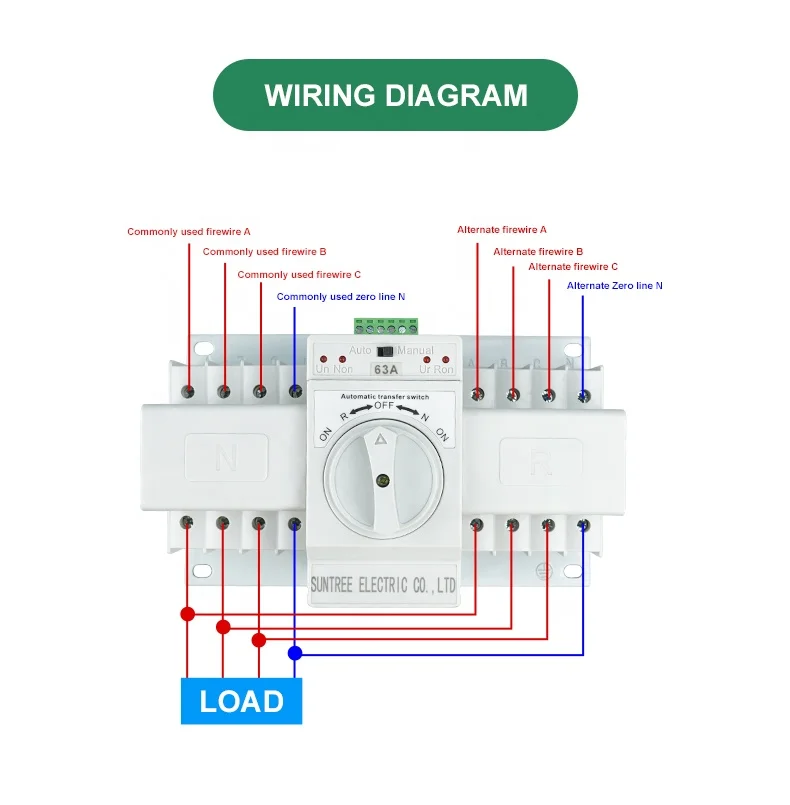

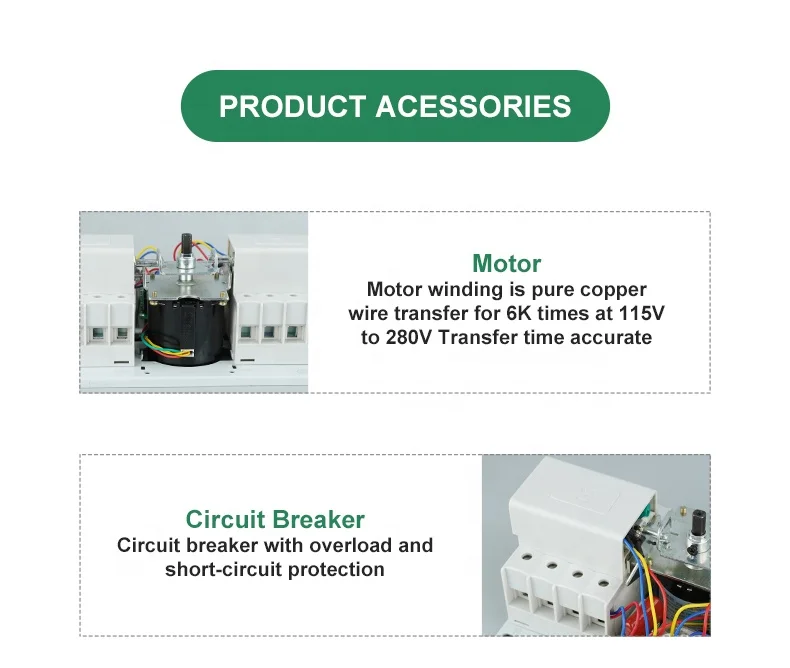

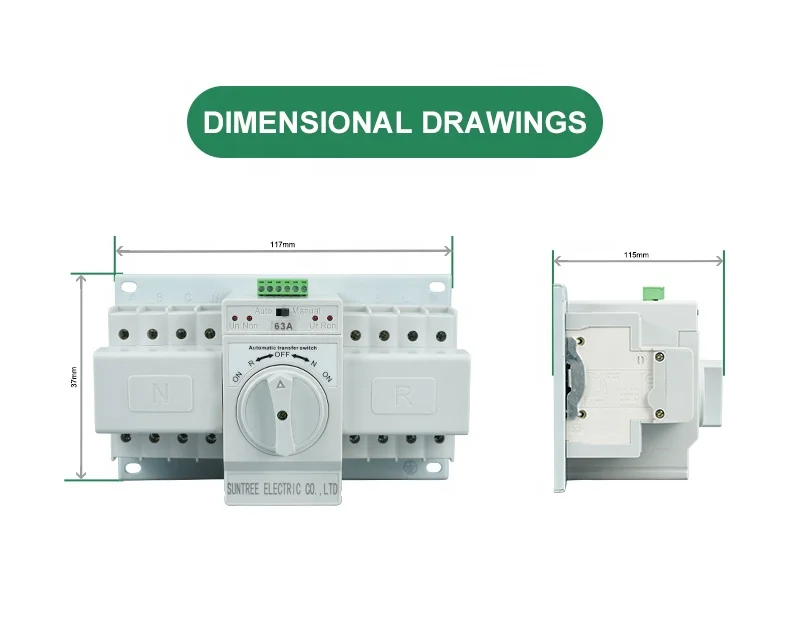

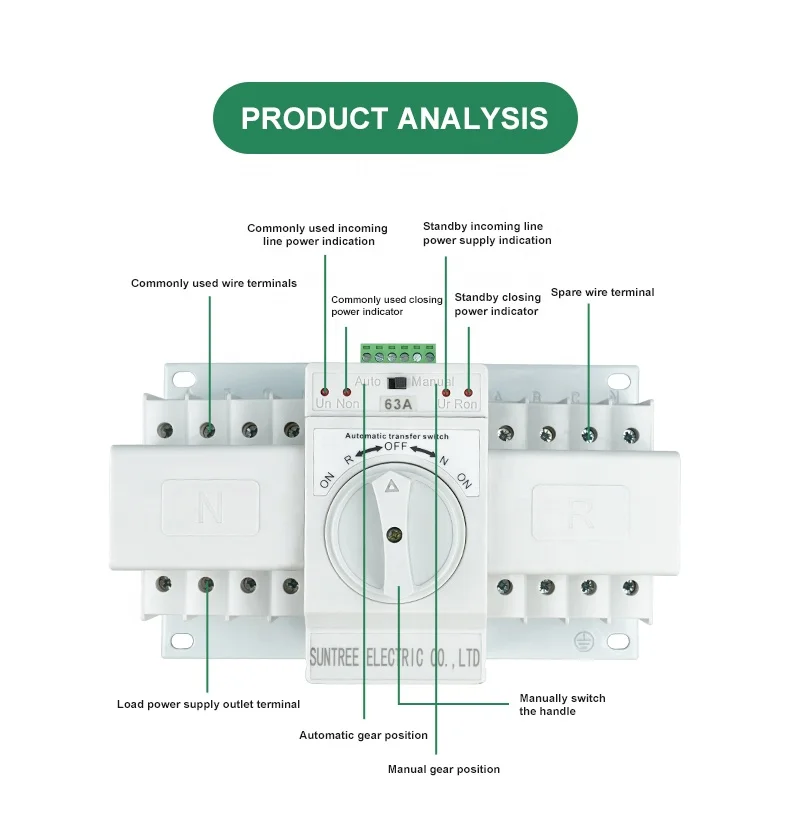

Details Images
Company Profile
Wenzhou Xinchi International Trade Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".
Main Products:DC-Fuse, Solar system parts,Solar Panel/Inverter/Cable/Connector, AC&DC Circuit Breakers, MCCB, ATS auto transfer switch, Isolator switch, Waterproof distribution box,DC combiner box, etc.
Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT, CCC etc.
Main markets:Australia,New Zealand,&other worldwide markets.
Business strategies &Characristic:Stability, expertise and technological innovation are the corner stones of our company's business strategy.
We are trying to develop XinChi into a world-class Electrical manufactures
Main Products:DC-Fuse, Solar system parts,Solar Panel/Inverter/Cable/Connector, AC&DC Circuit Breakers, MCCB, ATS auto transfer switch, Isolator switch, Waterproof distribution box,DC combiner box, etc.
Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT, CCC etc.
Main markets:Australia,New Zealand,&other worldwide markets.
Business strategies &Characristic:Stability, expertise and technological innovation are the corner stones of our company's business strategy.
We are trying to develop XinChi into a world-class Electrical manufactures
Packing and Shipping
FAQ
Q: If I'm interested in your generator ATS when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Your generator ATS seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our generator ATS are high quality customized.for solar system I think compare the quality first and then compare the price is the best way.
Q:Can I get a sample before the order because I really don't how is your generator ATS quality?
A:Of course!We also think sample order is the best way to build the trust.
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 10~15days will be no problem.And for regular order we promise in 15days
Q:How's the warranty period for your generator ATS?
A:We offer two year warranty for our customer.
A:All your enquiry will be replied in 24hours.
Q:Your generator ATS seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our generator ATS are high quality customized.for solar system I think compare the quality first and then compare the price is the best way.
Q:Can I get a sample before the order because I really don't how is your generator ATS quality?
A:Of course!We also think sample order is the best way to build the trust.
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 10~15days will be no problem.And for regular order we promise in 15days
Q:How's the warranty period for your generator ATS?
A:We offer two year warranty for our customer.
