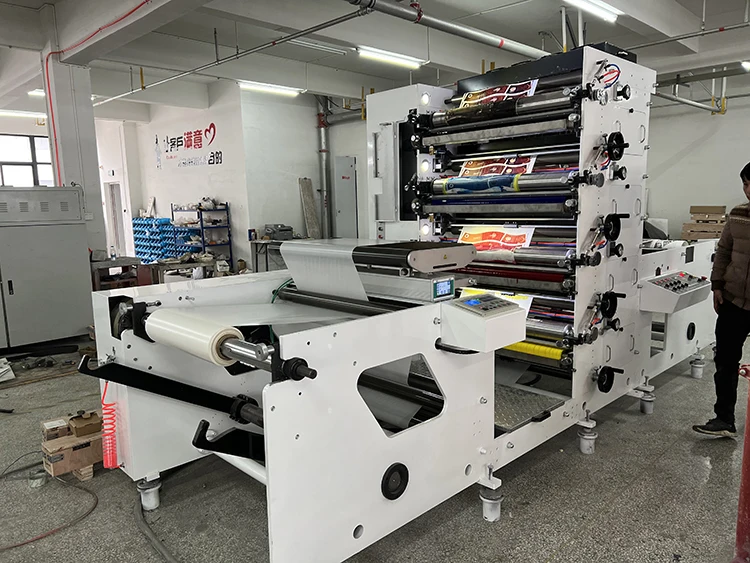

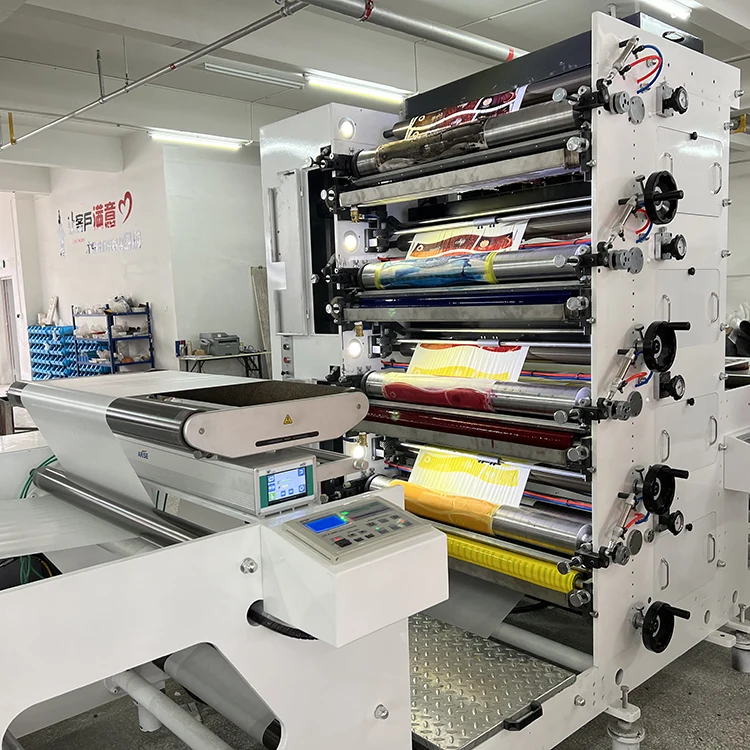

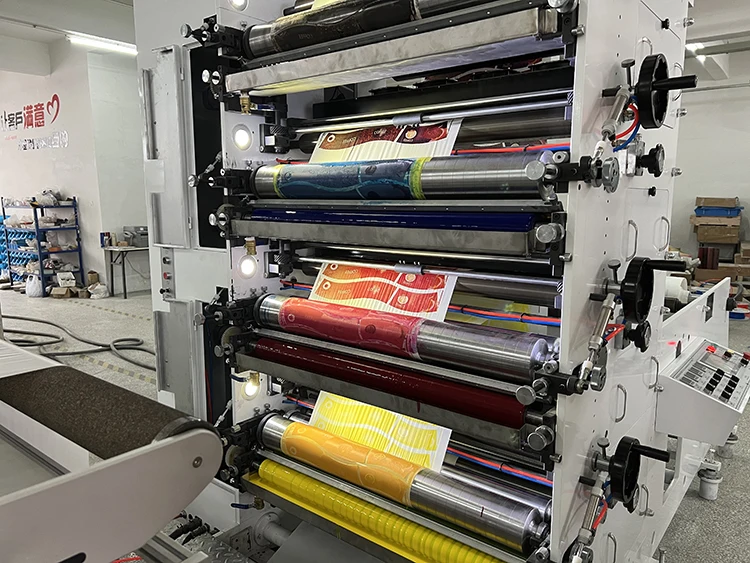

4 5 6 high speed paper flexo printer disposable paper cup plate flexo printing machine mini 850
- Category: >>>
- Supplier: Hangzhou Colon Digital Technology Co. Ltd.
Share on (1600535922534):
Product Overview
Description

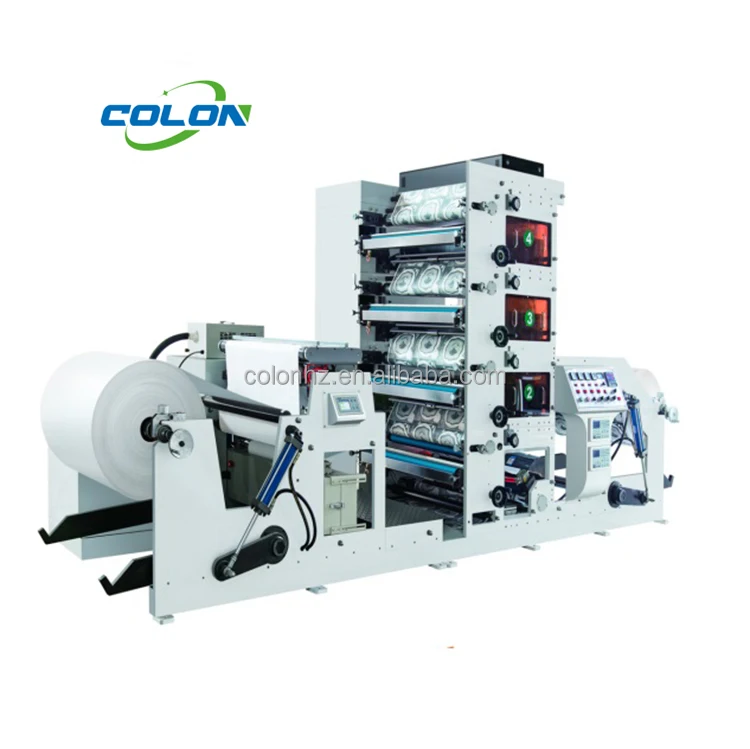

850 950 width flexo print paper cup printer printing machine
Product Description
Characteristics
1. Adopt the ceramic anilox cylinder to transfer the ink.
2. Each printing unit adopts 360 .plate-adjustment.
3. Three die-cutting stations,the first and second die-cutting station can do double sides working,the third die-cutting station can be used of sheeter.
4. Computerized web-guiding system is installed in the front of printing unit,it ensures the material always in the right position.(standard configuration)
5. After sheeting in the third die-cutting station,conveyor belt can output the products orderly.(option)
6. Unwinding and rewinding tension are auto-controlled by magnetic powder,two rewinders is possible in this machine.
7. Video inspecting system is an option,it can watch the printing quality when in high speed.
8. The ink rollers will be separated from the printing roller,and keep running when the machine stops.
9. Main machine inverter is imported.
10. The machine can finish material-feeding.printing,varnishing,drying,laminating,die-cutting,rewinding and sheeter in one process.It is an ideal machine for printing note and top-grade adhesive label.
1. Adopt the ceramic anilox cylinder to transfer the ink.
2. Each printing unit adopts 360 .plate-adjustment.
3. Three die-cutting stations,the first and second die-cutting station can do double sides working,the third die-cutting station can be used of sheeter.
4. Computerized web-guiding system is installed in the front of printing unit,it ensures the material always in the right position.(standard configuration)
5. After sheeting in the third die-cutting station,conveyor belt can output the products orderly.(option)
6. Unwinding and rewinding tension are auto-controlled by magnetic powder,two rewinders is possible in this machine.
7. Video inspecting system is an option,it can watch the printing quality when in high speed.
8. The ink rollers will be separated from the printing roller,and keep running when the machine stops.
9. Main machine inverter is imported.
10. The machine can finish material-feeding.printing,varnishing,drying,laminating,die-cutting,rewinding and sheeter in one process.It is an ideal machine for printing note and top-grade adhesive label.
Specification
Model | CFPM-T-850 |
Printing speed | 50m-60m/min |
Printing color | 4 colors |
Print max width | 850mm |
Unwind roll width | 860mm |
Unwind roll diameter | 1300mm |
Rewind roll max diameter | 1300mm |
Printing length | 175-380mm |
Registering accuracy | ±0.15mm |
Voltage | 380V±10% |
Total power | 36kw |
Air press | 0.6MP |
Oil system | Manual |
Weight | 5200kg |
Dimension | 4800mmX2200mmX2250mm |
Standard Configuration
Unwind Air Shaft
Rewind Air Shaft
Web Guide System
Printing Unit
Control Pannel
IR Drying
Optional Parts
Lamination Unit
Die cutting Station
Slitting Unit
Cold Stamping
Video Inspecting System
Corona
UV Drying System
Independent Unwinding Rack

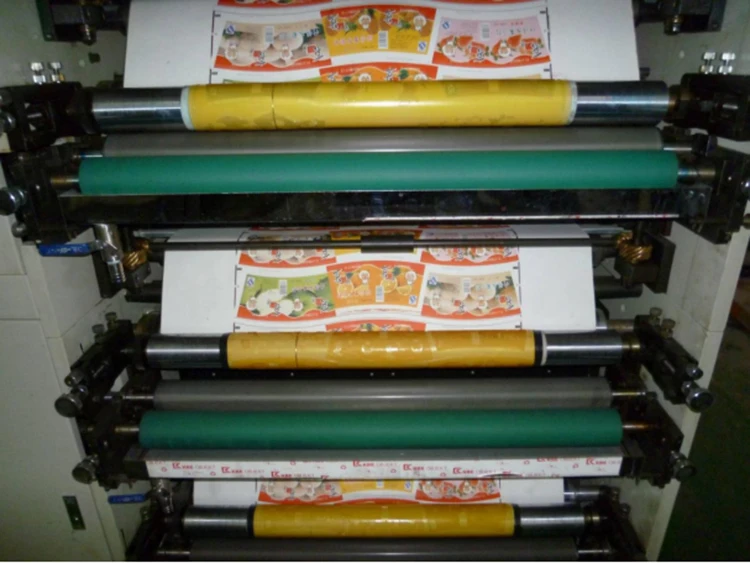

Sample
Suitable Material:All kinds of sticker labels, paper,aluminum foils,plastic film (PVC,PET,OPP......)
Company Profile
Hangzhou Depai Machinery Co., Ltd has several production lines in different workshops from printing machines,bag making machine,label sticker die cutting & slitting machines, paper /PP/PLA straw machines,disposable products making machines ,to different plastic&paper and packaging machines.
We have a professional after-sales service team to provide you with high quality service. Engineers who can speak English can come to your factories or workshop to help you debug your machine and provide free training by video call .Our factory also cooperated with some famous French and German companies.Every year, our production director and technical director will go to the European cooperation technology companies or large factories for technical study.By communicating and learning from each other, it ensures the high quality of each machine and our technology is always far ahead in China.
We have a professional after-sales service team to provide you with high quality service. Engineers who can speak English can come to your factories or workshop to help you debug your machine and provide free training by video call .Our factory also cooperated with some famous French and German companies.Every year, our production director and technical director will go to the European cooperation technology companies or large factories for technical study.By communicating and learning from each other, it ensures the high quality of each machine and our technology is always far ahead in China.
Our Sales Team

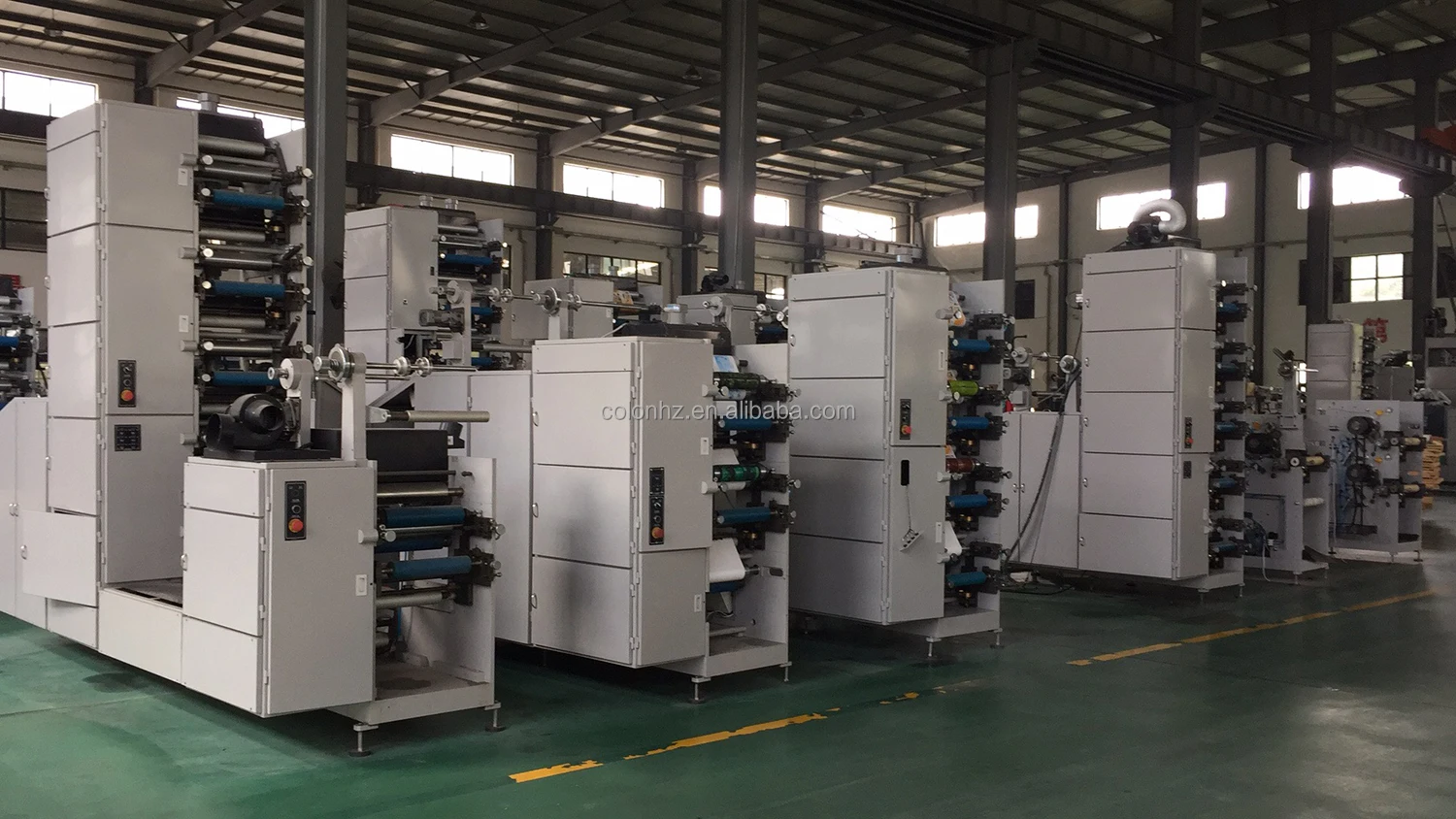

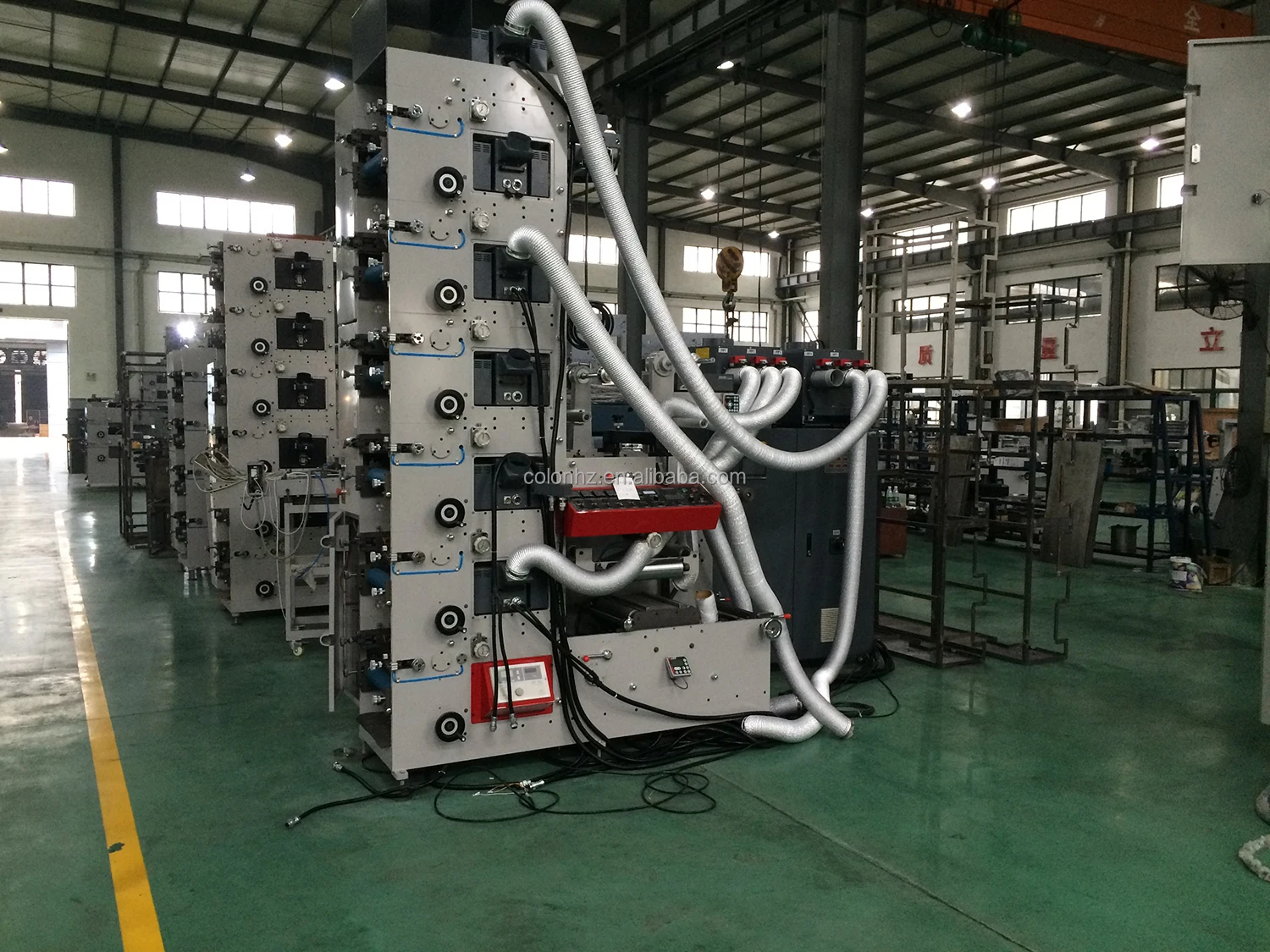

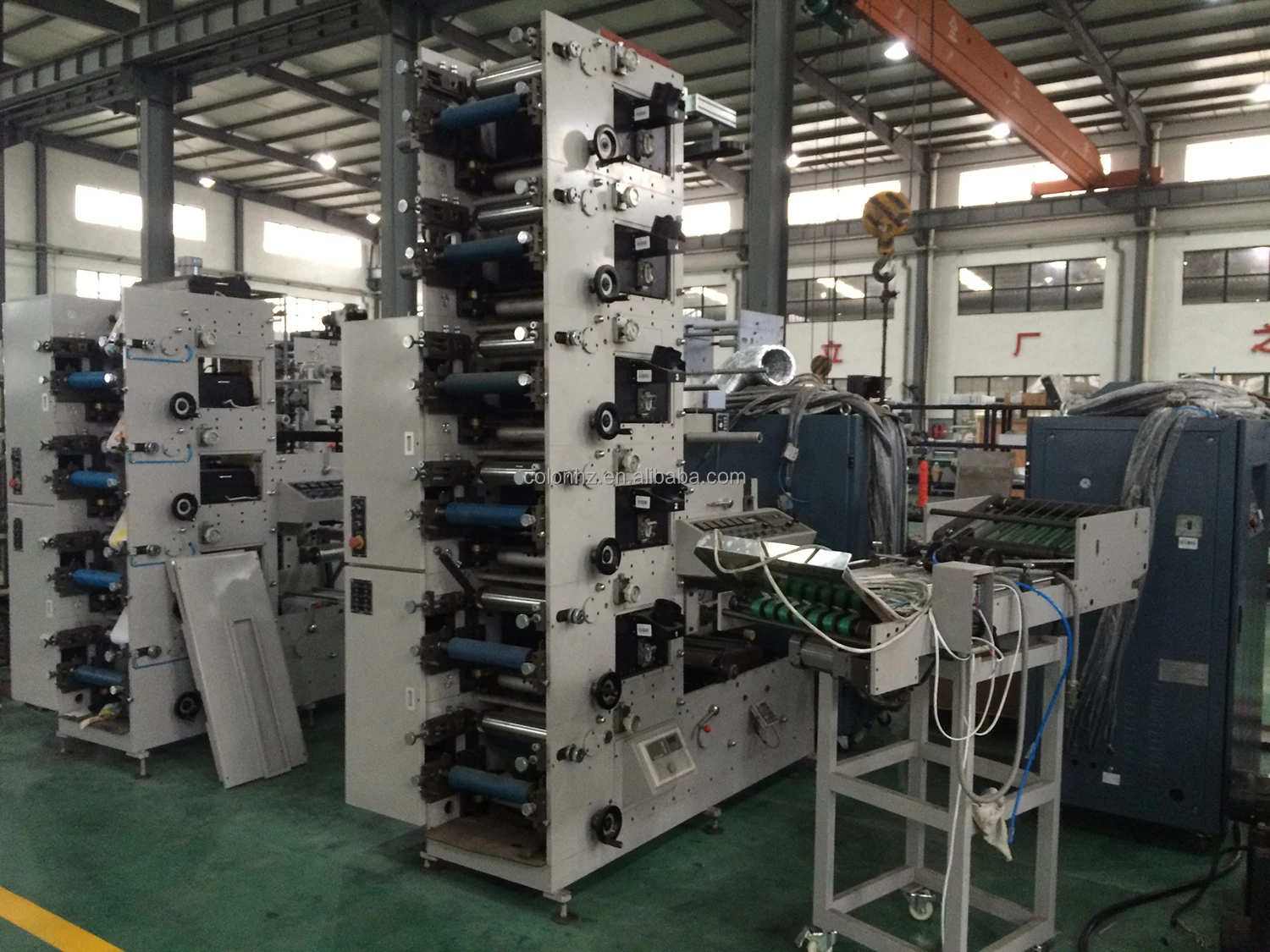

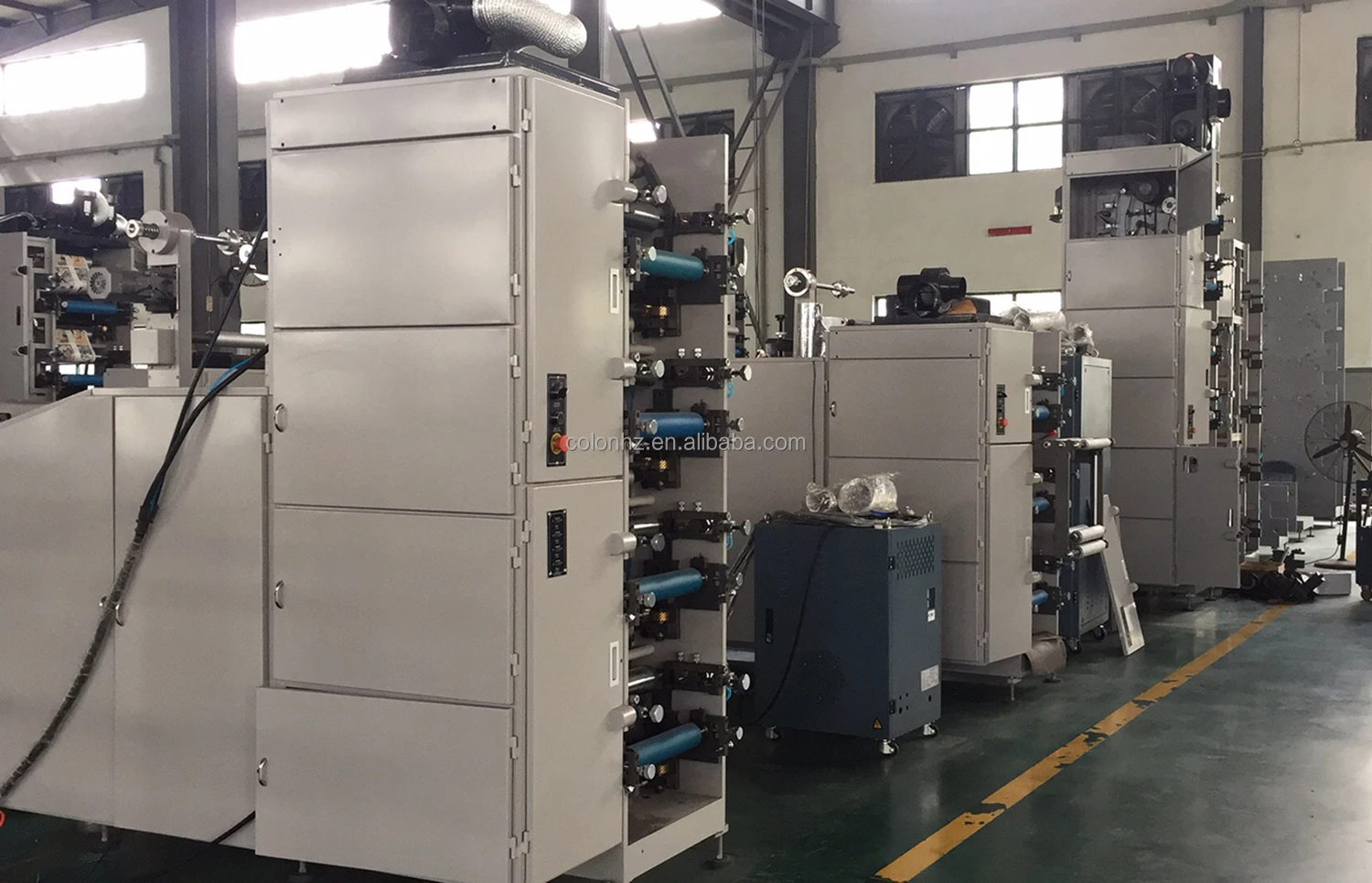

Flexo Printing Machine Workshop

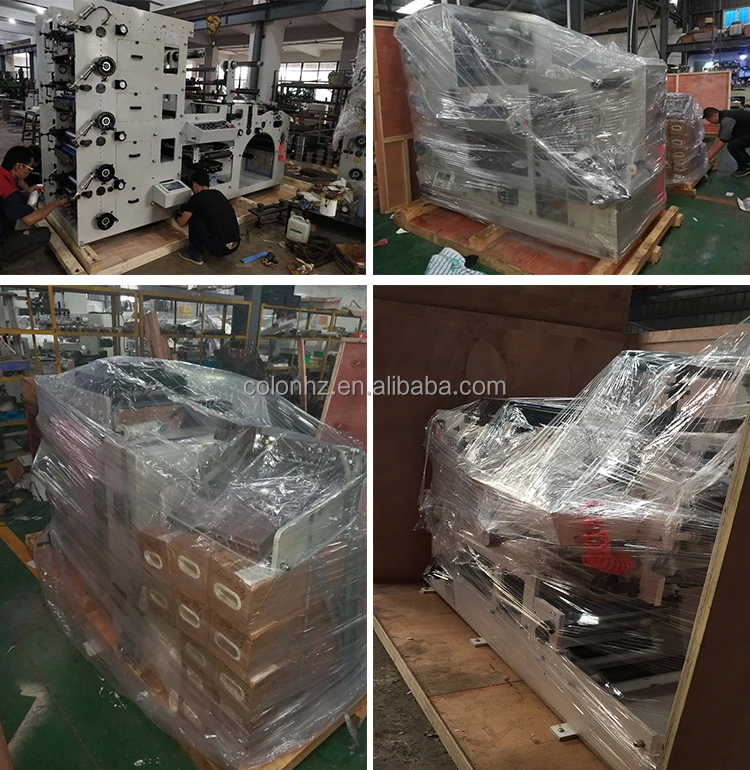

Packing & Delivery
Interior: Wraping Film to keep dry and prevent from rusty
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
FAQ
1. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
2. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
3. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
2. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
3. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
