YINGYI YY SR165 Space and Labor Save Automatic Robot Palletizer Price for Heavy Products Palletizing
- Category: >>>
- Supplier: Shanghai Yingyi Packaging Machinery Equipment Co. Ltd.
Share on (1600535925055):
Product Overview
Description
Product Description
SR-165 Automatic Robotic Palletizer
The palletizing software package can provide basic palletizing applications and advanced palletizing applications according to the application requirements of customers in different scenarios. The basic palletizing includes basic common pallet shapes, which can be used directly by users through quick configuration; advanced palletizing provides a wealth of customization options to meet the highly customized needs of customers. The palletizing software package adopts graphical guidance operation, which can help users quickly get started, providing multiple parameter settings such as palletizing layer number,pallet shape, workpiece size, palletizing direction, sequence, etc., and has a test function to check the validity of the configuration information. In addition, the palletizing variable also supports monitoring and operation on the PLC side.

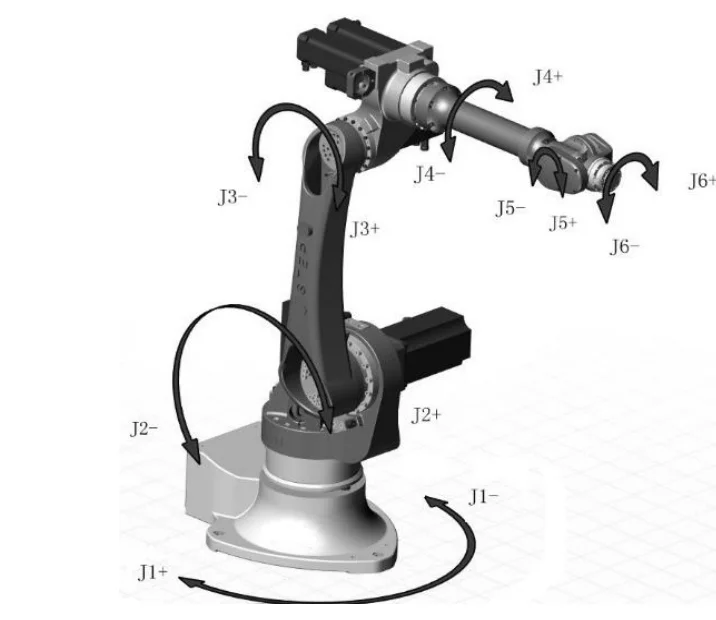

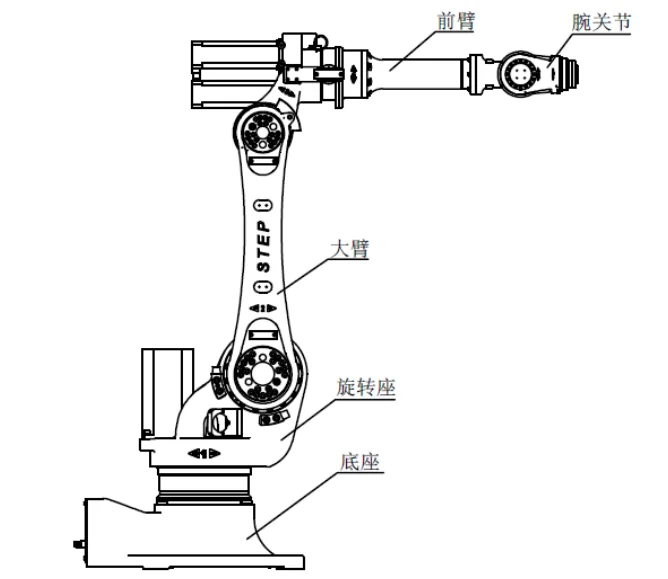

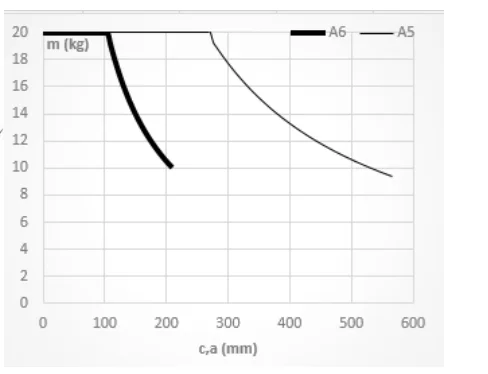

Robot SR-20 Working diagram
The visual accuracy of the system can reach within +5mm in the height direction, and the position and dimension accuracy can reach within +5mm.
The success rate of 3D visual recognition is higher than 99.9%, and the visual processing beat can reach 2.5s/each. The self-developed 3D visual destacking software package is easy to operate and greatly reduces the overall cost.
The visual destacking system can meet the mixed destacking with a height of more than 1.4 meters.The combined suction cup gripper can handle the picking and placing of boxes in a larger size range.
exceed 10s.

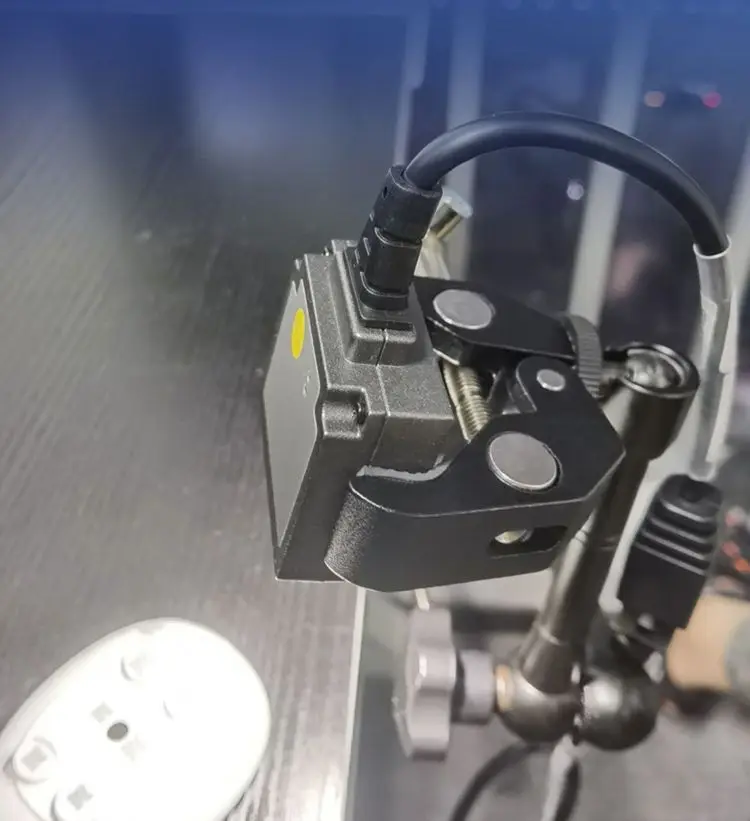

The workstation runs smoothly, and the destacking cycle of single SKU does notCamera calibration and configuration use standardized procedures.

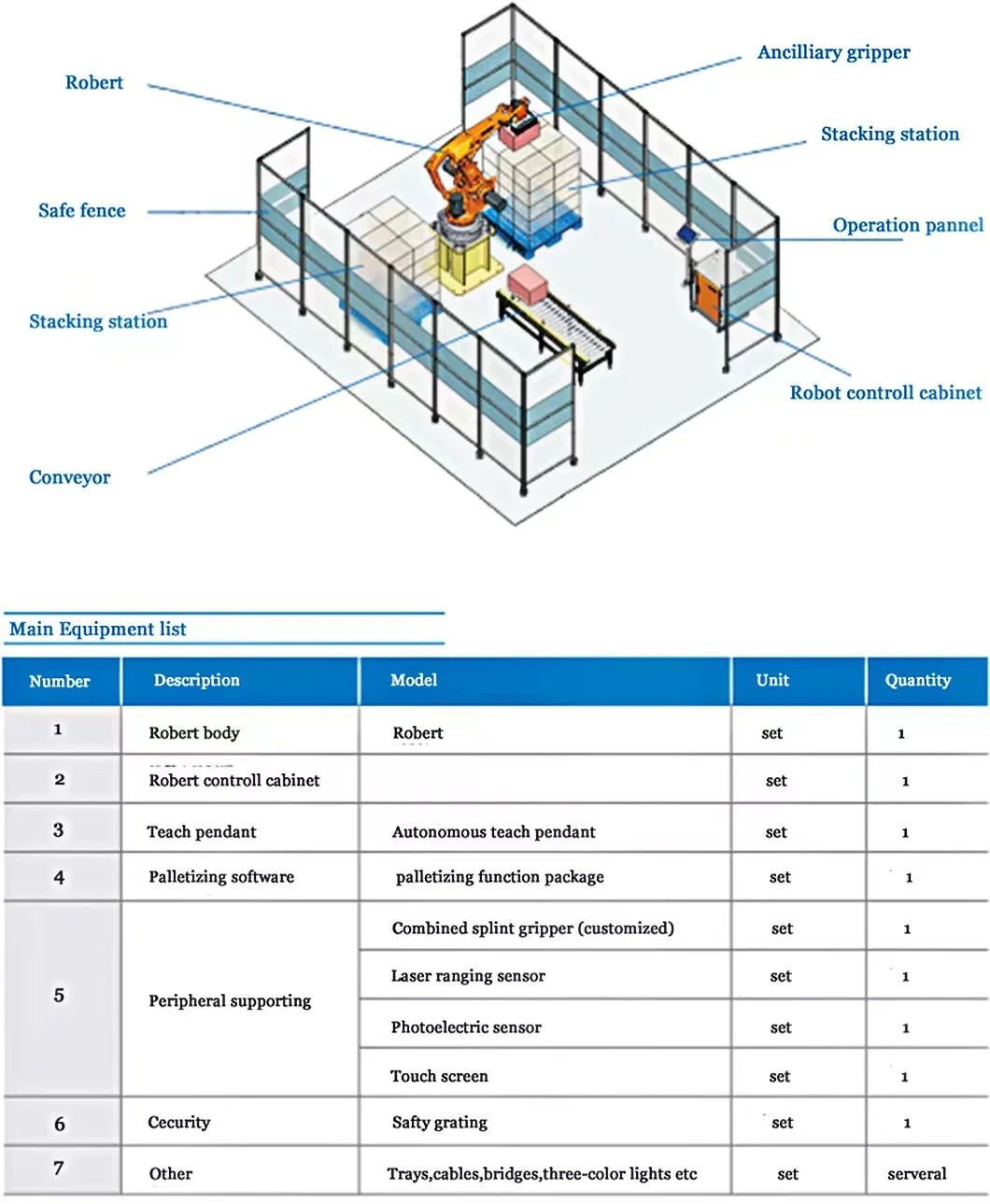

PRODUCT DETAILS
The robot palletizing workstation is easy to operate and the normal operation workers only
need to press the reservation button and replace the tray.
◆ The palletizing function package supports doublestation- appointment
function, one-key appointment.
.The function package supports automatic scan code renewal function to
reduce the error rate of artificial code renewal.
.The workstation supports fast switching of product batches on the touch
screen, which is simple and easy to operate.
.The standard working cycle of the workstation can reach 500 boxes/hour.
◆Real- time feedback of the status of each sensor in the workstation system
can quickly find the cause of system failure.
need to press the reservation button and replace the tray.
◆ The palletizing function package supports doublestation- appointment
function, one-key appointment.
.The function package supports automatic scan code renewal function to
reduce the error rate of artificial code renewal.
.The workstation supports fast switching of product batches on the touch
screen, which is simple and easy to operate.
.The standard working cycle of the workstation can reach 500 boxes/hour.
◆Real- time feedback of the status of each sensor in the workstation system
can quickly find the cause of system failure.

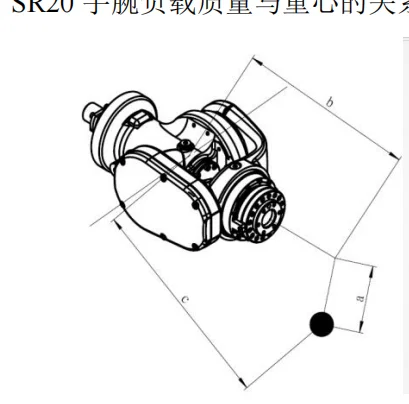

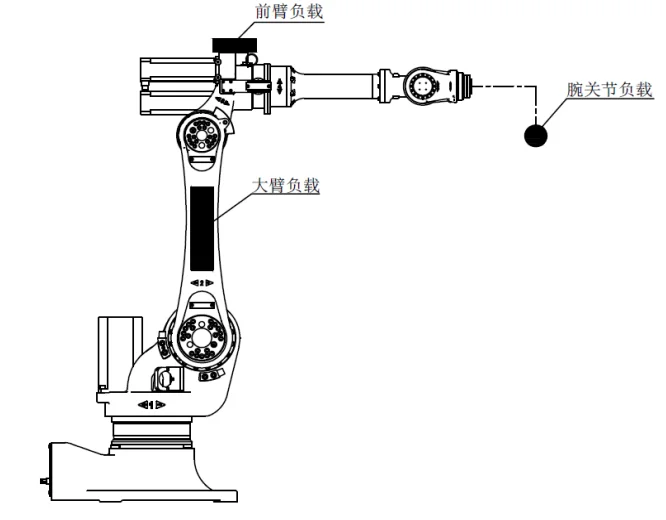

Robot Mode | Wrist load (kg) | Forearm load (kg) | Big arm load (kg) |
SR 20 | 20 | 10 | 10 |
Specification
models | SR20 | SR50E | SR165 | SR210 | |||
freedom | 6 | ||||||
Wrist load | 20kg | 50kg | 165kg | 210kg | |||
maximum working radius | 1588mm | 2124mm | 2586mm | 2683mm | |||
installation | 246kg | 575kg | 1250kg | 1250kg | |||
Noise | <80dB(A) | ||||||
Working Temperature | 0℃-40℃ | ||||||
Transportation,Storage Temperature | ±55 | ||||||
Humidity | <75% | ||||||
Vidration | <4.9m/s² | ||||||
Ontology IP Protection Grade | IP40 | ||||||
Controller IP Protection Grade | IP53 | ||||||
