HUAYUAN S455 mobile stage roadshow hydraulic sound stage trailer for outdoor event concert
HUAYUAN S455 mobile stage roadshow hydraulic sound stage trailer for outdoor event concert
HUAYUAN S455 mobile stage roadshow hydraulic sound stage trailer for outdoor event concert
HUAYUAN S455 mobile stage roadshow hydraulic sound stage trailer for outdoor event concert
HUAYUAN S455 mobile stage roadshow hydraulic sound stage trailer for outdoor event concert
HUAYUAN S455 mobile stage roadshow hydraulic sound stage trailer for outdoor event concert
HUAYUAN S455 mobile stage roadshow hydraulic sound stage trailer for outdoor event concert

HUAYUAN S455 mobile stage roadshow hydraulic sound stage trailer for outdoor event concert

Share on (1600535937156):


Price:

Quantity:


Product Overview

Description



Product Description

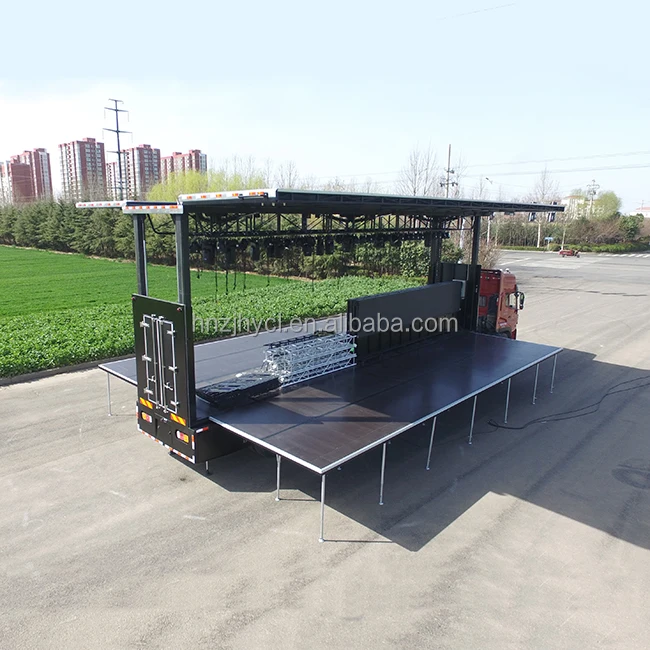

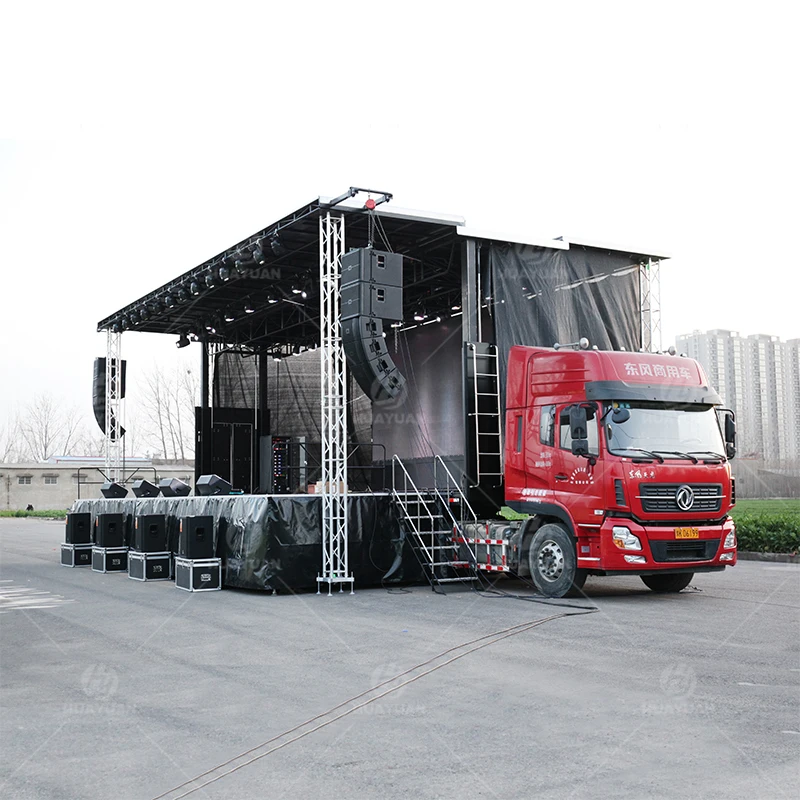

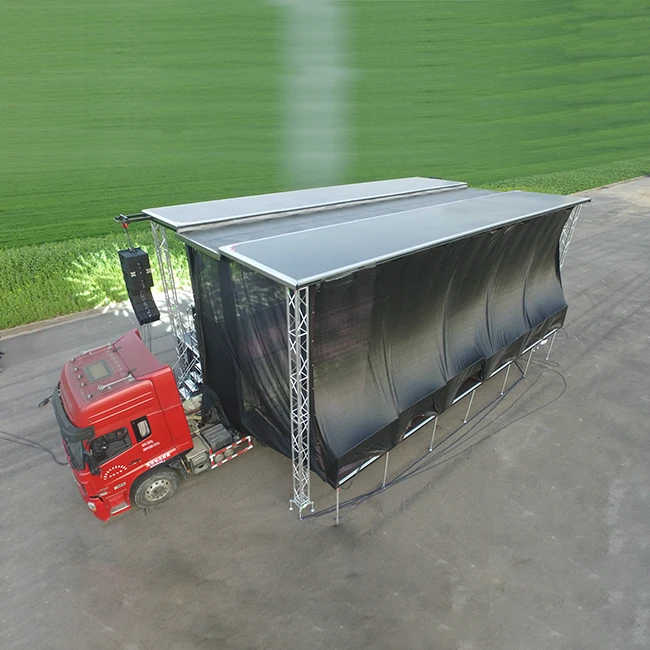

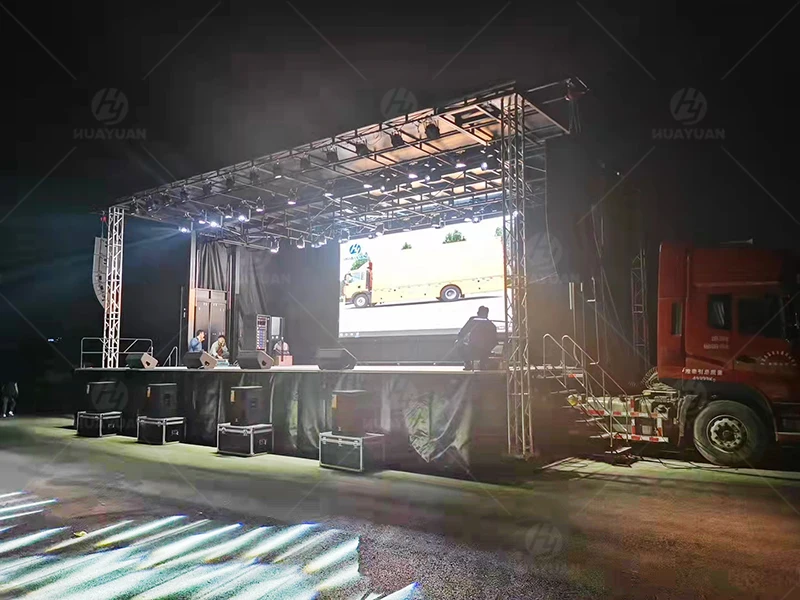

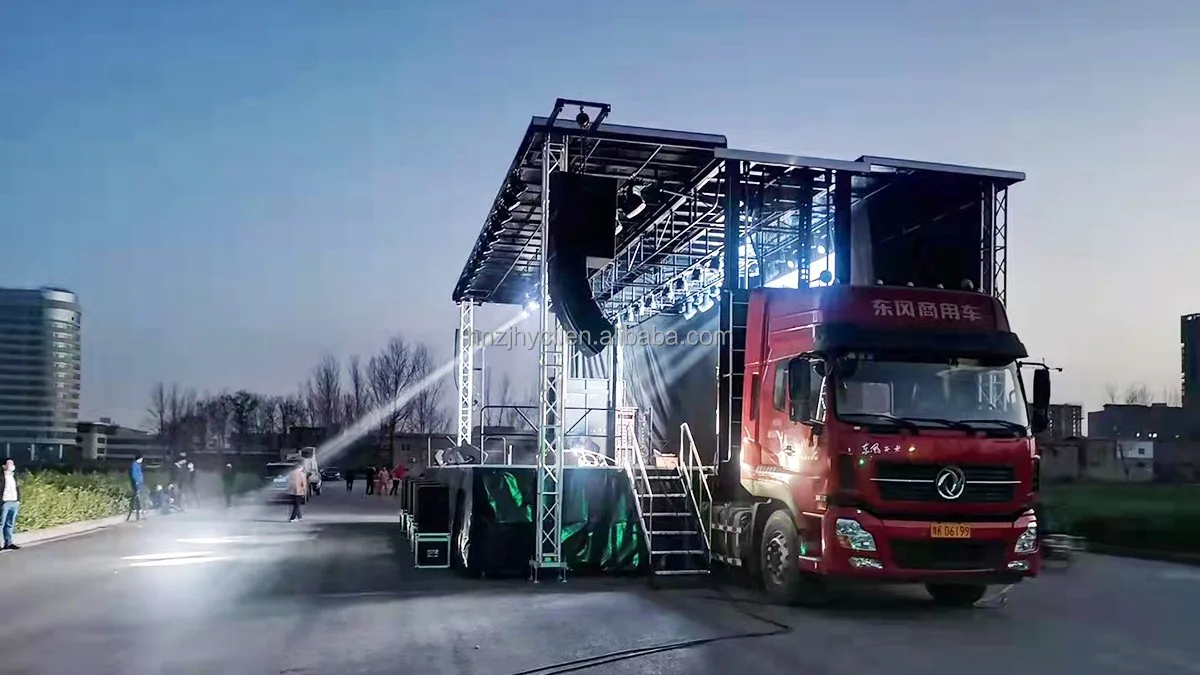

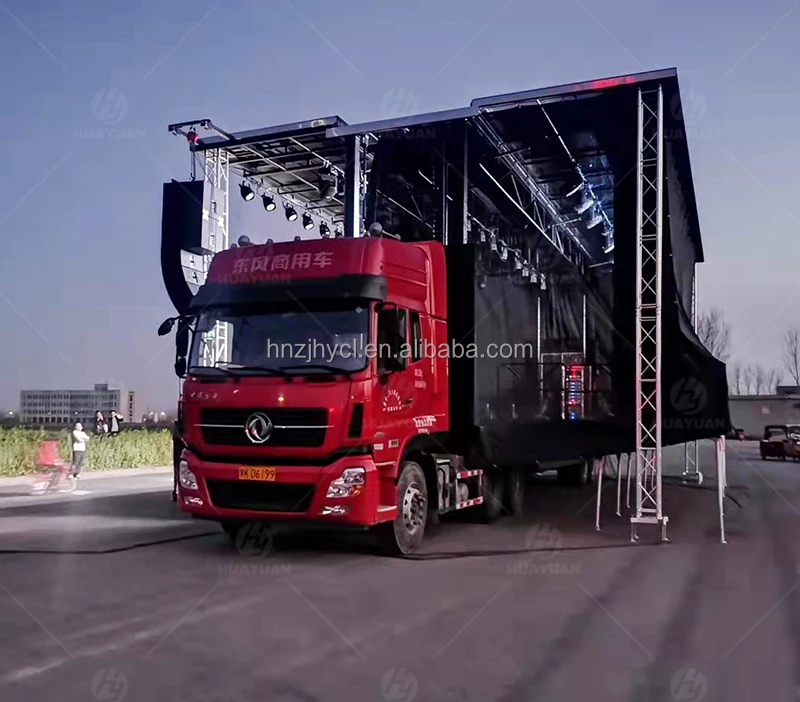

HY-S455 semi-trailer stage is the most popular large mobile stage.
Body length 13m, width 2.5m, height 4m/4.1m. A tractor is required to tow it to the activity area.
It has an independent power unit, operated using a remote control, and the stage opening and closing are controlled by a hydraulic system.

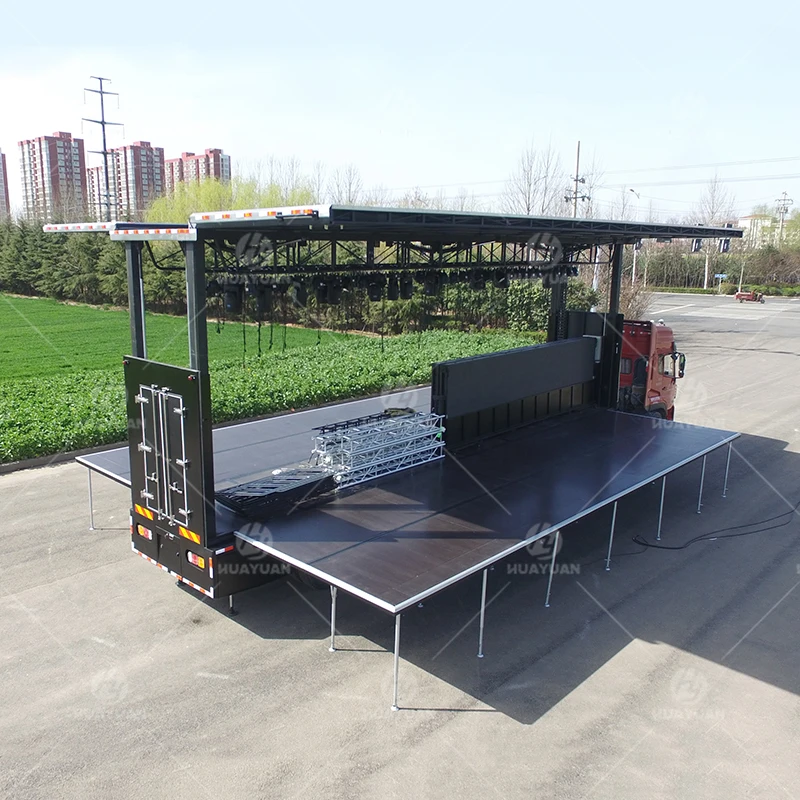

The stage size is 12m × 8.53m/8.73m and the total area is 102 square meters. You can also add more stage area according to your needs.
The height from the stage surface to the ceiling is 4.6m. Advertising banners can be set on the horizontal plane of the stage ceiling to increase the stage height visually.

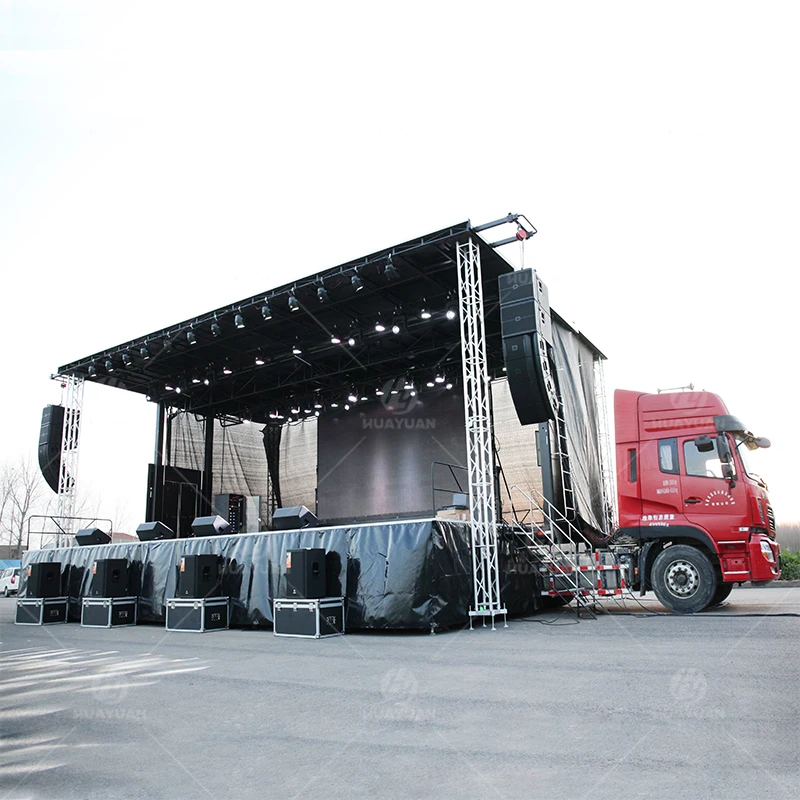

The stage wings are supported by trusses, which increase the carrying capacity of the ceiling and allow for hanging of light and sound systems.

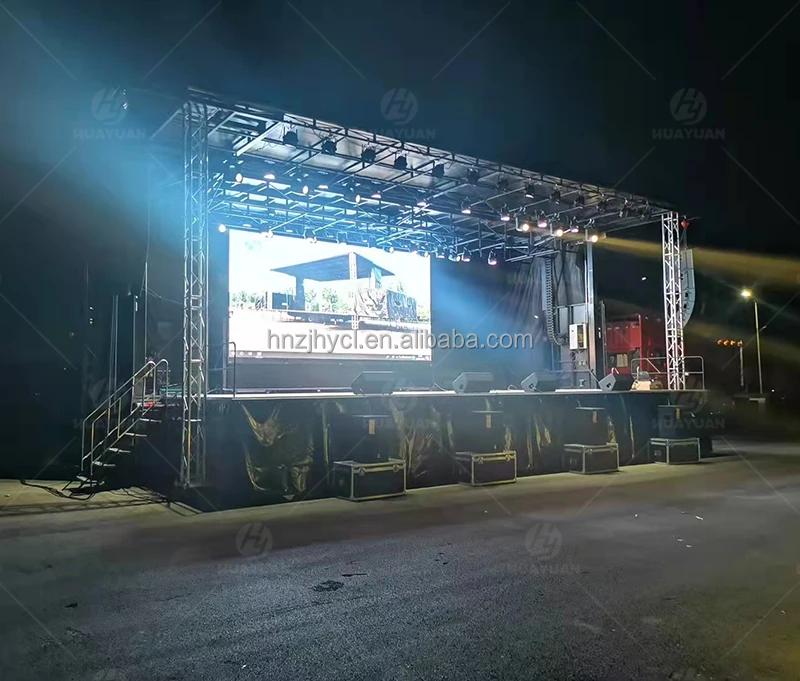

S455 stage floor bearing capacity is 450 kg/m², can be set up an LED screen background, so that live activities can have a stronger visual impact.




Mode of Transportation
1 Pick-up truck \\SUV or hauling vehicle


Rigging Bars
Standard 2” (50 mm) steel tube truss structure


Wind Resistance
170 km/h without windwalls or
120 km/h with windwalls


Product Paramenters




TRAILER
Length
13 m
Height
4 m
Width
2.5 m
Dry Weight
14600 kg
Maximum Weight
25000 kg
framework material
steel
STAGE FLOOR
length and Depth
12×8.53 m
Design Live Load
450 kg/m²
Height
1.5m
Stage material
Stage board
ROOF
length and Depth
13×7.5 m
Height (from ground)
6.1 m
Type of Surface
FRP around steel structure
Roof Load Bearing Capacity
4900 kg
1 Truss - Downstage
450 kg
2 Front Overhang Extensions
530 kg each


Company Profile

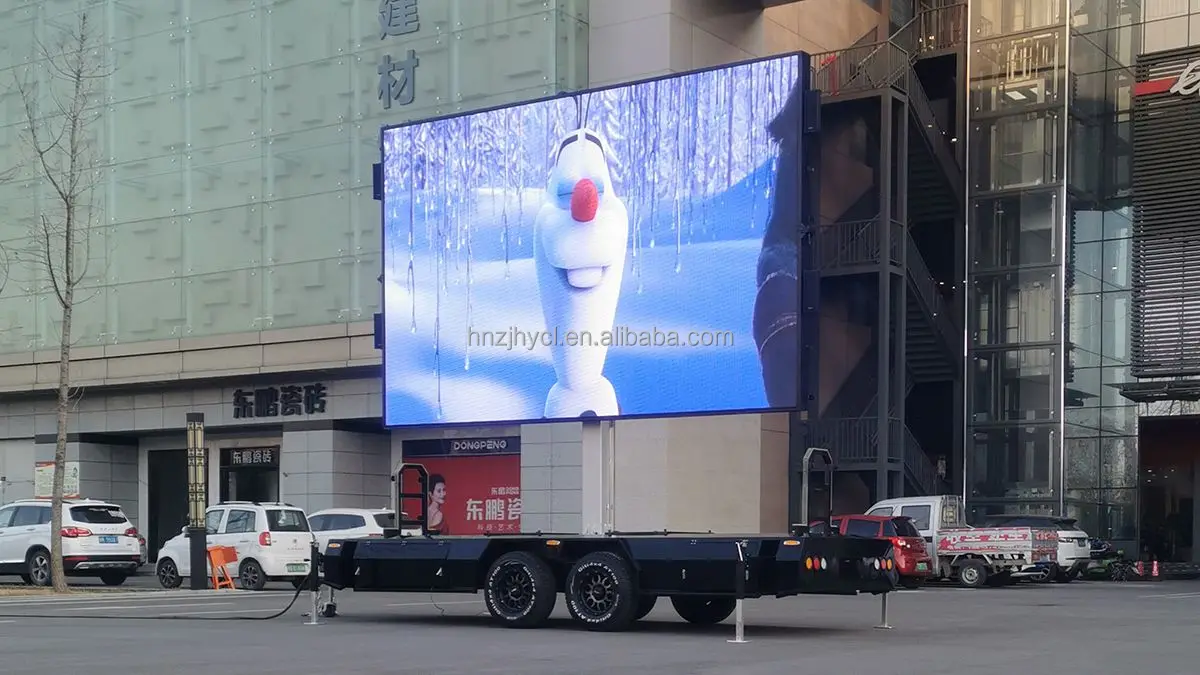

Henan CIMC Huayuan Vehicle Co., LTD., specializing in the production of all kinds of mobile stage, such as: stage truck, stage trailer and semi-trailer stage; LED screen vehicles, such as LED display truck, LED billboard trailer and LED publicity vehicle; Mobile road show vehicles, such as: road show trucks, road show trailers and other special modified vehicles. We produce all kinds of outdoor stage vehicles, beautiful appearance, reasonable structure, safe use, strong bearing capacity. Suitable for soloists,small bands, product promotions, brand promotion, political speeches, church evangelism, large concerts, outdoor sports events,technology products and new car launches and other events. We provide professional truck stage, trailer stage, caravan, road show vehicles, LED advertising vehicles, mobile space for customers. With advanced design idea, excellent performance, perfect supporting facilities and creative products, for customers to reduce activities before setting the huge manpower, time and money, improve the quality of live events, promotion company profile, and market development, consolidate the market position of customers and cultivate customer loyalty, etc., has the incomparable advantage. HUAYUAN series products have strong scene use effect and are well received by the majority of users.



Recommend Products

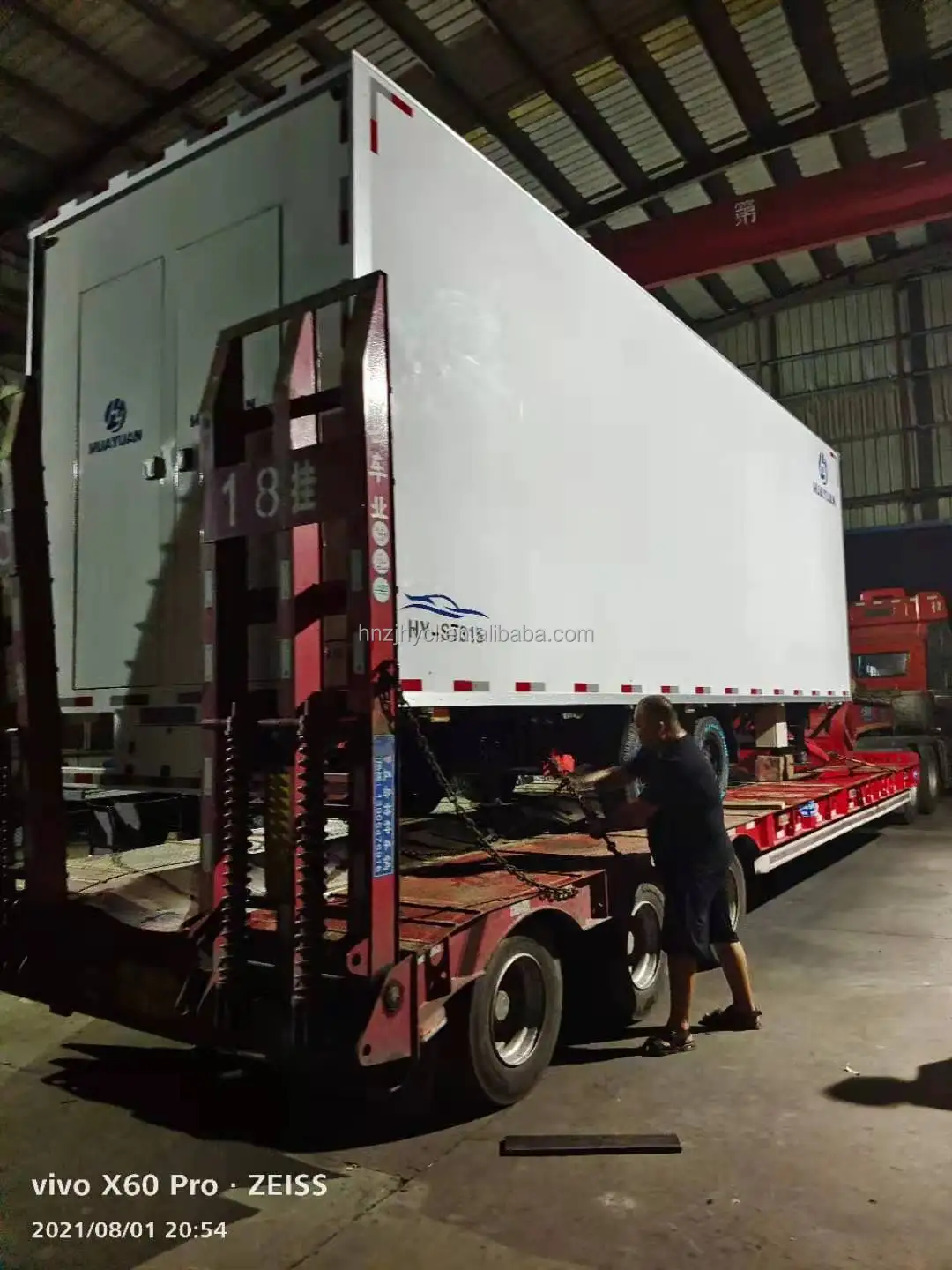

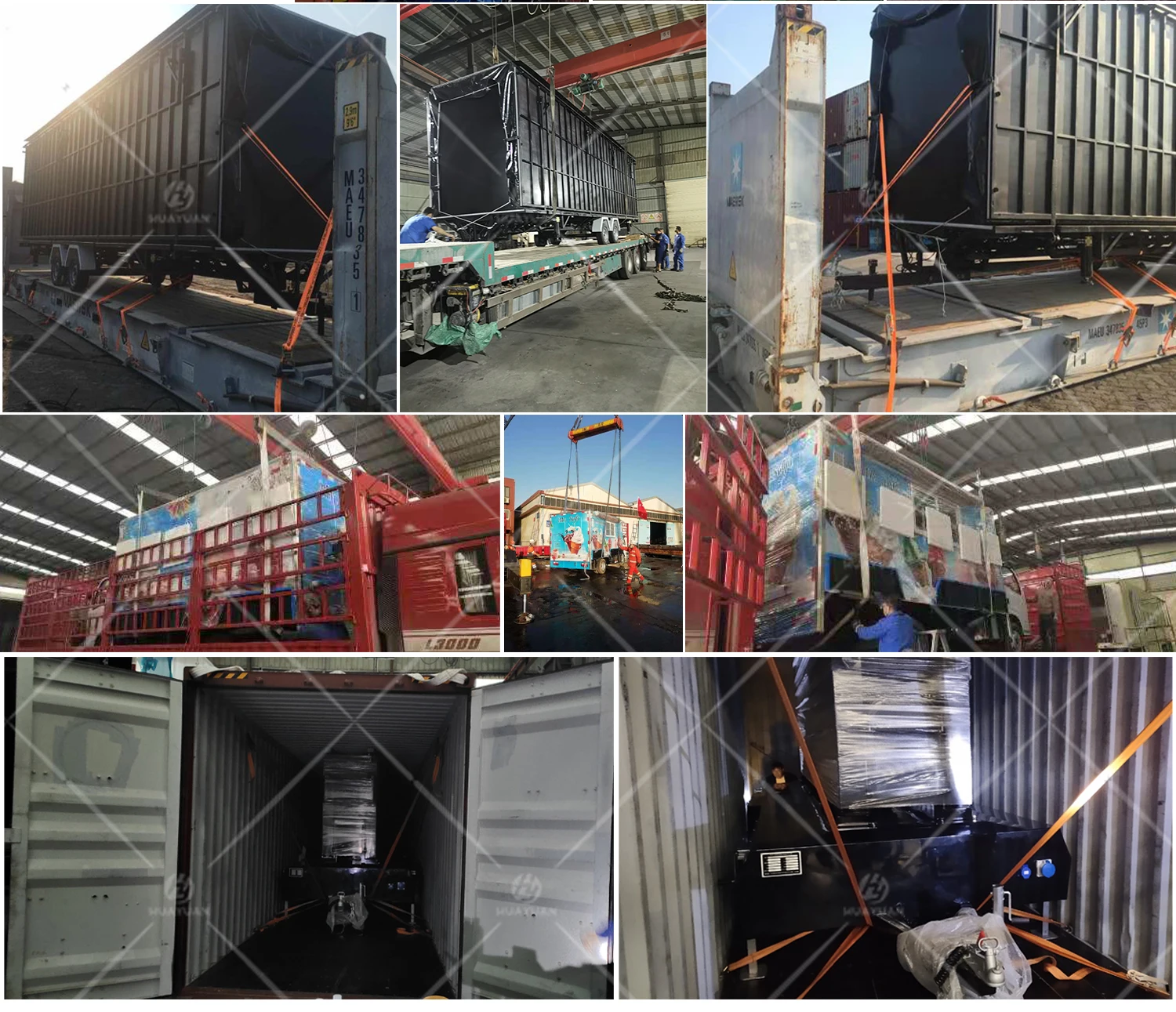

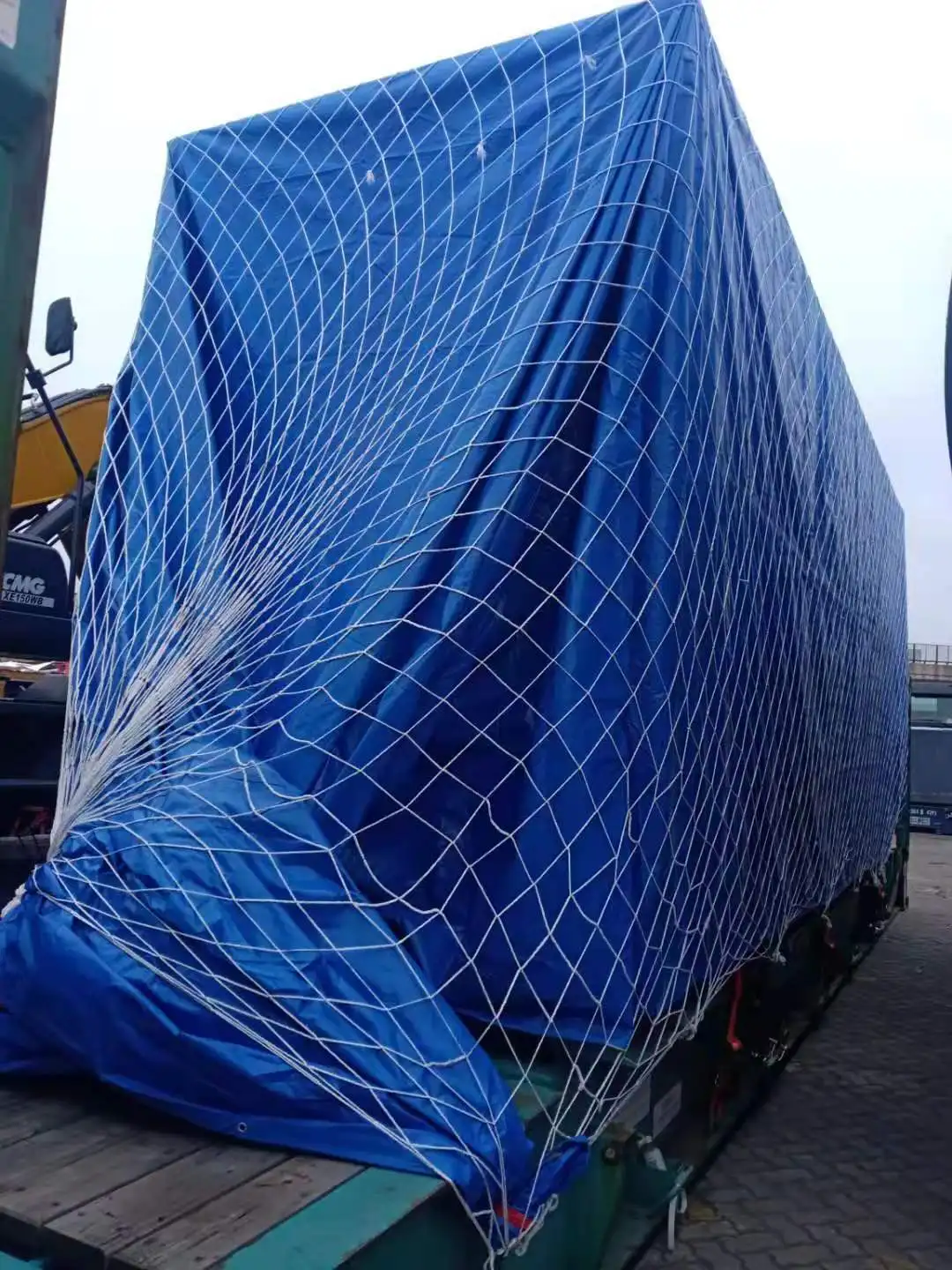

Packing & Delivery







Production cycle: 30 days
Ports of departure: Qingdao, Tianjin, Shanghai, etc.
Mode of shipment: bulk, roll-on, frame and container. (Choose the proper mode of shipment according to the specifications of the goods)



FAQ



1. Can you customize?
Yes, we have a professional design team and technical support.

2. Can you tell me how to transport the moving stage to me?
Option 1: bulk carrier
Option 2: Frame boat
Option 3: roll-on-roll-off

3.What is the freight to our country?
- Please contact us and inform your port, then we will inspect for you.

4.What is your lead time?
- Our production cycle is about 30-45 days.

5. Terms of payment
50% via T/T as deposit; balance needs to be paid before delivery from the factory. Local and medium bank charges are for buyer'saccount



Why Choose Us





1. Only select high-quality materials to ensure quality from the source.
HUAYUAN uses raw materials, all in line with national standards.

2. Safe technology & innovative design
According to customer's idea and project, under the premise of ensuring reasonable structure and safety, design innovative products.

3. Rich industry experience, reliable
Our company has been used for 12 years, mainly producing mobile stage trucks, portable stage trailers, LED screen trailers, LED
screen advertising trucks, road show trucks and road show trailers and other mobile vehicles related to outdoor live events.
Our target audience is a wide range of industries, such as event companies, churches, schools, governments, bands, artists and
philanthropists.
Our products can be used in outdoor concerts, fundraising activities, campus speech activities, outdoor sports competitions,
political speeches, advertising promotion, brand promotion, beach parties, church evangelism, etc.
HUAYUAN products are also expanding more application fields with customers and creating more value.
