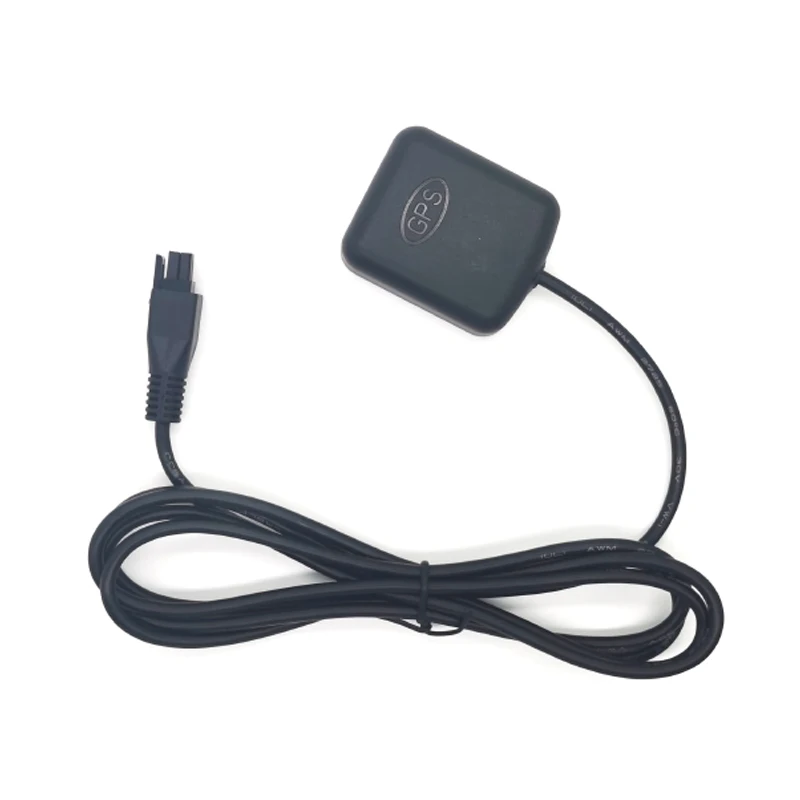

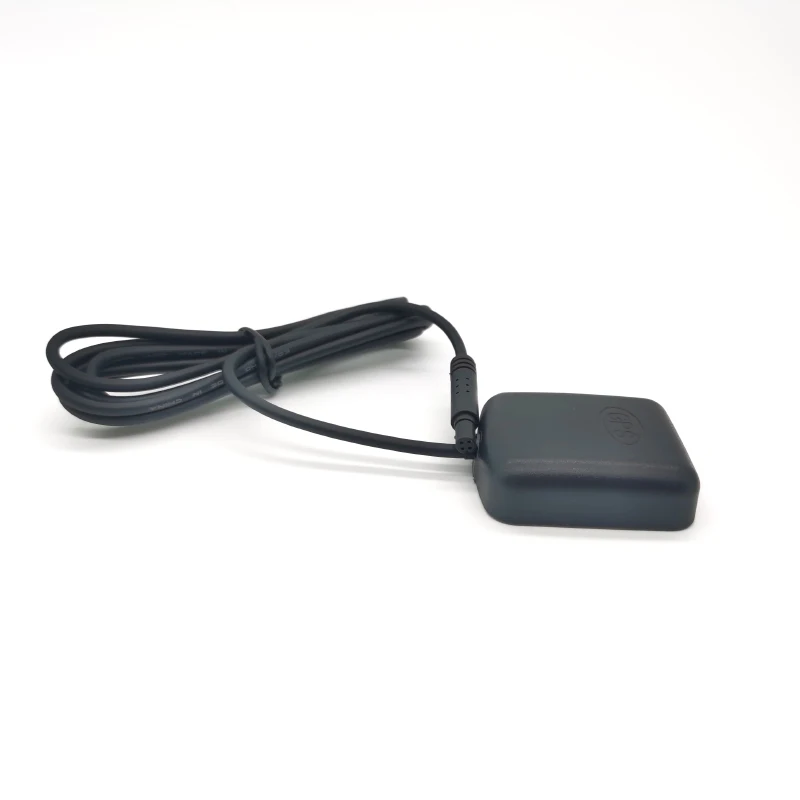

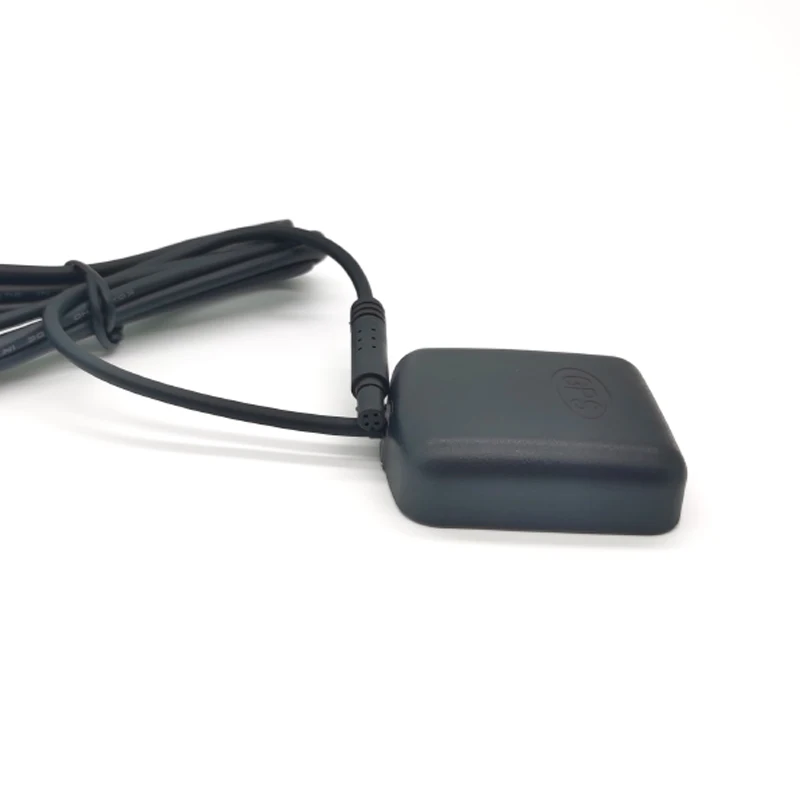

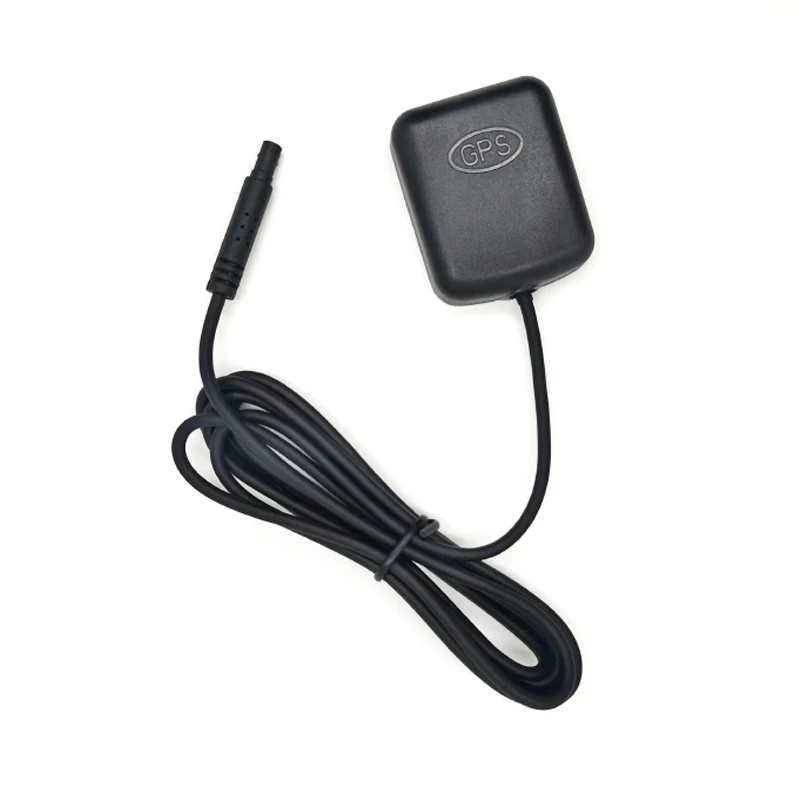

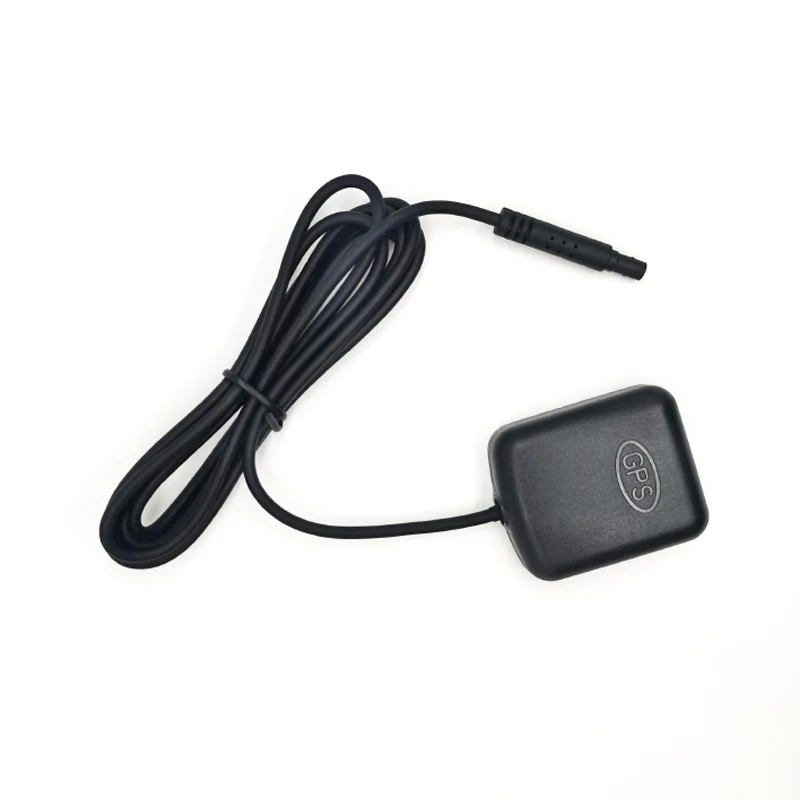

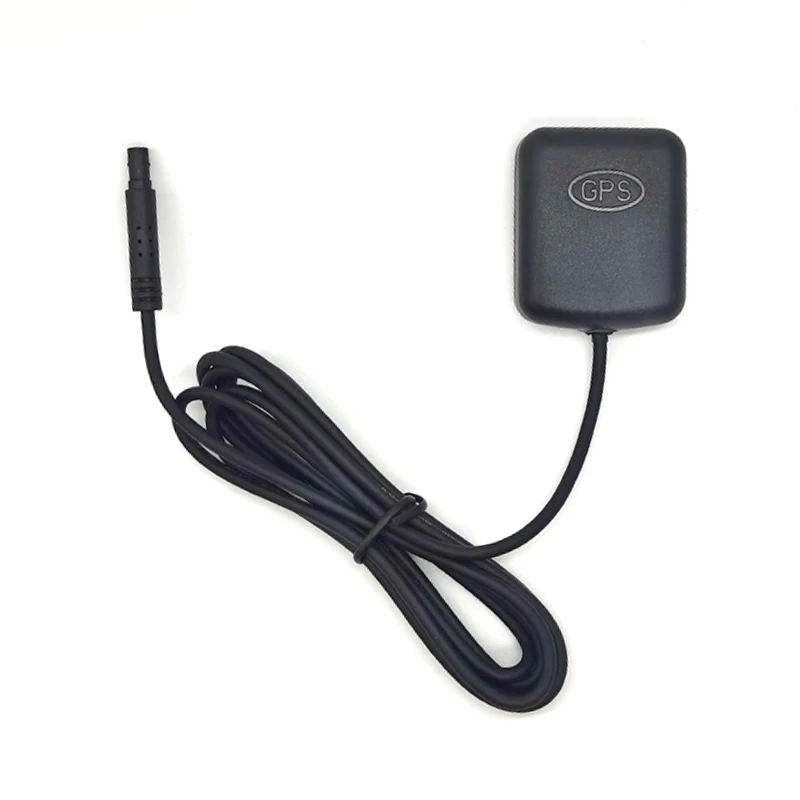

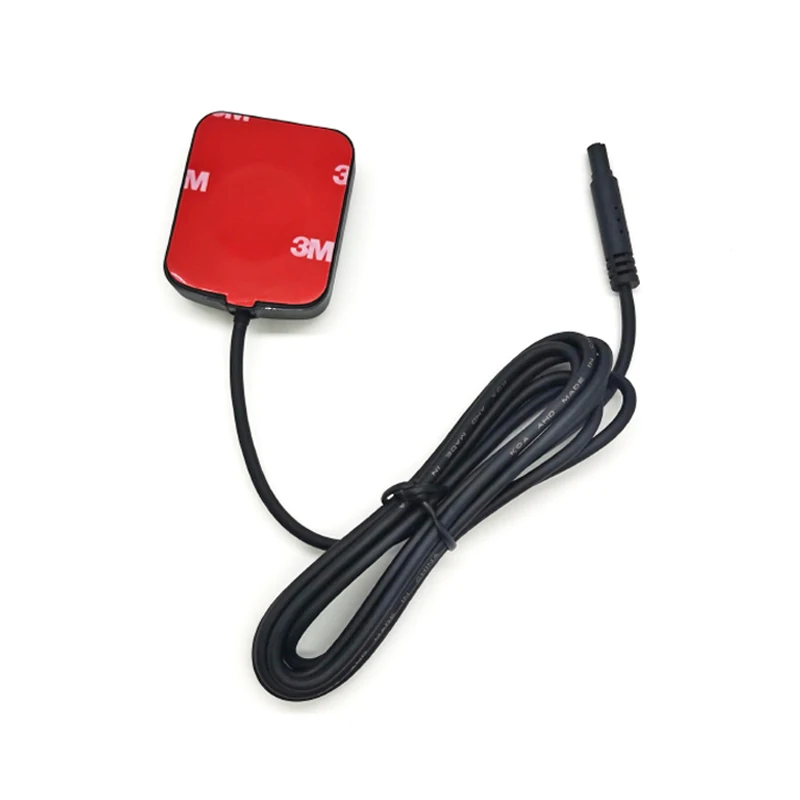

BnStar UBX M10050 KB BM Connector Dashcam GPS Antenna NMEA 0183 TTL Level Flash 1.5m Cable GPS & GNSS Receiver BBM105
- Category: >>>
- Supplier: Shenzhen Bainianxing Technology Co. Ltd.
Share on (1600535945339):
Product Overview
Description
Product Description
Features
The BBM105 is built on the ultra-low power u-bloxM10 GNSS platform, which provides exceptional sensitivity and acquisition times for all L1 GNSS systems. BBM115 supports concurrent reception of four GNSS (GPS, GLONASS, Galileo, BeiDou). The high number of visible satellites enables the receiver to select the best signal. The extremely low power consumption of less than 25mW in continuous tracking mode allows great power autonomy for all battery-operated devices, such as asset trackers, without compromising on GNSS performance.
Specification
Spec | Instructions | ||
Chip | UBX-M10050-KB | ||
Receiving type | GPS L1 C/A, QZSS L1 C/A L1S, GLONASS L1OF BeiDou B1I/B1C, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN | ||
Channels | 72-Channels | ||
Sensitivity | Tracking | -167dBm | |
Reacpture | -161dBm | ||
Cold start | -148dBm | ||
Hot start | -159dBm | ||
Accuracy | Horizontal accuracy | 1.5 m CEP | |
Velocity | 0.1m/s 95%(SAoff) | ||
Timing | 60ns | ||
Cold start | 24s | ||
Warm start | 2s | ||
Hot start | 1s | ||
Data Output | Support rate | 4800 bps to 921600 bps, default 38400 bps | |
Output level | TTLevel | ||
NMEA Version | NMEA-0183 v2.3 to v4.x, UBX | ||
NMEA Message | RMC, VTG, GGA, GSA, GSV, GLL,TXT | ||
Update Rate | Up to 18Hz(GPS only) | ||
Update Rate | 1-10Hz, Default 1Hz (Standard GNSS) | ||
Work Limit | Altitude | 80000m Max | |
Velocity | 515m/s | ||
Gravitational Acceleration | 4g Max | ||
Voltage | 5.0V | ||
Current | Normal 70mA 5.0V | ||
Physical Parameters | Size | 48*35*13mm | |
Weight | 100g | ||
Connector | BMW Connector | ||
Antenna | Antenna | Built in antenna | |
Operating temperature | -40℃ to +85℃ | ||
Storage temperature | -40℃ to +125℃ | ||
Details Images
Company Profile
Founded in 2009
Bainianxing was founded in 2009 and is located in Shenzhen, Guangdong Province, China. We have high-precision GNSS navigation and positioning products R&D, production and sales capabilities. We also have a one-stop PCBA factory that can provide PCB assembly, SMT and other services.
Focus on the GPS filed for 13 years
Bainianxing focuses on the R&D of GPS products, with GNSS modules, receivers, high-precision antennas as our core business. The positioning accuracy covers meters, sub-meters, centimeters and millimeters. We serves multiple industries such as smart driving, surveying and mapping, drones and smart wearables.

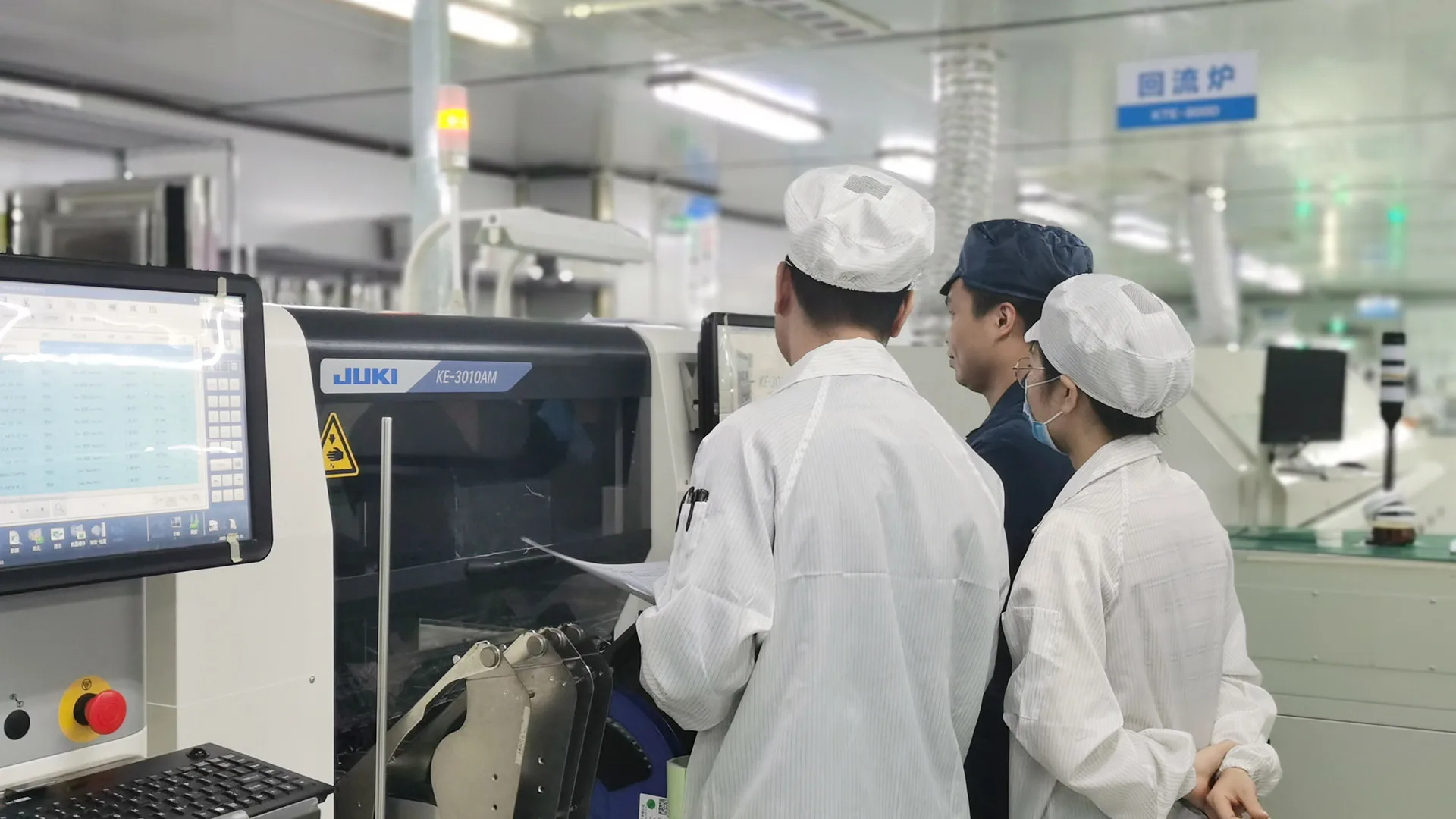

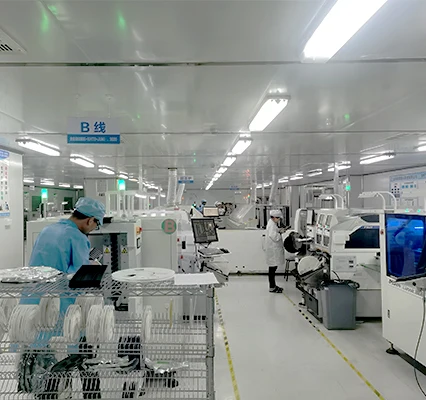

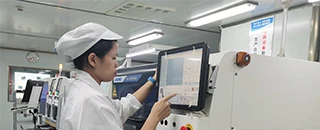

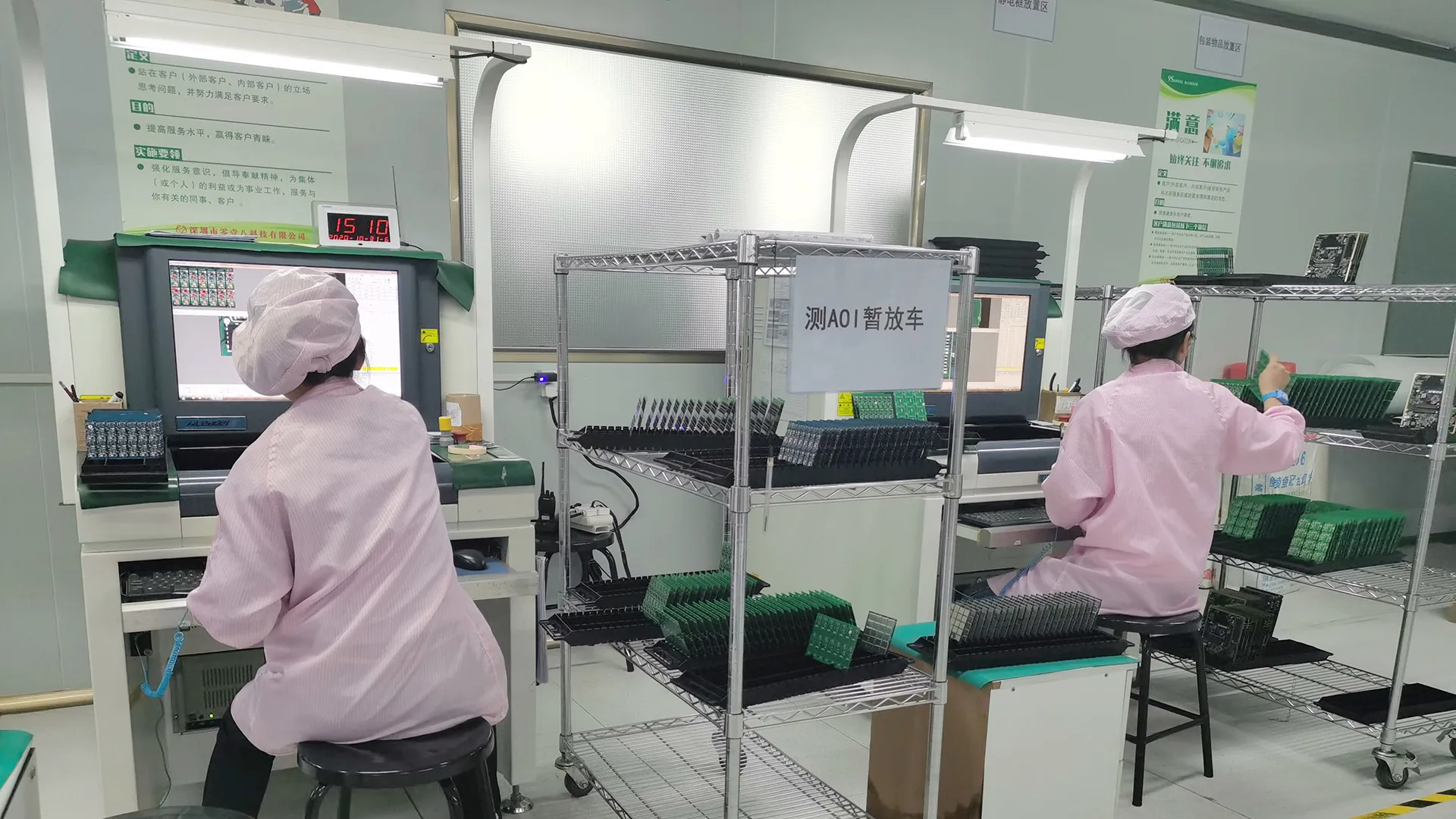

One-Stop PCBA Manufacturer
In order to better control the quality of products and better serve customers, we have establishes a 1500㎡ production factory, which can not only produce GPS-related produce, but also provide other products’ PCB assembly, SMT patch and other services. In addition, we also have a design team with rich design experience in GPS-related devices, such as GPS handhelds and GPS sports watches.
GPS Solution Design
Bainianxing has a solution design team with GPS equipment (GPS handhelds, GPS smart watches, etc.) program design capabilities, and can customize solutions according to customer requirements.
Bainianxing was founded in 2009 and is located in Shenzhen, Guangdong Province, China. We have high-precision GNSS navigation and positioning products R&D, production and sales capabilities. We also have a one-stop PCBA factory that can provide PCB assembly, SMT and other services.
Focus on the GPS filed for 13 years
Bainianxing focuses on the R&D of GPS products, with GNSS modules, receivers, high-precision antennas as our core business. The positioning accuracy covers meters, sub-meters, centimeters and millimeters. We serves multiple industries such as smart driving, surveying and mapping, drones and smart wearables.
One-Stop PCBA Manufacturer
In order to better control the quality of products and better serve customers, we have establishes a 1500㎡ production factory, which can not only produce GPS-related produce, but also provide other products’ PCB assembly, SMT patch and other services. In addition, we also have a design team with rich design experience in GPS-related devices, such as GPS handhelds and GPS sports watches.
GPS Solution Design
Bainianxing has a solution design team with GPS equipment (GPS handhelds, GPS smart watches, etc.) program design capabilities, and can customize solutions according to customer requirements.

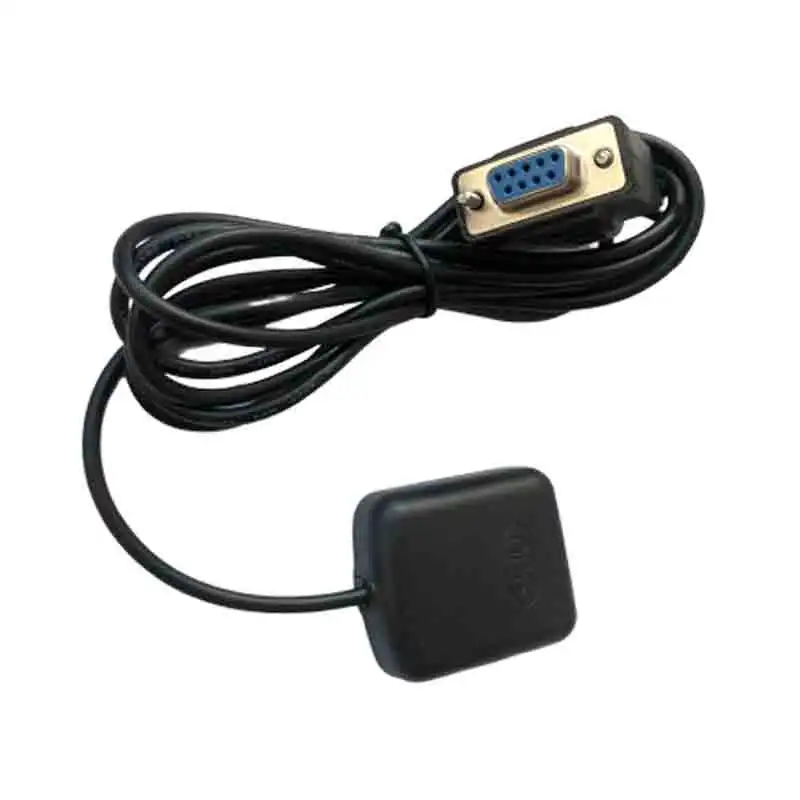

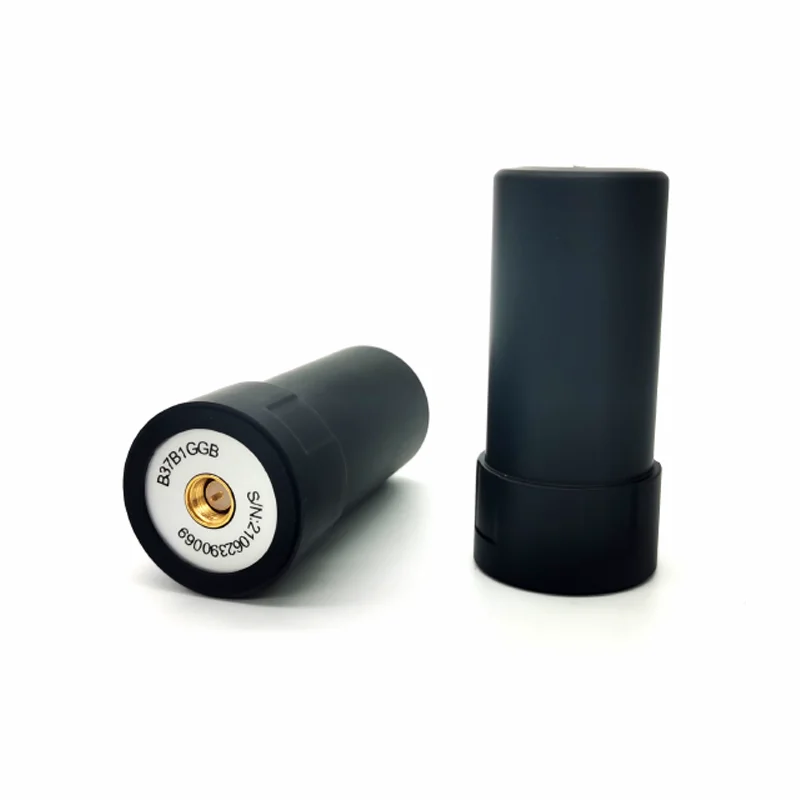

Related Products
