Linear piston volumetric filling machine for PET and glass bottles
- Category: >>>
- Supplier: Changzhou Huituo Technology Co. Ltd.
Share on (1600535955453):
Product Overview
Description
Product Overview
Flow meter filling machine
Our SF series flowmeter filling machine is suitable for filling materials with different viscosity. It has been widely used in chemical, food, medicine, and many other industries, featuring stable and reliable performance, high filling accuracy, convenient adjustment and so on.
FEATURES AT A GLANCE
Highlights
1. Wide application, suitable for different containers and liquids.
2. Filling range from 100ml to 5,000mland even more.
3. Bottle feeding: one row, two-row or three-row available, based on the capacity requirements.
4. Filling accuracy 0.3%-1%
5. Quick and easy changeover, automatic changeover is optional
6. Storage tank designed in GMP grade
7. Liquid contact parts meet the "FADCRF21" standard
8. (Pressurized) CIP and SIP available, cleaning time 5-10min
2. Filling range from 100ml to 5,000mland even more.
3. Bottle feeding: one row, two-row or three-row available, based on the capacity requirements.
4. Filling accuracy 0.3%-1%
5. Quick and easy changeover, automatic changeover is optional
6. Storage tank designed in GMP grade
7. Liquid contact parts meet the "FADCRF21" standard
8. (Pressurized) CIP and SIP available, cleaning time 5-10min

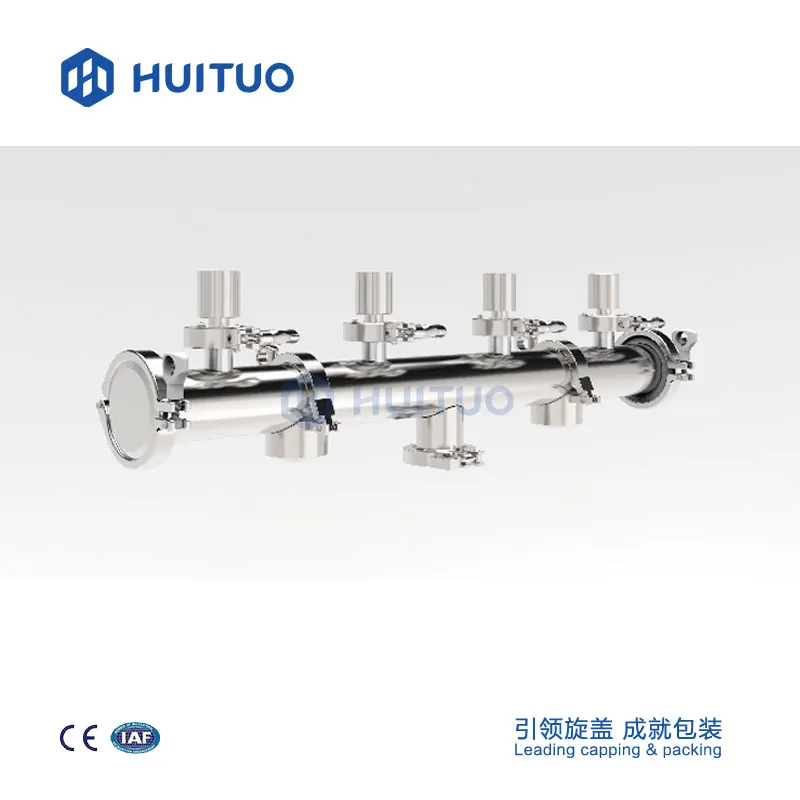

GMP storage tank
The tank contains the body, feeding pipe, cleaning pipe, cleaning ball, the liquid level detection sensor, and the mechanical safety valve etc. The liquid level sensor uses a guided wave radar and has a continuous liquid level detection function to fill at low level and stop at high level.

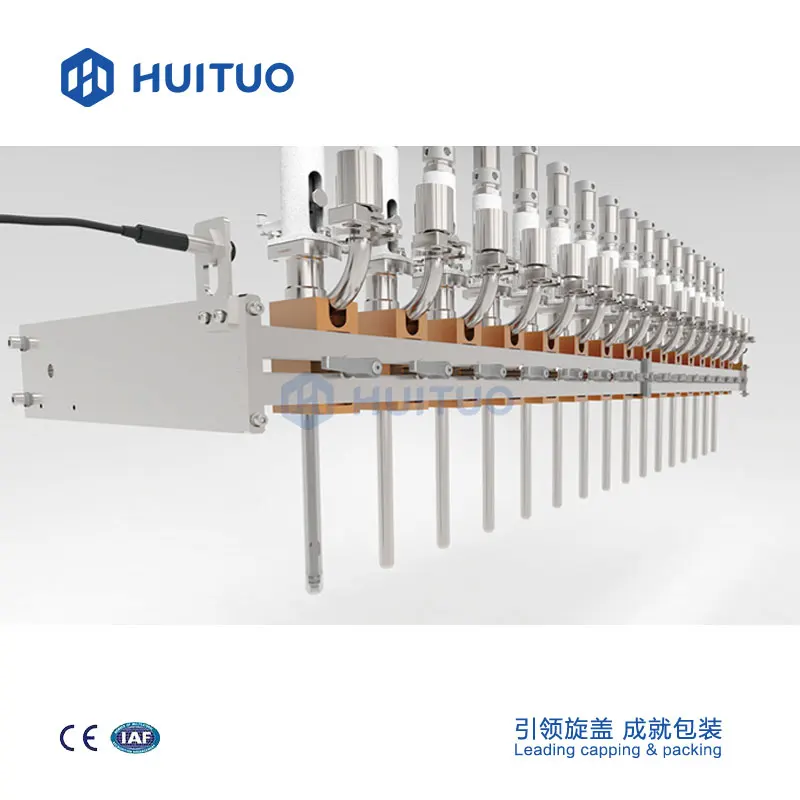

316L filling nozzle
Specially designed filling nozzle with high precision and long service life and can be dived into bottle bottom to fill. The servo motor drives the submerged filling mode of the filling head, which can switch the dive position according to different recipes, and the operation is more stable.

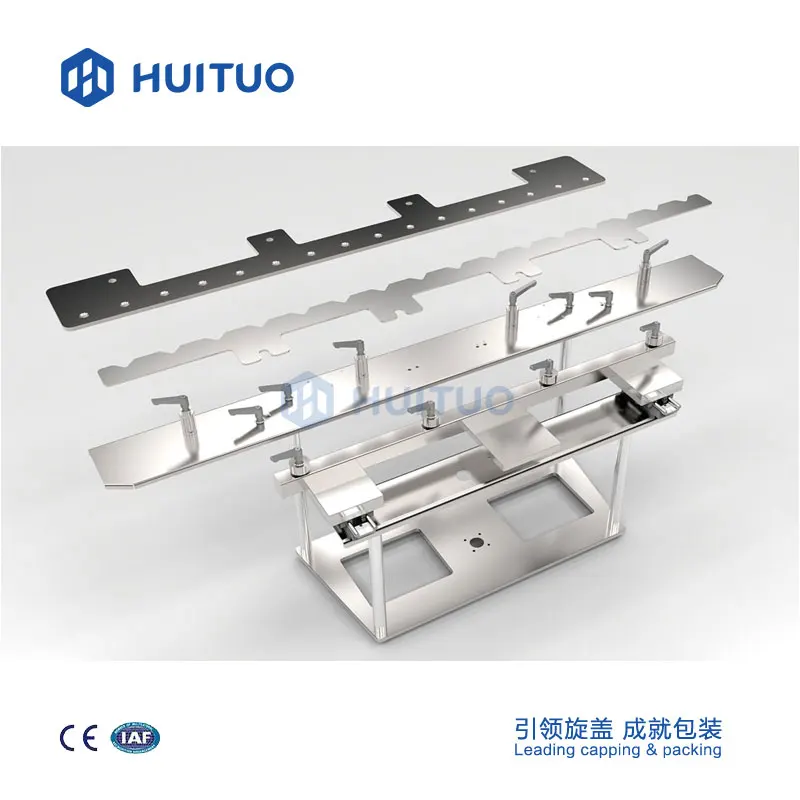

Bottle mouth fixing part
The bottle stopper uses a sliding stopper, which can be continuously adjusted for different bottle types. The slider uses a card slot structure, which is not easy to fall off on
the slide conveyor. All fastening handles use quick-install handles, with no tools when adjusting.
the slide conveyor. All fastening handles use quick-install handles, with no tools when adjusting.

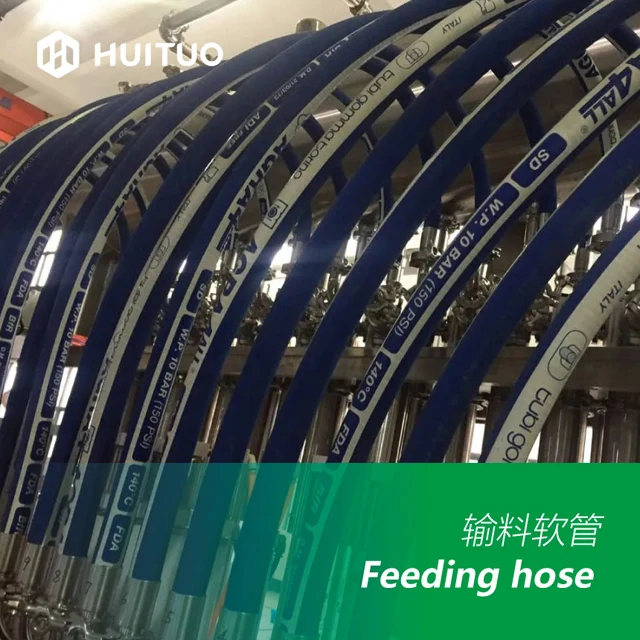

Feeding hose
It adopts Italian imported brand conveying pipe, which conforms to food grade, smooth EPDM rubber, abrasion resistance, ozone resistance and aging resistance, and is
sterilized at 110 degrees for 30 minutes.
sterilized at 110 degrees for 30 minutes.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Dimension | 2000mm*1600mm*2600mm, customized |
2 | Stand-alone pass rate | 99% |
3 | Filling method | Volumetric piston; Flow meter ( KROHNE/E+H); Self-flow gravity |
4 | Speed | 20-300bpm Customized based on requirement |
5 | Voltage | 220VAC~380VAC, 50Hz-60Hz |
6 | Air source | 0.4-0.6Mpa clean and stable air source |
7 | Noise | ≦80 decibels |
8 | Material | Frame: carbon steel, stainless steel frame; Contact with material: 316L stainless steel; Filling head: 316L stainless steel; Material pipe: sanitary grade steel hose; Connected and fixed mechanical parts: SUS304 stainless steel; Control valve: 316L stainless steel; Screen door: stainless steel edging, plexiglass |
9 | Electrical components | PLC:Siemens Touch screen: Siemens Servo: Siemens Breaker: Siemens Sensor: IFM/LEUZE Button: Schmeral Conveyor motor: SEW (Optional) |
