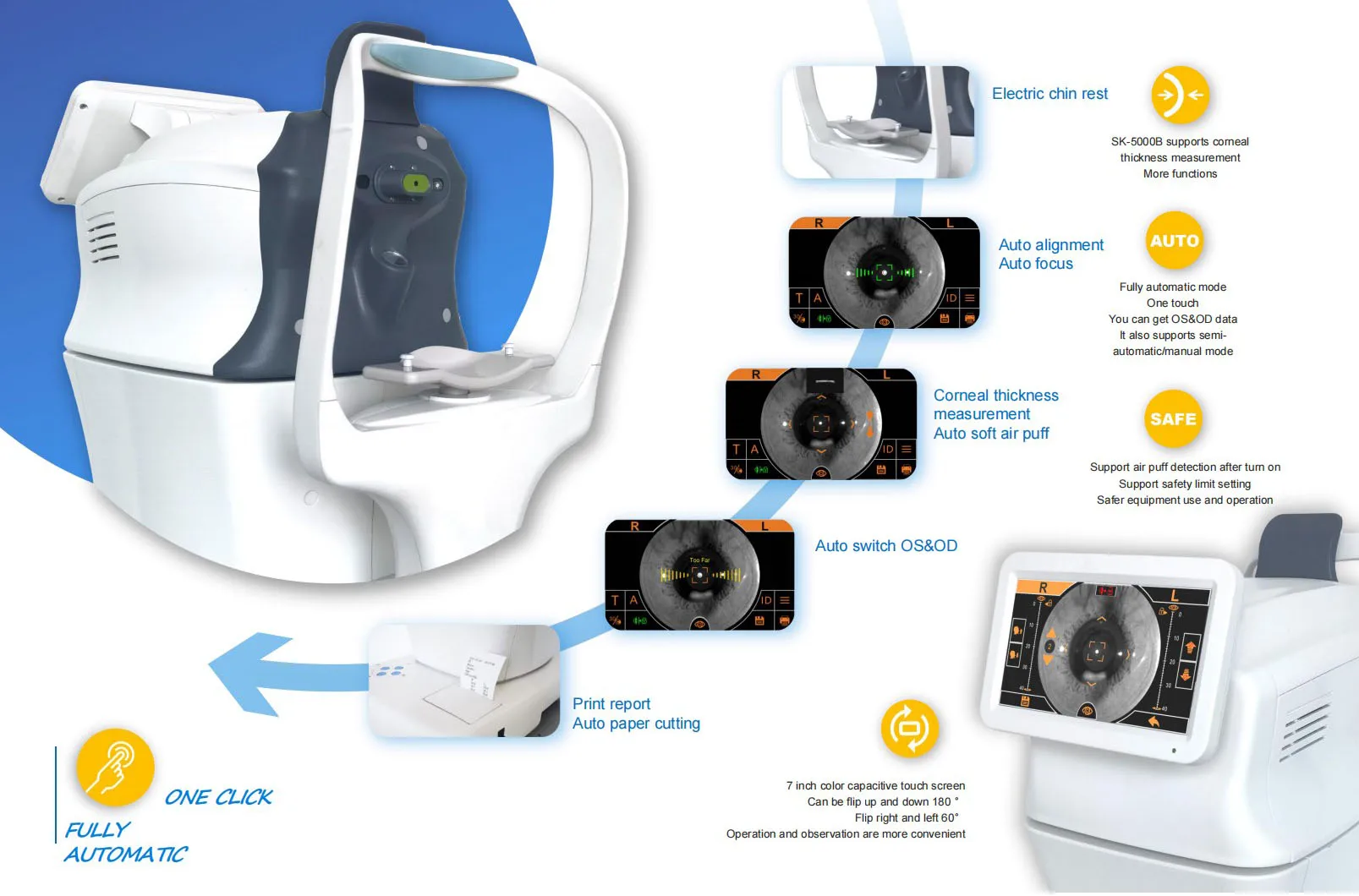

Automatic non contact ophthalmic tonometer

 Model

SK-5000A

SK-5000B (can measure comeal thickness)

Measurement mode

Fully automatic/Automatic/Manual

Comeal thickness measurement

Not suppot

Support

Measurement range-CCT: 400-800um

Measurement increment-CCT: 10um

Light Source: Blue LED

Display

7-inch 1024x600 color touch screen, support up and down 180°, left and right 60°flip

Fixation light

1 internal fixation light (green LED), 2 external fixation lights

Measurement accuracy

1mmHg (0.133KPa)

Measurement range

0-60mmHg (0-8Kpa)

Include automatic switching between 30/60mmHg

Printer

Built-in thermal printer, automatic paper cutting

Data output/input

Input: USB; Output: LAN/RS232C

Size and weight

500x300x500; <25kg

Size

500x300x500mm

Weight

<25kgs

Monitor

size

7”

color

color touch screen

resolution ratio

1024x600

flip angle

up and down 180° left and right 60°

Measuring range

0-60mmHg (Include free switching between 30/60mmHg)

Measurement accuracy

1mmHg

Movement range of measuring head

Up and down 45mm; left and right 90mm

Lifting range of mandible rest

68mm

Working distance

11mm in front of nozzle

Operating range

16mm x 10mm

Tonometry measurement

measured each eye three times continuously, and take the average value; one eye range of normal person: 10mmHg-21mmHg 1.33Kpa-2.8Kpa

Corneal thickness measurement

measured each eye three times continuously, and take the average value; Corneal thickness of normal person: around 550μm

Full automatic measurement

Press the measure button

24-hour dynamic tonometry measurement

24-hour dynamic monitoring of tonometry can be printed on the same report sheet with other data

Power

AC100-240V, 50/60Hz

Printer

Built-in thermal printer

Internet

DICOM3.0

Measurement mode

Full auto/auto/manual

Data input and output

Input: USB

Output: LAN/RS232C

Print

Can print out data after measurement

Storage

Can storage 10 groups of measurement data

Data export

Can save as PDF or JPG format
