Product Overview
Description
Extrusion Coating Laminating Machine SDF-G
Product Description
Usage:
This extrusion laminating Machine is suitable for extruding and laminating such various roll materials as PP woven/non woven fabric, BOPP film (on auxiliary unwinder)
PE,PP, etc. (coating colophony), etc. And can cut edge, separate and cut material according to different requirements during production.
Feature:
1. The Cooling roller adopts gloss or matt surface, which can eliminate bubbles during laminating, featuring in quick stripping and laminating flatly.
2. The Silicone roll and laminating cooling roll employ screw cooling unit, featuring in fast cooling and that the cast film is easy to be formed.
3. The Laminating roll and the rolling speed synchronize in auto tension.
4. Compounding roller is driven by vector motor, Meet the product requirements, to ensure uniform thickness. 5.Preheating before compounding to guarantee fastness and intensity of film compounding effectively.
6.Back pressure roller make compounding roller to force evenly and compounding firmly
7.Compound feeding adjusted roller can overcome defects such as uneven of the thickness.
Advantages:
1.All photo was taken from actual products.
2. We can print client's logo on our machine if needed.
3. Our machine specification can be developed as requests,
4. All of our machine with assured quality and competitive price.
5. Fast & Timely delivery is our merits.
6. After-sales was provided.
If any items you are intereste. Warmly welcome you feel free to CONTACT US
Main Technical Data | ||||||
Model | SDF-G | SDF-G | SDF-G | |||
Diameter of Screw | φ90 | φ95 | φ100 | |||
Max. Unwind Width | 1000mm | 1200mm | 1600mm | |||
Motor Power | 30kw | 37kw | 37kw | |||
Extrusion Capacity | 180KG/H | 220KG/H | 240KG/H | |||
Suitable Resin Material | LDPE, HDPE. PP | |||||
Suitable Basic Material | Paper(35-350g/m2); Non-woven Fabric, Woven Fabric, Aliminum foil | |||||
Machanical speed | 80-180m/min (According to the demands of different users) | |||||
Coating Thickness | 0.012mm-0.05mm | |||||
Unwinding Diameter | Φ1200-1500mm | |||||
Rewinding Diameter (Frictional) | Φ1200-1500mm | |||||
Auxiliary Unwinding Diameter | Φ450mm-Φ600mm | |||||
Tension, Inverter | Full automatic tension controller, Digtal vector control converter | |||||
Electric controller mode | PLC + Touch Screen | |||||
Install area | 11000mm*(7000-9000mm)*2850mm | 3000×2820×1800mm | 3200×2820×1800mm | |||
Different size model can be custom-made Feel Free to Contact US | ||||||
Production Details
Paper extrusion laminating
Paper extrusion lamination, wildly used in food packing, etc, eco-friendly and health
Woven fabric extrusion laminating
Woven fabric with extrusion lamination, it lead the woven bag can afford wet goods,
Non-woven Fabric Extrusion Laminating
Non-woven fabric extrusion lamination, with water proof further, non-woven fabric have more usage.
Details Images
Extruding Parts
A.C motor, harden gear reducer
38CrMoAl screw for LDPE
Big width with two screw, small width with one screw
38CrMoAl screw for LDPE
Big width with two screw, small width with one screw
Electric Cabinet
The main motor, Blower controlled by Inverter
Automatic temperature controller for screw and die head
Automatic temperature controller for screw and die head

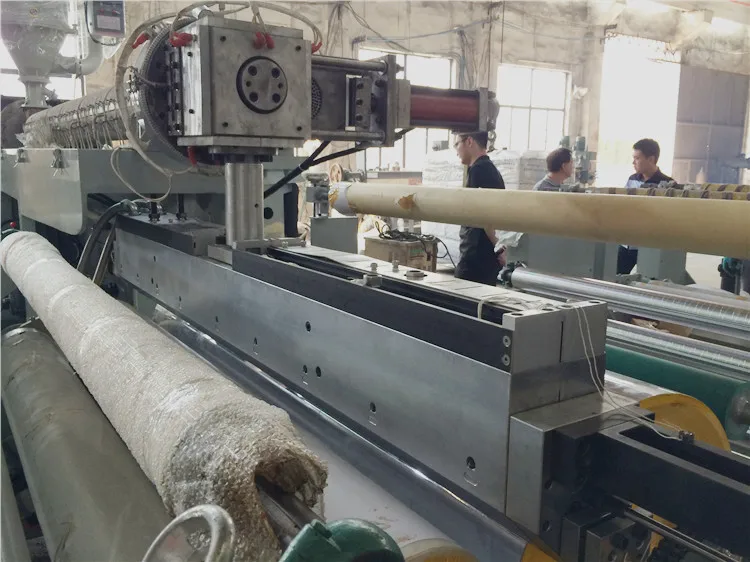

T-Die Mould
With cast aluminum heating plate
Double gap on the die head-one gap for bubble layer, one for flat layer
Double gap on the die head-one gap for bubble layer, one for flat layer

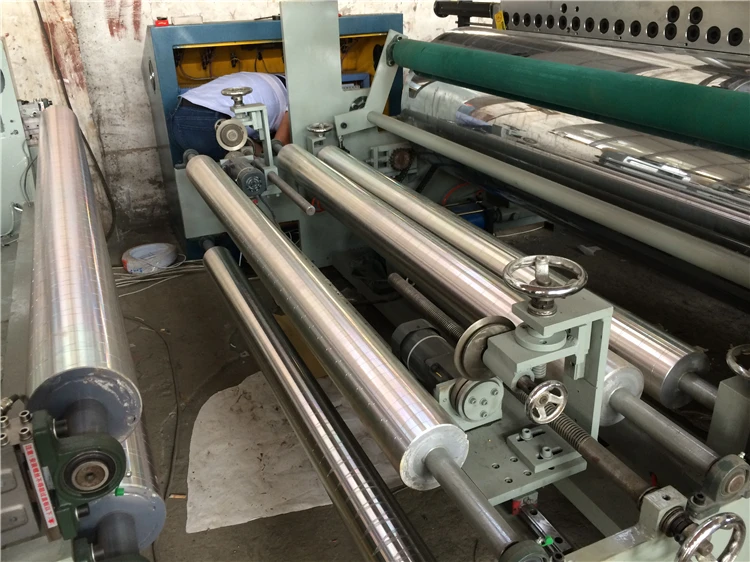

Mirror-like cooling roller
2 piece mirror-like cooling roller make the cooling prefect
Distributor

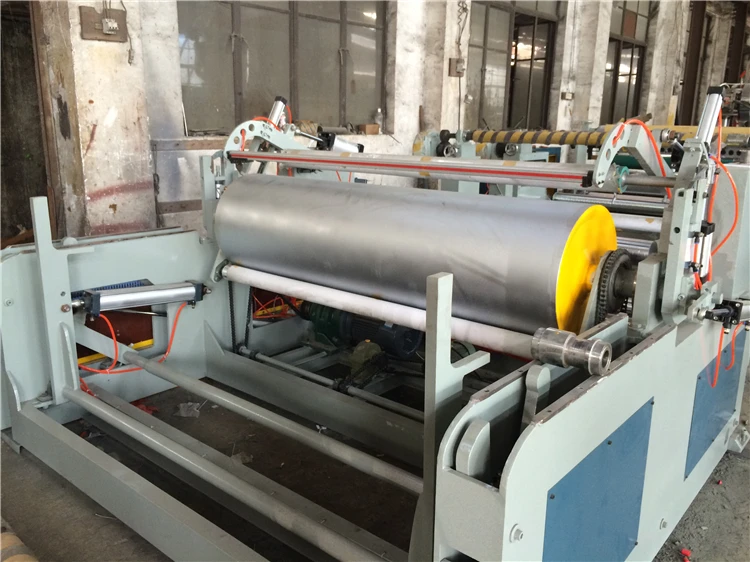

Automatic Winding Parts
Why Choose Us
1. We have more than 15 years experience;
2. We are manufacturer who have been exported more than 15 countries;
3. Large production capacity that ensures the shipment on time;
4. Quick responses with full attention
5. Sample fee could be returned after the order has been placed.
6. We guarantee our products quality and pre-sales and after-sales service.
Packaging & Shipping
Packing Details: Packed by pearl cotton and plastic film, some items will packed in wooden ply box
Delivery Time: Within 40-60 days after got deposit
Hot Sale Products
FAQ
Question 1: Where is your factory located? How can I visit there?
Answer: Our factory is located in Wenzhou City, Zhejiang province, China. The nearest air port is Wenzhou airport, we can go Wenzhou airport pick you.
From SHANGHAI by air is 40mins, by train is 4hours.
From GUANGZHOU by air is 2hours.
Question 2: Do you company provided foreign country machine installation services?
Answer: We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.
Question 3: How your company provided after sales service?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) , All life time repaire, and 24hours HOT Line.
Question 4: What's the payment method?
Answer: We accepted T/T, L/C, Western Union, Moneygram ETC.
