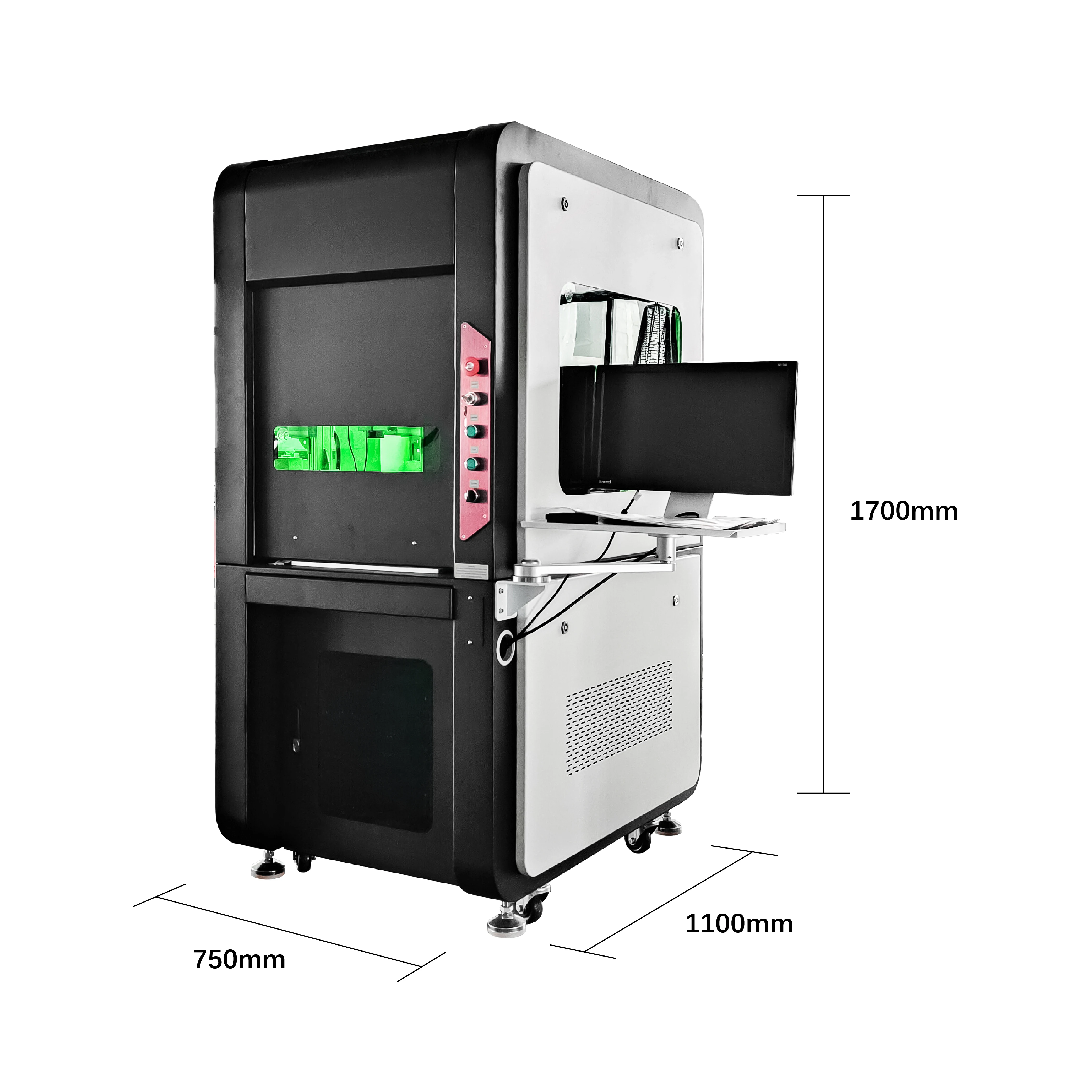

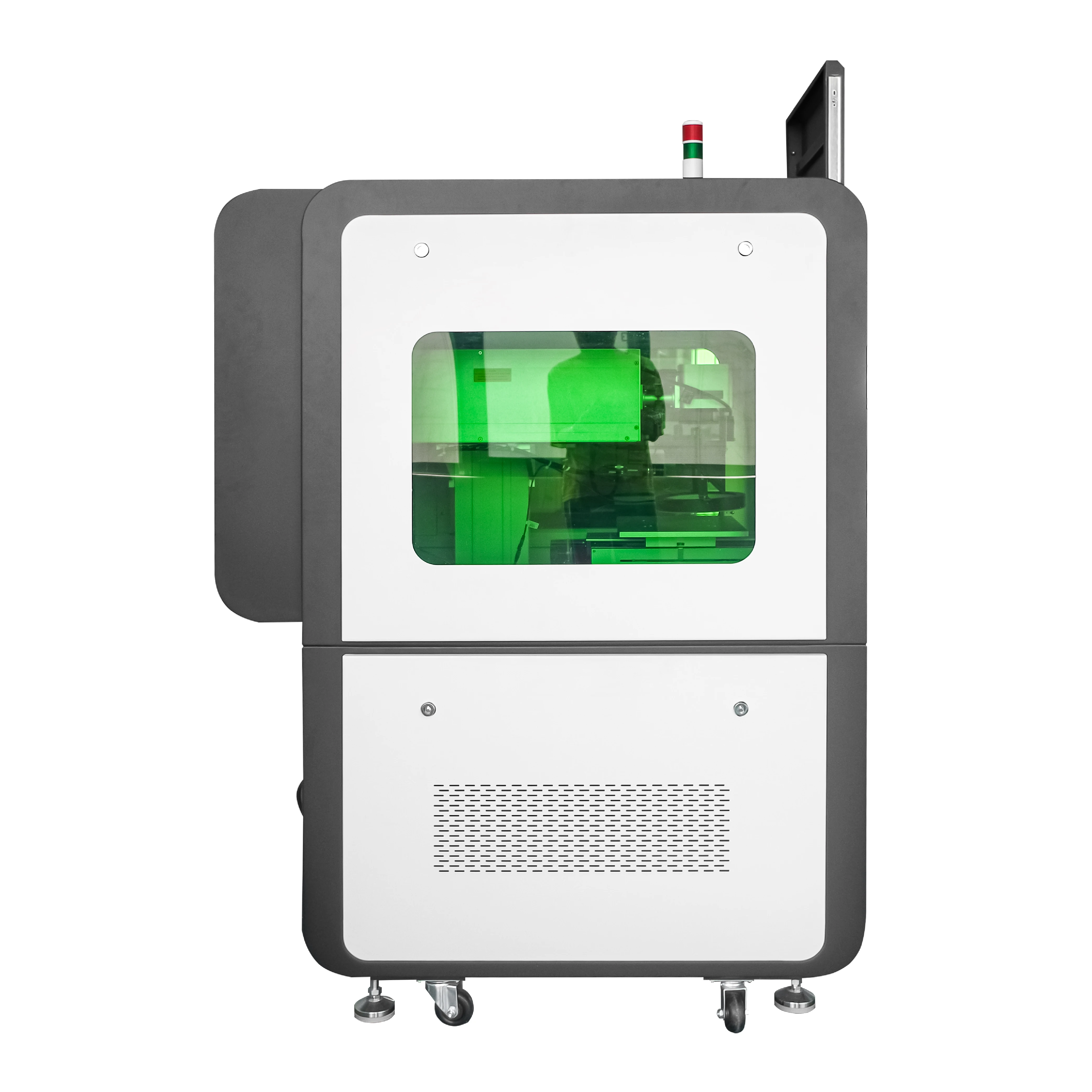

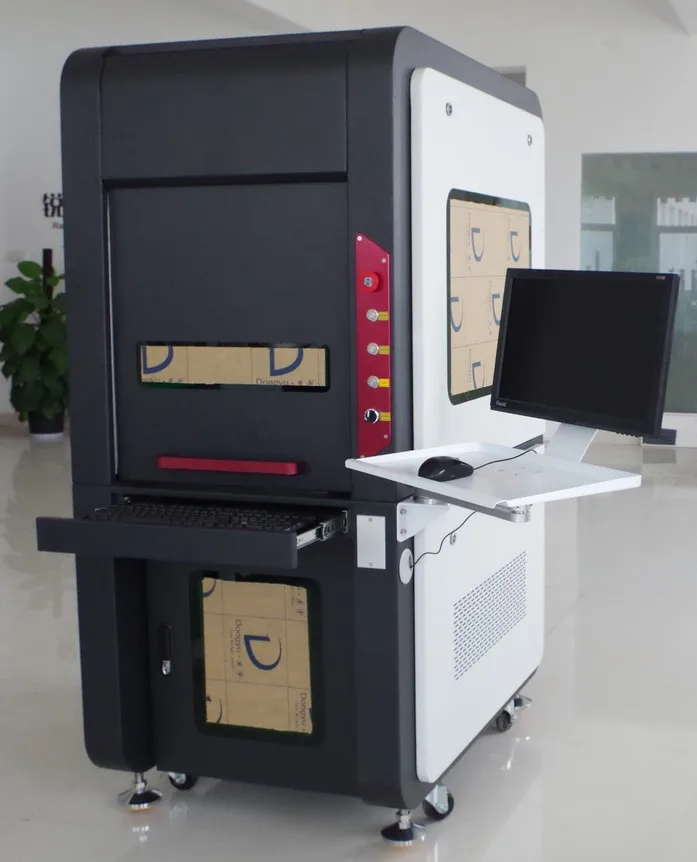

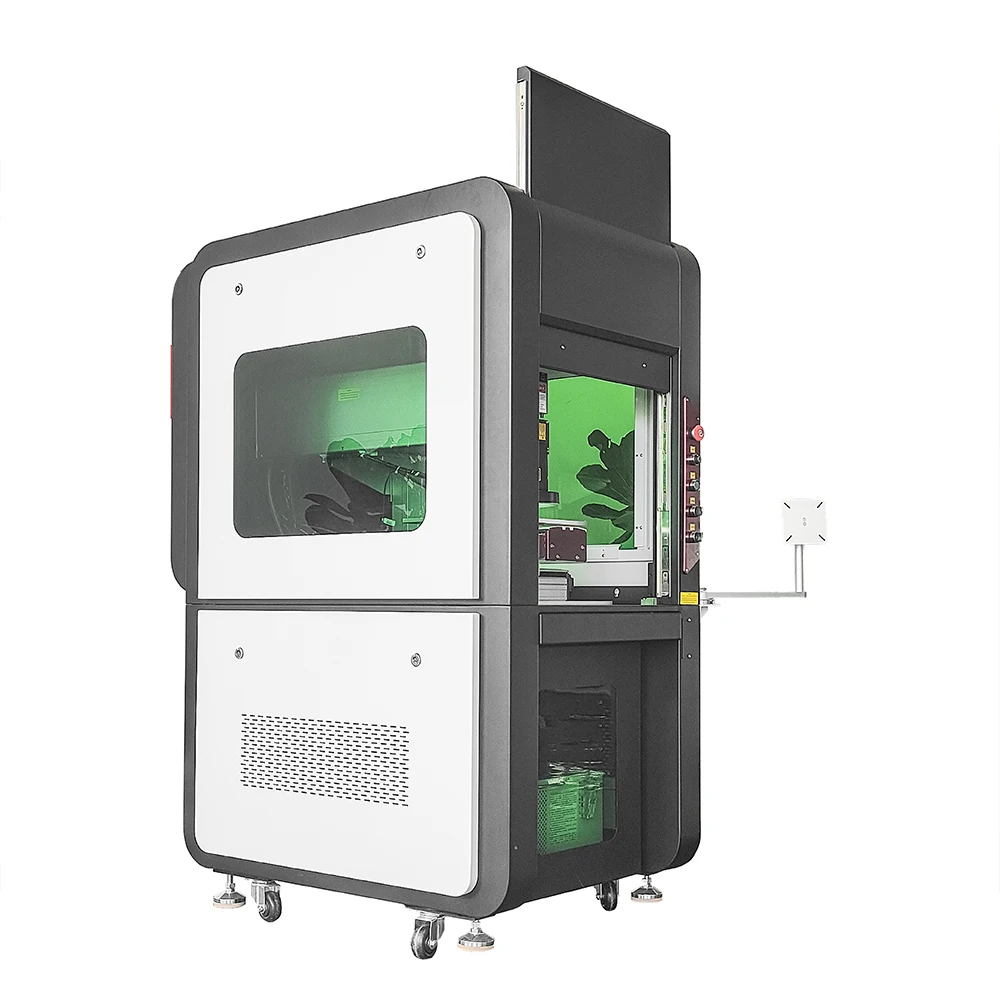

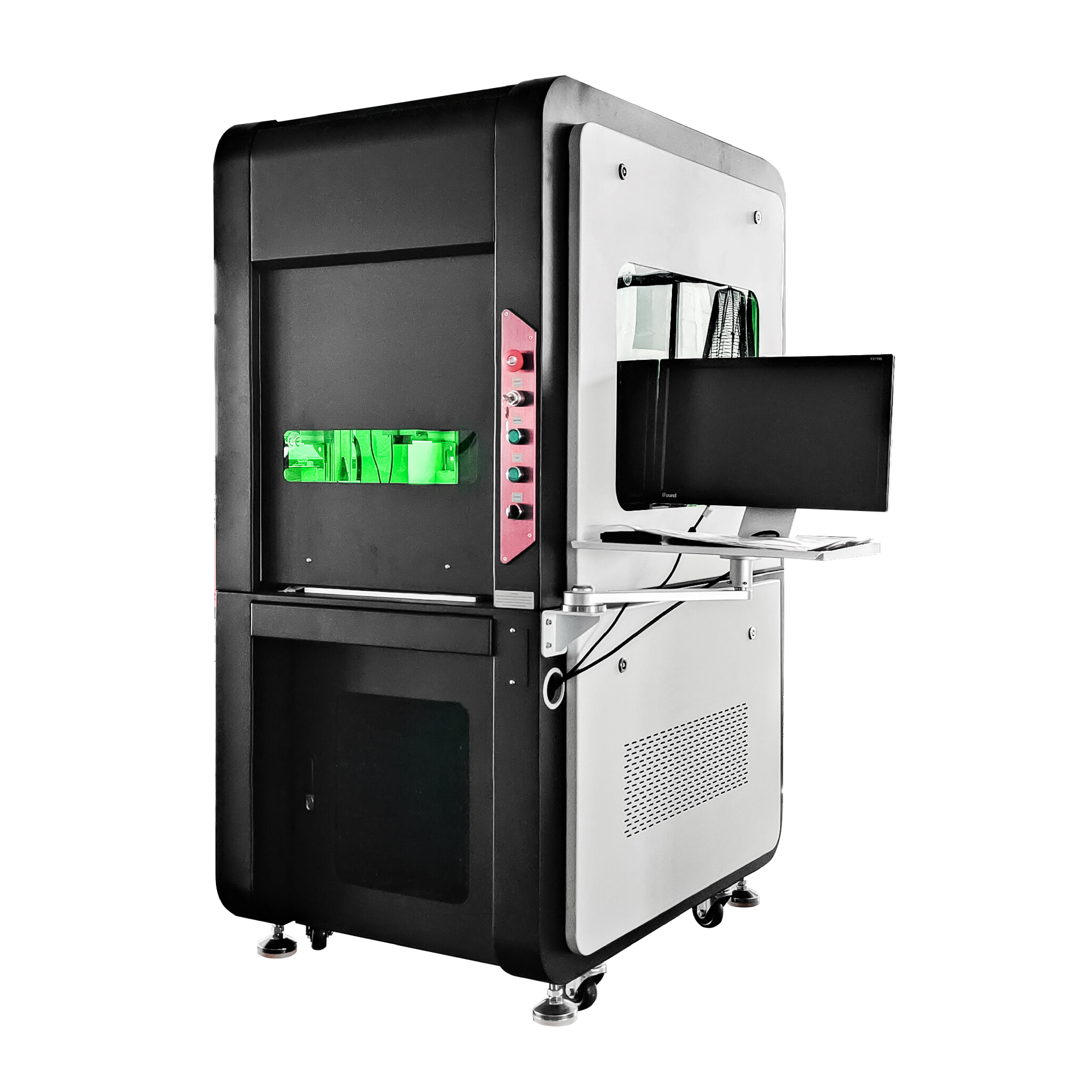

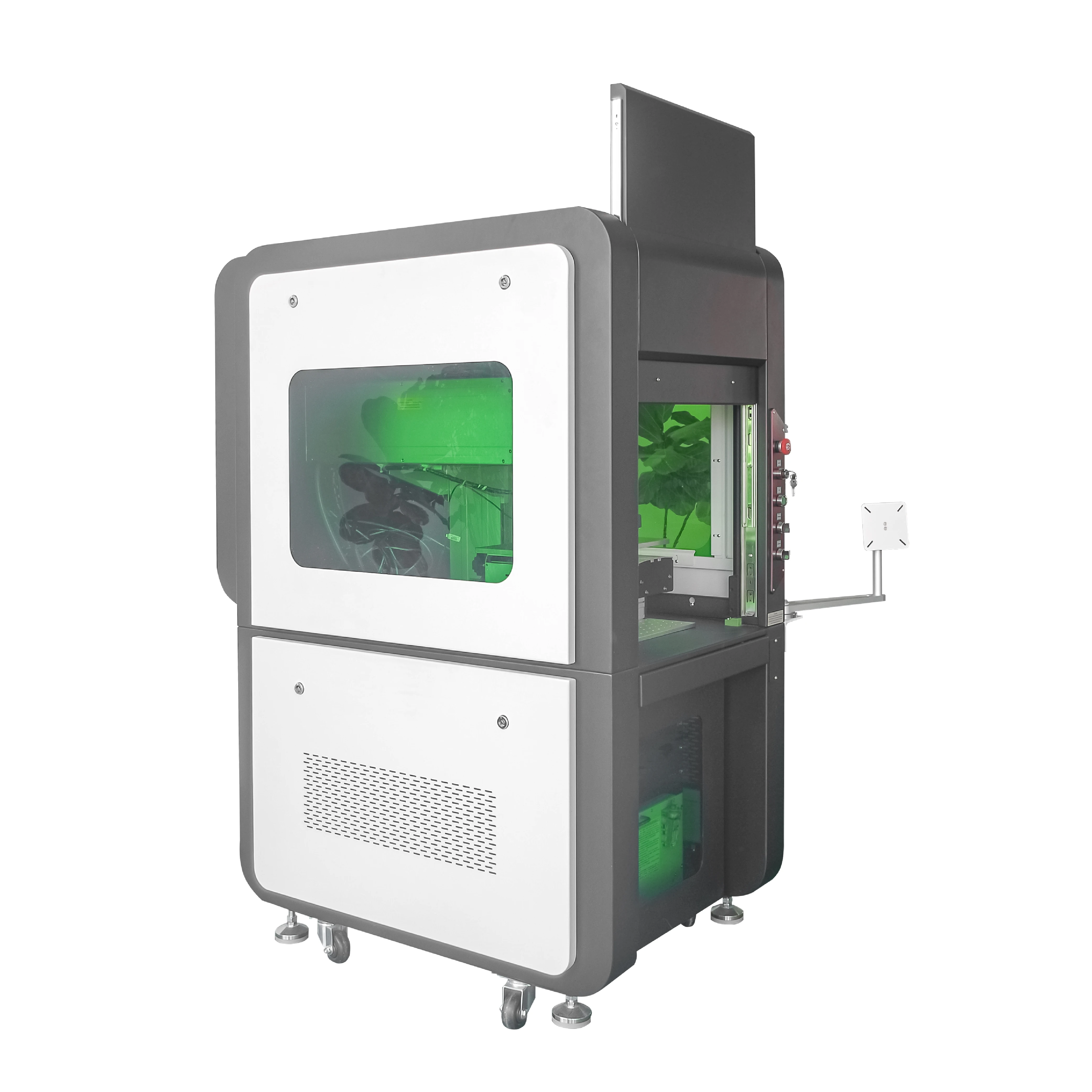

Flex FPC Silicon Wafer PCB printed circuit board PCB Laser cutting machine PCB UV Laser Printer
- Category: >>>
- Supplier: Liaocheng Easy Automation Equipment Co. Ltd.
Share on (1600536107988):
Product Overview
Description
Product Description
PCB laser sub-board cutting automatically FPC UV laser cutting machinery equipment
The machine can find the marking place automatically. It is especially suitable for marking on ultra high-precision and valuable parts which is not easy to be positioned by hand, such as: electronic components, IC chips, circuit boards, resistors, small capacitors, metal buttons, pens, etc.
Model | YJ-UV-15W | YJ-UV-20W | YJ-UV-25W | ||
Output power | >15w@50KHZ | >20W@60KHZ | >25w@50KHZ | ||
Laser beam quality M2 | <1.2 | ||||
Pulse duration | <15 | <15 | <20 | ||
Beam Circularity | >90% | ||||
Beam Full Divergence Angle | ≤2mrad | ||||
Bean Diameter(mm) | ~0.55 | ~0.47 | ~0.55 | ||
Pulse Repetition Rate Rang | 40-300khz | 1-4000khz | 1-4000khz | ||
Center Wavelength | 355nm | ||||
Cooling type | water | ||||
Marking Area | 110x110 | ||||
How to get focus | double red light | ||||
Max positioning speed | 8000mm/s | ||||
Supply voltage | AC110V 60HZ / AC220V 50HZ | ||||
Control program | EZCAD / RUIDA | ||||

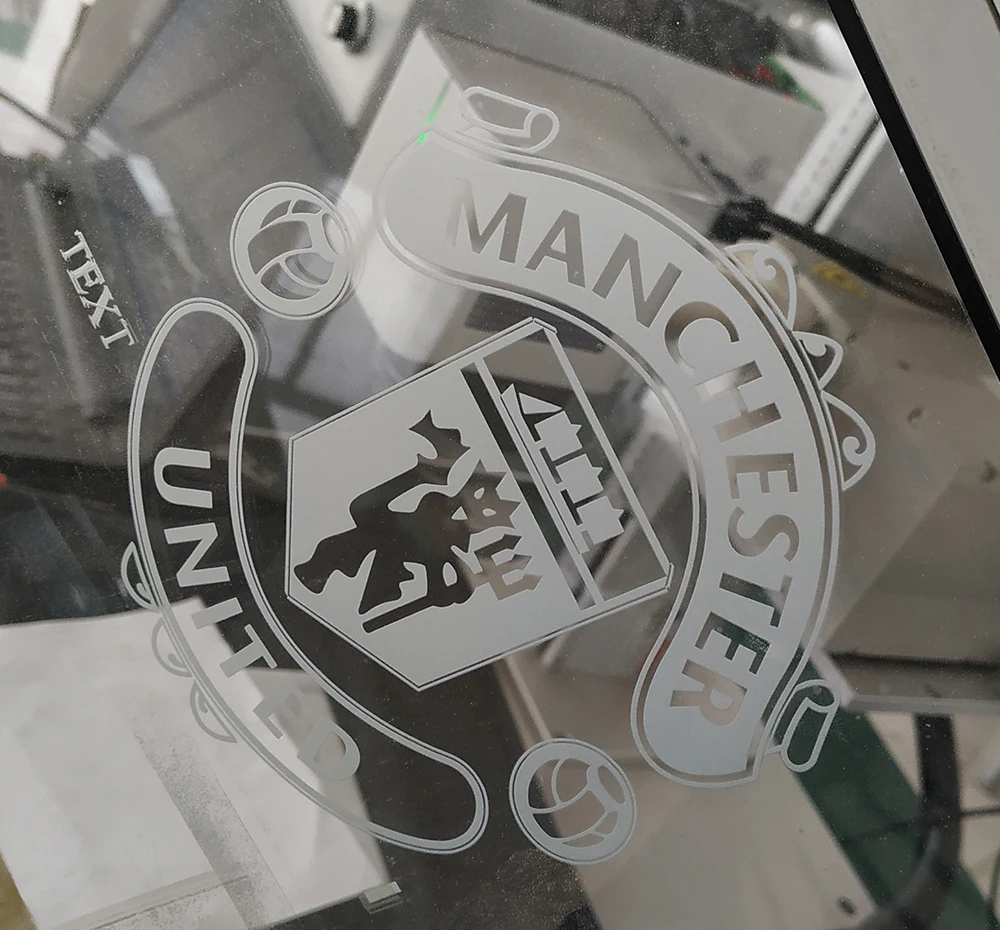

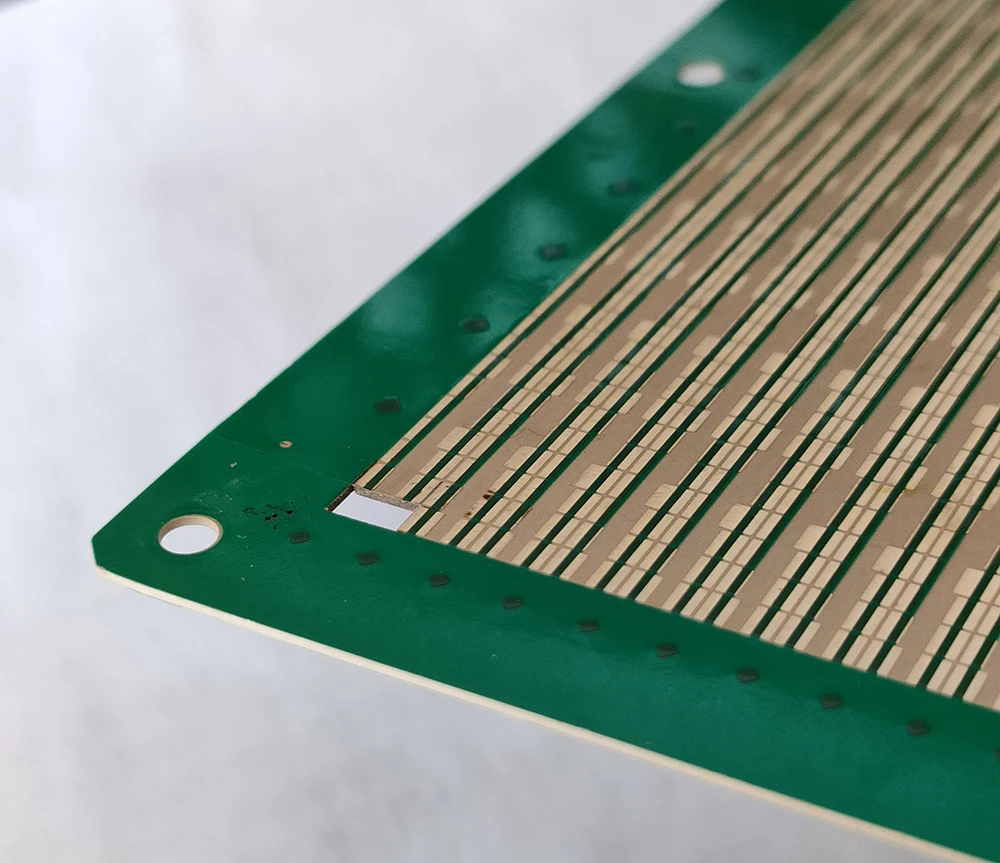

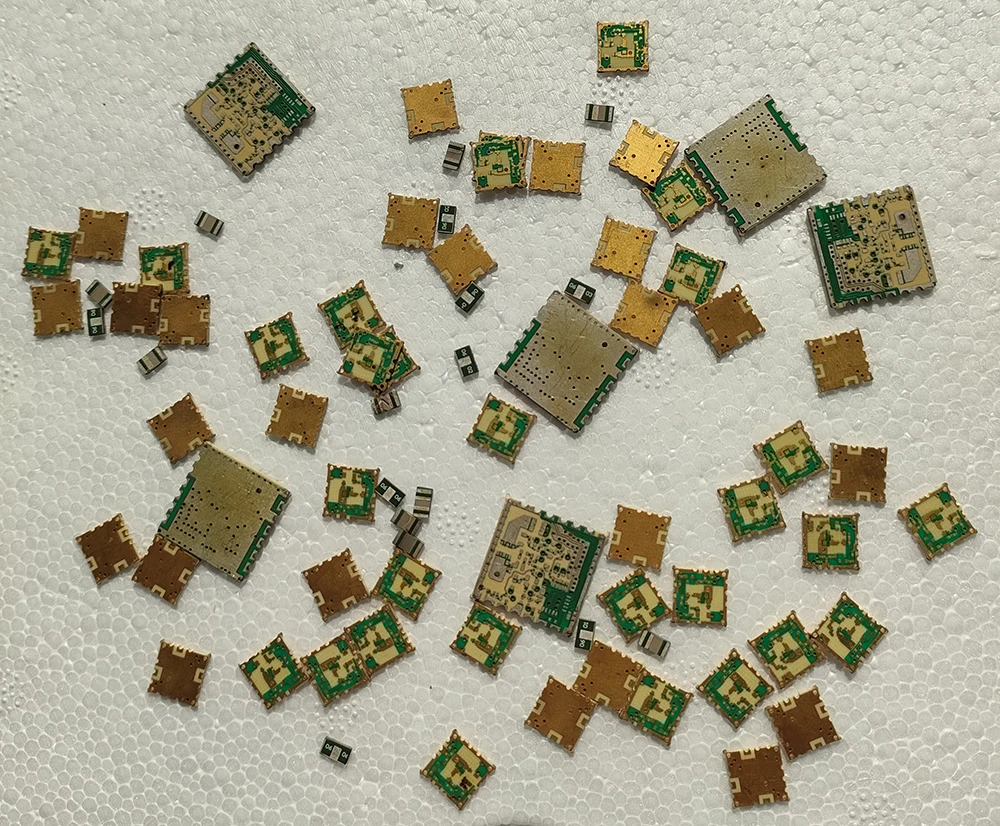

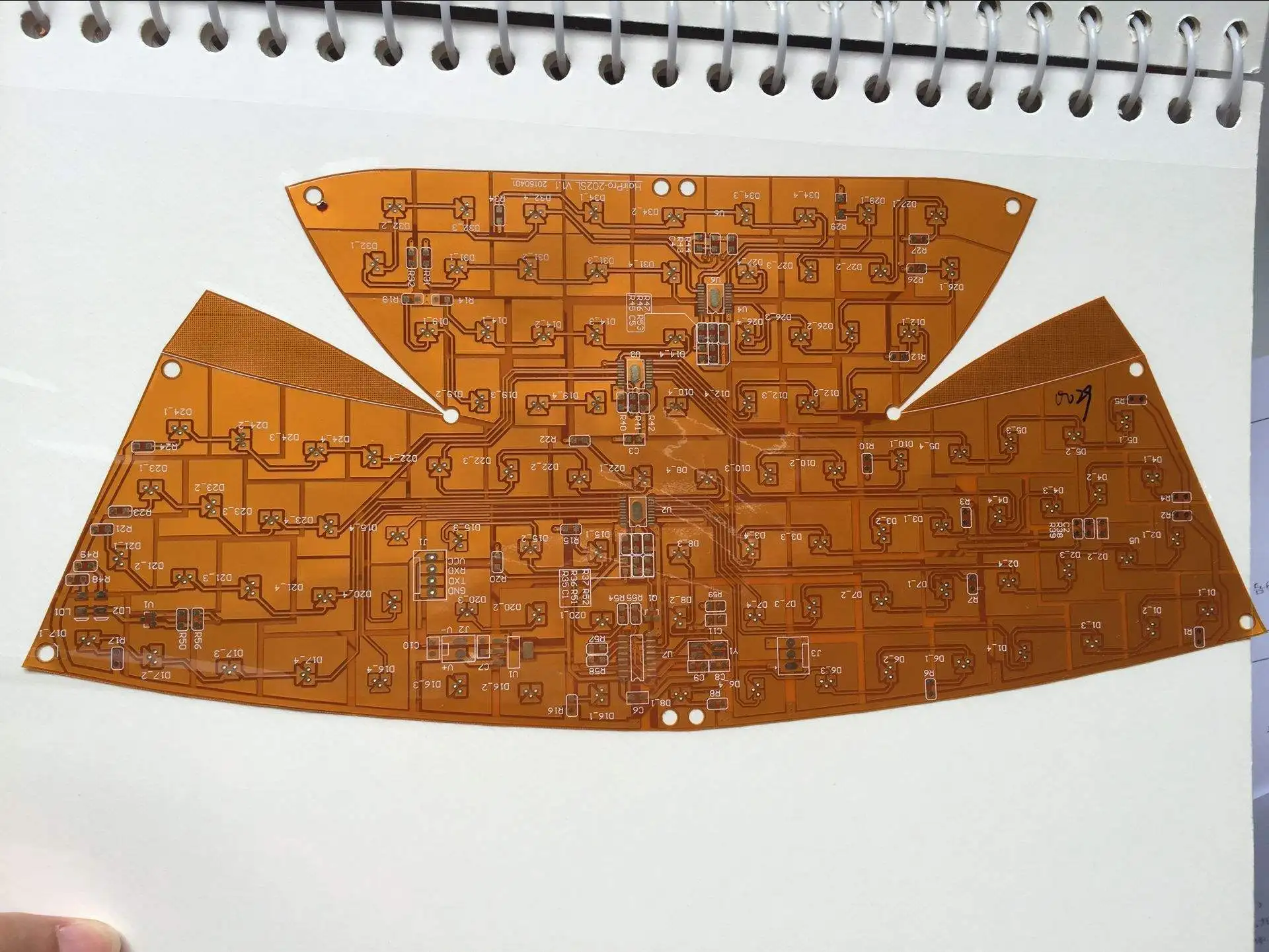

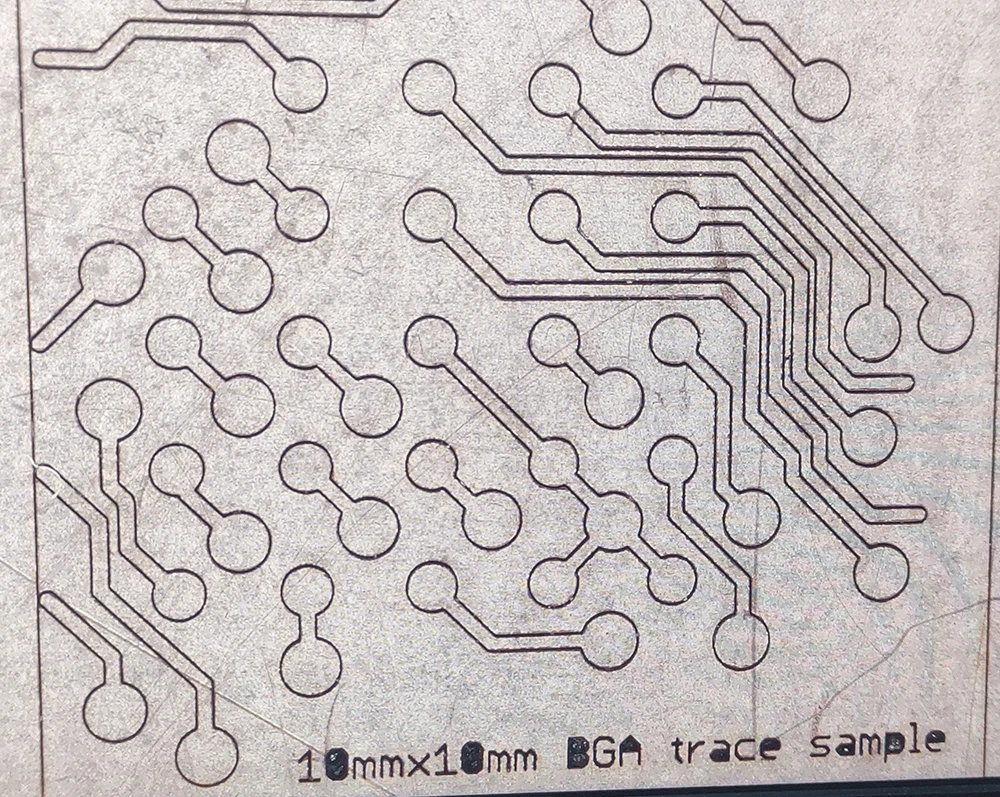

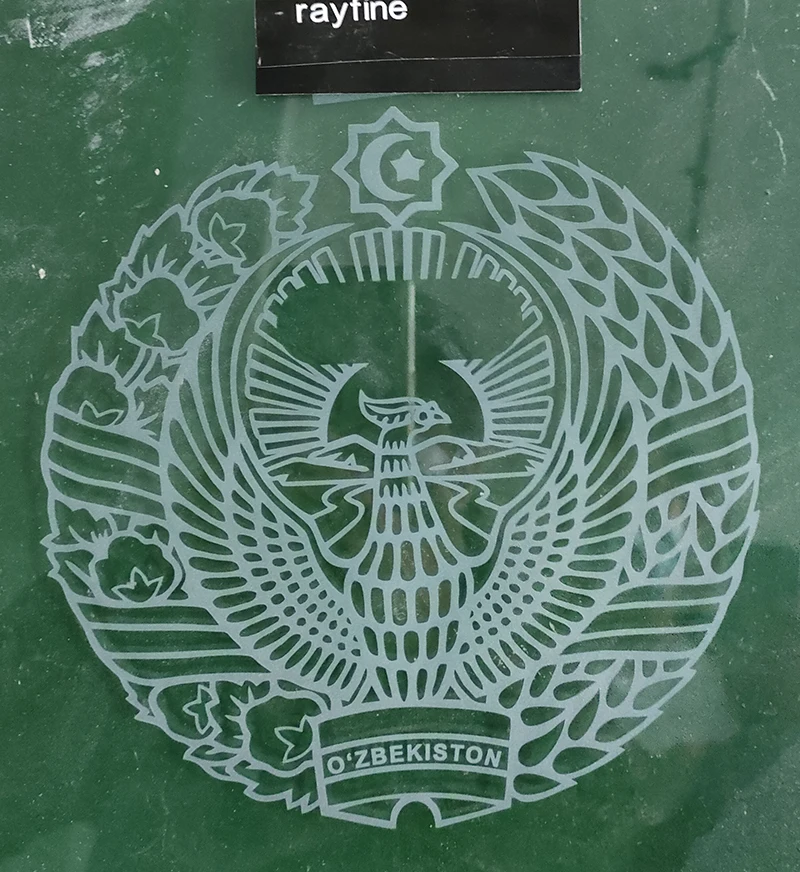

Sample
Standard configuration
Laser source
Fully sealed structure, dust-proof, moisture-proof;
Compact size,saving installation space.
Clean electrical control box.
High quality electrical accessories are installed by professional technicians. Every parts are in order arranged.
Newest digita galvo scanner head
Comes with double red light.-When two red light comes together, it is the focus dot.
Comes with Alarm Lamp.
-When there is problem with the Galvo head, the Lamp will turn to be red.
Comes with Alarm Lamp.
-When there is problem with the Galvo head, the Lamp will turn to be red.
F-theta lens
Uniform light transmission, good focus, more accurate beam position.

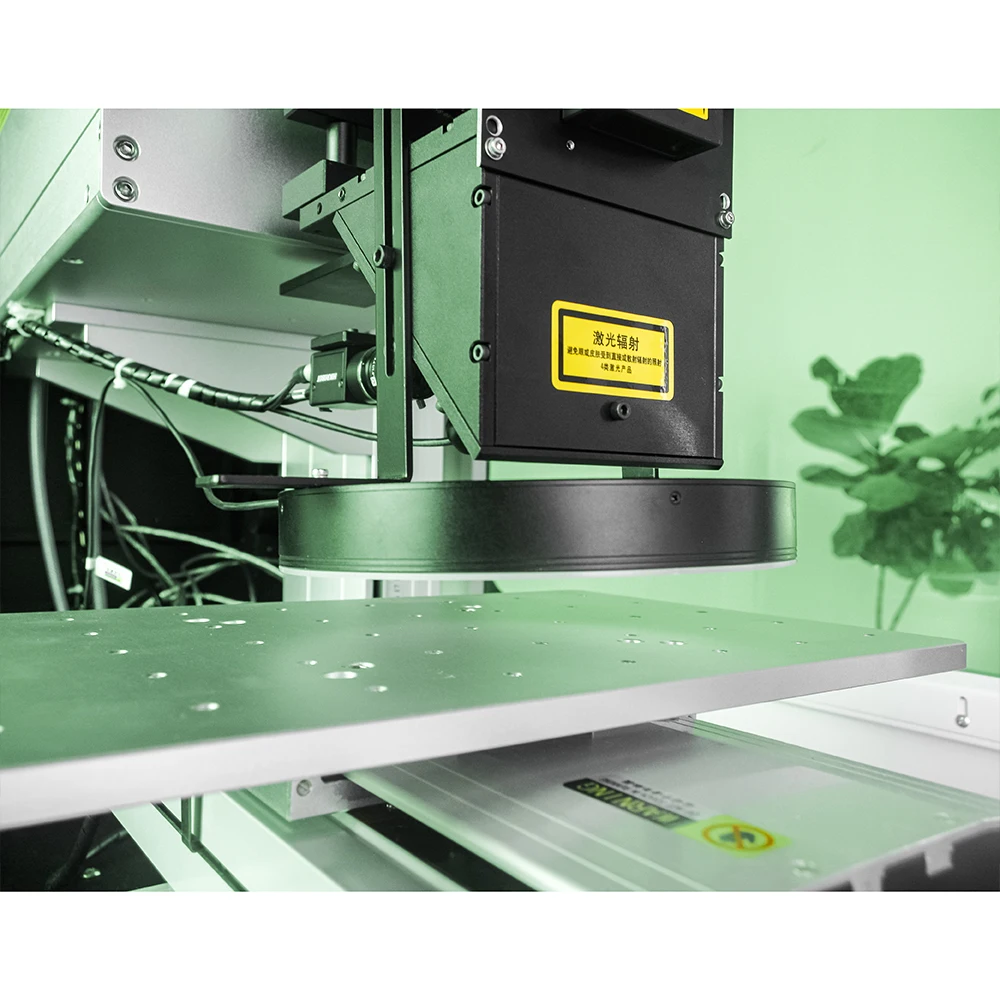

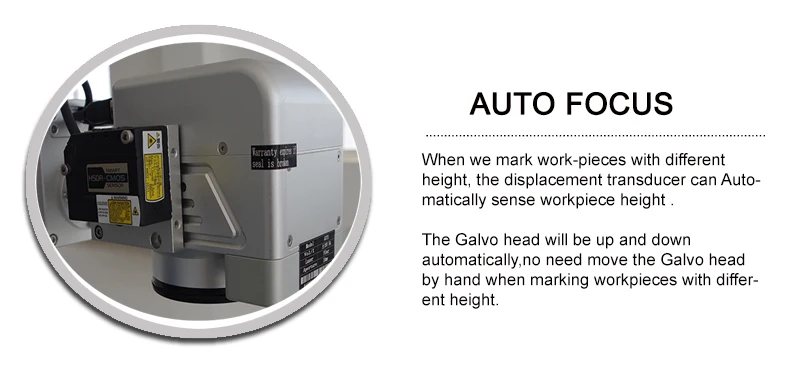

Motorized Z axis
When workpiece thickness is changing, the Galvo head up&down moving is morotized.High efficency, high productive.

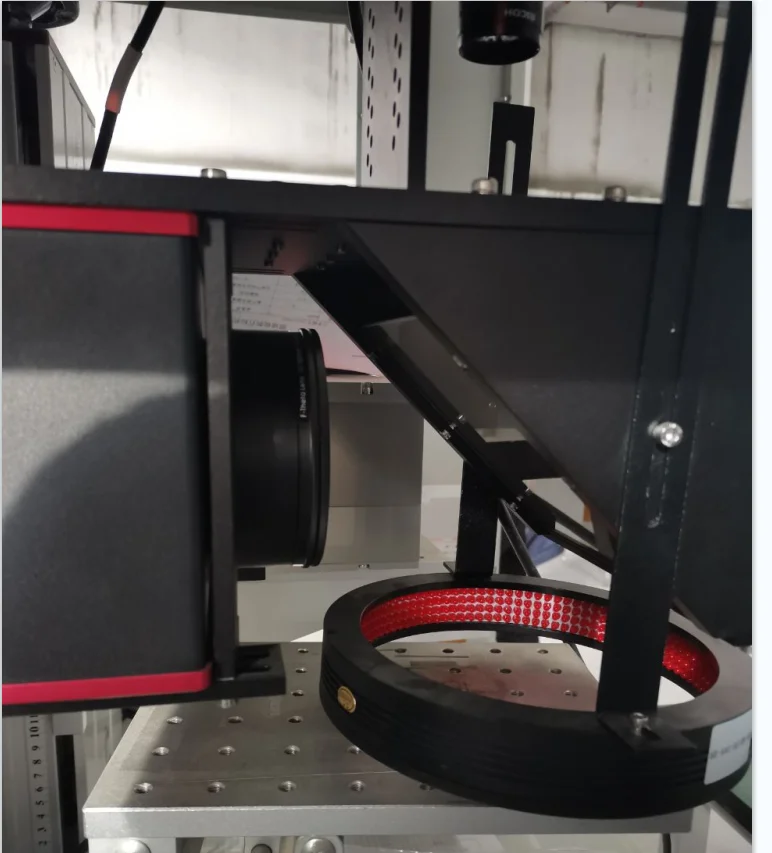

VISUAL POSITIONING SYSTEM
software control, identify marking or cutting area automatically
ANODIZED Aluminium worktable
With screw thread, easy to fix the workpiece.Whole machine body adopts the leading machining and oxidation process.
High quality lifting column, clear scale
Standard 50cm adjustable height.Can be customized to be 80cm.

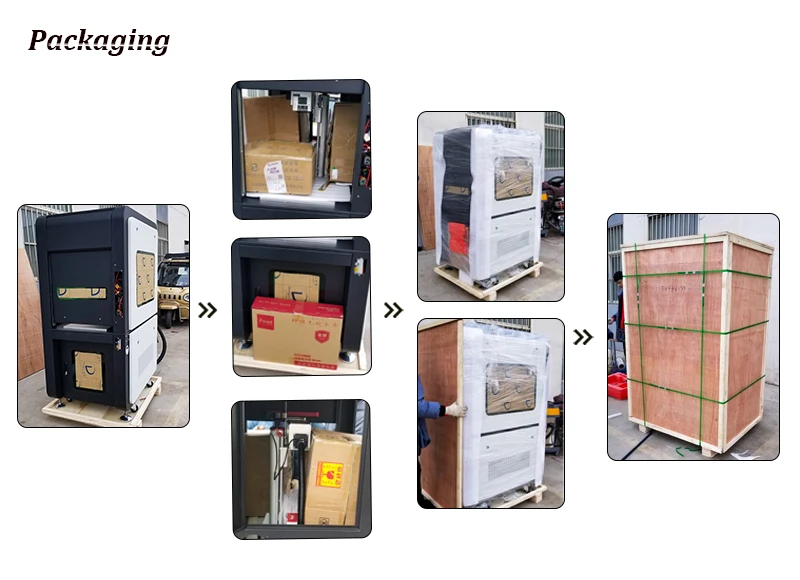

Packing shipping
1. Collect all accessories and and spare parts together one by one based on the order list ,and check all parts carefully once
more to ensure all parts are included.
2. Our packaging standard:
+thick layer of plastic wrap
+ Six-sided pearl cotton
+ high-strength wooden box
+ packing belt and then fix the machine to ensure the safety of the machine during transportation.
3. Stick the shipping mark to ensure the buyer can recognize the right machine easily.
4. Stick the Safety signs can remind transporters to take good care of our equipment during shipping
more to ensure all parts are included.
2. Our packaging standard:
+thick layer of plastic wrap
+ Six-sided pearl cotton
+ high-strength wooden box
+ packing belt and then fix the machine to ensure the safety of the machine during transportation.
3. Stick the shipping mark to ensure the buyer can recognize the right machine easily.
4. Stick the Safety signs can remind transporters to take good care of our equipment during shipping

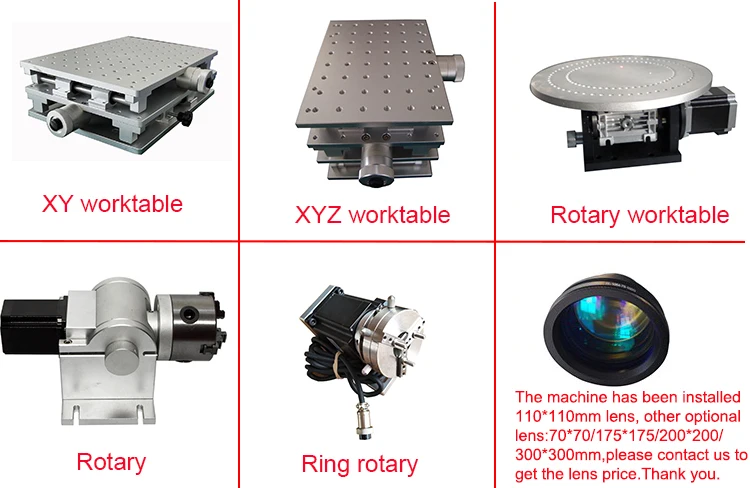

Optional parts

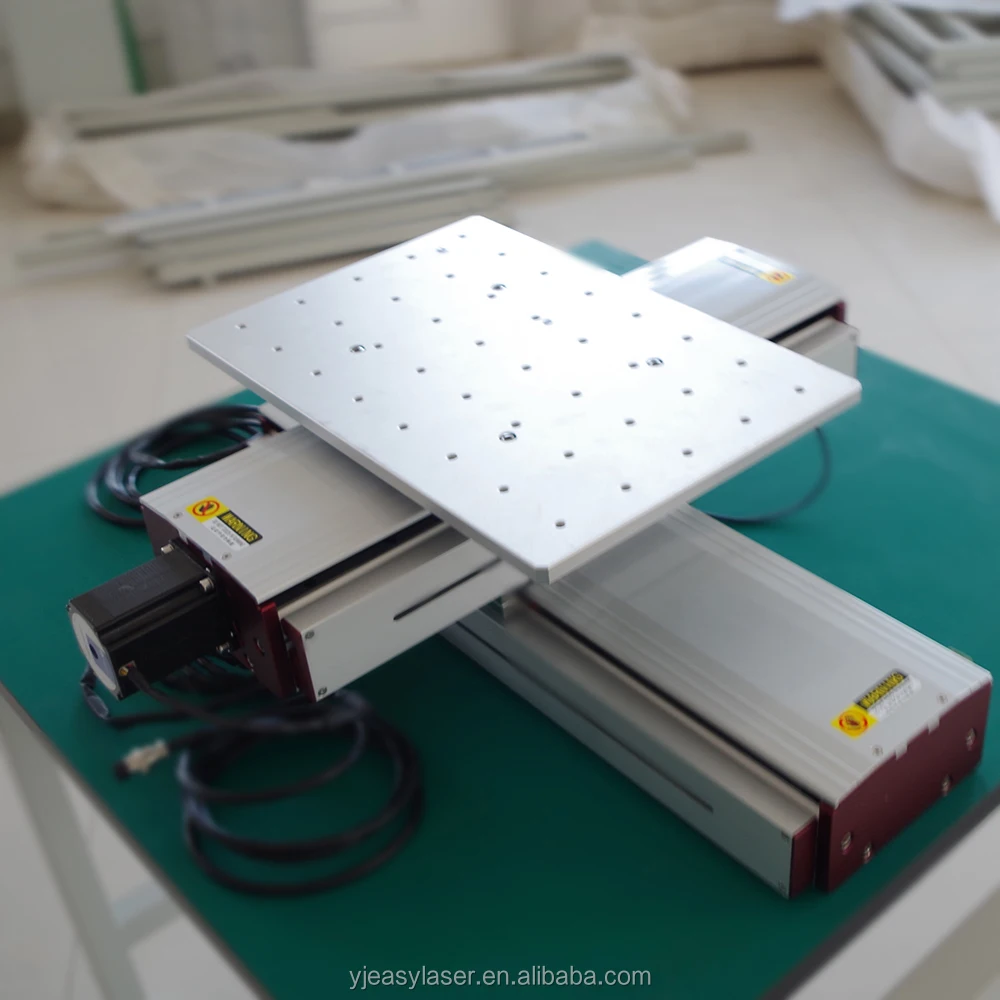

software control X Y moving table to enlarge marking cutting area
