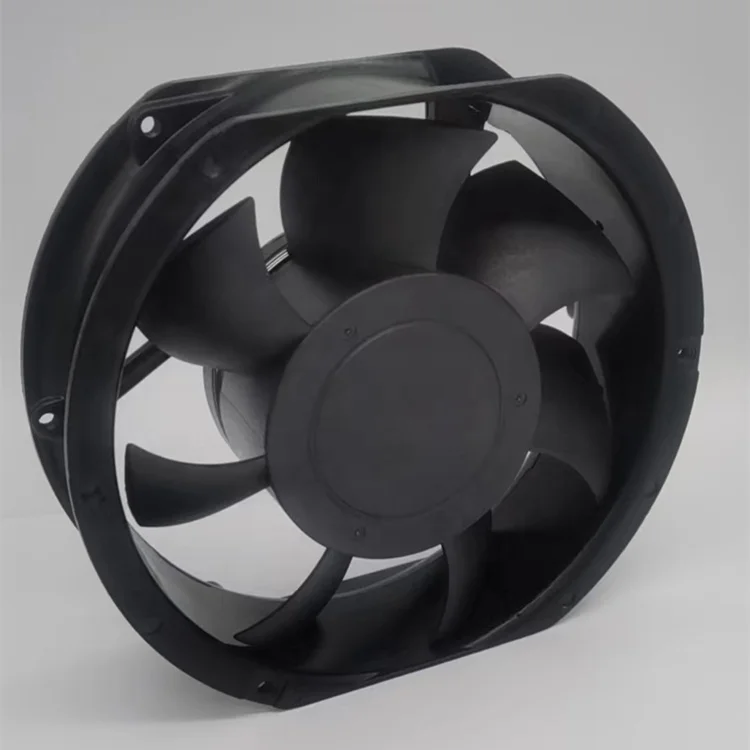

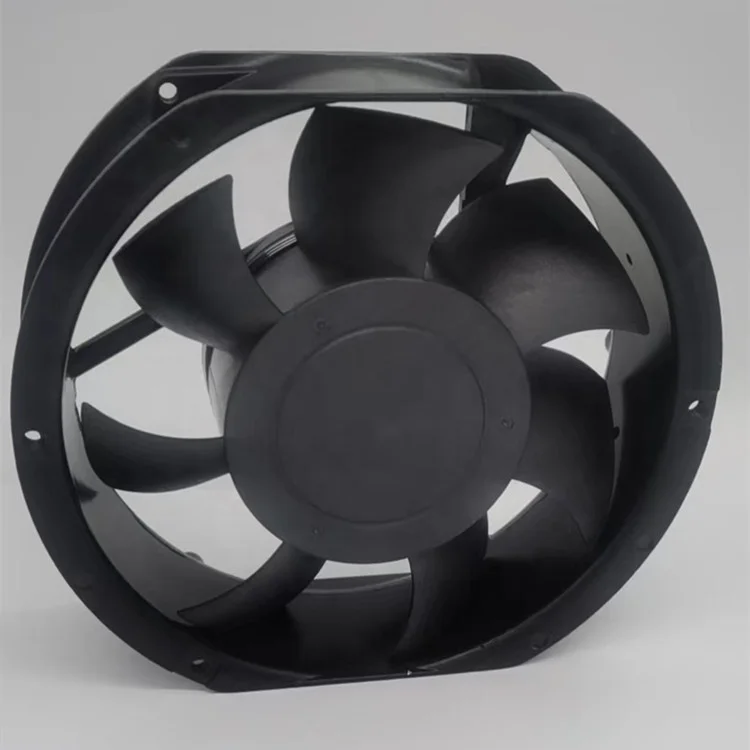

172mm 12V/24V/48V 7 Blades Aluminum 172x150x51mm DC Axial Cooling Fan 17251 for Disinfection Cabinet
- Category: >>>
- Supplier: Shenzhen Runjinchang Science And Technology Co. Ltd.
Share on (1600536120718):
Product Overview
Description
Product Description
DC 17251
General Specifications
Model Number: DC 17251 7 Blades
Size: 172X150X51 mm
Frame: Alumium
Size: 172X150X51 mm
Frame: Alumium
Impeller:PBT
Life Expectancy:
Life Expectancy:
≥30000 hours(Hyraulic/Sleeve)
≥50000 hours(Ball)
Aprrovals: CE,ROHS Weight:655g
≥50000 hours(Ball)
Aprrovals: CE,ROHS Weight:655g

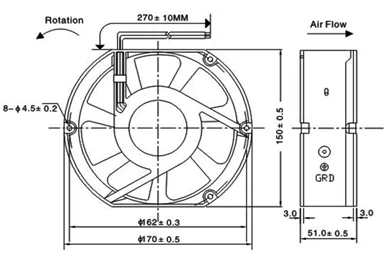

Dimensions Drawing Characteristic Curves

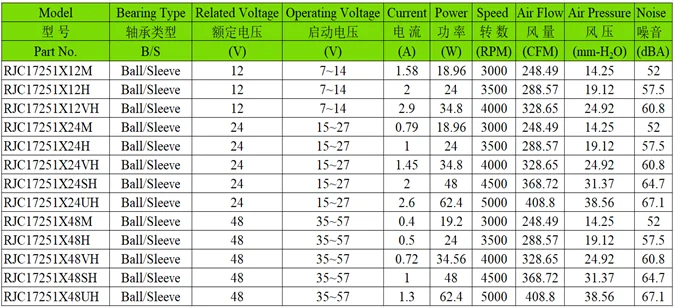

Specification
Product Details
Color | Black |
Material | Plastic |
Blade Material | Plastic |
Voltage | 12V/24V/48V |
Power | 18.96-62.4W |
Air Volume | 248.49-288.57CFM |
Speed | 3000-5000RPM |
Bearings | Ball |
Type | DC fan |
Electric Current Type | DC |
Mounting | Free standing |
Motor | DC Brushless Axial Fan |
Features | Lock Protection/FG/RD/PWM/Waterproof/Dampproof |
Leading Time | Sample order in 3-7 days. Mass production within 7-15 days |
Application | Equipment Cabinet,Air purifier, communication equipment,frequency coverter |
Company Profile
Shenzhen Runjinchang Science and Technology Co,.Ltd is an innovative,progressive,energetic and professional company which specialized in reserach,developement and manufacturing of AC/DC/EC cooling fans.Our DC fans, AC fans, blowers,EC fans, duct fans have been widely used in various
electronic products, machinery and equipment, power supplies, medical treatment, purification, stage
lighting, automotive, refrigeration and heat transfer , beauty equipment, sports equipment, LED
lighting, stage lighting equipment and more than 60 industrial fields. Our products were sold to all over the world and win high reputation in both domestic and international area. We provide customized service to our customers and try our best to meet customers’ specifications requirements. If you need cooling fans, please do not hesitate to contact us.
Applications of Cooling Fans
Our products are widely used in welding machines, inverters, ultrasonic wave equipments,refrigeration industry, cabinets, network cabinets, LED display screens, electromotor soft starters, air cooler industry, automation equipments, testing equipments, humidifiers,ozone equipments, rectification power supply, projectors, reflow machines, high frequency machines, stage lights, water dispensers, power supply industry, UPS power supply, car DVD, amplifiers, mosquito-killer lamp, car seat/auto pillow/seat cushion, switching power supply, car oxygen bar, eliminating static electricity machines,
model airplanes, graphics cards, CPUs, coffee machines, electric toys, beauty instruments, medical equipments, amusement equipments, electronic equipment and more than 60 fields like industrial equipment, life appliances industry,the entertainment industry, the service industry and so on. .
model airplanes, graphics cards, CPUs, coffee machines, electric toys, beauty instruments, medical equipments, amusement equipments, electronic equipment and more than 60 fields like industrial equipment, life appliances industry,the entertainment industry, the service industry and so on. .
Why Choose Us
1,Technical Support
We have our own technical team that can provide customization and design service.
2,A Full Range of Products
Our fan products are complete, including AC axial fans, DC axial fans, DC blowers and EC axial fans of all specifications.
3,Quality Assurance
(1)High Quality PBT,aerodynamic design,unique blade angle,increased 9% air volume,reduced 5% noise.
We have our own technical team that can provide customization and design service.
2,A Full Range of Products
Our fan products are complete, including AC axial fans, DC axial fans, DC blowers and EC axial fans of all specifications.
3,Quality Assurance
(1)High Quality PBT,aerodynamic design,unique blade angle,increased 9% air volume,reduced 5% noise.
(2) High precision design makes operation more stable,reduces noise and wear,and prolongs performance life.
(3) More laminated silicon steel sheets,high-quality pure copper colis,reduce the temperature rise,improve efficiency, and provide more power for fans.
(4) circuit board has a full set of self-written program that can write many functions such as speed signal control(FG or TACH),reverse protection,temperature control,automatic restart and other special functions.
4,Reasonable Price
Whether you are a new customer or a regular customer,we always provide reasonable price according to customers’quality,quantity,customization and design requirements.
5,Function Customization
We can make fans with FG,RD,PWM,Dampproof,Waterproof,Locked rotor protection and automatic restart functions.
6,Speedy Delivery Time
To ensure continuity of supply, normally leading time for samples is less than 1 week,leading time for big order is less than 2 weeks.
7,Good Service
24 hours’online service to answer your questions and help you solve pre-sale and post-sale issues rapidly.
Whether you are a new customer or a regular customer,we always provide reasonable price according to customers’quality,quantity,customization and design requirements.
5,Function Customization
We can make fans with FG,RD,PWM,Dampproof,Waterproof,Locked rotor protection and automatic restart functions.
6,Speedy Delivery Time
To ensure continuity of supply, normally leading time for samples is less than 1 week,leading time for big order is less than 2 weeks.
7,Good Service
24 hours’online service to answer your questions and help you solve pre-sale and post-sale issues rapidly.
Packing and Shipping
Our fans will be packed in cartons, if you want special package,please tell us your demands before your order!
FAQ
1,If you need AC fans,please answer the following questions:
(1). Fan size? Quantity?
(2).Voltage?
(3).Ball bearing or sleeve bearing?
(4).With any certificates or not?
(5). With Waterpoof or Dampproof or not?
2,If you need DC fans,DC Blowers or EC fans,please answer the following questions:
(1).Fan size?How many pcs?
(2). Voltage?
(3).Speed?
(4).Ball bearing , Hydraulic bearing or sleeve bearing
(5). Cable length? (our standard is 300mm)
(6). With connector or not? Which type? If you can not find the right connector on the below pictures,you can send me picture or tell me part number of the connector you need.
(1). Fan size? Quantity?
(2).Voltage?
(3).Ball bearing or sleeve bearing?
(4).With any certificates or not?
(5). With Waterpoof or Dampproof or not?
2,If you need DC fans,DC Blowers or EC fans,please answer the following questions:
(1).Fan size?How many pcs?
(2). Voltage?
(3).Speed?
(4).Ball bearing , Hydraulic bearing or sleeve bearing
(5). Cable length? (our standard is 300mm)
(6). With connector or not? Which type? If you can not find the right connector on the below pictures,you can send me picture or tell me part number of the connector you need.
(7)With Lock protection ,PWM,FG,RD functions or not?
PWM: speed regulation
FG: speed monitoring
RD:trouble alarm
(8). With CE,Rohs or any other certificates or not?
(9).With dampproof or waterproof or not?
3.If you do not know to answer the questions or you have
any other questions, please do not hesitate to contact salesperson for help.
any other questions, please do not hesitate to contact salesperson for help.
