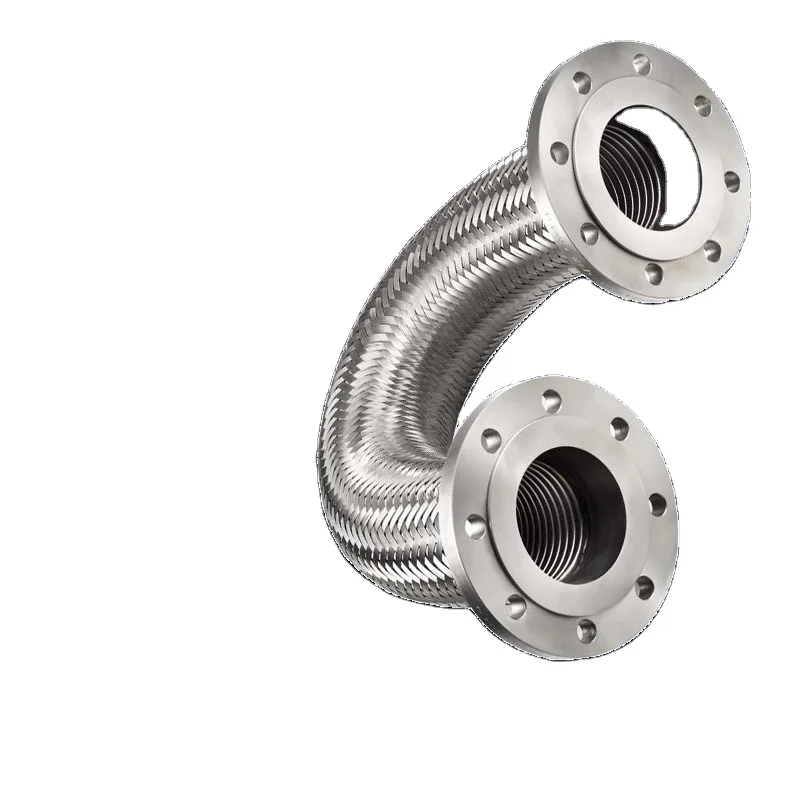

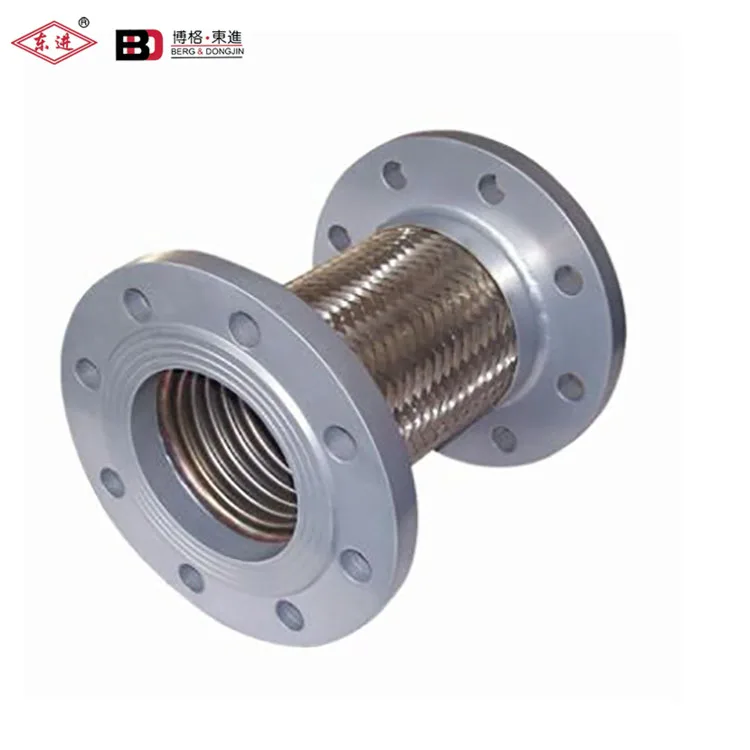

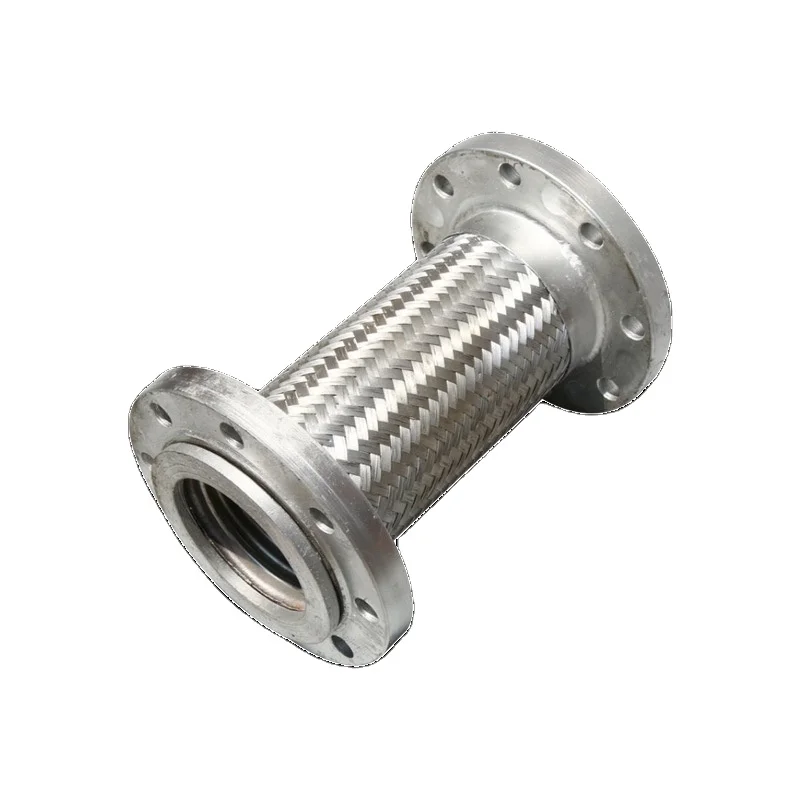

Factory direct sales, made in China Flange Braided Metal Hose 304 Stainless Steel Flexible Metal Hose
- Category: >>>
- Supplier: Jiangsu Berg Dongjin Pipe-Line Equipment Co. Ltd.
Share on (1600536127599):
Product Overview
Description
Product Description
Braid Stainless Steel 304 exhaust flexible mental hose
Flexible metal braided hoses and fittings can be used widely in systems like water, steam, hot oil andgas with their resistance to pressure and flexible structure.
They are utilized for conducting liquids, compensating the problems originated from installation,absorbing vibrations and expansions. Flexible metal hoses may be strengtened by double braiding in order to increase their resistance topressure and environmental conditions. It is also possible to reinforce them by springs with different wirethicknesses or by stripwounds to lengthen their service life for more severe environmental conditions.
They are utilized for conducting liquids, compensating the problems originated from installation,absorbing vibrations and expansions. Flexible metal hoses may be strengtened by double braiding in order to increase their resistance topressure and environmental conditions. It is also possible to reinforce them by springs with different wirethicknesses or by stripwounds to lengthen their service life for more severe environmental conditions.
Material Specifications
Hose :AISI 316L-304L-321 S.Steel
Braid Wire :AISI 304 Stainless Steel
Connections :Carbon Steel-Stainless Steel
Braid Wire :AISI 304 Stainless Steel
Connections :Carbon Steel-Stainless Steel

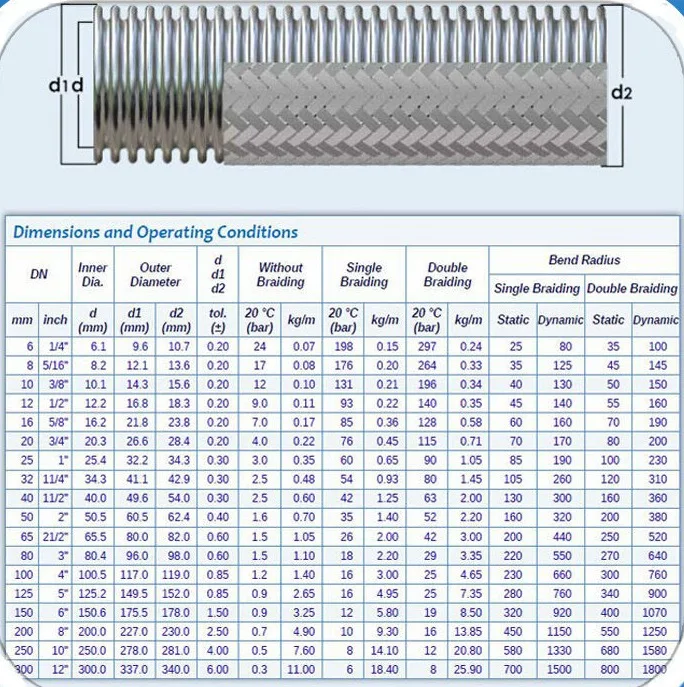

Specification
Hose material | Stainless steel 304/316 |
Braid Wire material | Stainless steel 304/316 |
Connection type | Flange /threaded/quick coupling/welding neck connection |
Working pressure | 6bar to 25 bar |
Reinforcement Spring | -196℃ to +600℃ |

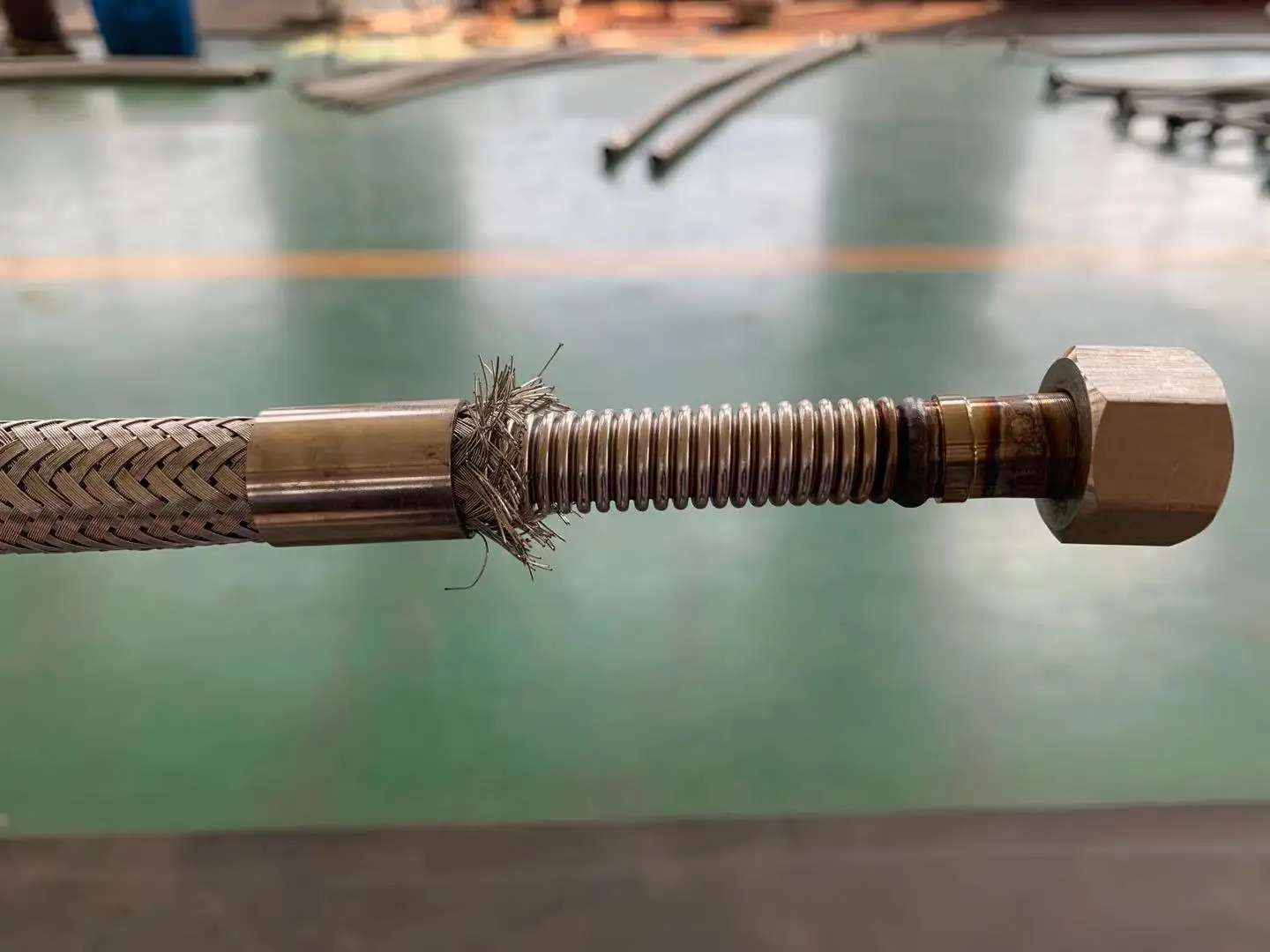

Construction
Inner Core: Corrugated Stainless Steel:
* Flexible metal hose stainless steel core strengths are available in 304, 321 and 316L stainless steel
* Stainless steel tubing formed into corrugations parallel to one another
* Helical / Convoluted option available upon request
Outer Core: Braided Stainless Steel Layers:
* Purchase corrugated core hose with no layers, single or double braided
* Flexible metal hose outer braid layers made from 304 stainless steel
* See braid layer code key at the bottom of this table
* Flexible metal hose stainless steel core strengths are available in 304, 321 and 316L stainless steel
* Stainless steel tubing formed into corrugations parallel to one another
* Helical / Convoluted option available upon request
Outer Core: Braided Stainless Steel Layers:
* Purchase corrugated core hose with no layers, single or double braided
* Flexible metal hose outer braid layers made from 304 stainless steel
* See braid layer code key at the bottom of this table
FEATURES:
1. With good characteristics of light weight, large diameter ,good flexibility, resistant to high temperature, high pressure and corrosion
2. With available double SUS304 wire braid for higher working pressures.
3.The inner tube is made of stainless steel corrugated tube which equips with good performance of high-temerature and high-pressure resistance.
4. Applied to repeated motion in high temperature areas, good anti-fatigue performance.
2. With available double SUS304 wire braid for higher working pressures.
3.The inner tube is made of stainless steel corrugated tube which equips with good performance of high-temerature and high-pressure resistance.
4. Applied to repeated motion in high temperature areas, good anti-fatigue performance.
HOW TO ORDER
To properly design a metal hose assembly for a particular application, the following design parameters must be determined
1. Temperature--You should provide us this information as the temperature to which the assembly is exposed a proper fit
2.Size-- The diameter of the connections in which the assembly will be installed is needed to provide
3. Media--This is important since you must be sure that the assembly's components are chemically compatible with the media going through the hose as well as the environment in which the hose is installed
4.Pressure--Identify the internal pressure to which the assembly will be exposed. This information is important to determine if the assembly is strong enough for the application
5. Identify the necessary end fittings-- This is required since fittings for the assembly must be chosen to properly fit the mating connections.
2.Size-- The diameter of the connections in which the assembly will be installed is needed to provide
3. Media--This is important since you must be sure that the assembly's components are chemically compatible with the media going through the hose as well as the environment in which the hose is installed
4.Pressure--Identify the internal pressure to which the assembly will be exposed. This information is important to determine if the assembly is strong enough for the application
5. Identify the necessary end fittings-- This is required since fittings for the assembly must be chosen to properly fit the mating connections.

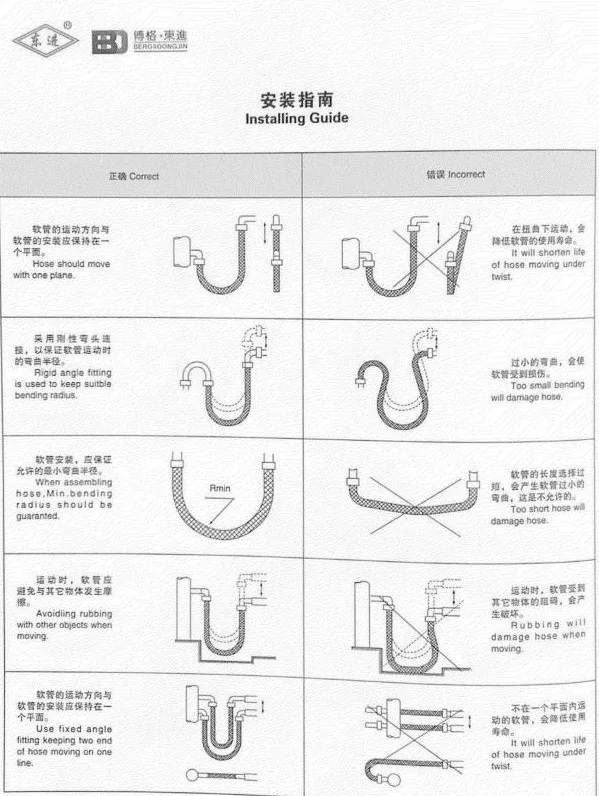

Installing Guide
1.Hose should move with one plane;
2.Rigid angle fitting is used to keep suitble bending radius;
3.When assembling hose min bending radius should be guaranted;
4.Avoidiing rubbing with other objects when moving;
5.Use fixed angle fitting keeping two end of hose mioving on one line
3.When assembling hose min bending radius should be guaranted;
4.Avoidiing rubbing with other objects when moving;
5.Use fixed angle fitting keeping two end of hose mioving on one line
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2003,sell to North America(15.00%),Southeast Asia(15.00%),South America(10.00%),Mid East(10.00%),Eastern Asia(10.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),South Asia(5.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Expansion Joint,Metal Hose,Compensator,Bellows,Corrugated Pipe
4. why should you buy from us not from other suppliers?
Jiangsu Berg Donjin Pipe-line Equipment Co., Ltd. Founded in 1997, it is a medium-sized enterprise specializing in the design and manufacture of pipeline equipment, and a "national contract-oriented, trustworthy" enterprise.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Jiangsu, China, start from 2003,sell to North America(15.00%),Southeast Asia(15.00%),South America(10.00%),Mid East(10.00%),Eastern Asia(10.00%),Eastern Europe(5.00%),Africa(5.00%),Oceania(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),South Asia(5.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Expansion Joint,Metal Hose,Compensator,Bellows,Corrugated Pipe
4. why should you buy from us not from other suppliers?
Jiangsu Berg Donjin Pipe-line Equipment Co., Ltd. Founded in 1997, it is a medium-sized enterprise specializing in the design and manufacture of pipeline equipment, and a "national contract-oriented, trustworthy" enterprise.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
