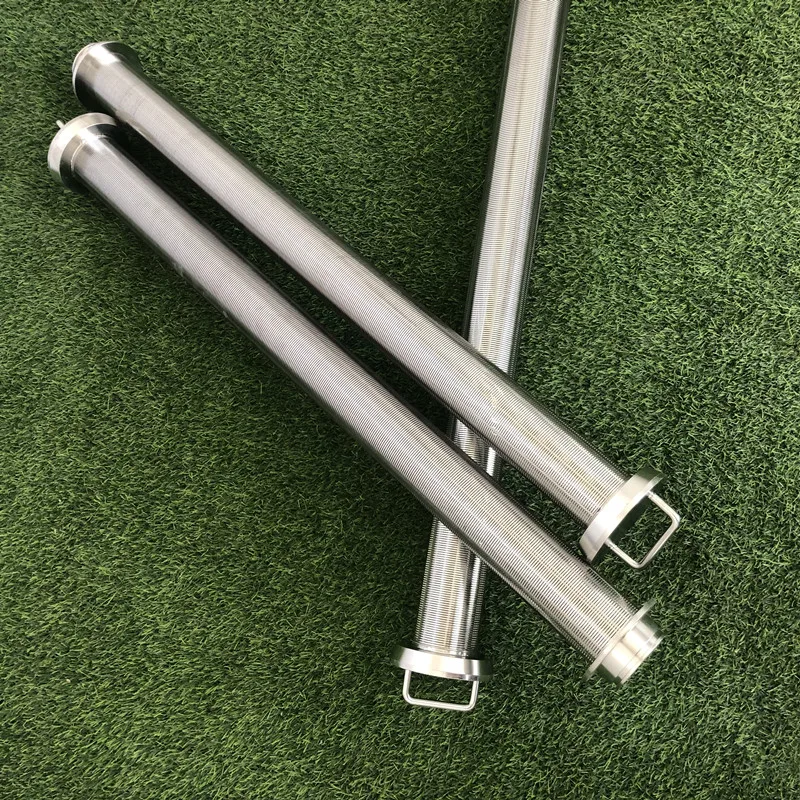

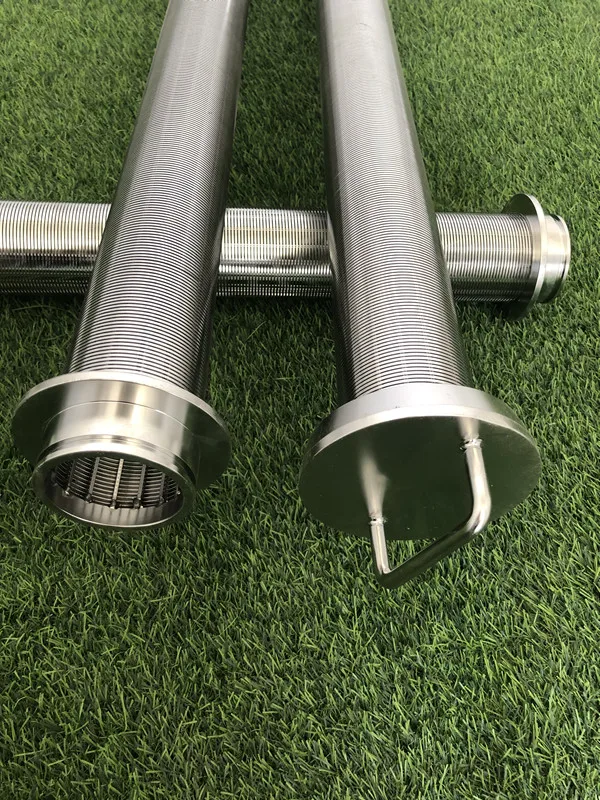

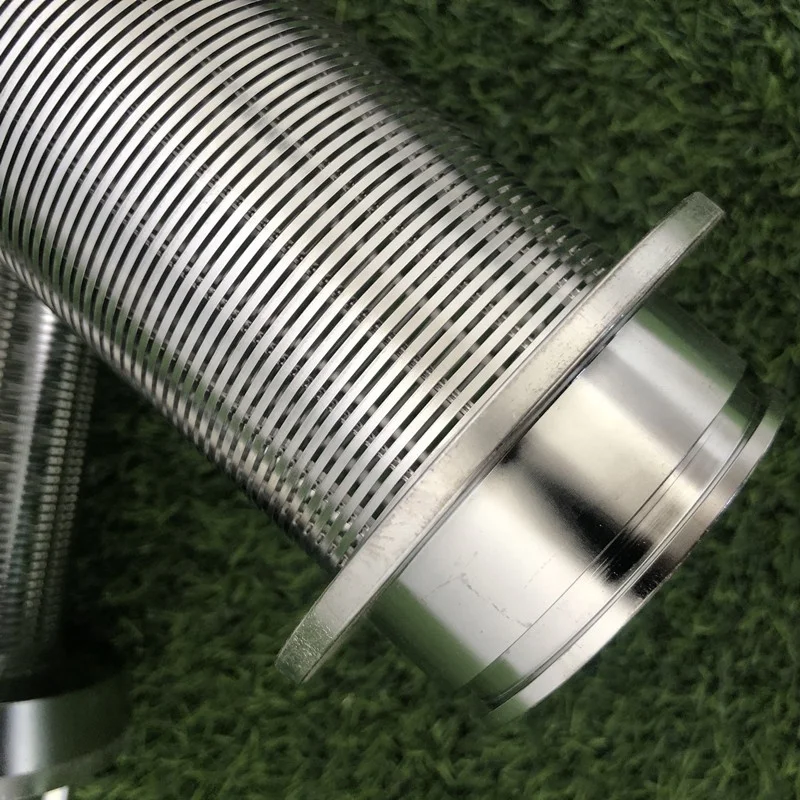

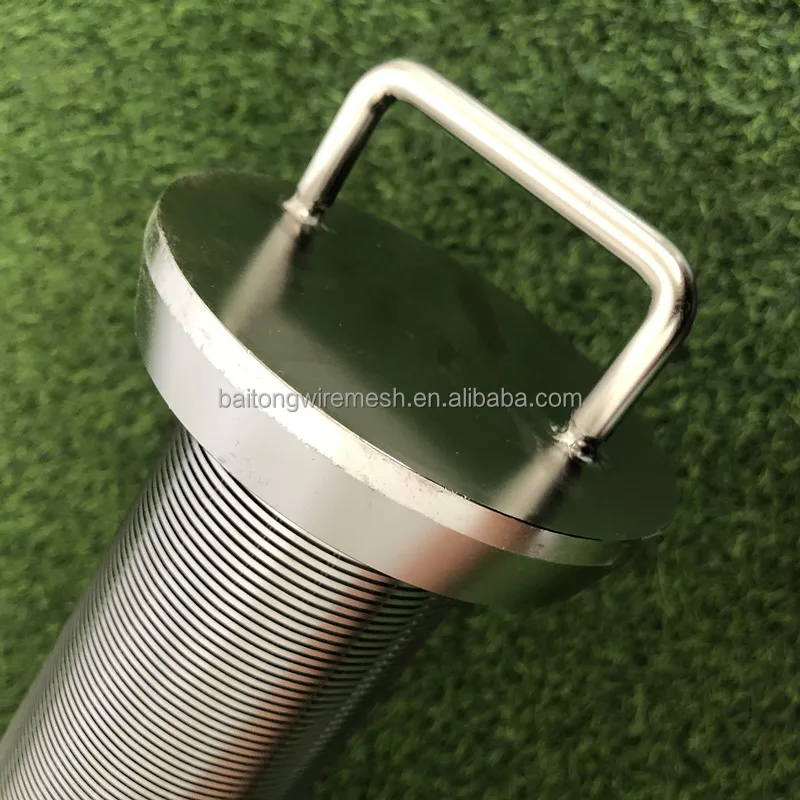

316 stainless steel slot 25um Johnson screen pipe
- Category: >>>
- Supplier: Anping County BT Wire Mesh Products Co. Ltd.
Share on (1600536128994):
Product Overview
Description
Specification
item | value |
Place of Origin | HEB |
Material | Stainless Steel |
Type | Wire Cloth |
Application | Filters |
Weave Style | Plain Weave |
Model Number | bt-006 |
Brand Name | Baitong |
Processing Service | Bending, Welding, Decoiling, Cutting |
Delivery Time | 8-14 days |
Product name | Johnson screen |
Material | stainless steel 304.316.205 |
Usage | water filter |
Color | Silver |
Surface treatment | Electrical Polishing |
Sample | Sample Availible |
Size | Customer Size |
Packing | Wooden Box |
Product Description

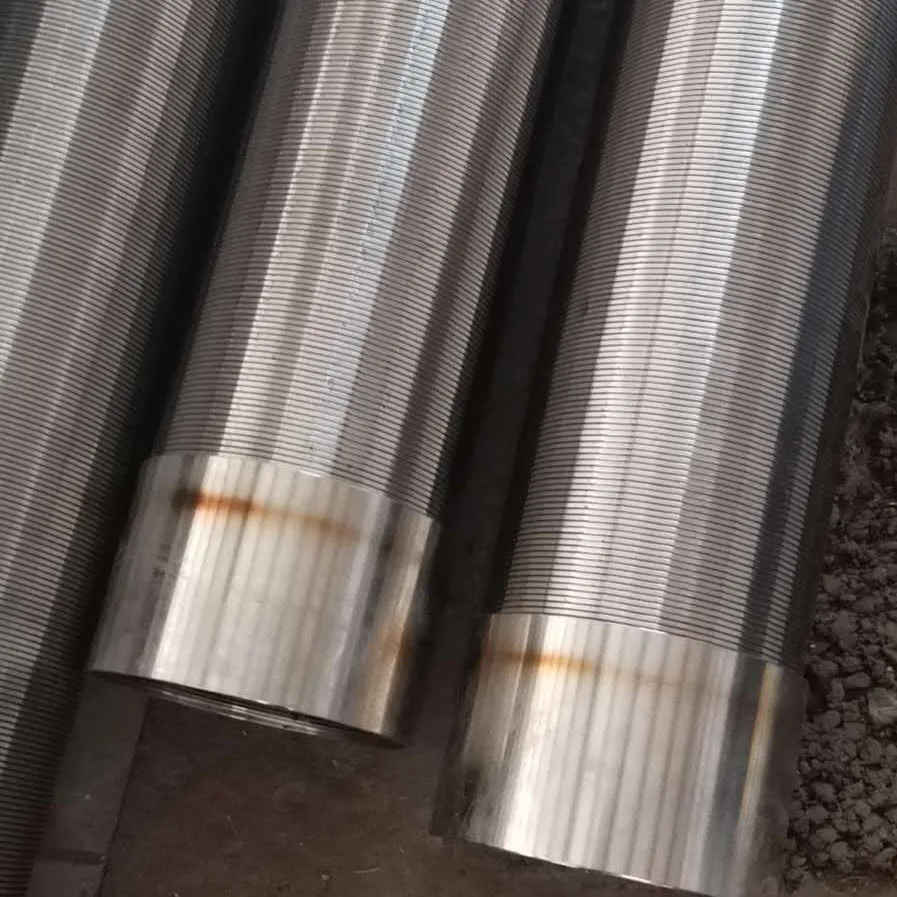

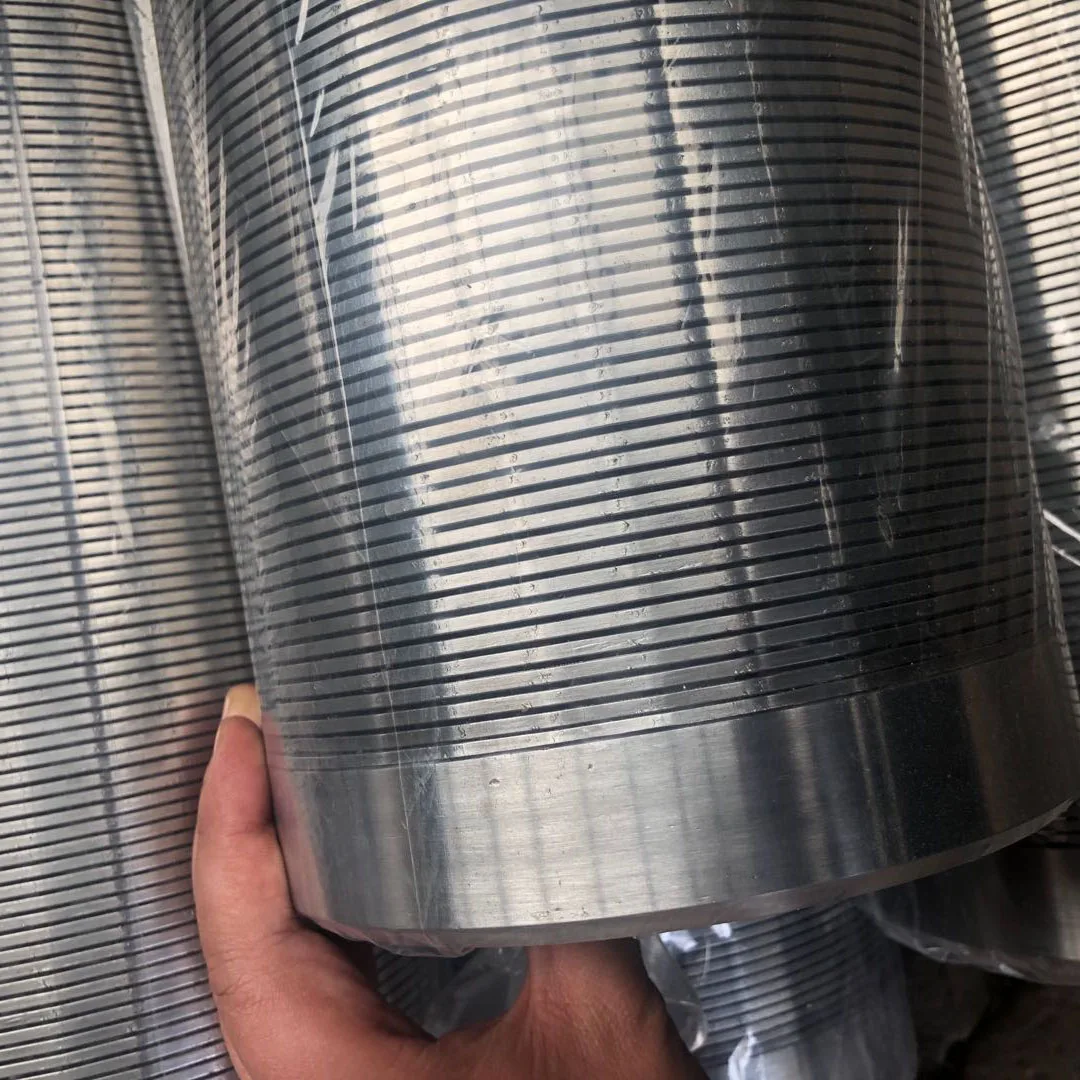

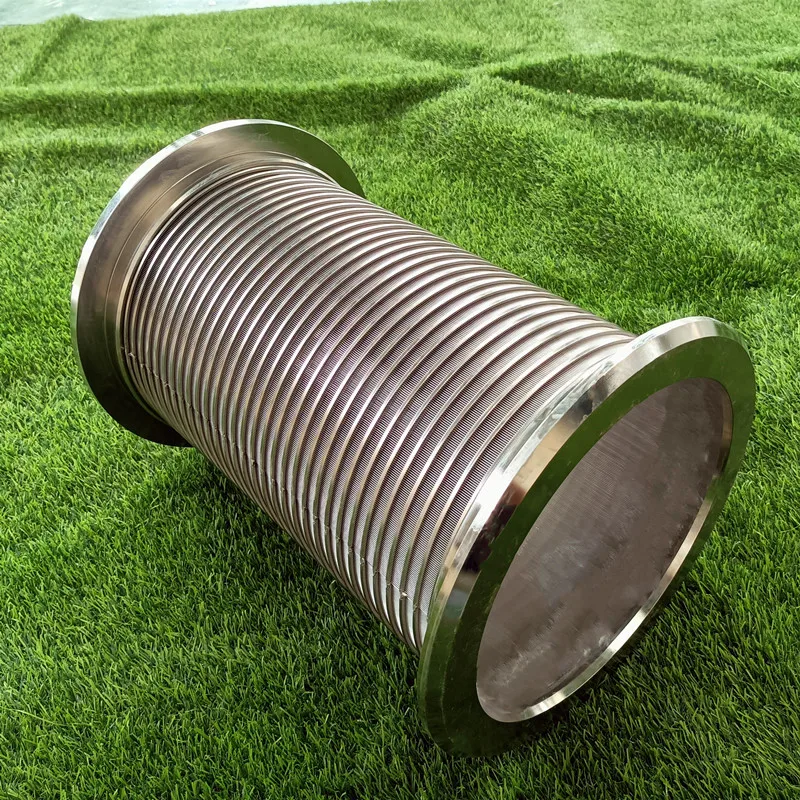

JOHNSON SCREEN PIPE
Wedge wire screen is widely used throughout the world for water, oil & gas wells, and is the dominant screen type used in the water well industry.
The welded stainless steel wire wrap screen is made up of rods and profile wire. The rod can be round wire, triangular wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of wire wrap screen has a structure and high open area, as well as accurate slot dimension. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights. Slot opening for screens are manufactured by spacing successive turns of the outer wire to produce the desired slot size. All slots should be clean and free of burrs and cuttings. Each slot opening between adjacent wires is V-shaped, from the special shape of wire used to form the screen surface. The V-shaped openings designed to be non-clogging, narrowest at the outer face and widen inwardly. Wedge wire screen can be used in both Gravel Pack and Stand Alone Screen (direct retention) applications. Screens are available in a range of sizes and specifications, including outside diameter, material type, the geometry and dimension of the screen slots, and so on.
Features & Benefits
1. V-Shaped Slots —Openings shaped like a "v" that open toward the inside of the well tend to allow the particles that are justbarely smaller than the width of the slot pass. In other shapes of openings, these particles would get caught in the screenand clog it.2. Very Large Open Area — This design gives continuous slot and hence the open area for water to enter is more than 2 timesthat of conventional slotted pipes of any size and slot opening. This allows more water to enter at much lesser frictionalhead loss and the efficiency of tube well is improved appreciably.
3. Better Sand Filtration —Due to specialize manufacturing process, wide range of slot opening is available down to 0.15mm to allow proper slot selection depending upon the size of sand in particular area. This gives better sand control and reduced pump maintenance and longer tube well life.
4. Low maintenance costs — Separation at the screen surface which can easily cleaned by scraping or back washing.
5. Maximum process output — Precise and continuous slot openings resulting in accurate separation without loss off media.
6. Energy Saving — Due to reduce frictional head losses and increased discharge, the pump load reduces the power required topump same quantity of water. Power saving of around 20-25% is observed.
7. Chemical and thermal resistant — A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures. Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface. The V-shaped openings, designed to be non-clogging, are narrowest at the outer face and widen inwardly. Continuous-slot screens provide more intake area per unit area of screen surface than any other type. For any given slot size, this type of screen has maximum open area.
4. Low maintenance costs — Separation at the screen surface which can easily cleaned by scraping or back washing.
5. Maximum process output — Precise and continuous slot openings resulting in accurate separation without loss off media.
6. Energy Saving — Due to reduce frictional head losses and increased discharge, the pump load reduces the power required topump same quantity of water. Power saving of around 20-25% is observed.
7. Chemical and thermal resistant — A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures. Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface. The V-shaped openings, designed to be non-clogging, are narrowest at the outer face and widen inwardly. Continuous-slot screens provide more intake area per unit area of screen surface than any other type. For any given slot size, this type of screen has maximum open area.
With more than 10 years of experience, BTOSLOT knows the ins and outs of this technology. Our wedge wire filter products are available in all sorts of designs that can be tailor made to our customer’s requirements.
We are a reliable partner in the filtration industry, and supply into a vast range of applications like Water Treatment, Food Industry, Petrochemical Industry, Paper&Pulp, Nutsche Filters, Manure Dewatering, Aquaculture and Architecture.
Radial External Wire
These tubes are composed of a surface profile wire that is spirally wrapped around axial support profiles and attached to each other by resistance welding.
Resin Trap
A resin trap is normally used to capture expensive resin that escapes from a treatment vessel by accident or to protect equipment further downstream.
Nozzles
Wedge wire nozzles prevent the outflow of filter media, activated carbon or sand and secure an even distribution of water at the same time.

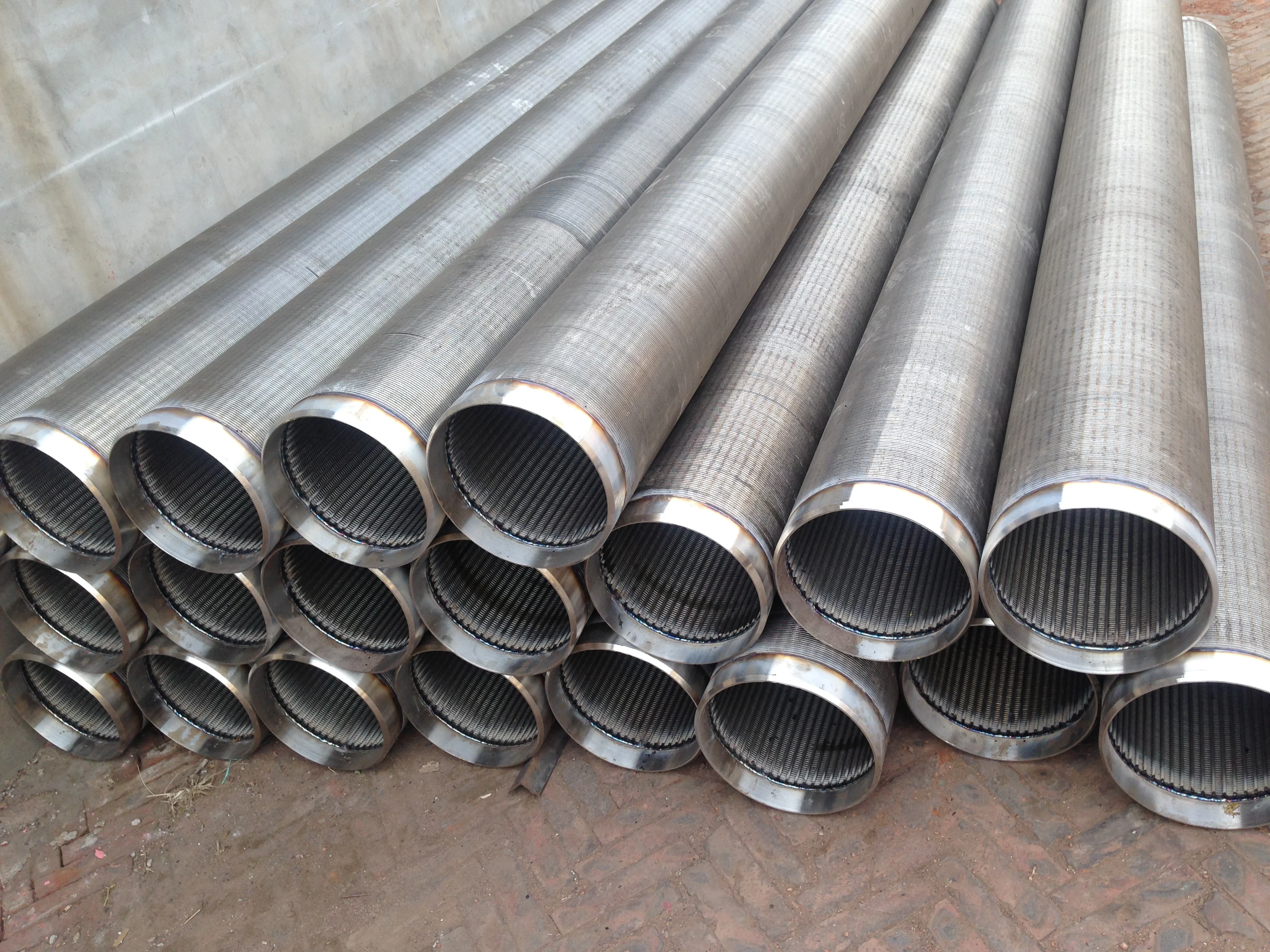

Water Well Tube
An extensive range of high open are wire wrap screens for ground water applications.
Radial Internal Wire
For these types of slot tubes, the support wires are on the outside in an axial direction and the profile wire runs radially on the inside of the tube. The flat side of the triangular profile wire is oriented to the
inside of the tube, which is why this element is FITO(flow in to out).
inside of the tube, which is why this element is FITO(flow in to out).
Rotary Drum
The construction of these wedge wire tubes makes them easy to clean by a scraper on the inside. BTOSLOT guarantees perfect
roundness.
roundness.
Self Cleaning Filter
A slot tube where the slot runs in the axial direction, with smooth surface on the inside can be cleaned by a suction plate, a scraper or by Bernoulli effect.
Paper & Pulp
Coated paper requires filtering in different stages of the production . Wedge wire is the ideal medium because of the high open area, roundness and high clean-ability.
Axial Internal Wire
This type of filter tube is characterized by an axial profile wire/axial slot direction.The support wire is oriented on the outside of the filter element in a radial direction. The smooth surface of the profile wire is on the inside and the filtration direction is therefore from the inside to outside. Although FOTI is also possible in exceptional cases.
Flat Screens
BTOSLOT flat screens are flat filter surfaces that can be manufactured in two different ways. 1. welded screens, directly made on the flat welding machine; 2. Flattened slot tube, manufactured by opening and flattening a slot tube with radial external wire.
Vibrating Screens
Bottom Screens
Wedge wire filter bottoms and screens are ideal to separate the liquid from the solids.
Drainage Gratings
Curved Screens

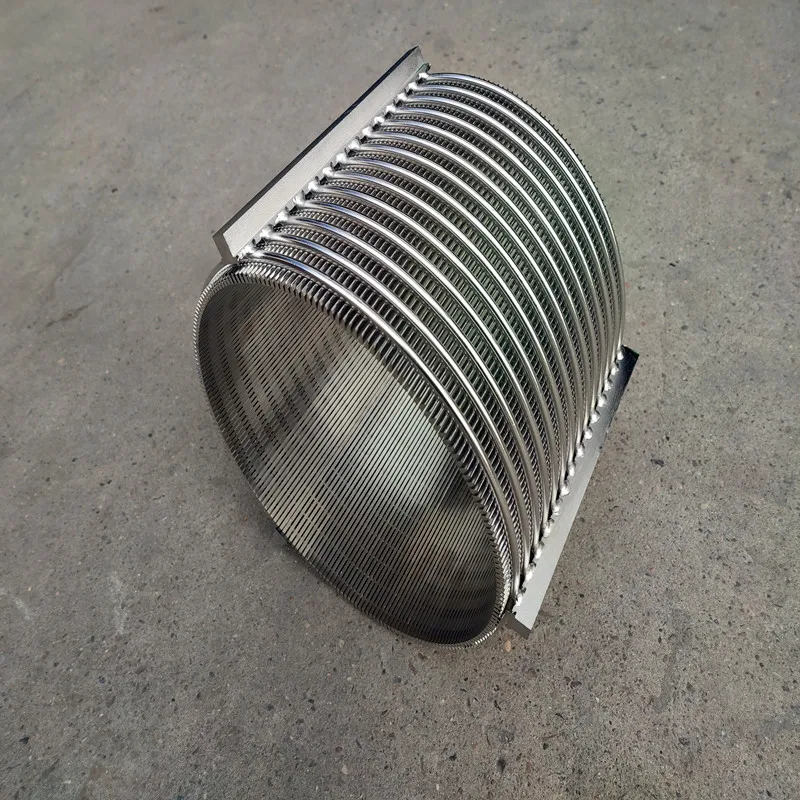

BTOSLOT can bend a flat screen to form a curved screen. As the substrate flows over the curved screen, the large solid particles remain behind and are collected at the bottom of the screen.
Coanda screens
Coanda screens are intake screens that are installed in a river or creek. They retain leaves, small branches etc. These wedge wire intake screens are common for hydro plants.
Bend Sieve
These screens are an alternative to pressure screens for fiber washing, fiber dewatering and germ washing applications. They are also known as ICM or paddle screens.
Static Sieve Bend Screen
As the substrate flows over the curved screen, the large solid particles remain behind and are collected at the bottom of the screen.
Wedge Wire Screen Basket
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Conical Baskets
Centrifuge basket for dewatering of granular material
* Sugar industry
* Starch mills
* Starch mills
Rectangular Baskets
Wedge Wire Screen Basket
Specification
item | value |
Slot | Generally, from 0.02 mm to 3.00 mm. (tailor made to our customer’s requirements) |
Screen Profiled Wire | Generally, from 0.75*1.50 mm to 3.0*5.0 mm |
Support Wire | Generally, the support wire is 2.0*3.0 mm and 3.0*5.0 mm. (tailor made to our customer’s requirements) |
Distance Between support wire | Generally the distance is from 10 mm to 40 mm. (tailor made to our customer’s requirements) |
Material | AISI430 / AISI304 / AISI316L / AISI321 |
Processing Service | tailor made to our customer's requirements, including cut into various shapes. |
Applications
Not Find the Products You Need?
Conract with us to learn more or customized.

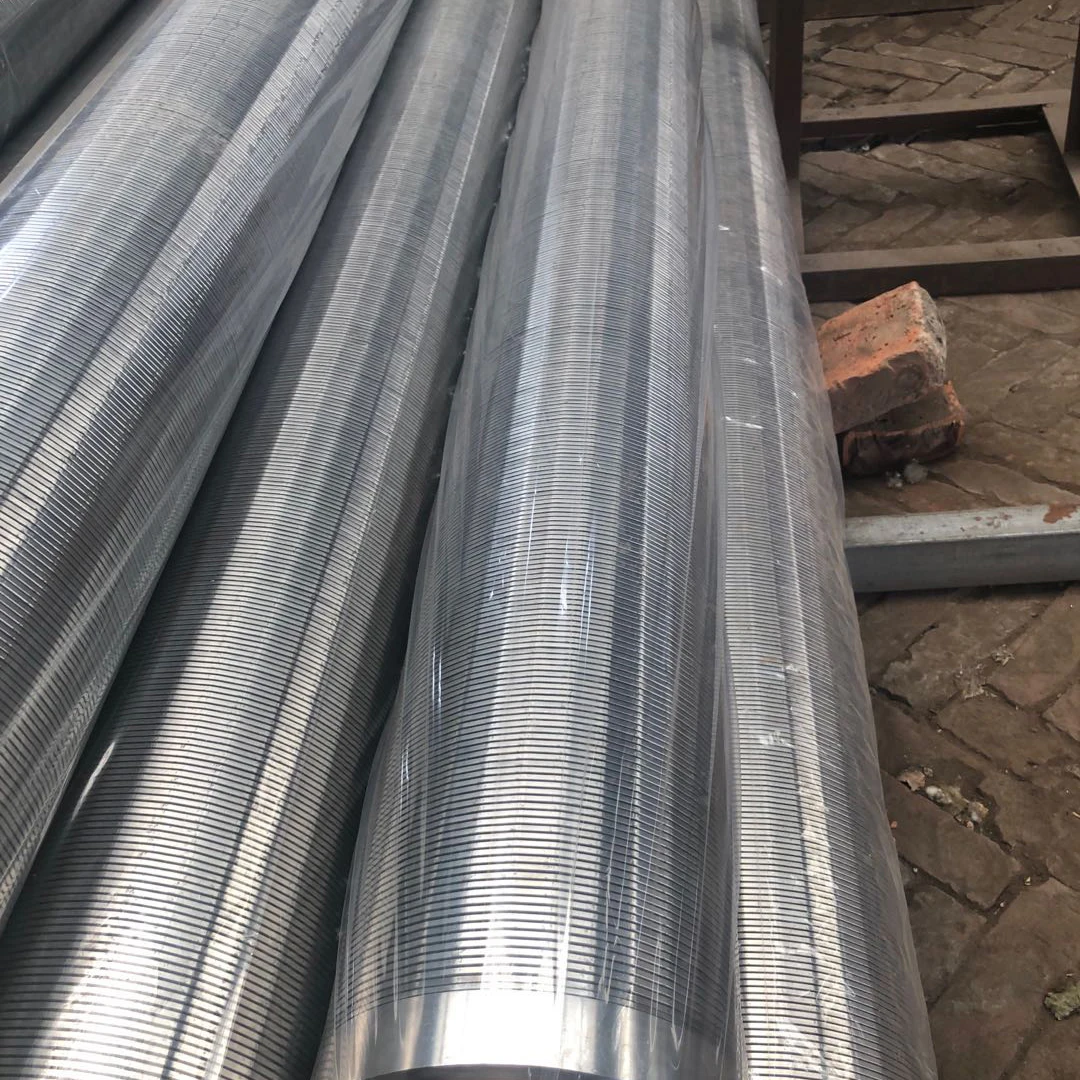

Packing & Delivery
Wooden Pallets or Wooden Boxes to better protect your products during the transport.
About Us

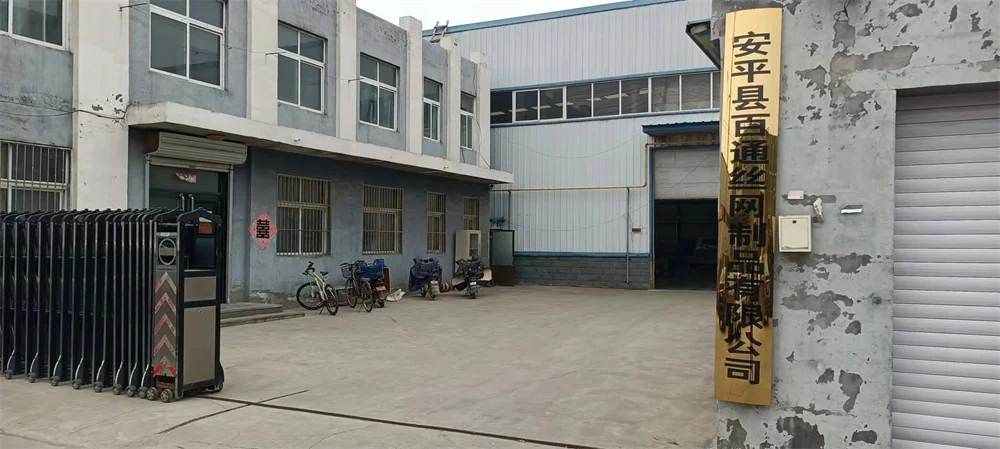

About Company
Anping County BT (Baitong)Wire Mesh Products Co.,Ltd is a production and processing filter and deep processing products of enterprises.We have more than 18 years of production experience.
The company is located in the country of silk screen,silk screen industrial base -- hebei anping, the main production and operation of wedge wire screen mesh, Johnson water well screen pipe,punching metal mesh,Pressure curved sieve,Stainless steel wire mesh,Vibrating screen.

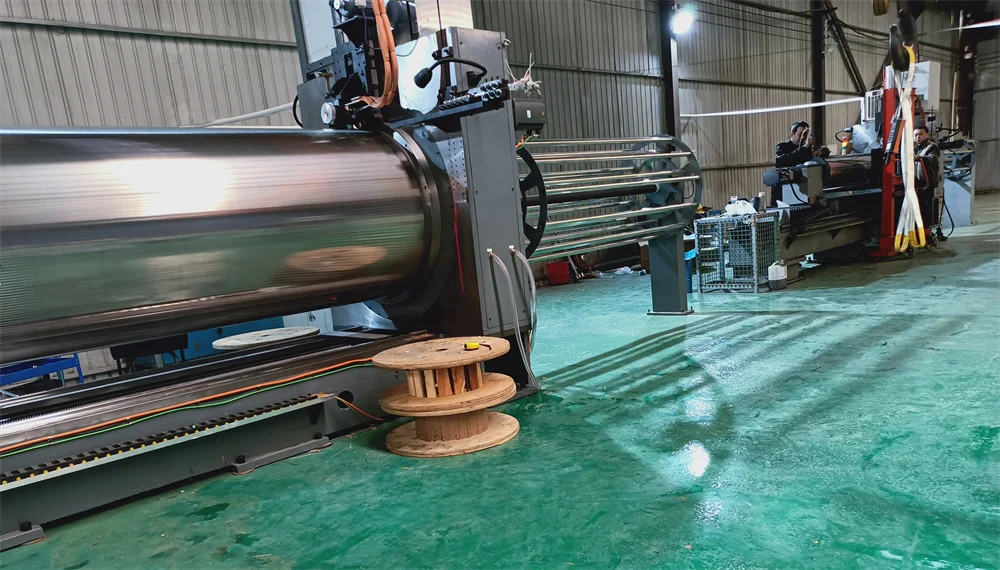

We has variety of mesh machinery more than 30 sets and more than 50 workers and salesmen.Best lton-us industry
adhering to the "integrity, professional, win-win" business philosophy, adhere to customer first, quality first, service customers.
The products are exported to more than 20 provinces,municipalities and autonomous regions, as well as Japan, South Korea, Europe and America, southeast Asia, deeply domestic and foreign user's trust and praise.Baitong will continue to give full play to its comprehensive advantages in the field of wire mesh products, constantly meet customer needs, to provide high-quality products and services for global partners.
adhering to the "integrity, professional, win-win" business philosophy, adhere to customer first, quality first, service customers.
The products are exported to more than 20 provinces,municipalities and autonomous regions, as well as Japan, South Korea, Europe and America, southeast Asia, deeply domestic and foreign user's trust and praise.Baitong will continue to give full play to its comprehensive advantages in the field of wire mesh products, constantly meet customer needs, to provide high-quality products and services for global partners.
Certifications
Customer Photos
FAQ
1.Are you trading company or manufacturer ?
Baitong screen products Co., LTD. Is a physical factory with a variety of mesh machinery more than 30 sets. There are more than 50 workers and salesmen.
Baitong screen products Co., LTD. Is a physical factory with a variety of mesh machinery more than 30 sets. There are more than 50 workers and salesmen.
2.Could you supply the sample?
We could offer the sample for free charge but the cost of freight is extra.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.How about the delievery time?
Usually within 2-14days after receiving the deposit;
5. why should you buy from us not from other suppliers?
More than 18 years of production experience. Accumulated a large number of customers around the world. Offered to every customer sales service.
6. what services can we provide?
Delivery Terms: Shipping,Air freight,Rail transport
Payment Currency:USD ,RMB,EUR,AUD,JPY and other you can ask us
Payment Type: T/T, L/C and other mainstream payment term.
We could offer the sample for free charge but the cost of freight is extra.
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.How about the delievery time?
Usually within 2-14days after receiving the deposit;
5. why should you buy from us not from other suppliers?
More than 18 years of production experience. Accumulated a large number of customers around the world. Offered to every customer sales service.
6. what services can we provide?
Delivery Terms: Shipping,Air freight,Rail transport
Payment Currency:USD ,RMB,EUR,AUD,JPY and other you can ask us
Payment Type: T/T, L/C and other mainstream payment term.
