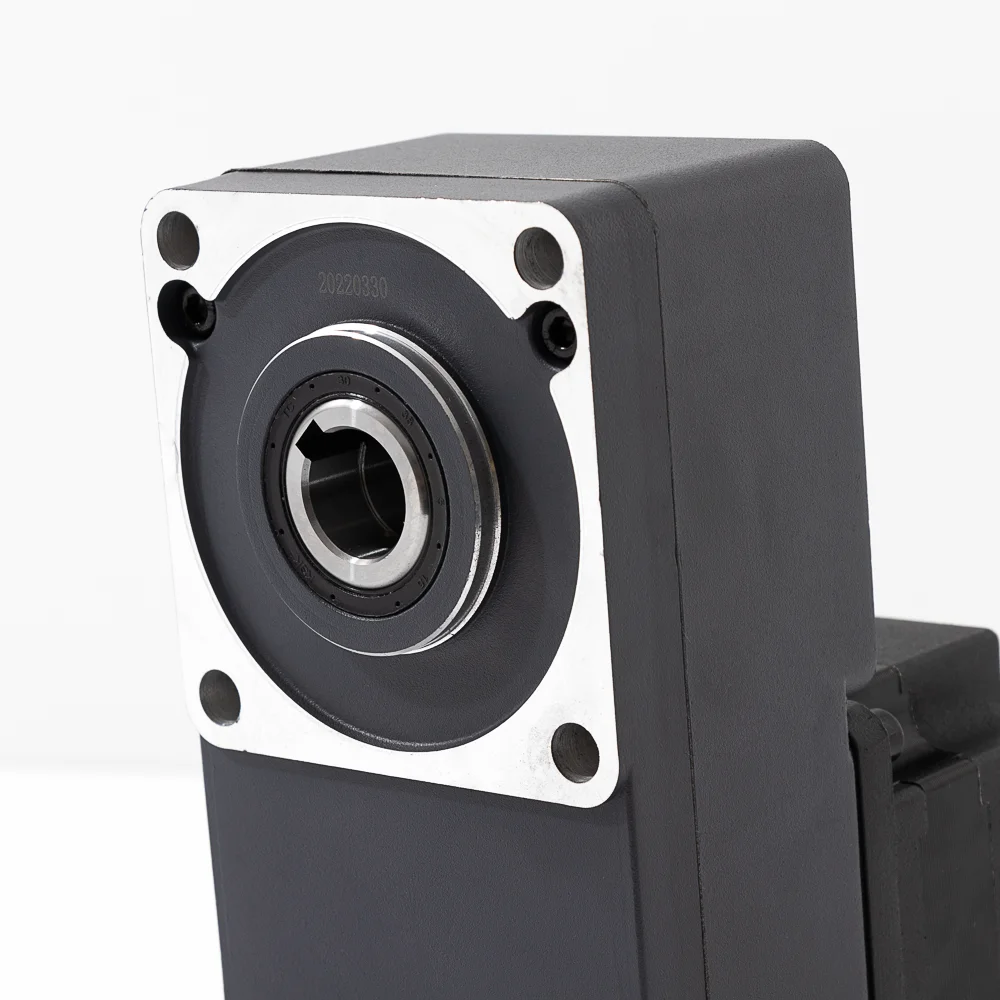

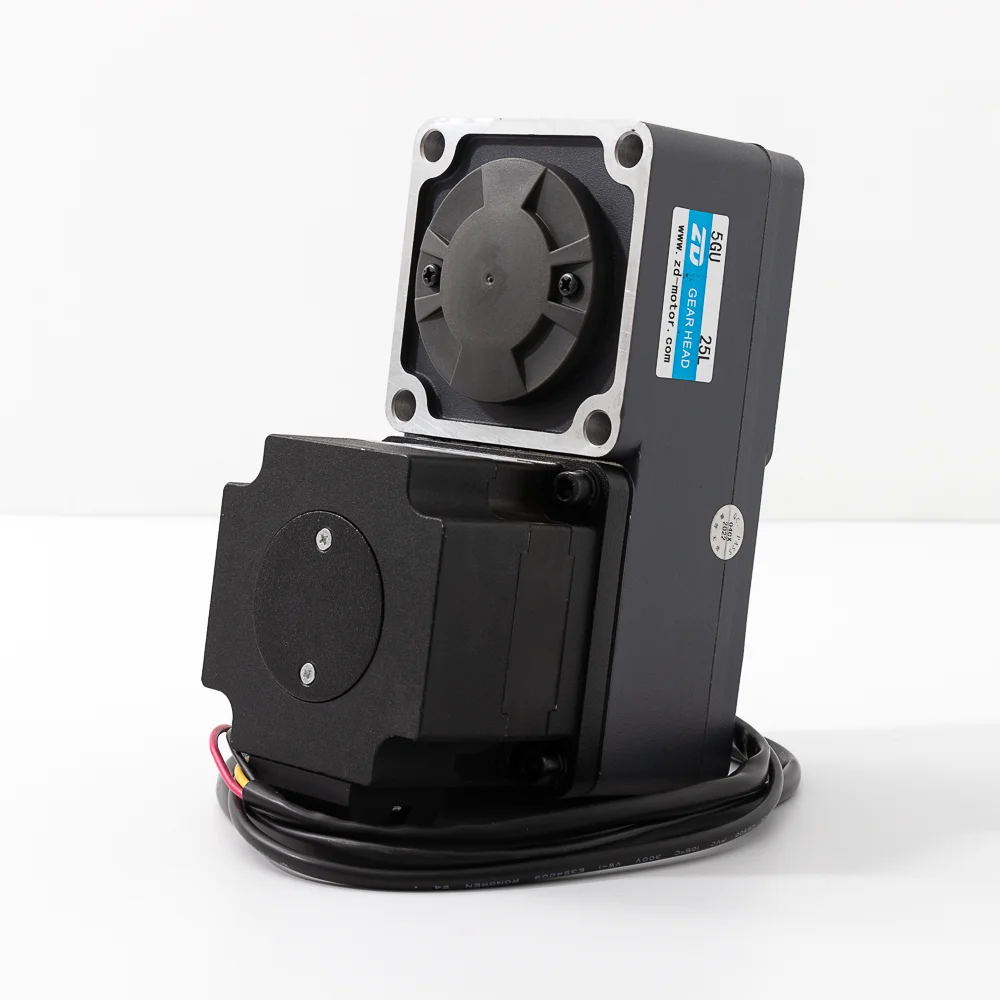

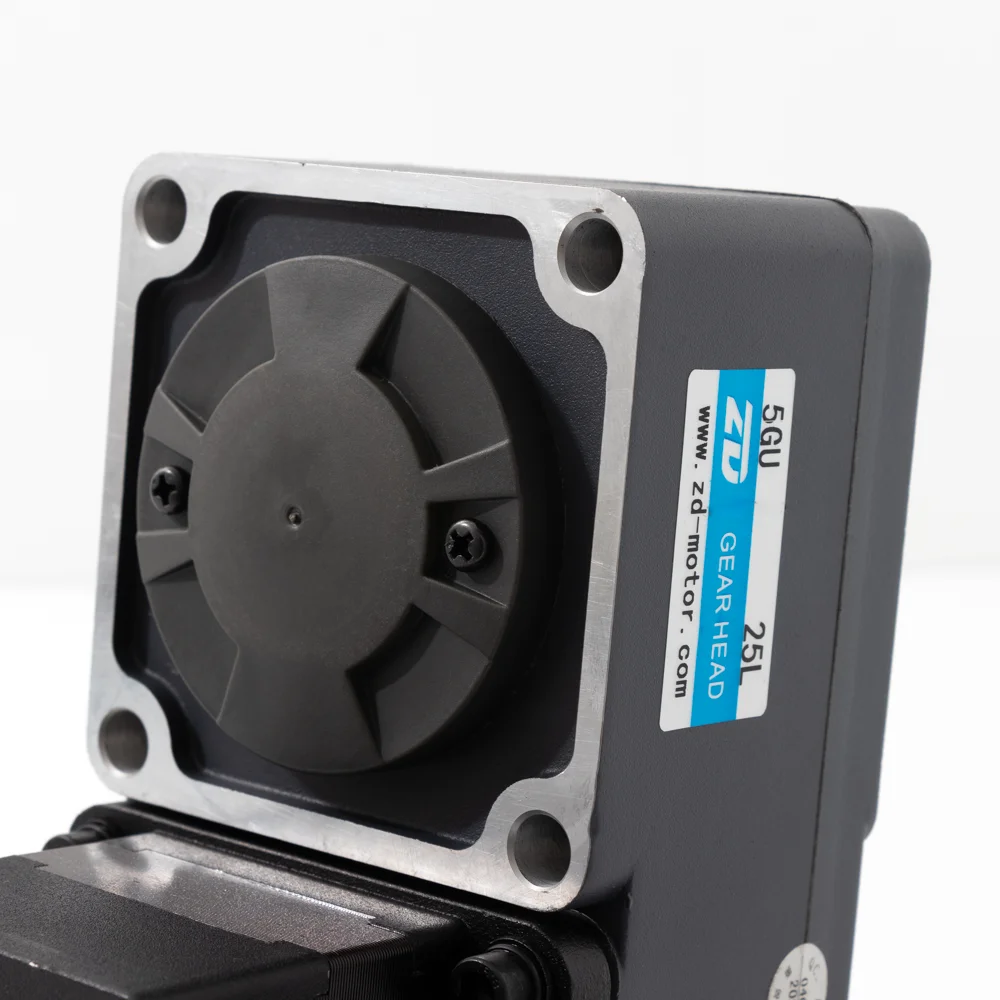

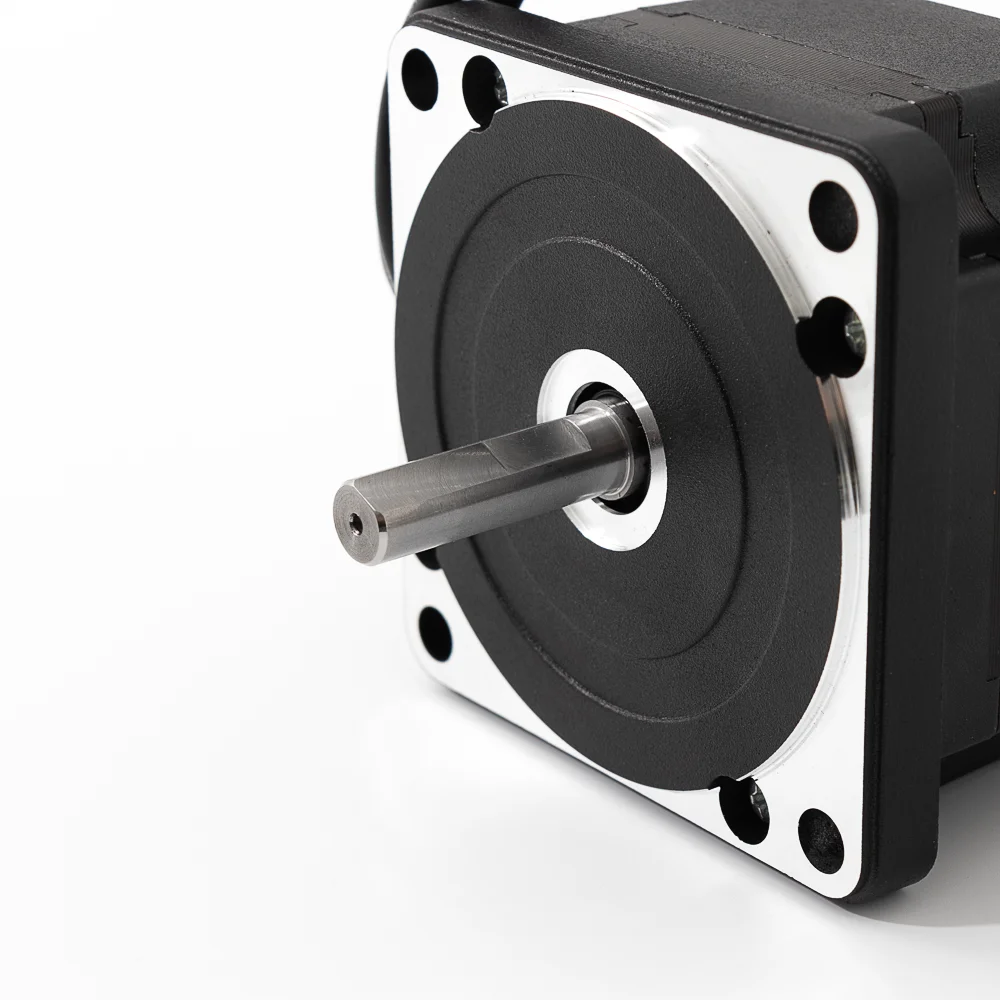

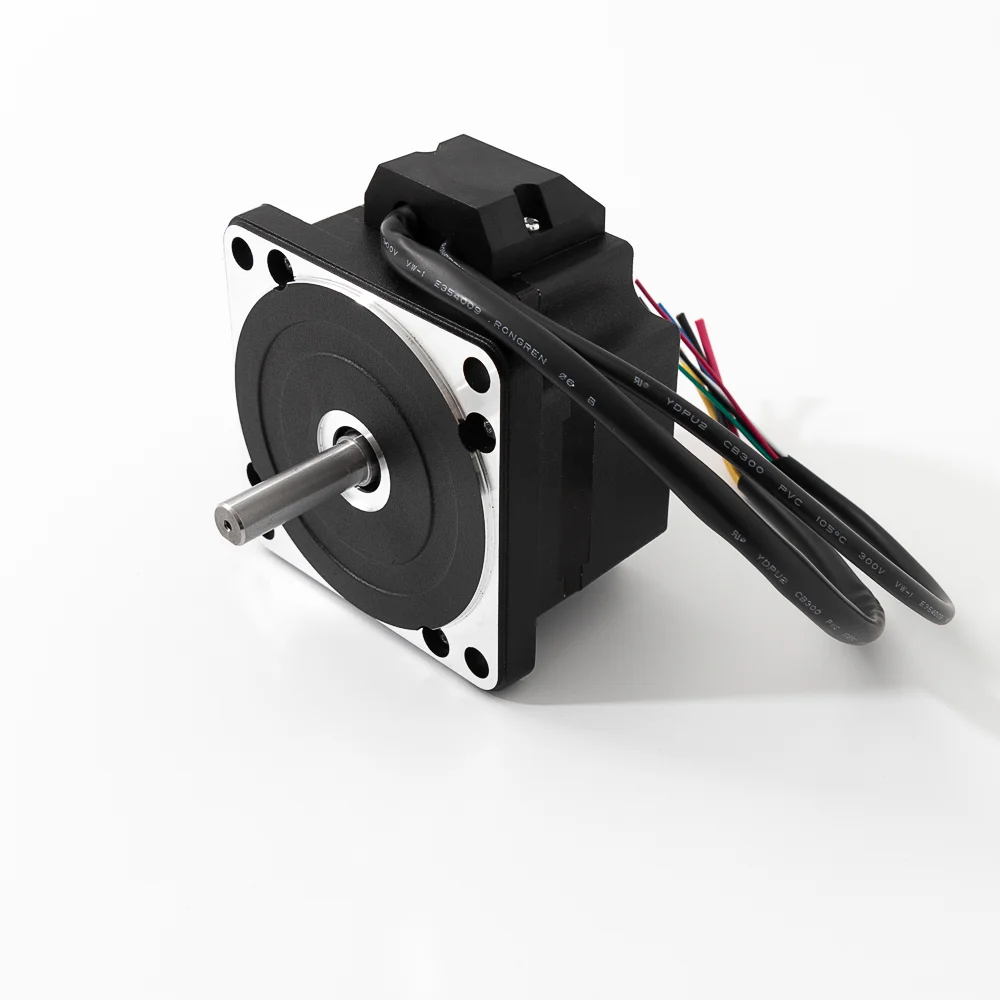

high speed 90mm 565W 48V 3000rpm BLDC motor with driver
- Category: >>>
- Supplier: Changzhou Modar Intelligent Technology Co. Ltd.
Share on (1600536130064):
Product Overview
Description
BLDC motor
Brushless DC motors are especially suitable for environments that require quiet operation and have a long service life. BLDC Motos provided by Modar have a high acceleration, combined with very high efficiency and speeds of up to 14,000 rpm. Along with encoders, BLDC motors can also be used in applications that require precise positioning.
Products Description
Product Specifications
Model | Voltage | Speed | Torque | Peak Torque | Current | Power | Rotor inertia | Length | Weight | |||||||||
V | rpm | N.m | N.m | A | W | kg.mm2 | mm | Kg | ||||||||||
90BL87-430 | 48 | 3000 | 1 | 3 | 8.5 | 314 | 120 | 87 | 2.3 | |||||||||
90BL97-430 | 48 | 3000 | 1.27 | 3.81 | 10.8 | 400 | 160 | 97 | 2.7 | |||||||||
90BL112-430 | 48 | 3000 | 1.8 | 5.4 | 14.8 | 565 | 220 | 112 | 3.5 | |||||||||
90BL122-430 | 48 | 3000 | 2.1 | 6.3 | 18 | 659 | 260 | 122 | 3.9 | |||||||||
90BL137-430 | 48 | 3000 | 2.5 | 7.5 | 19.5 | 785 | 320 | 137 | 4.4 | |||||||||
90BL137-630 | 310 | 3000 | 2.5 | 7.5 | 3.3 | 785 | 320 | 137 | 4.4 | |||||||||
★We also manufacture products according to customer,s requirements. | ||||||||||||||||||
item | value |
Warranty | 1year |
Place of Origin | China |
Jiangsu | |
Brand Name | Modar Motor |
Model Number | 90BL87/97/112/122/137-430 90BL137-630 |
Usage | Home Appliance, Medical Apparatus |
Type | Brushless Dc Motor |
Torque | 1-2.5N.m |
Voltage | 48V/310V |
Construction | Permanent Magnet |
Commutation | Brushless |
Speed(RPM) | 3000RPM/min |
Continuous Current(A) | 3.3-19.5A |
Efficiency | Ie 3 |

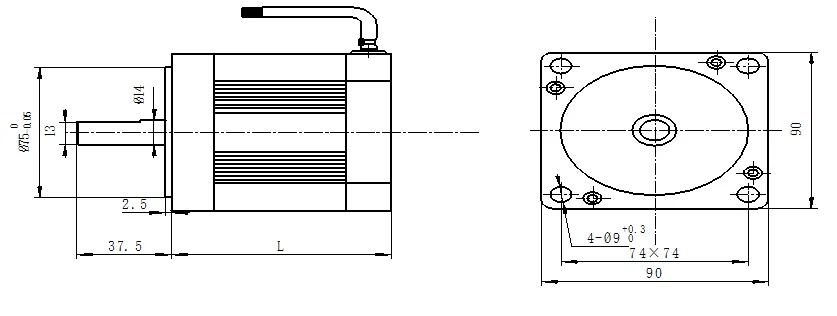

Product Dimensions
Recommend Products
If you need brushless motors with different diameters, you can choose from the following products.
60BL78/99/120/140-430
60mm brushless dc motor 3-phase 8-pole
Voltage:48V
power: 100W-400W
rated torque: 0.32N.m-1.27N.m
length: 78mm-140mm
power: 100W-400W
rated torque: 0.32N.m-1.27N.m
length: 78mm-140mm
110BL110/140-430
110mm brushless dc motor 3-phase 8-pole
Voltage: 48V
power: 1kw-3kw
rated torque: 3.2N.m-4.8N.m
length: 110mm-140mm
power: 1kw-3kw
rated torque: 3.2N.m-4.8N.m
length: 110mm-140mm
If you want to know the following other types of motors, please click on the URL: https://modarmotor.en.alibaba.com
Manufacturing Technique
Packing & Delivery
Company Profile
Modar Motor
For more than 10 years, Modar Motor has offered BLDC motors, brushed DC motors, AC motors etc. available from 1 to 3000W in 12V, 24V, 48V, 310V versions. We also provide stepper motors, Linear actuator, pump motor for medical equipments etc..
