pakistan wood burning stove pellet making machine without motor wood pellet
- Category: >>>
- Supplier: Henan Zhangsheng Environmental Protection Equipment Co. Ltd.
Share on (1600536143202):
Product Overview
Description
The biomass pellet production line from ZHANGSHENG MACHINERY can recycle wood waste, corn stalk, coconut shell, and waste materials from saw mills. Pellets from ZHANGSHENG MACHINERY can totally meet ENplus standard, and have a high flammability value, which can be used in small home/commercial furnaces and in industry as a climate-neutral alternative to crude oil or natural gas. The pellets are small in size and low in transportation costs, and the raw materials is renewable.
With more than 80% lower greenhouse gas emissions than coal, wood pellets are one of the most effective ways to meet renewable energy and carbon reduction goals. Between 2020 and 2022, global industrial pellet demand increased by 18.4%, while production increased by only 8.4%. The EU region and the UK, in particular, often run into pellet shortages under high energy costs. Therefore, the wood pellet production line is a promising and lucrative project.

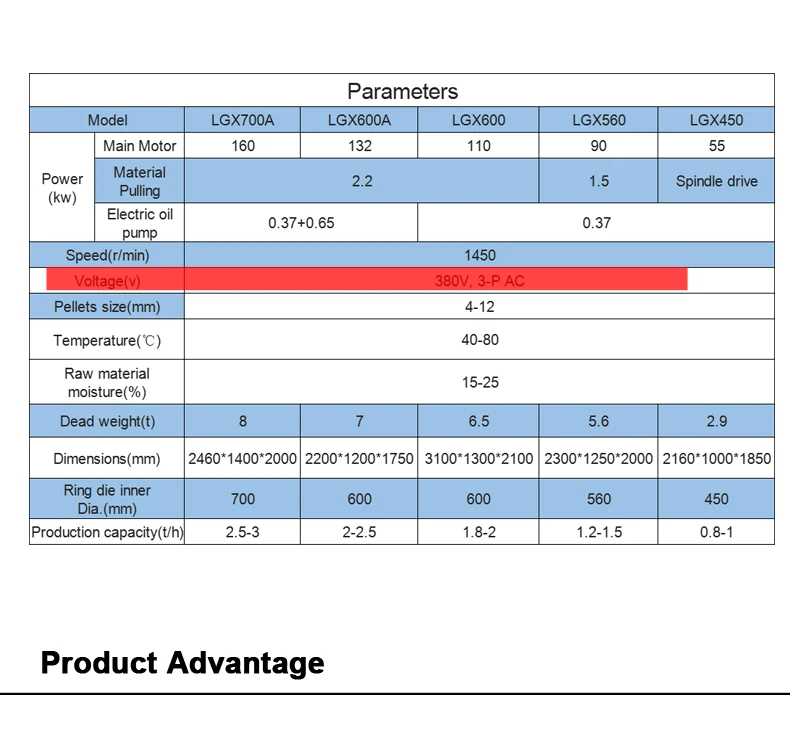

Model | 450A | 450B | 560A | 560B | 560C | 700 | 850 | ||||||
Main Motor power(kw) | 55 | 75 | 90 | 110 | 132 | 160 | 220 | ||||||
capacity(t/h) | 0.6-0.8 | 0.8-1 | 1-1.3 | 1.5 | 2-2.5 | 2.5-3 | 3-4 | ||||||
Pellets size(mm) | 6-12mm | 6-12mm | 6-12mm | 6-12mm | 6-12mm | 6-12mm | 6-12mm | ||||||
Material Pulling Motor power(kw) | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 2.2 | 3 | ||||||
fan powerr(kw) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | ||||||
conveyor power(kw) | 2.2 | 2.2 | 3 | 3 | 3 | 3 | 3 | ||||||
Automatic oiling(kw) | 0.37+0.55 | 0.37+0.55 | 0.37+0.55 | 0.37+0.55 | 0.37+0.55 | 0.37+0.55 | |||||||
weight(t) | 3t | 3t | 4.5t | 5t | 5.5t | 8t | 13t | ||||||

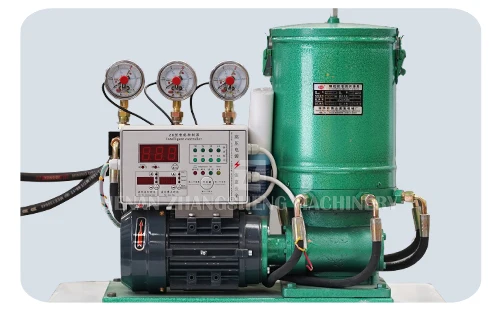

Automatic lubrication
Lubricating equipment friction can effectively reduce friction, greatly reduce bearing wear and performance consumption, improve equipment operation efficiency, and extend the life of the equipment.

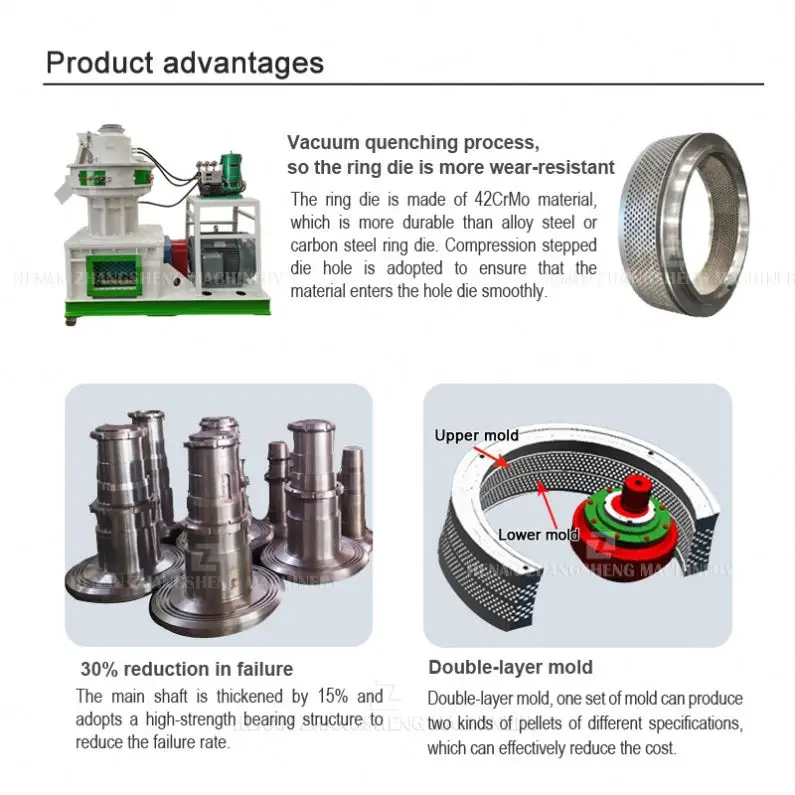

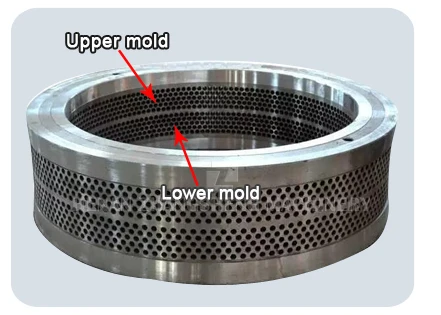

Vacuum quenching process, making ring mold more wear-resistant
Double-layer mold, one set of mold can produce two kinds of pellets of different specifications, which can effectively reduce the cost. The ring die is made of 42CrMo material, which is more durable than alloy steel or carbon steel ring die.

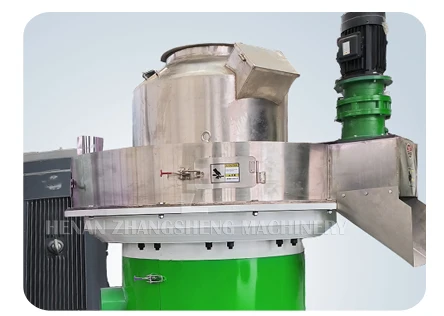

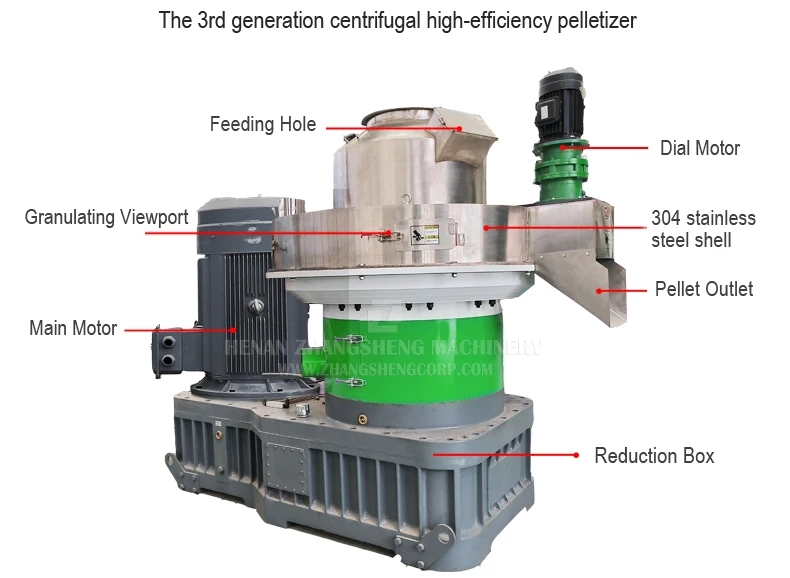

304 stainless steel shell
Prevent the water vapor corroded machine shell due to the high temperature evaporate of raw materials during the pellets making process. ZHANGSHENG, choose 304 stainless steel to make the shell, to protect machine for long service life.
24 hours continuous work
Automatic lubrication system to ensure 24-hour uninterrupted work, thereby increasing production
30% reduction in failure

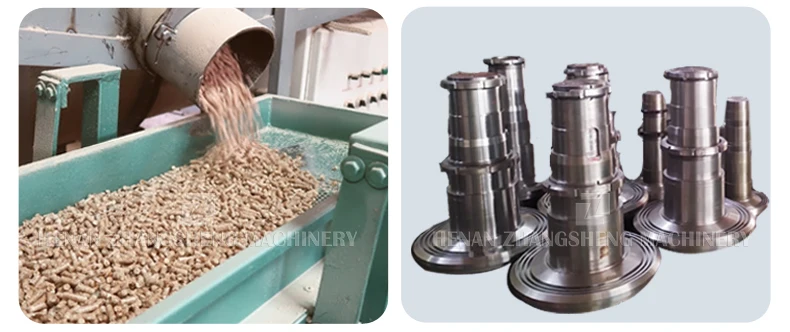

The main shaft is thickened by 15% and adopts a high-strength bearing structure to reduce the failure rate.

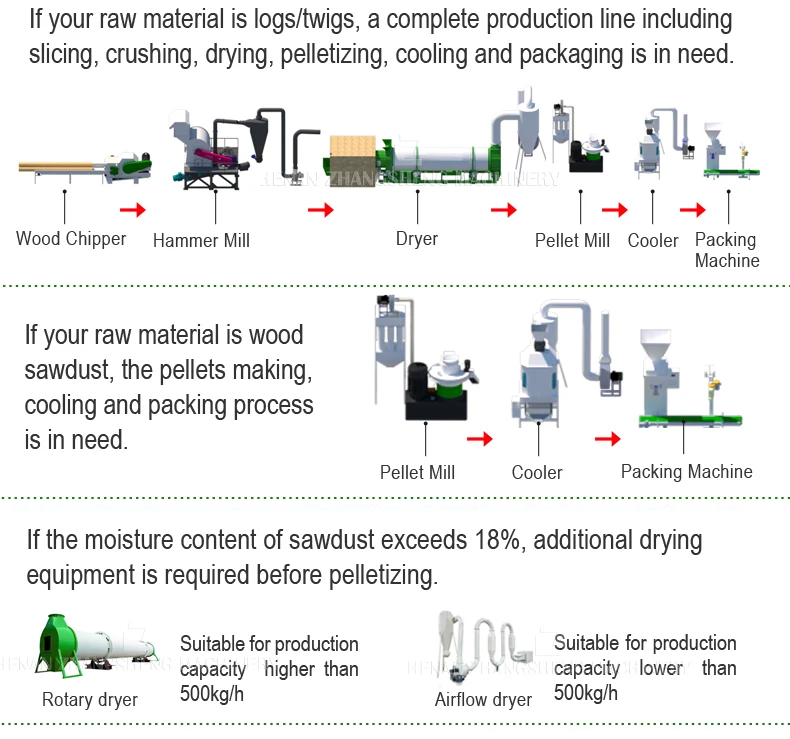

According to different raw materials's charactoristic, Zhangsheng Machinery shall design the reasonable and reliable production line for you.
The final pellets size is usually as Dia.: 8mm; Other diameters are also available.

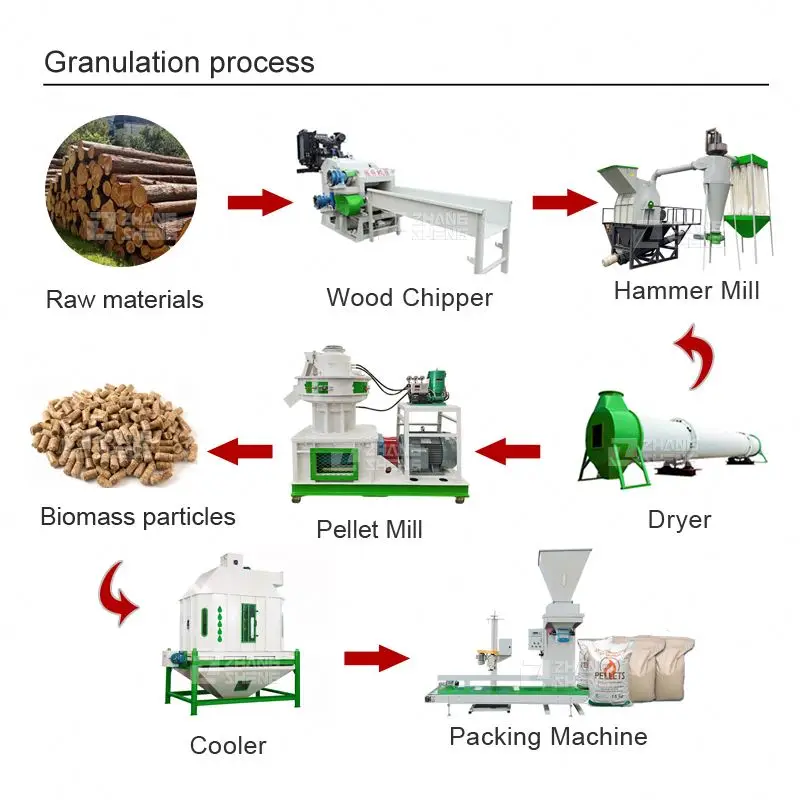

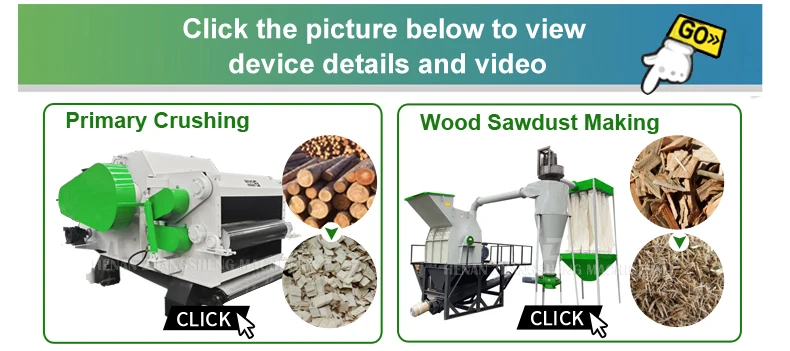

Wood Drum Chipper
(Sawdust pellet line doesn't need this process)Primary crushing stage process tree trunks and logs with a diameter of less than 50cm, into small wood chips within 20mm.
Hammer Mill
(optional)Hammer mill process small wood chips with a diameter of less than 20mm into sawdust with a diameter of less than 8mm.

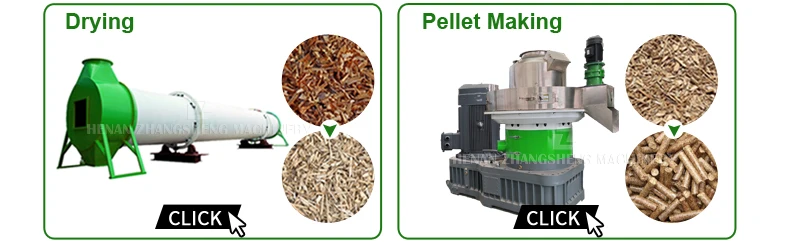

Dryer
(optional)The optimum moisture content for granulation is 12-18%. The dryer reduces the wood sawdust moisture from 20%-60% to 12-18%.

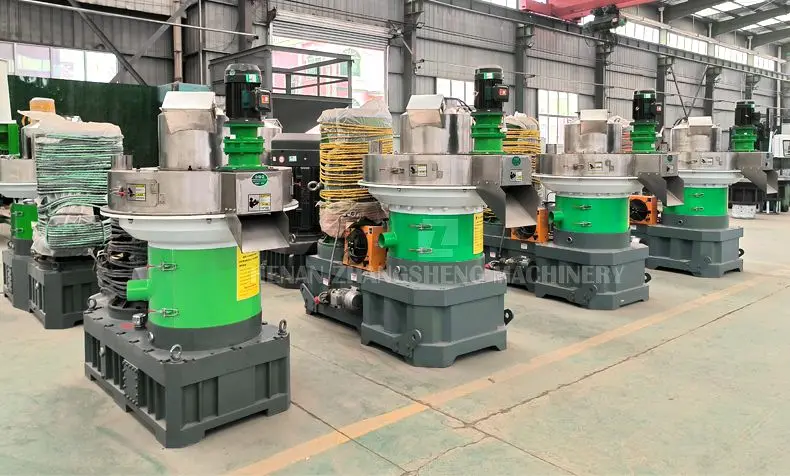

Pellet Mill
The pellet mill makes dry sawdust into pellets, and the output of a single machine can reach 3t/h.

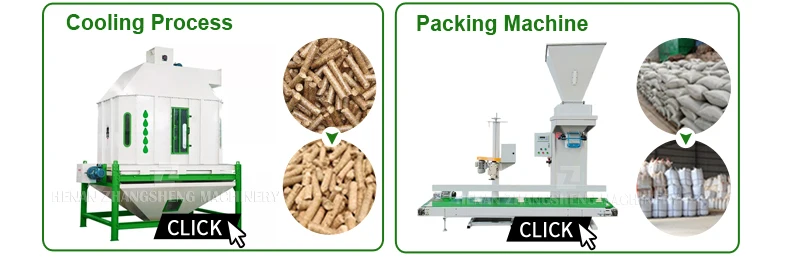

Cooler
The cooling system cools the pellets from 70-90 ℃ to room temperature, and the hardness of the pellets will become stronger.
Packing Machine
Pack the qualified pellets from 10kg, 20kg or 1 ton into a plastic bag, and then sew with a thermoplastic sealing machine to make the pellets dry and waterproof.

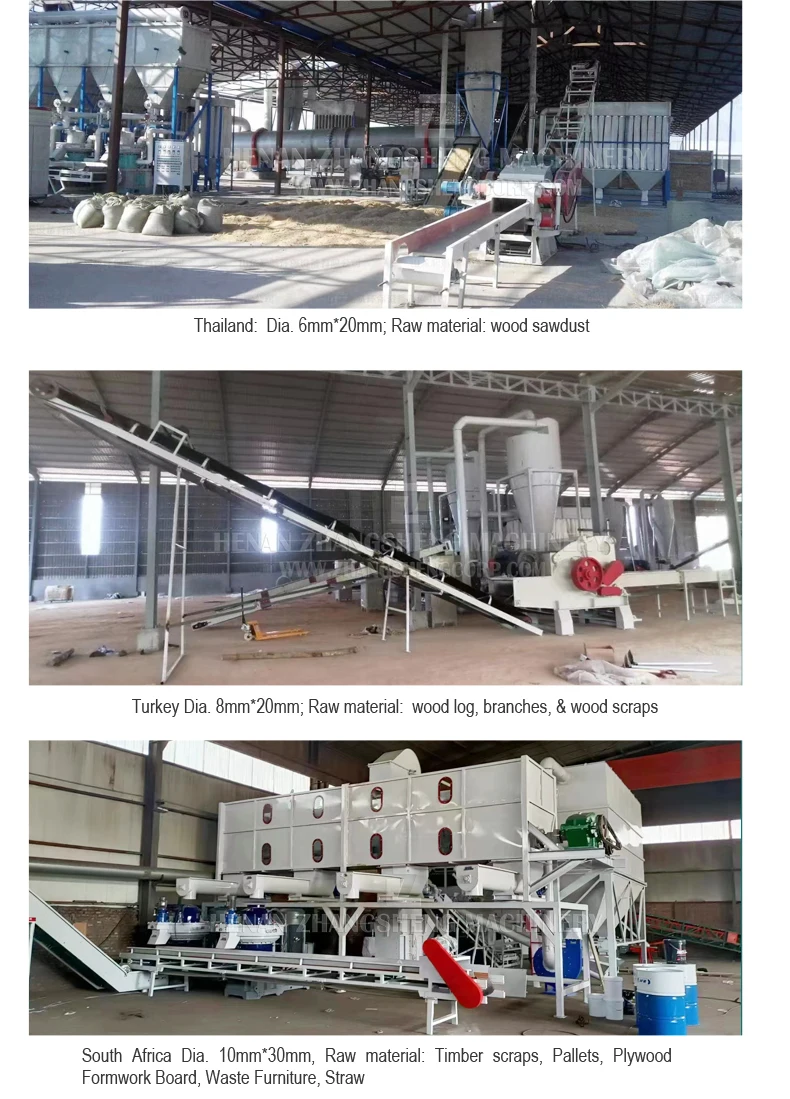

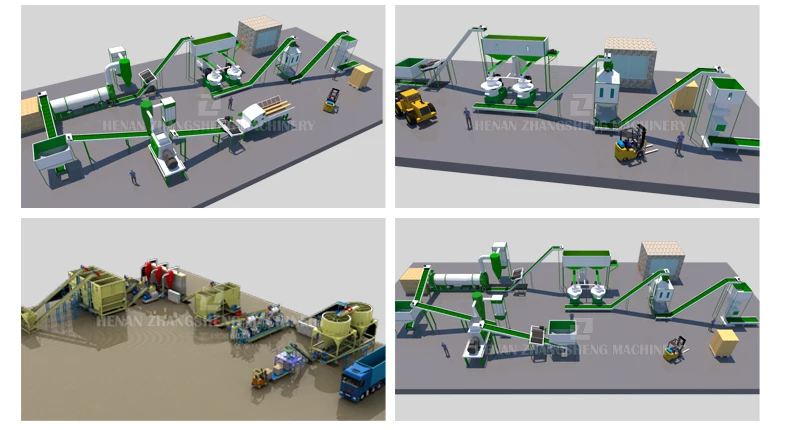

Note: This is a conventional simple biomass pellet production line, we can customize different pellet production plans for you according to different sites, raw materials, output and budget.

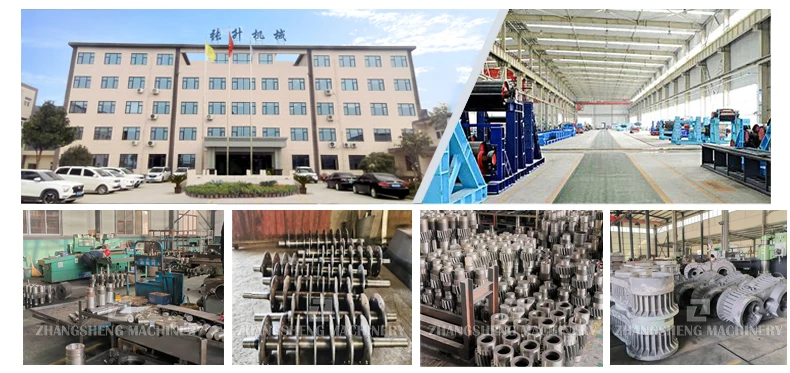

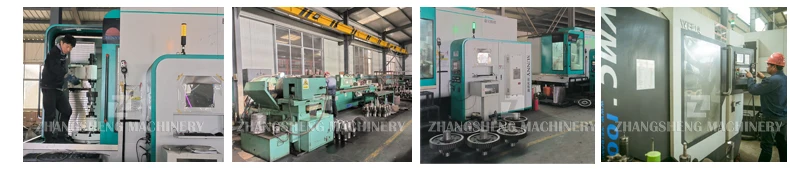

80% of the company's raw materials/accessories are produced independently, with the highest cost performance in the industry.
Our products meet 26 kinds of testing standards in 180 countries and have been the supplier of European/American distribution companies for many years.
As a professional OEM and exporter of wood pellet machine, Zhangsheng has exported to more than 45 countries. We have the complete biomass pellet line integrates all processes from raw materials to pellets, including crushing, drying, pellet making, cooling and packing, with an output of 1 to 10 tons per hour. All products have CE certification of TUV-SUD and TUV-Rheinland. The total number of products exported to Europe and North America each year is more than 1000 units.
FAQ
1.Are you a factory or a trading company?
We have our own factory. we have over 15 years of experience in the pellet line
manufacturing. "Market our own products" reduces the cost of intermediate links. OEM available according to your raw materials and output.
2.Which raw materials can be made into biomass pellets? If any requirements?
Raw material ca be wood waste, logs, tree branch , straw, stalk, bamboo, etc including fiber.
But the material for directly making wood pellets is sawdust with a diameter of no more than 8mm and moisture content of 12%-20%.so if your material is not Sawdust and moisture is more than 20%, you need other machines, such as wood crusher,wood hammer mill and dryer etc
3.I know very little about pellet production line, how to choose the most suitable machine?
Do not worry. We have helped a lot of beginners. Just tell us your raw material, your capacity (t/h) and the size of the final
pellet product, we will choose the machine for you according to your specific situation.
4.Our workers don't know how to operate the pellet mill, what should I do?
Our engineers will guide the field workers how to install the machine and arrange the workshop layout. Our engineers will then test run the live production line and train your workers how to operate it.
5. What payment term do you accept?
We support various payment methods, we can accept 20%-30% as a deposit. Customer pay the balance after the end of production and inspection. We have more than 1000 square meters of spot stock workshop. It takes 5-10 days for ready-made equipment to be shipped, and 20-30 days for customized equipment. We will do our best to deliver as soon as possible.
6.Where is the market for the product and where is the market advantage?
Our market covers the entire Middle East and European and American countries, and exports to more than 34 countries. In 2019, domestic sales exceeded RMB 23 million. The export value reached 12 million U.S. dollars. And the perfect TUV-CE certificate and reliable pre-sales and after-sales service are what we have been working hard to do.
manufacturing. "Market our own products" reduces the cost of intermediate links. OEM available according to your raw materials and output.
2.Which raw materials can be made into biomass pellets? If any requirements?
Raw material ca be wood waste, logs, tree branch , straw, stalk, bamboo, etc including fiber.
But the material for directly making wood pellets is sawdust with a diameter of no more than 8mm and moisture content of 12%-20%.so if your material is not Sawdust and moisture is more than 20%, you need other machines, such as wood crusher,wood hammer mill and dryer etc
3.I know very little about pellet production line, how to choose the most suitable machine?
Do not worry. We have helped a lot of beginners. Just tell us your raw material, your capacity (t/h) and the size of the final
pellet product, we will choose the machine for you according to your specific situation.
4.Our workers don't know how to operate the pellet mill, what should I do?
Our engineers will guide the field workers how to install the machine and arrange the workshop layout. Our engineers will then test run the live production line and train your workers how to operate it.
5. What payment term do you accept?
We support various payment methods, we can accept 20%-30% as a deposit. Customer pay the balance after the end of production and inspection. We have more than 1000 square meters of spot stock workshop. It takes 5-10 days for ready-made equipment to be shipped, and 20-30 days for customized equipment. We will do our best to deliver as soon as possible.
6.Where is the market for the product and where is the market advantage?
Our market covers the entire Middle East and European and American countries, and exports to more than 34 countries. In 2019, domestic sales exceeded RMB 23 million. The export value reached 12 million U.S. dollars. And the perfect TUV-CE certificate and reliable pre-sales and after-sales service are what we have been working hard to do.
