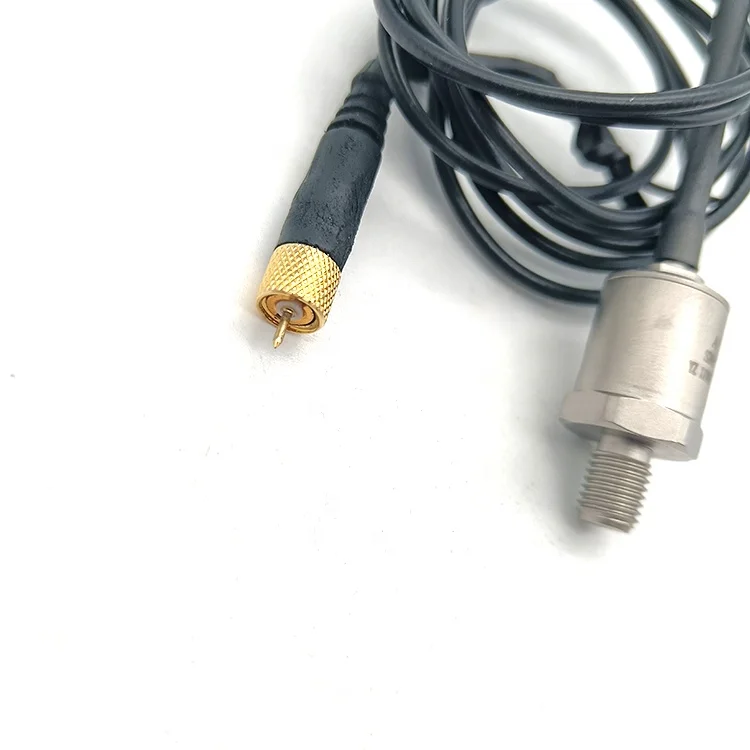

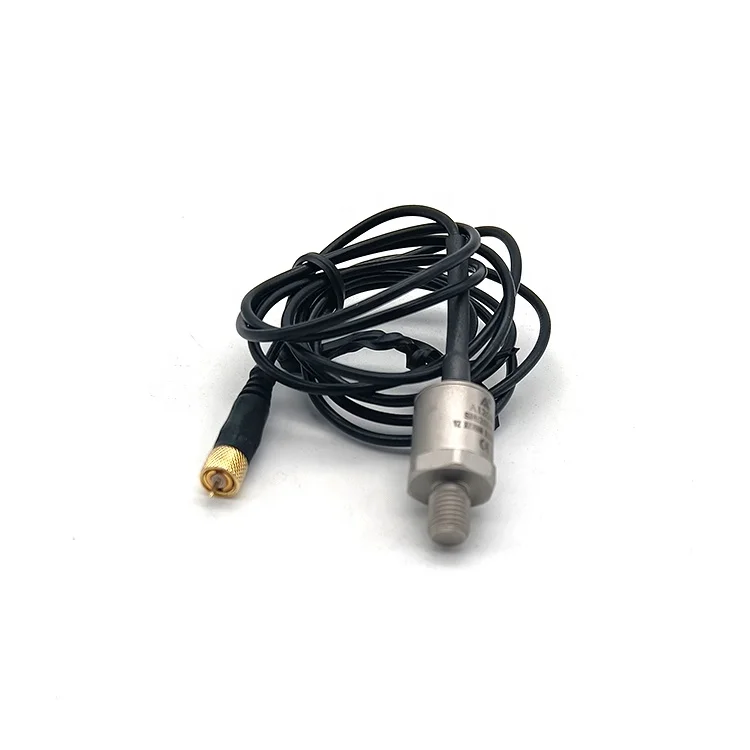

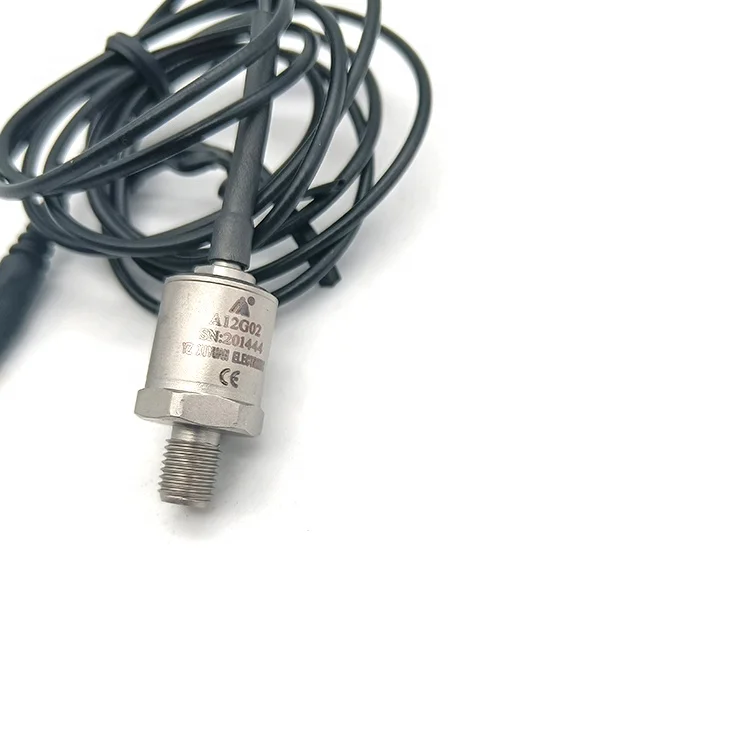

A12G02 PE 1 10,000Hz Accelerometer Displacement sensor Vibration Impact Piezoelectric Sensor Acceleration Sensor
- Category: >>>
- Supplier: Yangzhou Xiyuan Electronic Technology Co. Ltd.
Share on (1600536155244):
Product Overview
Description
Product Description
A12G02 PE 1-10,000Hz Accelerometer Displacement sensor Vibration Impact Piezoelectric Sensor Acceleration Sensor
Characteristic:
The series of industrial acceleration sensors are stainless steel shell, laser welding sealing, shell insulation, waterproof, dust-proof, oil-proof design, suitable for industrial sites in a variety of.
It is suitable for long-term reliable and stable work in various harsh environments in industrial sites, and is widely used in fan condition monitoring, operation and maintenance of industrial sites, process monitoring and protection.
Advantages: built-in IEPE circuit, isolated floating, two-core low resistance voltage or 4-20mA output, strong anti-interference.
It is suitable for long-term reliable and stable work in various harsh environments in industrial sites, and is widely used in fan condition monitoring, operation and maintenance of industrial sites, process monitoring and protection.
Advantages: built-in IEPE circuit, isolated floating, two-core low resistance voltage or 4-20mA output, strong anti-interference.
Product

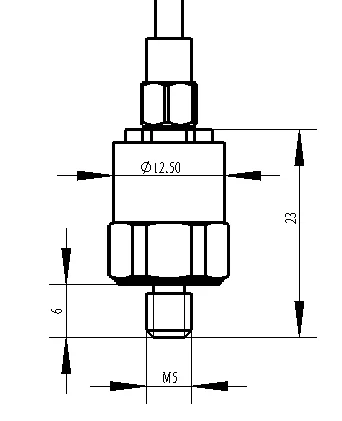

Size
Temperature Curve
Frequency Response Curve
Characterization | Unit | A12G01 | A12G02 |
Measurement Range | g | ±10000 | ±20000 |
Sensitivity | pC/g | 1 | 1 |
Amplitude Linearity | % | ±1 | ±1 |
Frequency response (±1dB） | Hz | 1-1,0000 | 1-1,0000 |
Resonant Frequency | KHz | 40 | 40 |
Temperature Range | ℃ | -40~+70 | 40~+70 |
Structure and piezo matenial | Shear/PZT-5 | Shear/PZT-5 | |
Installation of insulation to ground | Ω | ≥109 | ≥109 |
Outline dimension | mm | φ13*23 | φ13*23 |
Housing material | High strength stainless steel | High strength stainless steel | |
Electrical connector | Global line/M5 | Global line/M5 | |
Mounting method | M5 | M5 | |
Weight | g | 10 | 10 |
Cable | Integral low noise shielded cable 1 meter | Integral low noise shielded cable 1 meter |

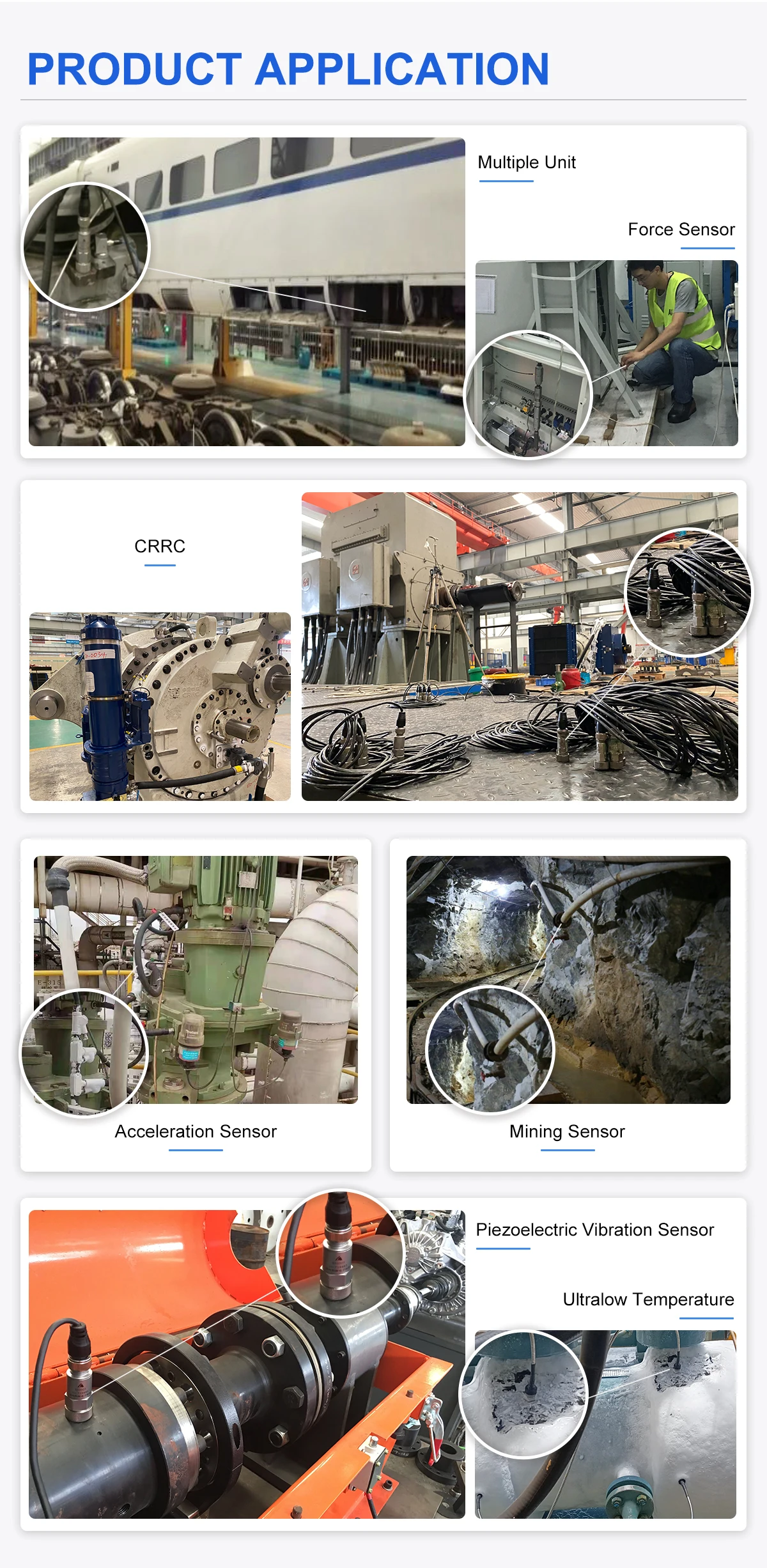

Product Application
