Wool Textile Machinery Alpaca Fiber Sheep Wool Carding / Cashmere De hairing Machine
- Category: >>>
- Supplier: Qingdao Yuanquan Machinery Co. Ltd.
Share on (1600536155294):
Product Overview
Description
Product Description
Sheep Wool Spinning Cashmere Fiber Carding / Dehairing Machine With Factory Price
1. This kind of carding/dehairing machine with fully closed covering is a Yuanquan exclusive patent.
2. Perfect elimination of coarse hair percentage of residual coarse hair after treatment is not higher than 0.05-0.1%, as per international quality standards
3. High yield up to 98% of the fine fiber content no damage to or shortening of fibers
Product Application

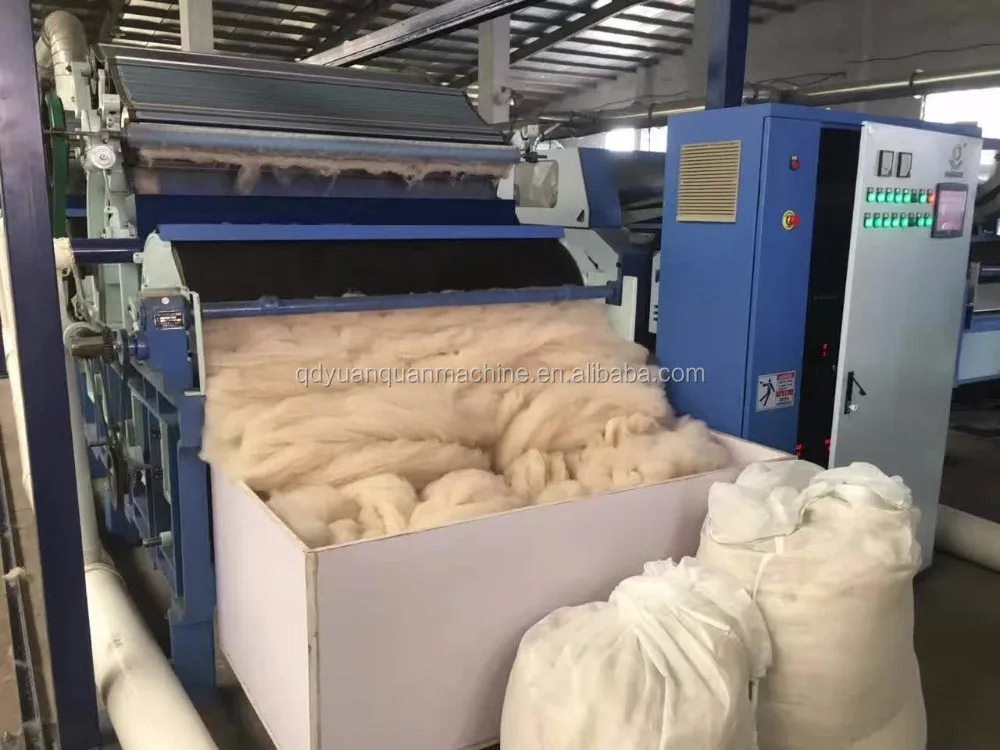

The YQ-A186 Dehairing/Carding Machine is used for carding cashmere,sheep wool,camel hair,yak hair,Llama and Alpaca wool and other fibers,through opening and carding,it can remove the dirt,dust and peel.And finally to the standard dehaired wool.

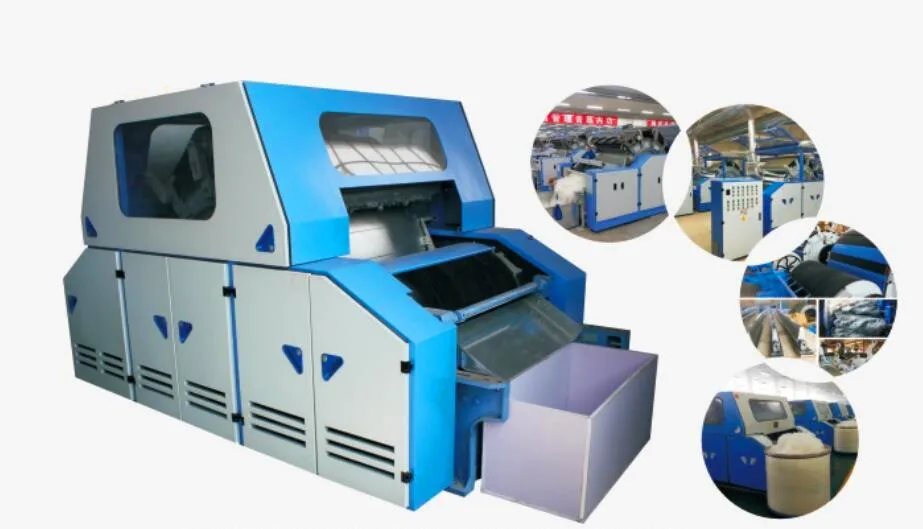

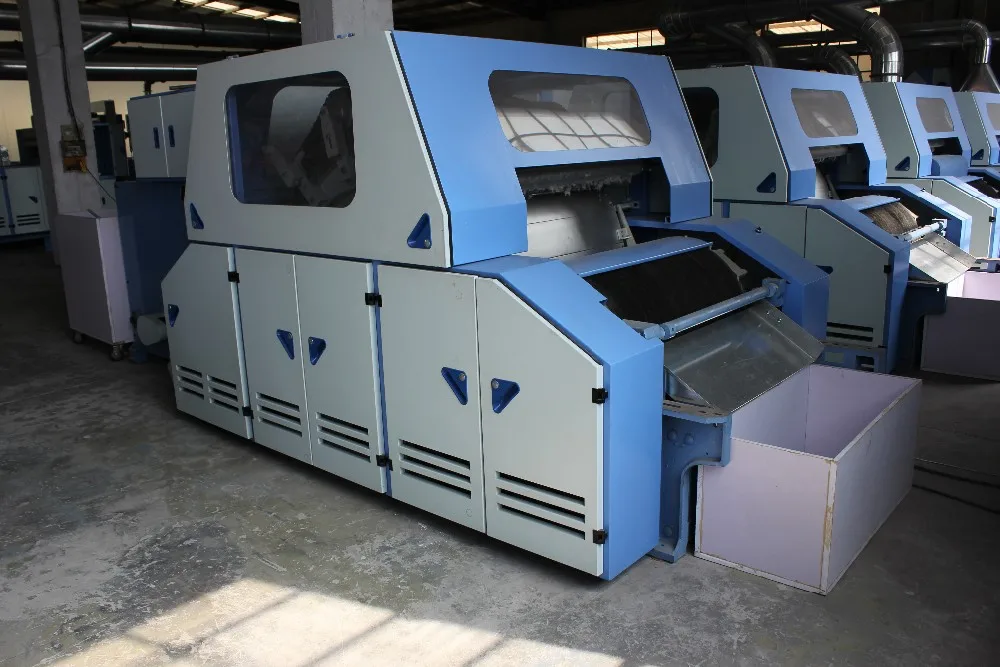

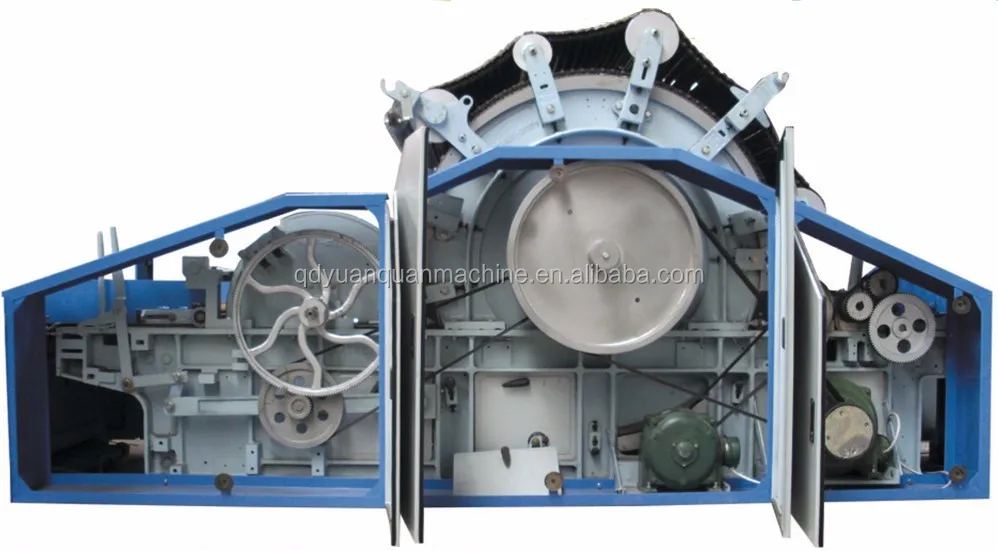

Details and Main Parts
1. With fully enclosed housing,improve the workhouse environment apparently,improve the quality of the dehaired.
2. Sides protection by sliding doors provided with wide windows and safety devices in compliance with the European regulations
1. All the Cylinder,licker-in,doffer use the better material and become thicker,increase the equipment life and stable.
2.The machine frame thickening 30%,make the machine more stable,the airflow smooth.
The feeding board using thickening ball magnesium,increase the stable,working board 42 mm,so the fiber damage reduced to improve the removing rate and decrease the number of carding times.

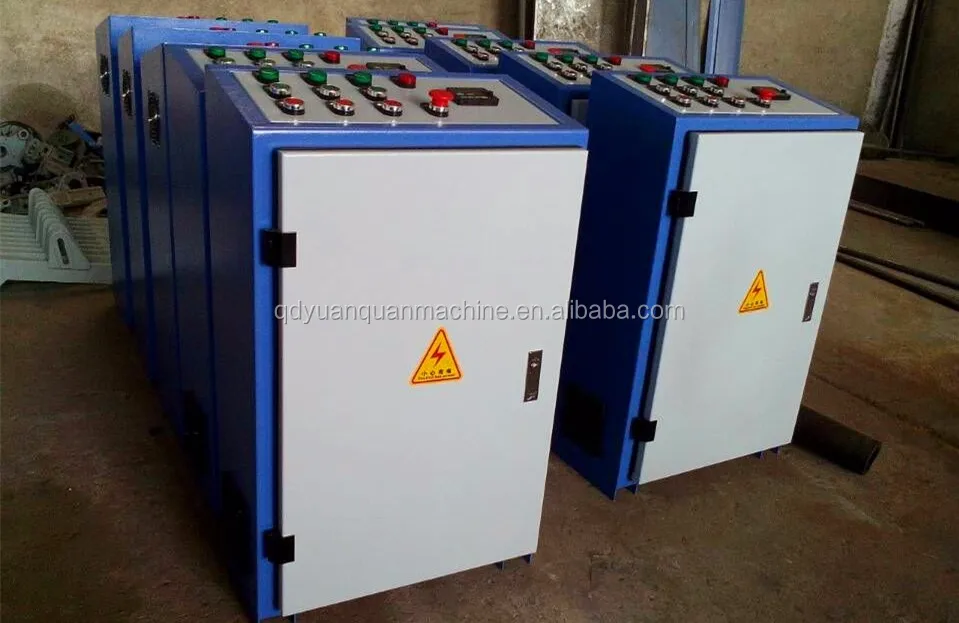

Control Equipment
The control system adopts the PLC programmable controller and HMI,it can automatic measure the speed,frequency conversion,control the interlock and automatic control and so on.In this way,it can achieve the crafts parameters detect and adjust online,to improve the whole intelligent machine control level.
Certification
Packing & Delivery

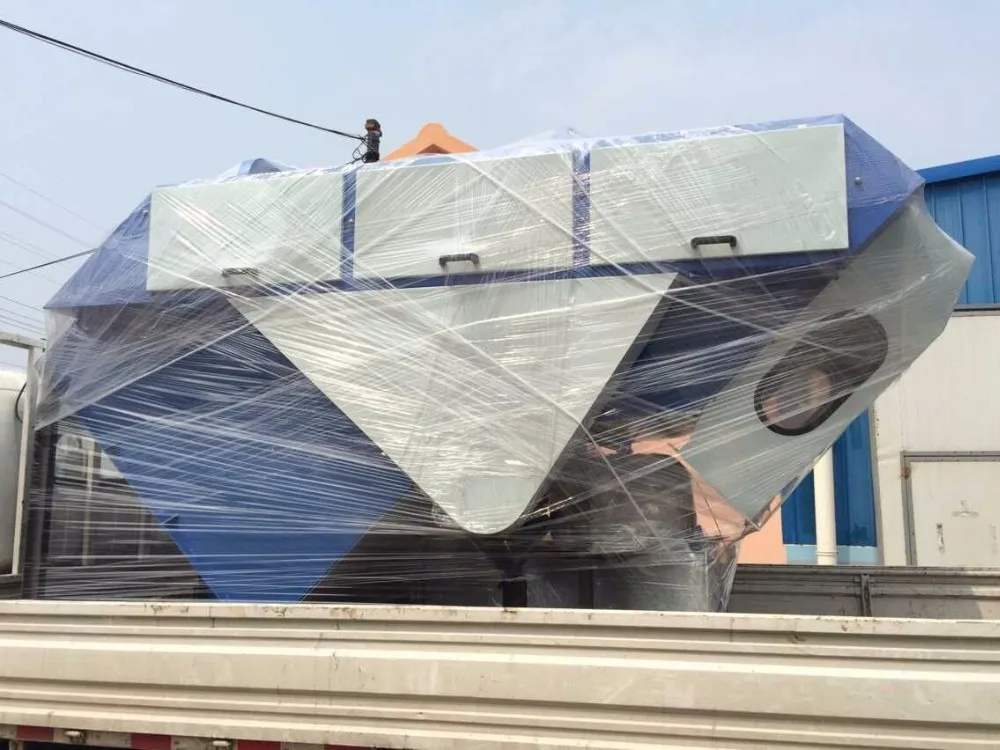

Packing
1.Packaged in wooden case or iron box.
2.The packing is firm enough to fit all kinds of transportation.
Delivery
1.Port of Shipment:Qingdao Port
2.Shipment time:Within 7-15 days after payment(It depends on the quantity and model of your order )
Customers

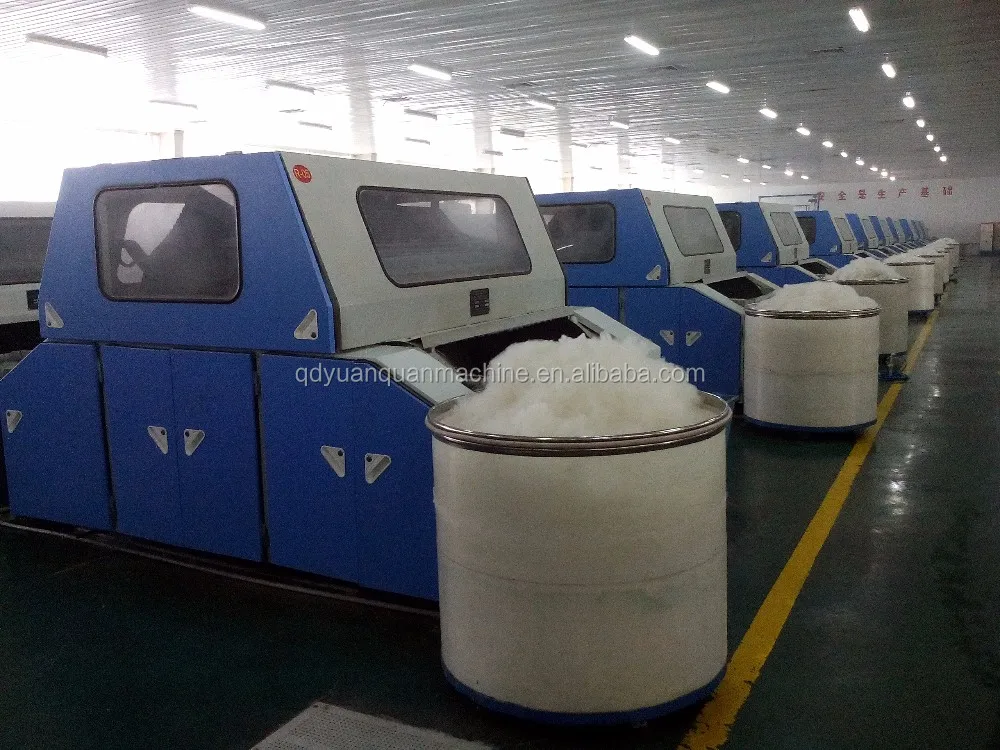

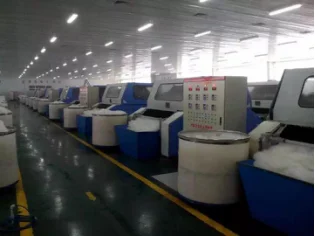

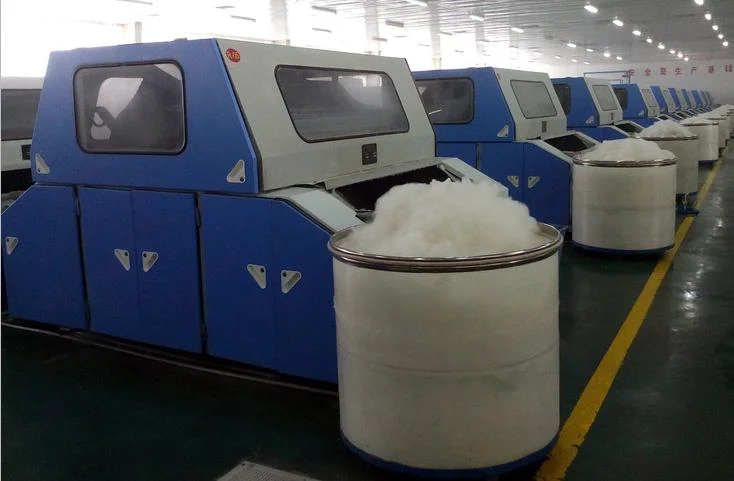

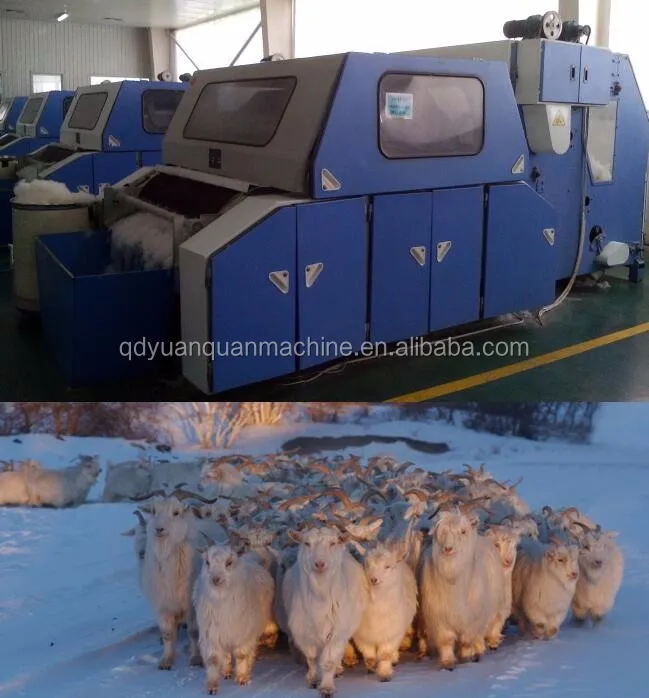

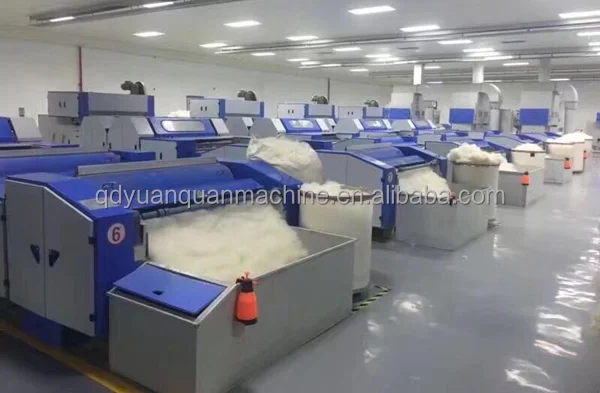

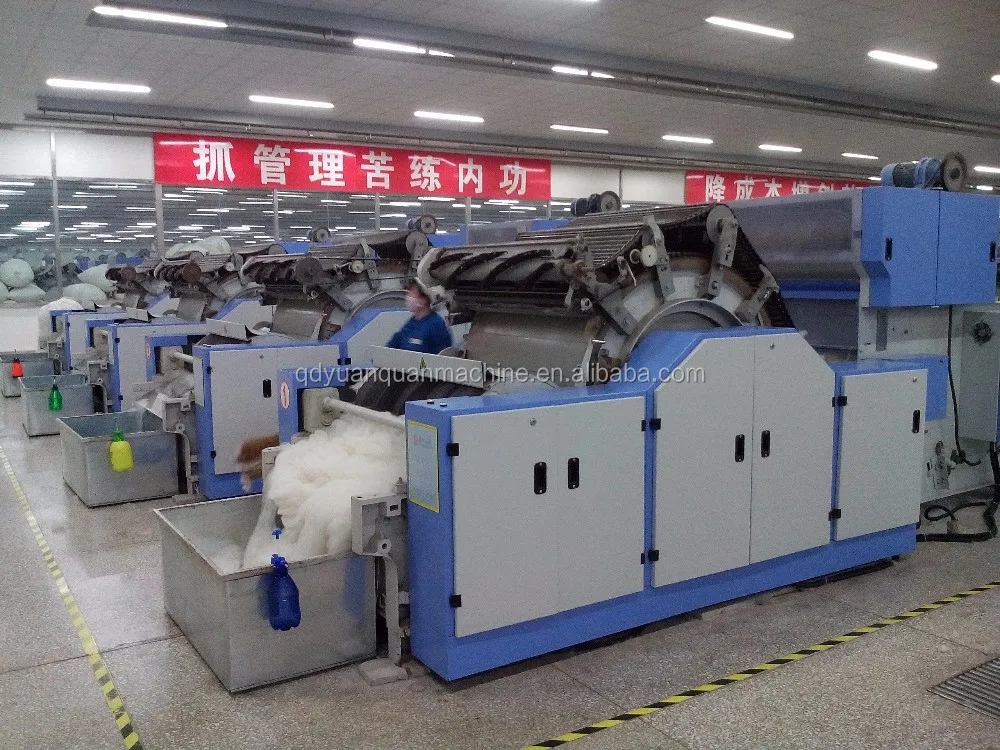

Our Machines in Customers' Factories
Main Features
Model： | YQ-A186 | YQ-FN150 | |||
Working Width： | 1020mm | 1500mm | |||
Dimensions(L*W*H) | Main Engine | 3300*1800*1800mm | 3300*2450*1800mm | ||
Weight: | About 4.1 Tons | About 5.8 Tons | |||
Dragging Power: | Main Engine | 2.8KW | 3.0KW | ||
Machine Type: | Right Hand | Right Hand | |||
Main Parts | Licker working Speed | 500-600r/min | |||
Cylinder Working Speed | 180-210r/min | ||||
Doffer Working Speed | 10-12r/min | ||||
The Chopper Frequency | 1200/min | ||||
Fiber Loss | ＜ 2% | ||||
Output | 4-8 kg/H | 5-10kg/H | |||
Our Company
Contact Us
As a result of in-depth knowledge of fibers and long experience in carding technology of raw wool, the dehairing machine is designed to ennoble different kind of raw fibers,such as wool,yak wool, camel hair, alpaca hair and other fibers.The dehairing treatment gives the natural beauty back to the fiber and elevates its inner value
