FTTH Anatel Cabo Fibra Optica GYFFY asu80 asu120 6fo 12fo 4f 12f 4 6 8 hilos 16 fo 12 24 core fiber optic asu drop cable
- Category: >>>
- Supplier: Hunan Feibo Guangtong Communication Equipment Co. Ltd.
Share on (1600536180955):
Product Overview
Description

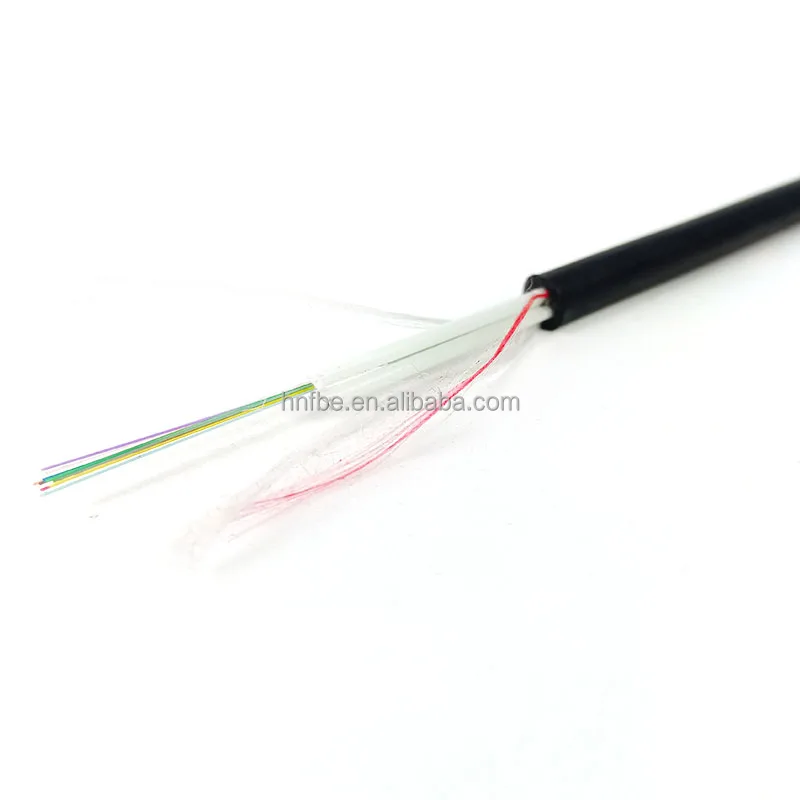

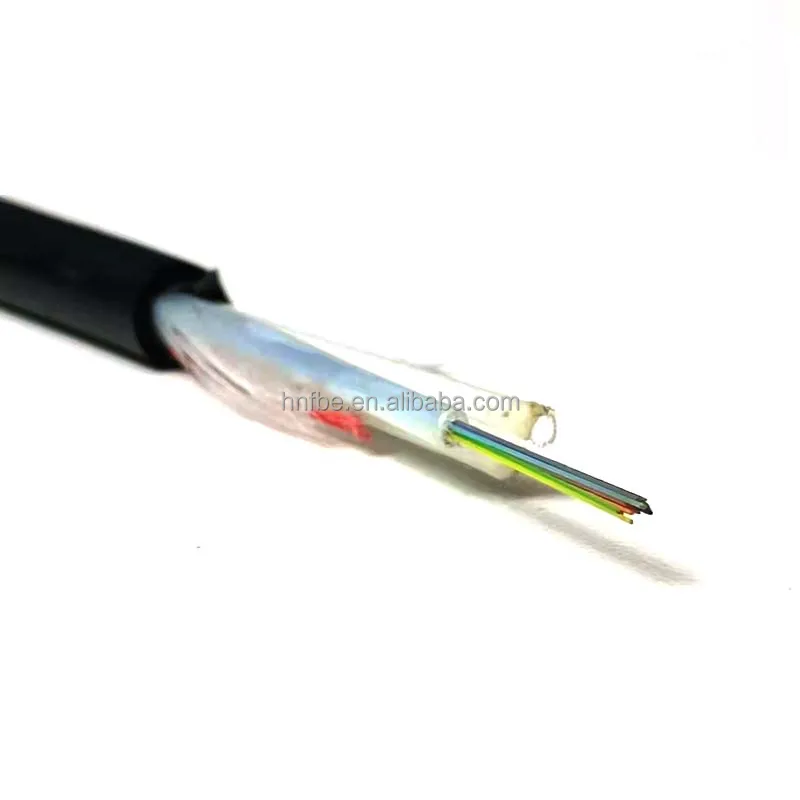

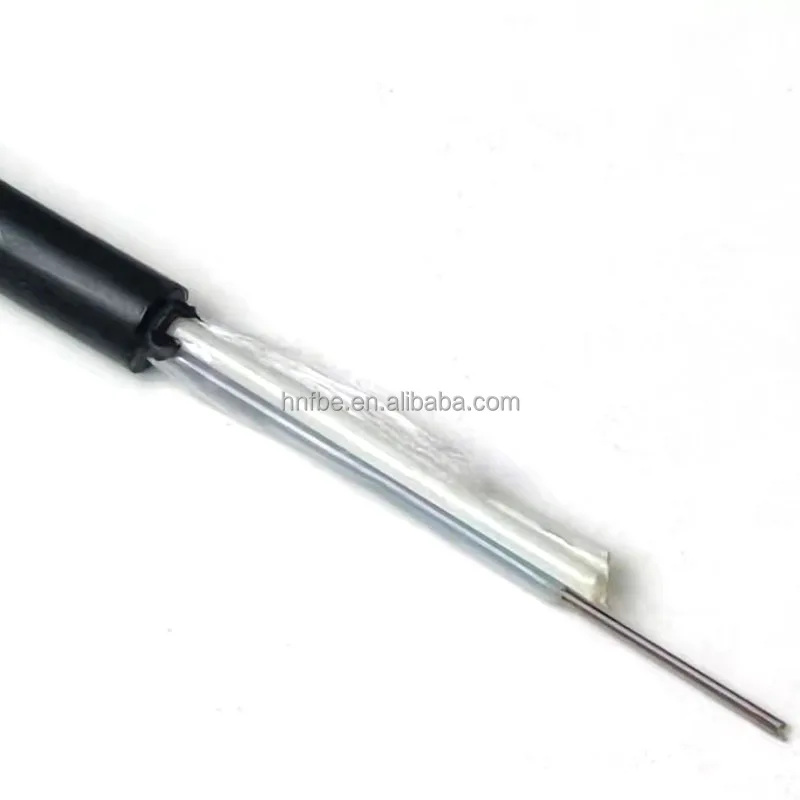

Aerial Self-Supported ASU Fiber Optic Cable

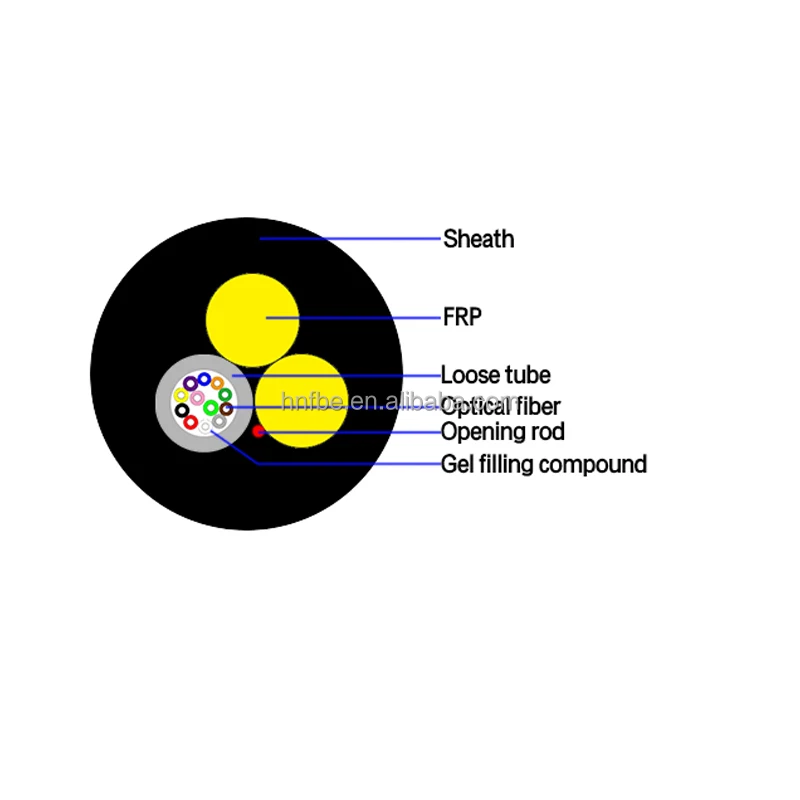

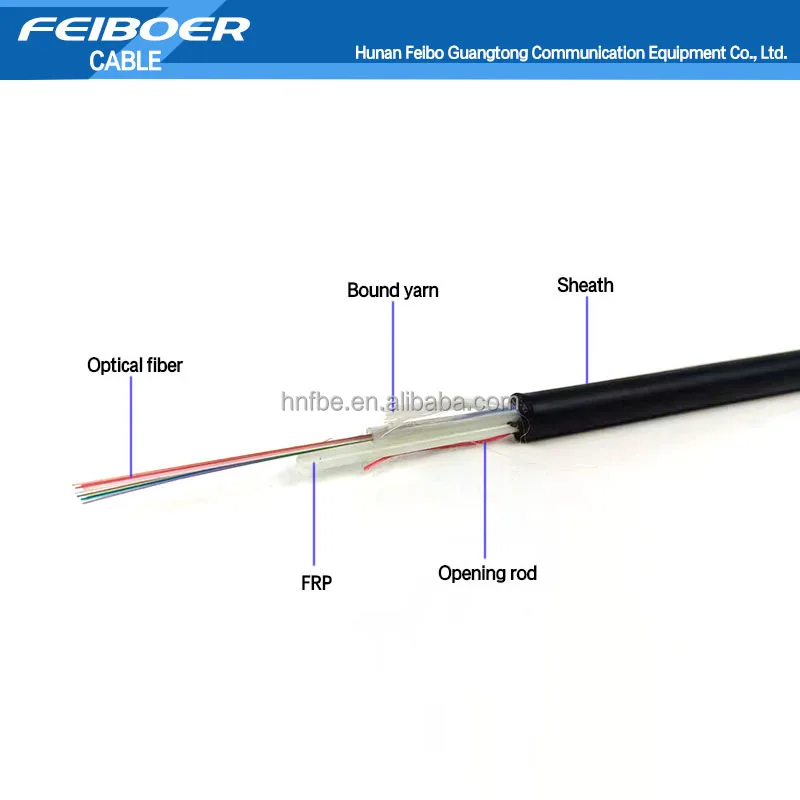

Aerial Self- Supported ASU Fiber Optic Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastic(FRP) elements are placed on the two sides. The cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for long-distance communication.
Feature:
Proven all-dielectric loose tube construction Immune to electromagnetic fields Fast, one-step installation Integrated FRP strength elements Round cable profiles minimize wind and ice loading
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation(+20°C) | @850nm | ≤3.0dB/km | ≤3.0dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0dB/km | |||
| @1310nm | ≤0.36dB/km | ≤0.4dB/km | |||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
| Bandwidth(Class A) | @850nm | ≥500MHz/km | ≥200MHz/km | ||
| @1300nm | ≥1000MHz/km | ≥600MHz/km | |||
| Numerical Aperture | 0.2±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
| Parameter | Specification | ||||
| Fibers | 12 | 24 | |||
| Span | 80 Meters | 120 Meters | 80 Meters | 120 Meters | |
| Fiber Type | G.652D | ||||
| Loose Tube | Material | PBT | |||
| Diameter | 2.0±0.06 mm | 2.5±0.06 mm | 3.0±0.1mm | ||
| Thickness | 0.32±0.03 mm | 0.35±0.03 mm | 0.50±0.05 mm | ||
| Color | White | ||||
| Strength Member | Material | Fiber Reinforced Polymer (FRP) | |||
| Diameter | 2.0±0.05 mm | 2.5±0.05 mm | 2.0±0.05 mm | 2.5±0.05 mm | |
| Outer Sheath | Material | PE | |||
| Thickness | 1.0±0.1 mm | ||||
| Rip-Cord | Material | Nylon | |||
| Color | Red | ||||
| Number | 1 | ||||
| Cable Diameter | 6.6±0.2 mm | 7.6±0.2 mm | 7.5±0.2 mm | 8.2±0.2 mm | |
| Cable Weight | 45±5.0 kg/km | 62±5.0 kg/km | 52±5.0 kg/km | 65±5.0 kg/km | |
| Allowable Tensile Strength | 1500N | 2000N | 1500N | 2000N | |
| Allowable Crush Resistance | 2200N/100mm | ||||
| Min. Bending Radius | Without Tension | 10.0 x Cable diameter | |||
| Maximum Tension | 20.0 x Cable diameter | ||||
| Temperature Range | Installation | -20 ~ +60°C (-40 ~ 140°F) | |||
| Transport / Storage | -40 ~ +70°C (-40 ~ 158°F) | ||||
| Operation | -40 ~ +70°C (-40 ~ 158°F) | ||||
Production Flow
Related Products
FAQ
1.Are you the real manufacturer?
Us. We are the real manufacturer with 18 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
Us. The general delivery time is 7-10 days after order deposit.
If order quantity is more than 100000km, please check with us.
4.Can you supply customized products and logo?
Us.Yes. We provide OEM service.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union, etc. 30% in advance and 70% before shipment.
7.Can you offer free samples?
Us. Yes,we provide free samples.
