Product Overview

Description





Product Description




Characteristic:
1. A large impact measurement.
2. Lends light weight, high stiffness, fast response, and good temperature characteristics.
3. Queue Isolation floating.

Specification:


Dynamic Properties
Range(peak)
±50,000g
Sensitivity(25℃)
0.1pC/g (160Hz)
Frequency Response（±1dB)
1-10,000Hz
Transverse Sensitivity Ratio
≤5%
Electrical Properties
Insulation resistance
>10^9Ω
Capacitance
～380PF
Polarity
+
Environment Properties
Operation Temp
-20℃～+80℃
Temperature Response
Attached
Physics Properties
Structural Style
Cutting
Shell Material
High strength stainless steel
Output Mode
Top M5/The whole line
Installation
M5
Piezoelectric Materials
Ceramic shear
Weight
～10g
Accessory

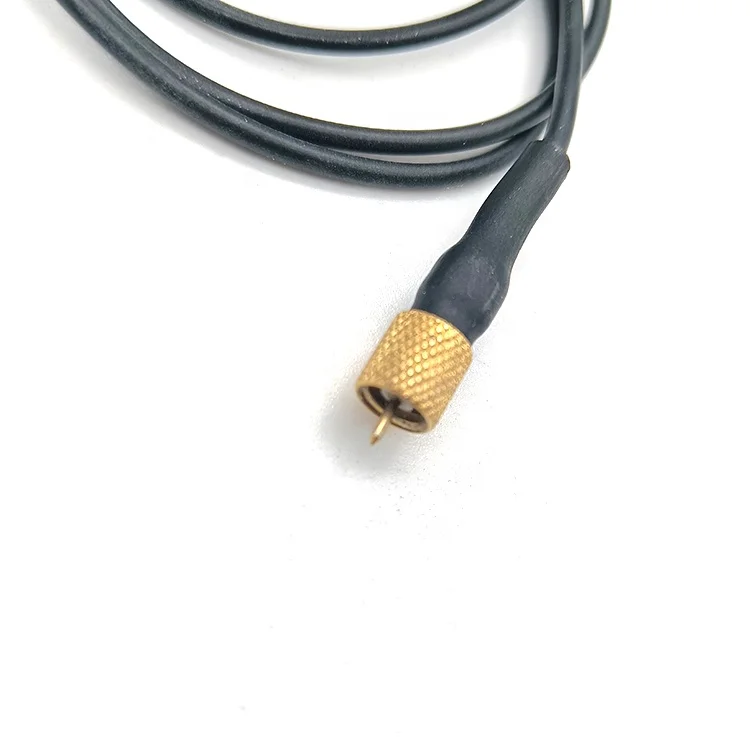

Cable
Double end M5 low noise shielded cablex2m
Install the screw
M5

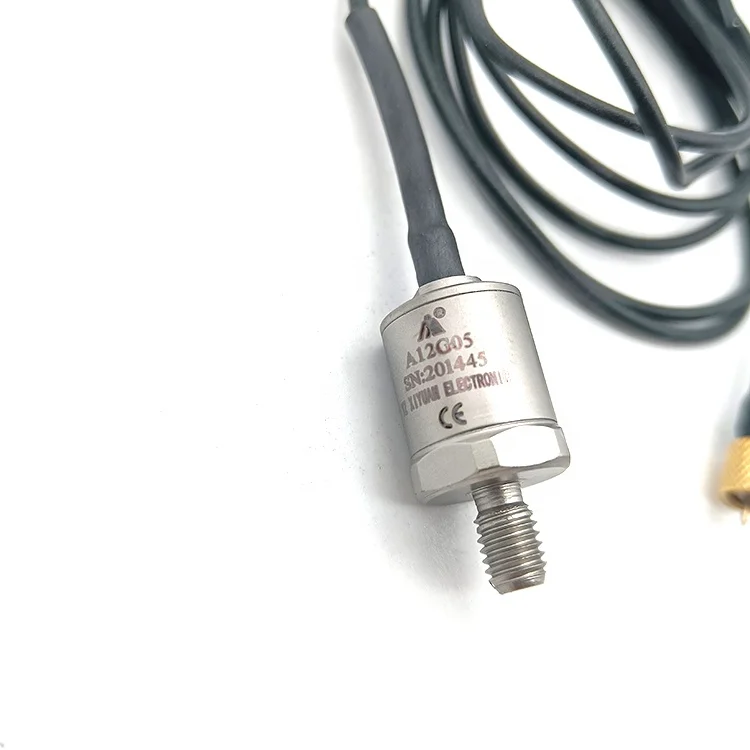

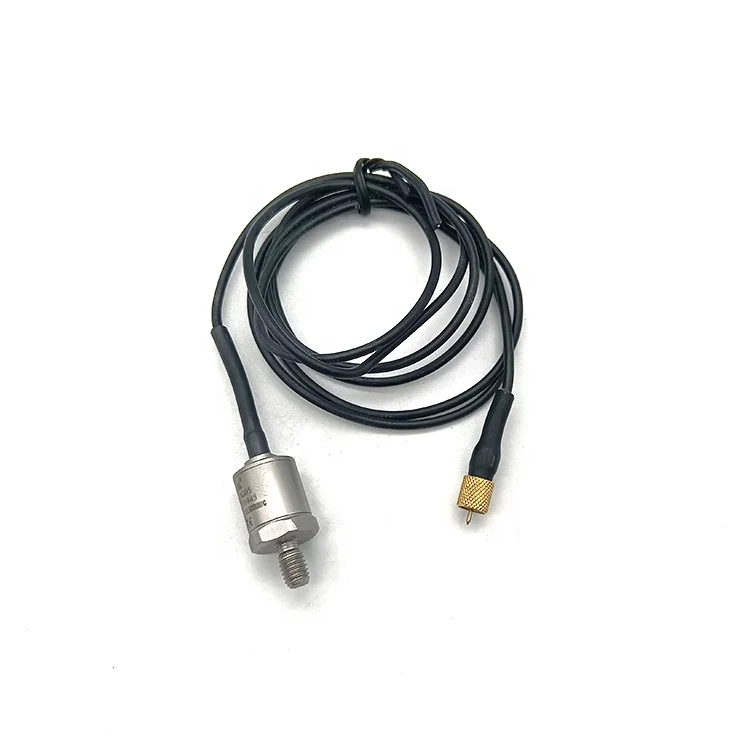

Product Display



Details:


Product

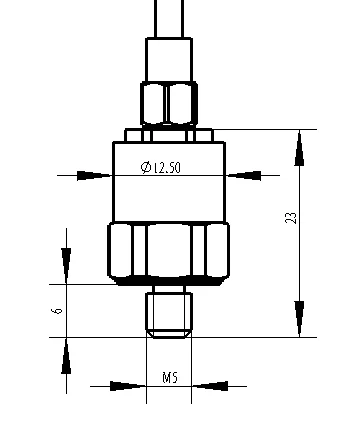

Size


Temperature Curve

Typical Frequency Response Curves
