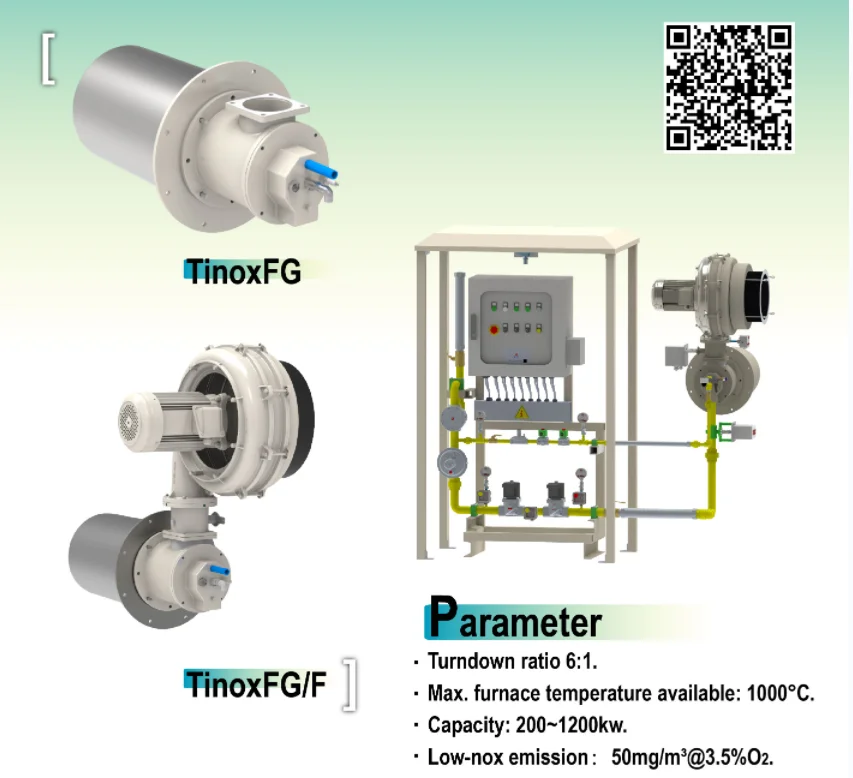

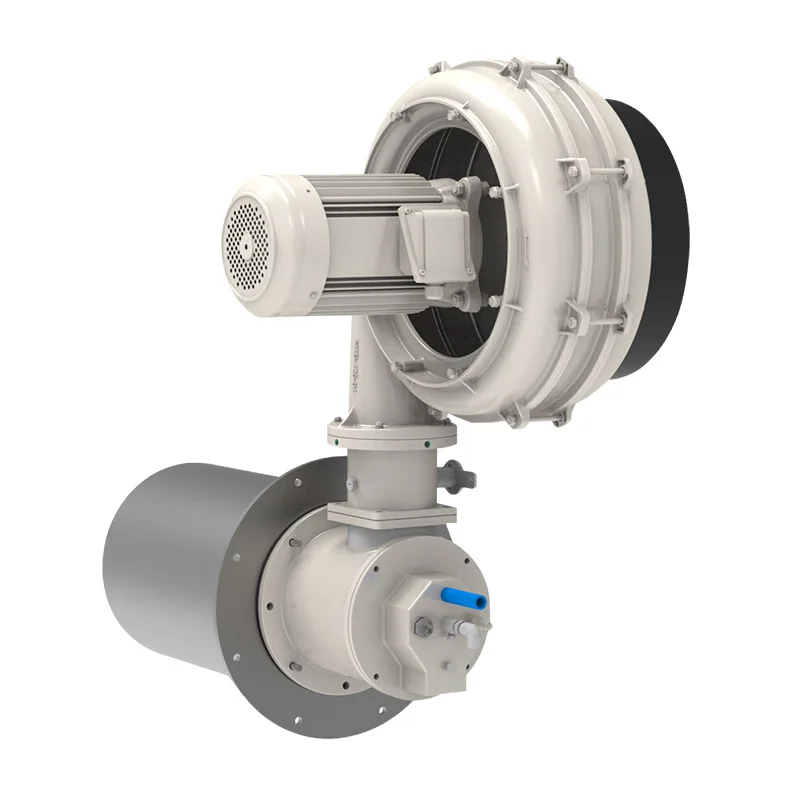

TinoxFG/F Burner
Tinoxflame/F is a low NOx emission burner designed by Rapidflame (UK) for medium and high temperature industrial applications. It
integrates combustion supporting fan and has the characteristics of complete combustion, reliability and stability, high thermal
efficiency and so on. Tinoxflame burner is widely used, such as drying furnace, RTO, thermal oxidation furnace, preheating
furnace, etc.
integrates combustion supporting fan and has the characteristics of complete combustion, reliability and stability, high thermal
efficiency and so on. Tinoxflame burner is widely used, such as drying furnace, RTO, thermal oxidation furnace, preheating
furnace, etc.
Specification
Model | TinoxFG-020S/F | TinoxFG-035S/F | TinoxFG-055S/F | TinoxFG-075S/F | TinoxFG-120S/F | |||||
Max. capacity（kW）* | 200 | 350 | 550 | 750 | 1200 | |||||
Required gas pressure（kPa） | 1.5 | 1.6 | 1.8 | 2 | 2 | |||||
Required combustion air pressure（kPa） | 3.5 | 4.5 | 4.5 | 5.5 | 6 | |||||
Flame length（mm） | 100 | 150 | 200 | 250 | 300 | |||||
Diameter of combustion chamber（mm） | ≥Ø550 | ≥Ø600 | ≥Ø650 | ≥Ø700 | ≥Ø800 | |||||
Length of combustion chamber（mm） | ≥900 | ≥1000 | ≥1100 | ≥1200 | ≥1300 | |||||
Capacity of motor（kW） | 1.5 | 1.5 | 3.7 | 7.5 | 7.5 | |||||
Weight(kg) | 78 | 108 | 145 | 198 | 115 (without fan) | |||||
Fan voltage（V） | AC380 | |||||||||
Oxygen content of combustion air ** | 21% | |||||||||
Combustion chamber pressure range（kPa） | -0.5 ~ 0.5 | |||||||||
Maximum operating temperature（℃） | 750 | |||||||||
NOx emission（mg/m3） | ≤50 | |||||||||
Data measurement conditions: natural gas, combustion air temperature 20 ℃, combustion chamber back pressure 0Pa. Note: The flame length is calculated from the outlet of the fire casing | ||||||||||
Applicable to the maximum combustion chamber temperature of 700 ℃
High convective heat efficiency
Regulation ratio 6:1
Flexible adjustment to meet a variety of temperature control needs
Excellent low fire performance
Low NOx emission (less than 50mg / M) ³@ 3.5%O2）
Applicable to natural gas and LPG
Large fluctuation range of combustion chamber back pressure;
Direct ignition with spark plug
High convective heat efficiency
Regulation ratio 6:1
Flexible adjustment to meet a variety of temperature control needs
Excellent low fire performance
Low NOx emission (less than 50mg / M) ³@ 3.5%O2）
Applicable to natural gas and LPG
Large fluctuation range of combustion chamber back pressure;
Direct ignition with spark plug
Company Profile
Shanghai DYDTEC Combustion Equipment Co., Ltd. (DYDTEC) was established in 2008.
Who we are
DYDTEC – the industrial combustion solutions company in China. www.dydtec.com/en
→ Founded in 2008
→ More than 80 engineers
→ Holds over 30 combustion patents
→ Extensive cooperation with over 20 global top brands
What we do
→ Design, production and assembly of high and low temperature industrial burners
→ Combustion control systems
→ Flame treatment systems
→ Air heater, heat exchangers
→ Combustion related control components
→ Installation, commissioning to maintenance and refurbishment.
What we have
→ Online platform www.airotation.com where you can find our product lines and pricing
What we propose
→ We are going overseas and looking forward to all kinds of extensive cooperation with
partners worldwide.
If you are interested in distributing our products, providing local debugging services, expanding your business in China Market,talk to me then. sales1@dydtec.com
Who we are
DYDTEC – the industrial combustion solutions company in China. www.dydtec.com/en
→ Founded in 2008
→ More than 80 engineers
→ Holds over 30 combustion patents
→ Extensive cooperation with over 20 global top brands
What we do
→ Design, production and assembly of high and low temperature industrial burners
→ Combustion control systems
→ Flame treatment systems
→ Air heater, heat exchangers
→ Combustion related control components
→ Installation, commissioning to maintenance and refurbishment.
What we have
→ Online platform www.airotation.com where you can find our product lines and pricing
What we propose
→ We are going overseas and looking forward to all kinds of extensive cooperation with
partners worldwide.
If you are interested in distributing our products, providing local debugging services, expanding your business in China Market,talk to me then. sales1@dydtec.com

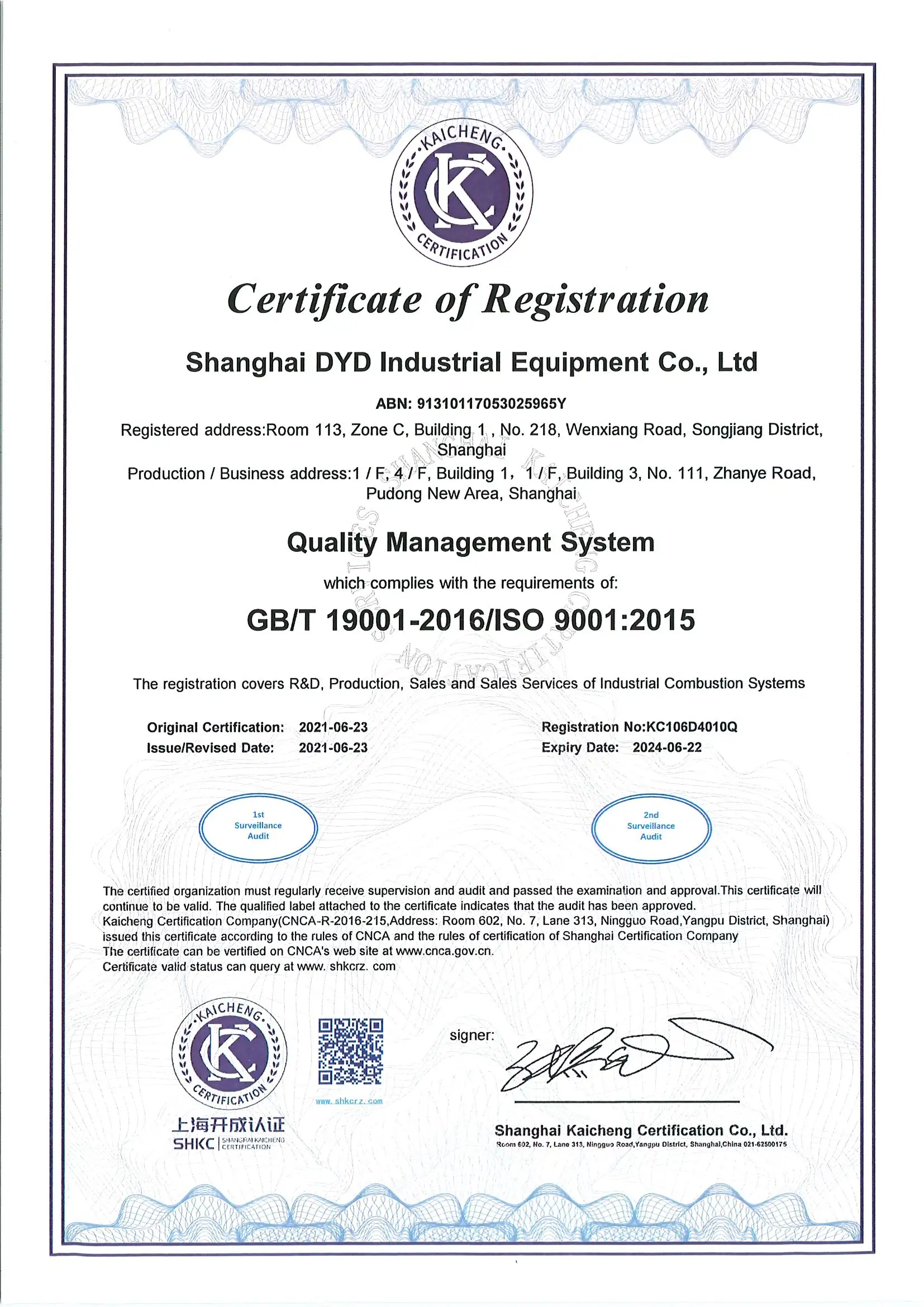

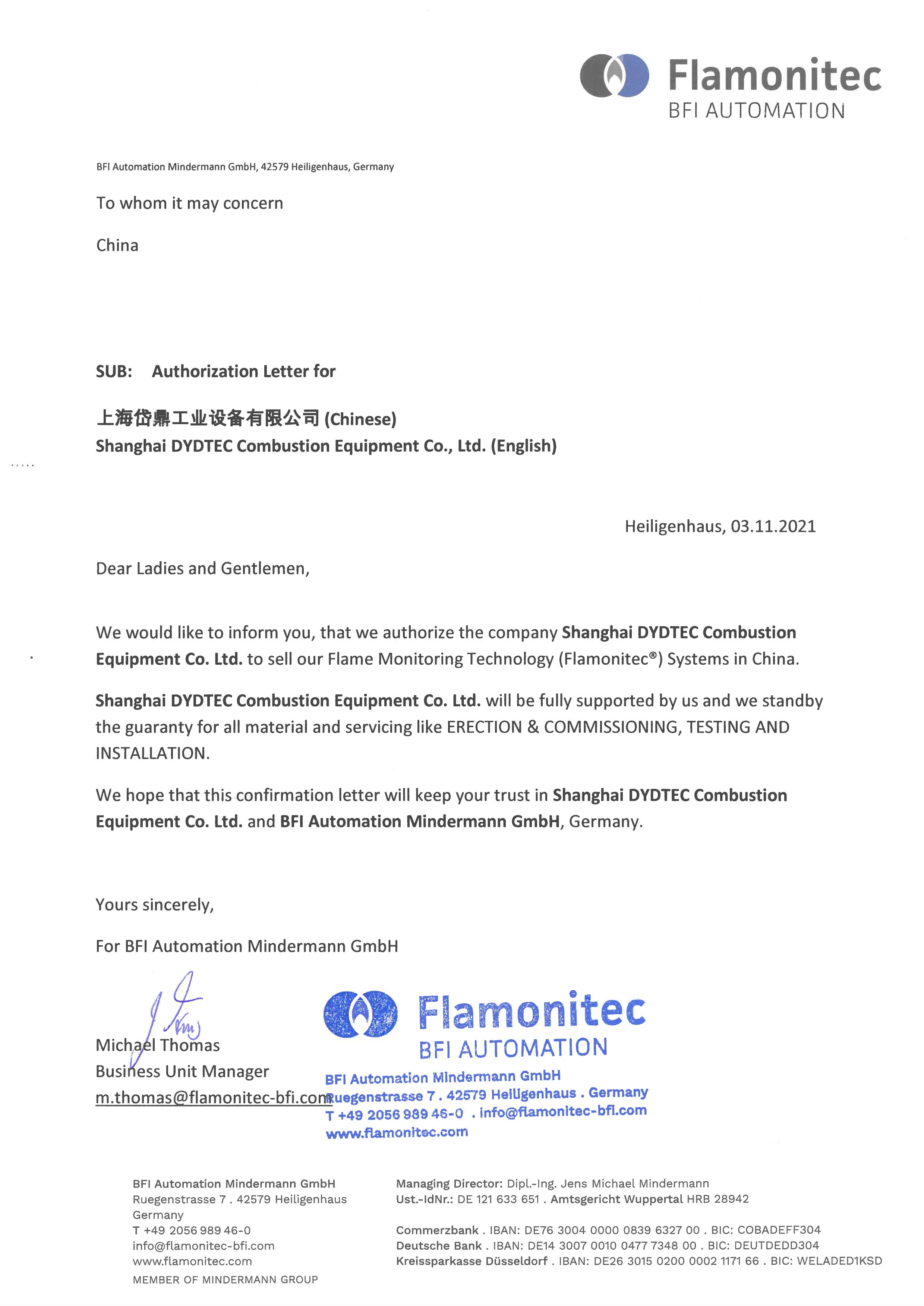

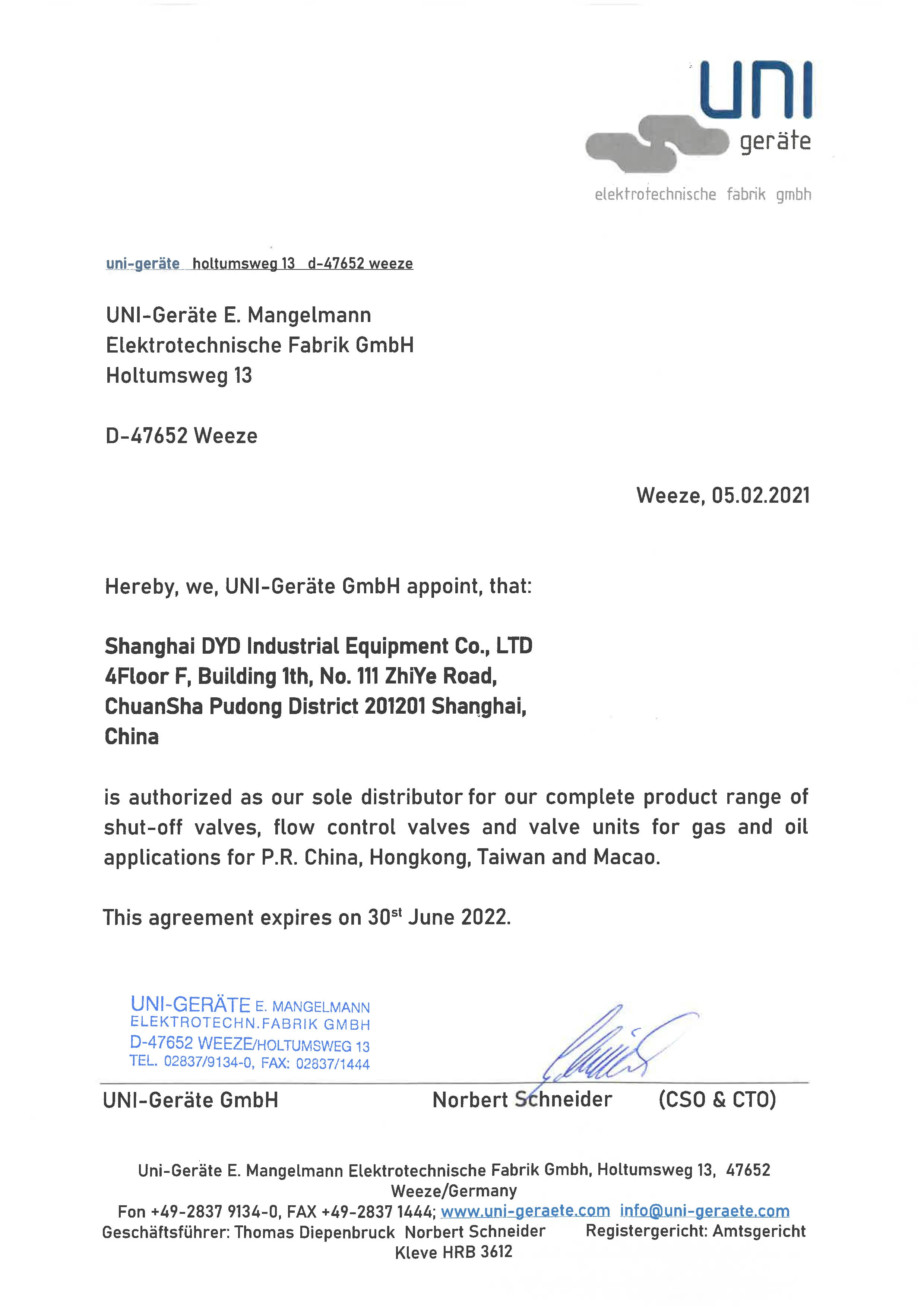

Certifications
