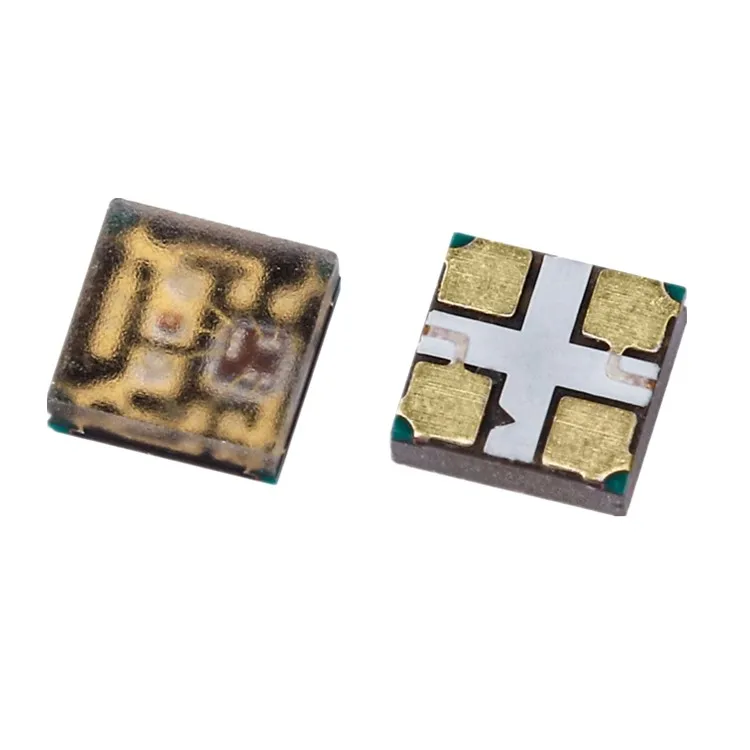

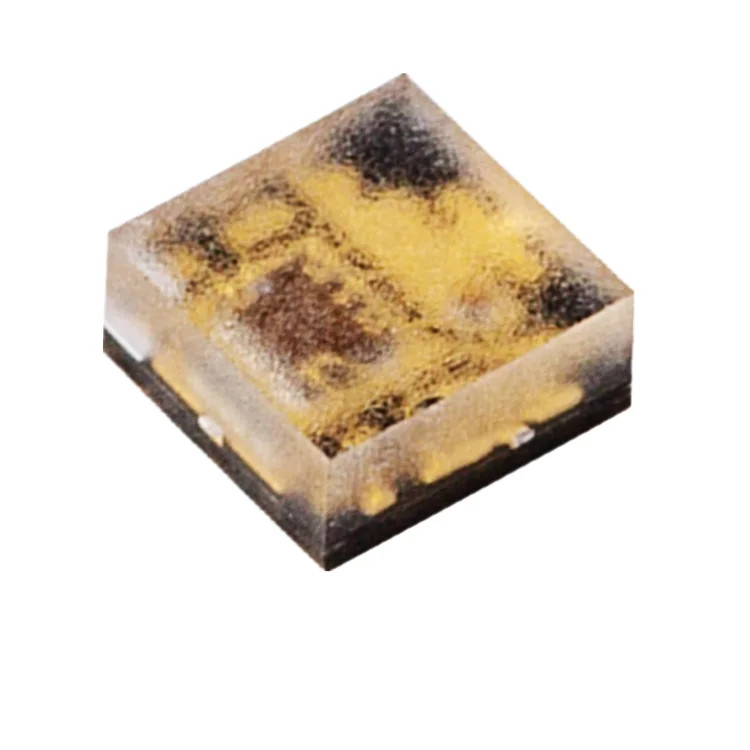

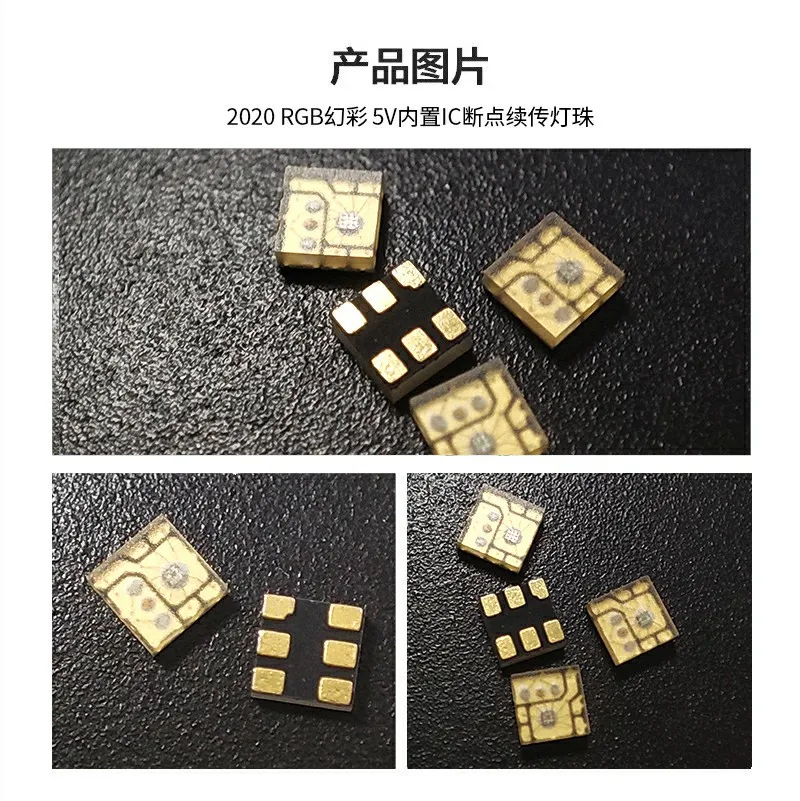

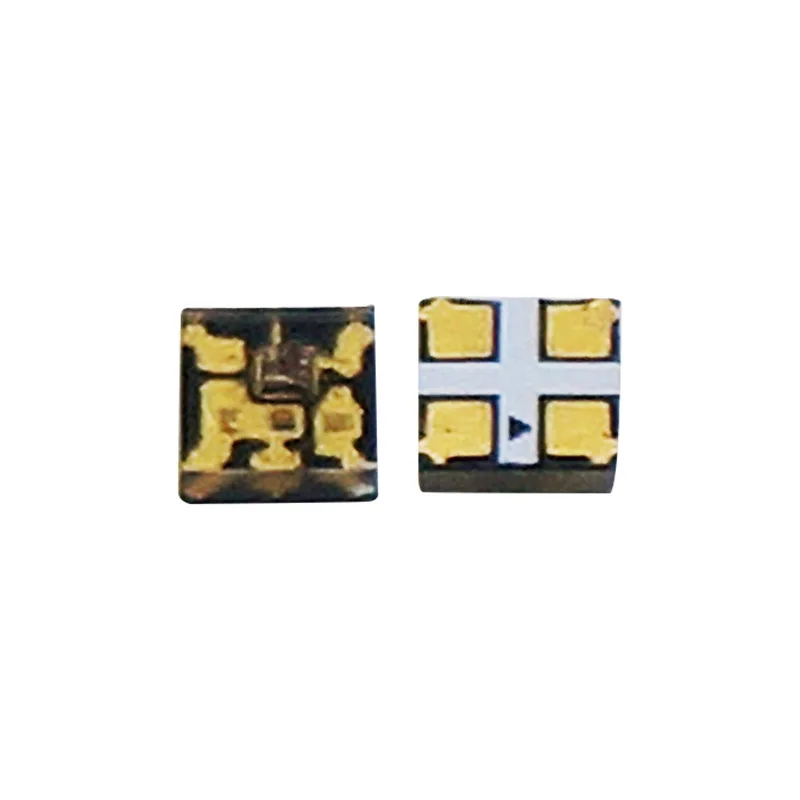

JSTRONIC APA102 SK6812 LED Chip mini 2020 SMD Addressable Digital RGB Full Color LED Diode
- Category: >>>
- Supplier: Ningbo Junsheng Electronics Co. Ltd.
Share on (1600536197247):
Product Overview
Description
Product Description

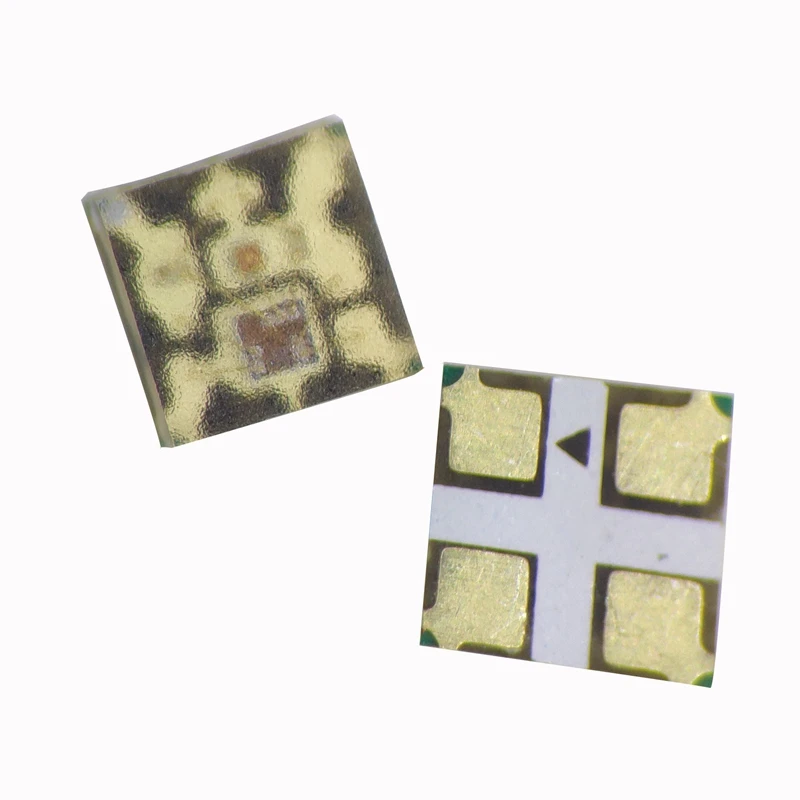

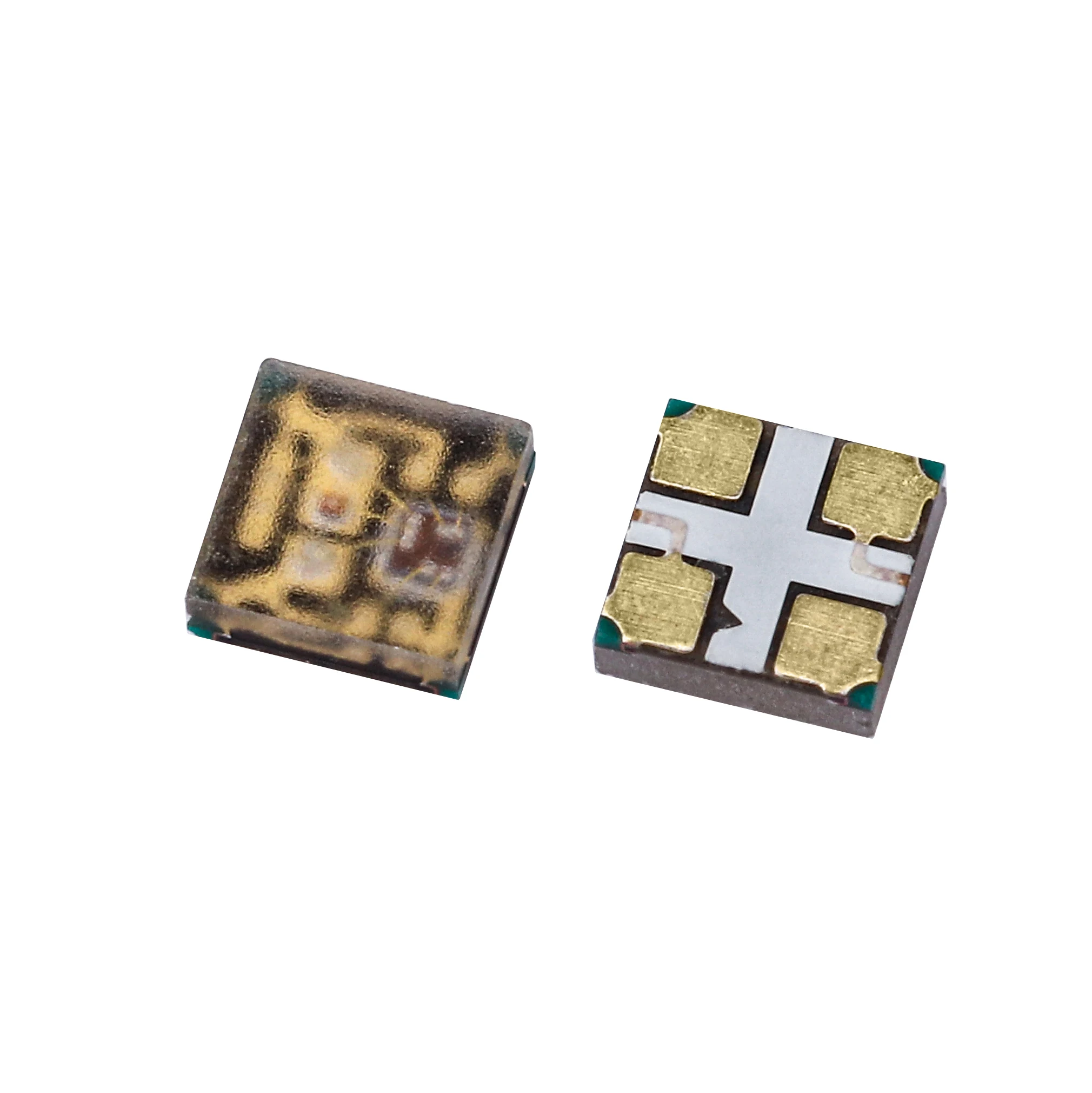

JSTRONIC APA102 SK6812 LED Chip mini 2020 SMD Addressable Digital RGB Full Color LED Diode
Specification
Emitting Color:RGB
Lens Type:Water Clear
Device Outline:2.0×2.0×0.65 (unit:mm)
RoHS compliant

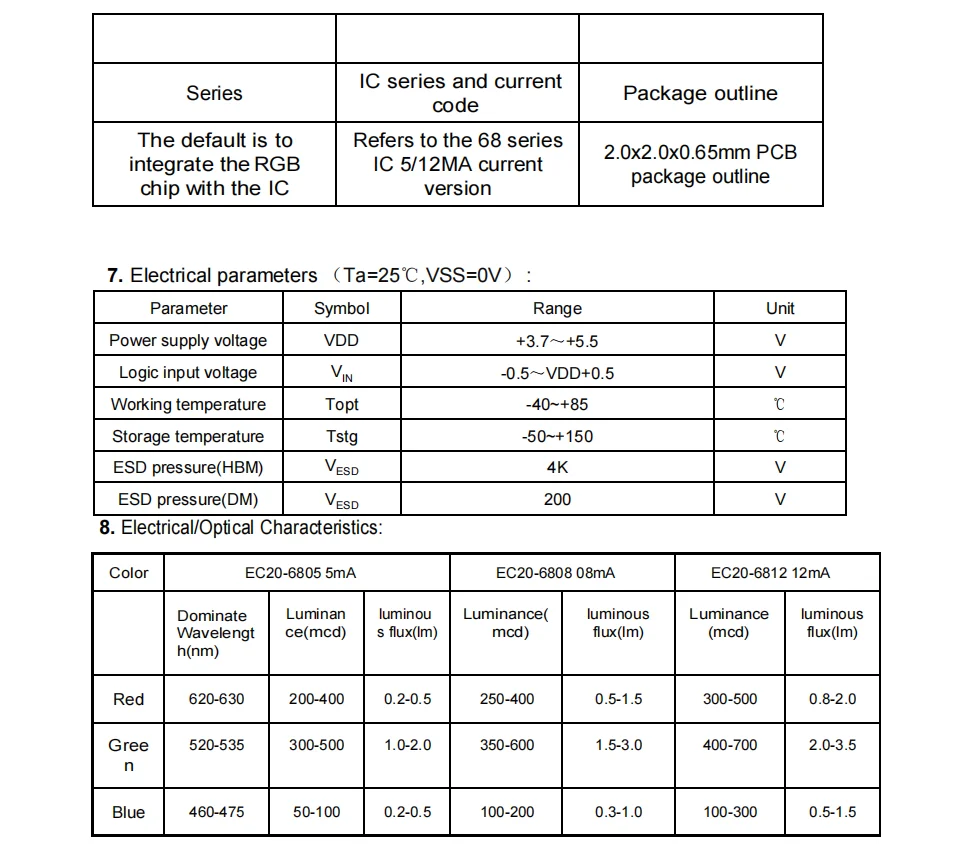

Electrical and optical characteristics(Ta = 25℃):
Lens Type:Water Clear
Device Outline:2.0×2.0×0.65 (unit:mm)
RoHS compliant
Electrical and optical characteristics(Ta = 25℃):
Part No: | JSL-4P2020RGB-SK6812 |
LED package type | 20200 SMD LED |
LED size | L 2.0*W 2.0*H 0.65 mm |
Emitting color | Addressable magic color RGB |
Brightness | Red: 300-500MCD, Green: 400-700MCD, Blue: 100-300MCD |
Working current | Red/Green/Blue/ |
Forward voltage | DC 3.7-5.5volts |
Power | 0.2 Watt. |
Wavelength | B: 460-475nm, R: 620-630nm, G: 515-530 nm |
LED surface color | white / black, two options |

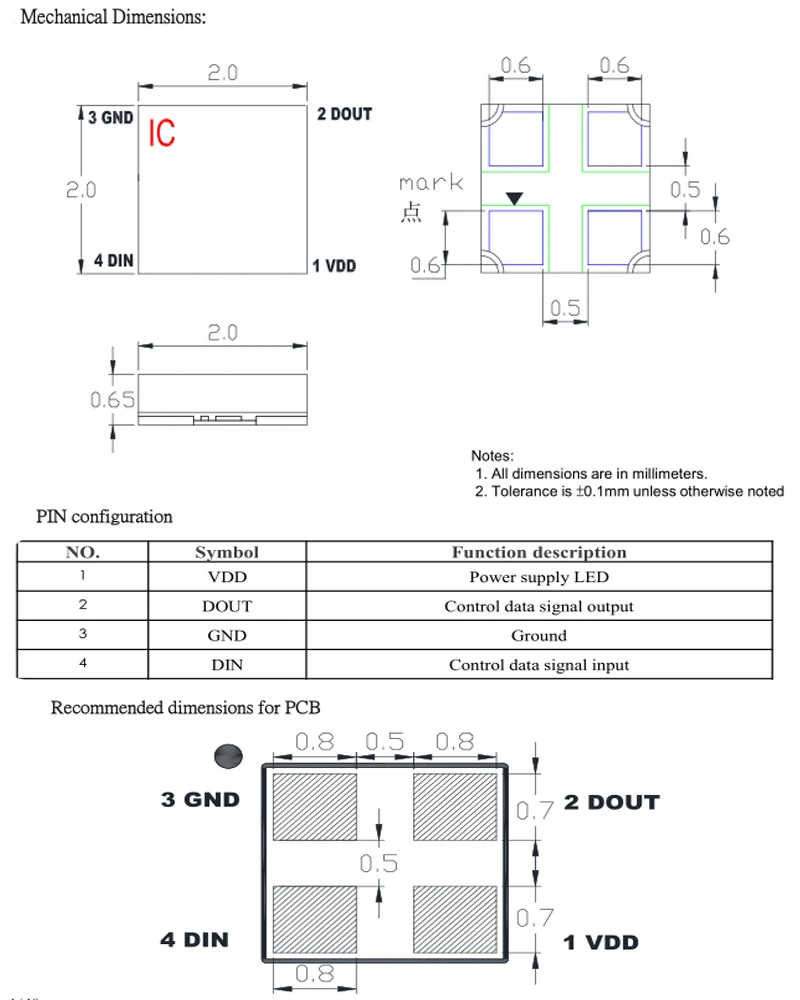

Dimensions of 2020 SMD RGB LED Chip SMD LED:
Packing & Delivery
Payment
T/T (Bank Transfer) , Western Union,Paypal ,etc
Delivery Way & How to Check
We support famous Express company(DHL,UPS,TNT,Fedex,Post etc..)
Tracking number will be sent to you when we have sent out goods,you can theck your parcel online by yourself.
T/T (Bank Transfer) , Western Union,Paypal ,etc
Delivery Way & How to Check
We support famous Express company(DHL,UPS,TNT,Fedex,Post etc..)
Tracking number will be sent to you when we have sent out goods,you can theck your parcel online by yourself.
Company Profile
Ningbo Junsheng Electronics Co., Ltd. was founded in 2008. We are specialized in high quality LED Light source and LED components including research, development, production and marketing. We also provide LED Lighting Solution and OEM service to help customer making high cost perfomance products.Product range including LED Display,LED dot matrix LED DIP,LED SMD and High power LEDs etc.
Jstronic will work with you to fullfill your requirements strive to meet your targets.
Jstronic will work with you to fullfill your requirements strive to meet your targets.
Our main is to help customer reach their goals.We are making great efforts to achieve their win-win situation and sincerely
welcome you to join us.

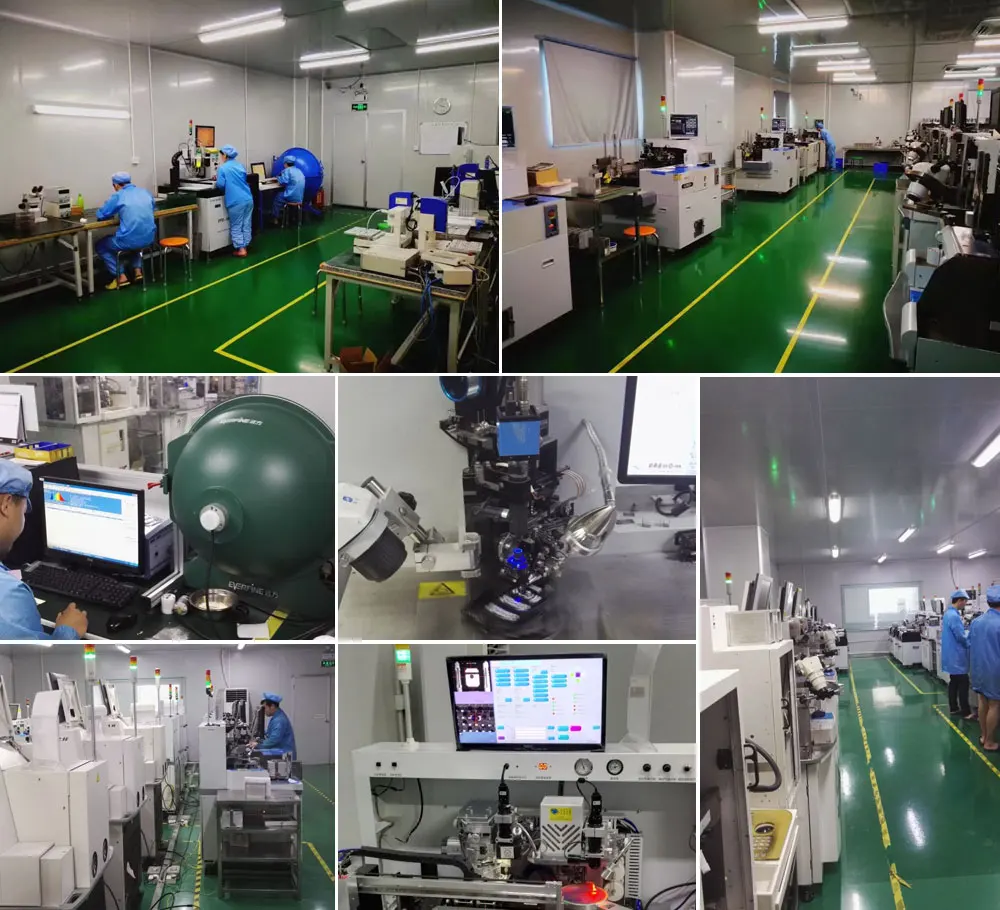

Welcome to visit our factory.
