OEM Full HD USB 2.0 Medical Endoscope Mini Camera Module GC2755 Fixed Focus 2MP Night Vision Camera Modules
- Category: >>>
- Supplier: Shenzhen Baisiyun Photoelectric Technology Co. Ltd.
Share on (1600536230662):
Product Overview
Description
Full HD USB 2.0 Medical Endoscope Mini Camera Module GC2755 Fixed Focus 2MP Night Vision Camera Modules
Product Description

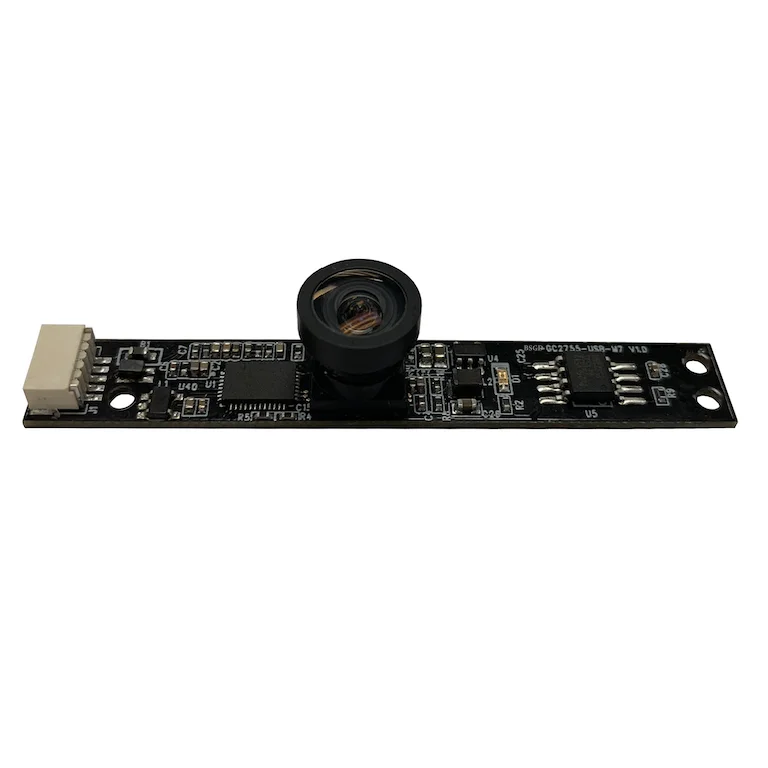

GC2755 Mini Endoscope Camera Module :
This is one of our best-selling and high resolution endoscope camera modules, with GC2755 CMOS image sensor, Full HD1936(H)x 1096(V),image quality is very clear and stable. Support OEM ODM .M7 Lens is available.
Key Features of GC2755 Mini Camera Module :
Module Size: 60mmx9mm
Full HD 1080P with GC2755 CMOS image sensor
High quality images, low power consumption
Night vision is supported
USB 2.0 compliance interface
Full HD 1080P with GC2755 CMOS image sensor
High quality images, low power consumption
Night vision is supported
USB 2.0 compliance interface
Support 2M video streaming
MJPEG compression
USB 2.0
MJPEG compression
USB 2.0
Low cost with high quality
Camera Module Applications
GC2755 Mini camera module are widely used in many applications such like medical, automotive, sewer repair, pipeline checking, industrial, aerospace,railway, construction, electricity, archaeology, public security, etc
Specification
Product Name | Full HD USB 2.0 Medical Endoscope Mini Camera Module GC2755 Fixed Focus 2MP Night Vision Camera Modules |
Brand Name | BSYimaging, OEM ,ODM |
Sensor type | GalaxyCore GC2755 1/5" |
Lens Specification | M7 :Focal Length: 1.02 mm,Focusing Range: 30cm to infinity,TV Distortion: <-15%,Focal Length: 1.02 mm |

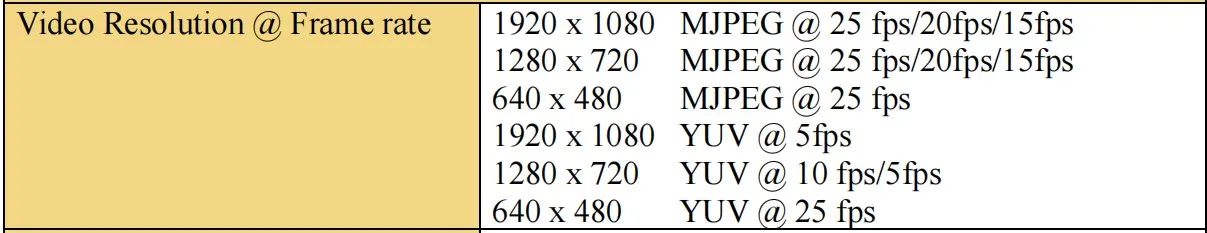

Frame rate | 1920 x 1080 MJPEG @ 25 fps/20fps/15fps 1280 x 720 MJPEG @ 25 fps/20fps/15fps 640 x 480 MJPEG @ 25 fps 1920 x 1080 YUV @ 5fps 1280 x 720 YUV @ 10 fps/5fps 640 x 480 YUV @ 25 fps |
Adjustment | The following can be adjusted manually: Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance (default: Auto), Backlight Comp, Gain, Exposure (default: Auto). |
Resolution | H:1936, V:1096 |
Supply voltage | USB 2.0 +5 VDC power source |

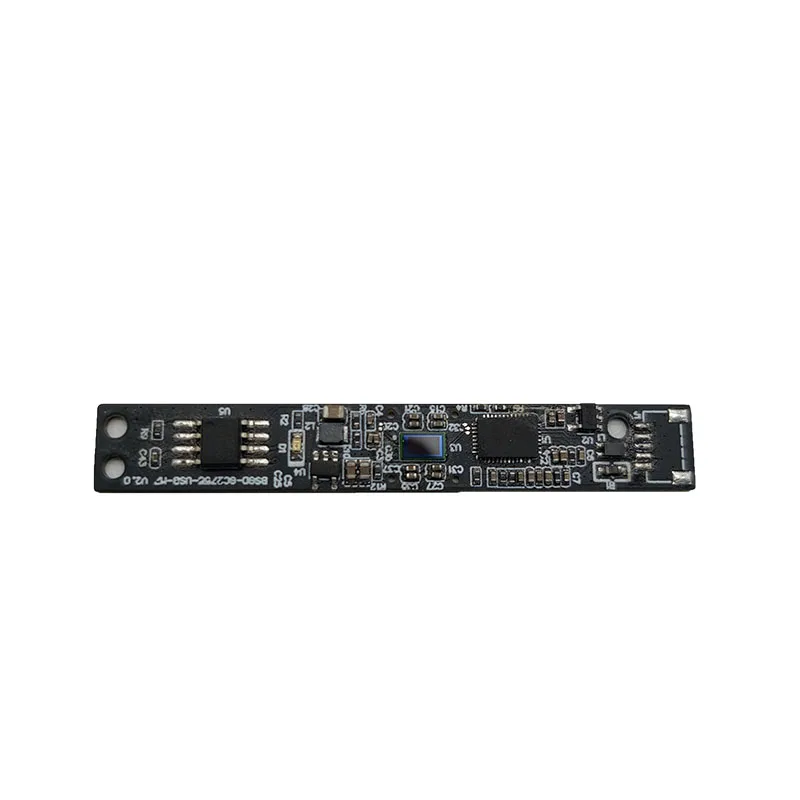

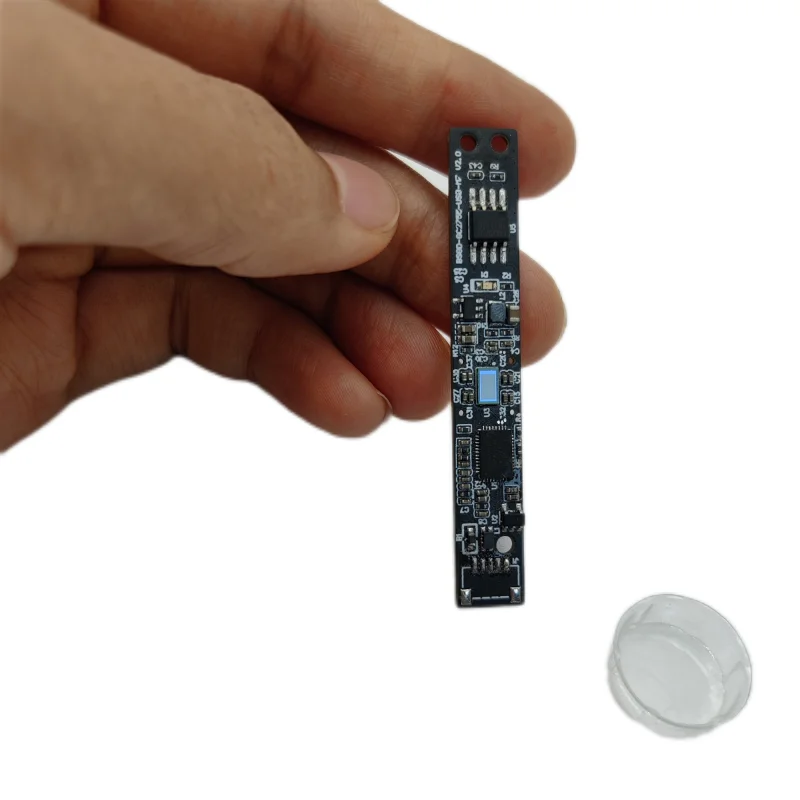

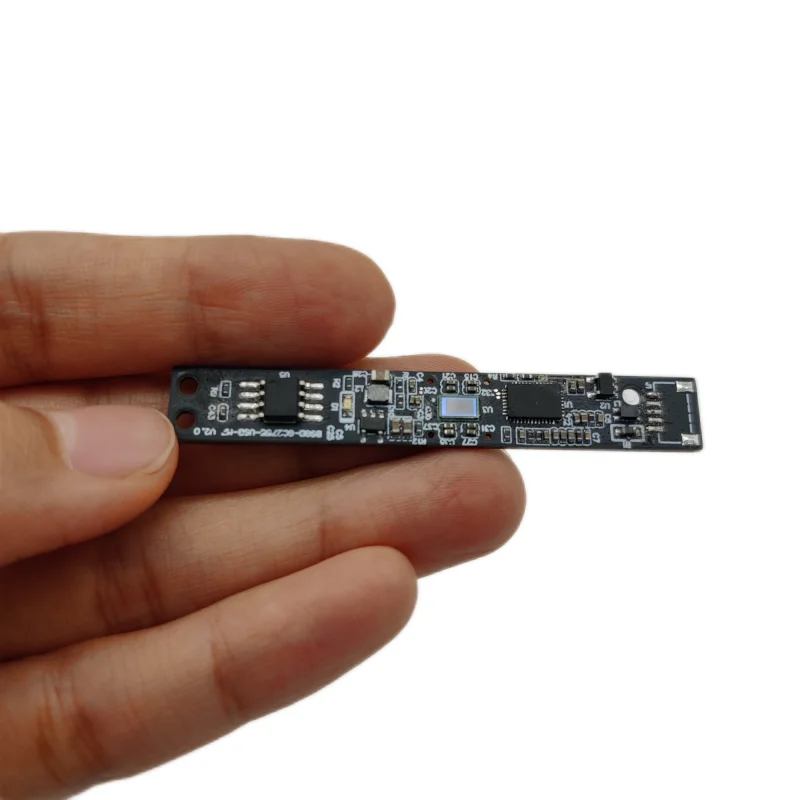

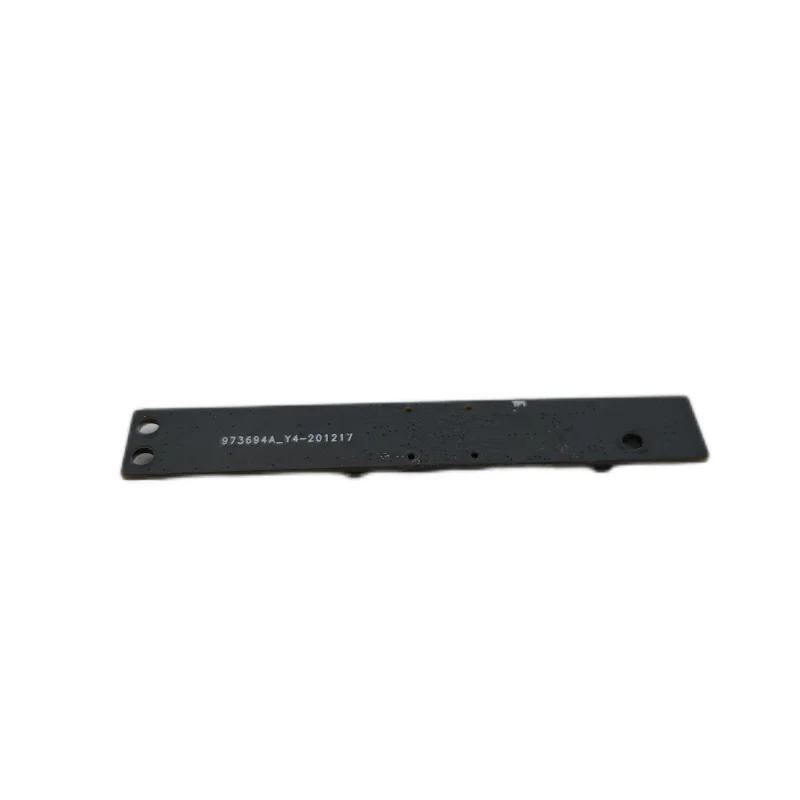

Detailed Images
Company Profile
We are manufacturer focus on CMOS camera modules with OEM /ODM.
Specializing with different pixels: CIF, VGA, 2 million, 3million, 5 million, 8 million, 12 million, 16 million, 21 million, 22 million, 23 million, 24 million pixel camera modules. OEM is supported.
Widely used: mobile phones, artificial intelligence, drones, smart city, face reorganization, gesture recognition, machine vision, 3D printer camera solutions, two-dimensional barcode recognition, optical imaging systems, industrial infrared imagers, digital cameras, DV , PDA/handheld devices, smart toys, PC cameras, security cameras, car cameras, etc.
Packing & Delivery
FAQ
What is your MOQ?
1pc is okay, but different quantities with different prices.Can I OEM the camera module?
Yes, OEM camera modules &packing are supported. We have a professional and experienced R&D team
Are you a manufacturer?
Yes, we are a designer and manufacturer of camera modules with more than 15 years of experience.
