Best Selling Dry Type Lab Testing Equipment in Chromatographic Detection Method
- Category: >>>
- Supplier: Wuxi Opulen Technology Co. Ltd.
Share on (1600536230739):
Product Overview
Description
Product Overview

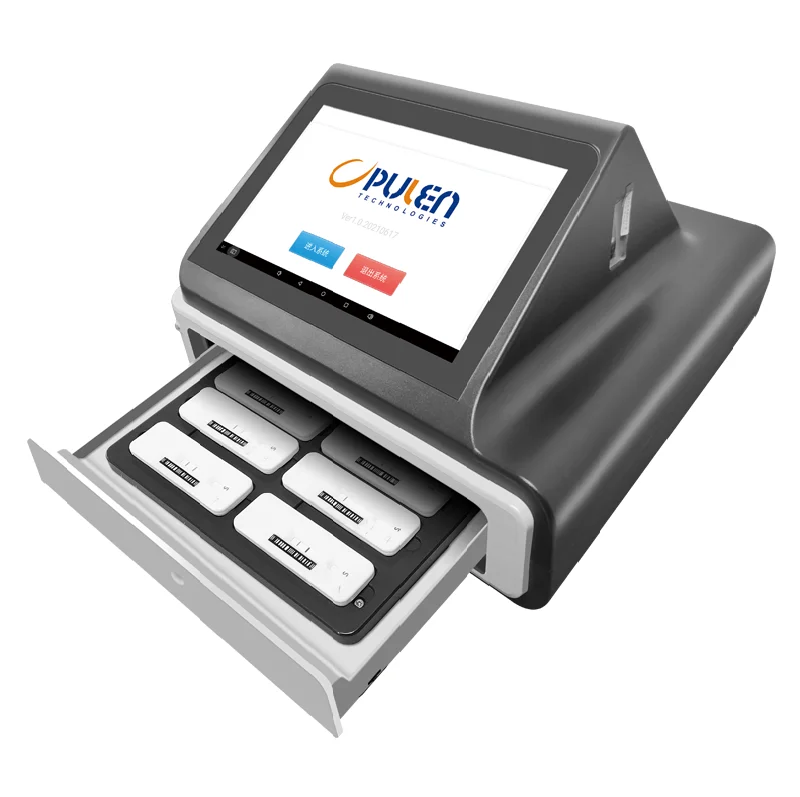

Hot Sales SFP Series Dry-Type Immunochromatography Quantitative Analyzer
The desktop immunochromatography quantitative analyzer (hereinafter referred to as the analyzer) is a fast desktop detection analyzer. It integrates a full touch screen, complete image capture technology, and is equipped with a friendly human-computer interface. The entire reading process is fully automatic, and you only need to click one button to detect and get the results. Accurate identification reads of multiple samples can be achieved in a single pass. Powered by an external power adapter, it works under low-voltage (24V) DC conditions, and the adapter has passed a number of safety certifications. The adapter should choose a three-pin plug with protective grounding to ensure the safety of the operator.
Working Principle :
Collioidal Gold Immunochromatography
During detection, the sample to be tested, which has been thoroughly mixed with the buffer, is added to the sample hole of the reagent card. The analyte in the sample forms an immune complex during the chromatography process. When the complex flows through the cellulose acetate membrane, binds to the antibody on the membrane to form a red band that develops the control line (C line) and the test line (T line).When the incubation is over and the test is started, the light emitted by the instrument is irradiated on the C line and the T line, and the intensity of the irradiated light is determined.
During detection, the sample to be tested, which has been thoroughly mixed with the buffer, is added to the sample hole of the reagent card. The analyte in the sample forms an immune complex during the chromatography process. When the complex flows through the cellulose acetate membrane, binds to the antibody on the membrane to form a red band that develops the control line (C line) and the test line (T line).When the incubation is over and the test is started, the light emitted by the instrument is irradiated on the C line and the T line, and the intensity of the irradiated light is determined.
FEATURES AT A GLANCE
Fast Desktop Instrument
Complete and Reliable Hardware Design
Fully Automatic
Friendly Human-computer Interface
Large Screen Touch Mode
Store Above 100 000 Testing Results.
Advanced Data Identification and Position Technology
Analyze and Calculate Qualitative or Quantitative Results
Left view
Right view

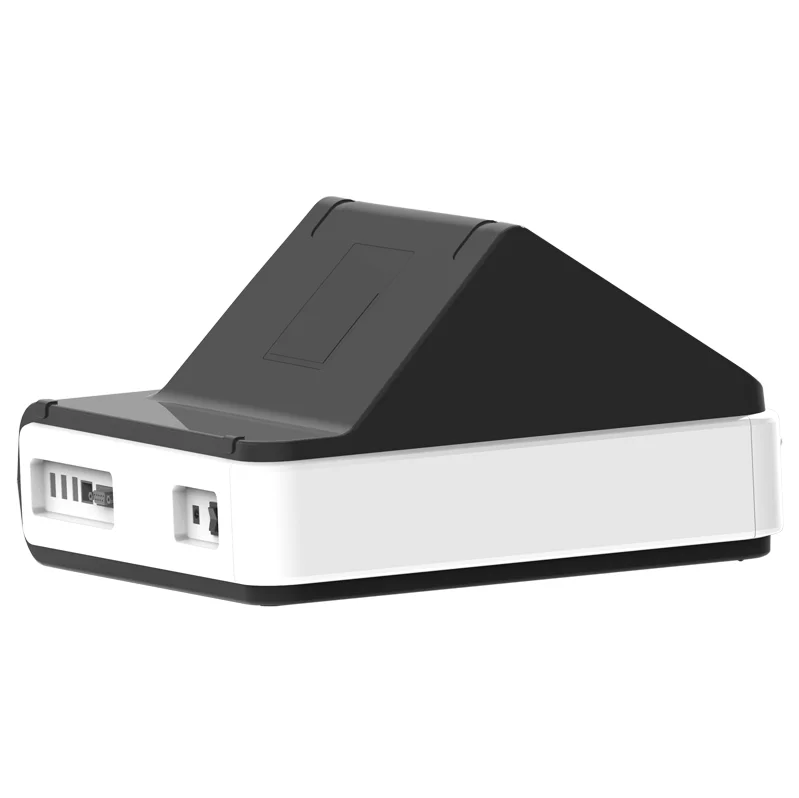

Back view
PRODUCT SPECIFICATIONS
No | Item | Specification | ||||
1 | Display Screen | Touch type 10 inch screen | ||||
2 | Power | Power adapter input: AC220V, 50Hz | ||||
3 | Interface | USB, serial port | ||||
4 | Printer | Thermal printer | ||||
5 | Dimension | 379*342*225mm | ||||
6 | Weight | 4.5kg | ||||
MAIN PERFORMANCE
Resolution: Shall be able to distinguish a pair of control strips with a reflectivity difference not greater than 0.01.
Accuracy: CRP items, when the concentration range of certified reference substances is 5 μg/mL ~ 9 μg/mL, the relative deviation is ≤±10%.
Repeatability: Test 3 quality control strips with high, medium and low reflectance in the range of [0.2, 0.8] respectively, CV≤3%.
Linearity: The linear correlation coefficient |r| ≥ 0.990 in the linear range of reflectivity in the range [0.2, 0.8].
Channel Consistency: Test the quality control strip, the relative range of the measurement results of each channel is ≤5%.
Stability: Test the quality control strip, the relative range is ≤5%.
Accuracy: CRP items, when the concentration range of certified reference substances is 5 μg/mL ~ 9 μg/mL, the relative deviation is ≤±10%.
Repeatability: Test 3 quality control strips with high, medium and low reflectance in the range of [0.2, 0.8] respectively, CV≤3%.
Linearity: The linear correlation coefficient |r| ≥ 0.990 in the linear range of reflectivity in the range [0.2, 0.8].
Channel Consistency: Test the quality control strip, the relative range of the measurement results of each channel is ≤5%.
Stability: Test the quality control strip, the relative range is ≤5%.
Product Features
-10 inch LCD touch screen, Android operation system, intuitive and friendly interface, convenient operation.
-Adopts image scanner to acquire the image of test cassettes, lighting is uniform, image is clear and stable;
-Drawer-type loading test cassettes, input up to 16 test cassettes at the same time, the detection difference among internal multiple channels and among instruments is small, and the accuracy is high;
-The test cassettes need to print with a barcode as required, carrying information such as project name, batch number and etc;
-Support single card, multiple connected card and multi-card.
-Built-in printer and scanner, supporting duel-direction LIS system;
-Supporting 4G (optional), WiFi, remote quality control, remote standard curve upgrading;
-Customized temperature control tray to achieve temperature control incubation.
-Adopts image scanner to acquire the image of test cassettes, lighting is uniform, image is clear and stable;
-Drawer-type loading test cassettes, input up to 16 test cassettes at the same time, the detection difference among internal multiple channels and among instruments is small, and the accuracy is high;
-The test cassettes need to print with a barcode as required, carrying information such as project name, batch number and etc;
-Support single card, multiple connected card and multi-card.
-Built-in printer and scanner, supporting duel-direction LIS system;
-Supporting 4G (optional), WiFi, remote quality control, remote standard curve upgrading;
-Customized temperature control tray to achieve temperature control incubation.
Performance Index
-Stability: ≤ 士5%
-Repeatability: CV≤3%
-Linearity：related coefficient r≥0.99
-Repeatability: CV≤3%
-Linearity：related coefficient r≥0.99
PRODUCT CONFIGURATION

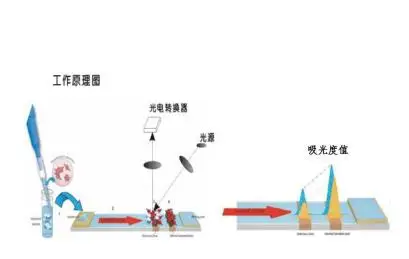

Working principle

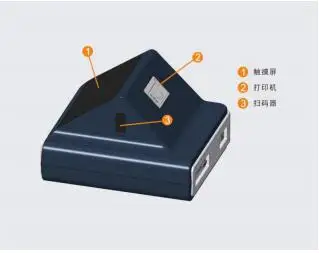

Appearance diagram

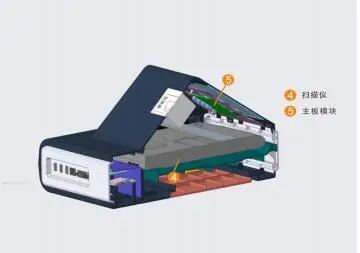

Internal Structure Diagram

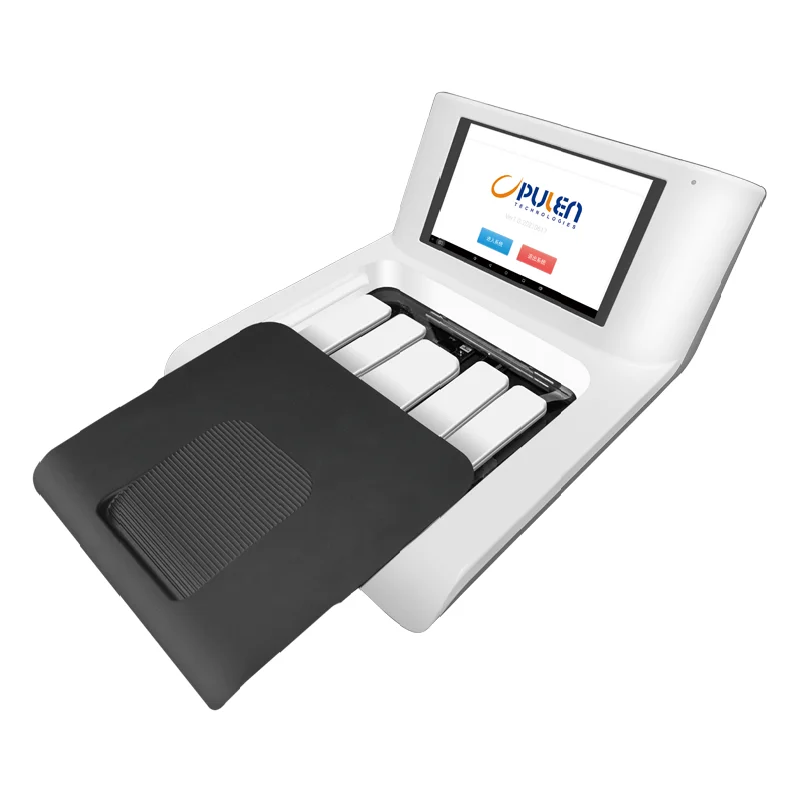

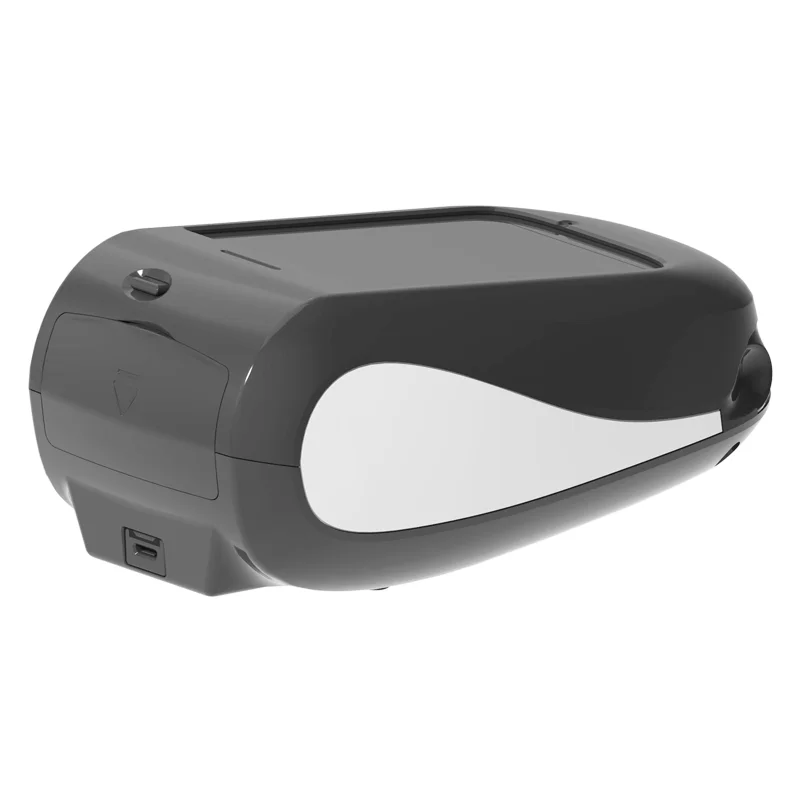

SIMILAR PRODUCTS
