High Sensitivity Piezoelectric Acceleration Sensor (IEPE) for Vibration Measurement of Low Frequency and Low Vibration
- Category: >>>
- Supplier: Yangzhou Xiyuan Electronic Technology Co. Ltd.
Share on (1600536263735):
Product Overview
Description
Product Description

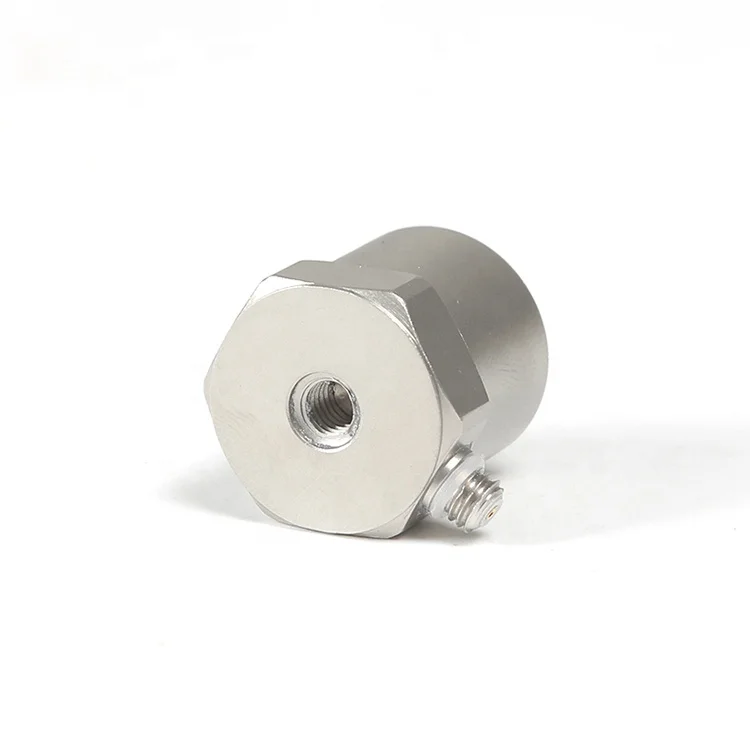

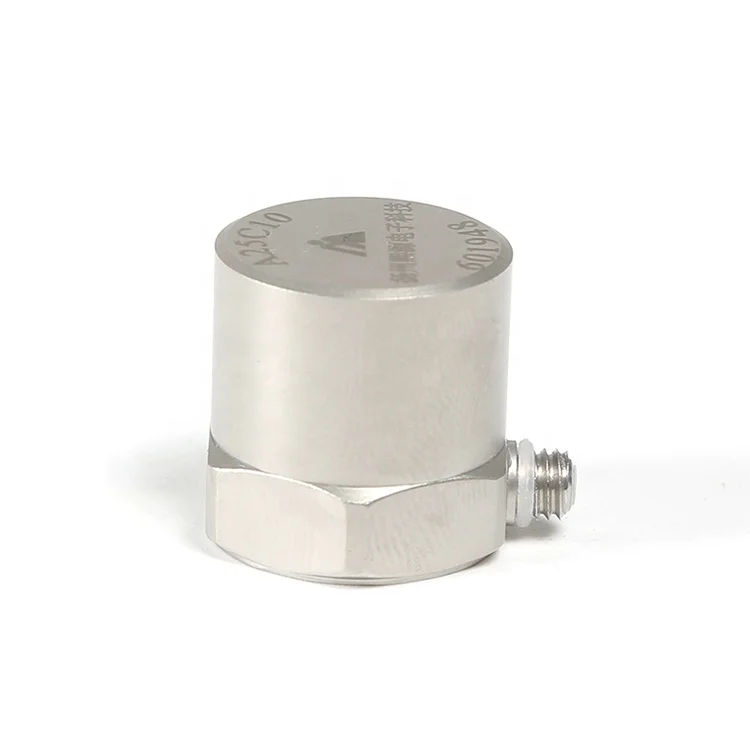

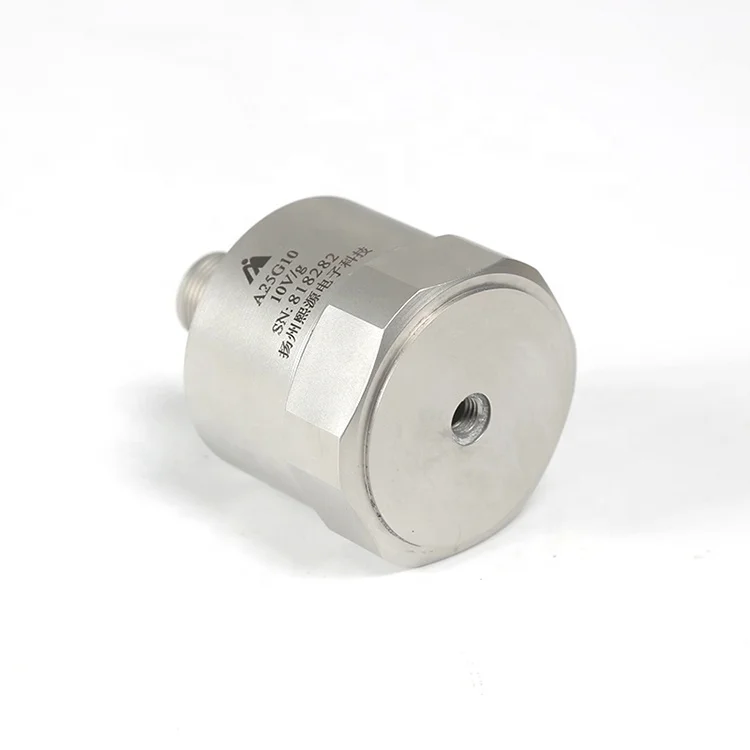

High Sensitivity Piezoelectric Acceleration Sensor (IEPE) for Vibration Measurement of Low Frequency and Low Vibration
Characteristic:
The series of industrial acceleration sensors are stainless steel shell, laser welding sealing, shell insulation, waterproof, dust-proof, oil-proof design, suitable for industrial sites in a variety of.
It is suitable for long-term reliable and stable work in various harsh environments in industrial sites, and is widely used in fan condition monitoring, operation and maintenance of industrial sites, process monitoring and protection.
Advantages: built-in IEPE circuit, isolated floating, two-core low resistance voltage or 4-20mA output, strong anti-interference.
It is suitable for long-term reliable and stable work in various harsh environments in industrial sites, and is widely used in fan condition monitoring, operation and maintenance of industrial sites, process monitoring and protection.
Advantages: built-in IEPE circuit, isolated floating, two-core low resistance voltage or 4-20mA output, strong anti-interference.
Product
Size
Temperature Curve
Frequency Response Curve
Dynamic Properties | ||
Range(peak) | ±0.5g | |
Sensitivity(25℃) | 10V/g (160Hz) | |
Frequency Response（±1dB) | 0.1-500Hz | |
Transverse Sensitivity Ratio | ≤5% | |
Electrical Properties | ||
Driving Voltage | 18VDC-28VDC (current source) | |
Constant current source excitation（mA） | 2-10mA | |
Output Impedance | ＜100 Ω | |
Full range output（peak） | ±5V | |
Bias voltage | +9- +13V | |
Environment Properties | ||
Operation Temp | -40℃～+120℃ | |
Shock Resistance(peak) | ±500g | |
Temperature Response | Attached | |
Physics Properties | ||
Structural Style | Cutting | |
Shell Material | 304 Stainless Steel | |
Output Mode | Side M5 | |
Installation | M6 | |
Piezoelectric Materials | PZT-5 | |
Weight | ～250g | |
Accessory | ||
Install the screw | M6 | |
Cable | Double end M5 universal shielded cable x 2m | |
