92/8 TGIC Polyester Resin with High Tg for Heat Transfer Powder Coating
- Category: >>>
- Supplier: Guangzhou Kinte Industrial Co. Ltd.
Share on (1600536266473):
Product Overview
Description
Products Description
Introduction
NH3295H is a saturated carboxyl polyester resin for polyester/TGIC powder coating system at the ratio 92/8. Suitable for heat transfer powder coating with clear transfer pictures.
Heat transfer powder coating is a process of technology of heat transfer printing finished on the powder coating surface.The coating is specialized designed so that pictures and patterns on the heat transfer paper of films can be well transferred on the coating surface. It makes the coating with a lot of patterns, such as wood effects, marble effects, stone effects, etc.
Heat transfer powder coating is a process of technology of heat transfer printing finished on the powder coating surface.The coating is specialized designed so that pictures and patterns on the heat transfer paper of films can be well transferred on the coating surface. It makes the coating with a lot of patterns, such as wood effects, marble effects, stone effects, etc.
Basic Features
High TG
Good leveling
Good storage stability
Good weathering resistance
Recommend Formulation
NH3295H—TGIC
NH3295H | TGIC | Filler ＆ Pigment | Flow agent | Benzoin | 701 |
558 | 48 | 383 | 8 | 4 | 5 |
Specifications I

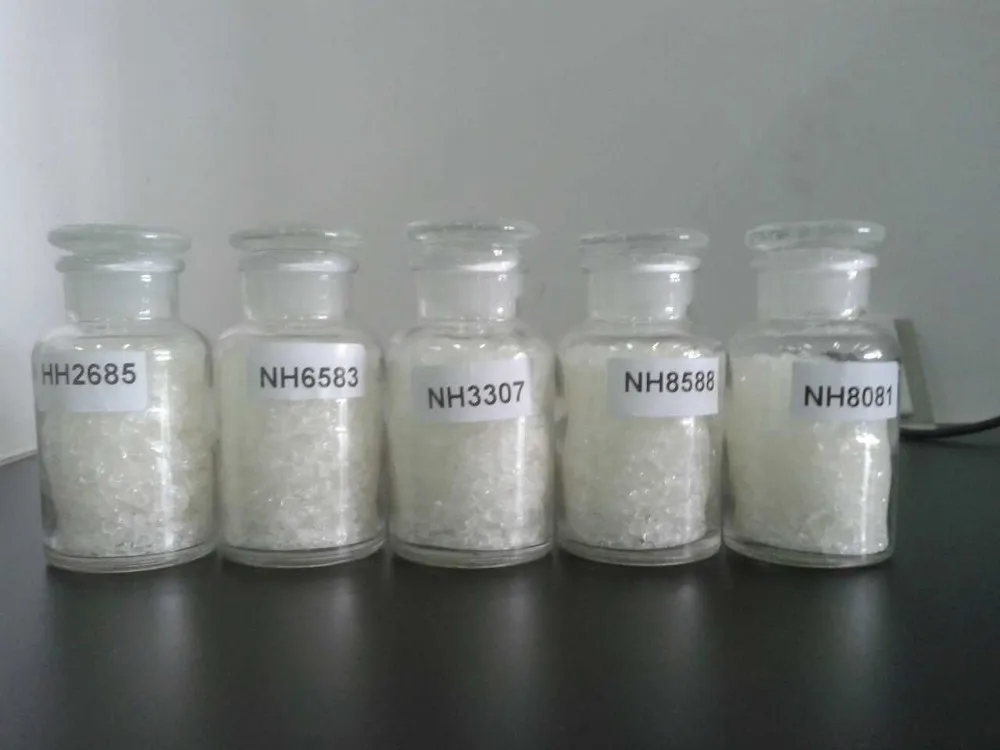

Appearance | White or light yellow transparent flakes |
Color (50% DMF) | max:3 |
Acid Number (mgKOH/g) | 41～45 |
Softening Point (℃) | 105～115 |
Glass Transition Temp. (℃) | ～69 |
Melting Viscosity (200℃, cone/plate, mPa·s) | 4400～5600 |
Reactivity at 180℃ (s, 8% TGIC) | 160～280 |
Curing Requirement | 200℃×10min |
Packaging | PE Bags, Net Weight 25kg ± 0.1kg / bag |
Specifications II
Extrusion Condition | Two-screw Extruder | ||
Zone I: 90～110℃ | Zone II: 110～120℃ | ||
Speed of Revolution | 500～1200rpm | ||
Fineness of Powder | ＜100μm | ||
Application Condition | Electrostatic Spraying With | 40～70KV | |
Coating Film Thickness | 50～70μm | ||
Degreased Cold-rolled Steel | 0.5mm | ||
Film Properties | Gel Time (180℃, sec) | 240~360 | |
Horizontal Flow (180℃, mm) | 25~30 | ||
Gloss (60°) | ≥85% | ||
Bending (φ1mm) | Pass | ||
Adhesive (1mm, grade) | 0 | ||
Pencil Hardness | ≥1H | ||
Impact (50cm) | Pass | ||
Package and Transportation

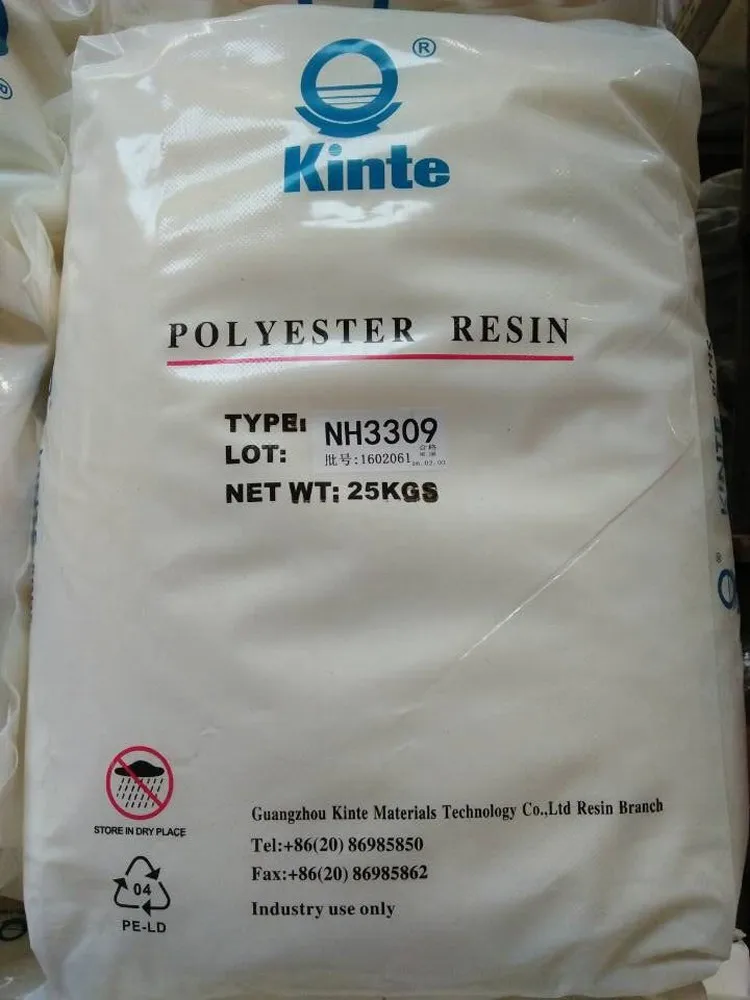

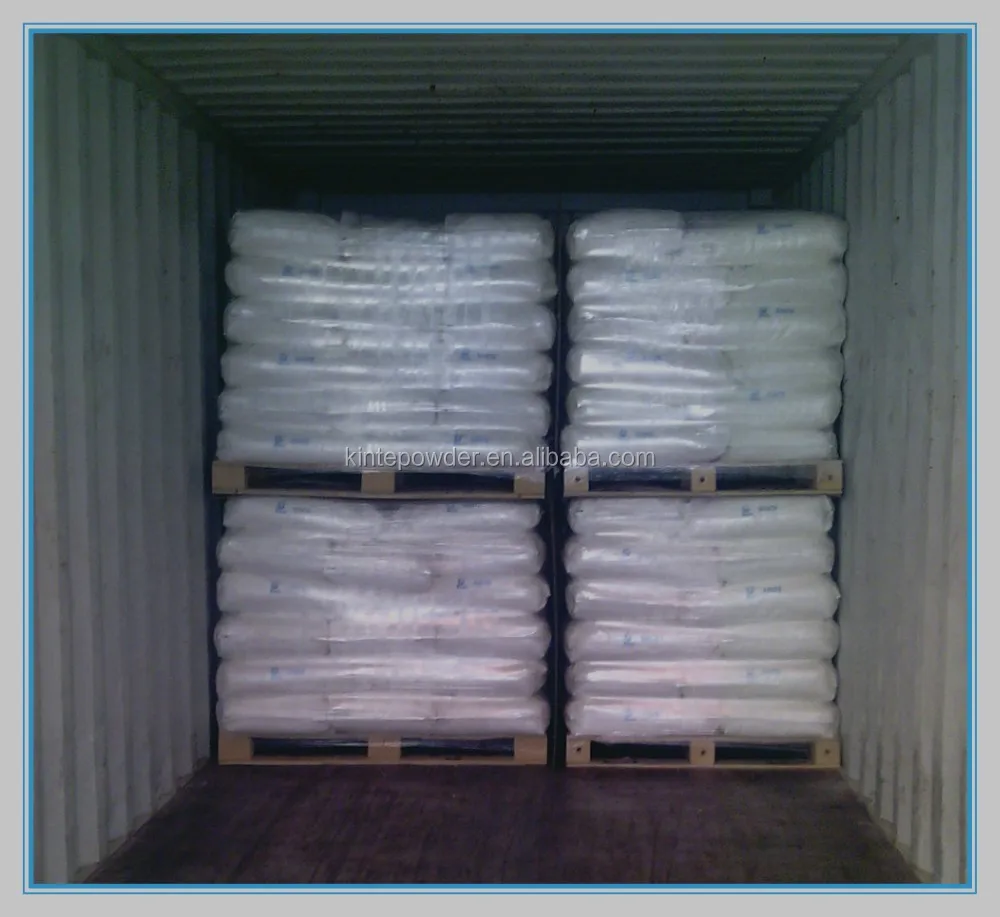

PE Bags, Net Weight 25kg ± 0.1kg / bag, 875Kg/Pallet, 17,500Kg/20GP
Non-dangerous goods, no special transportation requirements.
