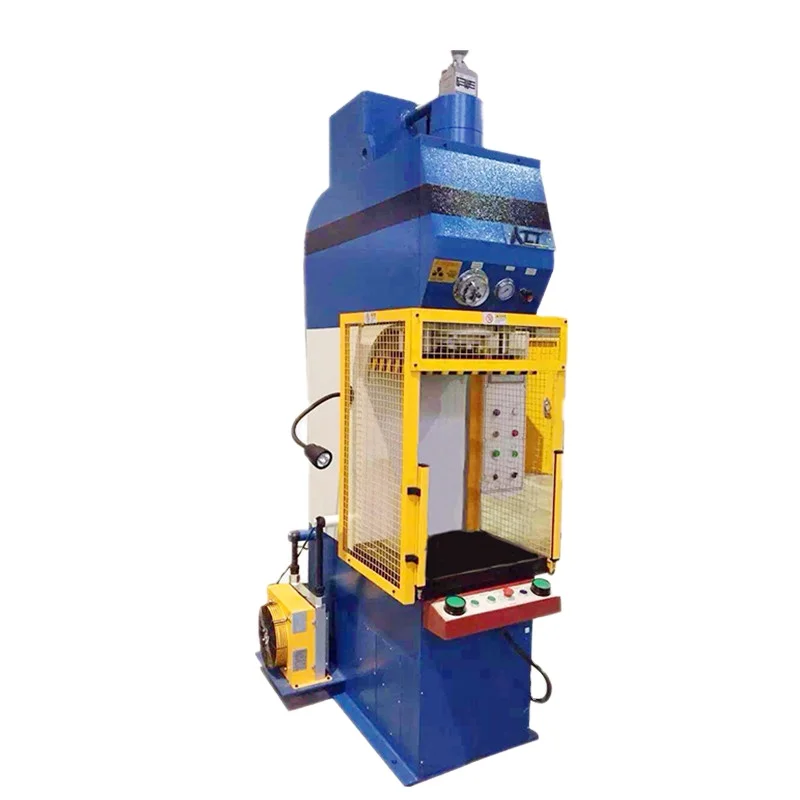

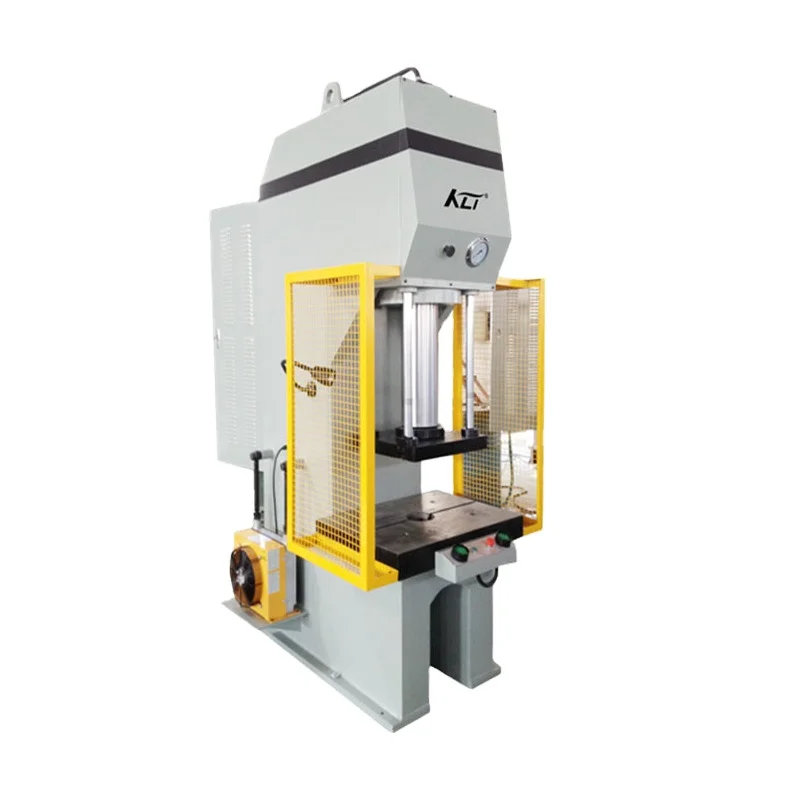

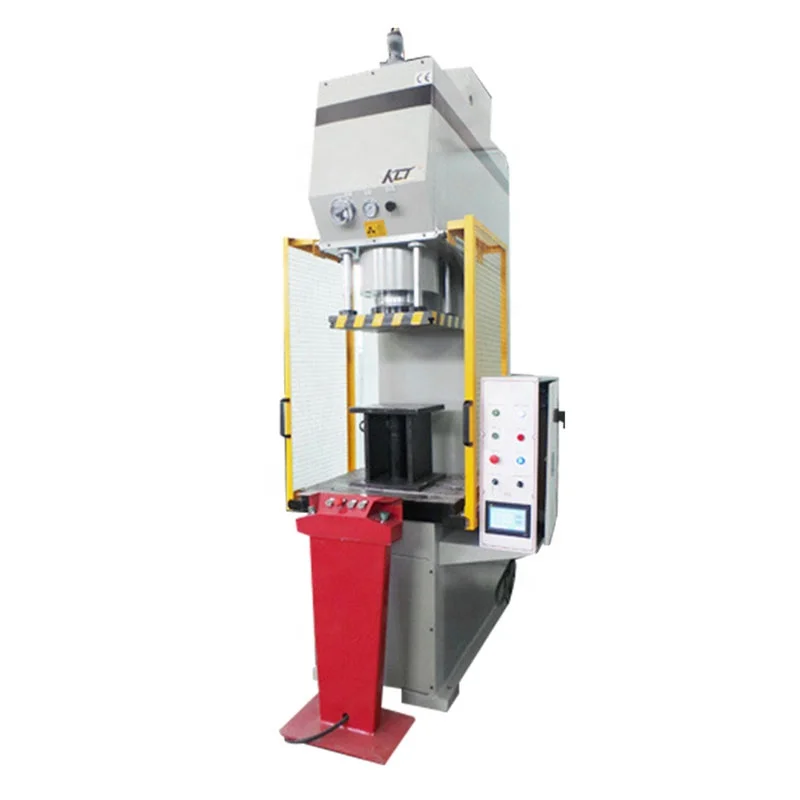

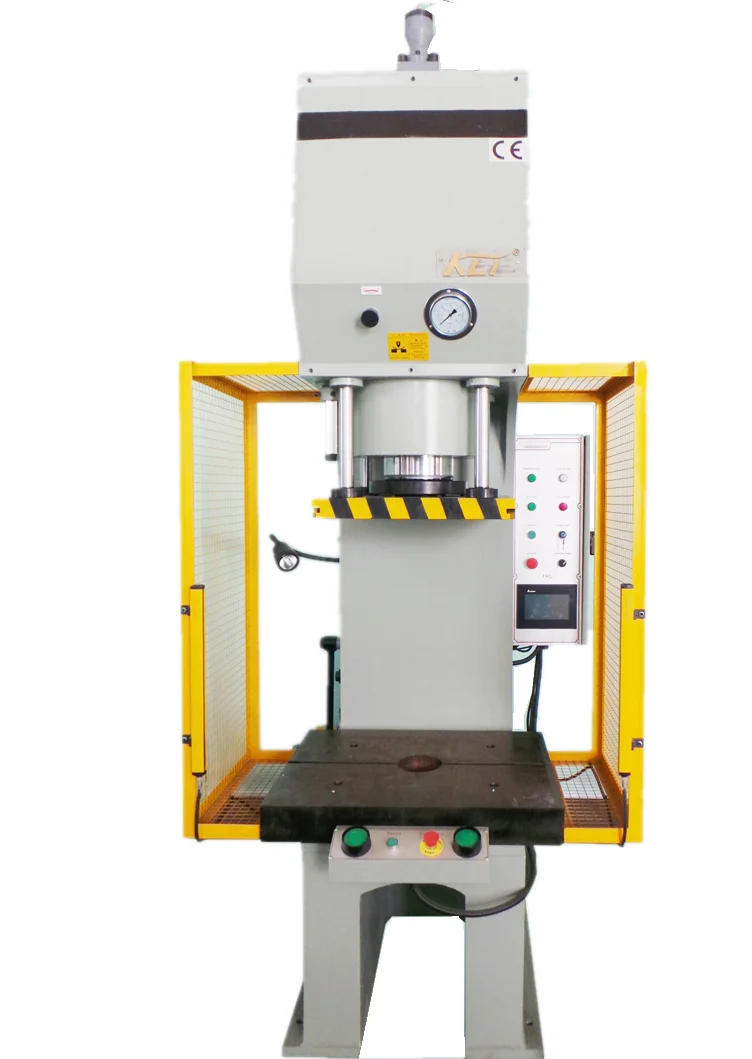

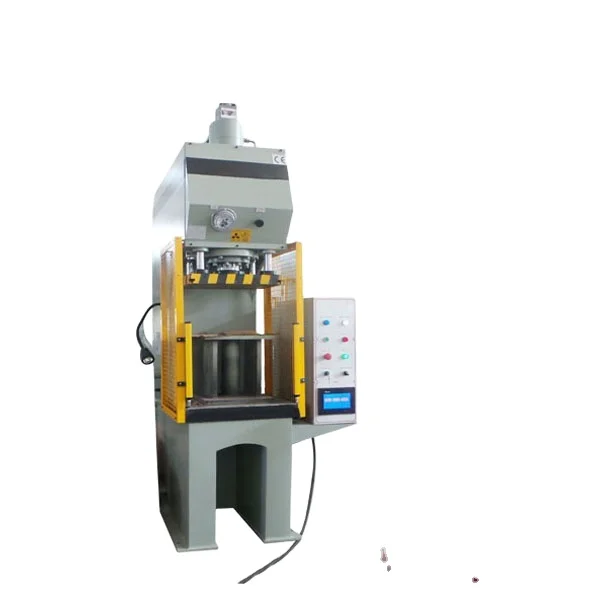

30 Ton Deep Drawing Hydraulic Press Sheet Metal Forming Hydraulic Press
- Category: >>>
- Supplier: Wuxi Kelai Nc Machine Tool Co. Ltd.
Share on (1600536283170):
Product Overview
Description
Products Description
Y41B Series C-type Hydraulic Press is a kind of multifunctional machine which has strong generality. It is suitable for the press fitting of shaft components and axle sleeve parts as well as the movements of coining and overprinting. It can also be used to press powder and plastic products which the requirements are not strict. At the same time, it mainly applies to the fields of machine tool, engineering machinery, electrical components, bearings, washing machine, automobile parts and motor components. It can even be used as assembly line. The pressure, stroke, and time of pressure maintaining can be regulated.
Optional
Optoelectronic protective device
Industrial touching screen monitor
Stroke,pressure,speed digital control device
Cooler device Displacemert sensor
Applications
Type Y41B series products are suitable foe the flow assembly of the machine tool,interal combustion textile machinery.
Size Information
Item | Unit | 10T | 16T | 25T | 40T | 63T | 100T | 160T | 200T |
Nominal pressure | KN | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 | 2000 |
Max.pressure of liquid | Mpa | 8 | 13 | 20 | 23 | 25 | 26 | 25 | 25 |
Max.opening height | mm | 500 | 550 | 600 | 700 | 800 | 800 | 900 | 900 |
Max.stroke of slider | mm | 300 | 350 | 350 | 400 | 500 | 500 | 500 | 500 |
Power of motor | KW | 4 | 4 | 5.5 | 5.5 | 5.5 | 7.5 | 11 | 15 |
Total weight | KG | 1250 | 1700 | 2300 | 2800 | 4200 | 4800 | 9500 | 14000 |
Detailed Images
Electrical control system

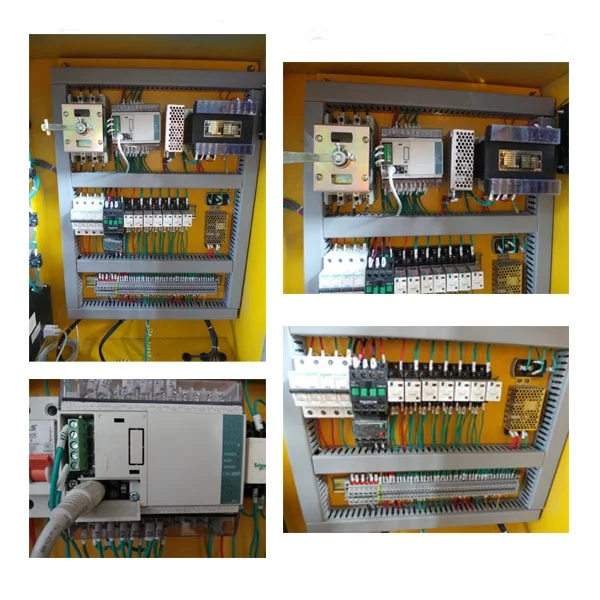

1. An independent electrical cabinet is equipped with air switches, relays and other electrical appliances.
2. For various alarm signals of the press, the limit switch and the press action realize program linkage.

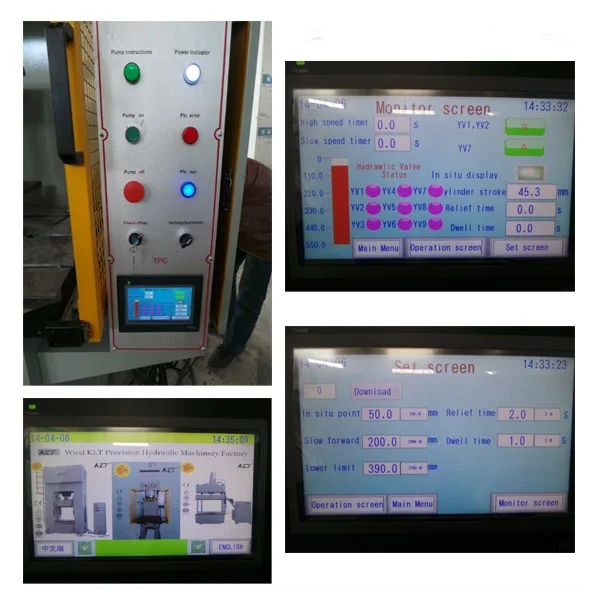

3. Equipped with a centralized control panel with operation buttons and selection switches arranged on the panel.
2. For various alarm signals of the press, the limit switch and the press action realize program linkage.
3. Equipped with a centralized control panel with operation buttons and selection switches arranged on the panel.

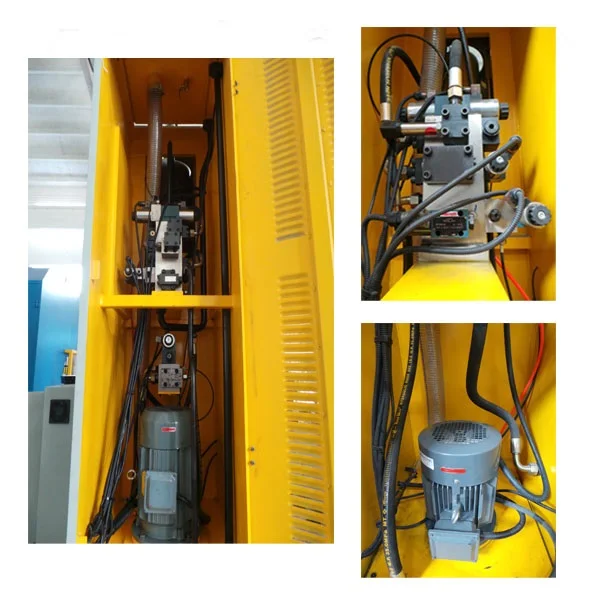

Hydraulic system
The hydraulic system has reliable sealing, no leakage and no leakage; the main pipeline adopts flange connection, and the pipeline has anti-vibration measures (shock-proof pipe clamp).
Advantages
1. CE, ISO Certification.
2. We can supply KLT brand or OEM for clients.
3. We can supply product line solution according to clients' requirements.
4. The pressure, stroke, and time of pressure maintaining can be regulated.
5. High quality and performance with good price.
6. Safe and stable operation.
7. Support 7*24 remote service or locate service.
8. Supply maintenance service all life.
2. We can supply KLT brand or OEM for clients.
3. We can supply product line solution according to clients' requirements.
4. The pressure, stroke, and time of pressure maintaining can be regulated.
5. High quality and performance with good price.
6. Safe and stable operation.
7. Support 7*24 remote service or locate service.
8. Supply maintenance service all life.
Company Profile
We work with many quality partners so we can offer you more machinery options than the competition. With Kelai, we will deliver a solution adapted to your needs at the right price.
FAQ：
Q1: How can I get a quotation?
A1: Pls tell us the machine you need, including quantity, raw materials and other requirements.
Q2: After I buy the machine, what will you do if I don't know some of the function?
A2: We will show you how to use the machine perfectly. Technical support and the video is available.
Q3: What can I do if the machine troubled after I buy it?
A3: We provide completely after sales service, and our engineers are available to service machinery overseas.
Q4: Will you show me how to install the machine?
A4: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas
A1: Pls tell us the machine you need, including quantity, raw materials and other requirements.
Q2: After I buy the machine, what will you do if I don't know some of the function?
A2: We will show you how to use the machine perfectly. Technical support and the video is available.
Q3: What can I do if the machine troubled after I buy it?
A3: We provide completely after sales service, and our engineers are available to service machinery overseas.
Q4: Will you show me how to install the machine?
A4: Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas
