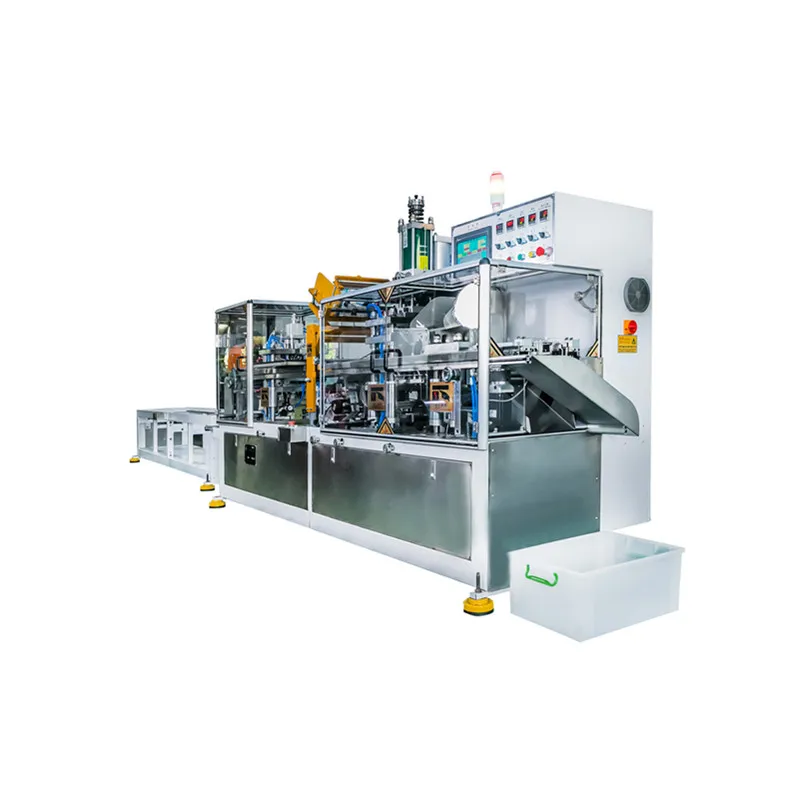

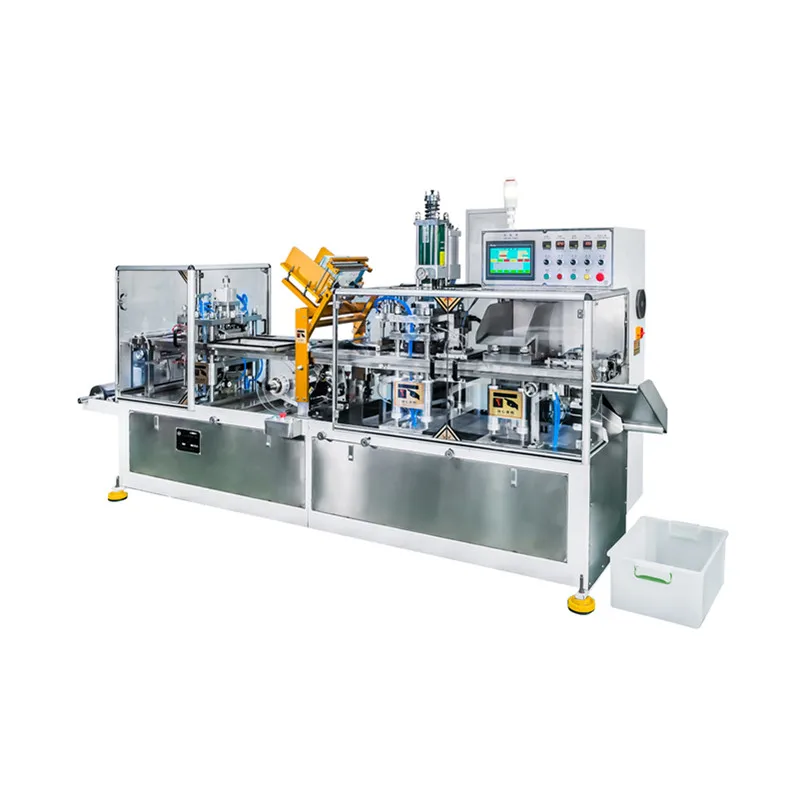

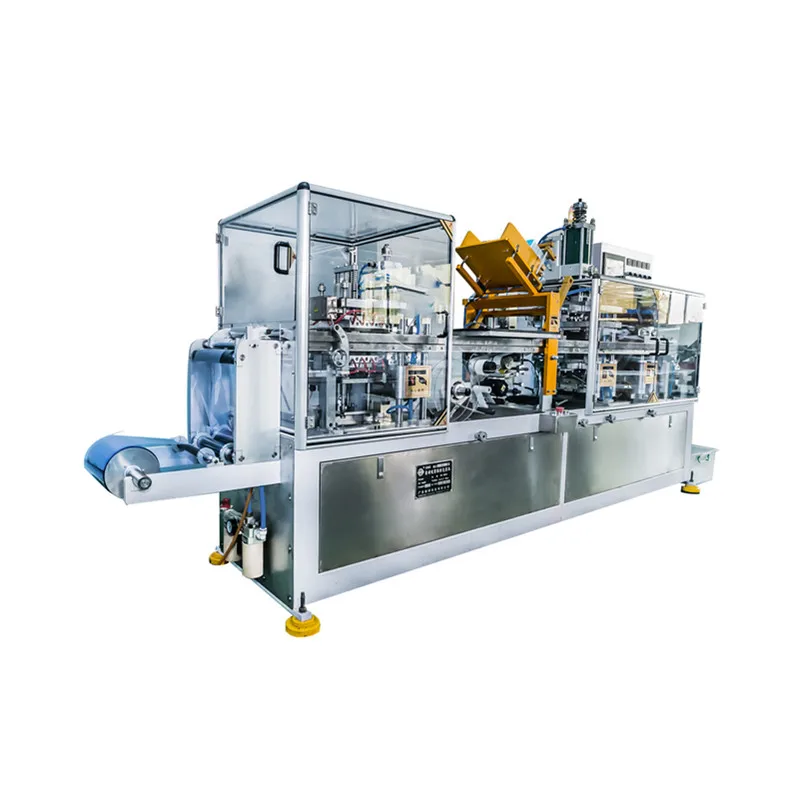

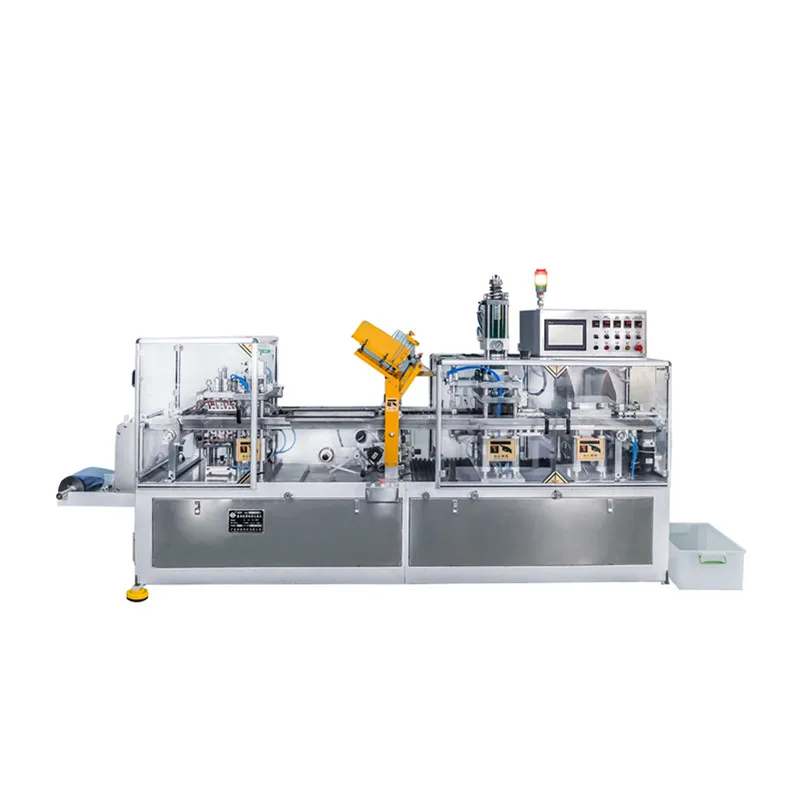

Chuangyan Intelligent Blister Labeling and Packaging Machine Toothbrush Production Line Brush Machine
- Category: >>>
- Supplier: Guangdong Chuangyan Technology Co. Ltd.
Share on (1600536302136):
Product Overview
Description
Product Description
Main Features
Based on former toothbrush packaging technology from Korea Xingya and Germany, our researchers took the initiative to develop a new type of Automatic Toothbrush Blister Labeling & Packaging Machine, combining with the new toothbrush in the market.
Comprised of automatic paper setting, thermal synthesis technology and punching shear, this machine applies full servo double CAM spindle muscle, two-stage servo chain tension membrane institutions as well as precise Servo labeling, enjoying high-tech imported NC coding and PLC programmable logic, which gives this new machine an edge in high efficiency, high stability, high adjust ability, low cost of molding, convenient replacement, low wear, low noise level and so on. This machine has been obtained a number of national technical invention patents.
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR | ||||||||||||||||
Package Type | Mould specification (piece) | Package width (mm) | Work speed (12 hours / day) | |||||||||||||
Moulds of Labeling (min) | ||||||||||||||||
13 | 14 | 15 | 16 | 17 | 18 | |||||||||||
1 pcs | 4 pieces in one mould | Within 42 | 37000 | 40000 | 43000 | 46000 | 48000 | 51000 | ||||||||
2 pcs | 3 pcs in one mould | |||||||||||||||
1 pcs | ||||||||||||||||
2-5 pcs | 2 pcs in one mould | 58-85 | 18000 | 20000 | 22000 | 24000 | 26000 | 28000 | ||||||||
6-10 pcs | 1 pcs in one mould | 86-150 | 9000 | 10000 | 11000 | 12000 | 13000 | 14000 | ||||||||
Detailed Images
1 Spindle Part
Principle:
Using servo double cam linkage spindle.
Features:
(1) High precision synchronized positioning of dies.
(2) High torque (maximum torque: 40000 kgm), high stability, low wear and noise.

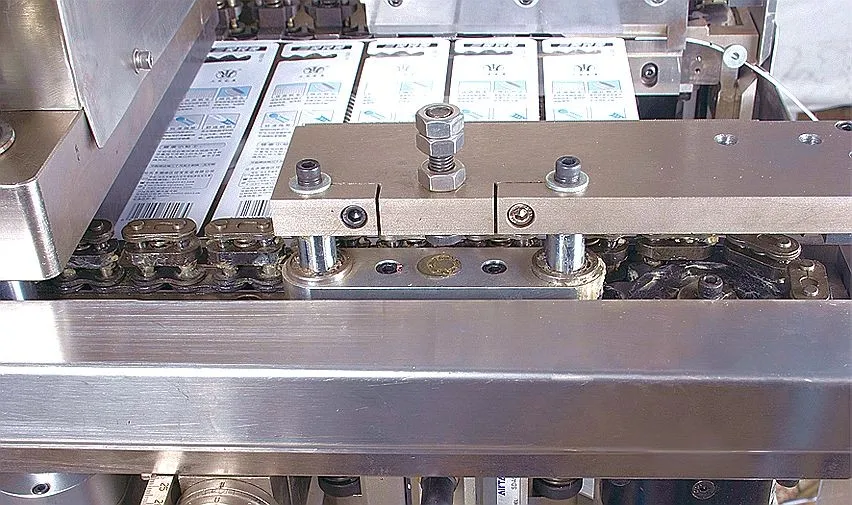

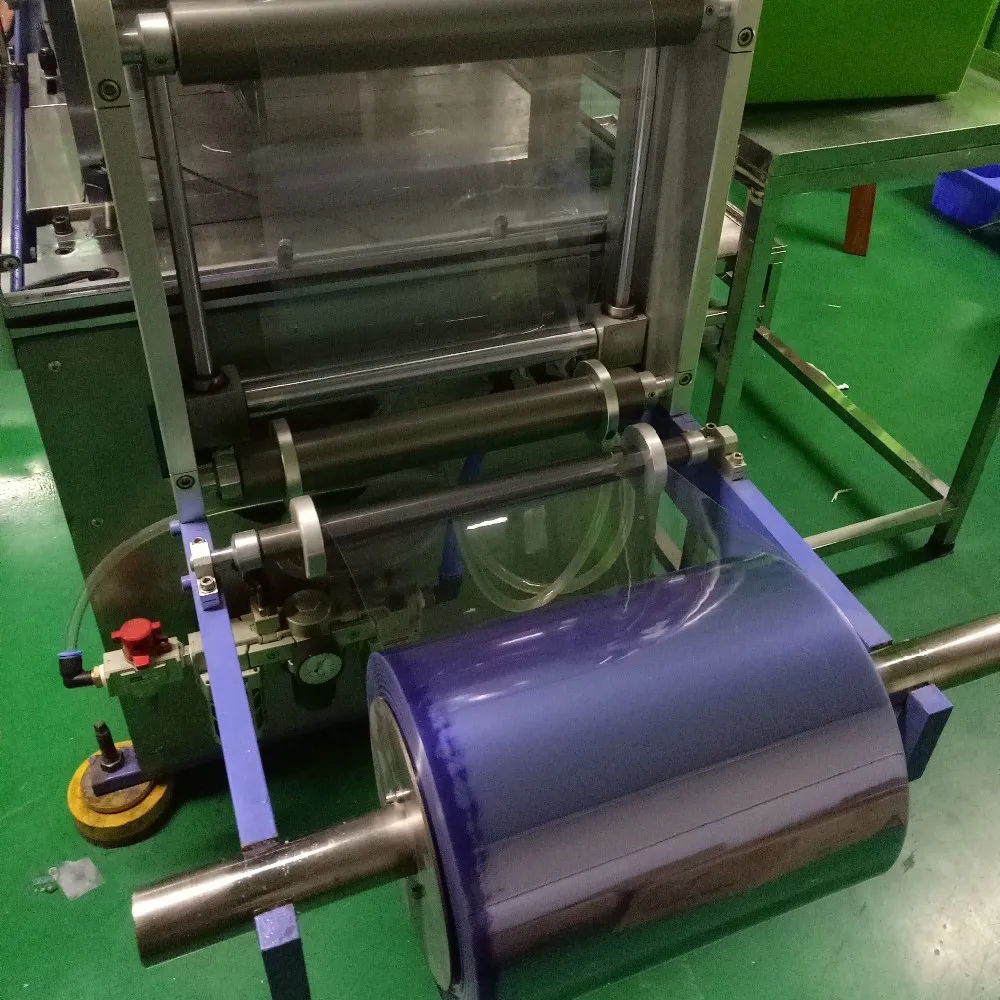

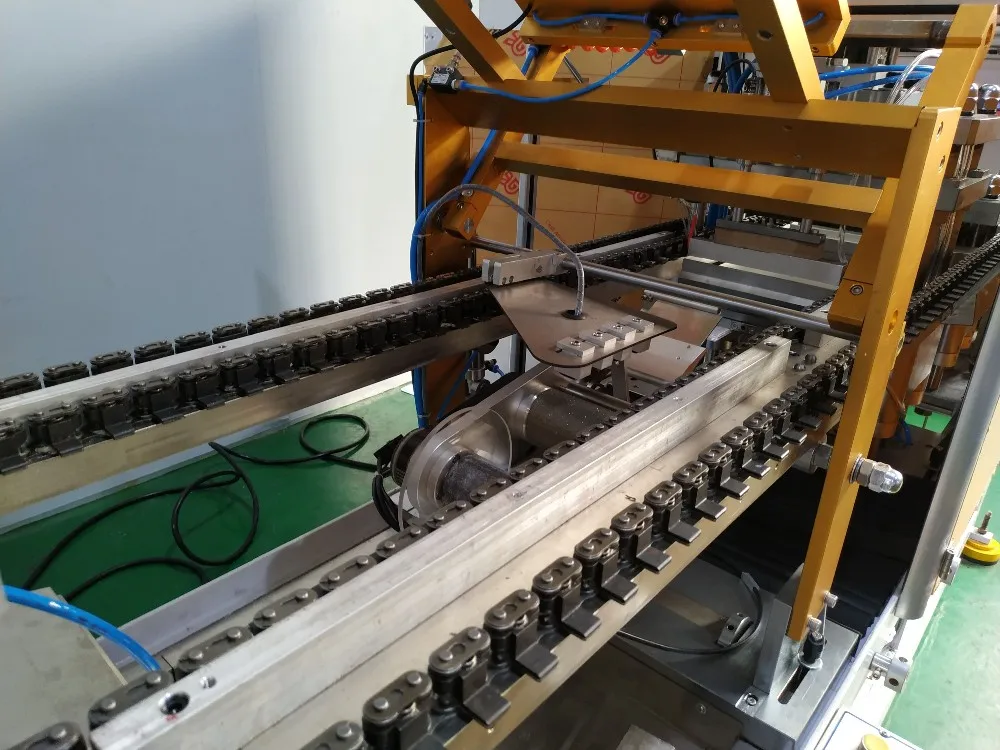

2 Film-drawing Part
Principle:
Using servo drive chain clamp film.
Features:
The film is positioned with a smooth tolerance of ±0.2mm, large adjustable stroke and filming without pasted.
3 Blister Part
Principle:
Using pneumatic slider position
Features:
Precise blister positioning depth, compact structure, low air consumption and easy mold replacement.

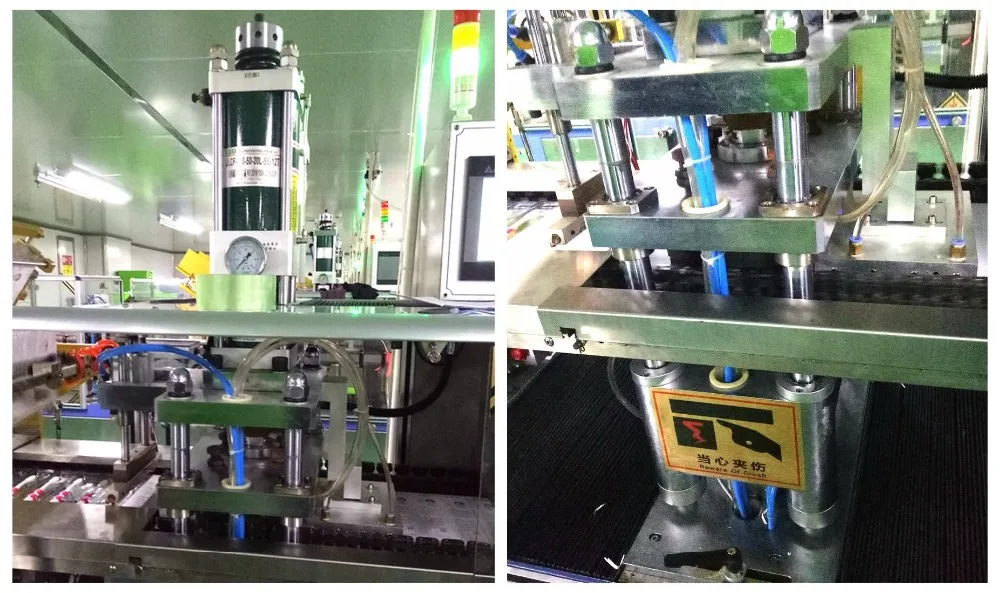

4 Heat-sealed Part
Principle:
Using heat sealed and adjustable liquid pressurized cylinder
Features:
Good heat-sealing paste effect, good flatness, high efficiency, strong adjustability of paper card thickness.

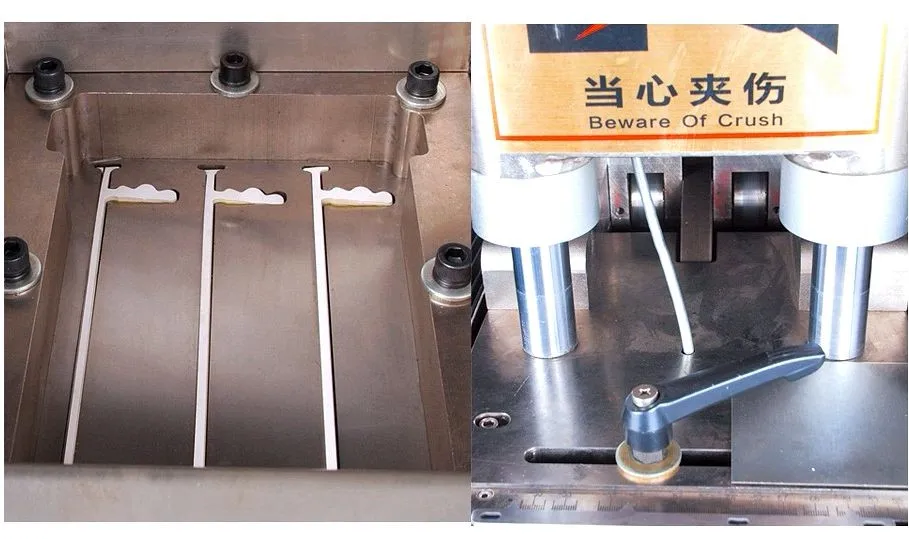

5 Punching part
Principle:
Using double cam with soft cutting and punching.
Features:
Low cost of punching die, easy replacement, small blanking force and low noise.

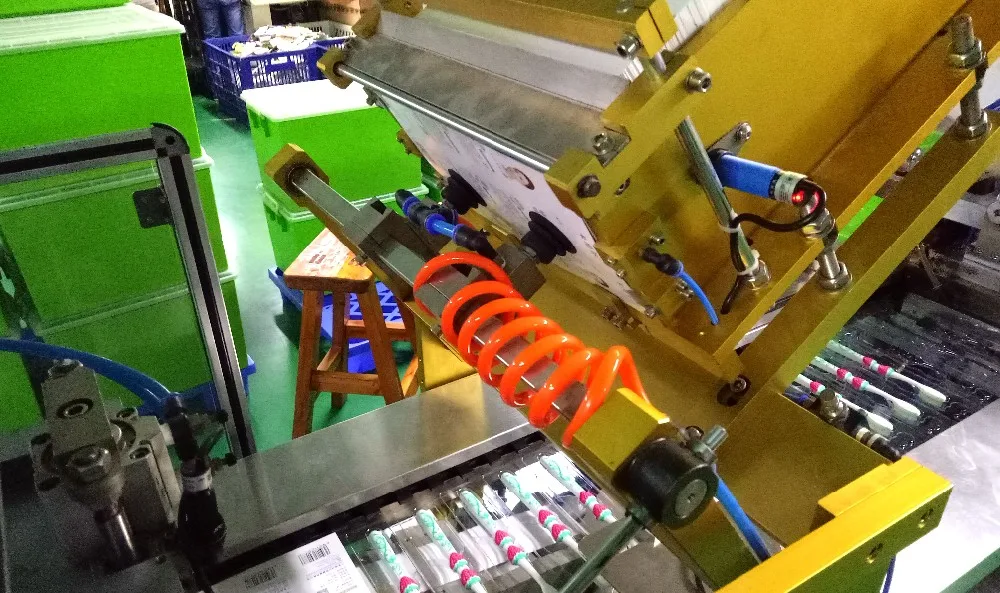

6 Paper Feeding Part
Using special scanning prospecting type.
Features:
(1) High resolution of front and back of the paper card, not cause heat-sealing sticky on the die.
(2) Multi-layer paper card detachable function.

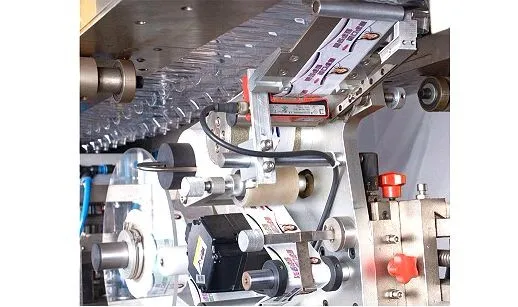

7 Labeling part
Principle:
Using servo drive reverse labeling.
Features:
High smooth accuracy of label positioning, strong adjust ability of three-axis and simple operation of exchanging the label.
8 Trimming and discharging part
Principle:
Using automatic layout of trimming material.
Features:
(1) Simple operation, small space, high production efficiency, low downtime rate, strong adjustability and no manual material removal.
(2) Foundation of matching equipment for automatic plug-in card.
9 Vacuum, Steam and Oil Circuit Parts
Principle:
Using automatic layout of trimming material.
Features:
(1) Simple operation, small space, high production efficiency, low downtime rate, strong adjustability and no manual material removal.
(2) Foundation of matching equipment for automatic plug-in card.

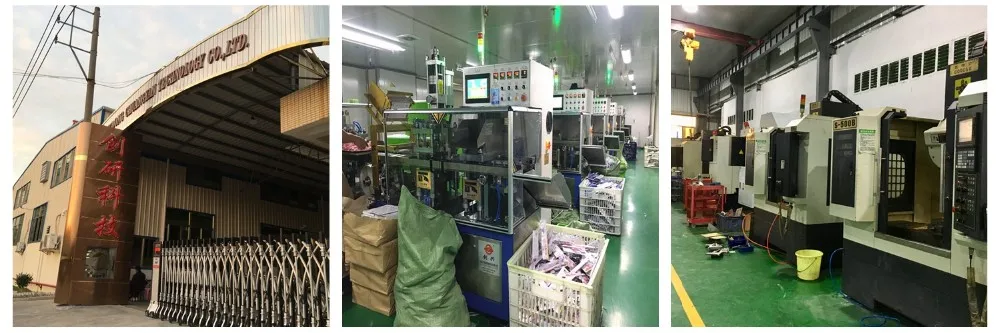

Our Company
Certifications
Our Service
Pre-Sales Service
* View our factory.
* Inquiry and consulting support.
* Provide advice based on buyer funds budget.
* Toothbrush whole production line support.
* Introduction raw material suppliers
After-Sales Service
* Training how to install and operate the machine.
* Engineers available to service machinery overseas.
* 1 year non-human damage warranty on spare parts.
Packing & Delivery
Packaging | ||
Size | 3950 * 1200 * 1900 (mm) | |
Weight | 2500kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request. | |
FAQ
1. Q: Are you a factory or trade company?
A: We are a factory of toothbrush machinery manufacturer.
2. Q: Where is your factory located in? How can I visit there?
A: Our factory is located in Shantou City, Guangdong Province, China. Warmly welcome to your visit!
Airport: Jieyang Airport
High speed train: Chaoyang Station / Puning Station (2-3 hours from Shenzhen/ HongKong /Guangzhou)
3. Q: What is your terms of payment?
A: 30% deposit first, and 70% balance before shipment.
4. Q: How long is the delivery time?
A: 30-40 days for tufting machine and trimming machine.
45-50 days for blister labeling packaging machine.
5. Q: What is the advantage of your products?
A: High-tech, pretty competitive price and superior after-sale service!
A: We are a factory of toothbrush machinery manufacturer.
2. Q: Where is your factory located in? How can I visit there?
A: Our factory is located in Shantou City, Guangdong Province, China. Warmly welcome to your visit!
Airport: Jieyang Airport
High speed train: Chaoyang Station / Puning Station (2-3 hours from Shenzhen/ HongKong /Guangzhou)
3. Q: What is your terms of payment?
A: 30% deposit first, and 70% balance before shipment.
4. Q: How long is the delivery time?
A: 30-40 days for tufting machine and trimming machine.
45-50 days for blister labeling packaging machine.
5. Q: What is the advantage of your products?
A: High-tech, pretty competitive price and superior after-sale service!
