Best-selling mini scrap copper cable wire granulator grinding recycling equipment mini cable granulator machine for sale
- Category: Metal & Metallurgy Machinery >>>
- Supplier: Xi'an,Acce,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
VR
This is our factory's 3D real-world display, you can click the picture to enter, it contains other products of our company, and if there are other products you need.
Product Description

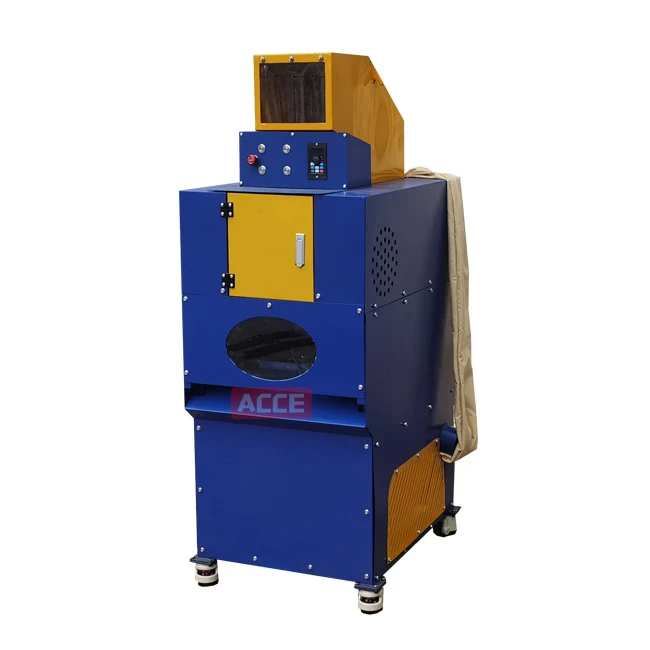

C02 copper wire separating machine is ACCE new design for small factory and medium waste station owners.
If you are looking for a machine with big capacity ,small footprint and easy to operate.
This C02 copper wire separating machine is the best choice for you.
C02 copper wire separating machinecan process all kinds of cable below 30mm like household cables, scrap cables, electrical wire and so on.
Bottom price for biggest profit.
The opportunity is in front of you, Contact us!
If you are looking for a machine with big capacity ,small footprint and easy to operate.
This C02 copper wire separating machine is the best choice for you.
C02 copper wire separating machinecan process all kinds of cable below 30mm like household cables, scrap cables, electrical wire and so on.
Bottom price for biggest profit.
The opportunity is in front of you, Contact us!
Model | Capacity | Range | Power | Weight | Mea |
V-C02 | 20-40kg/h | 0.1-30mm | 4.2kw | 328kg | 88*74*173cm |
V-C03 | 30-50 kg/h | 0.1-30mm | 5.18kw | 515kg | 100*58*170cm |
V-C06 | 50-80 kg/h | 0.1-30mm | 12.19kw | 1200kg | 185*165*224cm |
V-C10 | 100 kg/h | 0.1-30mm | 19.59kw | 1500kg | 2.5*5.5*2.1m |
V-C20 | 200 kg/h | 0.1-30mm | 23.59kw | 1900kg | 2.5*5.5*2.1m |
V-S10 | 100-150 kg/h | 0.1-30mm | 17.73kw | 900kg | 1.45*1.33*2.1m |
V-S20 | 200-300 kg/h | 0.1-30mm | 26.75kw | 2400kg | 2.7*2*2.1m |
V-S30 | 400-500 kg/h | 0.1-30mm | 49.11kw | 3200kg | 3.9*2*2.25m |
V-S35 | 600-800 kg/h | 0.1-30mm | 74.66kw | 5Tons | 11*6*2.25m |
V-S50 | 800-1200 kg/h | 0.1-30mm | 69.22kw | 8.5Tons | 7.2*7.5*2.2m |
V-S55 | 1200-1800 kg/h | 0.1-30mm | 94.77kw | 8.5Tons | 15.5*7.5*2.2m |
* The voltage can be customized according to your requirements (the voltage of each country is different)
Application
The applicable range of the wires diameter from 0.3 mm to 30 mm, such as automobile electrical wires, car bottom wires, motorcycle electric wires, computer copper wires and communication cable, etc.

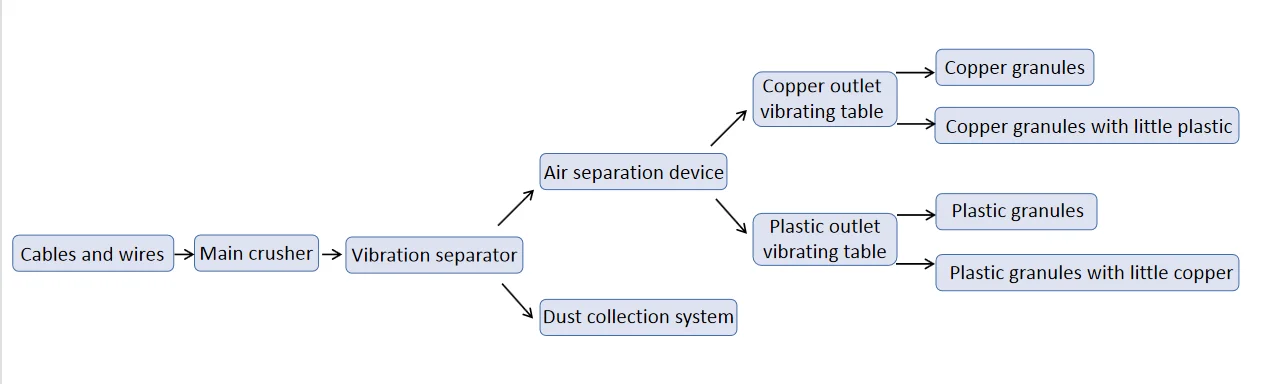

Process flow of copper wire separator:
1. Put the cables into the feed hole, the main crusher will crush cables into mixed granules.
2. The separation device separates copper and plastic from the crushed mixed particles, and the dust collection system collects
dust at the same time
3. Then the vibrating table separates the pure copper for the second time
1. Put the cables into the feed hole, the main crusher will crush cables into mixed granules.
2. The separation device separates copper and plastic from the crushed mixed particles, and the dust collection system collects
dust at the same time
3. Then the vibrating table separates the pure copper for the second time
Copper wire granulator recycling machine advantage:
1. ACCE manufacture the latest smallest mini copper wire granulator recycling machine. Mini size, capacity is about 20-40kg/h.
2. The knife is equipped with KSD-11/D2 material (HRC), strong toughness, wear-resistant and durable, and the blade is sharper.
3. Supports single phase electricity, ideal for home and small factory use.
4. Cheapest and affordable, suitable for wholesale.
5. Universal wheels for easy movement.

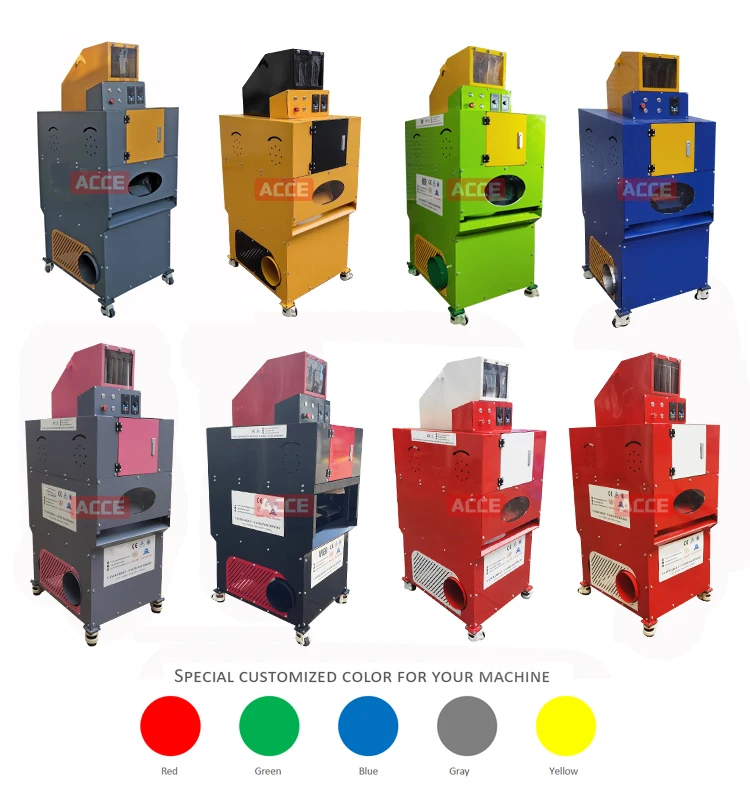

6. Also can custom your voltage and color
Our Services
We Support:
1.Strong R&D capabilities
*Support solution customization:
-Your OEM ODM custom
-Your logo and color
-Your voltage/capacity
*Large machinery has stable quality
*Controllable delivery time
*Controllable delivery time
2.Lifetime After-sales
*Factory machine inspection:
-Video call to see the factory
-Provide test video before delivery
*1 Year warranty
*Video guided installation
*Free replacement parts within one year
Packing & Delivery
* Packing the machine with wooden box, or delivery with Container without packing, to prevent them from destroying during transportation.
* We will choose the most convenient and economic way to delivey goods for you.
* If you have specific demand with delivey, we can make it.
* We will choose the most convenient and economic way to delivey goods for you.
* If you have specific demand with delivey, we can make it.
Customer Feedback
Certifications
Company Profile
ACCE Machinery Co.,Ltd is a professional manufacture for various recycling equipment since 1995. With strong independent production , reseach and development capabilities. Our Main Products are copper wire granulator, wire stripping machine, shredder machine, ac radiator recycling machine, electric motor recycling machine, metal baler, plastic shredder, metal cutting machine,etc.
