Product Overview

Description

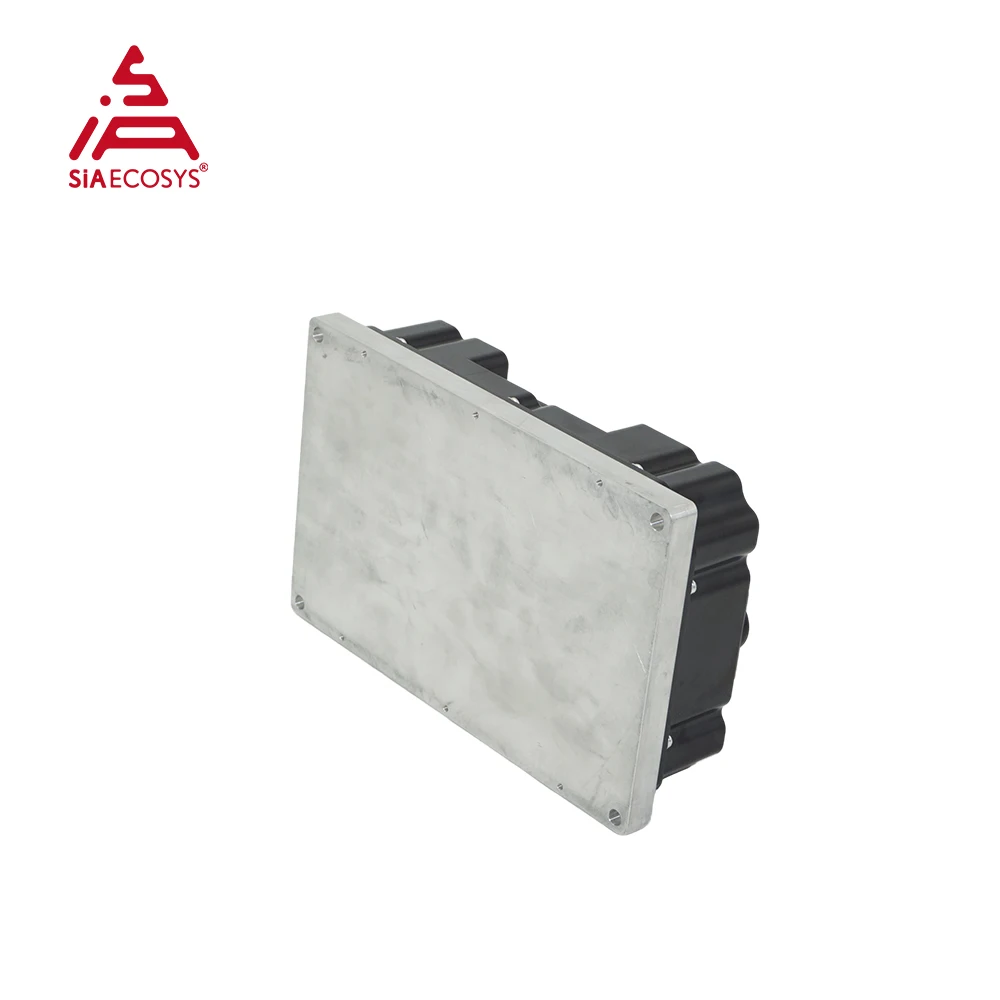

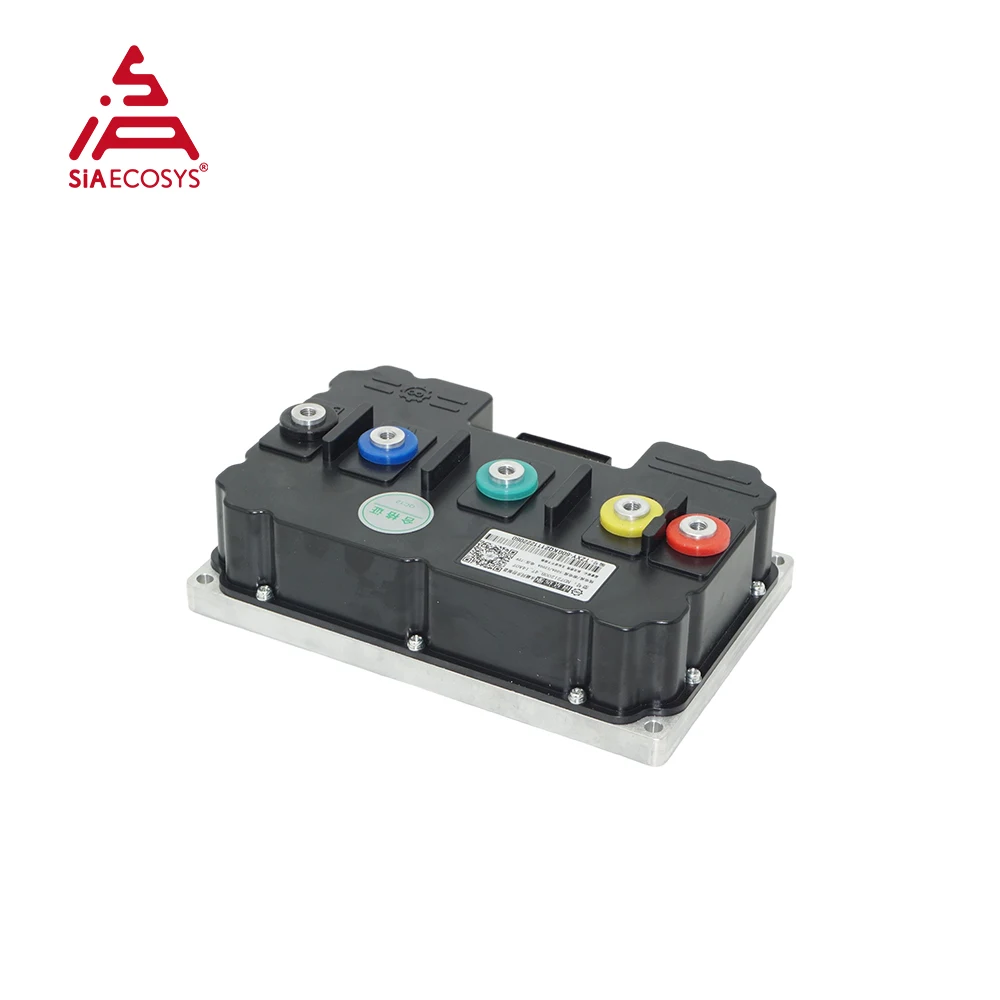

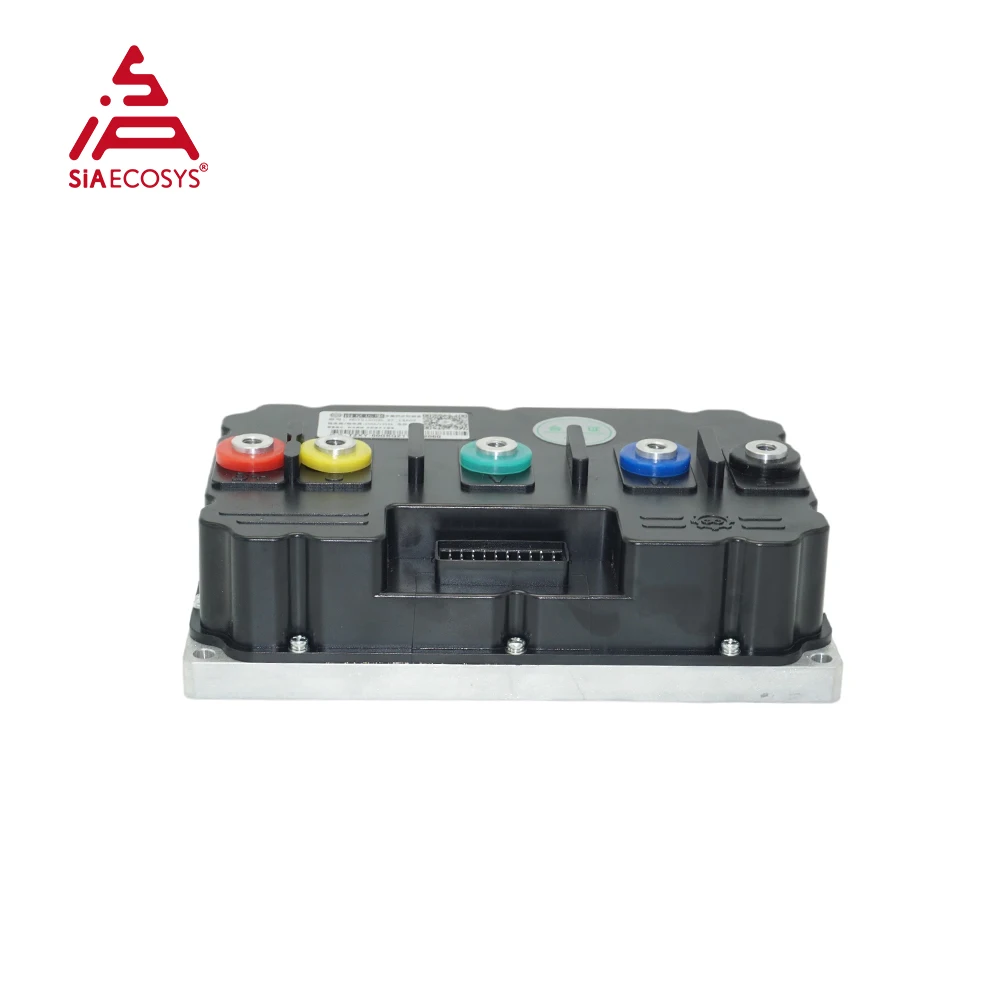

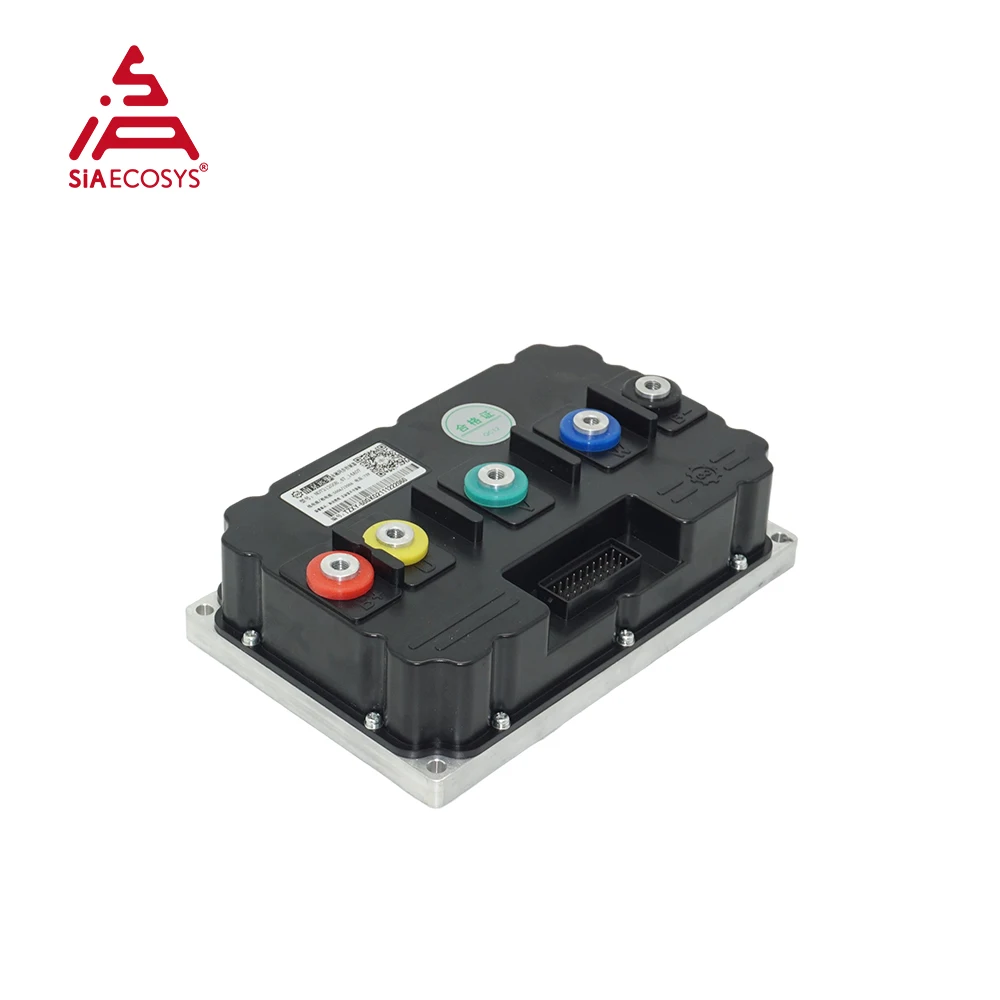

SIAECOSYS/FarDriver ND961800/ND721800 BLDC 800A 10-15kW High Power Electric Motorcycle Controller With Regenerative Braking Function

FarDriver controller is sine wave type controller, which is brushless DC controller with self-learning function. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.

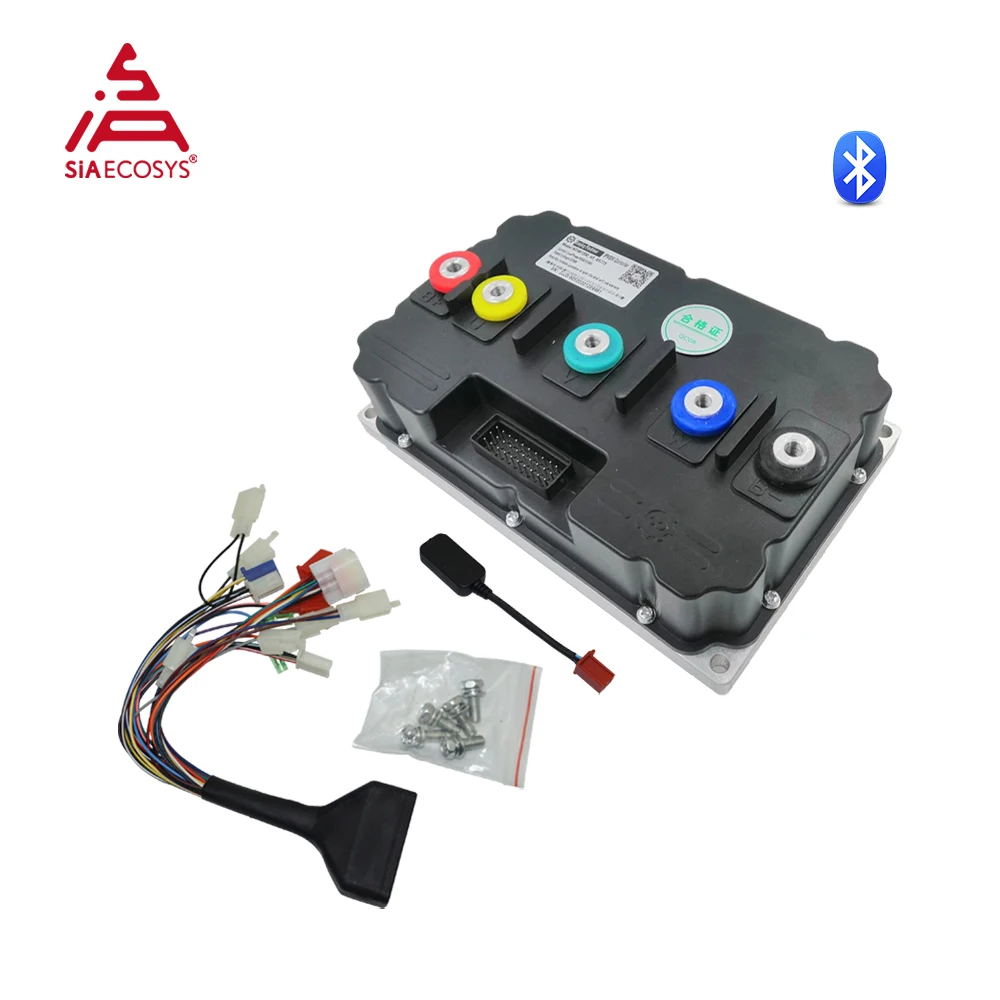

Combo1.

One set including below kits

1. 1pcs X ND961800 sine wave controller

2. 1pcs X Blue-tooth adaptor

Combo2.

One set including below kits

1. 1pcs X ND721800 sine wave  controller

2. 1pcs X Blue-tooth adaptor







Key Features

1). All the raw materials are imported, using high-performance Moss tube, full metal shielding and aluminum die heat dissipation structure, the hardware architecture and software implementation are perfectly matched and refined.

2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board

3). Small in size

4). High efficiency, low temperature rise, small running current

5). With self-learning function, excellent commonality

6). The app compatible with Android and Apple

7). With flux weakening function.(The product does not contain magnetism)



Product Description

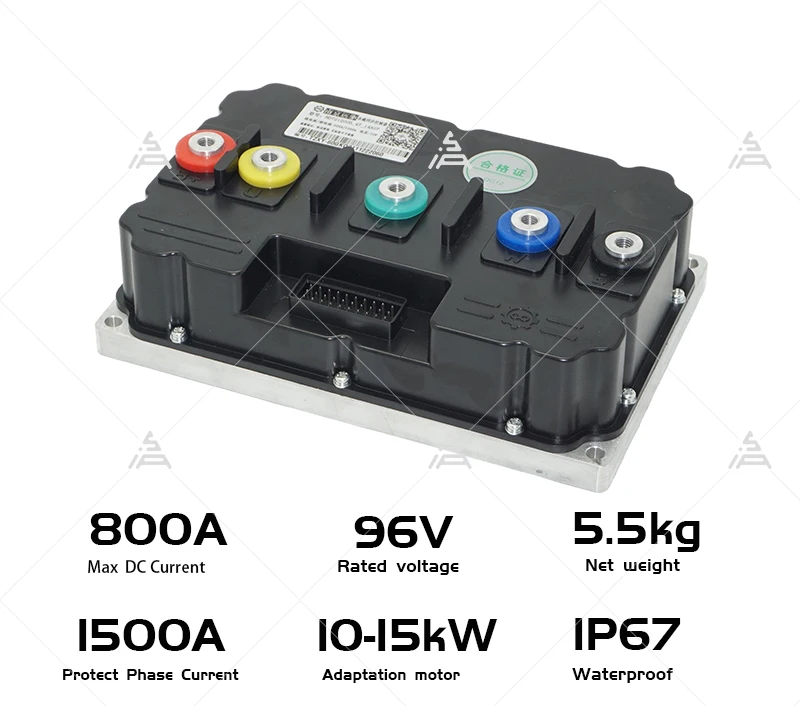

ND721800 and ND961800 are sine wave controller with waterproofing grade IP67, suit for 10-15kw motors.

For ND721800,  the peak voltage is 88V

For ND961800,  the peak voltage is 115V and the mosfet inside more resistant to temperature than ND721800.

It’s hall version (as default) which suit with hall motors.

It could also support encoders, please check with sales.



ND721800

ND961800



Drawing

Adapter Cable

Blue-tooth

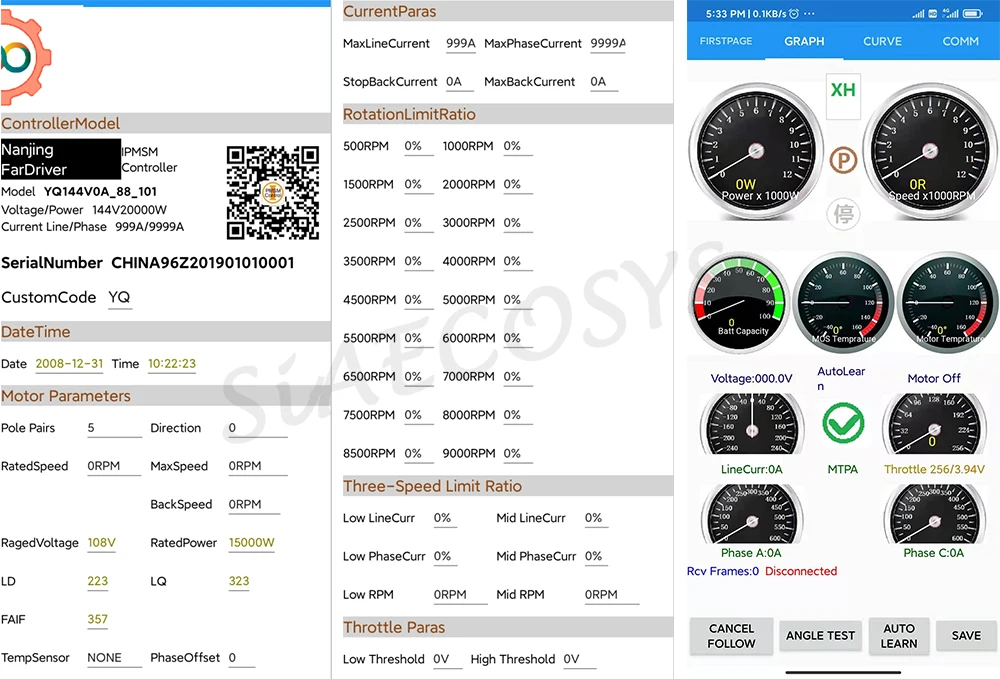

Software interface(APP)



Programmable Software & User manual (Before you received the controller)

Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
