Sand And Gravel Crushing Machine Vertical Shaft Impact Crusher For Sand Making Production Line
- Category: Sand Making Machinery >>>
- Supplier: Henan,Liming,Heavy,Industry,Science,And,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Notice For Price:
1. The configuration and price are different according to different requirements.
2. All prices on this page are auto-generated virtual prices. Please contact us for quotation!
Sand And Gravel Crushing Machine Vertical Shaft Impact Crusher For Sand Making Production Line
 | Sand And Gravel Crushing Machine Vertical Shaft Impact Crusher For Sand Making Production Line is popular in the market. This machine can satisfy customers’ requirements about efficiency and capacity, because its service life is increased by 48%, the costs are reduced by 30%, and the throughput of materials is improved by 30%. |

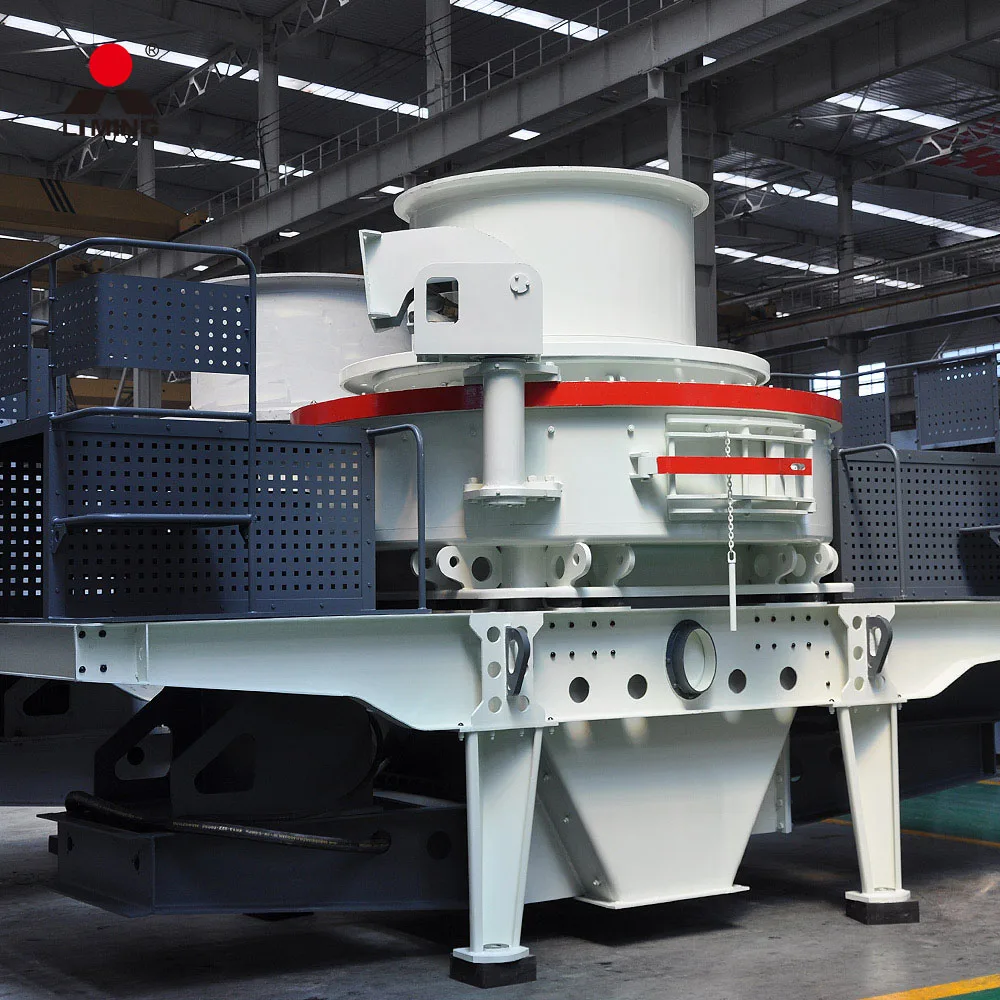

| VSI5X Vertical Shaft Impact Crusher |
Technical Parameters
Model | VSI5X7615 | VSI5X8522 | VSI5X9532 | VSI5X1145 | |
Throughput capacity (t/h) | Center and Ring feeding | 150~280 | 240~380 | 350~540 | 500~640 |
| Center feeding | 70~140 | 120~190 | 180~280 | 250~360 |
Max. Feed Size (mm) | Soft material | <35 | <40 | <45 | <50 |
| Hard material | <30 | <35 | <40 | <45 |
Rotation speed (r/min) | 1700~1900 | 1500~1700 | 1300~1510 | 1100~1310 | |
Power of double motor (KW) | 2×75 (100) | 2×110 (150) | 2×160 (220) | 2×220 (300) | |
Overall dimension L×W×H (mm) | 4100×2330×2300 | 4140×2500×2700 | 4560×2600×2900 | 5000×2790×3320 | |
Weight (t) | 8.6 | 11.8 | 17.5 | 27.5 | |
Thin oil lubrication station | Power for double oil pump | 2×0.25(0.33) | |||
| Safety | TO make sure the supply of the oil with double oil pump; stop working without oil or hydraulic pressure; temperature falls when the water cool;start the motor by heating it in winter | |||
| Power for oil box heater | 2 KW | |||
| Overall dimension L×W×H (mm) | 820×520×1270 | |||
Customer Sites
Related Products
Our Strength
Why Choose Us?
| ♦ We are manufacturer of stone crushers and grinding mills since 1987. |
| ♦ We follow the standard of CE, ISO9001, Ghost, CU-TR. |
| ♦ Our factory convers 150000 m³. Welcome to see machines! |
| ♦ We send engineers for installation, commissioning and training. |
| ♦ We have sufficient spare parts in stock. |
| ♦ We have lots of production sites running aroud the world. |
| ♦ Fast maintenance system to deal with customers's after sales issue in time. |
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% of total prices should be paid by T/T as down payment; 70% balance payment should b paid by T/T before delivery.
Q4: How long is the warrenty of your equipments? Does your company supply the spare parts?
A: The warranty period of crusher equipments is one year. And we will supply the spare parts for you at lowest cost.
Q5: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas.
Product Inquiry
Thanks for your trust! We can provide you with design scheme for complete production lines according to your demands and the site conditions. In order to recommend a suitable model for you and send you a best quotation. So please give us more information about your requirement.
1. What is the raw material to be processed?
2. What is your required capacity (t/h)?
3. What is the input size of the raw material?
4. What is the output size of the product you want?
Look forward to your inquiries! We will recommend the proper machine for you!
