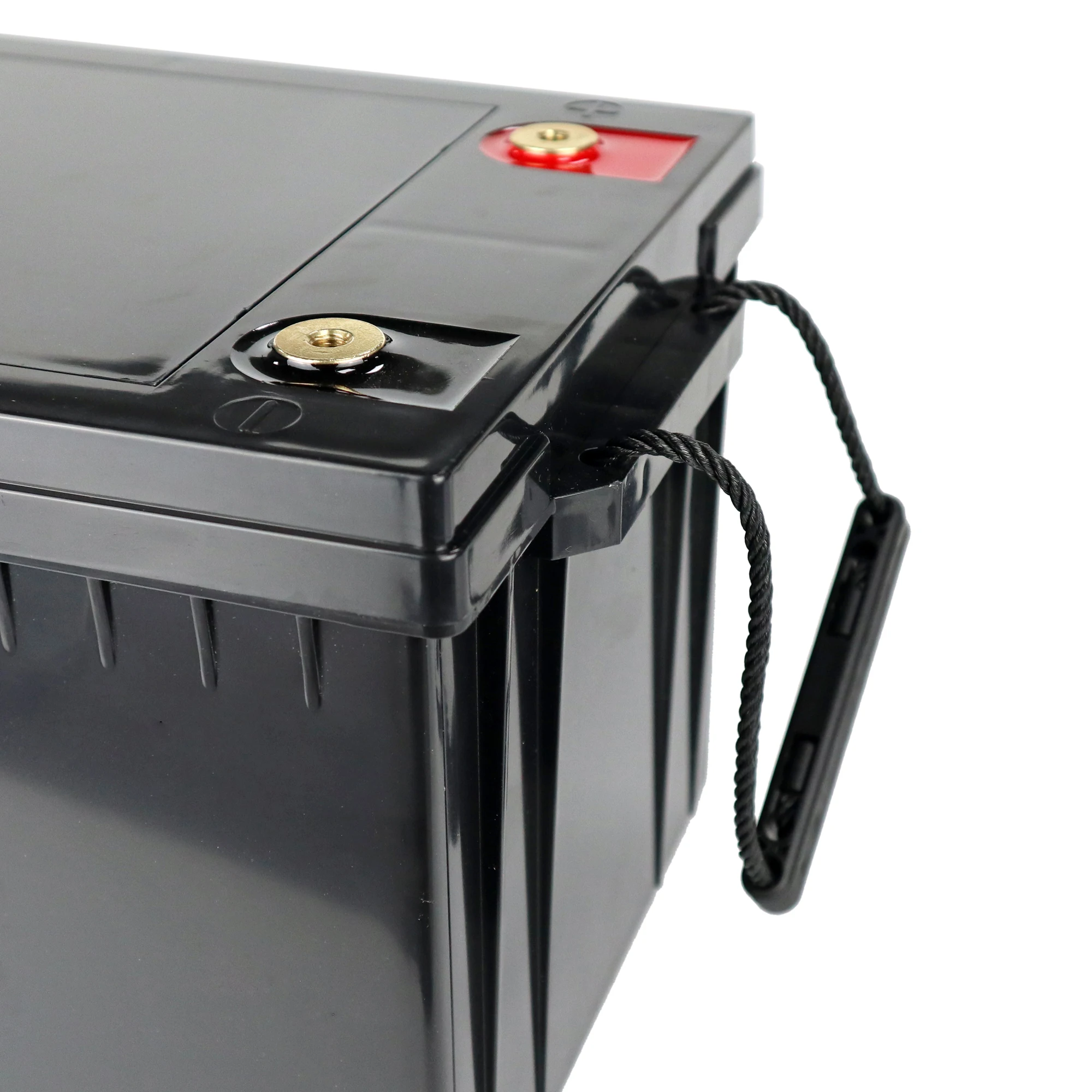

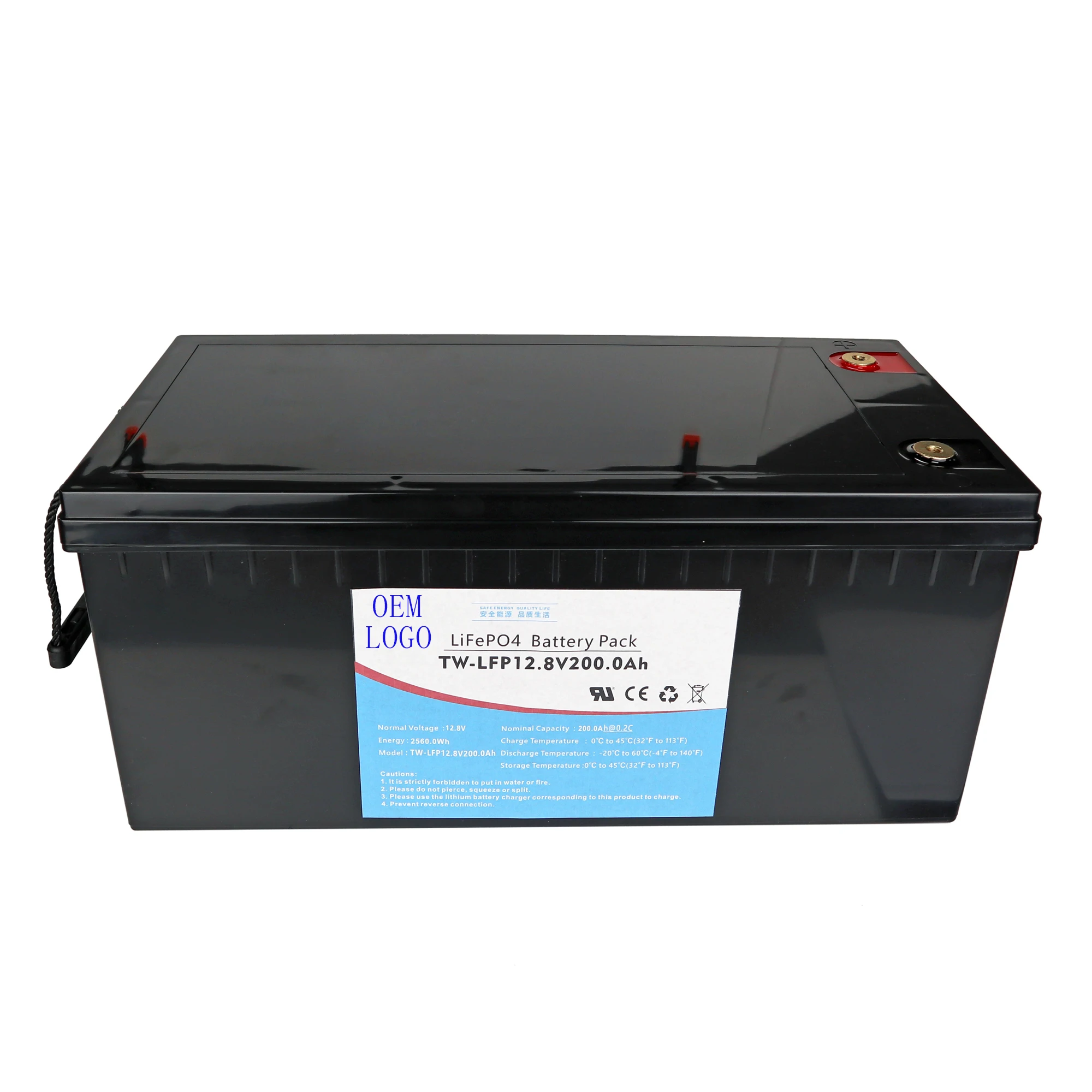

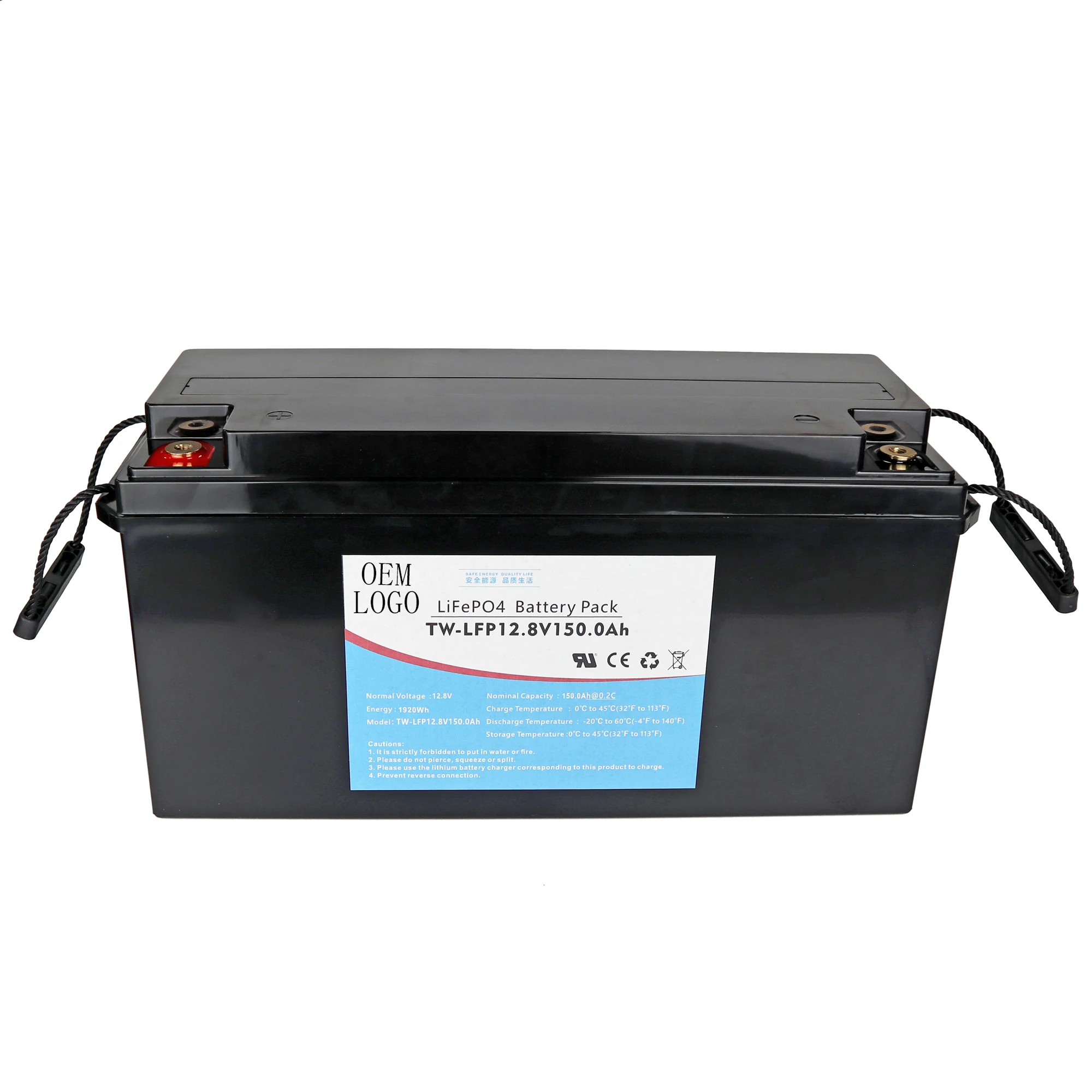

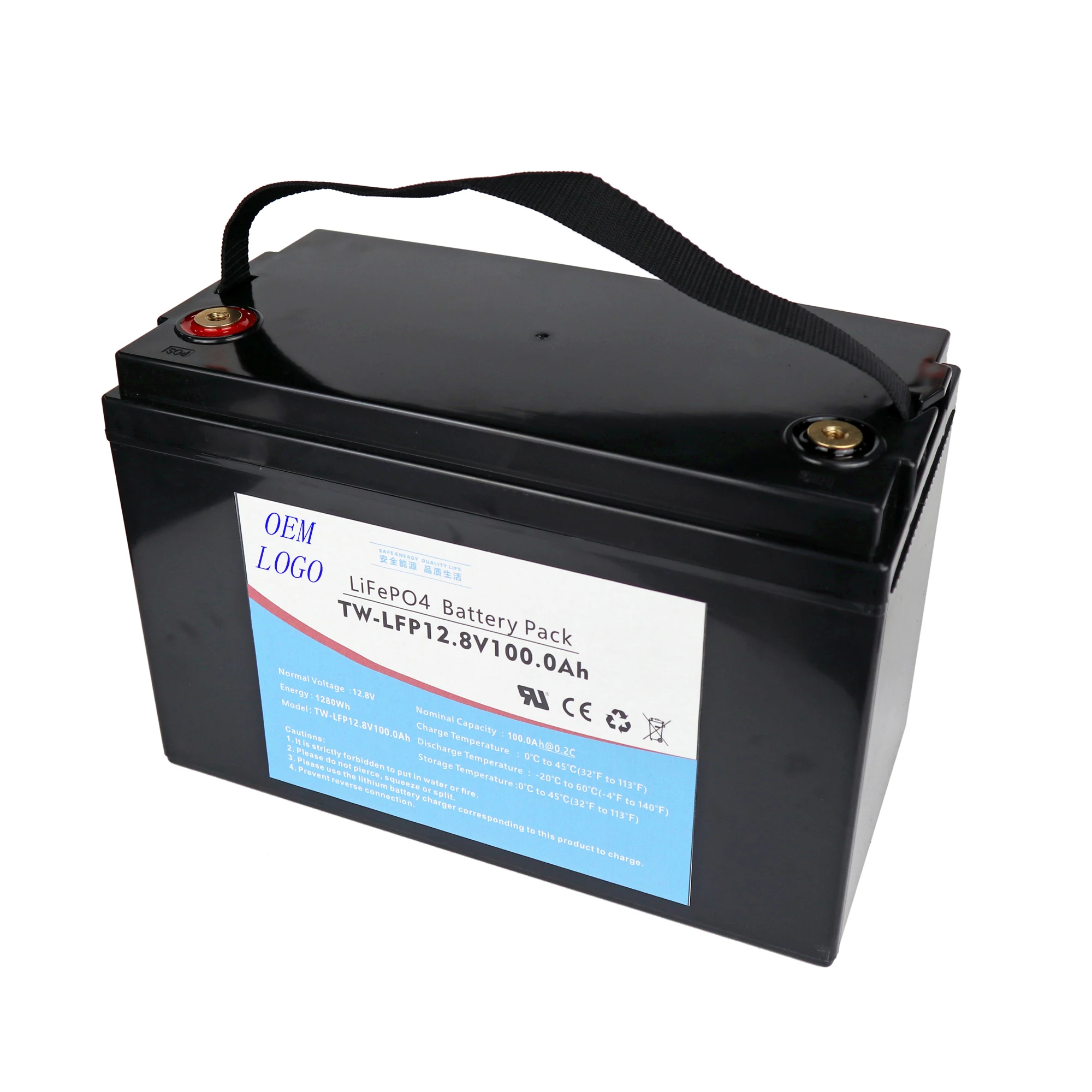

LiFePo4 Battery Pack12v 24v 48v 200ah 300ah 400ah 100ah 150ah Lifepo4 Battery Pack
- Category: >>>
- Supplier: Shenzhen Sunhills Network Technology Co. Ltd.
Share on (1600536519061):
Product Overview
Description

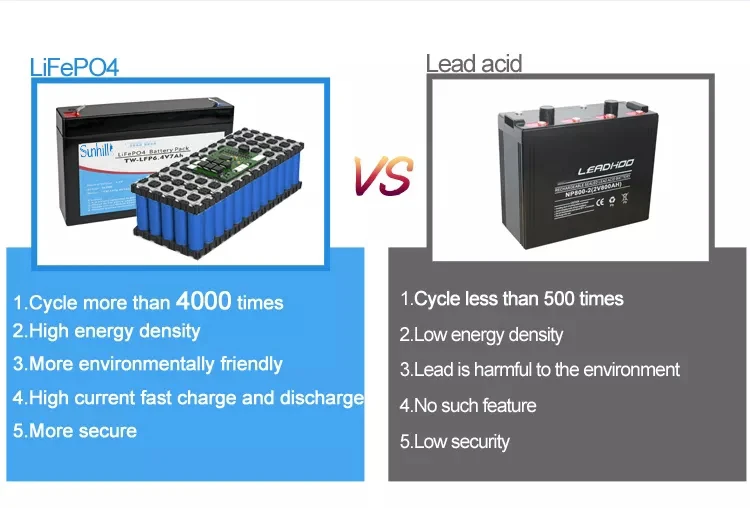

1.Cycle more than 4000 times
2.High energy density
3.More environmentally friendly
4.High current fast charge and discharge
5.More secure
Electrical Characteristics | Nominal Voltage | 12.8V |
Nominal Capacity | 200Ah 0.2C | |
Energy | 2560Wh | |
Internal Resistance | ≤15mΩ | |
Cycle Life | 2000 Cycles 40A Charging/Discharging ,Until 70% Capacity | |
Self Discharge | ≤3.5% per month at 25℃ | |
Standard Charging | Max.Charging Voltage | 14.4~14.5V |
Charging Mode | At 0℃~45℃ temperature, charged to 14.4V at a constant current of 40A, and then,changed continuously with constant voltage of 14.4V until the current was not more than 4A | |
Charging Current | 40A | |
Max.Charging Current | 100A | |
Standard Discharging | Discharging Current | 40A |
Max. Continuous Current | 100A | |
Max.Pulse Current | 200A(<3S) | |
Discharging Cut-off Voltage | 10.0V | |
Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
water Dust Resistance | IP55 | |

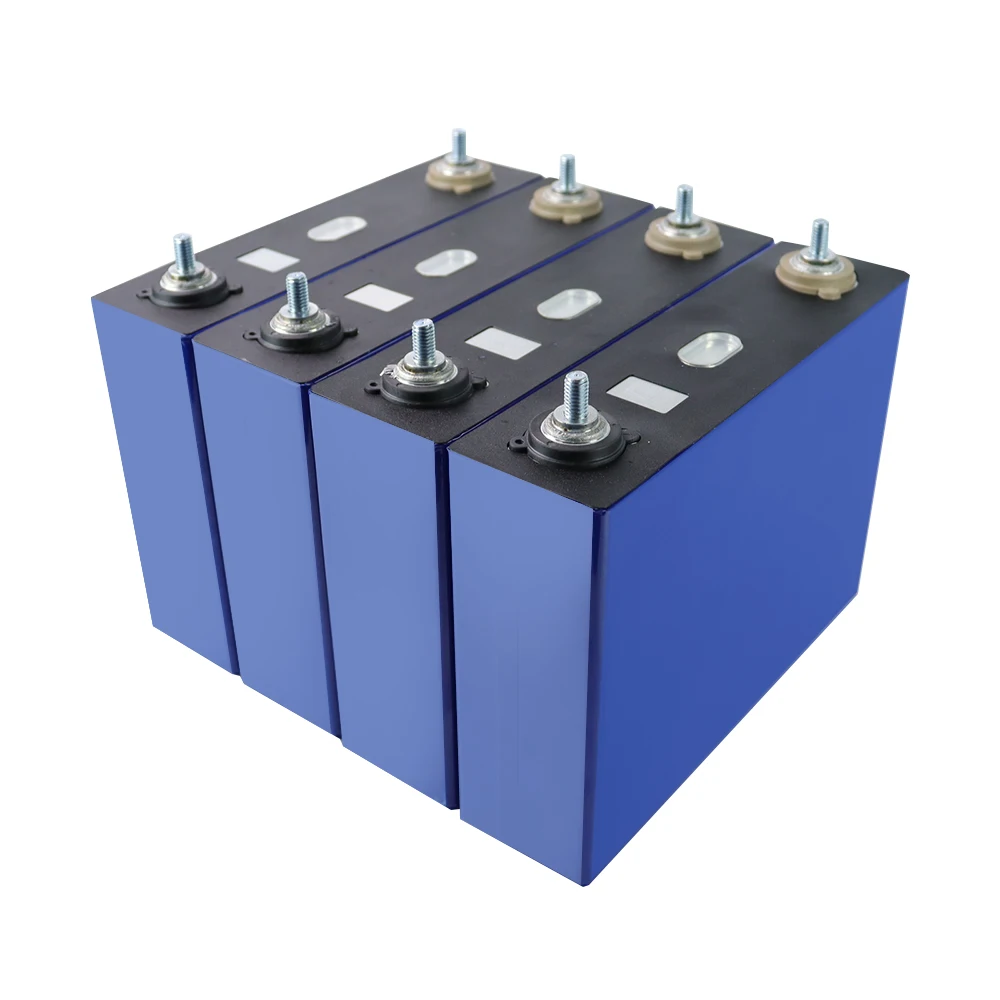

Structure | Cell & Format | IFR32700 N60&4S34P |
Casing | Plastic | |
Dimension(L*W*H*TH) | 522*238*218mm | |
weight | Approx. 27.0Kg | |

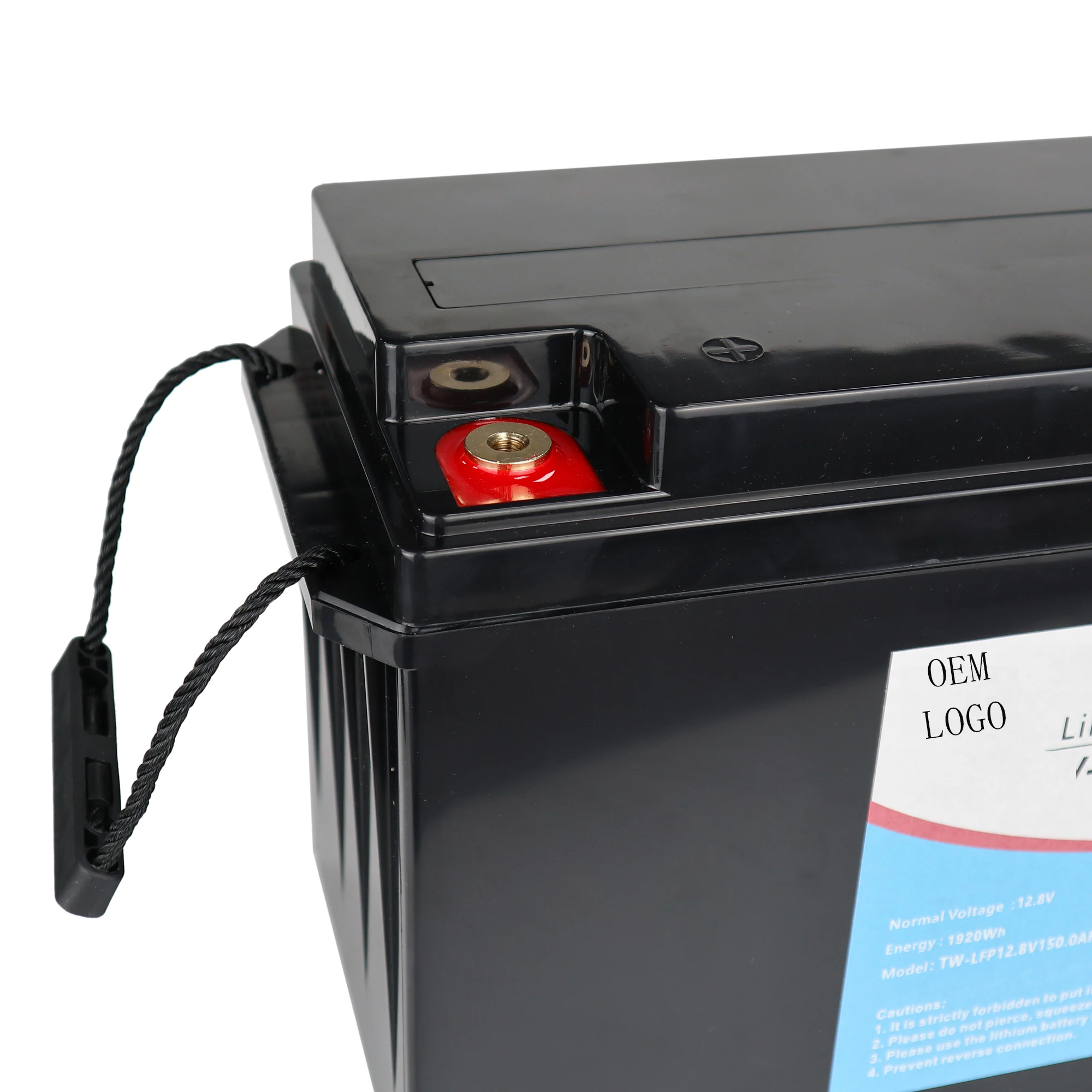

Terminal | M8 |
