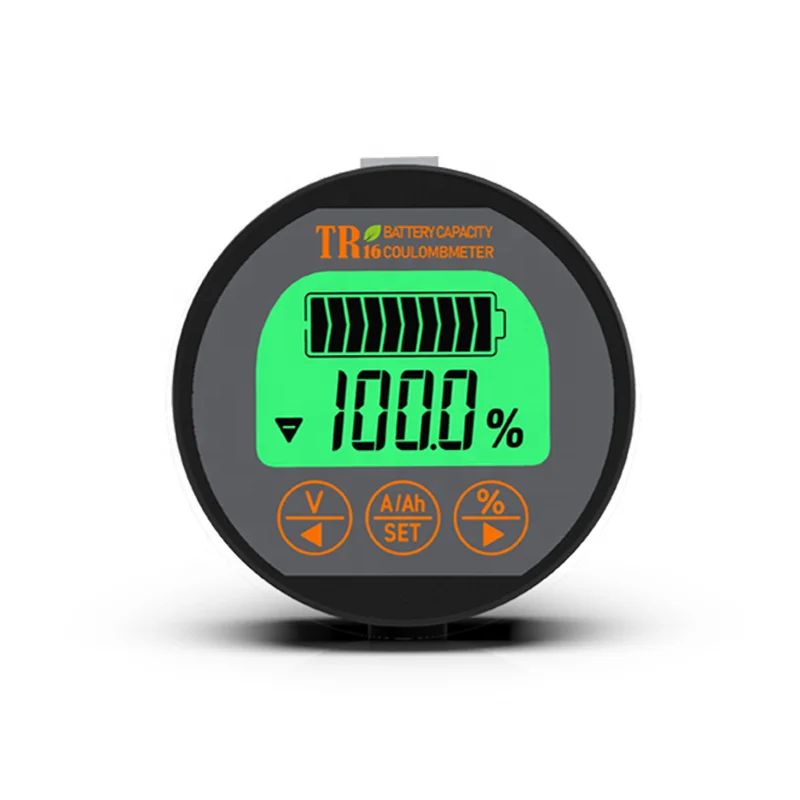

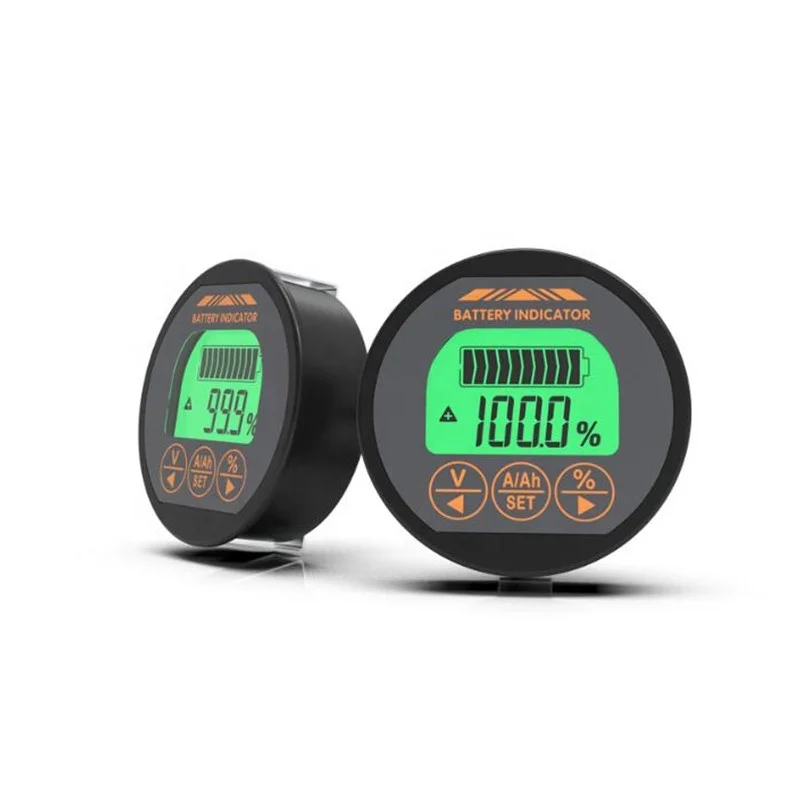

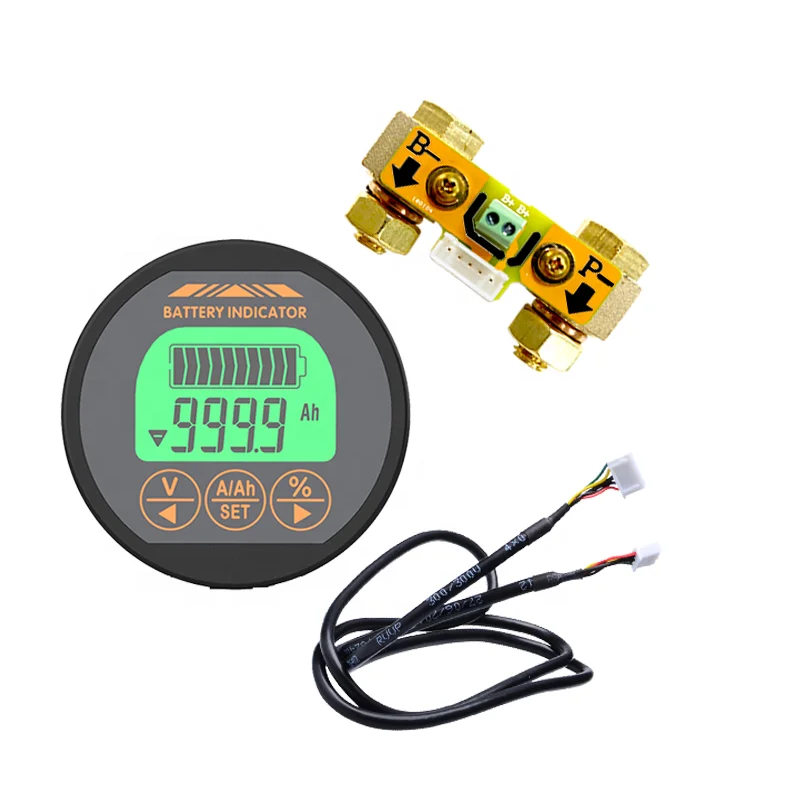

BW TR16H 350A OEM Battery coulometer charge and discharge battery level indicator battery monitor capacity tester
- Category: >>>
- Supplier: Yangzhou Sinowi Electronic Co. Ltd.
Share on (1600536575314):
Product Overview
Description
Product Description
Product Name | TR16H Battery monitor |
Scope of use | Voltage range:8-120V Current range:0-500A |
Function | Detect battery percentage, voltage, current, capacity |
Package | One set size: 15*15*5cm, weight 480g |

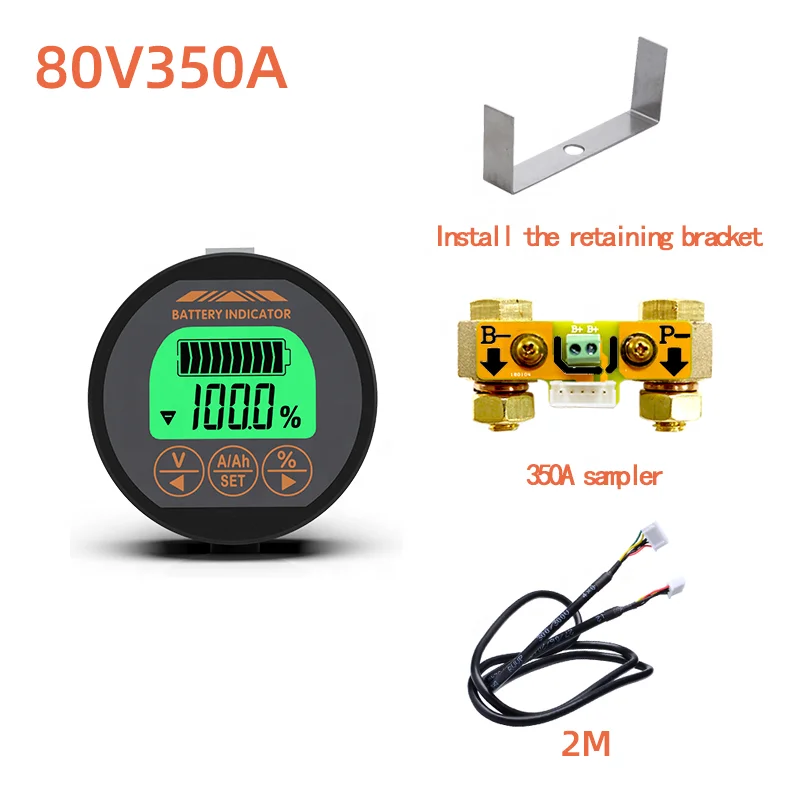

TR16H Battery tester (100v350A)
●TR16 is a common high-accuracy current collecting type of coulombmeter, it can correctly measure voltage, current, capacity in real time. It can help user accurately understand work status of battery pack, with power-down memory function.
●Applicable for portable device, balance bike, electric car, vacuum cleaner, measuring device, medical device, various instruments, etc.

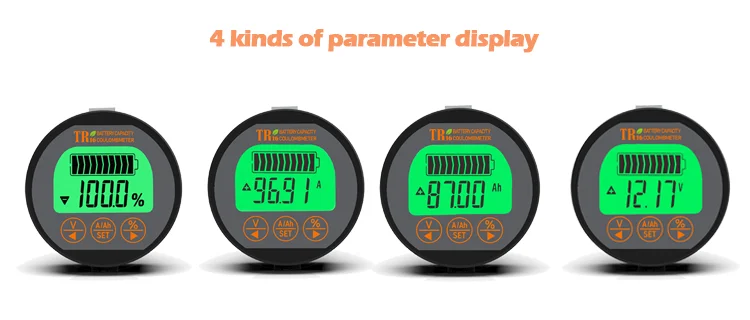

Display interface

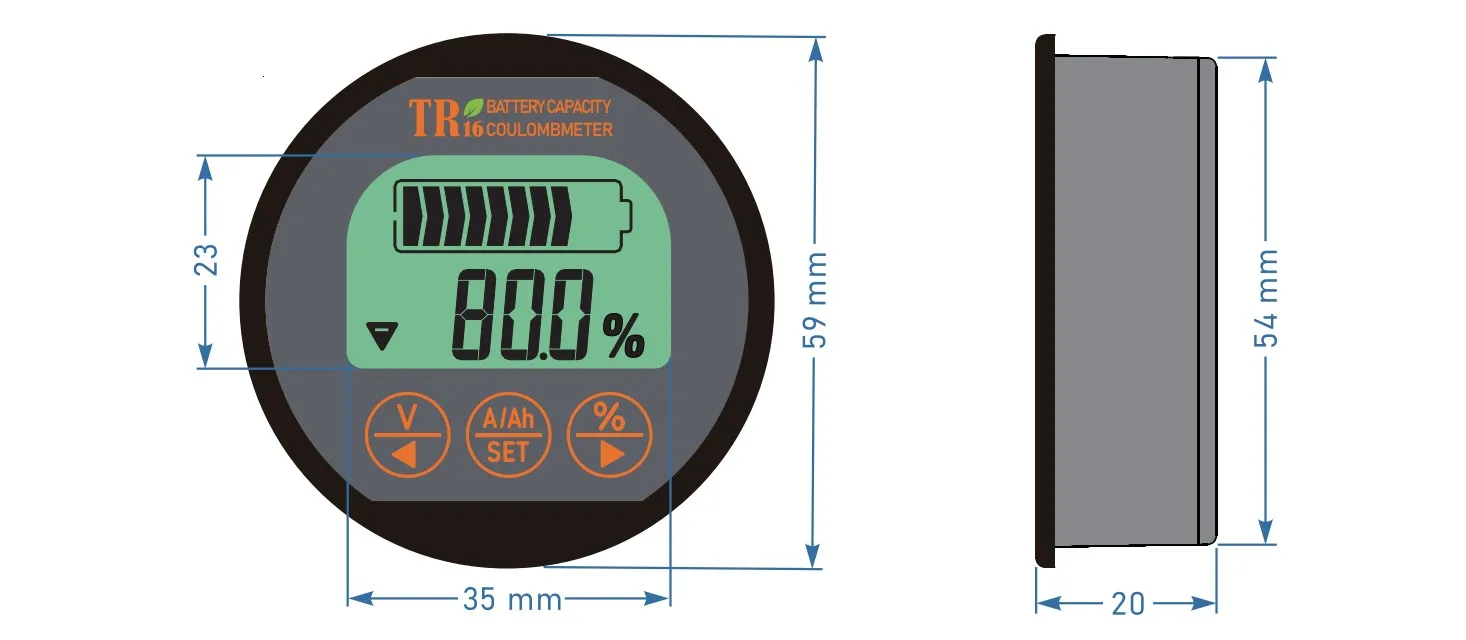

Product Size

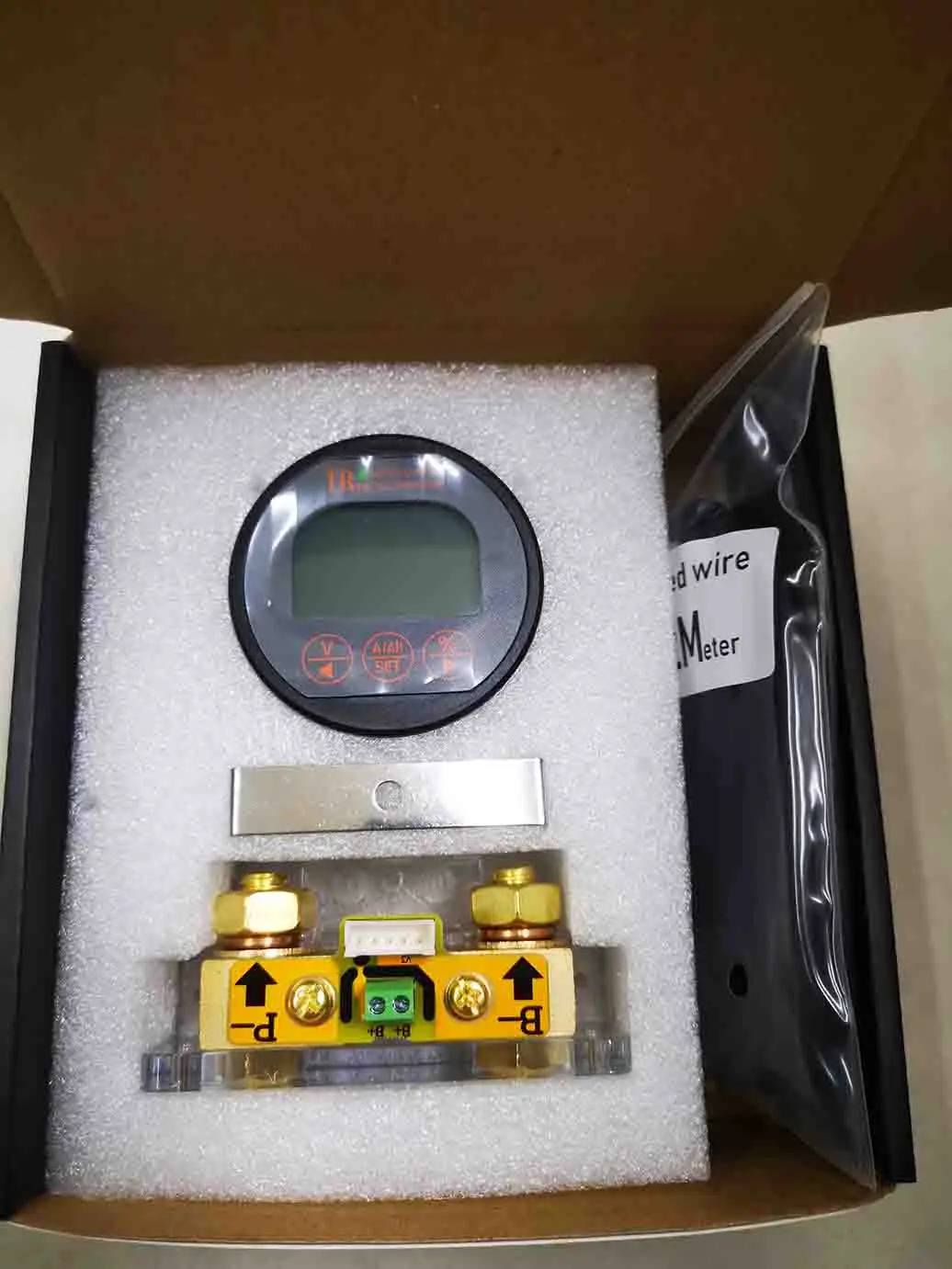

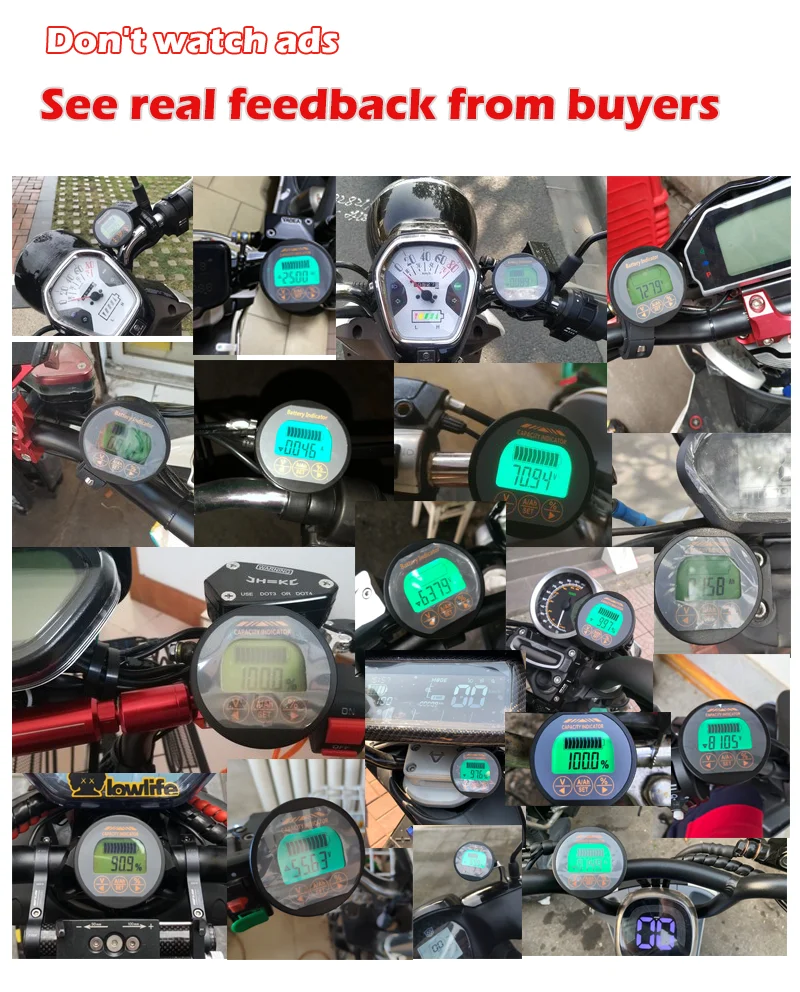

Buyer's photo
Every picture is real feedback from buyers, supported and loved by many customers

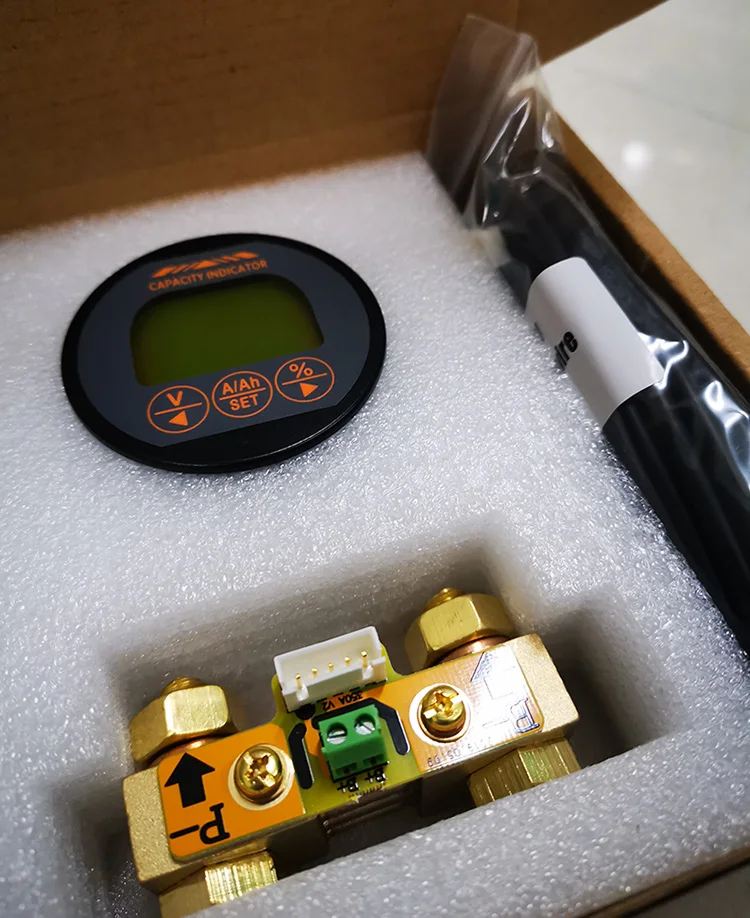

Details Images
Good products surprise you everywhere
The sampler body and screws are all made of pure copper materials to ensure stable and reliable sampler accuracy

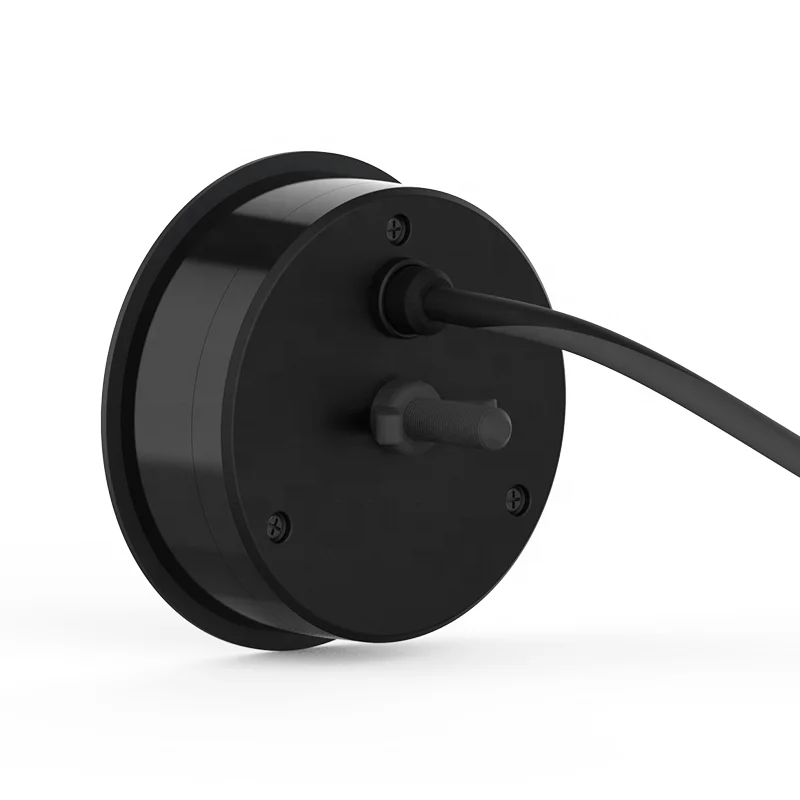

The display shell is made of PC material, and the back uses a silicone waterproof plug to ensure stable waterproof performance of the screen

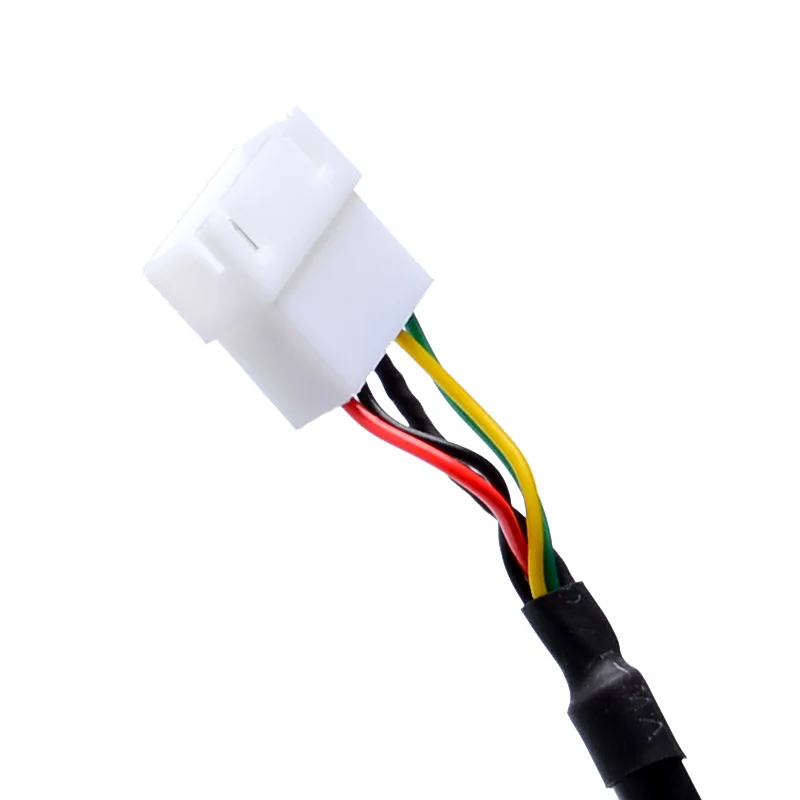

The wire connecting the display screen and the sampler adopts 5-core shielded wire, which is anti-interference and more stable. The plug adopts gold-plated plug, and the details go to every place
Product Usage

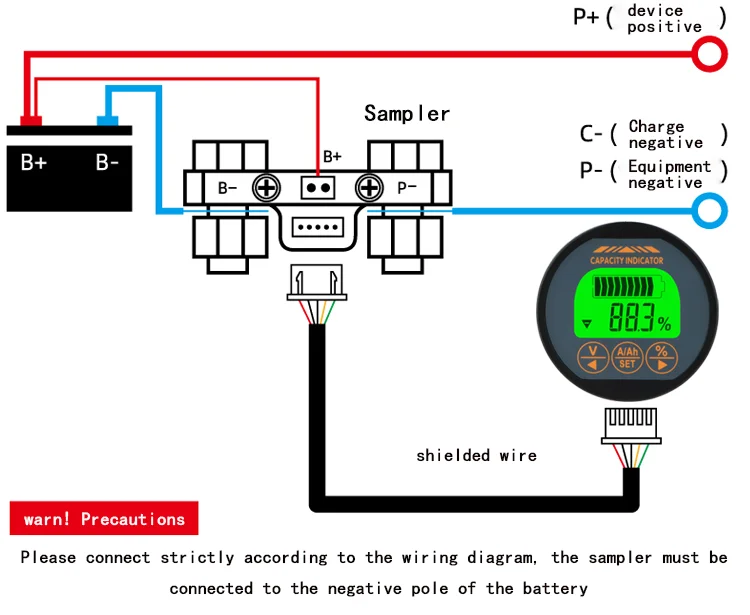

Connection Method
1. First, connect the sampler in series with the negative circuit of the battery pack. B- on sampler connects to B-of battery
pack, and P- connects to P-/C- of charging and discharging.
pack, and P- connects to P-/C- of charging and discharging.
2. Then take a piece of 0.3-0.75 mm2 red wire, one end connects to B+ of the battery pack, and the other end connects to any B+ binding post on the sampler.
3. Finally, connect one end of the shielded wire to the sampler socket, and the other end connects to the TR16 socket. After confirmation, it can work when being electrified.(Connection diagram is schematic diagram, not isometric diagram).
4. Connection Principle: Ensure that all current shall pass through sampler!
certified product
Packing&Shipping
Packing: Each packed in sealing bag, bag size: 15*15*5cm, weight: 480g.
Delivery: We can send goods off by sea, land, air and post according to you need.
Receiving: Please make sure the goods are in good condition before sign for.Please contact us if you have any question about the
products.
Delivery: We can send goods off by sea, land, air and post according to you need.
Receiving: Please make sure the goods are in good condition before sign for.Please contact us if you have any question about the
products.
