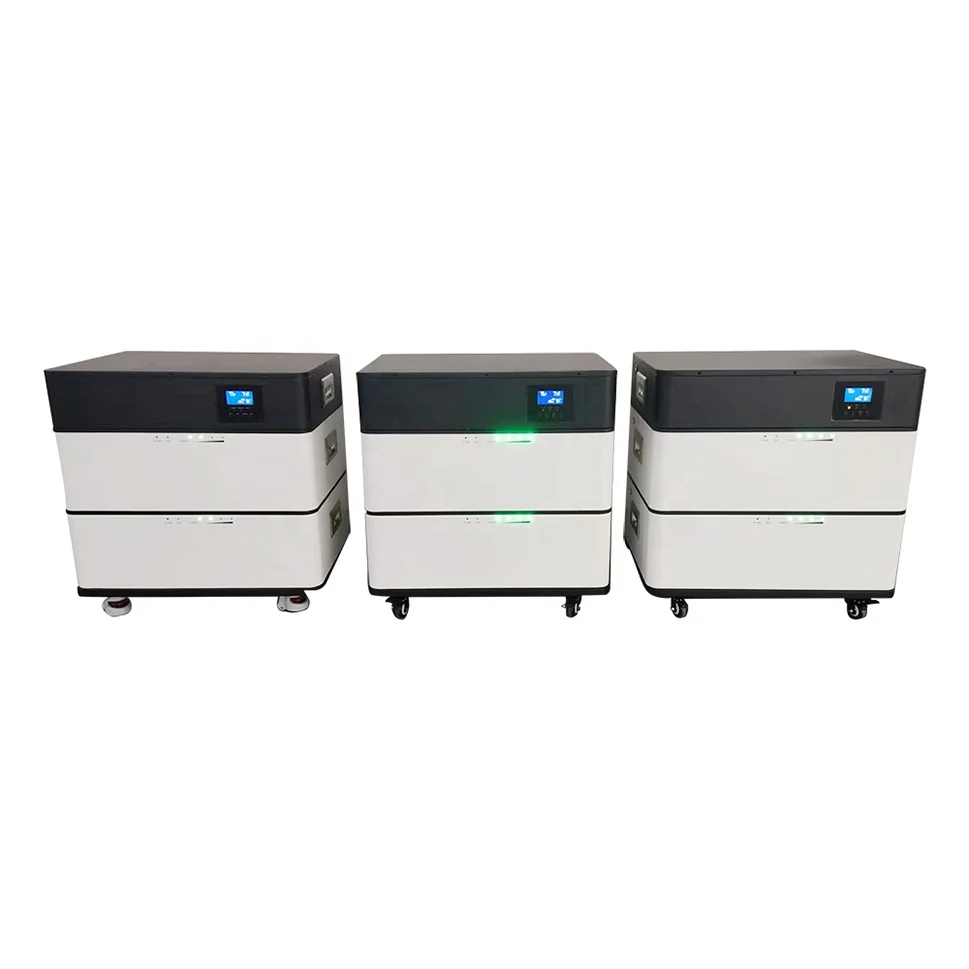

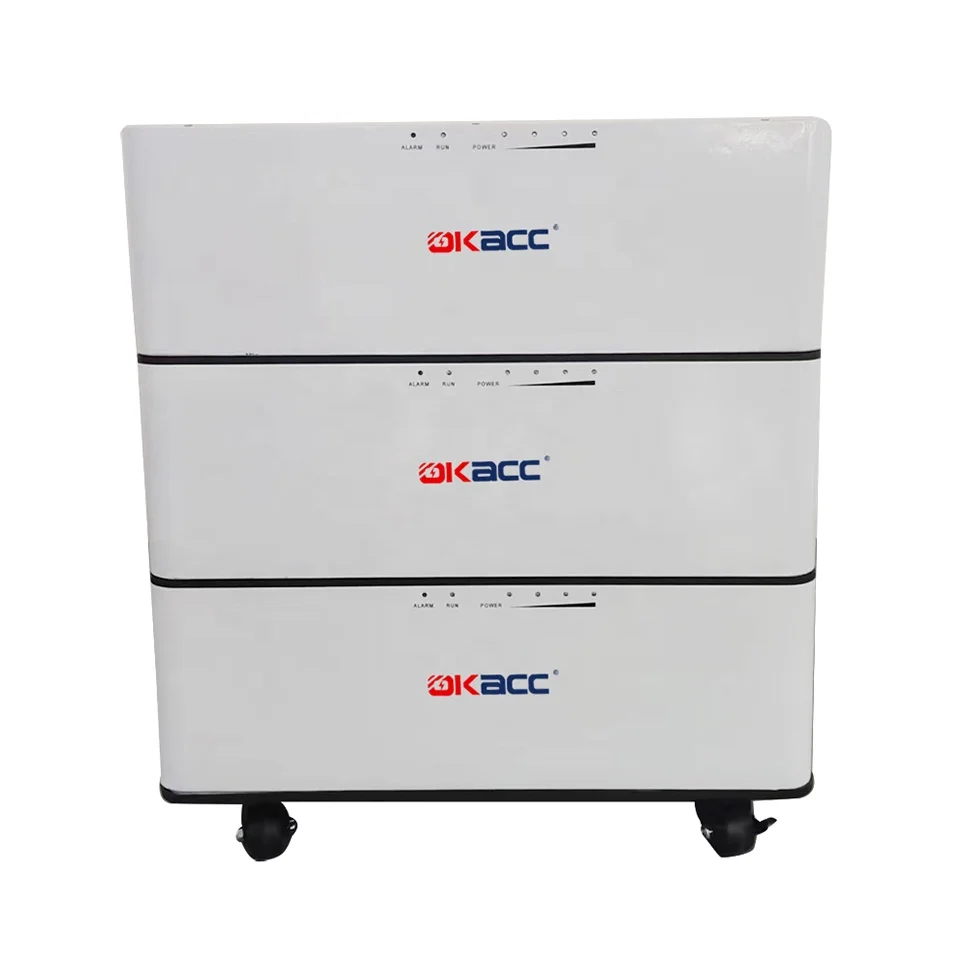

China Lithium Battery Manufacturer Storage Batteries Lithium 48V 100Ah Lifepo4 Battery Pack Li Ion
- Category: >>>
- Supplier: Shenzhen Okacc Industrial Co. Ltd.
Share on (1600536636329):
Product Overview
Description
Product Paramenters

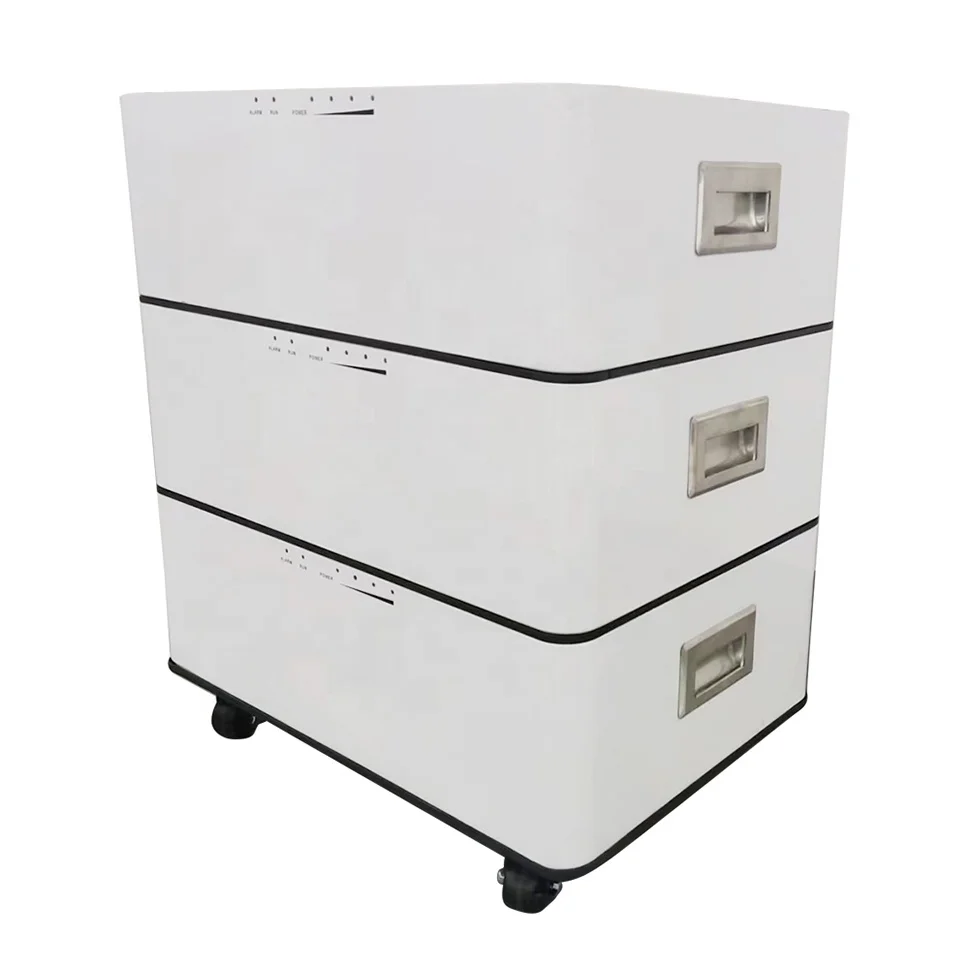

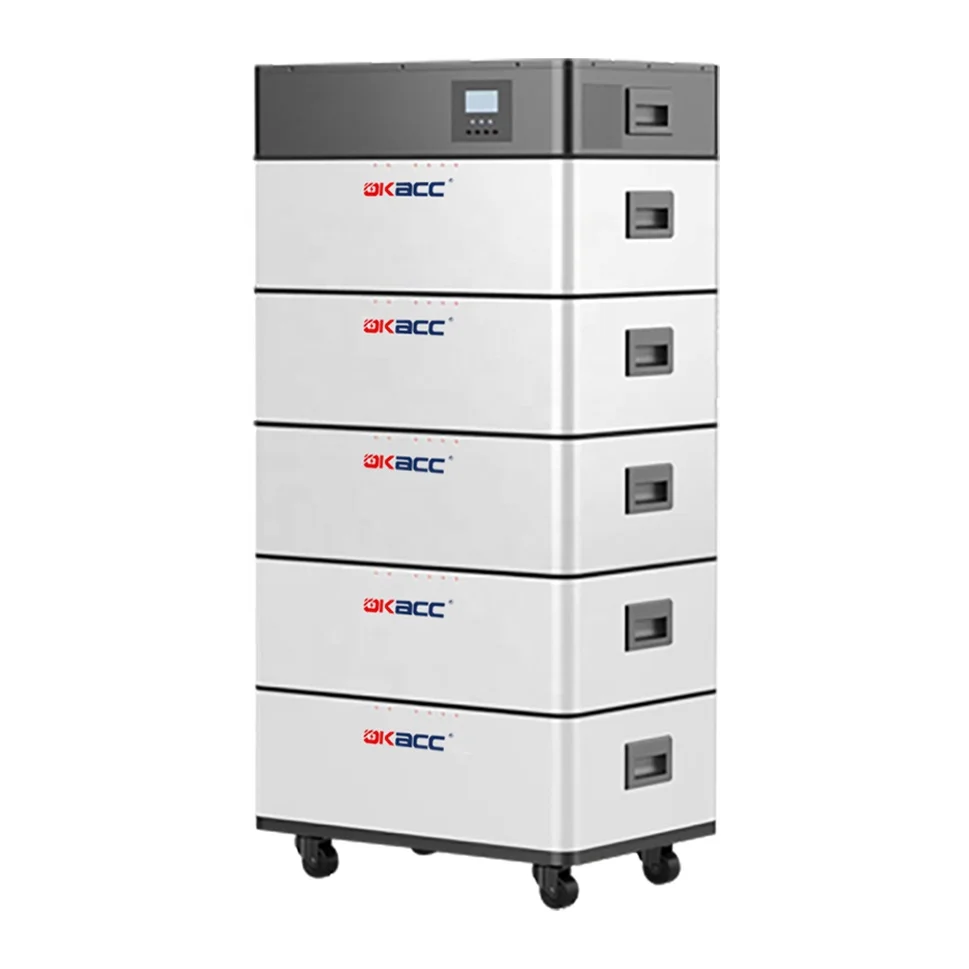

China Lithium Battery Manufacturer Storage Batteries Lithium 48V 100Ah Lifepo4 Battery Pack Li-Ion
Phase | Single-Phase |
Output Power | 3KW-5KW Optional |
Rated voltage | 51.2V |
Rated Capacity | 100Ah |
Continuous Discharge Current | 100A |
Peak Discharge Current | 110A/10S |
Standard Charging Current | 50A |
Fast Charge Current | 100A |
Scalable battery quantity | 1~15 |
Capacity Range | 5.12~76.8KWH |
Cooling Method | Self-Cooling |
Battery Type | Lithium Iron Phosphate |
Design lifetime | >15 Years@25℃ |
Rated Grid Frequency | 50HZ/60HZ Auto Detect |
Grid Voltage Range | 230V(170Vac~280Vac) ±2% ;110V(90Vac-280Vac)±2% |
PV maximum Input Power | 4200W |
MPPT Voltage Range | 60-115Vdc |
Charging and discharging efficiency | >92% |
Battery Voltage Range | 40.0Vdc~60Vdc ± 0.6Vdc |
Warranty | Battery (10 years) 丨Inverter (5 years) |
Battery Certification | CE, UN38.3, MSDS, Shipping, Dangerous Package |
Cell Certification | CE,UL,IEC 62109-1&-2, IEC 62477,EN61000,UN38.3 |
Installation Method | Stacked |
Storage Humidity Range | ≤85%RH |
operating Temperature | 20℃~55℃ |
Recommended Operating Temperature | 25℃ |
BUILT-IN SMART BMS
Okacc LiFePO4 battery has built-in BMS(Battery Management System) to protect it fromovercharge, over-discharge, over-current, and short circuit with excellent self-discharge rate.Built-in high temp cut off prevents charging over 50 °C(122 °F).
Okacc LiFePO4 battery has built-in BMS(Battery Management System) to protect it fromovercharge, over-discharge, over-current, and short circuit with excellent self-discharge rate.Built-in high temp cut off prevents charging over 50 °C(122 °F).

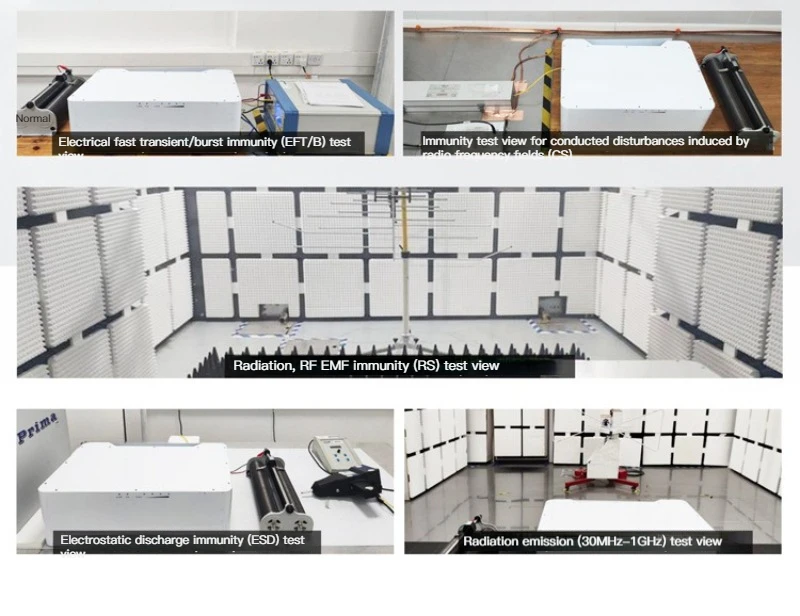

Okacc LiFePO4 battery Passed the abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.
Crush Test
Dropping Test
High Temperature Test
Core Products Series
Paramenters/Energy | 10KWH | OK1210 | OK1212 | 15KWH | OK1220 | OK1236 | ||||
Phase | Single-Phase | 12.8V | 12.8V | Single-Phase | 12.8V | 12.8V | ||||
Output Power | 3KW-5KW Optional | 10Ah | 12Ah | 3KW-5KW Optional | 20Ah | 36Ah | ||||
Rated voltage | 51.2V | ≤100W | ≤200W | 51.2V | ≤300W | ≤400W | ||||
Rated Capacity | 200AH | 4S2P | 4S3P | 300AH | 4S4P | 4S6P | ||||
Continuous Discharge Current | 100A | 151*94*65 | 151*98*95 | 100A | 180*165*75 | 198*166*170 | ||||
Peak Discharge Current | 110A/10S | 1.1kg | 1.5kg | 110A/10S | 2.3kg | 4.8kg | ||||
Standard Charging Current | 50A | 10A | 12A | 50A | 20A | 30A | ||||
Fast Charge Current | 100A | 10A | 20A | 100A | 30A | 40A | ||||
Scalable battery quantity | 2~15 | 20A,10Sec | 40A,10Sec | 3~15 | 60A,10Sec | 80A,10Sec | ||||
Capacity Range | 10.24~76.8KWH | 0~45℃ | 0~45℃ | 15.36~76.8KWH | 0~45℃ | 0~45℃ | ||||
Cooling Method | Self-Cooling | -20~60℃ | -20~60℃ | Self-Cooling | -20~60℃ | -20~60℃ | ||||
Battery Type | Lithium Iron Phosphate | -10~45℃ | -10~45℃ | Lithium Iron Phosphate | -10~45℃ | -10~45℃ | ||||
Design lifetime | >15 Years@25℃ | >15 Years@25℃ | ||||||||
Rated Grid Frequency | 50HZ/60HZ Auto Detect | 50HZ/60HZ Auto Detect | ||||||||
Grid Voltage Range | 230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2% | 230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2% | ||||||||
PV maximum Input Power | 4200W | 4200W | ||||||||
MPPT Voltage Range | 60-115Vdc | 60-115Vdc | ||||||||
Charging and discharging efficiency | >92% | >92% | ||||||||
Battery Voltage Range | 40.0Vdc~60Vdc ± 0.6Vdc | 40.0Vdc~60Vdc ± 0.6Vdc | ||||||||
Warranty | Battery (10 years) Inverter (5 years) | Battery (10 years) Inverter (5 years) | ||||||||
Battery Certification | CE, UN38.3, MSDS, Shipping, Dangerous Package | CE, UN38.3, MSDS, Shipping, Dangerous Package | ||||||||
Cell Certification | CE,UL,IEC 62109-1&-2, IEC 62477,EN61000,UN38.3 | CE,UL,IEC 62109-1&-2, IEC 62477,EN61000,UN38.3 | ||||||||
Installation Method | Stacked | Stacked | ||||||||
Storage Humidity Range | ≤85%RH | ≤85%RH | ||||||||
operating Temperature | 20℃~55℃ | 20℃~55℃ | ||||||||
Recommended Operating Temperature | 25℃ | 25℃ | ||||||||
Paramenters/Energy | 20KWH | OK1210 | OK1212 | 25KWH | OK1220 | OK1236 | ||||
Phase | Single-Phase | 12.8V | 12.8V | Single-Phase | 12.8V | 12.8V | ||||
Output Power | 3KW-5KW Optional | 10Ah | 12Ah | 3KW-5KW Optional | 20Ah | 36Ah | ||||
Rated voltage | 51.2V | ≤100W | ≤200W | 51.2V | ≤300W | ≤400W | ||||
Rated Capacity | 400AH | 4S2P | 4S3P | 500AH | 4S4P | 4S6P | ||||
Continuous Discharge Current | 100A | 151*94*65 | 151*98*95 | 100A | 180*165*75 | 198*166*170 | ||||
Peak Discharge Current | 110A/10S | 1.1kg | 1.5kg | 110A/10S | 2.3kg | 4.8kg | ||||
Standard Charging Current | 50A | 10A | 12A | 50A | 20A | 30A | ||||
Fast Charge Current | 100A | 10A | 20A | 100A | 30A | 40A | ||||
Scalable battery quantity | 4~15 | 20A,10Sec | 40A,10Sec | 5~15 | 60A,10Sec | 80A,10Sec | ||||
Capacity Range | 20.48~76.8KWH | 0~45℃ | 0~45℃ | 25.6~76.8KWH | 0~45℃ | 0~45℃ | ||||
Cooling Method | Self-Cooling | -20~60℃ | -20~60℃ | Self-Cooling | -20~60℃ | -20~60℃ | ||||
Battery Type | Lithium Iron Phosphate | -10~45℃ | -10~45℃ | Lithium Iron Phosphate | -10~45℃ | -10~45℃ | ||||
Design lifetime | >15 Years@25℃ | >15 Years@25℃ | ||||||||
Rated Grid Frequency | 50HZ/60HZ Auto Detect | 50HZ/60HZ Auto Detect | ||||||||
Grid Voltage Range | 230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2% | 230V(170Vac~280Vac) ±2% 110V(90Vac-280Vac)±2% | ||||||||
PV maximum Input Power | 4200W | 4200W | ||||||||
MPPT Voltage Range | 60-115Vdc | 60-115Vdc | ||||||||
Charging and discharging efficiency | >92% | >92% | ||||||||
Battery Voltage Range | 40.0Vdc~60Vdc ± 0.6Vdc | 40.0Vdc~60Vdc ± 0.6Vdc | ||||||||
Warranty | Battery (10 years) Inverter (5 years) | Battery (10 years) Inverter (5 years) | ||||||||
Battery Certification | CE, UN38.3, MSDS, Shipping, Dangerous Package | CE, UN38.3, MSDS, Shipping, Dangerous Package | ||||||||
Cell Certification | CE,UL,IEC 62109-1&-2, IEC 62477,EN61000,UN38.3 | CE,UL,IEC 62109-1&-2, IEC 62477,EN61000,UN38.3 | ||||||||
Installation Method | Stacked | Stacked | ||||||||
Storage Humidity Range | ≤85%RH | ≤85%RH | ||||||||
operating Temperature | 20℃~55℃ | 20℃~55℃ | ||||||||
Recommended Operating Temperature | 25℃ | 25℃ | ||||||||

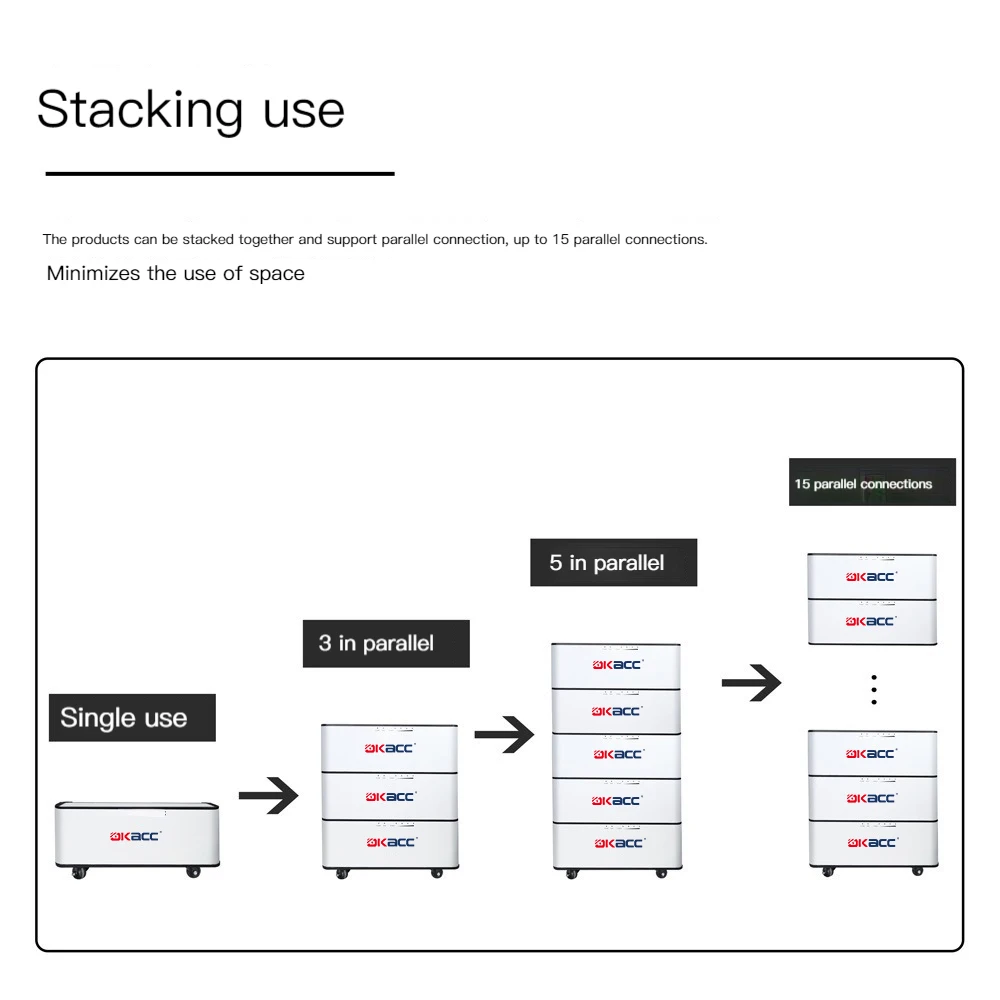

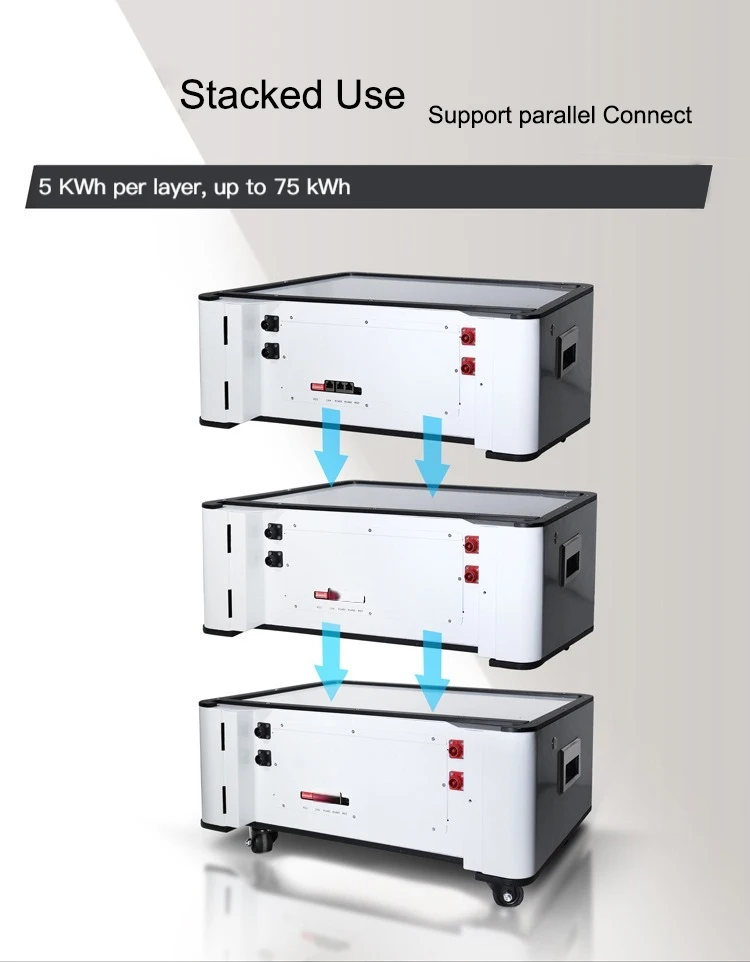

Different capacity battery system can be selected according to actual needs, all come with 5kw inverter.

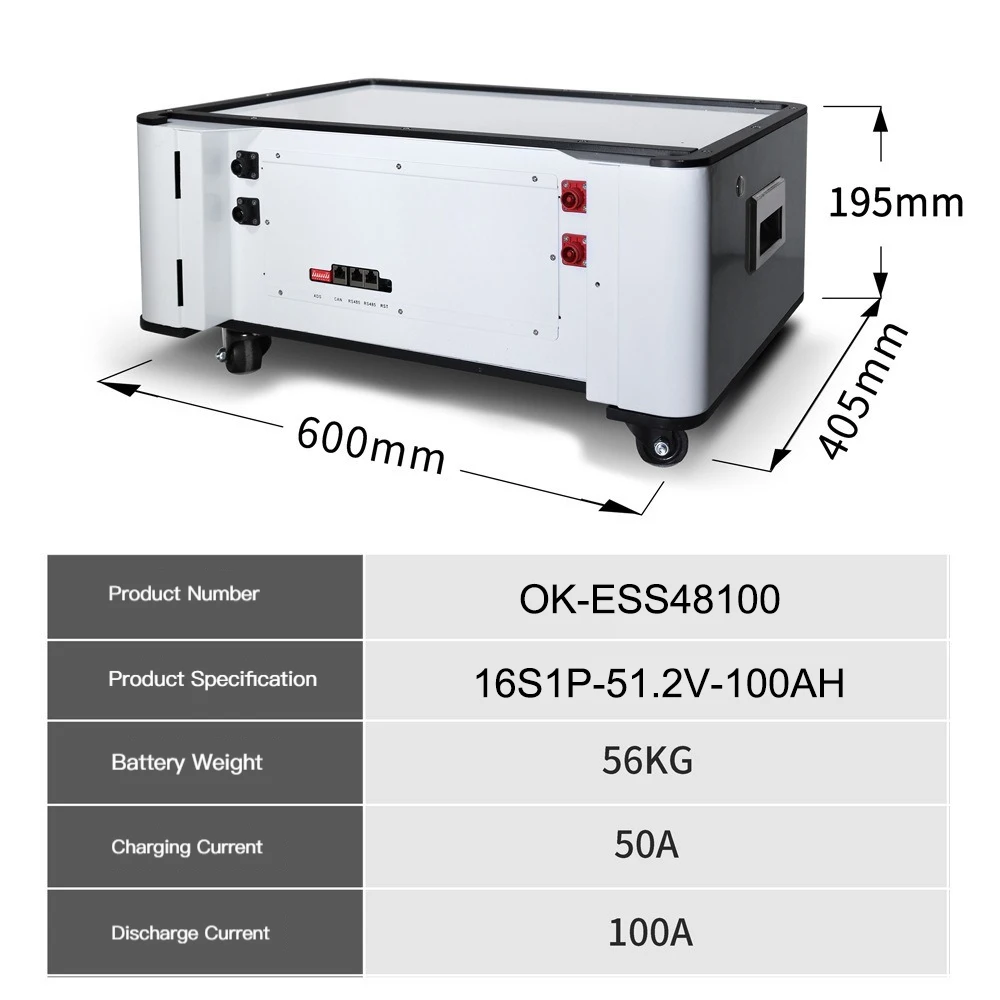

5KWH OK-ESS48100 Single 1 Layer
10KWH OK-ESS48200 2 in Parallel 2 Layers
15KWH OK-ESS48300 3 in Parallel 3 Layers
20KWH OK-ESS48400 4 in Parallel 4 Layers
25KWH OK-ESS48500 5 in Parallel 5 Layers
30KWH OK-ESS48600 6 in Parallel 6 Layers
35KWH OK-ESS48700 7 in Parallel 7 Layers
40KWH OK-ESS48800 8 in Parallel 8 Layers
45KWH OK-ESS48900 9 in Parallel 9 Layers
50KWH OK-ESS481000 10 in Parallel 10 Layers
55KWH OK-ESS481100 11 in Parallel 11 Layers
60KWH OK-ESS481200 12 in Parallel 12 Layers
65KWH OK-ESS481300 13 in Parallel 13 Layers
70KWH OK-ESS481400 14 in Parallel 14 Layers
75KWH OK-ESS481500 15 in Parallel 15 Layers
5KWH OK-ESS48100 Single 1 Layer
10KWH OK-ESS48200 2 in Parallel 2 Layers
15KWH OK-ESS48300 3 in Parallel 3 Layers
20KWH OK-ESS48400 4 in Parallel 4 Layers
25KWH OK-ESS48500 5 in Parallel 5 Layers
30KWH OK-ESS48600 6 in Parallel 6 Layers
35KWH OK-ESS48700 7 in Parallel 7 Layers
40KWH OK-ESS48800 8 in Parallel 8 Layers
45KWH OK-ESS48900 9 in Parallel 9 Layers
50KWH OK-ESS481000 10 in Parallel 10 Layers
55KWH OK-ESS481100 11 in Parallel 11 Layers
60KWH OK-ESS481200 12 in Parallel 12 Layers
65KWH OK-ESS481300 13 in Parallel 13 Layers
70KWH OK-ESS481400 14 in Parallel 14 Layers
75KWH OK-ESS481500 15 in Parallel 15 Layers
We also provide the full services of customized battery products, including battery design, development, selection cells, and BMS,Charger.For more information,please contact us now click here

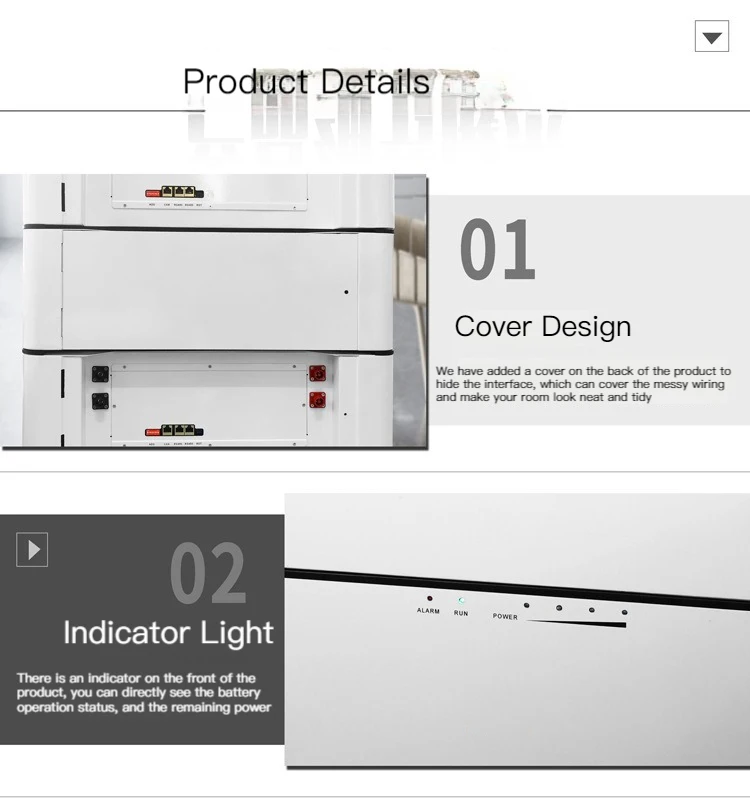

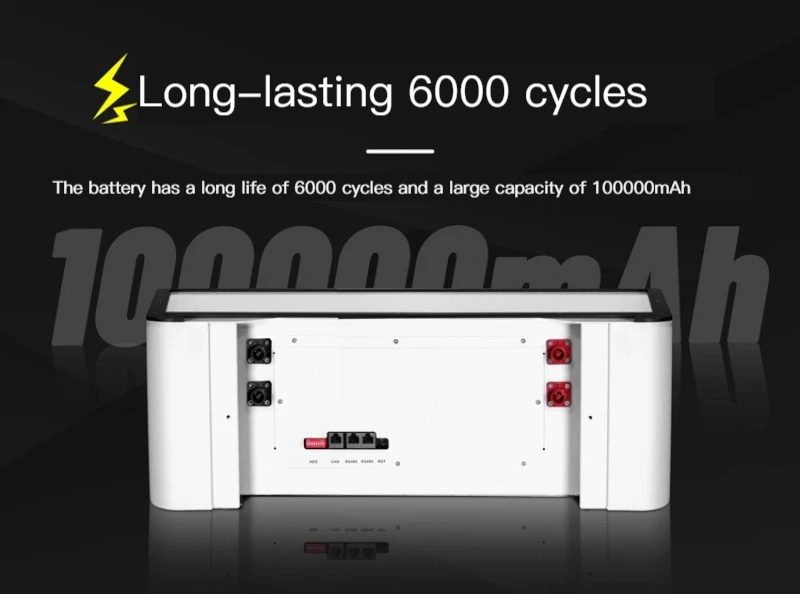

Product Display

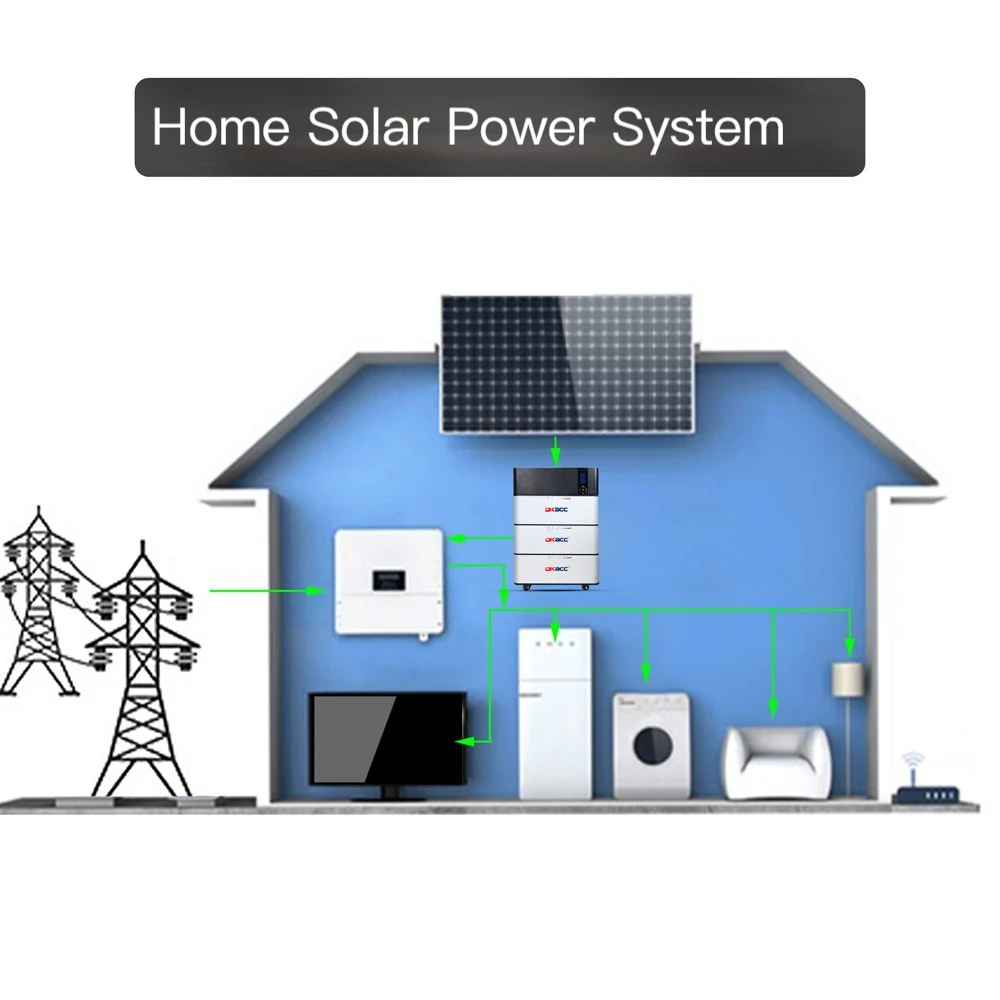

Application
Certifications
Why Choose Us
QUALITY PRODUCTS
We follow the standard of ISO9001 quality management system to produce batteries system with excellent quality and design. All items are 100% tested, and strict quality inspection is through from raw material selection and production to loading.
BETTER SERVICE
OEM/ODM is available. We deal with lithium battery wholesalers, retailers, overseas new Energy projects, and some special design battery system requests from the clients. The greatest satisfaction of customers is always our pursuit and what we are doing now.
PROFESSIONAL
We were established in 2007, and over the past years, we have attracted customers from all over the world, and we export to more than 70 countries, including Europe, USA, Middle East, South Asia, etc.
COMPETITIVE PRICE
As a manufacturer, you can get direct factory price, keep better profit for you.
FAST DELIVERY
Peak season delivery time: 1 month, off-season delivery time: within 15 working days, and within 7 days after receiving the deposit for stock items.
ONE-STOP BATTERY SOLUTIONS
We provide the full services of customized battery products, including battery design, development, selection cells, and BMS,Charger.
FAQ
1. What's the MOQ?
A: Battery sample orders for testing are welcome. So the MOQ can be 1PC.
2. Can I OEM or ODM?
A: Yes, Absolutely, We can produce the battery core according to the customer's requirement. Custom logo service and branding is available.
3. How do you ensure product quality?
A: All of our products have 100% tested in production. Test one by one before shipping. All the products will go through 5
checks.
4. What’s your battery warranty?
A: Our warranty for battery is 3 years.
5.What’s the shipping way will you used?
A: We can ship by air; sea, and land as your requirement. We have cooperated with the express DHL, UPS, Fedex and TNT.
6. How should I pay? What modes of payment do you accept?
A: T/T, Paypal, Western Union & Trading Assurance acceptable.
7.What’s about your After-sales?
A: Timely provide tracking information during the shipping. If there is any defectives, we provide free ones along with your next order. And, we can provide you free new products for testing.
A: Battery sample orders for testing are welcome. So the MOQ can be 1PC.
2. Can I OEM or ODM?
A: Yes, Absolutely, We can produce the battery core according to the customer's requirement. Custom logo service and branding is available.
3. How do you ensure product quality?
A: All of our products have 100% tested in production. Test one by one before shipping. All the products will go through 5
checks.
4. What’s your battery warranty?
A: Our warranty for battery is 3 years.
5.What’s the shipping way will you used?
A: We can ship by air; sea, and land as your requirement. We have cooperated with the express DHL, UPS, Fedex and TNT.
6. How should I pay? What modes of payment do you accept?
A: T/T, Paypal, Western Union & Trading Assurance acceptable.
7.What’s about your After-sales?
A: Timely provide tracking information during the shipping. If there is any defectives, we provide free ones along with your next order. And, we can provide you free new products for testing.
Product Name: China Lithium Battery Manufacturer Storage Batteries Lithium 48V 100Ah Lifepo4 Battery Pack Li-Ion
