TECFG Texflame Combustion System Integrated Design Industrial Burner Oven Gas Burner All Metal Burn Progpane Burn Natural Gas
- Category: Boilers & Parts >>>
- Supplier: Shanghai DYD Industrial Equipment Co. Ltd.
Share on (1600536800774):
Product Overview
Description
Product Description
Specification
Basic parameters | ||||
Product Model | Texflame-150 | Texflame-300 | ||
Voltage of Fan power (V) | 380 | |||
Power voltage of control system (V) | 220 | |||
Inlet pressure of pipeline valve（kPa） | 30 | |||
Oxygen content of combustionair in standard condition * | 21% | |||
Protection grade | IP54 | |||
Max. thermal capacity（kW）** | 150 | 300 | ||
Min. thermal capacity(kW) | 4 | 8 | ||
Max. regulating ratio | 40：1 | |||
Highest working temperature（℃） | 700 | |||
Max. gas volume（Nm3/h） | 15 | 30 | ||
Min. gas volume (Nm³/h) | 0.4 | 0.8 | ||
Flame length (mm) *** | 700 | 1000 | ||
* — Please contact the supplier when the burner is not used under the standard working conditions. ** — If the standard round air filter is used, the power will be reduced by 15%. *** — Combustion cross flow will shorten the flame under the open environment. | ||||
Texflame is the combustion system that is designed according to EU Safety Application Standard for Fuel Gas Industry (EN746-2).This integration system provides integrated solutions, including burner, gas regulater, gas filter, pressure gauge and flexible metal tubing. The power within the working range of this system is controlled by the automatic gas control valve. The gas mixes with the combustion air along with the mixed cone in the burner through the nozzle, thus, short and stable flame is produced.
Two specifications can be selected. All metal structure
Capacity:4kW – 300Kw
Stable and clean combustion, low NOx level
High turndown 40:1. The temperature is adjusted faster and more precisely
Accept and switch between natural gas and progpane
Low gas pressure is required
Integrated design, easy installation, easy operation, and easy maintenance
Fan motor with multi-level voltage and frequency
Two specifications can be selected. All metal structure
Capacity:4kW – 300Kw
Stable and clean combustion, low NOx level
High turndown 40:1. The temperature is adjusted faster and more precisely
Accept and switch between natural gas and progpane
Low gas pressure is required
Integrated design, easy installation, easy operation, and easy maintenance
Fan motor with multi-level voltage and frequency

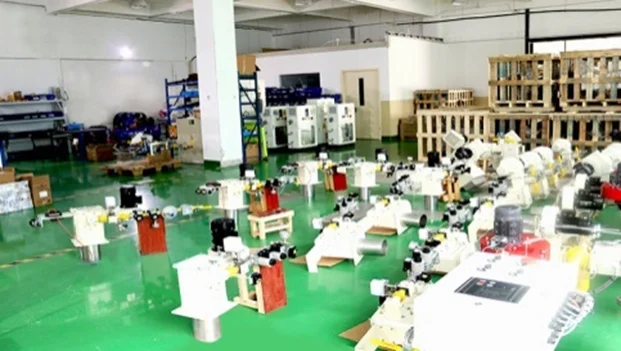

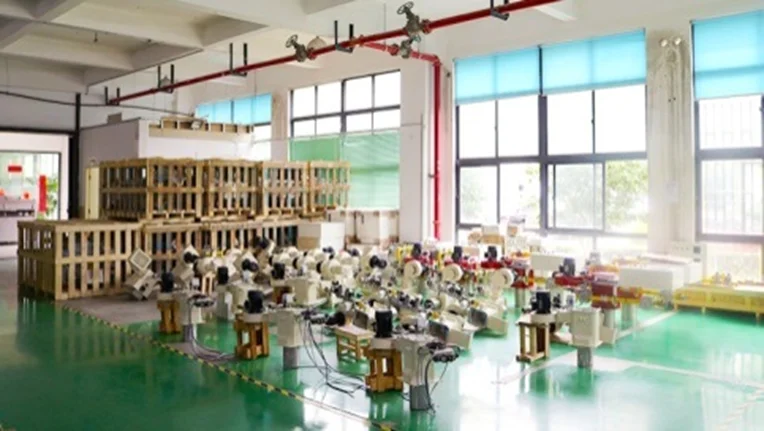

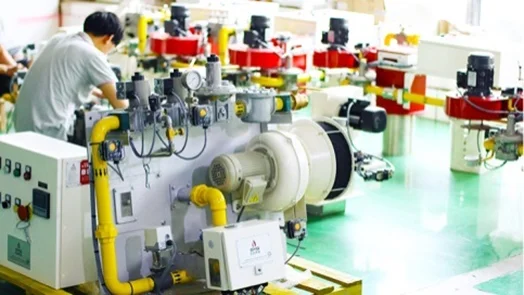

Company Profile
Shanghai DYDTEC Combustion Equipment Co., Ltd. (DYDTEC) was established in 2008.
Its main business includes design, production and assembly of high and low temperature industrial burners, combustion control systems, flame treatment systems, air heaters , heat exchangers and combustion related control components. DYDTEC also provides a comprehensive range of services from installation and commissioning to maintenance and refurbishment.
DYDTEC control systems are designed to conform to European standard EN746 and American standard NFPA86 and local regulations specified by our customers.DYDTEC combustion control components are sourced from world-class suppliers from Germany, USA, UK and Japan, and comply with international standards for quality. DYDTEC work with partner companies based in America, Europe and Asia, who provide high standard customer support for global operations.
DYDTEC produces more than 1,000 sets of combustion systems annually. DYDTEC export flame treatment systems , combustion systems and direct-fired air heaters to many overseas markets. DYDTEC engineers are experienced in control system integration to many international customer processes.
DYDTEC is committed to providing safe combustion equipment with energy saving high efficiency operation and low emissions of Nitrogen Oxides ( NOx) and other harmful exhaust gasses. DYDTEC have considerable experience in automotive coating, environmental treatment, industrial drying and light and heavy thermal process industries.
DYDTEC has more than 70 employees and its annual sales reach USD 15 million. It establishes long-term and close partnerships with domestic and foreign experts in the industrial combustion industry and leading global suppliers to provide customers all over the world with the best energy-saving solutions, and high quality products and services.
DYDTEC is accredited to IS09001:2015 and has achieved national high-tech enterprise certification successfully. DYDTEC holds 30 combustion patents. We have engineers with more than 40 years of research and development experience who can cooperate with customers in designing non standard specialised equipment and thermal process development projects.
Its main business includes design, production and assembly of high and low temperature industrial burners, combustion control systems, flame treatment systems, air heaters , heat exchangers and combustion related control components. DYDTEC also provides a comprehensive range of services from installation and commissioning to maintenance and refurbishment.
DYDTEC control systems are designed to conform to European standard EN746 and American standard NFPA86 and local regulations specified by our customers.DYDTEC combustion control components are sourced from world-class suppliers from Germany, USA, UK and Japan, and comply with international standards for quality. DYDTEC work with partner companies based in America, Europe and Asia, who provide high standard customer support for global operations.
DYDTEC produces more than 1,000 sets of combustion systems annually. DYDTEC export flame treatment systems , combustion systems and direct-fired air heaters to many overseas markets. DYDTEC engineers are experienced in control system integration to many international customer processes.
DYDTEC is committed to providing safe combustion equipment with energy saving high efficiency operation and low emissions of Nitrogen Oxides ( NOx) and other harmful exhaust gasses. DYDTEC have considerable experience in automotive coating, environmental treatment, industrial drying and light and heavy thermal process industries.
DYDTEC has more than 70 employees and its annual sales reach USD 15 million. It establishes long-term and close partnerships with domestic and foreign experts in the industrial combustion industry and leading global suppliers to provide customers all over the world with the best energy-saving solutions, and high quality products and services.
DYDTEC is accredited to IS09001:2015 and has achieved national high-tech enterprise certification successfully. DYDTEC holds 30 combustion patents. We have engineers with more than 40 years of research and development experience who can cooperate with customers in designing non standard specialised equipment and thermal process development projects.

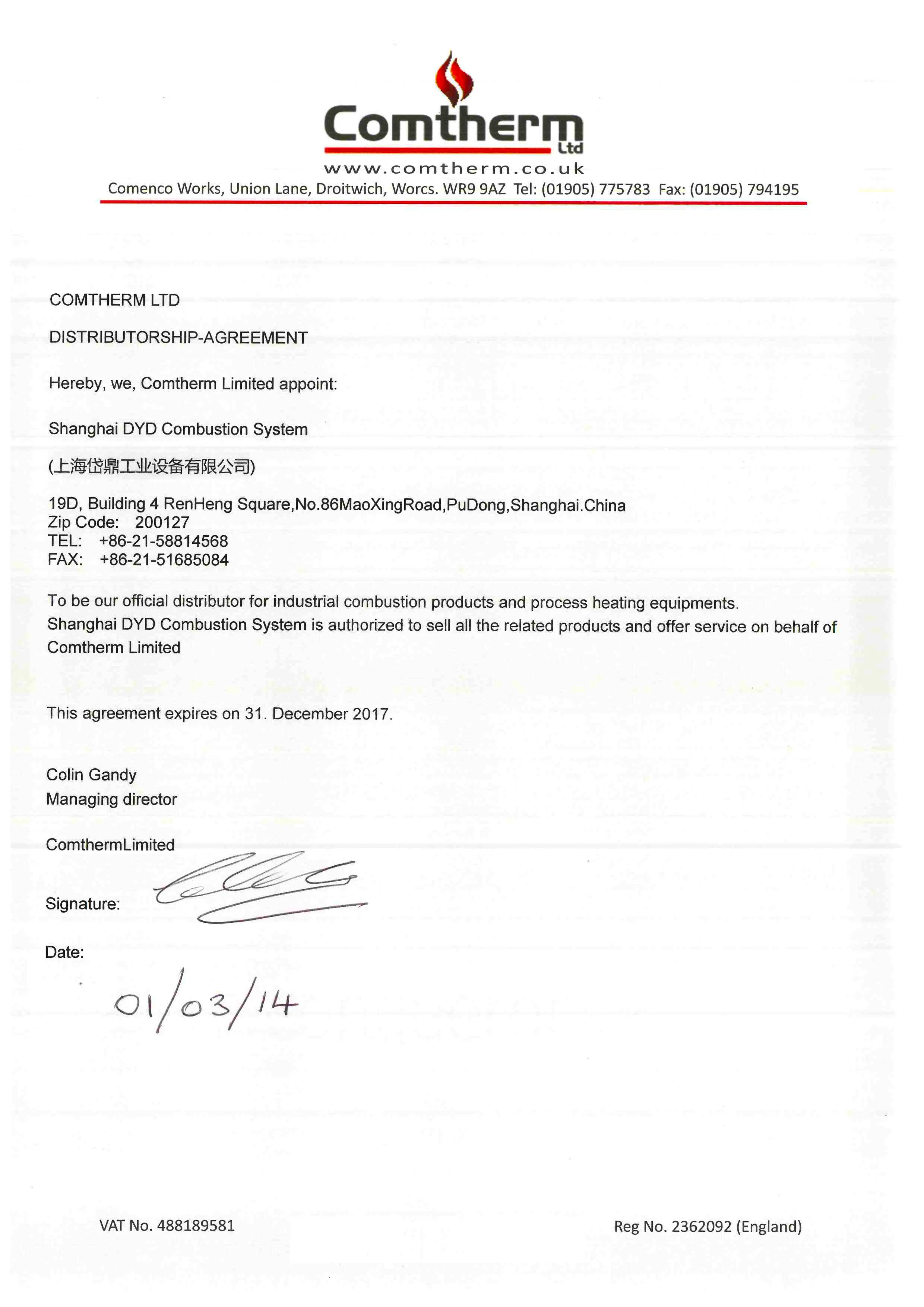

Certifications

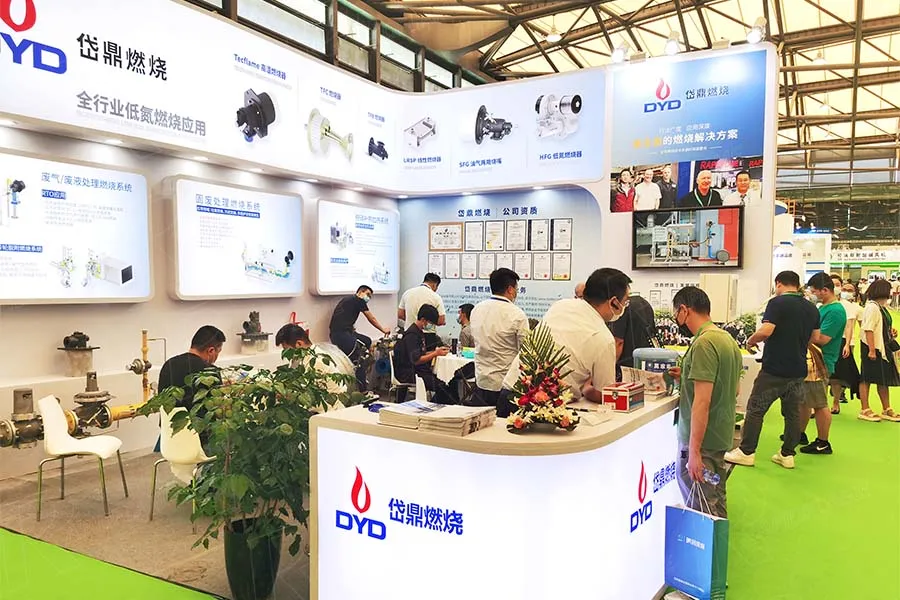

Exhibition

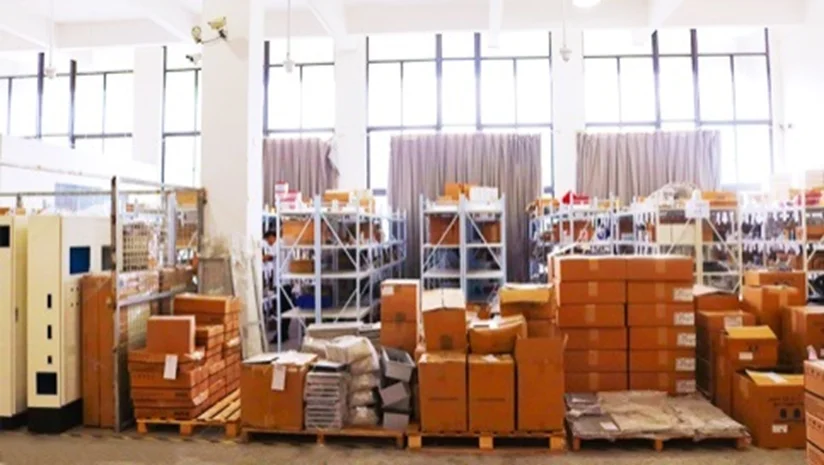

Packing & Delivery
