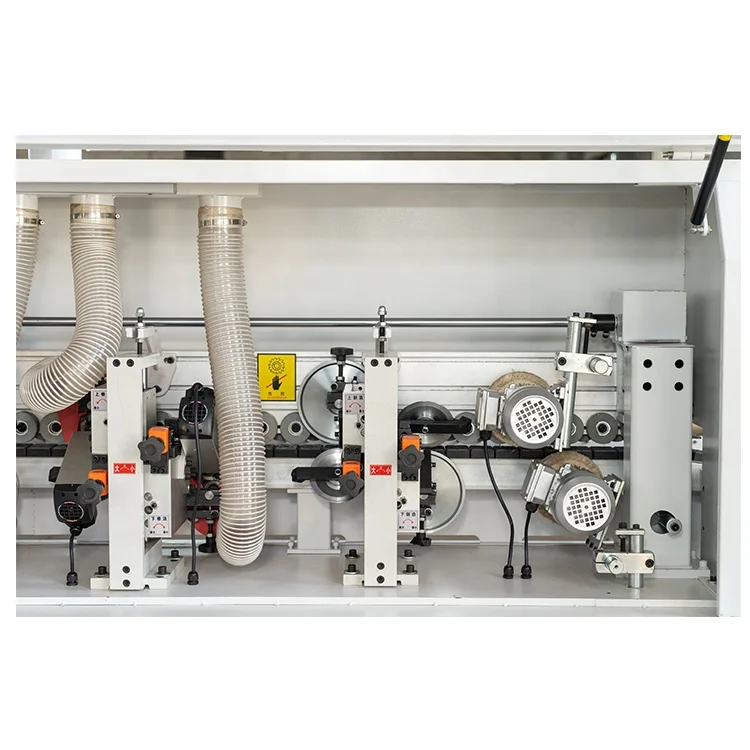

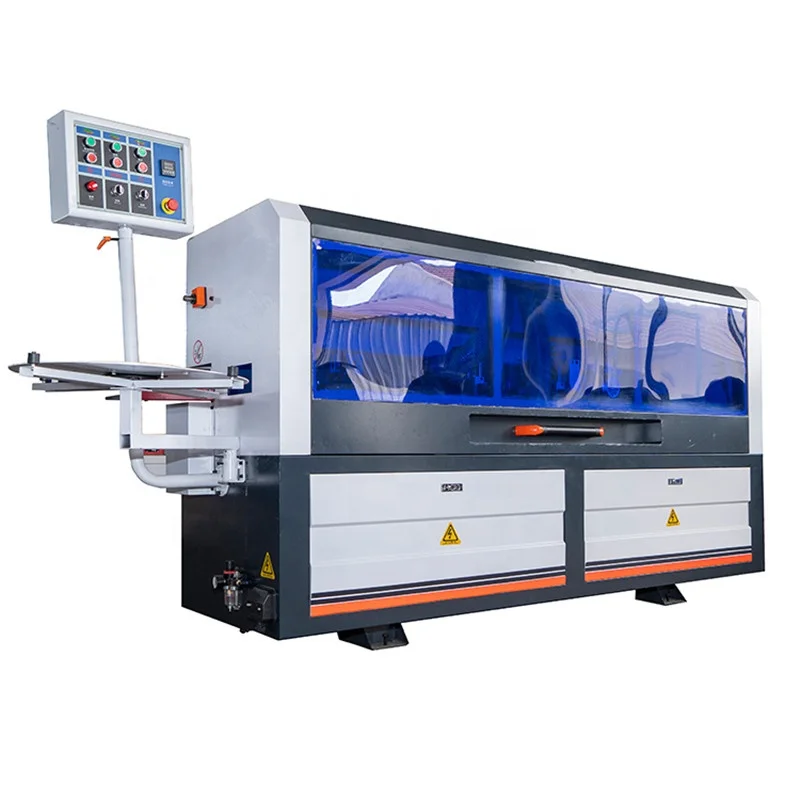

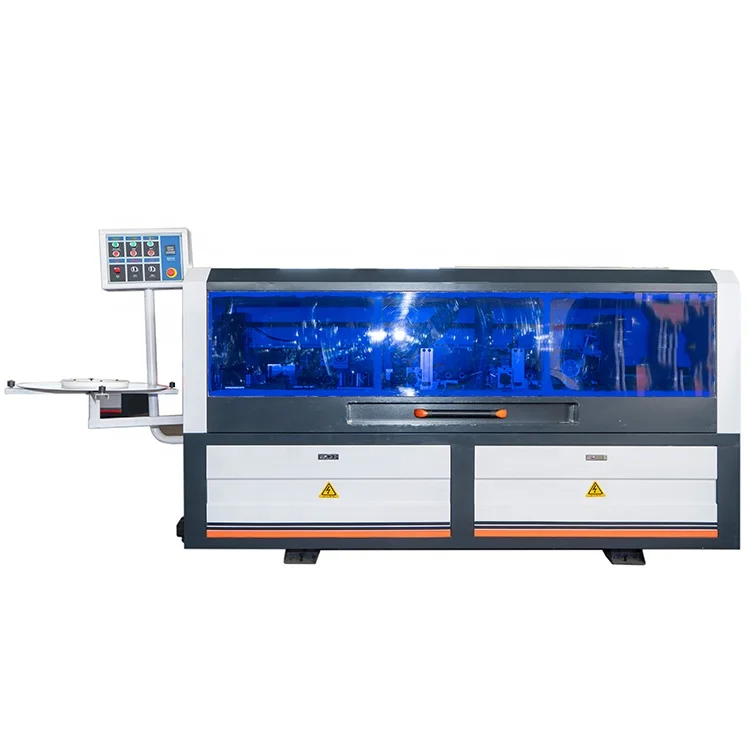

Semi Automatic Edge Banding Machine With Gluing Fine Trimming Scrapping And Buffing
- Category: >>>
- Supplier: Qingdao WINTOP Machinery Technology Co. Ltd.
Share on (1600536824921):
Product Overview
Description
Woodmaking Machinery Automatic Mdf Edge Banding Machine Edge Trimming Machine
Product Description
★Gluing and pressing
★Fine trimming
★Scraping
★Scraping
★Buffing
Main Features
1.Through special structure, the edge-sealing sheet and the edge-sealing material are evenly coated and pressed, so that the edge-sealing strip is more firmly attached.
2.Fine trimming,ensure that the upper and lower plates are smoother and more tidy when trimming.
3.Used to eliminate the ripples caused by the cutting process of trimming non-linear motion.
4.Clean the finished plate with a cotton polishing wheel and smooth the edge of the edge by polishin
1.Through special structure, the edge-sealing sheet and the edge-sealing material are evenly coated and pressed, so that the edge-sealing strip is more firmly attached.
2.Fine trimming,ensure that the upper and lower plates are smoother and more tidy when trimming.
3.Used to eliminate the ripples caused by the cutting process of trimming non-linear motion.
4.Clean the finished plate with a cotton polishing wheel and smooth the edge of the edge by polishin
▬▬Technical parameter
Overall Size | 2800*800*1600mm |
Total Weight | 700kg |
Total Power | 4.5KW |
Min edge banding Width | ≧60mm |
Min edge banding Length | ≧100mm |
Minimum sheet size (surrounded by edge) | 100*100mm |
Plate thickness | 10-50mm |
Edge band tape width | 13-55mm |
Edge band tape thickness | 0.4-3mm |
Conveyor Speed | 18m/min |
Working pressure | 6.5kg/cm³ |
Rated voltage | 380v/50hz/3phase |

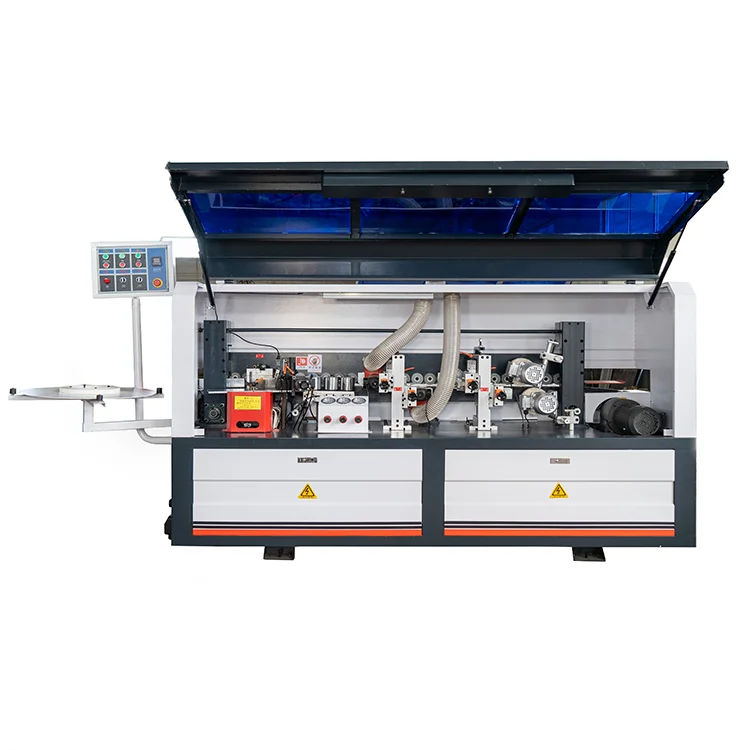

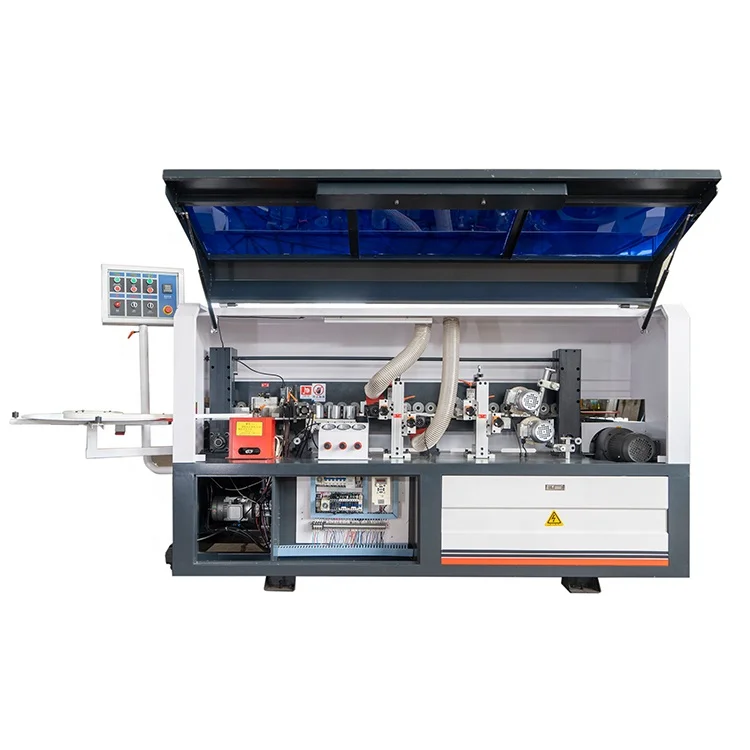

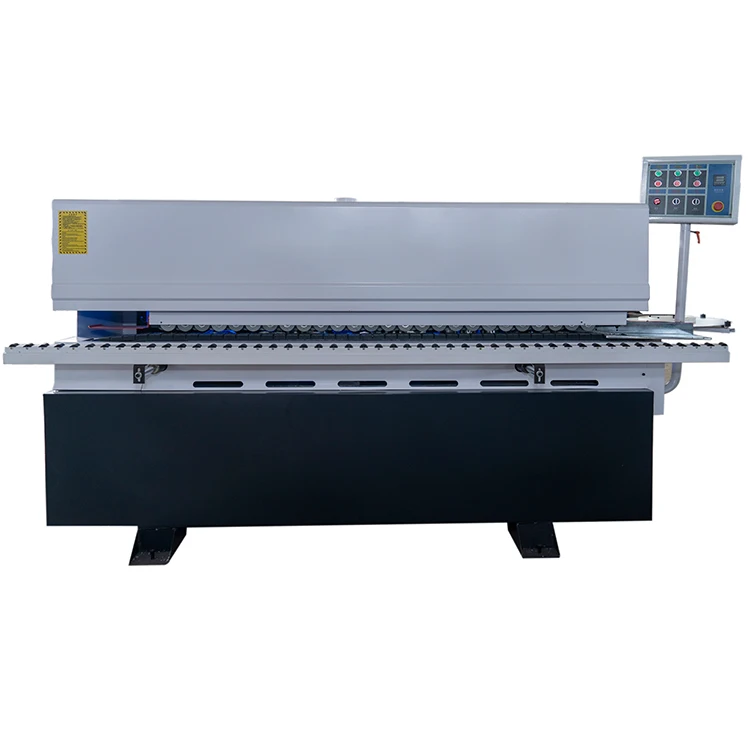

▬▬ Machine show
▬▬ Functions show

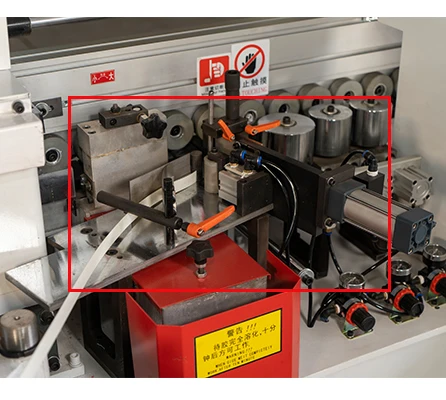

Glueing and pressing
Preheat the plate, more convenient viscidity, bonding sealing tape more compact, so that dry cold weather does not affect the sealing effect.After feeding tape, adhesive tape, steel body pressing belt pulley sealing side belt and plate pressing, so that the adhesive force is more firm, no glue mark up and down.

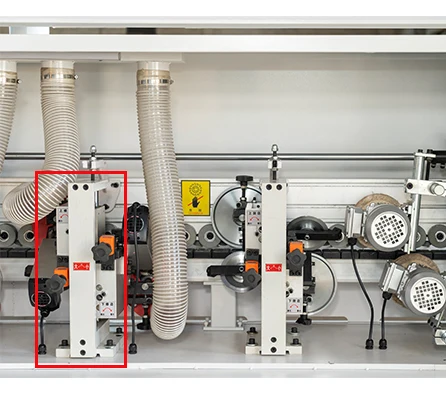

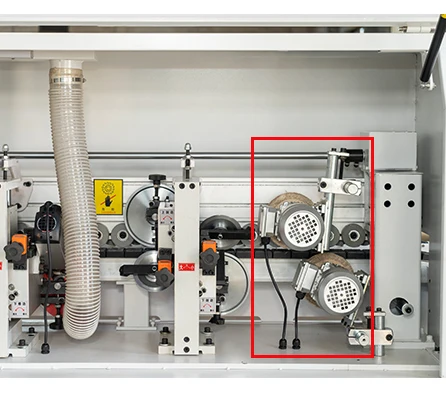

Fine trimming
Fine trimming mechanism used for repairing the excess edge materials, adopt automatic tracking and high frequency motor fast cutting structure to ensure the trimming plates smoothly.

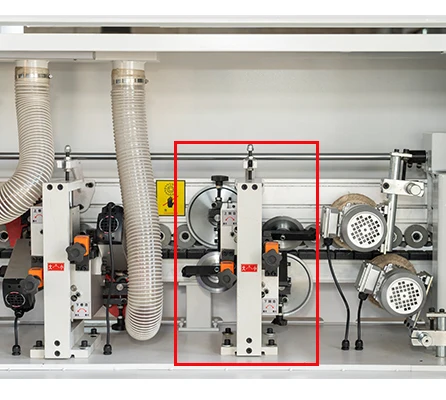

Scraping
Scraping unit for a perfect finishing of the applied edge to make the plank part more smooth and tidy.
Buffing
Remove excess glue stains with polishing wheel, and make the edge sealing section smooth and tidy by polishing.
▬▬ Edge sealing effect display

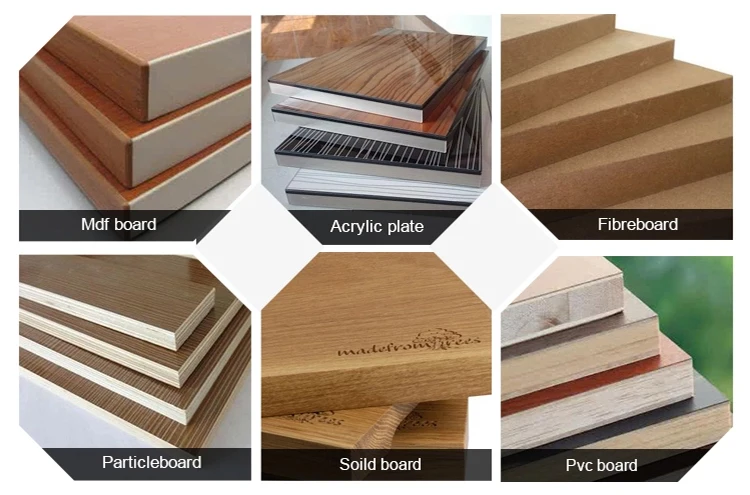

This semi automatic edge banding machine is suitable for solid wood board, fiberboard, particleboard and other sheet metal workpiece straight edge, edge material can be used solid wood, PVC, melamine, veneer, etc.

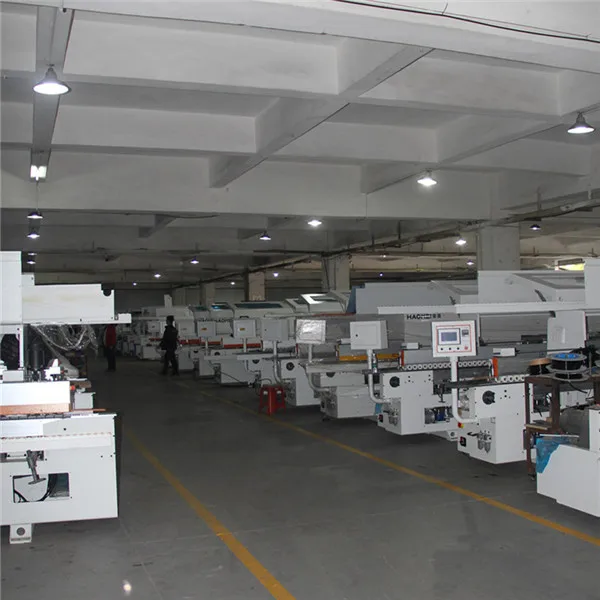

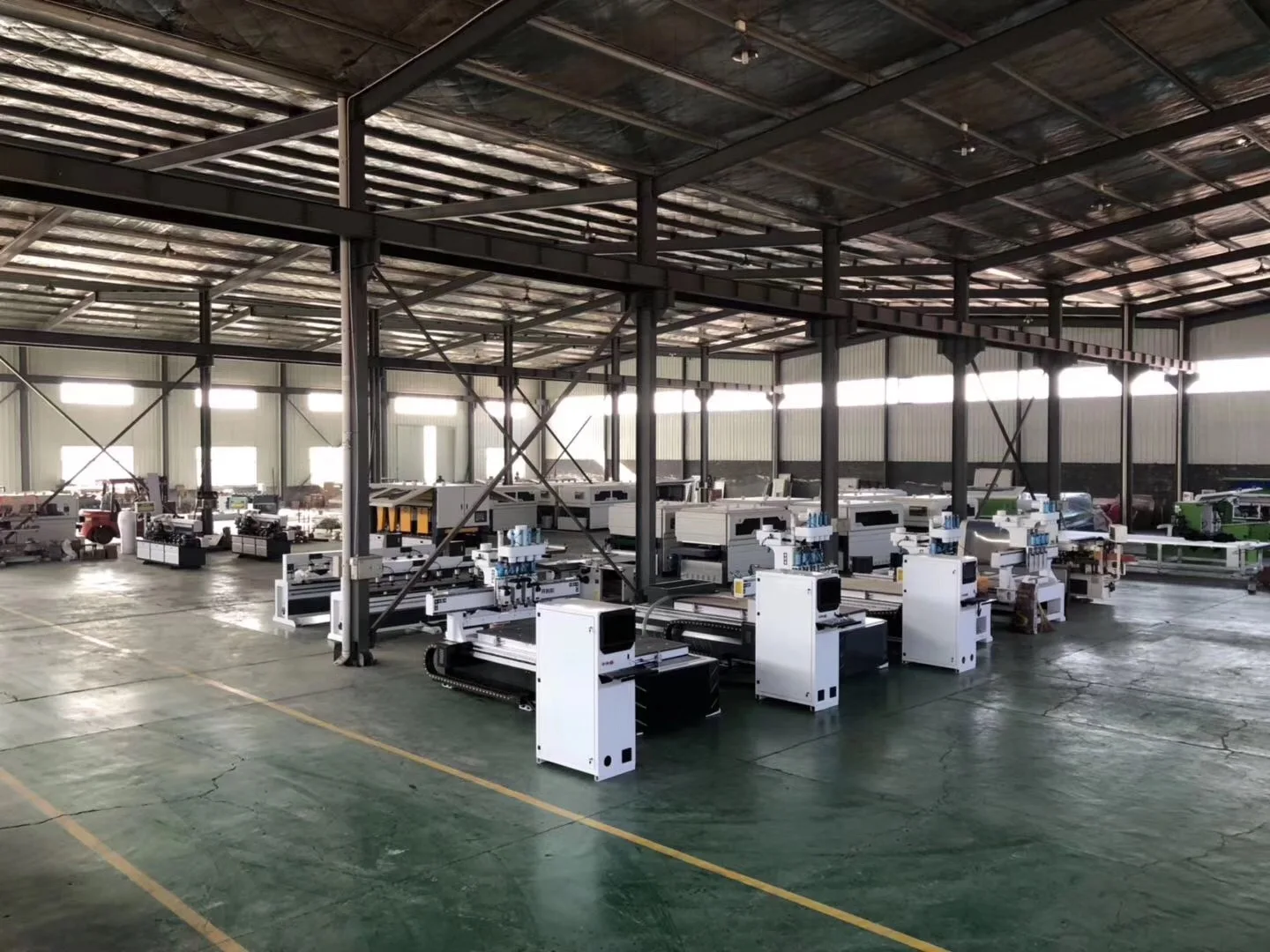

Company Introduction
Qingdao WINTOP machinery technology co., Ltd. is located in Qingdao, shandong province, China, has been engaged in the research and development and production of woodworking machinery technology for more than 15 years. Main production: Edge banding machine, Panel saw, Band saw, Sanding machine, Drilling machine, Hot/cold press machine, etc. Our company attaches great importance to the friendly cooperation with customers, cherishes the reputation, guarantees the quality and the service, thus has won the customer's trust and the support. We welcome you to contact us, we are willing to become a partner with you and do great business together.

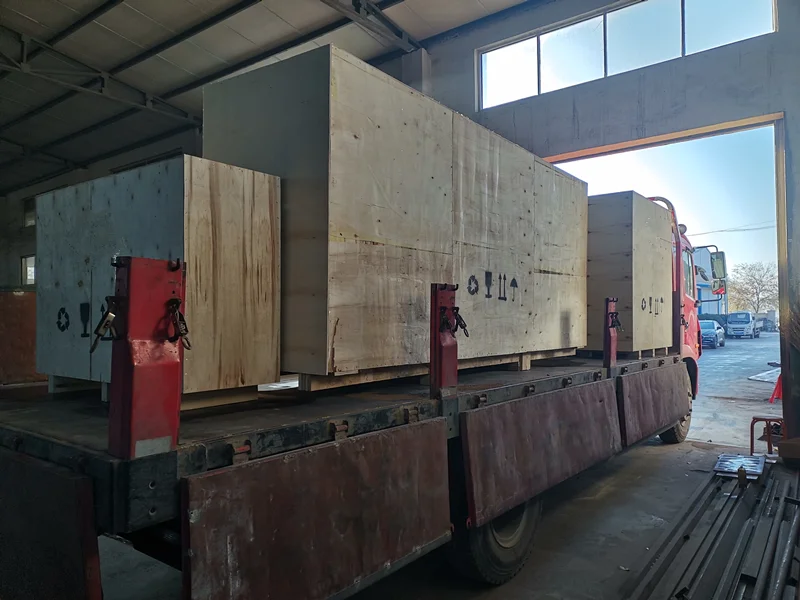

Packing&Shipping
Professional Packing And Shipping
packing with plastic films and plywood box, or as you requirement
