Manufacturer Price Used Burners Industrial Gas Burner For Kiln Furnace

Share on (1600536854327):


Price:

Quantity:


Product Overview

Description



Product Description




Specification


Model
Max. capacity
Min. capacity
Required gas pressure(Max. capacity)
Required combustion air pressure(Max. capacity)
KW
KW
Pa
Pa
NG
Propane
TecFG-010M
105
2
400
400
1300
TecFG-010H
1900
2200
2800
TecFG-020M
200
4
400
980
1020
TecFG-020H
2050
3000
3240
TecFG-040M
400
8
700
580
1200
TecFG-040H
2550
2880
3480
TecFG-075M
800
16
500
600
680
TecFG-075H
2100
2150
2520
TecFG-125M
1300
26
550
520
1560
TecFG-125H
2450
2520
3960
TecFG-185M
1980
40
600
600
1400
TecFG-185H
2300
2300
2900
TecFG-250M
2650
50
600
600
1200
TecFG-250H
2740
2740
3360
TecFG-375M
3960
80
600
600
1100
TecFG-375H
2500
2500
3900
TecFG-500M
5300
105
600
600
1850
TecFG-500H
1950
1950
4200


Model
Flame length
Maximum flow rate of flue gas
Maximum temperature of combustion air
mm
m/s
NG
Propane
TecFG-010M
460
490
75
300
TecFG-010H
360
435
150
TecFG-020M
780
970
75
TecFG-020H
750
765
150
TecFG-040M
1150
1150
75
TecFG-040H
970
1100
150
TecFG-075M
1630
1700
75
TecFG-075H
1350
1400
150
TecFG-125M
2680
2680
75
150
TecFG-125H
1900
2300
150
TecFG-185M
3200
3200
75
TecFG-185H
2550
2950
150
TecFG-250M
3800
3800
75
TecFG-250H
3200
3550
150
TecFG-375M
3670
4750
75
TecFG-375H
2200
2800
150
TecFG-500M
4300
5500
75
TecFG-500H
2200
2800
150
Data measurement conditions:standard combustion chamber,natural gas & combustion supporting air temperature 20℃,15% excess air volume,combustion chamber back pressure 0Pa.

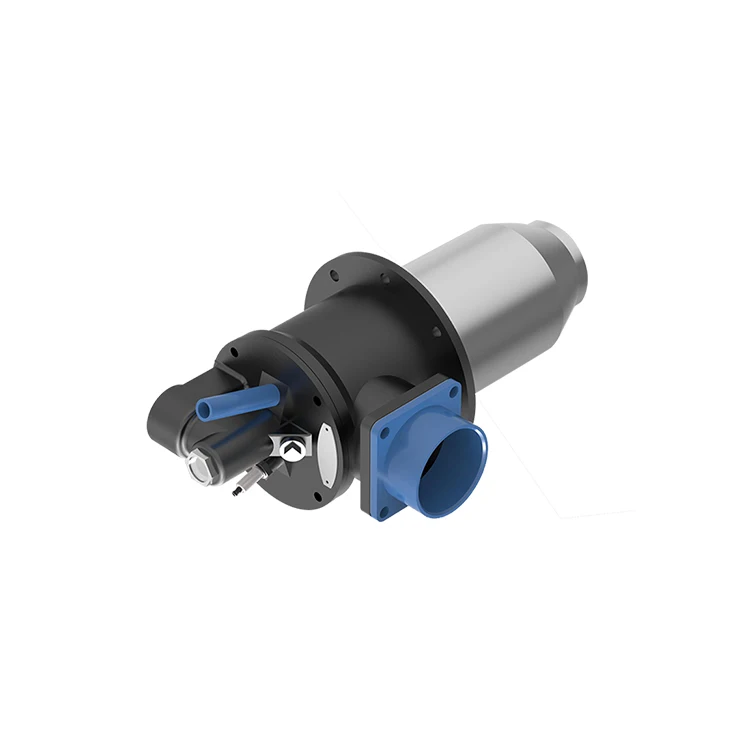

Tecflame gas burner is a high-precision temperature control burner designed by Rapidflame (UK) for medium and high temperature industrial applications. Tecflame is a nozzle mixing burner with the characteristics of high flame speed, ultra wide power regulation range, sufficient and stable combustion and high heat transfer efficiency. It is widely used, such as ceramic shuttle kiln, glass tempering furnace, tempering furnace, quenching furnace, annealing furnace, RTO, thermal oxidation furnace, drying furnace, preheating furnace, etc.

 Capacity range: 105kw-5300kw
 Regulation ratio 50:1
 Applicable maximum combustion chamber temperature 1540 ℃
 Maximum flame speed 150m/s
 Preheating combustion air can be used
 Low CO and NOx emissions
 Direct ignition with spark plug
 Applicable to natural gas and LPG


Description of model selection:
A)Medium speed / high speed selection:
Medium speed: the flame length is long and the air pressure difference of combustion air is low
High speed: the flame length is short and the pressure difference of combustion air is high, which can form a temperature field with smaller temperature difference and higher temperature uniformity in the furnace.
It is suggested that the medium speed burner should be preferred under the condition of meeting the requirements of flame size and without high temperature control accuracy.

B)Selection of refractory brick type:
Refractory brick: combustion chamber temperature ≤ 1540 ℃
Refractory brick with steel sleeve: combustion chamber temperature ≤ 1540 ℃, fiber light furnace wall (the temperature of any contact point between metal steel sleeve and furnace wall must be lower than 750 ℃)
Silicon carbide sleeve: combustion chamber temperature ≤ 1200 ℃
Alloyed steel sleeve: combustion chamber temperature ≤ 950 ℃ and combustion air temperature ≤ 300 ℃

C)Flame monitoring type selection:
UV is suitable for all burners.
Flame rod can be used for tecfg-40.20.10 models (and the combustion air is lower than 150 ℃)


Company Profile










Shanghai DYDTEC Combustion Equipment Co., Ltd. (DYDTEC) was established in 2008.

Its main business includes design, production and assembly of high and low temperature industrial burners, combustion control systems, flame treatment systems, air heaters , heat exchangers and combustion related control components. DYDTEC also provides a comprehensive range of services from installation and commissioning to maintenance and refurbishment.

DYDTEC control systems are designed to conform to European standard EN746 and American standard NFPA86 and local regulations specified by our customers.DYDTEC combustion control components are sourced from world-class suppliers from Germany, USA, UK and Japan, and comply with international standards for quality. DYDTEC work with partner companies based in America, Europe and Asia, who provide high standard customer support for global operations.

DYDTEC produces more than 1,000 sets of combustion systems annually. DYDTEC export flame treatment systems , combustion systems and direct-fired air heaters to many overseas markets. DYDTEC engineers are experienced in control system integration to many international customer processes.

DYDTEC is committed to providing safe combustion equipment with energy saving high efficiency operation and low emissions of Nitrogen Oxides ( NOx) and other harmful exhaust gasses. DYDTEC have considerable experience in automotive coating, environmental treatment, industrial drying and light and heavy thermal process industries.

DYDTEC has more than 70 employees and its annual sales reach USD 15 million. It establishes long-term and close partnerships with domestic and foreign experts in the industrial combustion industry and leading global suppliers to provide customers all over the world with the best energy-saving solutions, and high quality products and services.

DYDTEC is accredited to IS09001:2015 and has achieved national high-tech enterprise certification successfully. DYDTEC holds 30 combustion patents. We have engineers with more than 40 years of research and development experience who can cooperate with customers in designing non standard specialised equipment and thermal process development projects.


Certifications






Exhibition






Packing & Delivery




FAQ


1. who are we?
We are based in Shanghai, China, start from null,sell to Domestic Market(20.00%),North America(10.00%),South America(10.00%),Western Europe(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),South Asia(5.00%).

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Gas Burner,Combustion Components,Air Heater,Heat exchanger,Combustion System
