Регулятор давления газа
- Category: Valves >>>
- Supplier: Shanghai DYD Industrial Equipment Co. Ltd.
Share on (1600536871379):
Product Overview
Description
Product Description

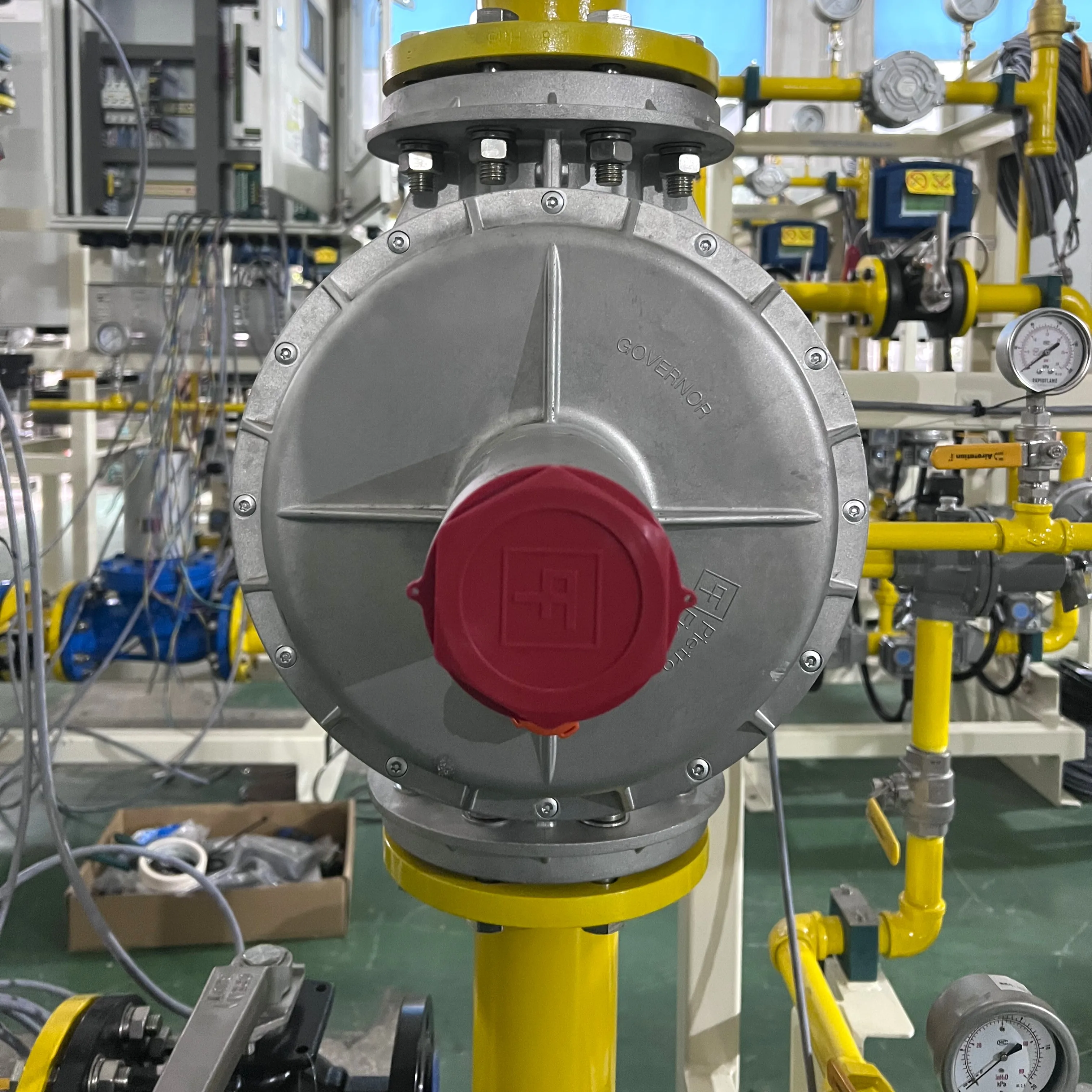

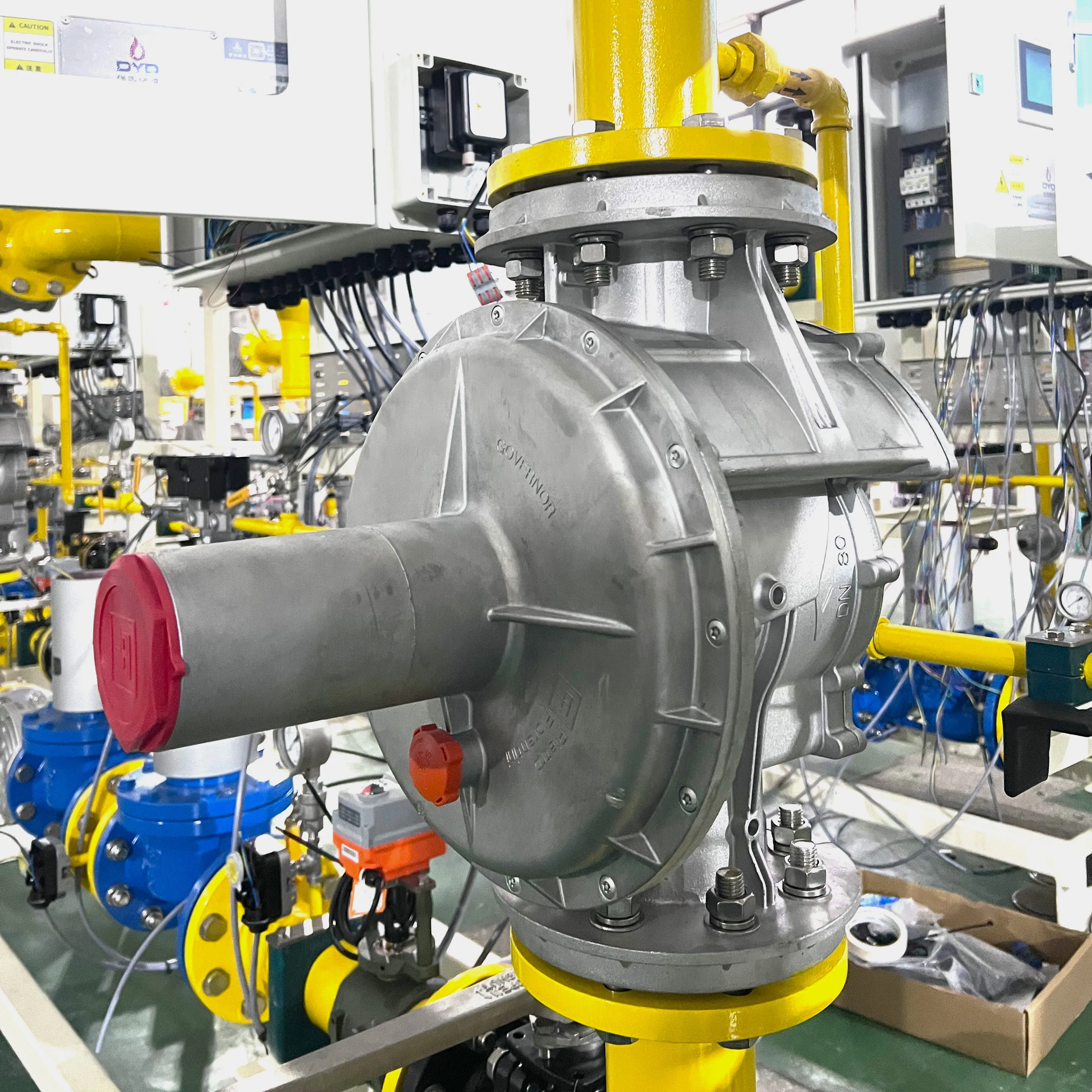

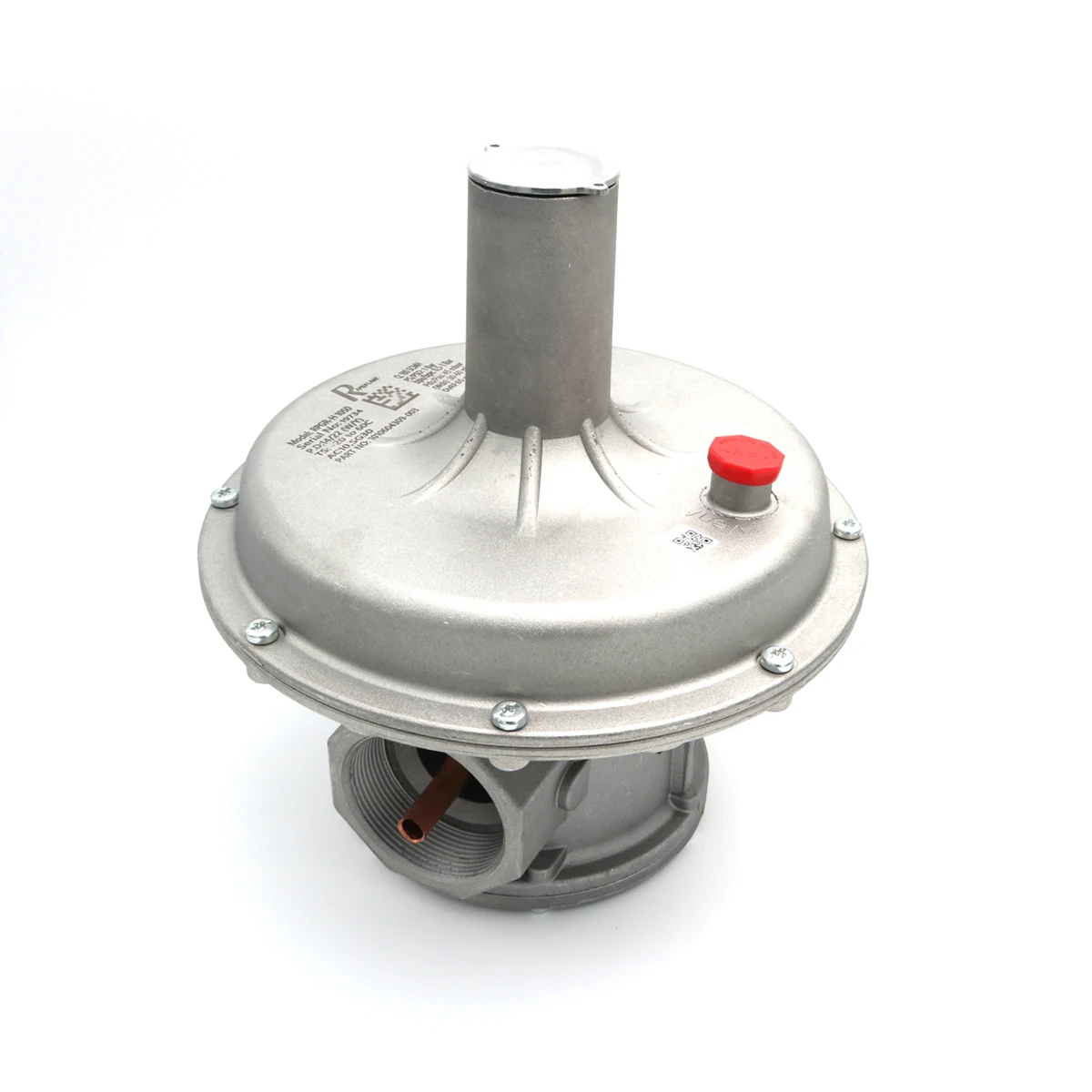

Gas pressure regulator
RPGR serise regulator is a spring-loaded, pressure compensating regulator with adjustable setpoint springs for regulation of the
regulator outlet pressure. External impulse of the regulator outlet pressure.Pressure regulation of industrial gas burners and gas
heating appliances. Also for installation in the municipal and commercial gas supply.
Suitable for gases of gas families 1, 2, 3 and other neutral gases.
regulator outlet pressure. External impulse of the regulator outlet pressure.Pressure regulation of industrial gas burners and gas
heating appliances. Also for installation in the municipal and commercial gas supply.
Suitable for gases of gas families 1, 2, 3 and other neutral gases.
Specification
PN | Model | Size | Connection | Inlet pressure | Outlet pressure | Weight(kg) | Dimension (mm) |
1010604309-005 | RPGR 1050（10-15kpa） | Rp2" | Thread | ≤100kPa | 10-17Kpa | 1 | 225*225*238 |
1010604309-004 | RPGR 1050（6-10kpa） | Rp2" | Thread | ≤100kPa | 6-10kpa | 1 | 225*225*238 |
1010604309-003 | RPGR 1050（3-6kpa） | Rp2" | Thread | ≤100kPa | 3-6Kpa | 1 | 225*225*238 |
1010604309-002 | RPGR 1050（1.8-3kpa） | Rp2" | Thread | ≤100kPa | 1.8-3Kpa | 1 | 225*225*238 |
1010604309-001 | RPGR 1050（1-2.5kpa） | Rp2" | Thread | ≤100kPa | 1-2.5Kpa | 1 | 225*225*238 |
1010604308-005 | RPGR 1040（10-15kpa） | Rp1-1/2" | Thread | ≤100kPa | 10-17Kpa | 1 | 225*225*238 |
1010604308-004 | RPGR 1040（6-10kpa） | Rp1-1/2" | Thread | ≤100kPa | 6-10kpa | 1 | 225*225*238 |
1010604308-003 | RPGR 1040（3-6kpa） | Rp1-1/2" | Thread | ≤100kPa | 3-6Kpa | 1 | 225*225*238 |
1010604308-002 | RPGR 1040（1.8-3kpa） | Rp1-1/2" | Thread | ≤100kPa | 1.8-3Kpa | 1 | 225*225*238 |
1010604308-001 | RPGR 1040（1-2.5kpa） | Rp1-1/2" | Thread | ≤100kPa | 1-2.5Kpa | 1 | 225*225*238 |
1010604306-005 | RPGR 1025（10-15kpa） | Rp1" | Thread | ≤100kPa | 10-15kpa | 0.5 | 156*156*144 |
1010604306-004 | RPGR 1025（6-10kpa） | Rp1" | Thread | ≤100kPa | 6-10kpa | 0.5 | 156*156*144 |
1010604306-003 | RPGR 1025（3-6kpa） | Rp1" | Thread | ≤100kPa | 3-6Kpa | 0.5 | 156*156*144 |
1010604306-002 | RPGR 1025（1.8-3kpa） | Rp1" | Thread | ≤100kPa | 1.8-3Kpa | 0.5 | 156*156*144 |
1010604304-004 | RPGR 1015（10-15kpa） | Rp1/2" | Thread | ≤100kPa | 10-15kpa | 0.5 | 156*156*144 |
1010604304-003 | RPGR 1015（6-10kpa） | Rp1/2" | Thread | ≤100kPa | 6-10kpa | 0.5 | 156*156*144 |
1010604304-002 | RPGR 1015（3-6kpa） | Rp1/2" | Thread | ≤100kPa | 3-6Kpa | 0.5 | 156*156*144 |
1010604304-001 | RPGR 1015（1.8-3kpa） | Rp1/2" | Thread | ≤100kPa | 1.8-3Kpa | 0.5 | 156*156*144 |
Technical specifications:
Fluid:Natural Gas, LPG, Propane, Butane, City gas,non-corrosive gases
Pressure Class:PN1.0
Input Pressure Range:50 mbar to 1 bar
Output Pressure Range:16 mbar to 150 mbar
Connection:1/2", 3/4", 1", 1-1/4", 1-1/2", 2" female connection
Accuracy Class - Output Tolerance:AC 10 (± 10%) (AC5,AC15,AC20)
Shutdown Tolerance:SG30 (+30%) (SG10,SG20, by request)
Operating Temperature Range:From 20 °C to 60 °C (-40 °C upon request)
Material StandardsAluminum - EN 1706, Brass - EN 12164 and EN 12165, rubbers EN - 549
Pressure Class:PN1.0
Input Pressure Range:50 mbar to 1 bar
Output Pressure Range:16 mbar to 150 mbar
Connection:1/2", 3/4", 1", 1-1/4", 1-1/2", 2" female connection
Accuracy Class - Output Tolerance:AC 10 (± 10%) (AC5,AC15,AC20)
Shutdown Tolerance:SG30 (+30%) (SG10,SG20, by request)
Operating Temperature Range:From 20 °C to 60 °C (-40 °C upon request)
Material StandardsAluminum - EN 1706, Brass - EN 12164 and EN 12165, rubbers EN - 549
Company Profile
Shanghai DYDTEC Combustion Equipment Co., Ltd. (DYDTEC) was established in 2008.
Who we are
DYDTEC – the industrial combustion solutions company in China. www.dydtec.com/en
→ Founded in 2008
→ More than 80 engineers
→ Holds over 30 combustion patents
→ Extensive cooperation with over 20 global top brands
What we do
→ Design, production and assembly of high and low temperature industrial burners
→ Combustion control systems
→ Flame treatment systems
→ Air heater, heat exchangers
→ Combustion related control components
→ Installation, commissioning to maintenance and refurbishment.
What we have
→ Online platform www.airotation.com where you can find our product lines and pricing
What we propose
→ We are going overseas and looking forward to all kinds of extensive cooperation with
partners worldwide.
If you are interested in distributing our products, providing local debugging services, expanding your business in China Market,talk to me then. sales1@dydtec.com
Who we are
DYDTEC – the industrial combustion solutions company in China. www.dydtec.com/en
→ Founded in 2008
→ More than 80 engineers
→ Holds over 30 combustion patents
→ Extensive cooperation with over 20 global top brands
What we do
→ Design, production and assembly of high and low temperature industrial burners
→ Combustion control systems
→ Flame treatment systems
→ Air heater, heat exchangers
→ Combustion related control components
→ Installation, commissioning to maintenance and refurbishment.
What we have
→ Online platform www.airotation.com where you can find our product lines and pricing
What we propose
→ We are going overseas and looking forward to all kinds of extensive cooperation with
partners worldwide.
If you are interested in distributing our products, providing local debugging services, expanding your business in China Market,talk to me then. sales1@dydtec.com
Certifications
Exhibition
Packing & Delivery
FAQ
1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.What can you buy from us?
Gas Burner,Combustion Components,Air Heater,Heat exchanger,Combustion System
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.What can you buy from us?
Gas Burner,Combustion Components,Air Heater,Heat exchanger,Combustion System
3.Are you trading company or manufacture?
Both.
Both.
4.What's your delivery time
standards products within 2-8weeks. We shall discuss with customer and decide together.
standards products within 2-8weeks. We shall discuss with customer and decide together.
