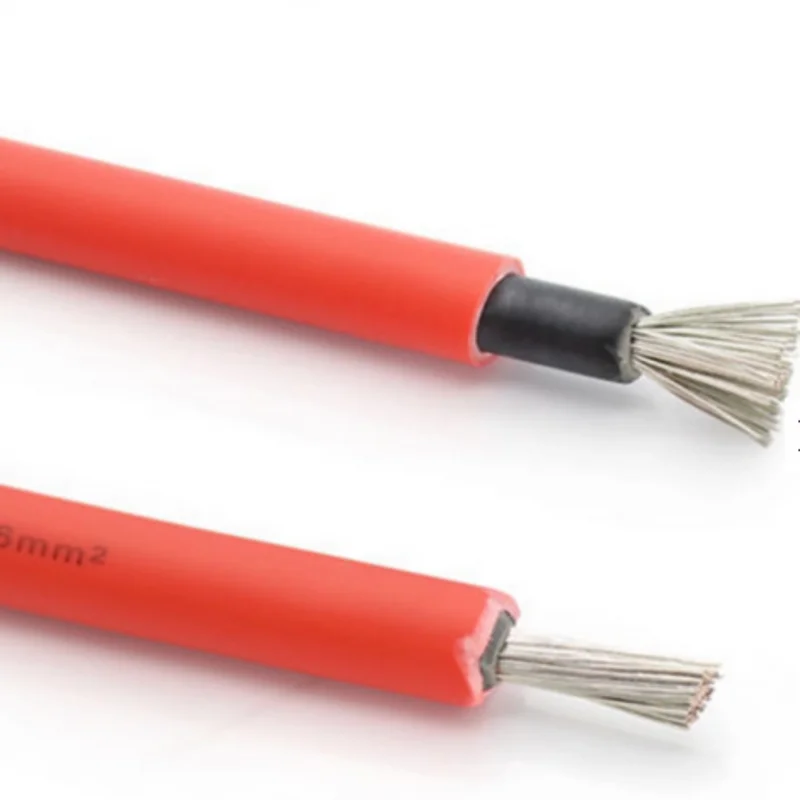

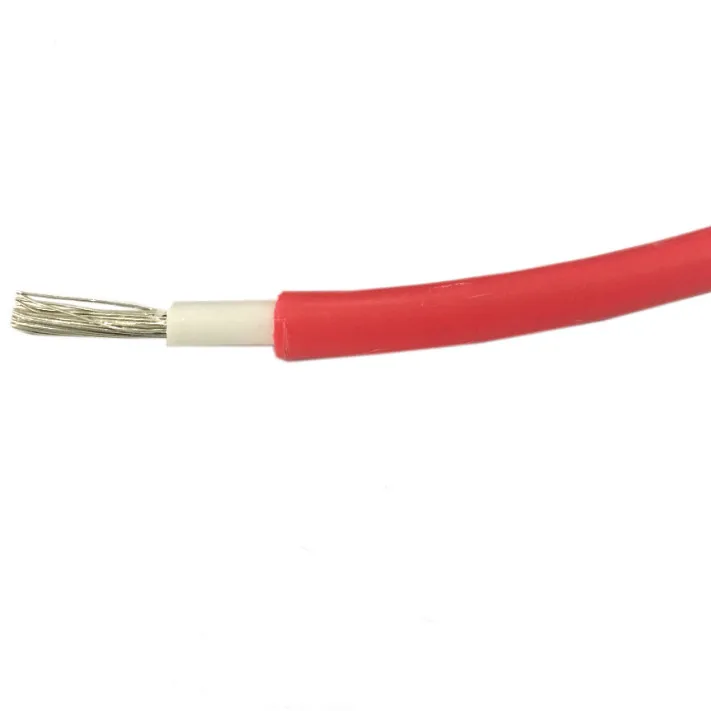

DC 4MM2 6MM2 10MM2 16MM2 PV Solar Power Cable Wire for Solar Panel PV1 F H1Z2Z2 K
- Category: >>>
- Supplier: Henan Guowang Cable Co. Ltd.
Share on (1600536874281):
Product Overview
Description
Product Description
Product Name | Solar Cables |
Brand Name | Electra Cables |
Model Number | H1Z2Z2-K 16mm² |
Conductor | Copper |
Application | The interconnection within photovoltaic systems |
Temperature range | -40°C to +90°C |
Specification

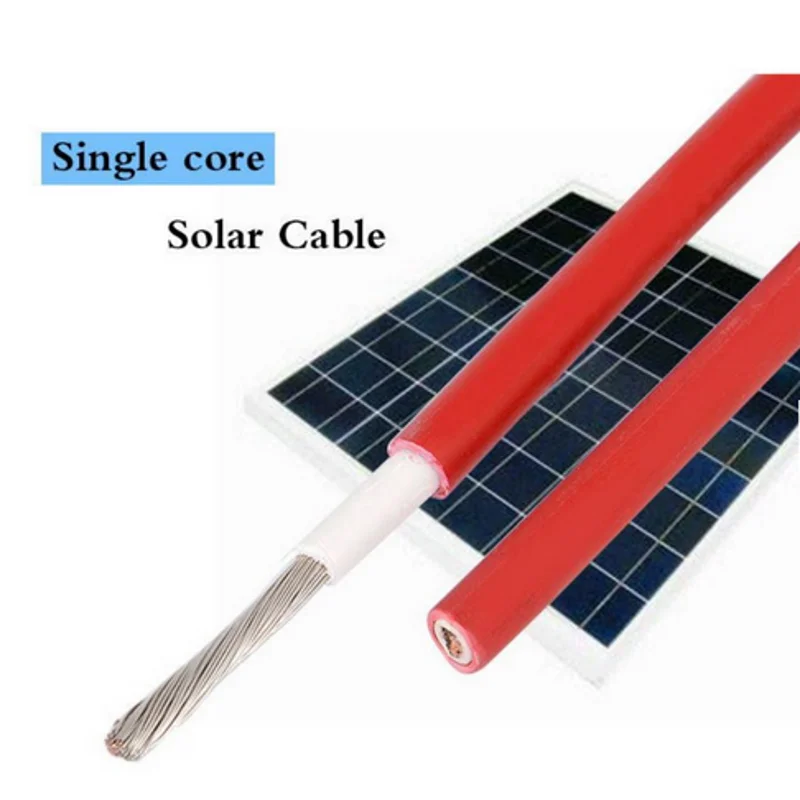

H1Z2Z2-K Solar Cable
(Class 5 Conductor)
AC:1000/1000V, DC:1500/1500V rating, Tinned Copper Conductor, Halogen-free cross-linked insulation and sheath.
Application:
Application: H1Z2Z2-K European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, within conduit or systems, but not direct burial applications.
Standards: EN 50618,TÜV 2 PfG 1169/082007,EN 50288-3-7
Standards: EN 50618,TÜV 2 PfG 1169/082007,EN 50288-3-7
EN 60068-2-78.
Flame retardant according to IEC/EN 60332-1-2
Flame retardant according to IEC/EN 60332-1-2
Low Smoke Zero Halogen according to IEC/EN
60754-1/2.IEC/EN61034-1/2
UV Resistant according to HD 605 S2

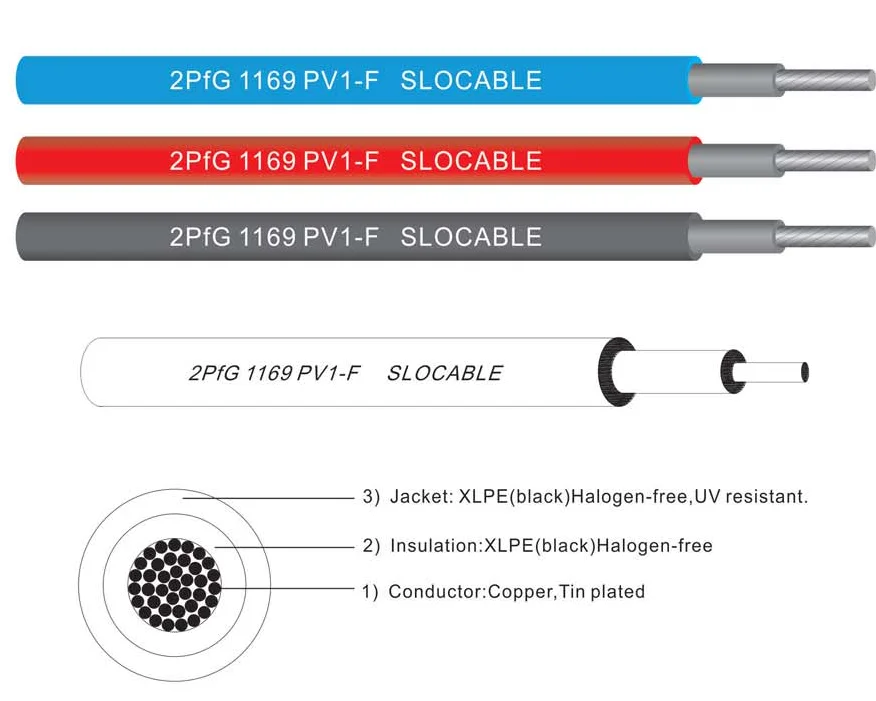

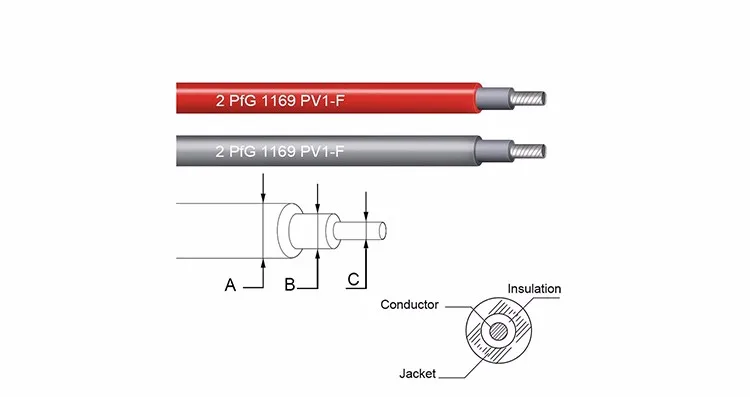

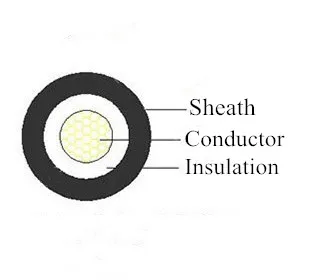

Characteristics Conductor: Class 5 flexible tinned copper conductor
Insulation: Halogen-free cross-linked compound
Sheath: Halogen-free cross-linked. flame retardant compound
60754-1/2.IEC/EN61034-1/2
UV Resistant according to HD 605 S2
Characteristics Conductor: Class 5 flexible tinned copper conductor
Insulation: Halogen-free cross-linked compound
Sheath: Halogen-free cross-linked. flame retardant compound
Rated Voltage Uo/U: AC:1000/1000V
DC: 1500/1500V
Maximum Voltage (Umax): 1800V
Temperature range: -40℃to+90℃
Minimum Bending Radius: Fixed: 4 x overall diameter
Flexed: 5 x overall diameter
Cable Colour: Black
Packaging: 100m Rolls, 500m Rolls
DC: 1500/1500V
Maximum Voltage (Umax): 1800V
Temperature range: -40℃to+90℃
Minimum Bending Radius: Fixed: 4 x overall diameter
Flexed: 5 x overall diameter
Cable Colour: Black
Packaging: 100m Rolls, 500m Rolls
Technical data:
Part No. | No. of Core | Nominal Cross Section(mm2) | Nominal Overall diameter(mm) | Tensile Strength in Operation | Approx Mass (kg/km) |
H1Z2Z2-K 10025 | 1 | 2.5 | 4.9 | 37 | 40 |
H1Z2Z2-K 10040 | 1 | 4 | 5.4 | 60 | 56 |
H1Z2Z2-K 10060 | 1 | 6 | 5.9 | 90 | 73 |
H1Z2Z2-K 10100 | 1 | 10 | 6.9 | 150 | 115 |
H1Z2Z2-K 10160 | 1 | 16 | 8.0 | 240 | 170 |
H1Z2Z2-K 10250 | 1 | 25 | 10.3 | 375 | 270 |
H1Z2Z2-K 10350 | 1 | 35 | 11.8 | 525 | 365 |
H1Z2Z2-K 10500 | 1 | 50 | 13.5 | 750 | 508 |
H1Z2Z2-K 10700 | 1 | 70 | 16.0 | 1050 | 729 |
H1Z2Z2-K 10950 | 1 | 95 | 17.8 | 1350 | 923 |
H1Z2Z2-K 11200 | 1 | 120 | 19.8 | 1800 | 1178 |
H1Z2Z2-K 11500 | 1 | 150 | 21.1 | 2250 | 1460 |
H1Z2Z2-K 11850 | 1 | 185 | 24.4 | 2775 | 1777 |
H1Z2Z2-K 12400 | 1 | 240 | 27.1 | 3600 | 2252 |

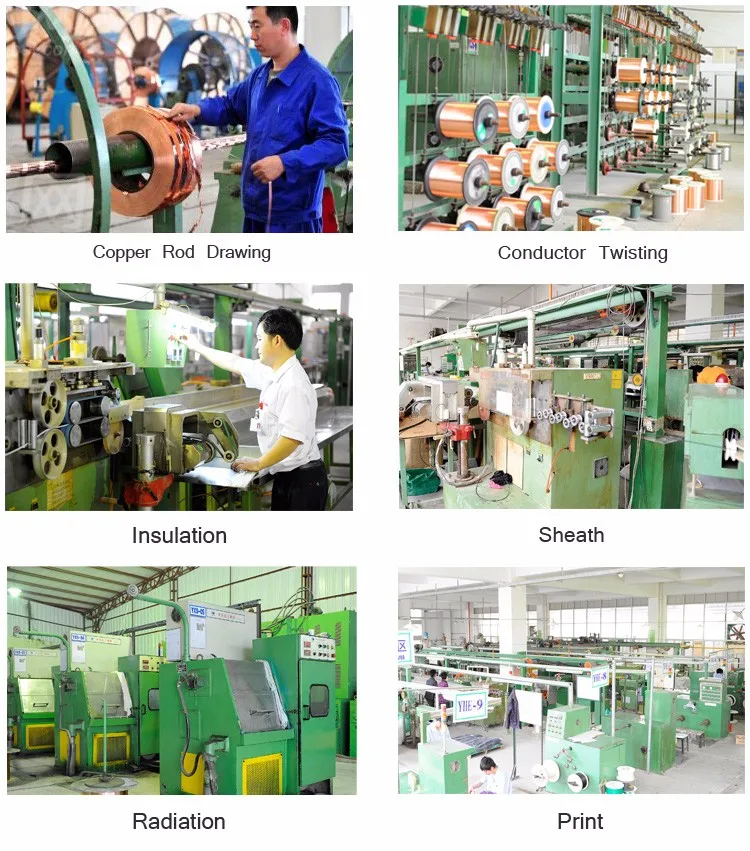

Production Process
Packing & Delivery
Electric Wires
Packing the electric wire coils by wooden case
Cables
Fix the wooden wheel with cable in the container
Power Cable
Packing the power cable by fumigated wooden drum
Transportation by Sea
Transportation by Air
Company Profie

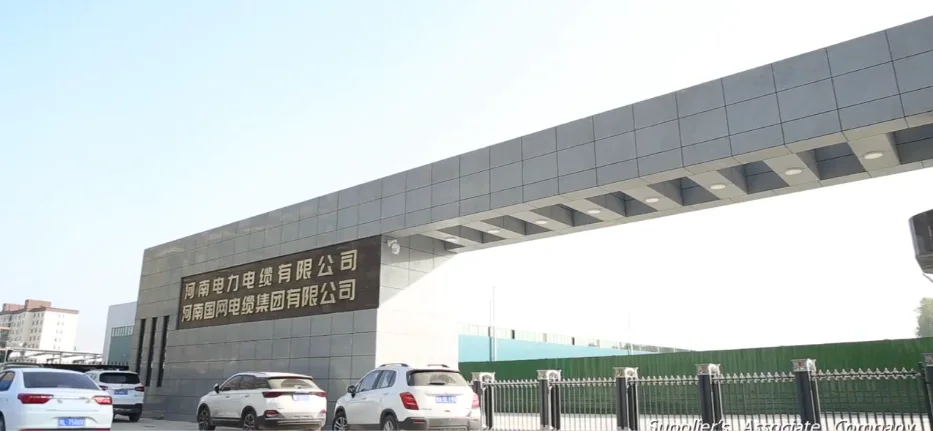

Henan Guowang Cable., Ltd
Founded in 1988, Henan Guowang (State-Grid) Cable Co., Ltd. is located in Xinzheng New Technology Industrial Zone, covering an area of 40,000 square meters and has own modern production workshops, hundreds of professional and technical employees, owning unique geographic location and optimum investment environment.

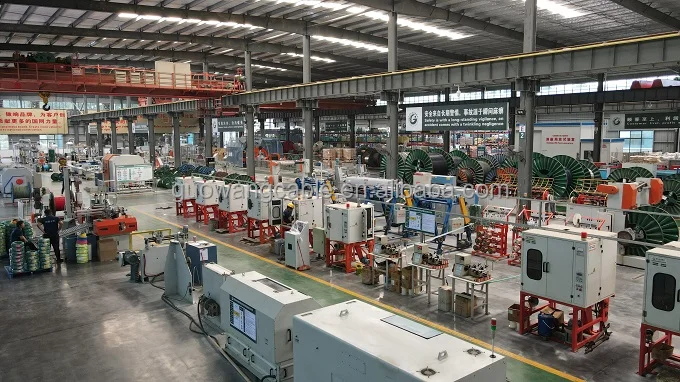

The production workshop
The products involve more than 400 models and 20000 kinds of specifications, and are widely applied in electrical power system, petrochemical, construction, metallurgy, ship, railway, aviation etc. We have customers in more than 60 countries and regions around the world, such as Europe, Asia, South Africa, South and North America, Middle East and Oceania. Our strong technical capabilities paired with our strict quality control processes, have helped us create a strong reputation in the cable manufacturing industry.
● PVC Insulated and Sheathed Power Cable, unarmoured or armoured
● Low, Medium Voltage (1kV-35kV) XLPE Insulated Power Cable, unarmoured or armoured
● PVC Insulated Wire, Building wire, solid, stranded or flexible
● Bare Overhead Conductor (AAC,AAAC,ACSR)
● Aerial Bundled Cable 1kV-35kV (ABC Cable)
● Mining and General Rubber-Sheathed Flexible Cable
● Welding Cable,
● Control Cable
● Low, Medium Voltage (1kV-35kV) XLPE Insulated Power Cable, unarmoured or armoured
● PVC Insulated Wire, Building wire, solid, stranded or flexible
● Bare Overhead Conductor (AAC,AAAC,ACSR)
● Aerial Bundled Cable 1kV-35kV (ABC Cable)
● Mining and General Rubber-Sheathed Flexible Cable
● Welding Cable,
● Control Cable
Guowang Cable is ISO9001, ISO14001, OHSAS18001 and CE certified.
We can produce according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA and so on. Meanwhile we can produce
based on customers' requirements and specifications.
based on customers' requirements and specifications.
FAQ
Q: When can I get the price ?
A: For standard types and small orders, it take less than 24 hours. For big quantity and plenty types, it takes less than 48 hours.
Q: I didn't find my needed model in this page.
A: Dear Friend, e-catalog will emailed to you asap you contact us. Also, we supply customization service. So, contact us !
Q: How can I get some samples?
A: We are honored to offer you samples according your inquiry.
A: For standard types and small orders, it take less than 24 hours. For big quantity and plenty types, it takes less than 48 hours.
Q: I didn't find my needed model in this page.
A: Dear Friend, e-catalog will emailed to you asap you contact us. Also, we supply customization service. So, contact us !
Q: How can I get some samples?
A: We are honored to offer you samples according your inquiry.
Q: Do you custom package?
A: We strive to meet our customers' needs and therefore have no problem meeting most specifications. We can reel into coils, disposable cartons, special reels, or load your wire and cable into reusable plastic containers. Please check with your sales representative first to verify we can meet your need.
Q: What warranties do your products carry?
A: Guowang cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties.
