TPM4040 Single Spindle High Speed CNC drilling machine for steel plates, flange and tube sheets, steel structure
- Category: >>>
- Supplier: Shandong Sunrise Cnc Machine Co. Ltd.
Share on (1600536881902):
Product Overview
Description
Application:

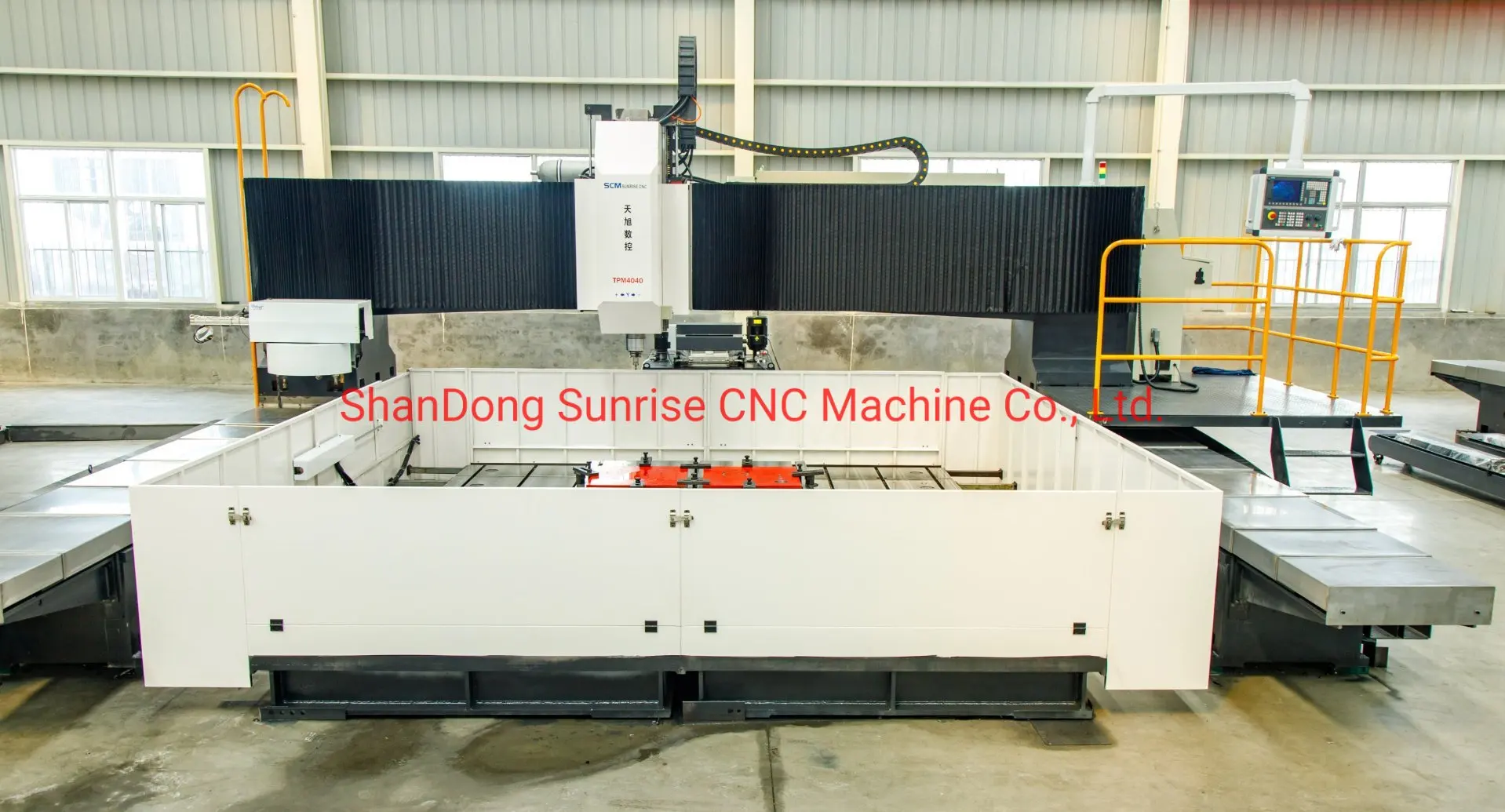

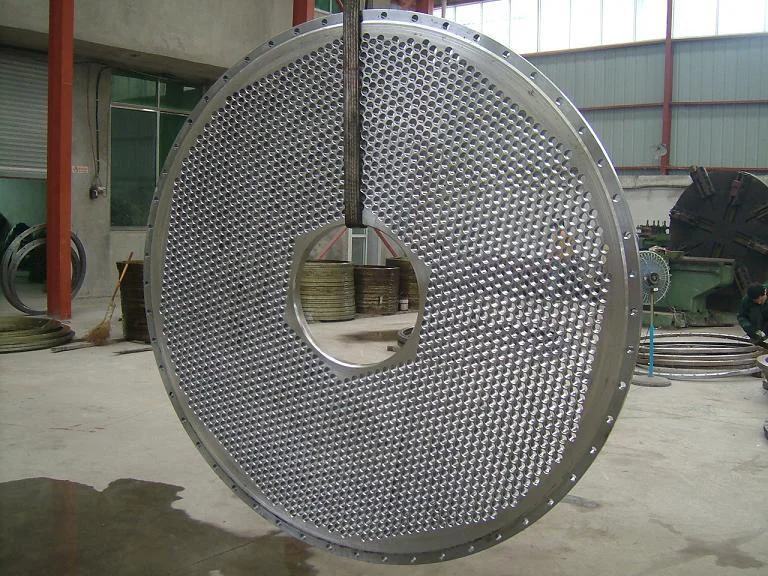

This machine is gantry moving CNC high speed drilling machine, mainly uses for drilling and grooving work-pieces like tube sheets, flanges, can adopt both internal cooling carbide drills as well as external cooling twist drills. The two spindles can work simultaneously or independently, CNC control, easy operate, can realize automation, high precision, multi-scale, mid-small amount production.
Parameter:
Name | Description | Value |
Max. work-piece size | L*W | 4000*4000mm |
Max. Thickness | 250mm | |
Worktable | Width of T Slot | 28mm |
Drilling spindle | Max. Drilling dia. | Φ90mm |
Drilling depth/drilling dia. | ≤5(carbide,Max. thickness 250mm) | |
Max.Tapping dia. | M30 | |
Speed | 30-3000r/min | |
taper | BT50 | |
Max.Spindle torque (Nm) Spindle speed≤250 r/min | 470 | |
Power of frequency motor | 37kW | |
Gantry longitudinal movement(X axis) | Max. stroke | 4000mm |
Drilling head transverse movement (Y axis) | Distance between two spindle | 860mm-4000mm |
Drilling head in-feed movement (Z axis) | Stroke | 500mm |
Hydraulic system | Hydraulic pump pressure/flow | 6MPa/25L/min |
Hydraulic pump motor power | 3kW | |
Pneumatic system | Air pressure | 0.6MPa |
Chip removal and cooling | Type | Plate-chain |
Quantity | 2 | |
Removing speed | 1m/min | |
Chip removal Motor power | 0.75kW | |
External cooling pump motor power | 2*2.2kW | |
Cooling way | Internal cooling &External cooling | |
Pressure/flux | 2Mpa | |
Electric system | CNC System | Siemens 828D |
No. of CNC axis | 4 | |
Overall size | L* W * H | About 8.7m*8.9m*3.6m |
Weight | About 60t | |
