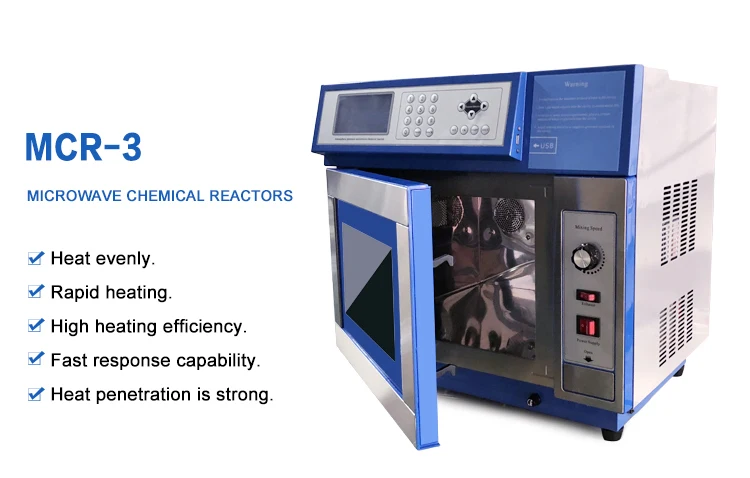

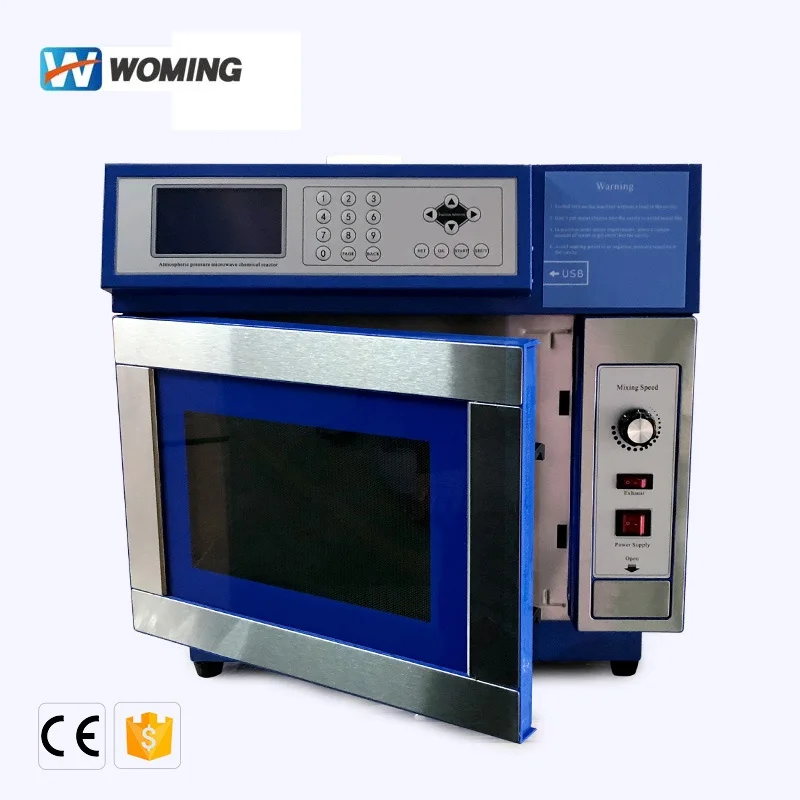

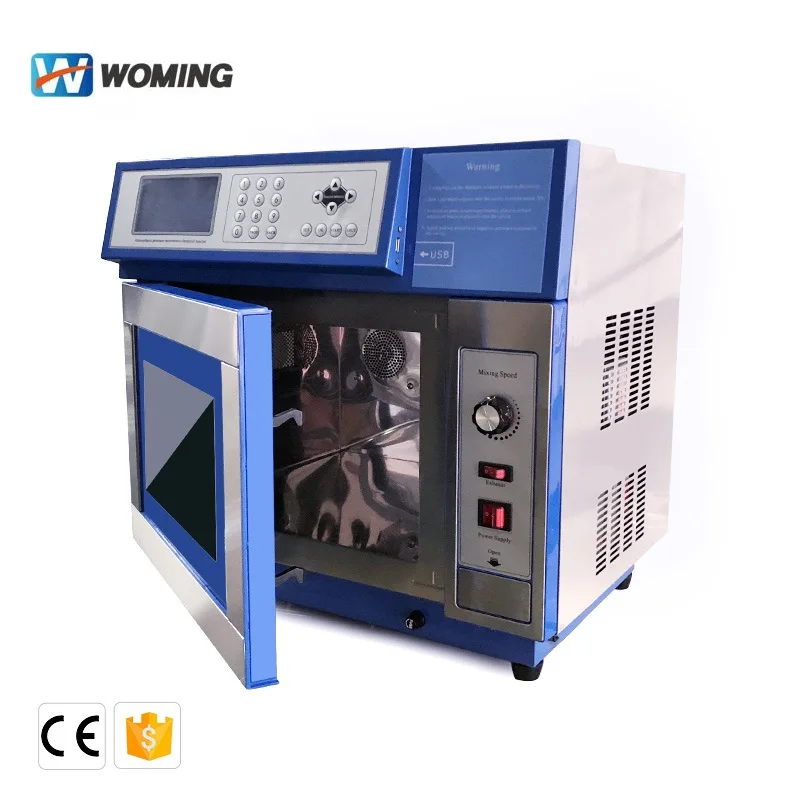

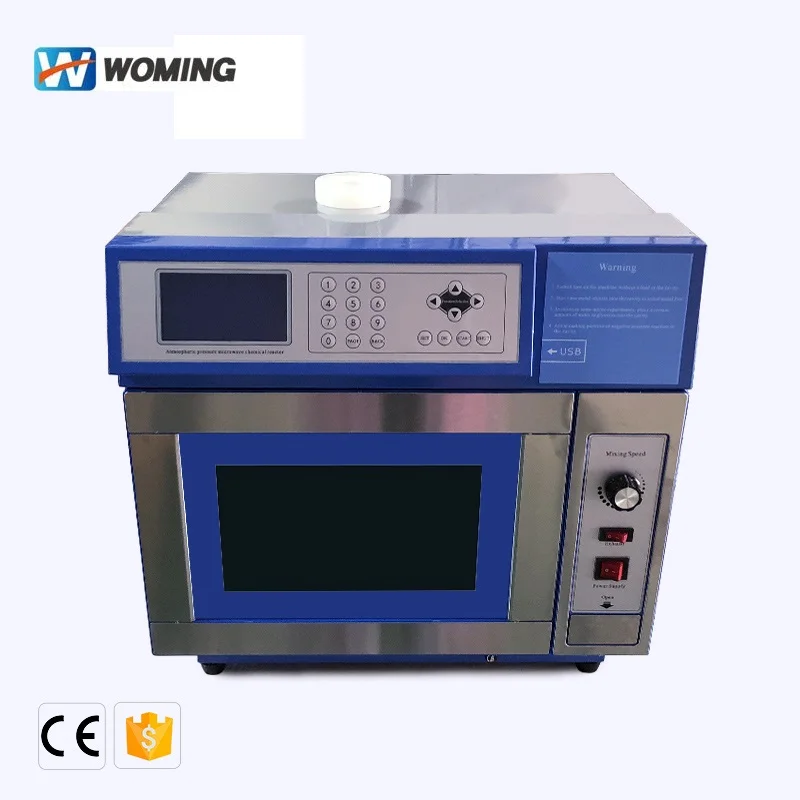

Factory Outlet Woming Laboratory Pyrolysis Synthesis Reactor MCR 3 Microwave Chemical Reactor

In recent years, the development of microwave chemistry technology is in the ascendant. Due to the special mechanism of microwave, such as thermal effect, non-thermal effect and induced catalytic effect, it has brought great impact to the field of chemistry, especially the field of organic synthesis. Microwaves are used in organic synthesis reactions, which are 10 to thousands of times faster than conventional reactions. And can synthesize materials that are difficult to synthesize by conventional methods. Up to now, Diels-Alder cycloaddition reaction, rearrangement reaction, esterification reaction, Pekin reaction, alkylation, oxidation, substitution, condensation, addition and polymerization have been studied and achieved. Is widely used in materials, pharmaceutical, chemical and related teaching and research fields. As a manufacturer specializing in the production of laboratory instruments, we have developed a microwave chemical reactor (MCR-3) for atmospheric synthesis and extraction, which is suitable for the requirements of our customers.

1.Continuous non-pulse microwave heating

According to research, pulse microwave at the moment of "on" and "off" will produce high threshold electromagnetic pulse, temperature shock or large shock phenomenon, is also very easy to destroy the form of organic molecules, thus affecting the consistency of experimental results. Non-pulsed microwave continuous heating is characterized by: frequency conversion microwave power regulation, microwave output for continuous output, no pulse stimulation.

2.Microwave power variable frequency control

Dual CPU technology is adopted to assist monitoring and control. The self-adaptive PID regulation technology overcomes the occurrence of overshoot under the condition of the change of the environmental temperature, the polarity of the reaction material, the change of heat capacity, and the change of mathematical model. The microwave radiation power is adjusted with the feedback of temperature so as to reach the temperature setting value accurately. Automatic adjustment of the power and the intensity of the response, to achieve the ideal control effect.

3.Platinum resistance temperature control system

The shielded platinum resistance is directly inserted into the reactor to measure the internal temperature of the reaction. Reliable shielding device effectively eliminates any electromagnetic interference and self-heating effect.

4.Microwave power ten adjustment

As we know, microwaves are very fast and very reactive. We divide the power into ten grades within the range of microwave effective power, and the microwave power can be controlled automatically by frequency conversion within the limit of power range of each grade, thus limiting the intensity of the reaction and the reaction speed.

5.The five-step program heats up

Through the control of the microcomputer, the reaction temperature rise process can be divided into five stages, the user can edit the reaction parameters: reaction temperature, reaction time, and maximum power. In addition, microwave can also be used to modify the reaction conditions.

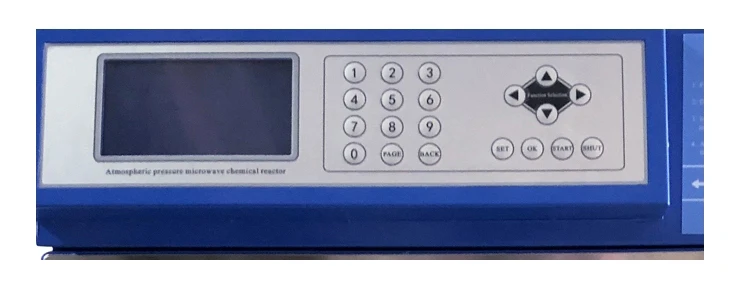

6.large LCD screen

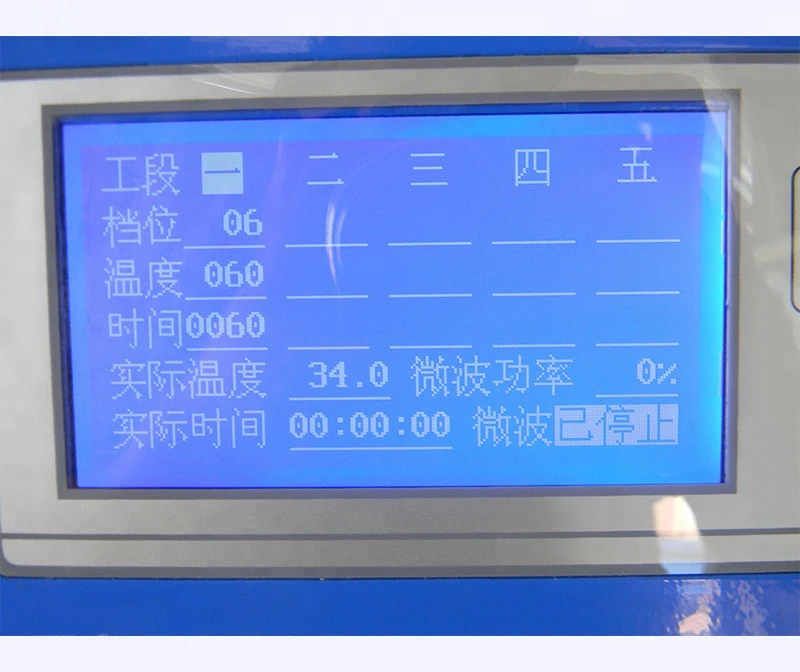

Effective pixel 240×128, screen size up to 120×80mm. LCD synchronous display: real-time working period, setting power, setting temperature, setting time. Real-time power, real-time temperature, real-time time. By turning the page, and can show the temperature curve.

7.At the same time, it is equipped with inert gas inlet and built-in magnetic agitator. The stirring speed is infinitely adjustable.

1.Power supply: 220V 50HZ

2.Microwave power: 0-750 continuously and automatically adjustable

3.Non-pulsed microwave continuous output.

4.The contact teflon temperature sensor can detect the internal temperature of the reaction system. The temperature measurement precision is 0.2, and the temperature control precision is < ±1℃. Temperature control range 0-250℃, and has the function of temperature error correction.

5.Large-screen LCD display: screen size 120×80mm, three-screen display: five reaction conditions, temperature curve, temperature correction. Real-time display: reaction temperature, reaction time, power usage.

6.Five steps can be set in each reaction process: each step can be set separately: maximum power (divided into 10 levels), reaction temperature and reaction time. And support the modification of reaction conditions during the reaction process.

7.Two control modes: constant temperature control mode and constant power control mode.

8.Adaptive PID temperature regulation technology, suitable for temperature control under different mathematical models.

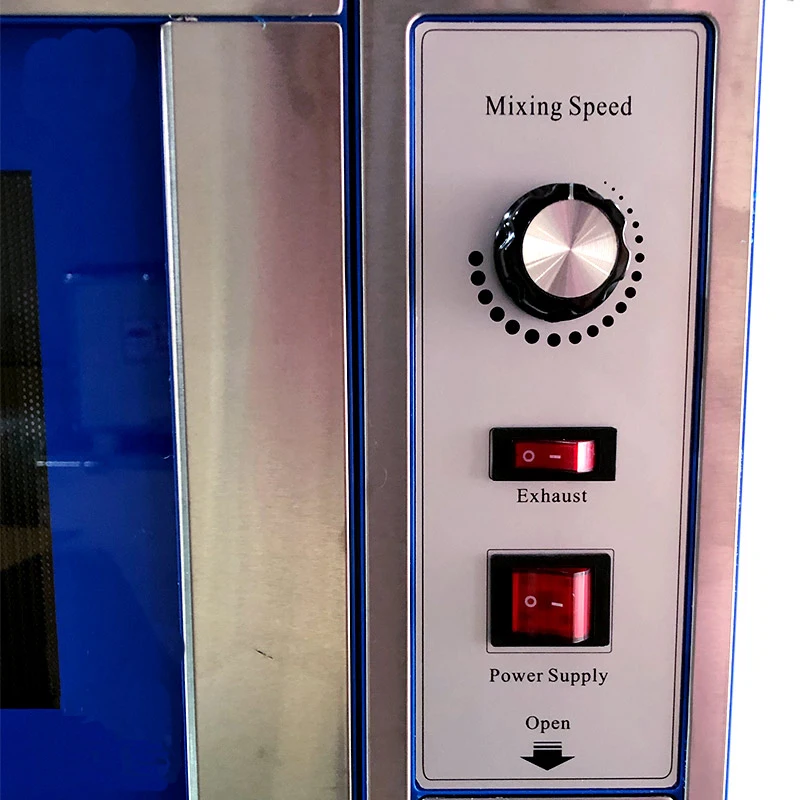

9.Built-in magnetic agitator, stepless and adjustable stirring speed.

10.Magnetron overheat protection function.

11.Secure interlock switch. Microwave output can be stopped by opening the furnace door under any circumstances.

12.Equipped with protective gas inlet.

The open reaction system can be equipped with standard reaction vessel (volume 10-500ml) and devices for reflux condensation, drip addition, rehydration and water separation according to the reaction conditions.
