Product Overview
Description
SWIR Camera IMX990 Short Wavelength Infrared Traffic Monitoring Food Inspection Sorting Camera Module Night Vision Cameras
Different project with different price:

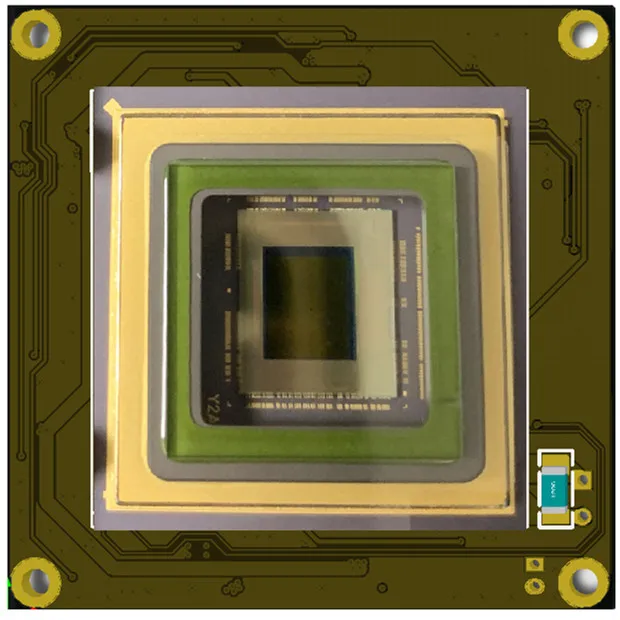

Project 1#
IMX990 Sensor board
Size: 42mm*42mm

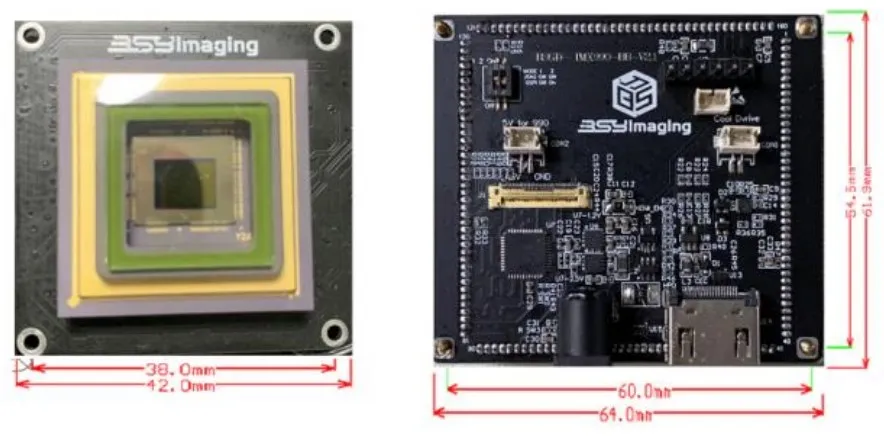

Project 2#
IMX990 Sensor board+Adapter Board
Size: 42mm*42mm; 64*64mm
Size: 42mm*42mm; 64*64mm

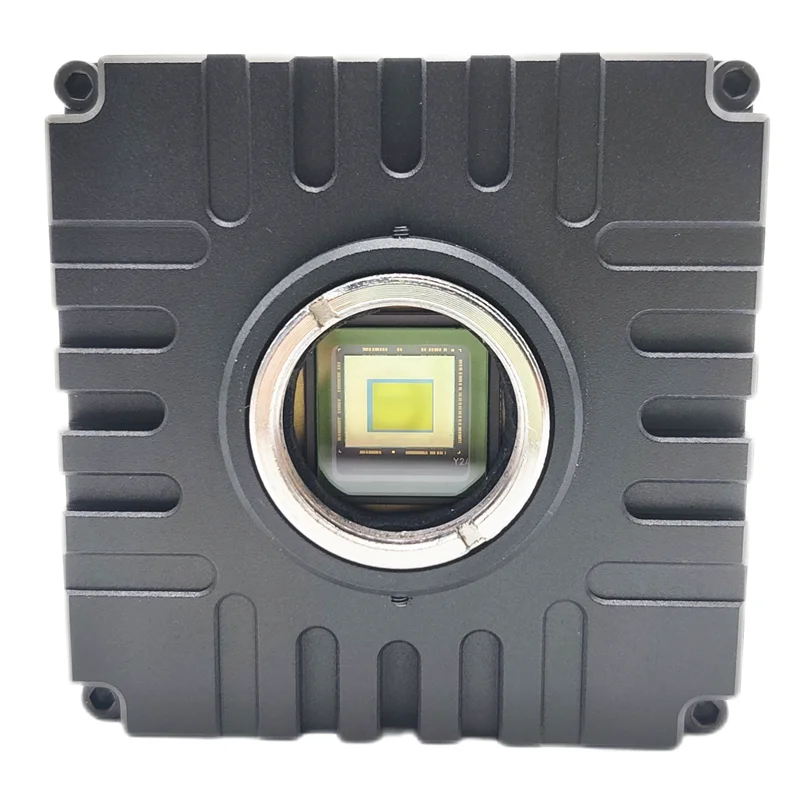

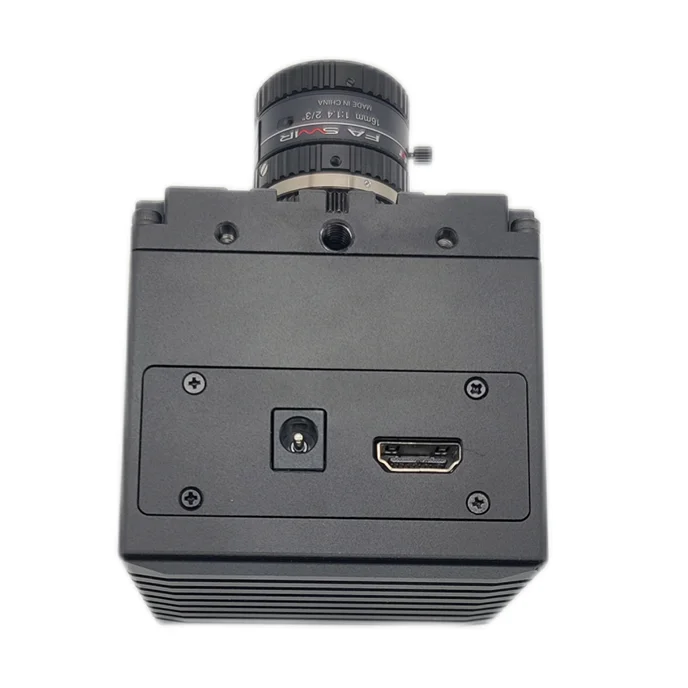

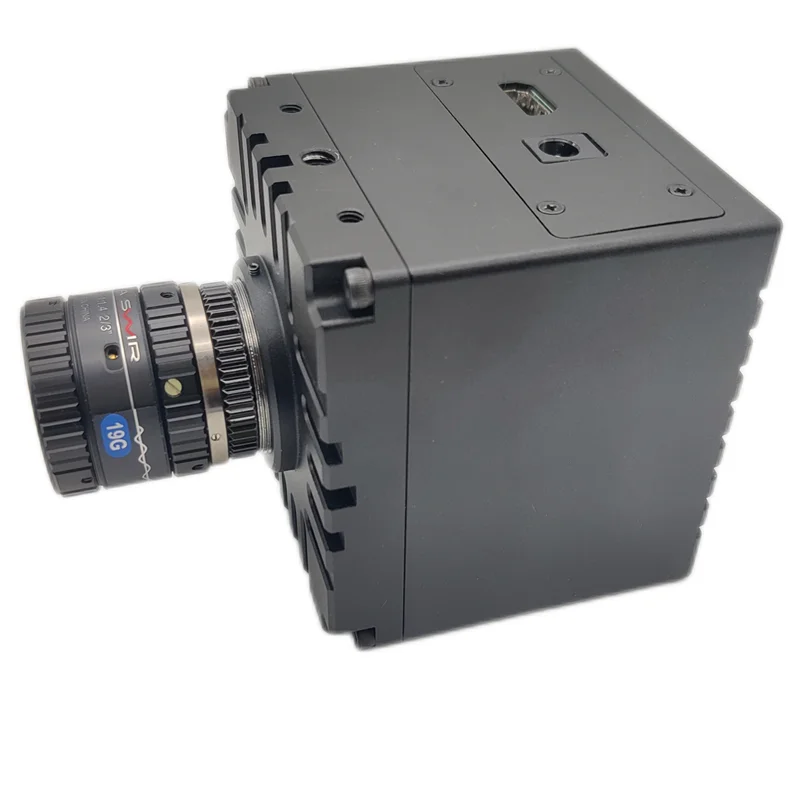

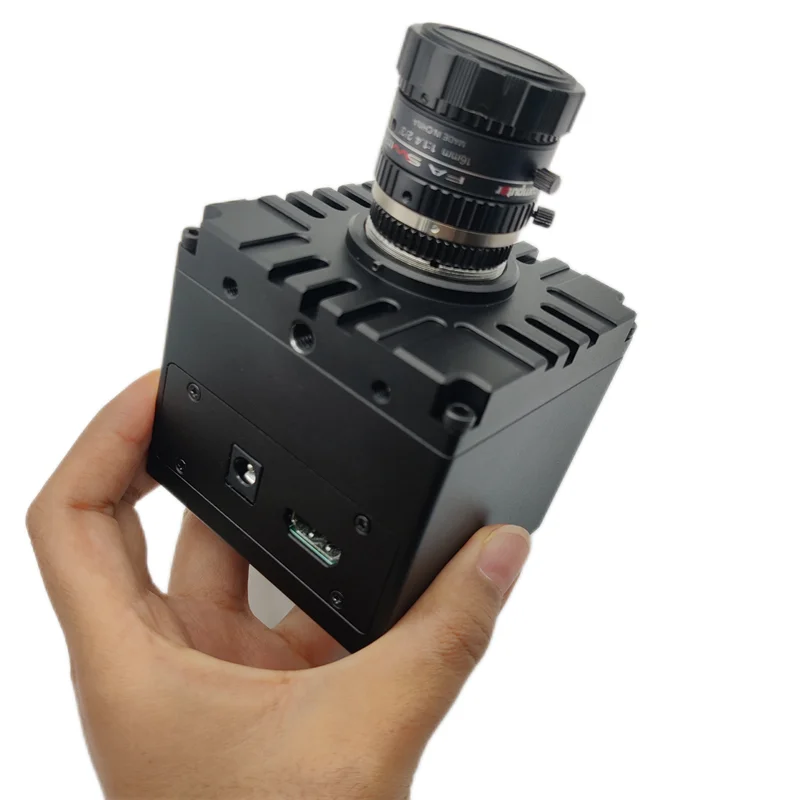

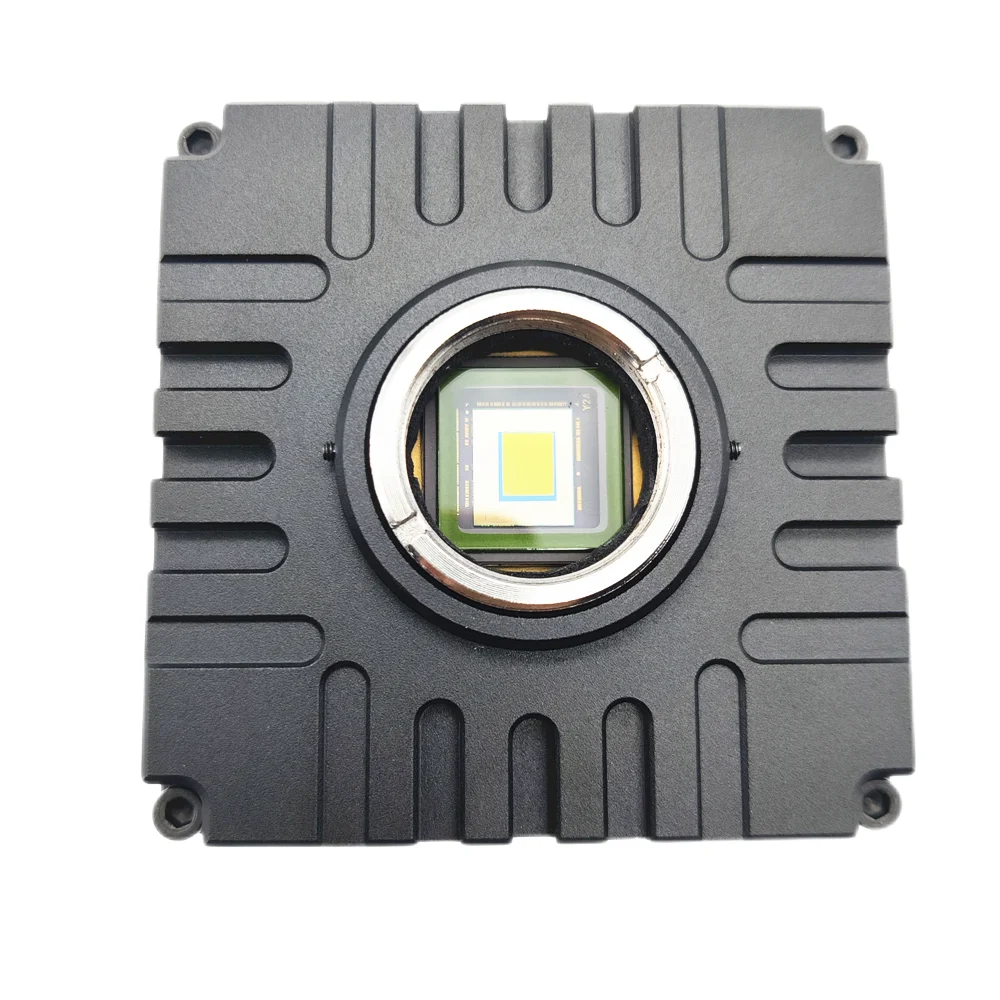

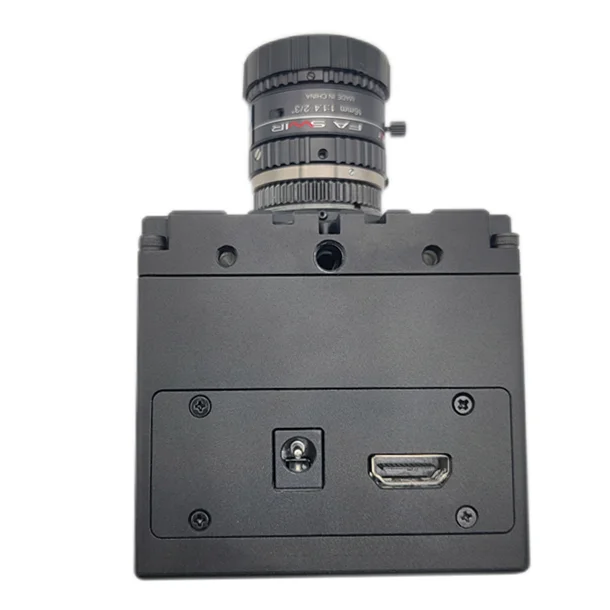

Project 3#
IMX990 Camera Kit-MIPI interface
(without lens)
Size 75*75*75mm (± 0.3mm)
Specification
Product Name | SWIR Camera IMX990 Short Wavelength Infrared Traffic Monitoring Food Inspection Sorting Camera Module Night Vision Cameras | |
We mainly do OEM, support different customized solutions in operation and kit | ||
Part # | BSGD-SWIR990-HDMI-V1.0 | |
Sensor type | Sony SenSWIR IMX990 | |
Chroma | Mono | |
Sensor size | 8.2 mm (Type 1/2″) Image Sensor Optical Format | |
Pixel Size | 5μm x 5μm | |
Resolution | 1280(H) x 1024(V) / 1.3M | |

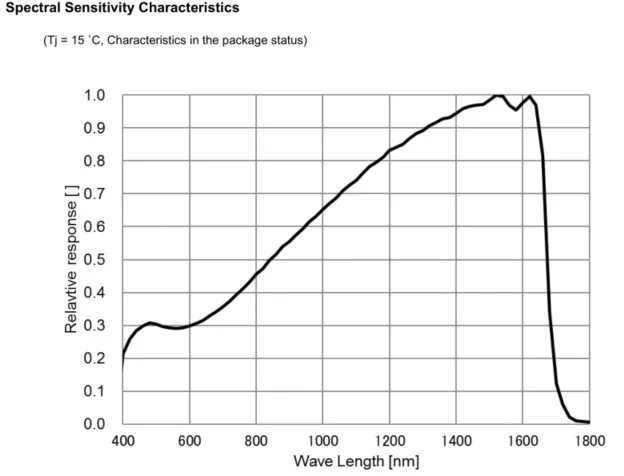

Sensitivity Range | Visible through SWIR spectral range :0.4μm ~ 1.7μm | |
Frame rate | 8-bit 134.73f/s; 10-bit 125.27f/s; 12-bit 71.53f/s. | |
Supply voltage | DC5V 1250mA Max | |
Operation temperature | 0℃--50℃ | |
Cooling | TEC1 | |
Feature | Night vision, imaging solution through fog and somk. | |
Product Description
Hardware parts:
* Imager Series: Sony SenSWIR IMX990
* SWIR spectral range [0.4μm to 1.7μm]
* Global Shutter
* 1/2″ Image Sensor Optical Format
* Pixel Size: 5μm x 5μm
* TE-cooled
* C-Mount compatible
* SWIR spectral range [0.4μm to 1.7μm]
* Global Shutter
* 1/2″ Image Sensor Optical Format
* Pixel Size: 5μm x 5μm
* TE-cooled
* C-Mount compatible
* Global Shutter
* Compatible with ½” C-mount Optics
* 1.3M,1280 x 1024
* 8-bit 134.73f/s; 10-bit 125.27f/s; 12-bit 71.53f/s.
* Compatible with ½” C-mount Optics
* 1.3M,1280 x 1024
* 8-bit 134.73f/s; 10-bit 125.27f/s; 12-bit 71.53f/s.
Swir Camera Advantages
IMX990 Industrial Camera Suggested Applications：
* EL and PL inspection of Photovoltaic Cells
* NIR and SWIR fluorescence
* Airborne Environmental & Agriculture Inspection
* Anti-counterfeit measures
* Detection of Incipient Spoilage in Produce
* VIS/SWIR Spectroscopy & Multispectral Imaging
* Thermal Imaging (from 250°C to 800°C)
* Laser Beam Alignment
* EL and PL inspection of Photovoltaic Cells
* NIR and SWIR fluorescence
* Airborne Environmental & Agriculture Inspection
* Anti-counterfeit measures
* Detection of Incipient Spoilage in Produce
* VIS/SWIR Spectroscopy & Multispectral Imaging
* Thermal Imaging (from 250°C to 800°C)
* Laser Beam Alignment
* Inspection of semiconductors
* Materials Sciences and Physical Sciences
* Inspection, Metrology and Quality Control
* Inspection and Sorting of Food
* Inspection, Metrology and Quality Control
* Inspection and Sorting of Food
* Fire monitoring

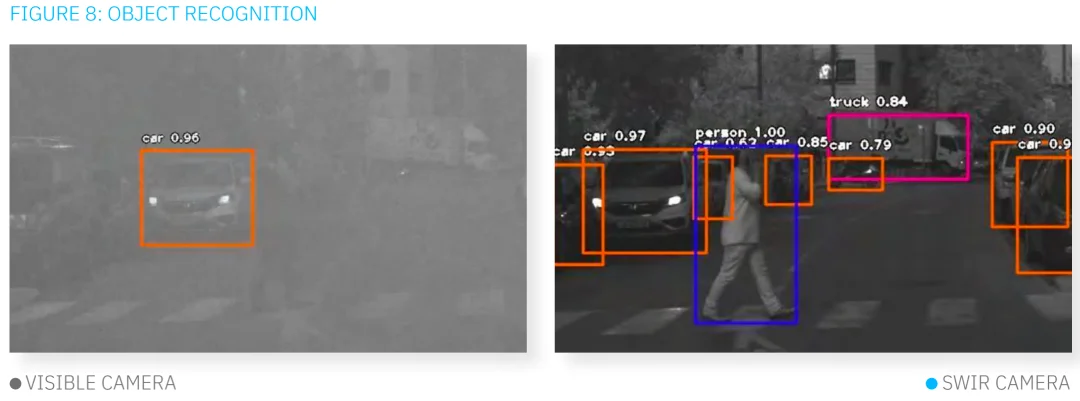

* Traffic monitoring
* Traffic monitoring
Detailed Images

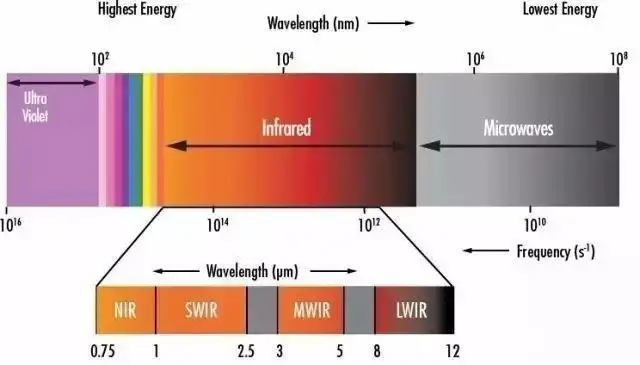

The IMX990 is capable of capturing images in the visible and invisible light spectrum in the short-wavelength infrared range. The compact 1/2″ optical format of this 1.3MPix imager is made possible by its 5μm pixel size, as compared to most SWIR imagers that have much larger pixels.
These image sensors operate in Global Shutter mode, which means that all pixels begin and end exposure simultaneously. This is particularly useful in imaging conditions in which the field of view changes rapidly, either due to fast motion or due to rapid changes in light intensity.
Company Profile
Shenzhen Baisiyun Photoelectric Technology Co., Ltd. an expert in the field of video imaging and machine vision, and has more than ten years of technical accumulation and
precipitation in the relevant industries, with advanced and excellent expertise in both software and hardware.
The products are widely used in security surveillance, face recognition, vehicle, sports DV, video conferencing, industrial cameras, machine vision, TOF, SWIR camera, intelligent transportation, aerial cameras, biological cameras, medical/industrial endoscopes, hi-fi cameras, and other artificial intelligence fields.
Packing & Delivery
FAQ
Can SWIR see through glass?
SWIR light passes through glass, as demonstrated by the business card behind the wine glass. Sensors Unlimited SWIR cameras can be used for industrial inspection of glass manufacturing to detect defects and reduce scrap.
Can SWIR see in dark?
Our SWIR sensors are extremely sensitive, literally counting individual photons. Therefore, when built as sensor pixels, or focal plane arrays including thousands or millions of tiny point sensors, SWIR cameras can work in the darkest conditions.
Can SWIR see through fog?
Yes, as you can see the pictures through fog and haze in the examples. This is especially important in both port and harbor security scenarios where fog and haze are a regular occurrence.
What is your MOQ?
1pc is okay, but different quantities with different prices.
Can I OEM the camera module?
Yes, OEM camera modules &packing are supported. We have a professional and experienced R&D team
Are you a manufacturer?
Yes, we are a designer and manufacturer of camera modules with more than 15 years of experience.
