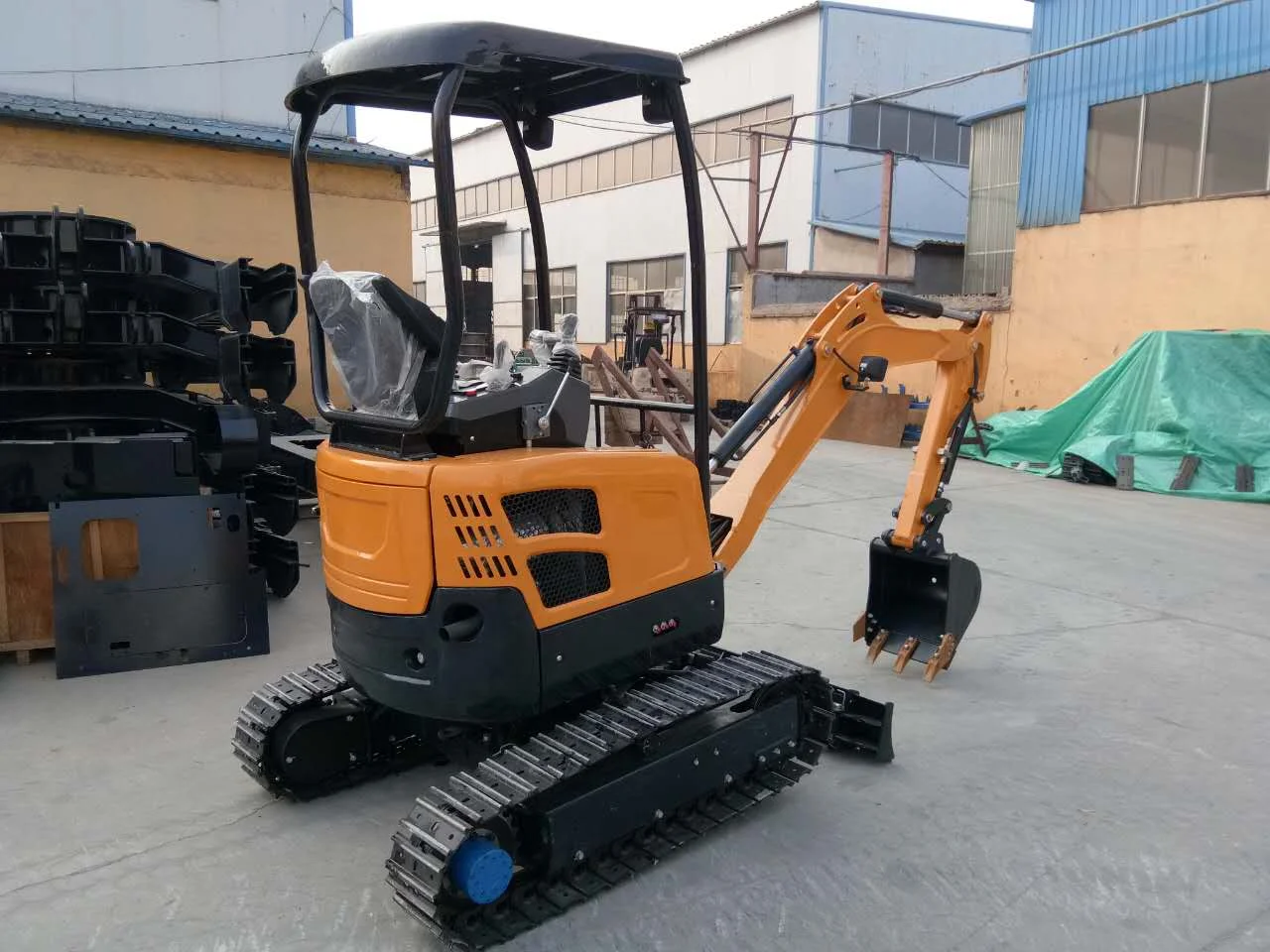

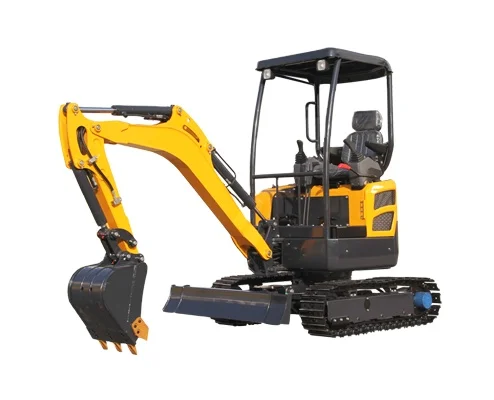

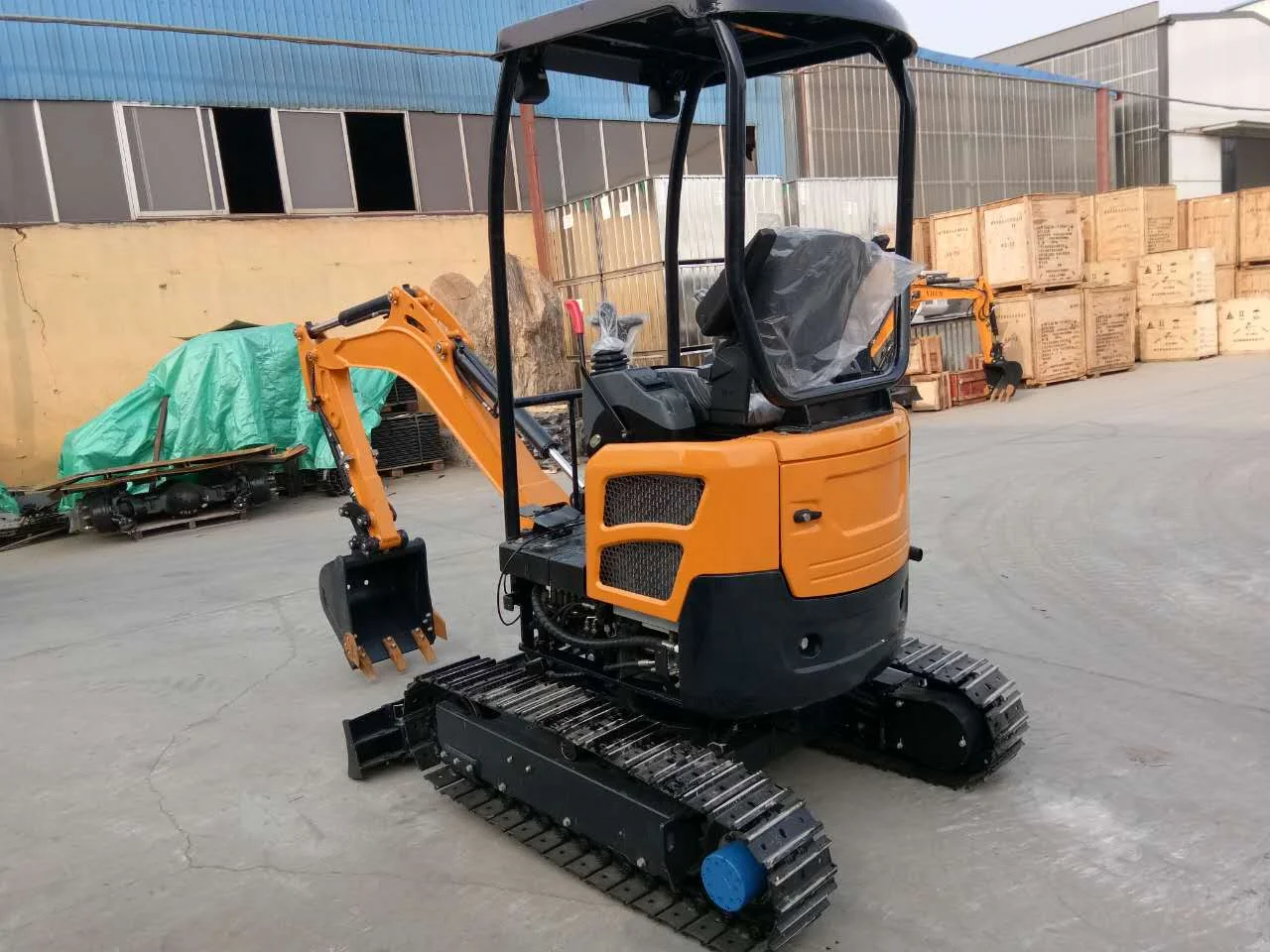

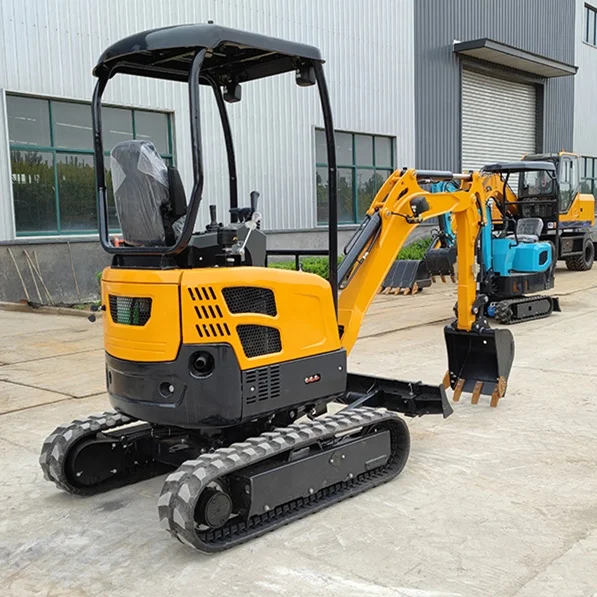

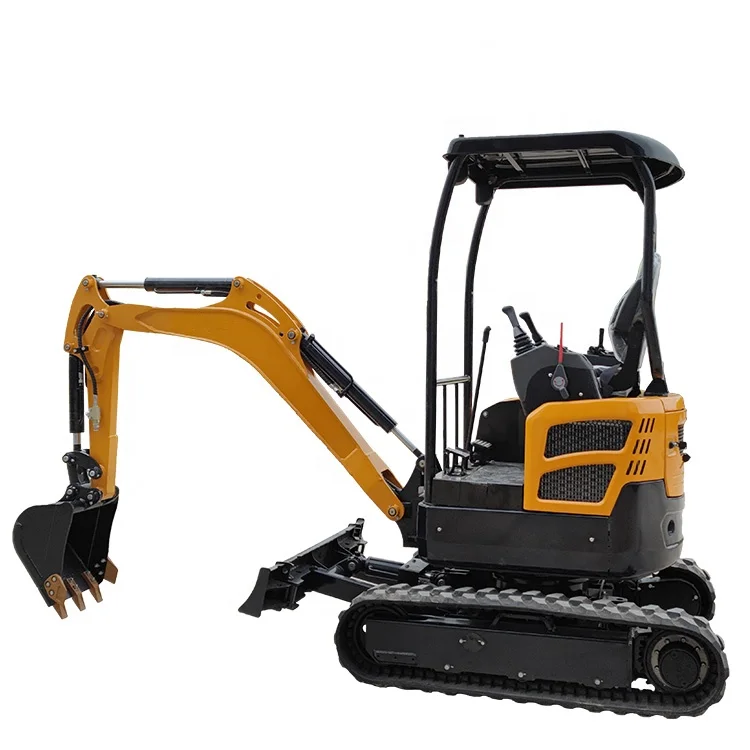

chinese excavator AZ20 2 ton China best quality and cheap price small size Mini crawler rubber track excavator for sale
- Category: >>>
- Supplier: Shandong Aizhou Tech Co. Ltd.
Share on (1600536890077):
Product Overview
Description
Product Description
Application
The mini excavator is suitable for various narrow working environments such as roads, buried pipelines, basic operations, gardens, small water conservancy, small-scale civil engineering, trenching, greenhouses, bridge construction, mine road construction, and other special requirements. Site work.
Generally, the self-weight is light, and the transportation is very convenient. No special trailers are needed. Ordinary vehicles can be pulled directly, and the use cost is greatly reduced. At the same time, due to the small size and the use of the deflection device, it is very conducive to the construction of narrow sites.
Advantage Points:
1, Use Yanmar engine, imported from Japan, more power, low fuel consumption;
2, Fully imported hydraulic system,
3, Telescopic lower frame, easy to in and out working side, track can back to 990mm when transportation, when working, can reach to 1240mm.
4, Swing boom, can be used in narrow area and working along the wall.
5, Variable dozer
1, Use Yanmar engine, imported from Japan, more power, low fuel consumption;
2, Fully imported hydraulic system,
3, Telescopic lower frame, easy to in and out working side, track can back to 990mm when transportation, when working, can reach to 1240mm.
4, Swing boom, can be used in narrow area and working along the wall.
5, Variable dozer

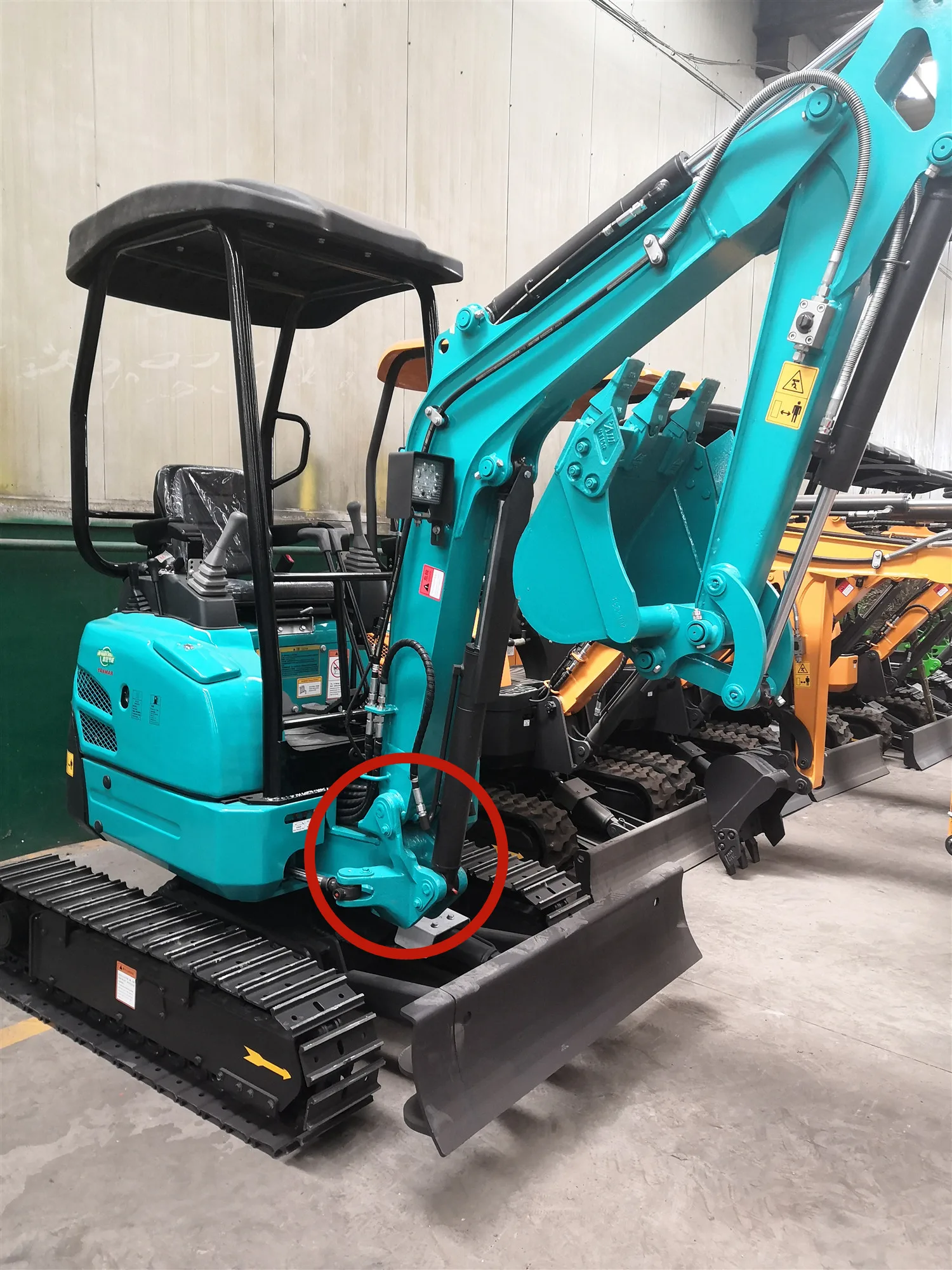

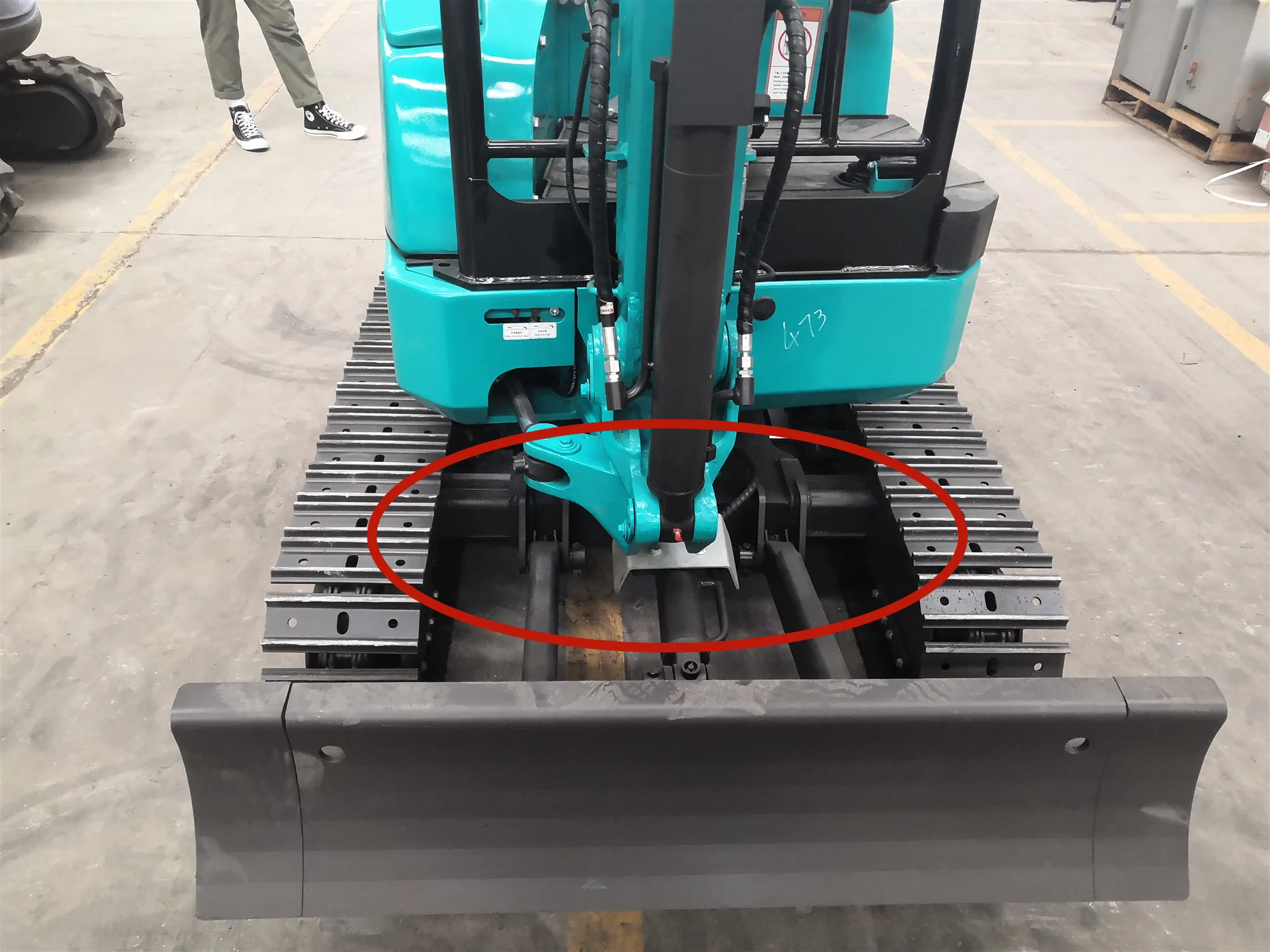

Swing Boom

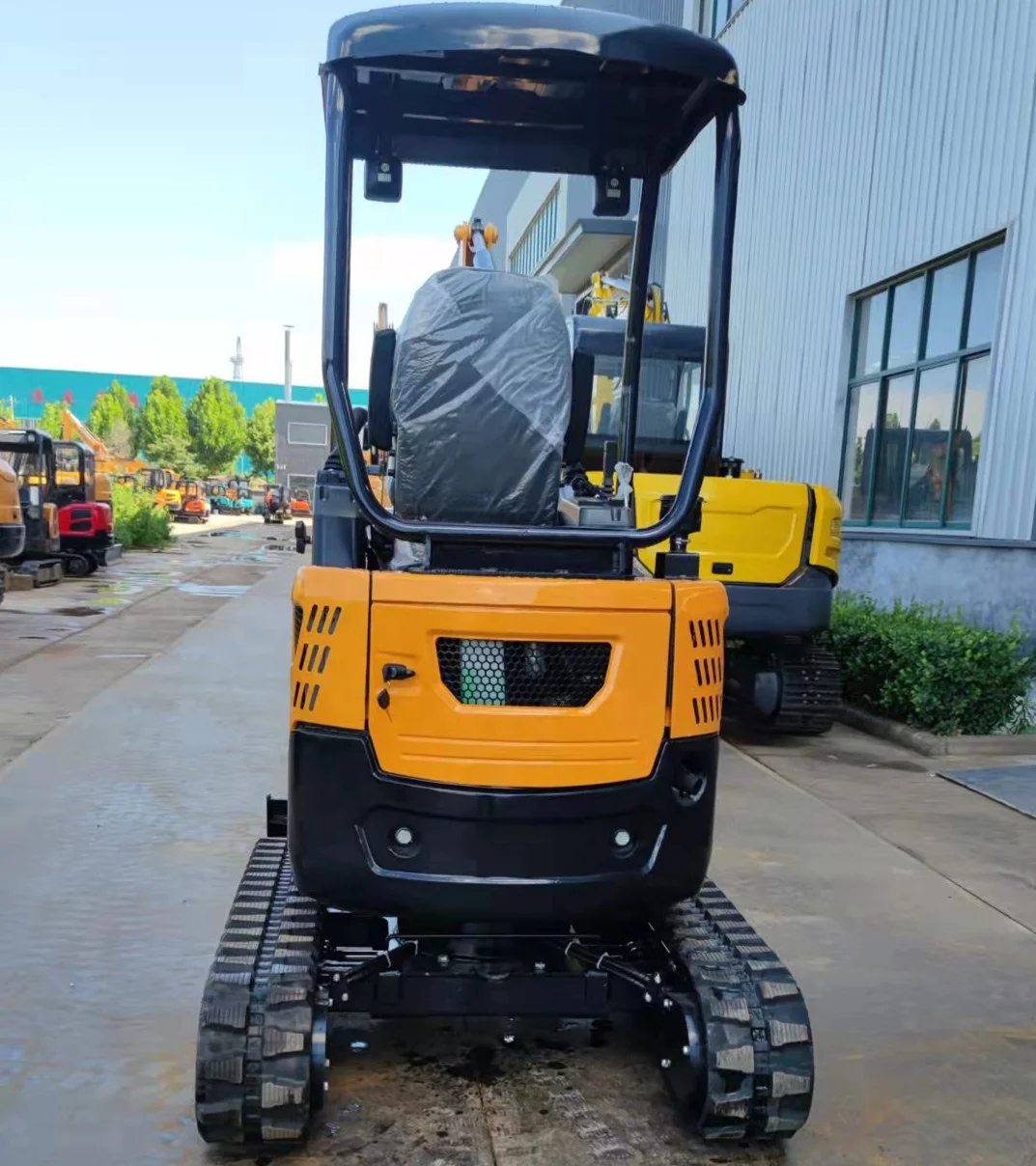

Telescopic track
Specification
Model | AZ20 | |
Manufacturer | SHANDONG AIZHOU TECH CO.,LTD | |
Brand | AZ | |
Operating Weight | 1880kg | |
Digging bucket capacity | 0.045cbm/500kg | |
Digging bucket width | 420mm, can add narrow bucket is 200mm | |
Engine | Yanmar (3TNV70) | |
Rated power | 10kw/2200/r/min | |
Displacement | 0.854L | |
Bore stroke | three cylinder, water cool | |
Main pump | Japanese Nachi | |
Pump flow | 2x17+14 L/Min | |
Hydraulic oil tank capacity | 15.3L | |
Engine oil tank capacity | 2.8(1.3)L | |
Diesel tank capacity | 19 L | |
Valve | Japanese KYB | |
Displacement | 6.8ml/r | |
Swing motor | Japanese Nachi | |
Traveling motor | DONGHYUAN | |
MAIN DEMENSIONS | ||
Overall dimension( LxWxH) | 3400 x (990-1240) x 2350mm | |
Total length of track on land | 1590mm | |
Platform ground clearance | 473 mm | |
Platform back turning radius | 740 mm | |
Chassis width | 990 mm(retract)/ 1240mm(extended) | |
Track width | 230 mm | |
Chassis ground clearance | 460 mm | |
Bucket digging force | 13.5Kn | |
Arm digging force | 10.1Kn | |
Theoretical Maximum traction | 17.5Kn | |
Ground specific pressure | 32.8KPA | |
Track height | 360 mm | |
Swing boom to left | 390 mm | |
Swing boom to right | 510 mm | |
OPERATING RANGE | ||
Max. Digging depth | 2150 mm | |
Max. Vertical digging depth | 1740 mm | |
Max. Digging height | 3275 mm | |
Max. Dumping height | 2310 mm | |
Max. Digging radius on ground | 3610 mm | |
Min. Rotation radius | 1580 mm | |
Max. Upgrade height of bulldozer blade | 275 mm | |
Max. Digging depth of bulldozer blade | 180 mm | |
Products Packaging & Delivery
Company Profile
Related Products
FAQ
1. What kind of payment terms can be accepted?
A: Normally we can worked on T/T
2. Which incoterms terms can we work?
A: Normally we can worked on FOB (QINGDAO), CFR, CIF
3. What about the delivery time?
A: Within 7-10 days after receiving the deposit
4. What about the warranty time?
A: 1 year or 2000 hours. We shoulder all costs during the warranty period, include the freight.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 unit.
A: Normally we can worked on T/T
2. Which incoterms terms can we work?
A: Normally we can worked on FOB (QINGDAO), CFR, CIF
3. What about the delivery time?
A: Within 7-10 days after receiving the deposit
4. What about the warranty time?
A: 1 year or 2000 hours. We shoulder all costs during the warranty period, include the freight.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 unit.
