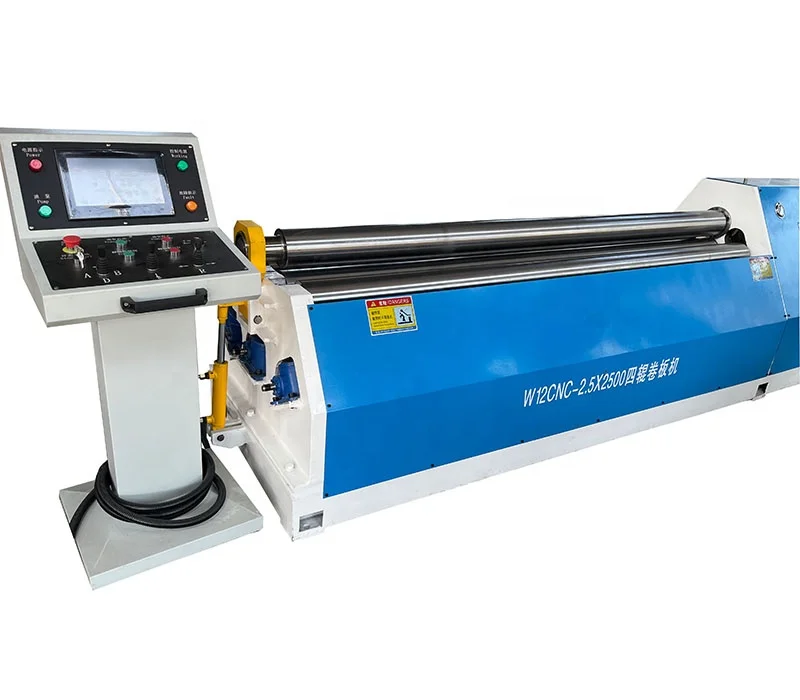

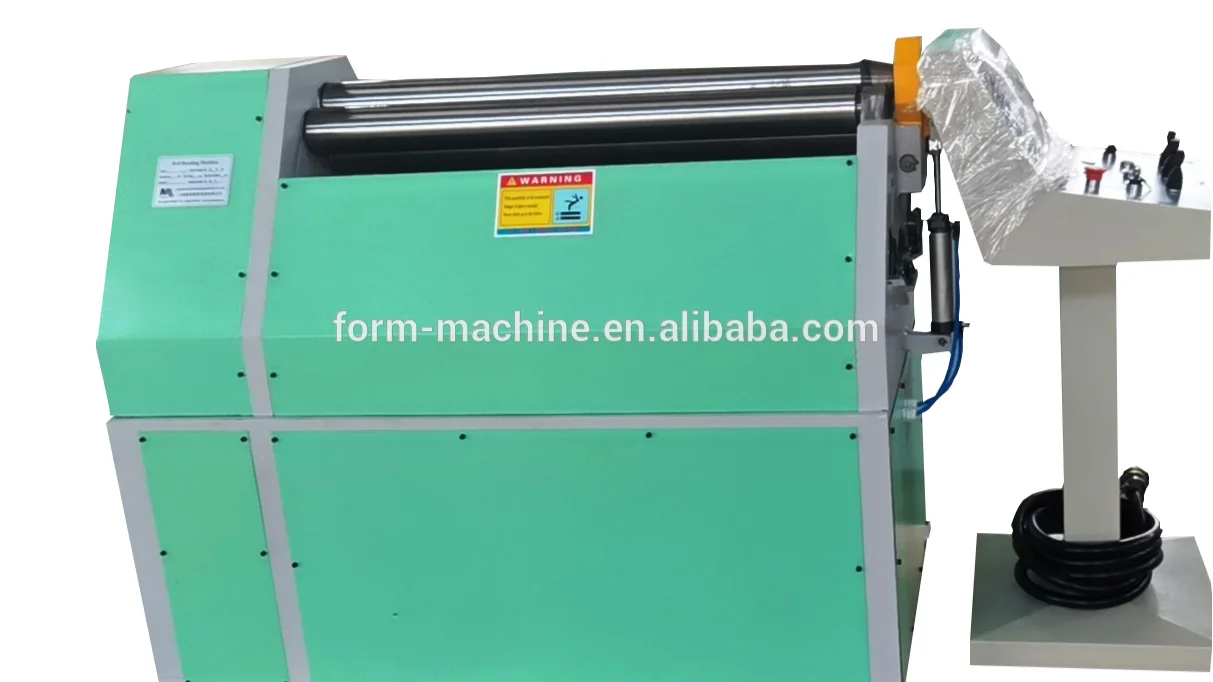

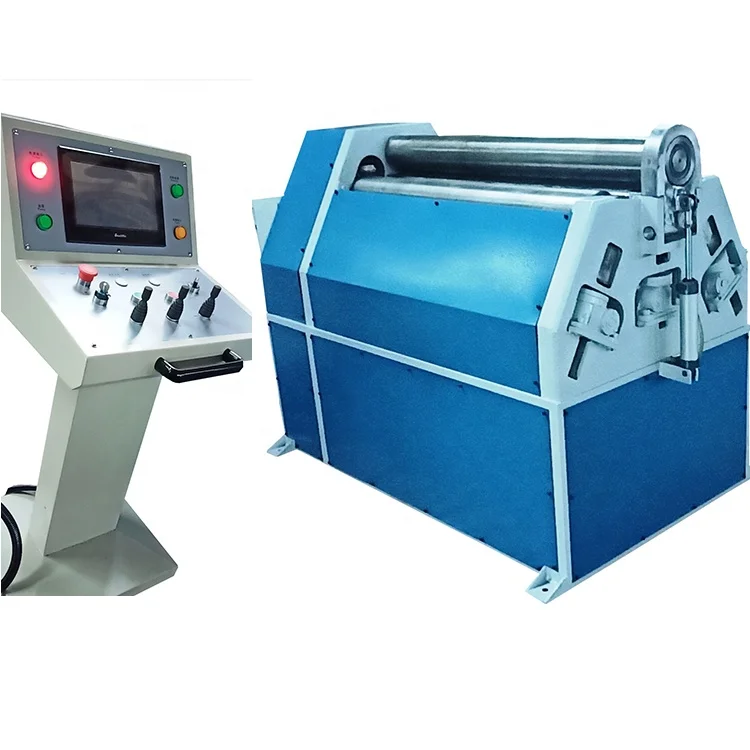

CNC controlled automatic metal mini bending 4 roll bending machine and sheet rolling machine for light gauge
- Category: >>>
- Supplier: Metform (Shanghai) Machinery Co. Ltd.
Share on (1600536917628):
Product Overview
Description
Products Description

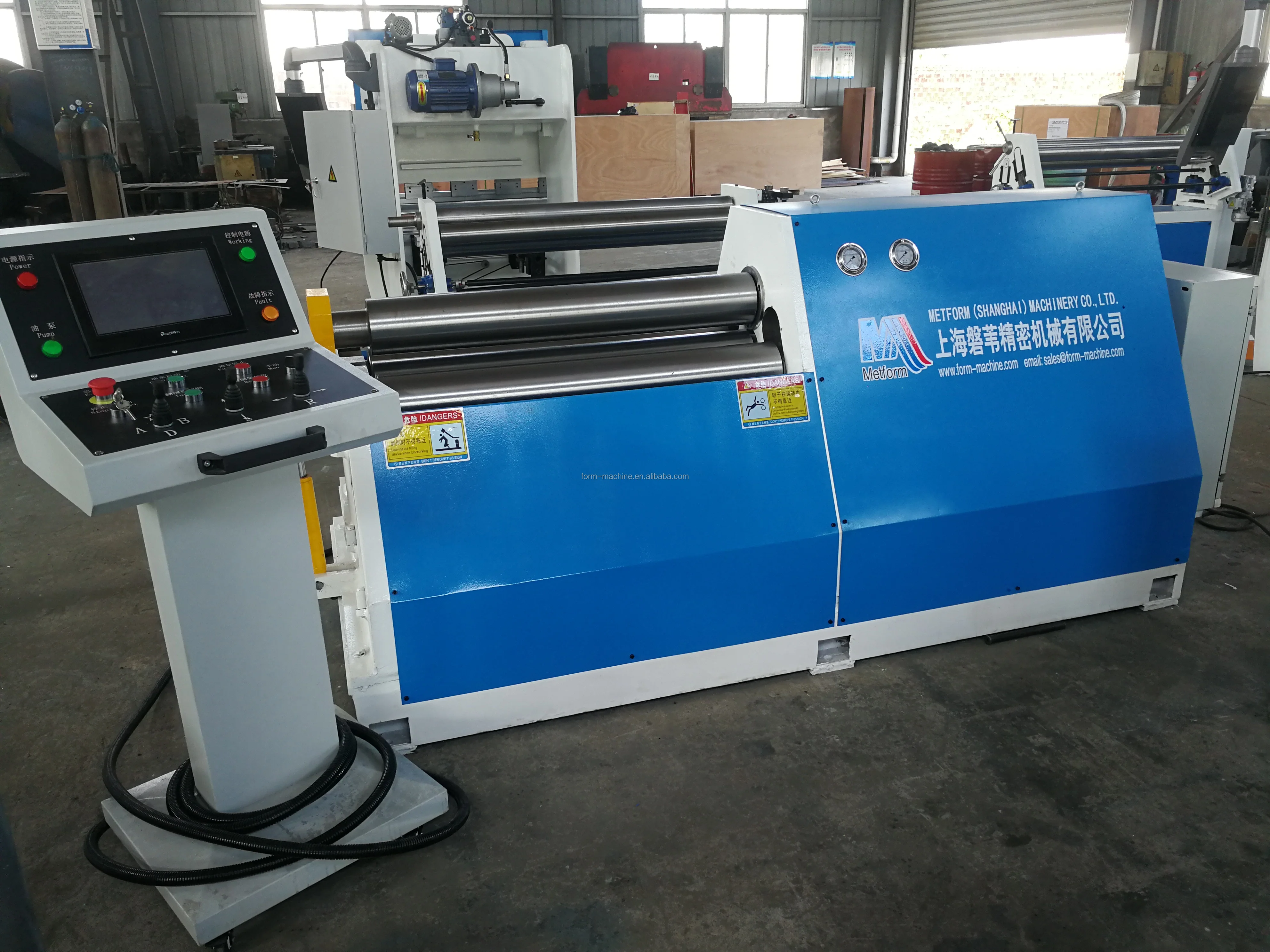

CNC 4 roller metal plate rolling machine, CNC automatic 4-roll bending machine

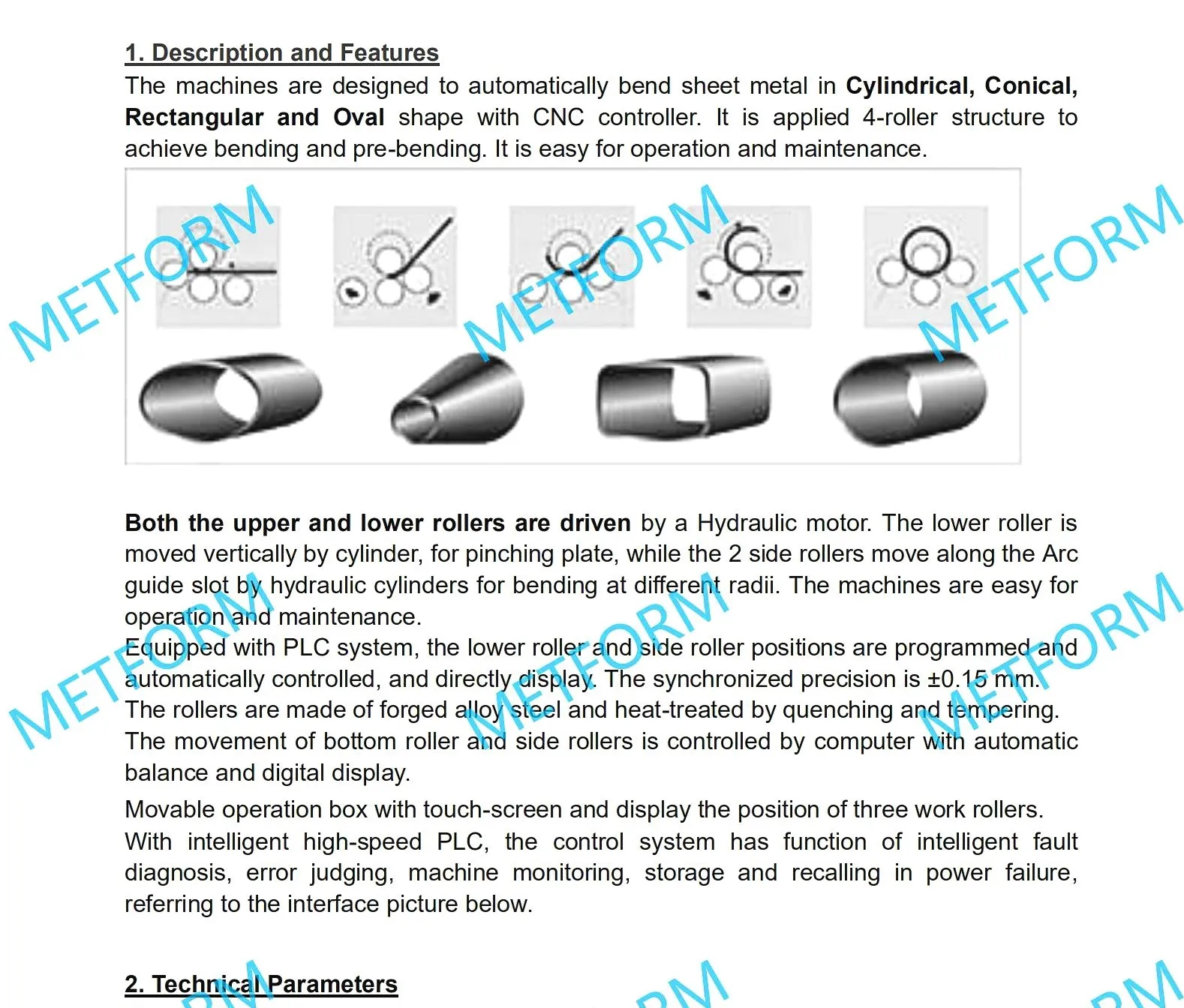

The 4 roller bending W12Q type machines are designed to bend light gauge sheet metal with NC controller. They are economic and
apply 4-roller structure to achieve bending and prebending. It is special and economic solution for roling light gauge sheet with
high precision and high effnciency.
The machines are easy for operation and maintenance. The upper roller is driven by a motor with planet-gear speed reducer system.
The lower roller is moved vertically by motor driven screw jacks, for pinching plate, while the 2 side rollers move along the
guide rail by motor driven screw jacks too. Steel Welded mechanical structure, annealed. One whole base has good rigidity and
makes installation easy. Pneumatic Drop-end, tilting of the Stand in non-driven is pulled by pneumatic cylinder for taking out
work piece (inished cylinder).
apply 4-roller structure to achieve bending and prebending. It is special and economic solution for roling light gauge sheet with
high precision and high effnciency.
The machines are easy for operation and maintenance. The upper roller is driven by a motor with planet-gear speed reducer system.
The lower roller is moved vertically by motor driven screw jacks, for pinching plate, while the 2 side rollers move along the
guide rail by motor driven screw jacks too. Steel Welded mechanical structure, annealed. One whole base has good rigidity and
makes installation easy. Pneumatic Drop-end, tilting of the Stand in non-driven is pulled by pneumatic cylinder for taking out
work piece (inished cylinder).
Remark: The price on the web is only reference and subject to confirmation since it may vary with changes of material cost and USD exchange rate in the future when the message viewed
Bending Capacity:
Max. rolling Thickness 2.5 mm mild steel, 1.5 mm Stainless Steel Sheet
Pre-bending thickness at end 2 mm
Max. Width: 2500 mm
Rolls are made of high strength alloy steel 42CrMo4(SCM420)， forged, surface hardened and preciously grinded, HRC52-55
Upper Roll Diameter: φ140 mm
Lower Roll Diameter: φ140 mm
Side roll diameter: φ140mm
Barrel Length 2500mm
Min. bending Dia. with max. gauge: φ190 mm (full length 2500 mm)
main motor power: 4 kw+0.55kw
Rolling speed: 3-5 m/min(Fast/Slow speed switching)
lower roll, Side roll adjusting motor: 0.55x3 kw
Dimension: 4000x1100x1250 mm
Weight: 3200 kg
Max. rolling Thickness 2.5 mm mild steel, 1.5 mm Stainless Steel Sheet
Pre-bending thickness at end 2 mm
Max. Width: 2500 mm
Rolls are made of high strength alloy steel 42CrMo4(SCM420)， forged, surface hardened and preciously grinded, HRC52-55
Upper Roll Diameter: φ140 mm
Lower Roll Diameter: φ140 mm
Side roll diameter: φ140mm
Barrel Length 2500mm
Min. bending Dia. with max. gauge: φ190 mm (full length 2500 mm)
main motor power: 4 kw+0.55kw
Rolling speed: 3-5 m/min(Fast/Slow speed switching)
lower roll, Side roll adjusting motor: 0.55x3 kw
Dimension: 4000x1100x1250 mm
Weight: 3200 kg

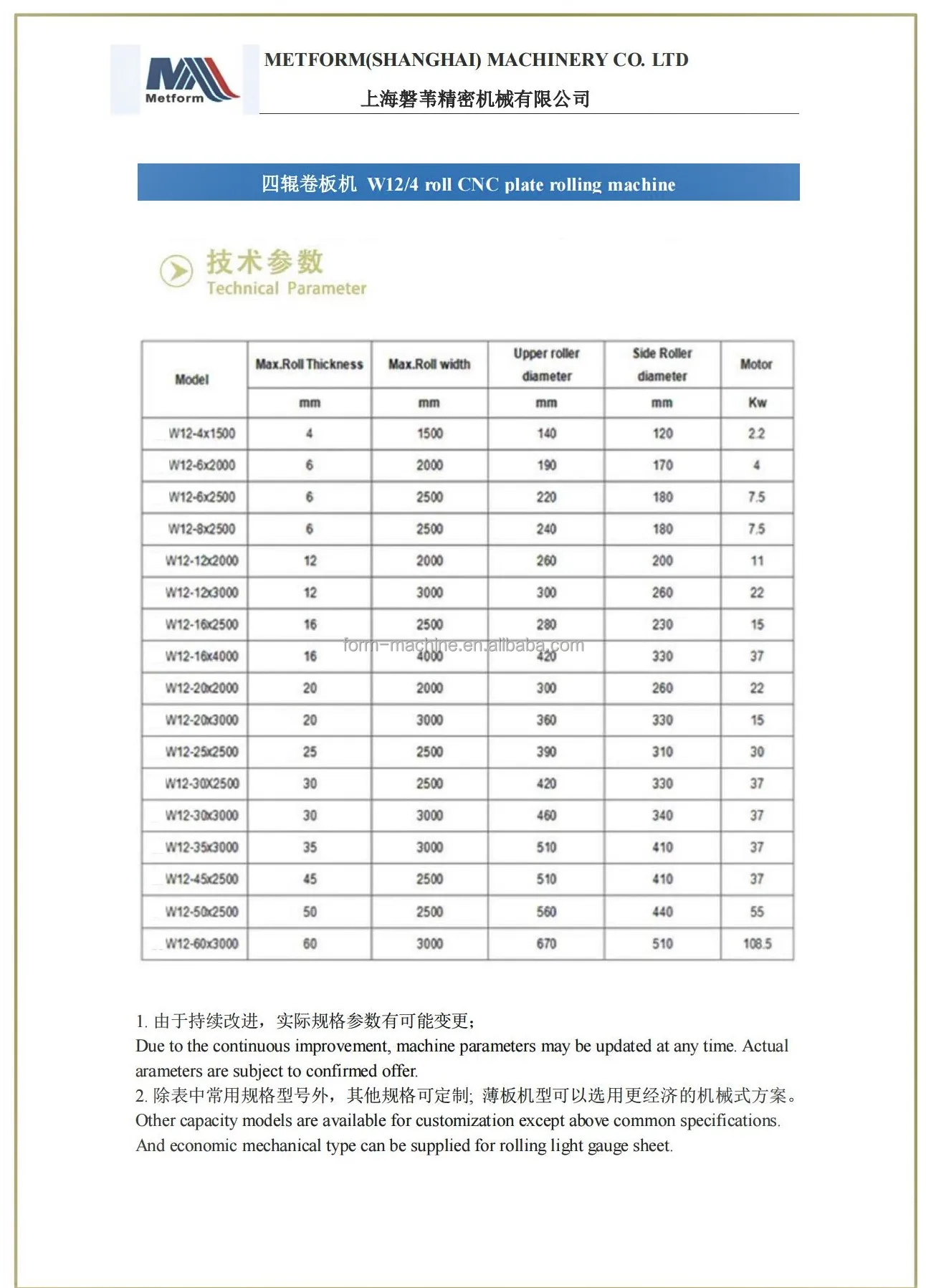

Max. rolling thickness when full loaded | Common Mild Steel | ≤2.5MM | |||
SS304/316L | ≤1.5MM | ||||
Max. pre-bending thickness when full loaded | Common Mild Steel | ≤2.5MM | |||
SS304/316L | ≤2MM | ||||
Max. rolling width(Cylinder Length) | 2500MM | ||||
Min. roll diameter when max. specification | 190MM | ||||
yield limit S245 | 245 MPA | ||||
yield limit S355/AISI304 | 345Mpa | ||||
Upper roller diameter | 140MM | ||||
lower roller diameter | 140MM | ||||
lower roller speed | 4.5 M/MIN | ||||
Side roller diameter | 140MM | ||||
Side roller speed | 4.5M/MIN | ||||
Working roller | Material | 42CRMO | |||
Hardness | HB240-286 | ||||
Rolling speed | 4.5M/MIN | ||||
Main motor power | 4KW | ||||
Cone accessory | NO standard | ||||
Company Profile

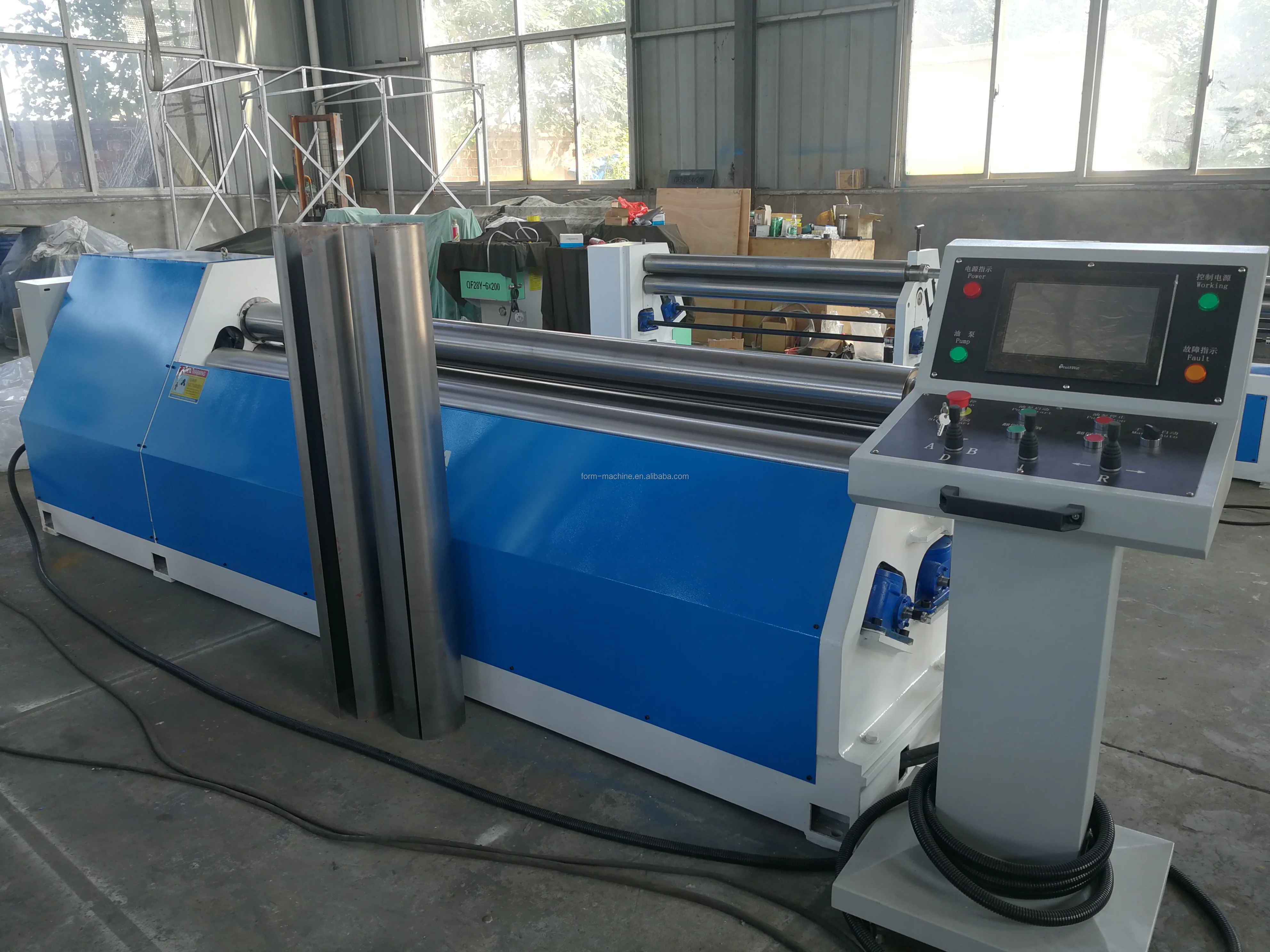

Customer Photos
Product packaging
FAQ
Q:How to get a accurate quotation from us?
A:provide us the detail of the material such as metal thickness and width
Q:what’s the shipping cost from China to your country?
A:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery.
Q: How to check imported charges or tax ?
A:Call your Customer.tell them machine HS code.
Spiral duct forming machine is 8455229090
Press brake and rolling machines are 84622990. shearing machine is 84623990.rolling machine is 8455229090,seam welding machine is 85152900
Q:Payment terms,MOQ,warranty,FOB...
A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery
minimum order quantity:1 set,FOB Shanghai.
delivery time :20days after receipt of formal order and 30% deposit.
warranty:12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc .You can contact us any time,if urgently,please call us.
Q: what’s the package?
A:fumigation-free plywood case or without package
Q:How to operate this machine ?
A:video link of our factory .......or we send you the movie directly
Q:what about commissioning service ?
A:we can offer commissioning service,the buyer need to afford plane tickets
Q:Do you offer teaching&training ?
A:Training at supplier’s plant
Q: what’s policy for guarantee and broken parts?
A:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.post-tension corrugated duct tube making machine for bride
A:provide us the detail of the material such as metal thickness and width
Q:what’s the shipping cost from China to your country?
A:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery.
Q: How to check imported charges or tax ?
A:Call your Customer.tell them machine HS code.
Spiral duct forming machine is 8455229090
Press brake and rolling machines are 84622990. shearing machine is 84623990.rolling machine is 8455229090,seam welding machine is 85152900
Q:Payment terms,MOQ,warranty,FOB...
A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery
minimum order quantity:1 set,FOB Shanghai.
delivery time :20days after receipt of formal order and 30% deposit.
warranty:12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc .You can contact us any time,if urgently,please call us.
Q: what’s the package?
A:fumigation-free plywood case or without package
Q:How to operate this machine ?
A:video link of our factory .......or we send you the movie directly
Q:what about commissioning service ?
A:we can offer commissioning service,the buyer need to afford plane tickets
Q:Do you offer teaching&training ?
A:Training at supplier’s plant
Q: what’s policy for guarantee and broken parts?
A:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.post-tension corrugated duct tube making machine for bride
