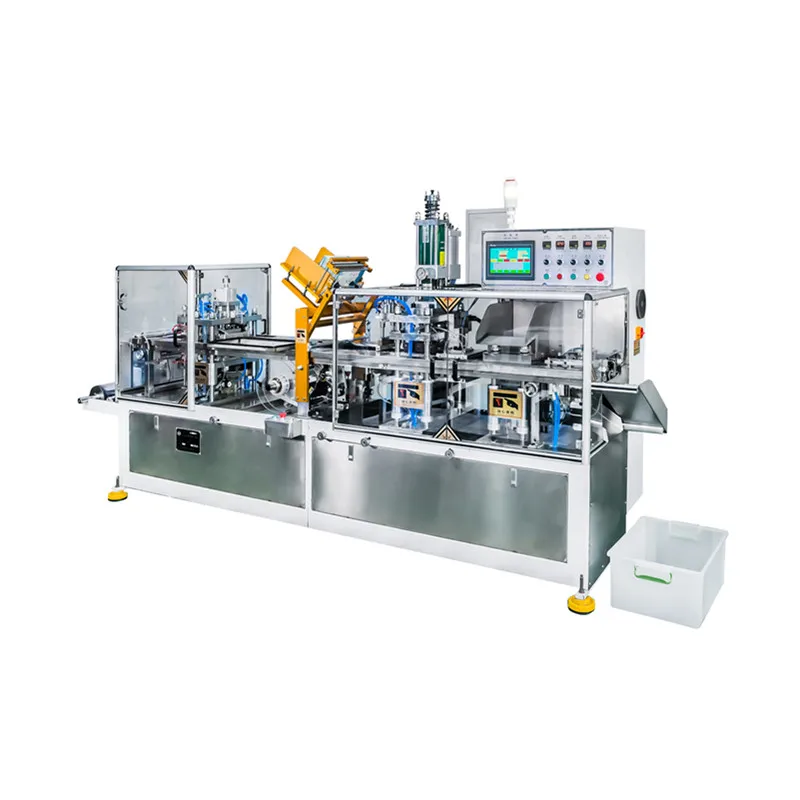

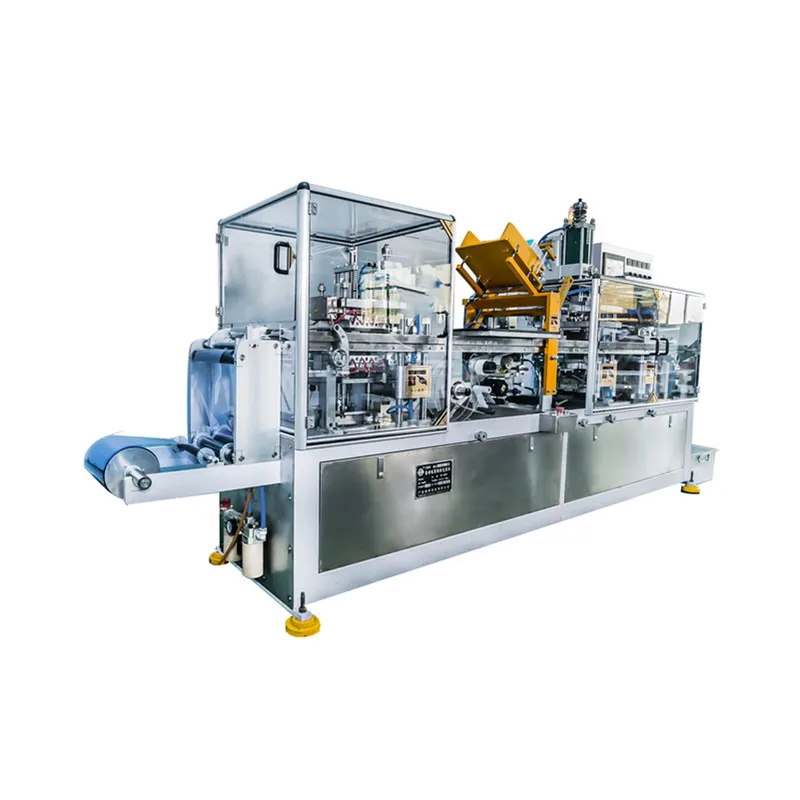

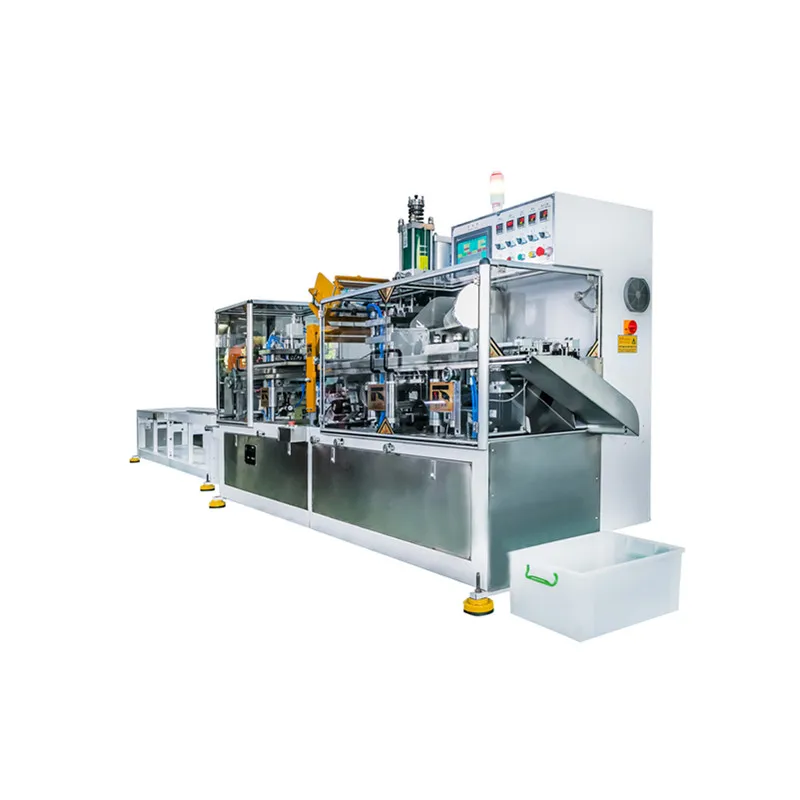

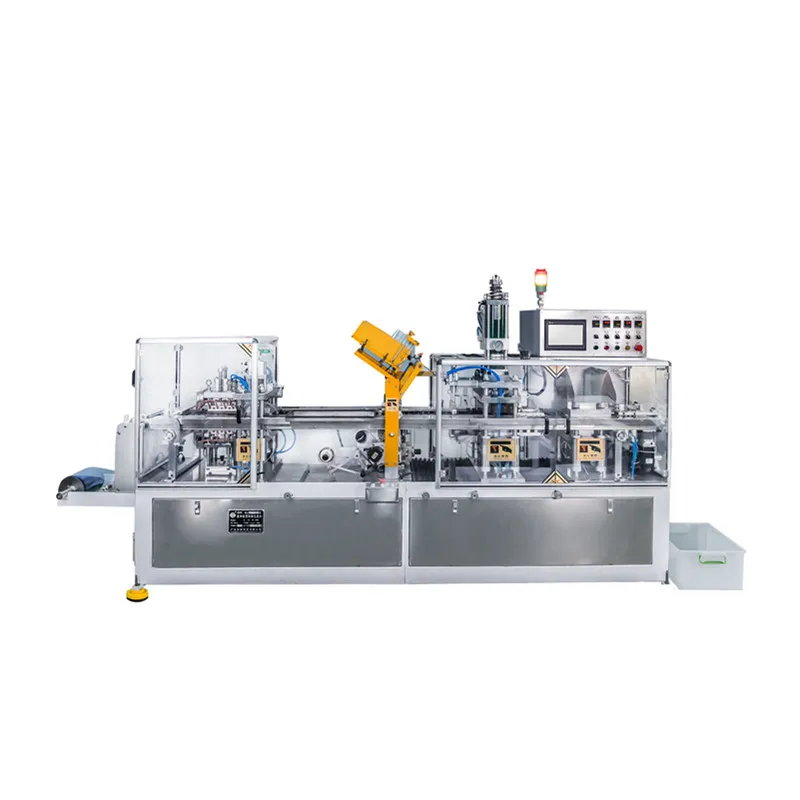

Chuangyan Blister Labeling and Packaging Machine Auto Toothbrush Production Line Brush Machine
- Category: >>>
- Supplier: Guangdong Chuangyan Technology Co. Ltd.
Share on (1600536934683):
Product Overview
Description
Product Description
SPECIFICATIONS | ||||||
Model | BZJ-B3 | Capacity | 3000 pcs/hour | |||
Pressure | 0.5-0.7 MPa | Mould specification | 3 pieces in one mould | |||
Power | Three-phase four-wire 380V50Hz 5Kw | Packing Material Thickness (PVC/PET) | 0.15-0.5 mm | |||
Air consumption | ≥0.15 m2/min | Max Molding Area | 250*180 mm | |||
Pressure | 0.65 MPa | Max Forming Depth | 40 mm | |||
Punching Frequency | 15-20 pcs/min | Max Label Length | 80 mm | |||
Size | 4000*1250*2050 mm | Weight | 2500 Kg | |||
CAPACITY TABLE | ||||||||||||||||
Quantity in 1 package | Mould Specification | Package Width | Work Time (hour) / Capacity (pieces) | |||||||||||||
13 | 14 | 15 | 16 | 17 | 18 | |||||||||||
1 pcs | 4 pcs in one mould | within 42 mm | 37000 | 40000 | 43000 | 46000 | 48000 | 51000 | ||||||||
1-2 pcs | 3 pcs in one mould | 50-57 mm | 28000 | 30000 | 32000 | 34000 | 36000 | 38000 | ||||||||
2-5 pcs | 4 pcs in one mould | 58-85 mm | 18000 | 20000 | 22000 | 24000 | 26000 | 28000 | ||||||||
6-10 pcs | 4 pcs in one mould | 86-150 mm | 9000 | 10000 | 11000 | 12000 | 13000 | 14000 | ||||||||
Detailed Images
1 Spindle Part
Principle:
Using servo double cam linkage spindle.
Features:
(1) High precision synchronized positioning of dies.
(2) High torque (maximum torque: 40000 kgm)
(3) High stability, low wear and noise.
2 Film-drawing Part
Principle:
Using servo drive chain clamp film.
Features:
The film is positioned with a smooth tolerance of ±0.2mm, large adjustable stroke and filming without pasted.
3 Blister Part
Principle:
Using pneumatic slider position
Features:
Precise blister positioning depth, compact structure, low air consumption and easy mold replacement.
4 Heat-sealed Part
Principle:
Using heat sealed and adjustable liquid pressurized cylinder
Features:
Good heat-sealing paste effect, good flatness, high efficiency, strong adjustability of paper card thickness.
5 Punching part
Principle:
Using double cam with soft cutting and punching.
Features:
Low cost of punching die, easy replacement, small blanking force and low noise.
6 Paper Feeding Part
Principle:
Using special scanning prospecting type.
Features:
(1) High resolution of front and back of the paper card, not cause heat-sealing sticky on the die.
(2) Multi-layer paper card detachable function.
7 Labeling part
Principle:
Using servo drive reverse labeling.
Features:
High smooth accuracy of label positioning, strong adjust ability of three-axis and simple operation of exchanging the label.
8 Trimming and discharging part
Principle:
Using automatic layout of trimming material.
Features:
(1) Simple operation, small space, high production efficiency, low downtime rate, strong adjustability and no manual material removal.
(2) Foundation of matching equipment for automatic plug-in card.
9 Vacuum, Steam and Oil Circuit Parts
Principle:
Using automatic layout of trimming material.
Features:
(1) Simple operation, small space, high production efficiency, low downtime rate, strong adjustability and no manual material removal.
(2) Foundation of matching equipment for automatic plug-in card.
Our Company
Certifications
Packing & Delivery
Package | ||
Size | 4000*1200*2050 (mm) | |
Weight | 2100 Kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request. | |
Our Service
Pre-Sales Service
* View our factory.
* Inquiry and consulting support.
* Provide advice based on buyer funds budget.
* Toothbrush whole production line support.
* Introduction raw material suppliers
After-Sales Service
* Training how to install and operate the machine.
* Engineers available to service machinery overseas.
* 1 year non-human damage warranty on spare parts.
FAQ
1. Q: Are you a factory or trade company?
A: We are a factory of toothbrush machinery manufacturer.
2. Q: Where is your factory located in? How can I visit there?
A: Our factory is located in Shantou City, Guangdong Province, China. Warmly welcome to your visit!
Airport: Jieyang Airport
High speed train: Chaoyang Station / Puning Station (2-3 hours from Shenzhen/ HongKong /Guangzhou)
3. Q: What is your terms of payment?
A: 30% deposit first, and 70% balance before shipment.
We'll show you the photos of the products and packages before you pay the balance.
4. Q: How long is the delivery time?
A: 30-40 days for tufting machine and trimming machine.
45-50 days for blister labeling packaging machine.
5. Q: What is the advantage of your products?
A: High-tech, competitive price, superior after-sale service and whole production line of machinery and raw materials.
A: We are a factory of toothbrush machinery manufacturer.
2. Q: Where is your factory located in? How can I visit there?
A: Our factory is located in Shantou City, Guangdong Province, China. Warmly welcome to your visit!
Airport: Jieyang Airport
High speed train: Chaoyang Station / Puning Station (2-3 hours from Shenzhen/ HongKong /Guangzhou)
3. Q: What is your terms of payment?
A: 30% deposit first, and 70% balance before shipment.
We'll show you the photos of the products and packages before you pay the balance.
4. Q: How long is the delivery time?
A: 30-40 days for tufting machine and trimming machine.
45-50 days for blister labeling packaging machine.
5. Q: What is the advantage of your products?
A: High-tech, competitive price, superior after-sale service and whole production line of machinery and raw materials.
